1. General information
Read this document before you install the
product. Installation and operation must
comply with local regulations and accepted
codes of good practice.
1.1 Hazard statements
The symbols and hazard statements below may
appear in Grundfos installation and operating
instructions, safety instructions and service
instructions.
DANGER
Indicates a hazardous situation which, if
not avoided, will result in death or serious
personal injury.
WARNING
Indicates a hazardous situation which, if
not avoided, could result in death or
serious personal injury.
CAUTION
Indicates a hazardous situation which, if
not avoided, could result in minor or
moderate personal injury.
The hazard statements are structured in the following
way:
SIGNAL WORD
Description of the hazard
Consequence of ignoring the warning
• Action to avoid the hazard.
1.2 Notes
The symbols and notes below may appear in
Grundfos installation and operating instructions,
safety instructions and service instructions.
Observe these instructions for explosion-
proof products.
A blue or grey circle with a white graphical
symbol indicates that an action must be
taken.
A red or grey circle with a diagonal bar,
possibly with a black graphical symbol,
indicates that an action must not be taken
or must be stopped.
If these instructions are not observed, it
may result in malfunction or damage to the
equipment.
Tips and advice that make the work easier.
4
English (GB)

2. Installing the product
DANGER
Electric shock
Death or serious personal injury
‐Before starting any work on the
product, make sure that the power
supply has been switched off and that
it cannot be accidentally switched on.
‐Use the recommended fuse size.
‐Check that the supply voltage
corresponds to the values stated on
the nameplate.
‐The user or the installer is responsible
for correct earthing and protection
according to local regulations.
2.1 Mechanical installation
You can install CU 301 both indoors and outdoors.
The control unit must not be exposed to direct
sunlight.
2.1.1 Mounting CU 301
CU 301 is designed for wall mounting.

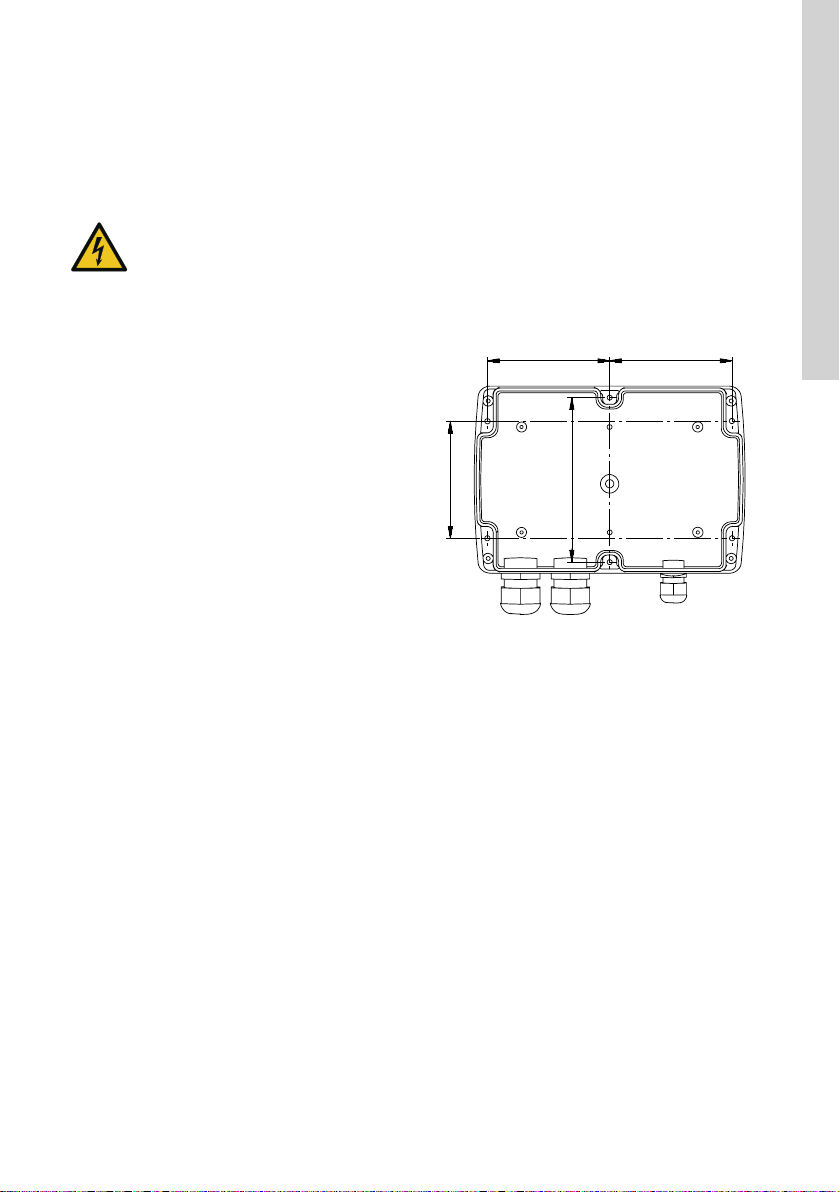

The box has six mounting holes (∅4). See fig.
Dimensions. The dimensions are in mm.
CU 301 must be mounted as follows:
• Horizontally to allow condensed water, if any, to
escape. See fig. Dimensions.
On a plane surface to avoid deformation of the box.
104.5
104.5
100
140.5
TM017864
Dimensions
CU 301 is supplied with special gaskets for the Pg
cable entries. The special gaskets are suitable for flat
cables and single-core cables.
5
English (GB)

2.2 Electrical connection
For recommended fuse sizes. See section
8. Technical data.
CU 301 has two terminal blocks:
• Screw terminals 1 to 4.
• Spring terminals 5 to 7.
Furthermore, CU 301 is equipped with two screw
terminals for the protective-earth conductors (PE).
The on/off button on CU 301 must not be used as a
safety switch when installing and servicing the pump.
POWER
PE
PUMP
PE
L
N
4
13
2
SENSOR
567
+24V IN GND
L
N
TM017720

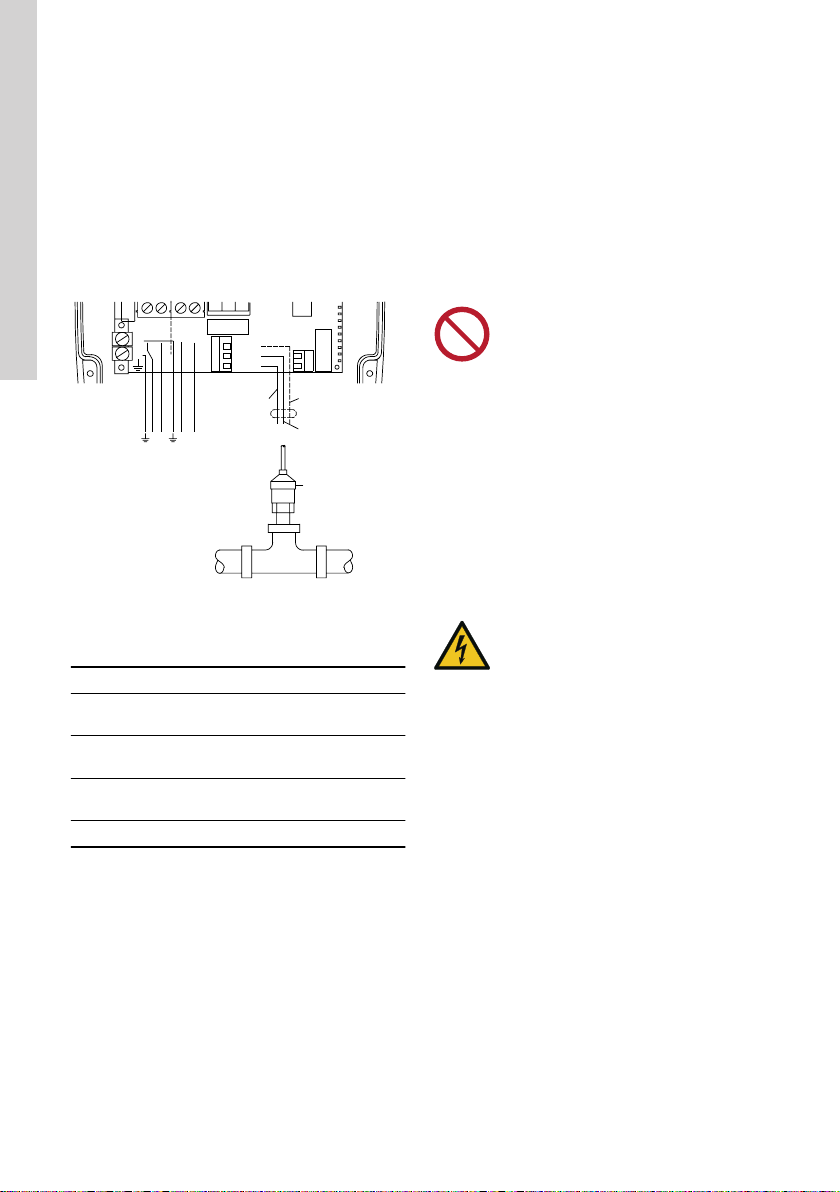

Electrical connection of CU 301
Legend
Pos. Description
1Standard pressure sensor. + 24 VDC,
brown conductor, terminal 5.
2Standard pressure sensor. Input signal,
black conductor, terminal 6.
3Standard pressure sensor. Screen,
terminal 7.
4 Standard pressure sensor.
Related information
8. Technical data
2.2.1 Mains supply
POWER, terminals 1, 2 and PE
Connect terminals 1 and 2 to the phase and neutral
conductors of the mains supply. Each terminal can be
connected to any of the two conductors.
Connect the PE terminal to the green and yellow
earth conductor. Each PE terminal must be
connected to an earth conductor of its own.
Maximum cross-section of the conductors to be
connected is 6 mm2.
Back-up fuse: Maximum 16 A.
The conductors of the mains supply must
not be connected to terminals 3 and 4
(PUMP).
2.2.2 Pump supply
PUMP, terminals 3, 4 and PE
Connect terminals 3 and 4 to the phase and neutral
conductor of the pump. Each terminal can be
connected to any of the two conductors.
Connect the PE terminal to the green and yellow
earth conductor. Each PE terminal must be
connected to an earth conductor of its own.
Maximum cross-section of the conductors to be
connected is 6 mm2.
Pressure sensor
DANGER
Electric shock
Death or serious personal injury
‐The total load of terminal 5, +24 VDC,
must not exceed 100 mA.
SENSOR, terminals 5, 6 and 7:
Terminals 5, 6 and 7 (SENSOR) are used for the
pressure sensor.
Sensor signals:
The sensor to be connected must give signals within
one of the following ranges:
• 0-10 V.
• 2-10 V.
• 0-20 mA.
• 4-20 mA.
Changeover between current and voltage signals is
carried out by means of Grundfos GO Remote.
6
English (GB)

Operating relay
RELAY, terminals 8 and 9:
Terminals 8 and 9 (RELAY) are used for the
connection of an external signal transmitter (sound or
light).
The operating relay is a normally open (NO) contact
when the pump is not running, and closes while the
pump is running.
• Maximum current: 0.5 A.
• Maximum voltage: 230 VAC.
PE
PE
POWER PUMP
8 5 7 4
12
relpol
RM85-3021-25-1024
MADE IN POLAND
4080
AC 250 V 16 A
DC 24 V
5 6 7
+24V IN GND
8 5
7 4
12
relpol
RM85-3021-25-1024
MADE IN POLAND
4080
AC 250 V 16 A
DC 24 V
9 8
RELAY
Max. 0.5 A
8 5
7 4
12
relpol
RM85-3021-25-1024
MADE IN POLAND
4080
AC 250 V 16 A
DC 24 V
9 8
RELAY
Max. 0.5 A
SENSOR
TM070764
Electrical connection of the operating relay
2.3 Positioning the pressure sensor
Pressure losses often cause inconvenience to the
user. CU 301 keeps the pressure constant in the
place where the pressure sensor is positioned.
3
12
CU 301
TM017862
Pressure sensor position
Pos. Description
1 Tap 1
2 Tap 2
3 Pressure sensor
In fig. Pressure sensor position, tap 1 is placed close
to the pressure sensor. Therefore, the pressure is
kept nearly constant at tap 1, as the friction loss is
small. At the shower and tap 2, the friction loss is
bigger. This, of course, depends on the pipes.
However, old and furred-up pipes may cause
inconvenience due to friction loss.
Example: A person is in the shower. Tap 2 is opened.
The increased flow causes pressure loss in the pipe,
and even though CU 301 is keeping the pressure
constant at the pressure sensor, the person in the
shower feels the pressure loss.
If the pressure sensor is placed closer to the shower
tap, CU 301 increases the pressure when the flow
rate is increased. Then the pressure at the shower
and tap 2 is kept constant, but the pressure at tap 1 is
increased.
We recommend that the pressure sensor is
positioned as close to the places of consumption as
possible.
Related information
7.1 Fault finding with Grundfos GO Remote
7
English (GB)

2.4 Precharge pressure setting
The precharge pressure of the diaphragm tank must
be set to 70 % of the pressure setting in order to use
the tank to the limit of its capacity. This is of course
especially important when the tank volume is limited
to 8 litres.
Use the values in the following table:
Setting
[bar]
Precharge pressure
[bar]
2 1.4
2.5 1.8
3 2.1
3.5 2.5
4 2.8
4.5 3.2
5 3.5
If the precharge pressure is higher than the pressure
setting, the system is not able to control the pressure.
If the user wants to adjust the pressure without
changing the precharge pressure of the diaphragm
tank, the precharge pressure must be equal to the
lowest pressure setting used. This means that the
control works but that the pressure fluctuations might
increase. In such cases, we recommend that you use
a larger diaphragm tank, for example a tank of double
size.
2.5 Pressure relief valve
In order to provide protection against the possibility of
an overpressurization, a pressure relieve valve must
be installed down stream of the well head. The
setpoint of the pressure relief valve must be at least
30 psi above the pressure setting. See section
5. Setting the product.
If a relief valve is installed, we recommend that its
outlet is plumbed into an appropriate drainage point.
3. Product introduction
3.1 Product description
The system maintains a constant pressure within the
maximum pump performance in spite of a varying
water consumption.
Figure Example installation shows an example of an
installation with constant-pressure control.
2
1
3
4
TM080250

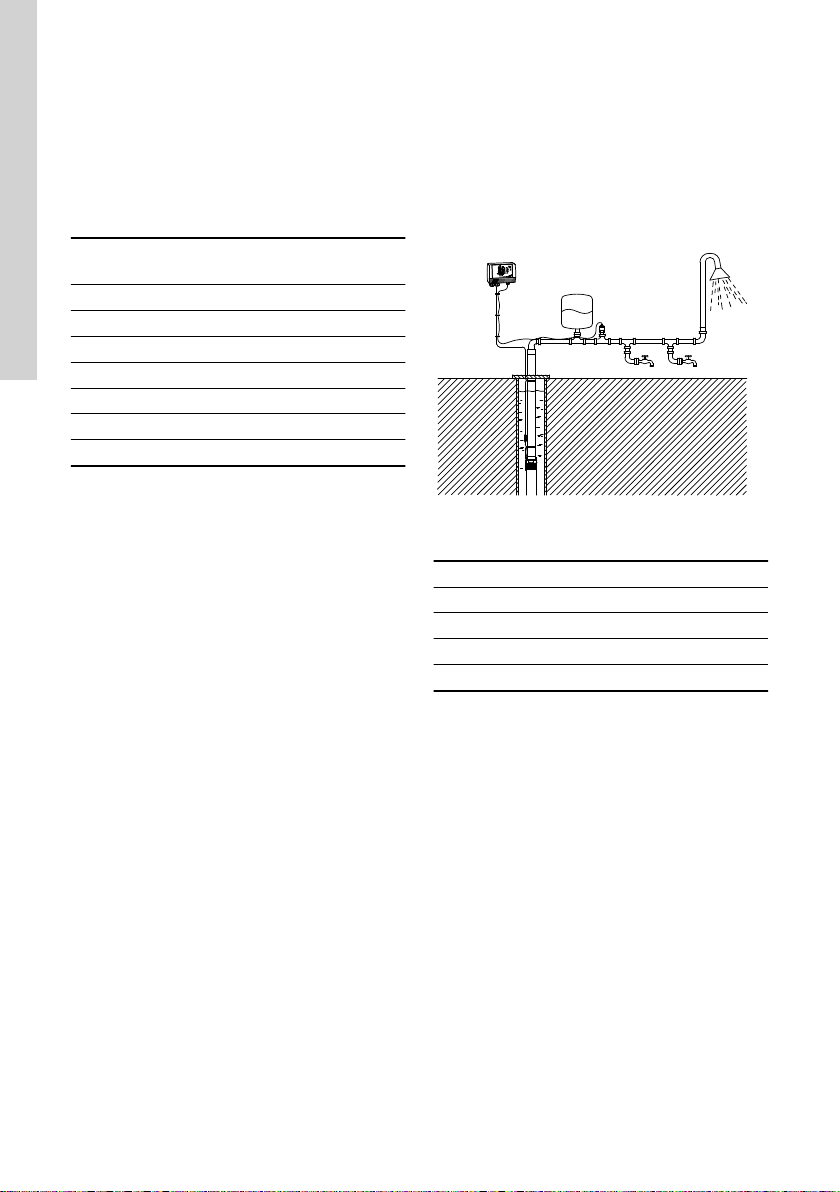

Example installation
Pos. Description
1 CU 301
2 Diaphragm tank
3 Pressure sensor
4 SQE pump
The pressure is registered by means of the pressure
sensor, which transmits a signal to CU 301. CU 301
adjusts the pump performance accordingly by
changing the pump speed.
Mains borne signalling
The communication between CU 301 and the pump is
effected via the power cable.
This communication principle is called mains borne
signalling, or power line communication. Using this
principle means that no additional cables to the pump
are required.
The communication of data is effected by means of a
high-frequency signal transmitted to the power cable
and led into the electronics unit by means of signal
coils incorporated in the motor and CU 301
respectively.
In situations where multiple CU 301 pump power
cables are run parallel in wiring trays or conduit and
less than 25-30 cm apart, the possibility for undesired
communication between units exists. When this
occurs, intermittent or continuous "No contact" is
typically seen. Other unexpected errors may also be
seen.
8
English (GB)

Figure Principle of mains borne signalling (power line
communication) shows the principle of mains borne
signalling between CU 301 and the pump.
CU 301
15
2
3
49
6
8
7
TM070560
Principle of mains borne signalling (power line
communication)
Pos. Description
1 Supply to the electronics
2 Signal coils
3 Capacitor
4Electronics for the control of the
communication
5 On/off button
6 Sensor signal
7 Power supply
8 Communication signals
9 Grundfos GO Remote
When does the pump start
The pump starts as a consequence of the following:
• a high flow
• a low pressure
• a combination of both.
To ensure that the pump starts when water is
consumed, a flow detection is required. The flow is
detected via pressure changes in the system. When
water is consumed, the pressure drops accordingly
depending on the size of the diaphragm tank and the
water flow:
• at a low flow, the pressure drops slowly.
• at a high flow, the pressure drops quickly.
2
4
1
3
TM018545
Pos. Description
1 Pressure
2 Low flow
3 Time
4 High flow
When the pressure drops 0.1 bar/s or faster, the
pump starts immediately.
If a diaphragm tank of 8 litres is used, the pump starts
at a flow rate of approximately 0.18 m3/h. If a larger
tank is used, the flow must be higher before the pump
starts.
Consumption up to 0.18 m3/h
The pump starts when the pressure drops to 0.5 bar
below the pressure setting.
The pump runs until the pressure is 0.5 bar above the
pressure set.
Flow detection
During pump operation, meaning when water is
consumed, CU 301 adjusts the pump speed to
maintain a constant pressure. In order to stop the
pump when no water is consumed, CU 301 performs
flow detection every 10 seconds.
9
English (GB)

The pump speed is reduced until a small pressure
drop is registered. This pressure drop indicates that
water is consumed and the pump speed is resumed.

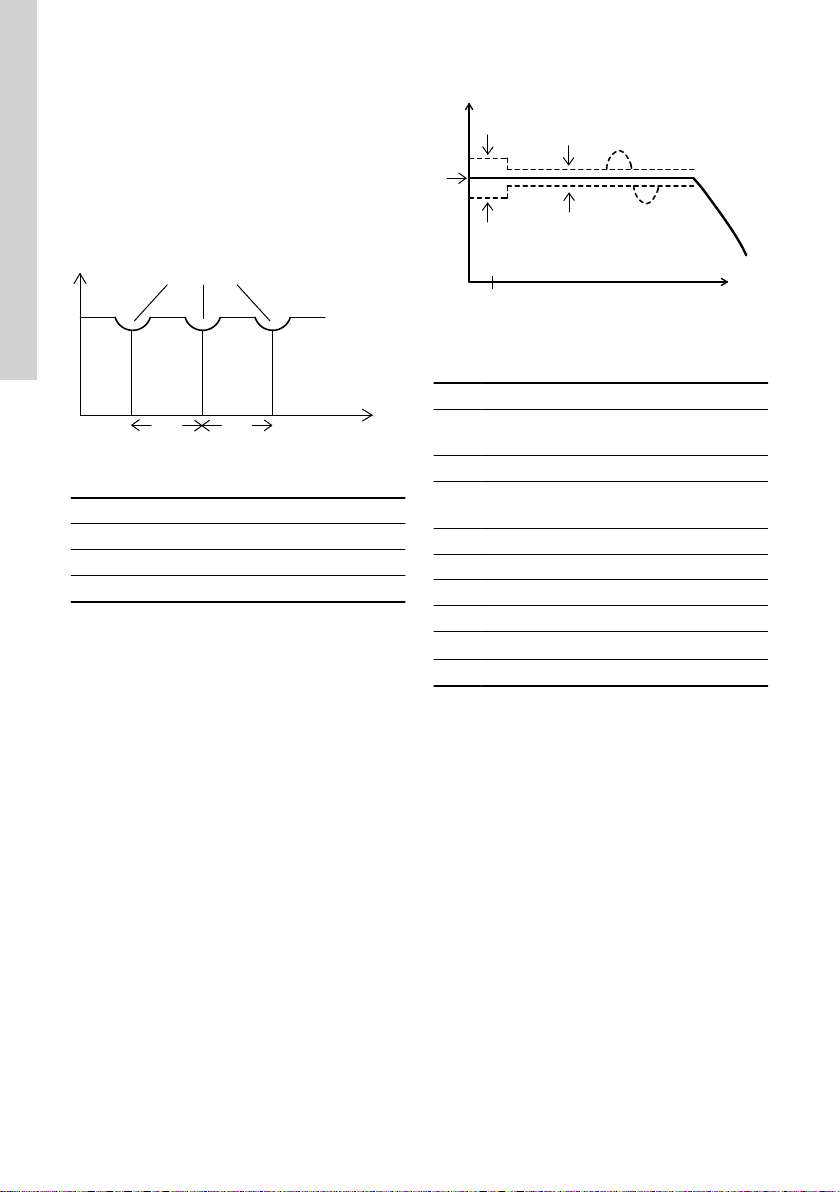

See fig. Flow detection every 10 seconds during
operation.
If the pump speed reduces without any pressure drop
being registered, this indicates that no water is
consumed. The diaphragm tank is filled with water
and the pump stops.
1
10 s 10 s
2
3
TM018546
Flow detection every 10 seconds during operation
Pos. Description
1 Flow detection
2 Pressure
3 Time
System limits
Even though, CU 301 controls the pressure within ±
0.2 bar, bigger pressure variations may occur in the
system. If the consumption is suddenly changed, for
example if a tap is opened, the water must start
flowing before the pressure can be made constant
again. Such dynamic variations depend on the pipes,
but, typically, they will lie between 0.5 and 1 bar.
If the desired consumption is higher than the quantity
the pump is able to deliver at the desired pressure,
the pressure follows the pump curve as illustrated in
fig. Possible pressure variations during constant-
pressure operation.
2
1
A
345
6
8
7
TM018634
Possible pressure variations during constant-
pressure operation
Pos. Description
1Stop
+ 0.5 bar
2 Pressure
3Start
- 0.5 bar
4 Controlling ± 0.2 bar
5 Dynamic variations ± 0.5 bar
6 Flow
7 0.18
8m3/h
A Pressure set
10
English (GB)

3.2 System sizing
To ensure the correct function of the system, it is
important that the pump is of the right type.
During operation, CU 301 controls the pump speed
within the range from 3000 min-1 to 10,700 min-1. See
fig. Pump curves.
We recommend that you follow the guidelines below:
5
4
2
67
3
1
TM018547
Pump curves
Pos. Description
1 Max. head at max. flow
2Pump curve at 3000 min-1
3 Min. head at no flow
4Pump curve at 10,700 min-1
5 H [m]
6Qmax
7Q [m3/h]
The following must be fulfilled:
1. Minimum head at no flow < static head + system
pressure.
2. Maximum head at maximum flow > dynamic head
+ system pressure.
11
English (GB)

Maximum head at maximum flow and minimum head
at no flow can be found in the following table:
Pump type
Min. head at Q =
0 m3/h,
3000 min-1
Max. head at Q
= Qmax,
10,700 min-1
[m] / [feet] [m] / [feet]
SQE 1-35 18 / 59 29 / 86
SQE 1-50 28 / 91 44 / 131
SQE 1-65 37 / 121 59 / 177
SQE 1-80 46 / 151 75 / 222
SQE 1-95 56 / 184 90 / 270
SQE 1-110 65 / 213 105 / 315
SQE 1-125 74 / 243 120 / 360
SQE 1-140 81 / 266 136 / 405
SQE 1-155 92 / 302 151 / 450
SQE 2-35 19 / 62 35 / 105
SQE 2-55 29 / 95 54 / 164
SQE 2-70 38 / 125 71 / 215
SQE 2-85 47 / 154 88 / 267
SQE 2-100 56 / 184 108 / 328
SQE 2-115 66 / 217 128 / 390
SQE 3-30 15 / 49 26 / 75
SQE 3-40 24 / 79 42 / 123
SQE 3-55 31 / 102 56 / 164
SQE 3-65 39 / 128 70 / 205
SQE 3-80 47 / 154 84 / 246
SQE 3-95 55 / 180 98 / 287
SQE 3-105 62 / 203 113 / 328
SQE 5-15 7.7 / 25 11 / 36
SQE 5-25 15 / 49 23 / 77
SQE 5-35 23 / 75 36 / 117
SQE 5-50 30 / 98 48 / 159
SQE 5-60 38 / 125 61 / 200
SQE 5-70 45 / 148 73 / 240
SQE 7-15 8.6 / 28 9 / 33
SQE 7-30 18 / 59 23 / 82
SQE 7-40 27 / 89 37 / 126
Related information
7.1 Fault finding with Grundfos GO Remote
3.3 Intended use
DANGER
Electric shock
Death or serious personal injury
‐Install the product horizontally on a flat
surface to allow any condensed water
inside the product to escape.
CU 301 is for use only with Grundfos SQE pumps
incorporating electronic power factor correction
(PFC). The system maintains a constant pressure
within the maximum pump performance in spite of a
varying water consumption. The pressure is
registered by means of the pressure sensor, which
transmits a 4-20 mA signal to CU 301. CU 301
adjusts the pump performance accordingly to
maintain a constant pressure by changing the pump
speed. It is possible to connect an operating relay for
indication of pump operation. The product is designed
for outdoor use.
12
English (GB)

4. Control functions
4.1 On/off button
Figure On/off button shows the on/off button of CU
301.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1
2
TM017860
On/off button
Pos. Description
1 Red
2 Green
The green and red indicator lights in the on/off button
indicate pump operating condition as follows:
Indication Description
Green indicator light
permanently on. The system is operational.
Green indicator light
off.
The system is not
operational.
Red indicator light
permanently on.
Pump has been stopped by
means of the on/off button. *
Red indicator light
flashing.
CU 301 is communicating
with Grundfos GO Remote.
*If you use the on/off button to stop the pump, you must also
use this button to restart the pump.
Any alarm indication can be reset by pressing the
on/off button.
If you press and hold the on/off button for 5 seconds,
the pump starts, irrespective of any active fault or
alarm indications. When you release the on/off button,
the pump stops.
4.2 Indication of pump operation
On the graphical illustration on the CU 301 front, the
riser pipe shows running light when the pump is
operating.
When the pump is not operating, none of the indicator
lights are on.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
TM018328
Indication of pump operation
You can change the indicator light settings by using
Grundfos GO Remote. See section 5.3.12 Indicator
lights.
Related information
5.3.12 Indicator lights
13
English (GB)

4.3 Pressure setting
The two arrow buttons on the CU 301 front are used
for the pressure setting.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
TM018329
Pressure setting and indication
Indication of pressure setting
The system pressure set is indicated by a yellow
indicator light, which is permanently on.
Setting range: 2, 2.5 ... 5.0 bar.
Arrow-up button
When this button is pressed, the system pressure
setting is increased in steps of 0.5 bar.
Arrow-down button
When this button is pressed, the system pressure
setting is decreased in steps of 0.5 bar.
4.4 Button locking
The buttons on CU 301 can be locked or unlocked by
pressing the two arrow buttons simultaneously and
holding them for 5 seconds or by using Grundfos GO
Remote.
When the arrow buttons are used for locking, the
pressure setting may change.
Use the following procedure:
1. Increase the pressure one step up.
2. Press the arrow-down button as the first one when
pressing the two buttons.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
TM018330
Button lock indication
When the buttons are locked, the indicator light is
permanently on. See fig. Button lock indication. See
also section 5.3.10 Buttons on product.
Related information
5.3.10 Buttons on product
4.5 Alarm functions
CU 301 continuously receives operating data from the
pump. The alarm functions indicated on the CU 301
front are described in the following sections.
14
English (GB)

4.6 Service alarm
If one or more factory-set alarm values are exceeded,
the indicator light for service alarm is permanently on.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
TM018327
Service alarm
Possible alarms
• Sensor defective
• Overload
• Overtemperature
• Speed reduction
• Voltage alarm
• No contact to pump.
The possible alarms and how to identify them and
make the relevant corrections are described in
section 7.1 Fault finding with Grundfos GO Remote.
Related information
7.1 Fault finding with Grundfos GO Remote

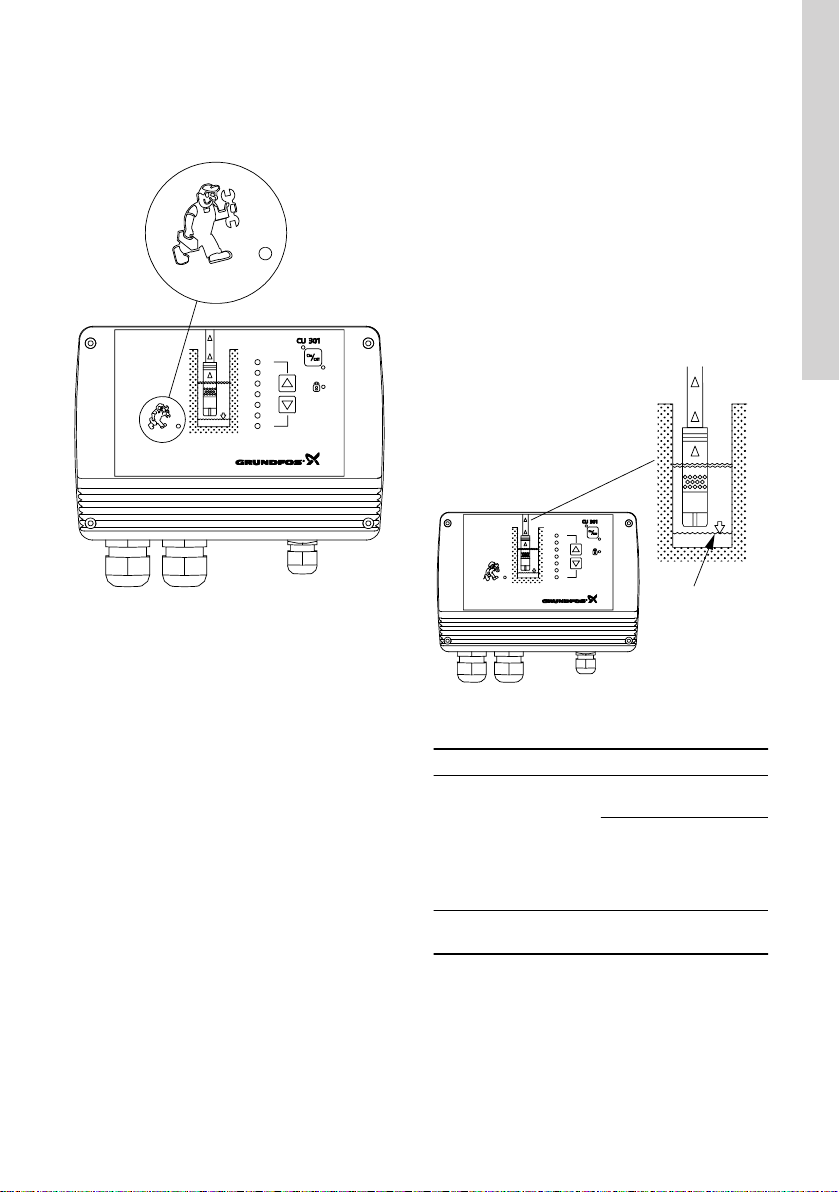

4.7 Dry-running protection
The purpose of the dry-running protection is to protect
the pump in case of insufficient water flow.
The dry-running protection makes the conventional
dry-running protection unnecessary.
No additional cables to the motor are required.
The dry-running protection is active after 30 seconds
of operation.
The dry-running alarm is activated when the load has
been below the minimum power limit for an
accumulated time of 5 seconds.
The motor stops and the dry-running indicator light is
permanently on. See fig. Dry-running protection, pos.
A.
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
A
TM080333
Dry-running protection
Possible cause Remedy
The pump performance
is too high compared to
the borehole yield.
Replace the pump with a
smaller one.
Reduce the pump
performance using
Grundfos GO Remote.
See section
5.3.8 Maximum speed.
The borehole filter is
blocked.
Borehole service is
required.
Restarting
After 5 minutes (factory setting), or the period set in
Grundfos GO Remote, see section 5.3.5 Automatic
restarting, the motor restarts automatically.
Related information
5.3.7 Dry-running stop
8. Technical data
15
English (GB)

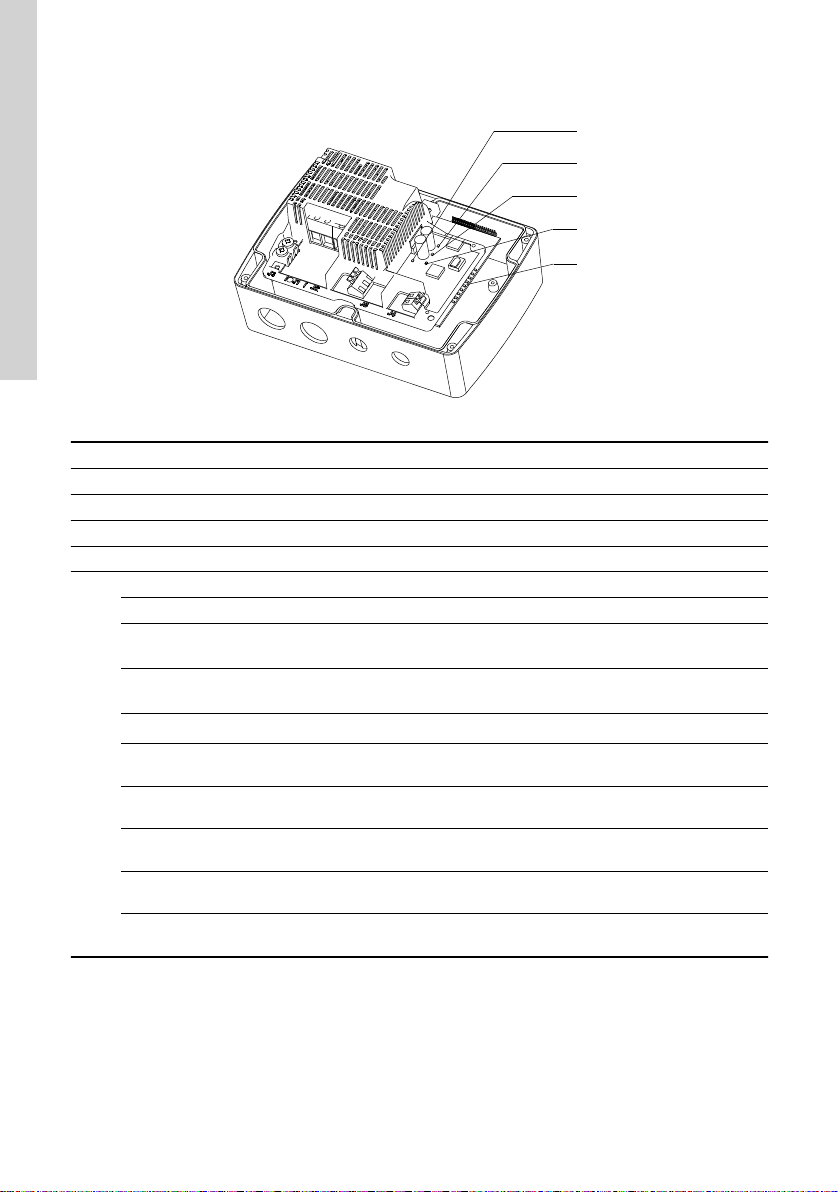

4.8 Position of LEDs
1
2
3
4
5
TM070780
Pos. Indication Description
1 +24 V overload Permanent red light when the internal 24 VDC supply is overloaded.
2 +24 V Permanent green light when the internal 24 VDC supply is OK.
3 +10 V Permanent green light when the internal 10 VDC supply is OK.
4 +5 V Permanent green light when the internal 5 VDC supply is OK.
5
9 indicator lights:
• Control indicator • Flashing green light when the pump control is working correctly.
• Min. speed • Permanent yellow light when the pump is running at minimum speed,
3000 min-1.
• Max. speed • Permanent yellow light when the pump is running at maximum speed,
10,700 min-1.
• Sensor defective *• Permanent red light when the sensor signal is out of signal range.
• Overload *• Permanent red light when the motor load exceeds the stop limit. See
section 8. Technical data.
• Overtemperature *• Permanent red light when the motor temperature exceeds the stop
limit. See section 8. Technical data.
• Speed reduction *• Permanent red light when the pump speed is reduced. See section
8. Technical data.
• Voltage alarm*• Permanent red light when the supply voltage is out of range. See
section 8. Technical data.
• No contact to pump *• Permanent red light when communication between CU 301 and the
pump is impossible.
*Press the on/off button to reset the alarm indication.
Related information
6. Servicing the product
7.1 Fault finding with Grundfos GO Remote
8. Technical data
16
English (GB)

4.9 Grundfos GO Remote menu overview
"Status" Section
"Controlled from" 5.2.1 Controlled from
"Value, sensor 1" 5.2.2 Value, sensor 1
"Motor temperature" 5.2.3 Motor temperature
"Motor speed" 5.2.4 Motor speed
"Power consumption" 5.2.5 Power consumption
"Energy consumption" 5.2.6 Energy consumption
"Operating hours" 5.2.7 Operating hours
"Number of starts" 5.2.8 Number of starts
"Settings" Section
"Operating mode" 5.3.1 Operating mode
"Setpoint" 5.3.2 Setpoint
"Analog input 1" 5.3.3 Analog input 1
"Maximum pressure" 5.3.4 Maximum pressure
"Automatic restarting" 5.3.5 Automatic restarting
"Double restarting time" 5.3.6 Double restarting time
"Dry-running stop" 5.3.7 Dry-running stop
"Maximum speed" 5.3.8 Maximum speed
"Cut-in speed" 5.3.9 Cut-in speed
"Buttons on product" 5.3.10 Buttons on product
"Number" 5.3.11 Number
"Indicator lights" 5.3.12 Indicator lights
"Store settings" 5.3.13 Store settings
"Recall settings" 5.3.14 Recall settings
"Undo" 5.3.15 Undo
"Unit configuration" 5.3.16 Unit configuration
"Alarms and warnings" Section
"Alarm log" 4.5 Alarm functions
"Warning log"
Related information
5.1 CU 301 with Grundfos GO Remote
17
English (GB)

5. Setting the product
5.1 CU 301 with Grundfos GO Remote
Grundfos GO Remote is used for wireless infrared
communication with CU 301. During communication,
there must be visual contact between CU 301 and
Grundfos GO Remote.
A
bar
5.0
4.5
4.0
3.5
3.0
2.5
2.0
CU 301
On Off
TM070561

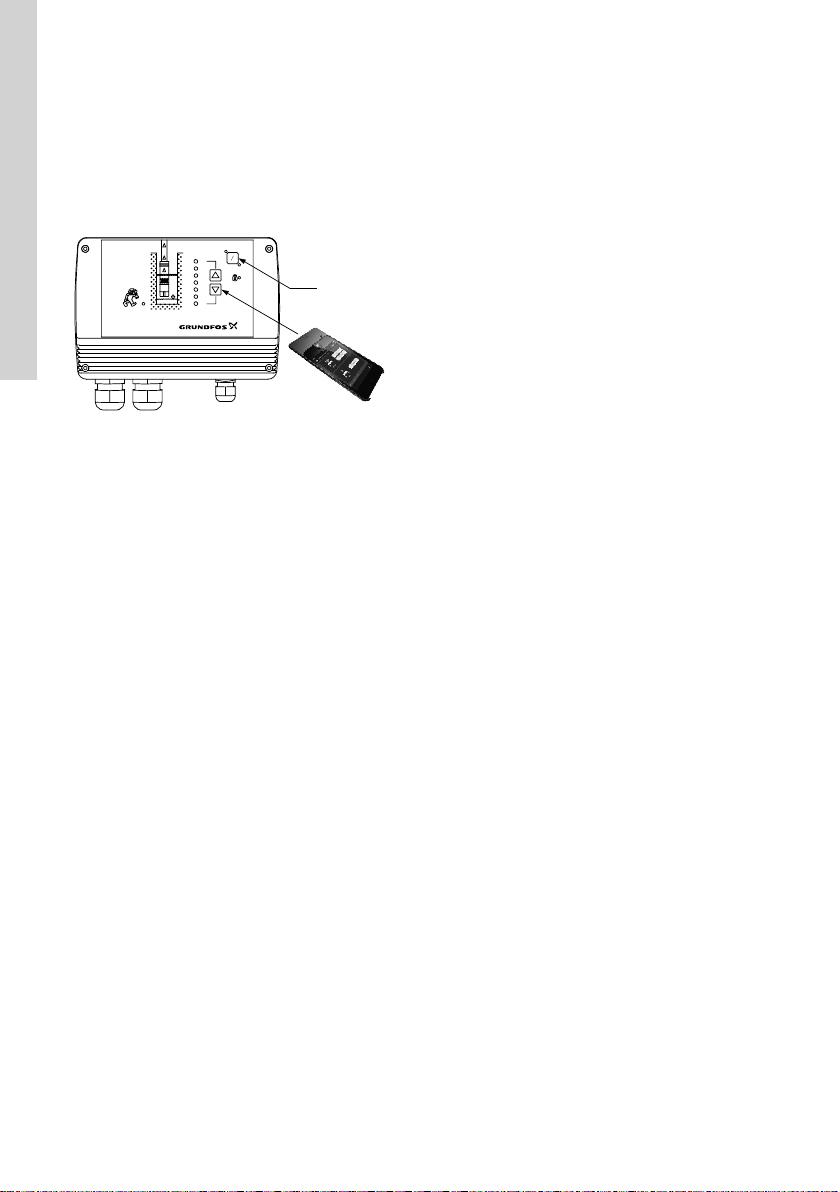

CU 301 communicating with Grundfos GO Remote
Grundfos GO Remote offers the possibility of setting
and status displays for CU 301.
When the communication between Grundfos GO
Remote and CU 301 is established, the red indicator
light (A) in the on/off button flashes.
For general use of Grundfos GO Remote, see the
operating instructions for the Grundfos GO Remote
unit.
The menu structure for Grundfos GO Remote and CU
301 is divided into three main menus, each containing
a number of displays.
• Status
• Settings
• Alarms and warnings
See section 4.9 Grundfos GO Remote menu
overview.
Related information
4.9 Grundfos GO Remote menu overview
5.2 Status
The "Status" menu in Grundfos GO Remote for CU
301 offers the possibility of reading operating
parameters.
5.2.1 Controlled from
This display shows the control source:
• CU 301
• external.
5.2.2 Value, sensor 1
Read the value measured by sensor 1 in this display.
Related information
5.3.3 Analog input 1
5.2.3 Motor temperature
The actual temperature of the motor electronics
stated in °C or °F.
5.2.4 Motor speed
The actual speed stated in min-1 (rpm).
5.2.5 Power consumption
Read the actual power consumption in this display.
Related information
5.3.7 Dry-running stop
5.3.9 Cut-in speed
5.2.6 Energy consumption
You can read the total energy consumption in this
display.
5.2.7 Operating hours
The value of operating hours is accumulated from the
pump's initial startup and it cannot be reset.
The value is stored in the motor electronics, and it is
kept even if CU 301 is replaced.
5.2.8 Number of starts
The value of number of starts is accumulated from
the pump's initial startup and it cannot be reset.
The value is stored in the motor electronics, and it is
kept even if CU 301 is replaced.
18
English (GB)

5.3 Settings
The "Settings" menu in Grundfos GO Remote for CU
301 offers the possibility of setting operating
parameters.
5.3.1 Operating mode
Select one of the following operating modes:
• Max.
Pump operation is set to maximum speed,
regardless of the setpoint. The maximum speed is
set in the display Maximum speed. The default
value is 10,700 min-1).
• Normal
Normal operating mode, meaning that pump
operation is based on the setpoint set in display
Setpoint.
Examples: Speed set in the display Setpoint or
sensor control.
• Min.
Pump operation is set to minimum speed, 3000
min-1, regardless of the setpoint.
• Stop
The pump stops.
Related information
5.3.8 Maximum speed
5.3.2 Setpoint
5.3.2 Setpoint
5.3.2 Setpoint
Set the desired pressure in this display.
Setting range unit:
• 2.0 - 5.0 bar, 0.5 bar intervals
• 40-100 psi, 10 psi intervals.
Relation to other displays
The setting in the display Setpoint is overridden by
the "Max." and "Min." settings in the display Operating
mode.
Factory setting
3.0 bar (50 psi).
Related information
5.3.1 Operating mode
5.3.1 Operating mode
5.3.3 Analog input 1
Make the following settings according to sensor type:
• Sensor output signal: "-" (not active), 0-20 mA,
4-20 mA, 0-10 V, 2-10 V.
• Setting range unit: bar or psi.
Two CU 301 front covers are available, one for bar
and another for psi. This means that a bar front cover
can be replaced by a psi front cover.
The pressure sensor must be replaced by
a sensor measuring the pressure in the
actual measuring unit.
When the front cover is replaced, the display
automatically changes from bar to psi or vice versa.
Relation to other displays:
The measuring unit appearing in the display Value,
sensor 1 will be identical to the measuring unit in the
front cover.
Factory setting
Sensor output signal: 4-20 mA
Setting range unit: bar or psi. Automatically set by the
front cover.
Related information
5.2.2 Value, sensor 1
8. Technical data
5.3.4 Maximum pressure
The set maximum pressure equals the upper possible
setting of the setpoint pressure value.
5.3.5 Automatic restarting
Set the automatic restart time from stop to restart
attempt.
The following settings are available:
• "Enabled"
• "Disabled"
• 0 to 254 minutes.
Factory setting
"5 minutes".
5.3.6 Double restarting time
The following settings are available:
• "Enabled"
• "Disabled".
When you select "Enabled", the restart time set
doubles automatically for every 10 motor stops
caused by an alarm. The time doubles up to a stop
time of 4 hours. After 10 hours of operation without an
alarm, the restart time is automatically set to one of
the following:
• The time set in the "Time" field.
• 5 minutes (factory setting) if no setting was made
in the "Time" field.
19
English (GB)

5.3.7 Dry-running stop
The dry-running stop value (dry-running power limit)
is factory-set.
The value depends on the actual motor.
The factory setting depends on the power rating of
the motor. See section Technical data.
When the dry-running protection is to be enabled, the
minimum value of the pump power input must be set
in this display.
For further information, see section Dry-running
protection.
Setting range: 0-2500 W.
Relation to other displays
Dry-running protection must be set to "Enabled".
Read the actual pump power input in the display
Power consumption.
Factory setting
Motor size Dry-running stop
0.7 kW 300 W
0.7 kW (SQ/SQE 2-55) 550 W
1.15 kW 680 W
1.55 kW 800 W
1.85 kW 900 W
Related information
4.7 Dry-running protection
5.2.5 Power consumption
5.3.9 Cut-in speed
7.1 Fault finding with Grundfos GO Remote
8. Technical data
5.3.8 Maximum speed
Set the maximum speed.
Setting range: 3000 - 10,700 min-1.
Factory setting
10,700 min-1.
Related information
5.3.1 Operating mode
5.3.9 Cut-in speed
In the case of an oversized pump or drastically
changing water levels, this function may cause an
excess pressure, at start-up, in relation to the desired
discharge pressure. The cut-in speed can therefore
be lowered to compensate.
Setting range: 3000 - 10,700 min-1 (100 min-1
intervals).
Dry-running stop at reduced maximum pump
speed:
If the maximum pump speed has been reduced, the
dry-running stop value in display Dry-running stop
must be changed.
Calculating the minimum power limit:
If the pump is worn, a renewed calculation
of the minimum power limit may be
required.
The calculated value is used in the display
Dry-running stop.
Step Action
1 Start the pump against closed outlet valve.
2Read the power input (P1) in the display
Power consumption.
3Calculate the minimum power limit as
follows: Power limit [W] = P1 × 0.9.
Factory setting
8200 min-1
Related information
5.2.5 Power consumption
5.3.7 Dry-running stop
5.3.10 Buttons on product
Disable the on/off button on CU 301 for protective
reasons.
You can set the on/off button to the following:
• "Active"
• "Not active".
Factory setting
"Active".
Related information
4.4 Button locking
20
English (GB)
