Grundfos Unilift ap12 User manual

Unilift AP12, AP35, AP50

Installation and operating instructions

GRUNDFOS INSTRUCTIONS

Other languages

http://net.grundfos.com/qr/i/96011045

English (GB)

English (GB) Installation and operating instructions

Original installation and operating instructions

CONTENTS

Page

1. Symbols used in this document

2. General description

Fig. 1

1. Symbols used in this document 2

2. General description 2

2.1 Applications 3

2.2 Storage and operating conditions 3

2.3 Sound pressure level 3

3. Electrical connection 4

3.1 Checking the direction of rotation 4

4. Installation 5

4.1 Pipe connection 5

4.2 Pump location 5

4.3 Setting of level switch 6

5. Startup 6

6. Maintenance and service 6

6.1 Construction 7

6.2 Contaminated pumps 7

7. Fault finding the product 8

8. Disposal 9

Warning

Prior to installation, read these installation

and operating instructions. Installation and

operation must comply with local

regulations and accepted codes of good

practice.

Warning

The use of this product requires

experience with and knowledge of the

product.

Persons with reduced physical, sensory or

mental capabilities must not use this

product, unless they are under supervision

or have been instructed in the use of the

product by a person responsible for their

safety.

Children must not use or play with this

product.

Warning

If these safety instructions are not

observed, it may result in personal injury.

Caution

If these safety instructions are not

observed, it may result in malfunction or

damage to the equipment.

Note

Notes or instructions that make the job

easier and ensure safe operation.

TM00 2913 1697

Outlet

Pump

sleeve

Inlet

strainer

Level

switch

Handle with

clamp

English (GB)

2.1 Applications

The Grundfos Unilift AP pump is a single-stage

submersible pump designed for the pumping of

wastewater.

The pump is capable of pumping water which

contains a limited quantity of solids, however not

stones and similar materials, without being blocked

or damaged.

The pump is available for automatic as well as

manual operation and can be installed in a

permanent installation or used as a portable pump.

The pump is suitable for these applications:

Incorrect application of the pump (e.g. resulting in

blocking of the pump) and wear are not covered by

the warranty.

2.2 Storage and operating conditions

2.3 Sound pressure level

The sound pressure level of the pump is lower than

the limiting values stated in the EC Council Directive

2006/42/EC relating to machinery.

Applications AP12 AP35 AP50

Groundwater lowering ●●●

Pumping in drainage pits ●●●

Pumping in surface water

pits with inflow from roof

gutters, shafts, tunnels, etc.

●●●

Emptying of ponds, tanks,

etc. ●●●

Pumping of fibre-containing

wastewater from laundries

and industries

●●

Pumping of surface water

from septic tanks and

sludge treating systems

●●

Pumping of domestic

wastewater without

discharge from water

closets

●●

Pumping of domestic

wastewater with discharge

from water closets

●

Maximum particle size

[mm] 12 35 50

Warning

The pump must not be used in or at

swimming pools, garden ponds, etc. when

there are persons in the water.

Storage temperature Down to -30 °C.

Minimum liquid

temperature 0 °C.

Maximum liquid

temperature

55 °C continuously.

Up to 70 °C for periods not

exceeding 3 minutes.

Then the pump must cool

down.

Installation depth Maximum 10 metres below

liquid level.

pH value Between 4 and 10.

Density Maximum 1100 kg/m3.

Viscosity Maximum 10 mm2/s.

Technical data See pump nameplate.

Caution

Always have at least 3 m free cable above

liquid level. This limits installation depth to

7 m for pumps with 10 m cable and to 2 m

for pumps with 5 m cable.

Caution

Pumps with 3 m cable are for industrial

applications only.

English (GB)

3. Electrical connection

The electrical connection must be carried out in

accordance with local regulations.

The pump must be connected to an external mains

switch. If the pump is not installed close to the

switch, the switch must be of a lockable type.

The operating voltage and frequency are marked on

the pump nameplate. Make sure that the motor is

suitable for the power supply on which it will be used.

Three-phase pumps must be connected to an

external motor-protective circuit breaker with

differential release and with a minimum contact gap

of 3 mm. The set nominal current of the motor-

protective circuit breaker must correspond to the

electrical data marked on the pump nameplate.

If a level switch is connected to a three-phase pump,

the motor-protective circuit breaker must be

magnetically operated.

Single-phase pumps incorporate thermal overload

protection and require no additional motor

protection.

3.1 Checking the direction of rotation

Three-phase pumps only

Check the direction of rotation every time the pump

is connected to a new installation.

1. Position the pump so that you can observe the

impeller.

2. Start the pump for a short period.

3. Observe the rotation of the impeller. The correct

direction of rotation is indicated by an arrow on

the inlet strainer (clockwise when seen from the

bottom). If the impeller rotates in the wrong

direction, reverse the direction of rotation by

interchanging two of the phases to the motor.

If the pump is connected to a pipe system, check the

direction of rotation in this way:

1. Start the pump and check the quantity of water or

the pressure.

2. Stop the pump and interchange two of the

phases to the motor.

3. Start the pump and check the quantity of water or

the pressure.

4. Stop the pump.

Compare the results taken under points 1 and 3. The

connection which gives the larger quantity of water

or the higher pressure is the correct direction of

rotation.

Caution

Depending on local regulations, a pump

with 10 metres of mains cable must be

used if the pump is used as a portable

pump for different applications.

Warning

As a precaution, the pump must be

connected to a socket with earth

connection. The permanent installation

must be fitted with an earth leakage circuit

breaker (ELCB) with a tripping current less

than 30 mA.

Warning

The protective earth of the socket outlet

must be connected to the protective earth

of the pump. The plug must therefore have

the same PE connection system as that of

the socket outlet. If not, use a suitable

adapter.

Note

If the motor is overloaded, it will stop

automatically. When the motor has cooled

to normal temperature, it restarts

automatically.

English (GB)

4. Installation

4.1 Pipe connection

For permanent installation, we recommend that you

fit a union, a non-return valve and an isolating valve

in the outlet pipe.

If the pump is installed in a pit with a minimum free

cable length of 100 mm, see fig. 6, the minimum pit

dimensions must be as shown in fig. 2.

Furthermore, the pit must be dimensioned according

to the relation between the water flow to the pit and

the pump performance.

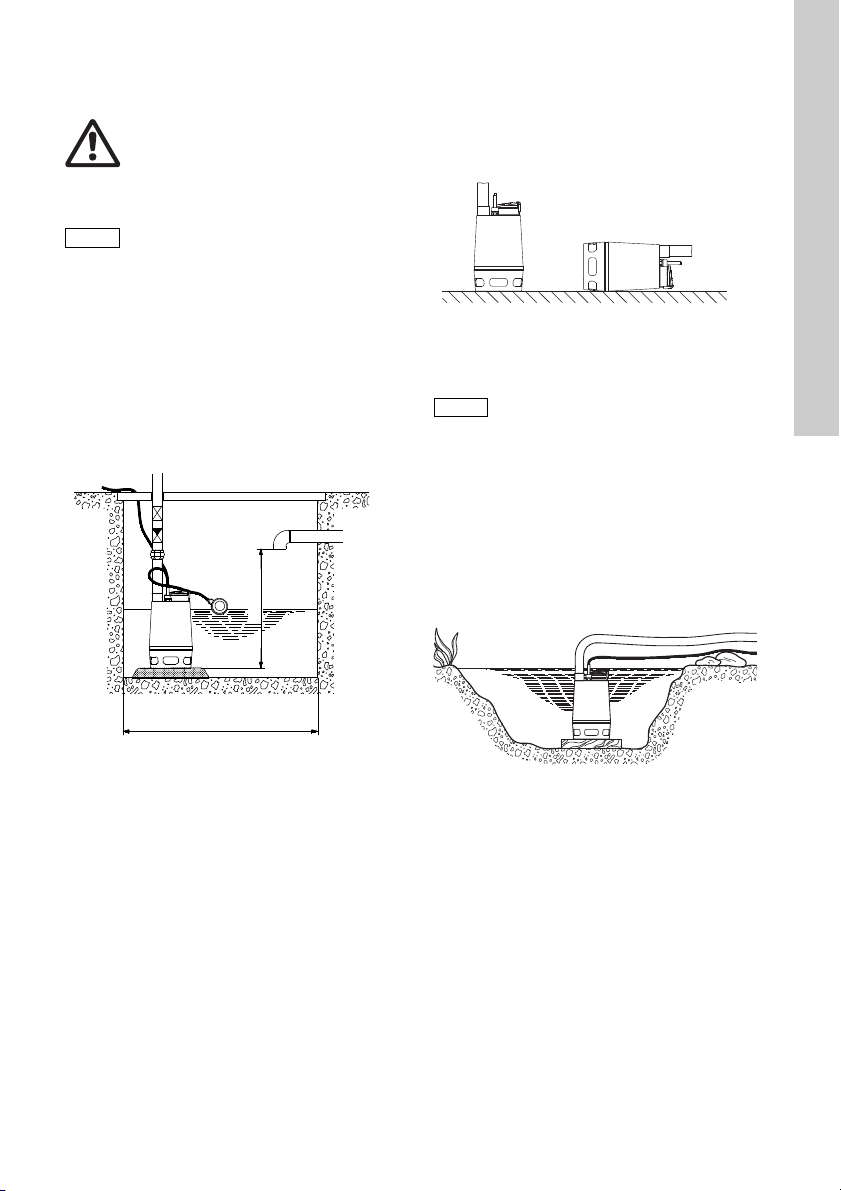

Fig. 2

4.2 Pump location

The pump can be used in vertical or horizontal

position with the outlet as the highest point of the

pump. See fig. 3.

During operation, the inlet strainer must always be

completely covered by the pumped liquid.

Fig. 3

When the pipe/hose has been connected, place the

pump in its operating position.

Position the pump so that the inlet strainer will not be

blocked or partly blocked by sludge, mud or similar

materials.

In the case of permanent installation, the pit must be

cleared of sludge, pebbles, etc. before the pump is

installed.

We recommend that you place the pump on a solid

base. See fig. 4.

The pump must not be installed hanging from the

outlet pipe.

Fig. 4

Warning

The installation of the pump must be

carried out by specially trained persons.

Unilift AP35, AP50: Care must be taken to

ensure that persons cannot come into

contact with the pump impeller.

Note

According to EN 60335-2-41/A2:2010, this

product with 5 metres of mains cable may

be used only for indoor applications.

TM00 2918 1697

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

‹‹

‹

550 mm

600 mm

TM00 2920 0794

Caution

Never lift the pump by the power supply

cable.

TM00 2922 0794

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

••

•

English (GB)

4.3 Setting of level switch

For pumps supplied with a level switch, the

difference in level between start and stop can be set

by adjusting the free cable between the level switch

and the pump handle.

The longer the length of free cable, the larger the

difference in level between start and stop.

Maximum length of free cable: 350 mm. See fig. 5.

Minimum length of free cable: 100 mm. See fig. 6.

The stop level must be above the inlet strainer to

prevent the pump from taking in air.

Fig. 5

Fig. 6

5. Startup

Open the isolating valve, if fitted, and check the level

switch setting.

6. Maintenance and service

Before carrying out maintenance and service, it must

be ensured that the pump has been thoroughly

flushed with clean water. Rinse the pump parts in

water after dismantling.

Check the pump and replace the oil once a year. If

the pump is used for pumping liquids containing

abrasive particles or it is operating continuously, the

pump must be checked at shorter intervals.

In the case of long operating time or continuous

operation, the oil must be replaced as follows:

The pump contains approx. 60 ml non-poisonous oil.

Used oil must be disposed of in accordance with

local regulations.

If the drained oil contains water or other impurities,

the shaft seal should be replaced.

TM00 2924 1697TM00 2926 1697

Caution

Before starting the pump, check that the

inlet strainer is fitted to the pump and

submerged in the pumped liquid.

Note

The pump may be run briefly to check the

direction of rotation without being

submerged in the pumped liquid.

100 mm

450 mm

Max. 350 mm

Start

Stop

300 mm

200 mm

Min. 100 mm

Start

Stop

Warning

Before starting any work on the product,

make sure that the power supply has been

switched off and that it cannot be

accidentally switched on.

Liquid

temperature

The oil must be replaced

after

20 °C 4500 operating hours

40 °C 3000 operating hours

55 °C 1500 operating hours

Warning

Out of consideration for the personal

safety and health, this work must be

carried out by specially trained persons.

Furthermore, all rules and regulations

covering safety, health and environment

must be observed.

Be careful during dismantling as you will

get access to sharp edges, etc., which

may cause cuts. Wear protective gloves.

English (GB)

6.1 Construction

The construction of the pump will appear from the

table below and figures A, B and C at the end of

these instructions.

6.2 Contaminated pumps

If you request Grundfos to service the pump, contact

Grundfos with details about the pumped liquid, etc.

before you return the pump for service. Otherwise

Grundfos can refuse to accept the pump for service.

Possible costs of returning the pump are paid by the

customer.

However, any application for service (no matter to

whom it may be made) must include details about

the pumped liquid if the pump has been used for

liquids which are injurious to health or toxic.

Pos. Description

6 Pump housing

37a O-ring

49 Impeller

55 Pump sleeve with motor

66 Washer

67 Lock nut

84 Inlet strainer

105 Shaft seal

182 Level switch

188a Screws

193 Screws

If a pump has been used for a liquid which

is injurious to health or toxic, the pump will

be classified as contaminated.

English (GB)

7. Fault finding the product

Warning

Before starting any work on the product,

make sure that the power supply has been

switched off and that it cannot be

accidentally switched on.

Fault Cause Remedy

1. The motor does not

start.

a) No power supply. Connect the power supply.

b) The pump was stopped by the level

switch.

Adjust or replace the level

switch.

c) The fuses have blown. Replace the fuses.

d) The motor protection/thermal relay has

tripped.

Wait until the motor protection

trips in again/reset the relay.

e) The impeller is blocked by impurities. Clean the impeller.

f) Short circuit in cable or motor. Replace the defective part.

2. The motor protection/

thermal relay trips

after a short time of

operation.

a) The liquid temperature is too high. Use another pump type.

b) The impeller is blocked or partly blocked

by impurities. Clean the pump.

c) Phase failure. Call an electrician.

d) Too low voltage. Call an electrician.

e) The overload setting of the motor-

protective circuit breaker is too low. Adjust the setting.

f) Incorrect direction of rotation. See

section 3.1 Checking the direction of

rotation.

Reverse the direction of

rotation.

3. The pump runs

constantly or gives

too little water.

a) The pump is partly blocked by impurities. Clean the pump.

b) The outlet pipe or valve is partly blocked

by impurities. Clean the outlet pipe.

c) The impeller is not properly fixed to the

shaft. Tighten the impeller.

d) Incorrect direction of rotation. See

section 3.1 Checking the direction of

rotation.

Reverse the direction of

rotation.

e) Incorrect setting of level switch. Adjust the level switch.

f) The pump is too small for the application. Replace the pump.

g) The impeller is worn. Replace the impeller.

4. The pump runs but

gives no water.

a) The pump is blocked by impurities. Clean the pump.

b) The outlet pipe or non-return valve

blocked by impurities. Clean the outlet pipe.

c) The impeller is not properly fixed to the

shaft. Tighten the impeller.

d) Air in pump. Vent the pump and the outlet

pipe.

e) The liquid level is too low. The inlet

strainer is not completely submerged in

the pumped liquid.

Submerge the pump in the liquid

or adjust the level switch.

f) The level switch does not move freely. Make the level switch move

freely.

English (GB)

8. Disposal

This product or parts of it must be disposed of in an

environmentally sound way:

1. Use the public or private waste collection service.

2. If this is not possible, contact the nearest

Grundfos company or service workshop.

Subject to alterations.

Appendix

Appendix 1

TM00 2931 1697 - TM00 2932 1099 - TM00 4956 1697

182

105

37a

188a

193

182

105

37a

188a

193

Fig. A: AP12 Fig. B: AP35 Fig. C: AP50

Grundfos companies

Argentina

Bombas GRUNDFOS de Argentina S.A.

Ruta Panamericana km. 37.500 Centro

Industrial Garin

1619 Garín Pcia. de B.A.

Phone: +54-3327 414 444

Telefax: +54-3327 45 3190

Australia

GRUNDFOS Pumps Pty. Ltd.

P.O. Box 2040

Regency Park

South Australia 5942

Phone: +61-8-8461-4611

Telefax: +61-8-8340 0155

Austria

GRUNDFOS Pumpen Vertrieb

Ges.m.b.H.

Grundfosstraße 2

A-5082 Grödig/Salzburg

Tel.: +43-6246-883-0

Telefax: +43-6246-883-30

Belgium

N.V. GRUNDFOS Bellux S.A.

Boomsesteenweg 81-83

B-2630 Aartselaar

Tél.: +32-3-870 7300

Télécopie: +32-3-870 7301

Belarus

Представительство ГРУНДФОС в

Минске

220125, Минск

ул. Шафарнянская, 11, оф. 56, БЦ

«Порт»

Тел.: +7 (375 17) 286 39 72/73

Факс: +7 (375 17) 286 39 71

E-mail: [email protected]

Bosnia and Herzegovina

GRUNDFOS Sarajevo

Zmaja od Bosne 7-7A,

BH-71000 Sarajevo

Phone: +387 33 592 480

Telefax: +387 33 590 465

www.ba.grundfos.com

e-mail: grundfos@bih.net.ba

Brazil

BOMBAS GRUNDFOS DO BRASIL

Av. Humberto de Alencar Castelo

Branco, 630

CEP 09850 - 300

São Bernardo do Campo - SP

Phone: +55-11 4393 5533

Telefax: +55-11 4343 5015

Bulgaria

Grundfos Bulgaria EOOD

Slatina District

Iztochna Tangenta street no. 100

BG - 1592 Sofia

Tel. +359 2 49 22 200

Fax. +359 2 49 22 201

email: bulg[email protected]

Canada

GRUNDFOS Canada Inc.

2941 Brighton Road

Oakville, Ontario

L6H 6C9

Phone: +1-905 829 9533

Telefax: +1-905 829 9512

China

GRUNDFOS Pumps (Shanghai) Co. Ltd.

10F The Hub, No. 33 Suhong Road

Minhang District

Shanghai 201106

PRC

Phone: +86 21 612 252 22

Telefax: +86 21 612 253 33

COLOMBIA

GRUNDFOS Colombia S.A.S.

Km 1.5 vía Siberia-Cota Conj. Potrero

Chico,

Parque Empresarial Arcos de Cota Bod.

1A.

Cota, Cundinamarca

Phone: +57(1)-2913444

Telefax: +57(1)-8764586

Croatia

GRUNDFOS CROATIA d.o.o.

Buzinski prilaz 38, Buzin

HR-10010 Zagreb

Phone: +385 1 6595 400

Telefax: +385 1 6595 499

www.hr.grundfos.com

GRUNDFOS Sales Czechia and

Slovakia s.r.o.

Čajkovského 21

779 00 Olomouc

Phone: +420-585-716 111

Denmark

GRUNDFOS DK A/S

Martin Bachs Vej 3

DK-8850 Bjerringbro

Tlf.: +45-87 50 50 50

Telefax: +45-87 50 51 51

E-mail: [email protected]

www.grundfos.com/DK

Estonia

GRUNDFOS Pumps Eesti OÜ

Peterburi tee 92G

11415 Tallinn

Tel: + 372 606 1690

Fax: + 372 606 1691

Finland

OY GRUNDFOS Pumput AB

Trukkikuja 1

FI-01360 Vantaa

Phone: +358-(0) 207 889 500

France

Pompes GRUNDFOS Distribution S.A.

Parc d’Activités de Chesnes

57, rue de Malacombe

F-38290 St. Quentin Fallavier (Lyon)

Tél.: +33-4 74 82 15 15

Télécopie: +33-4 74 94 10 51

Germany

GRUNDFOS GMBH

Schlüterstr. 33

40699 Erkrath

Tel.: +49-(0) 211 929 69-0

Telefax: +49-(0) 211 929 69-3799

e-mail: infoservice@grundfos.de

Service in Deutschland:

e-mail: kundendi[email protected]

Greece

GRUNDFOS Hellas A.E.B.E.

20th km. Athinon-Markopoulou Av.

P.O. Box 71

GR-19002 Peania

Phone: +0030-210-66 83 400

Telefax: +0030-210-66 46 273

Hong Kong

GRUNDFOS Pumps (Hong Kong) Ltd.

Unit 1, Ground floor

Siu Wai Industrial Centre

29-33 Wing Hong Street &

68 King Lam Street, Cheung Sha Wan

Kowloon

Phone: +852-27861706 / 27861741

Telefax: +852-27858664

Hungary

GRUNDFOS Hungária Kft.

Park u. 8

H-2045 Törökbálint,

Phone: +36-23 511 110

Telefax: +36-23 511 111

India

GRUNDFOS Pumps India Private

Limited

118 Old Mahabalipuram Road

Thoraipakkam

Chennai 600 096

Phone: +91-44 2496 6800

Indonesia

PT. GRUNDFOS POMPA

Graha Intirub Lt. 2 & 3

Jln. Cililitan Besar No.454. Makasar,

Jakarta Timur

ID-Jakarta 13650

Phone: +62 21-469-51900

Telefax: +62 21-460 6910 / 460 6901

Ireland

GRUNDFOS (Ireland) Ltd.

Unit A, Merrywell Business Park

Ballymount Road Lower

Dublin 12

Phone: +353-1-4089 800

Telefax: +353-1-4089 830

Italy

GRUNDFOS Pompe Italia S.r.l.

Via Gran Sasso 4

I-20060 Truccazzano (Milano)

Tel.: +39-02-95838112

Telefax: +39-02-95309290 / 95838461

Japan

GRUNDFOS Pumps K.K.

1-2-3, Shin-Miyakoda, Kita-ku,

Hamamatsu

431-2103 Japan

Phone: +81 53 428 4760

Telefax: +81 53 428 5005

Korea

GRUNDFOS Pumps Korea Ltd.

6th Floor, Aju Building 679-5

Yeoksam-dong, Kangnam-ku, 135-916

Seoul, Korea

Phone: +82-2-5317 600

Telefax: +82-2-5633 725

Latvia

SIA GRUNDFOS Pumps Latvia

Deglava biznesa centrs

Augusta Deglava ielā60, LV-1035, Rīga,

Tālr.: + 371 714 9640, 7 149 641

Fakss: + 371 914 9646

Lithuania

GRUNDFOS Pumps UAB

Smolensko g. 6

LT-03201 Vilnius

Tel: + 370 52 395 430

Fax: + 370 52 395 431

Grundfos companies

Malaysia

GRUNDFOS Pumps Sdn. Bhd.

7 Jalan Peguam U1/25

Glenmarie Industrial Park

40150 Shah Alam

Selangor

Phone: +60-3-5569 2922

Telefax: +60-3-5569 2866

Mexico

Bombas GRUNDFOS de México S.A. de

C.V.

Boulevard TLC No. 15

Parque Industrial Stiva Aeropuerto

Apodaca, N.L. 66600

Phone: +52-81-8144 4000

Telefax: +52-81-8144 4010

Netherlands

GRUNDFOS Netherlands

Veluwezoom 35

1326 AE Almere

Postbus 22015

1302 CA ALMERE

Tel.: +31-88-478 6336

Telefax: +31-88-478 6332

E-mail: info_gnl@grundfos.com

New Zealand

GRUNDFOS Pumps NZ Ltd.

17 Beatrice Tinsley Crescent

North Harbour Industrial Estate

Albany, Auckland

Phone: +64-9-415 3240

Telefax: +64-9-415 3250

Norway

GRUNDFOS Pumper A/S

Strømsveien 344

Postboks 235, Leirdal

N-1011 Oslo

Tlf.: +47-22 90 47 00

Telefax: +47-22 32 21 50

Poland

GRUNDFOS Pompy Sp. z o.o.

ul. Klonowa 23

Baranowo k. Poznania

PL-62-081 Przeźmierowo

Tel: (+48-61) 650 13 00

Fax: (+48-61) 650 13 50

Portugal

Bombas GRUNDFOS Portugal, S.A.

Rua Calvet de Magalhães, 241

Apartado 1079

P-2770-153 Paço de Arcos

Tel.: +351-21-440 76 00

Telefax: +351-21-440 76 90

Romania

GRUNDFOS Pompe România SRL

Bd. Biruintei, nr 103

Pantelimon county Ilfov

Phone: +40 21 200 4100

Telefax: +40 21 200 4101

E-mail: romani[email protected]

Russia

ООО Грундфос Россия

Shkolnaya, 39-41

Москва, RU-109544, Russia

Тел. (+7) 495 564-88-00 (495) 737-30-

Факс (+7) 495 564 88 11

E-mail grundfos.moscow@grundfos.com

Serbia

Grundfos Srbija d.o.o.

Omladinskih brigada 90b

11070 Novi Beograd

Phone: +381 11 2258 740

Telefax: +381 11 2281 769

www.rs.grundfos.com

Singapore

GRUNDFOS (Singapore) Pte. Ltd.

25 Jalan Tukang

Singapore 619264

Phone: +65-6681 9688

Telefax: +65-6681 9689

Slovakia

GRUNDFOS s.r.o.

Prievozská 4D

821 09 BRATISLAVA

Phona: +421 2 5020 1426

sk.grundfos.com

Slovenia

GRUNDFOS LJUBLJANA, d.o.o.

Leskoškova 9e, 1122 Ljubljana

Phone: +386 (0) 1 568 06 10

Telefax: +386 (0)1 568 06 19

E-mail: [email protected]

South Africa

GRUNDFOS (PTY) LTD

Corner Mountjoy and George Allen

Roads

Wilbart Ext. 2

Bedfordview 2008

Phone: (+27) 11 579 4800

Fax: (+27) 11 455 6066

E-mail: lsmart@grundfos.com

Spain

Bombas GRUNDFOS España S.A.

Camino de la Fuentecilla, s/n

E-28110 Algete (Madrid)

Tel.: +34-91-848 8800

Telefax: +34-91-628 0465

Sweden

GRUNDFOS AB

Box 333 (Lunnagårdsgatan 6)

431 24 Mölndal

Tel.: +46 31 332 23 000

Telefax: +46 31 331 94 60

Switzerland

GRUNDFOS Pumpen AG

Bruggacherstrasse 10

CH-8117 Fällanden/ZH

Tel.: +41-44-806 8111

Telefax: +41-44-806 8115

Taiwan

GRUNDFOS Pumps (Taiwan) Ltd.

7 Floor, 219 Min-Chuan Road

Taichung, Taiwan, R.O.C.

Phone: +886-4-2305 0868

Telefax: +886-4-2305 0878

Thailand

GRUNDFOS (Thailand) Ltd.

92 Chaloem Phrakiat Rama 9 Road,

Dokmai, Pravej, Bangkok 10250

Phone: +66-2-725 8999

Telefax: +66-2-725 8998

Turkey

GRUNDFOS POMPA San. ve Tic. Ltd.

Sti.

Gebze Organize Sanayi Bölgesi

Ihsan dede Caddesi,

2. yol 200. Sokak No. 204

41490 Gebze/ Kocaeli

Phone: +90 - 262-679 7979

Telefax: +90 - 262-679 7905

E-mail: satis@grundfos.com

Ukraine

Бізнес Центр Європа

Столичне шосе, 103

м. Київ, 03131, Україна

Телефон: (+38 044) 237 04 00

Факс.: (+38 044) 237 04 01

E-mail: ukraine@grundfos.com

United Arab Emirates

GRUNDFOS Gulf Distribution

P.O. Box 16768

Jebel Ali Free Zone

Dubai

Phone: +971 4 8815 166

Telefax: +971 4 8815 136

United Kingdom

GRUNDFOS Pumps Ltd.

Grovebury Road

Leighton Buzzard/Beds. LU7 4TL

Phone: +44-1525-850000

Telefax: +44-1525-850011

U.S.A.

GRUNDFOS Pumps Corporation

17100 West 118th Terrace

Olathe, Kansas 66061

Phone: +1-913-227-3400

Telefax: +1-913-227-3500

Uzbekistan

Grundfos Tashkent, Uzbekistan The Rep-

resentative Office of Grundfos Kazakhstan

in Uzbekistan

38a, Oybek street, Tashkent

Телефон: (+998) 71 150 3290 / 71 150

3291

Факс: (+998) 71 150 3292

Addresses Revised 07.06.2017

www.grundfos.com

96011045 0417

ECM: 1206635

The name Grundfos, the Grundfos logo, and be think innovate are registered trademarks

Other manuals for Unilift AP12

This manual suits for next models

Table of contents

Other Grundfos Water Pump manuals

Grundfos

Grundfos UPS 32-80 F 220 User manual

Grundfos

Grundfos alpha2 l User manual

Grundfos

Grundfos LS Series User manual

Grundfos

Grundfos CMBE TWIN User manual

Grundfos

Grundfos Unilift CC 5 User manual

Grundfos

Grundfos AC 15 User manual

Grundfos

Grundfos SCALA1 Operating manual

Grundfos

Grundfos SCALA2 User manual

Grundfos

Grundfos MixiMizer Owner's manual

Grundfos

Grundfos MTRE Series Operating instructions

Grundfos

Grundfos DDI 222 Series User manual

Grundfos

Grundfos TP User manual

Grundfos

Grundfos UPE Series 2000 User manual

Grundfos

Grundfos STR2 User manual

Grundfos

Grundfos LC 231 User manual

Grundfos

Grundfos JP05S User manual

Grundfos

Grundfos MIXIT User manual

Grundfos

Grundfos BMS hs Assembly instructions

Grundfos

Grundfos DMX 221 User manual

Grundfos

Grundfos Conlift1 LS User manual

Grundfos

Grundfos CRI Series User manual

Grundfos

Grundfos SQ Series User manual

Grundfos

Grundfos ALPHA+ Series User manual

Grundfos

Grundfos MS User manual

Popular Water Pump manuals by other brands

TET

TET Natural Reliability XTP Series instruction manual

Pentair

Pentair HYDROMATIC H3H Installation and service manual

Oase

Oase Aquarius Universal Classic 600 operating instructions

Franklin Electric

Franklin Electric RJSE user manual

Desmi

Desmi H Series Operation and maintenance instructions

KRAUSMANN

KRAUSMANN 4301 Operation manual

SAMES KREMLIN

SAMES KREMLIN AIRMIX 20C100 Installation and safety instructions

Dover

Dover PSG ALL-FLO G Series Installation operation & maintenance

Schmalz

Schmalz EVE-OG-25 F Installation and operation instructions

ITT

ITT ST31 Installation, operation and maintenance instructions

Liberty Pumps

Liberty Pumps Builder S30 Series installation manual

ITT Industries

ITT Industries Goulds Pumps 3642 Series Installation, operation and maintenance instructions

Pentair

Pentair Hydromatic JB-1 Installation and service manual

Oase

Oase AquaMax Eco Premium 6000 operating instructions

Oase

Oase AquaMax Eco Classic 2500 operating instructions

SHURflo

SHURflo Potable Water Pump Installation and operation manual

Edwards

Edwards EXS Series instruction manual

Fountain TECH

Fountain TECH FT-40 user guide

Grundfos Unilift AP12 User manual

Popular Water Pump manuals by other brands
