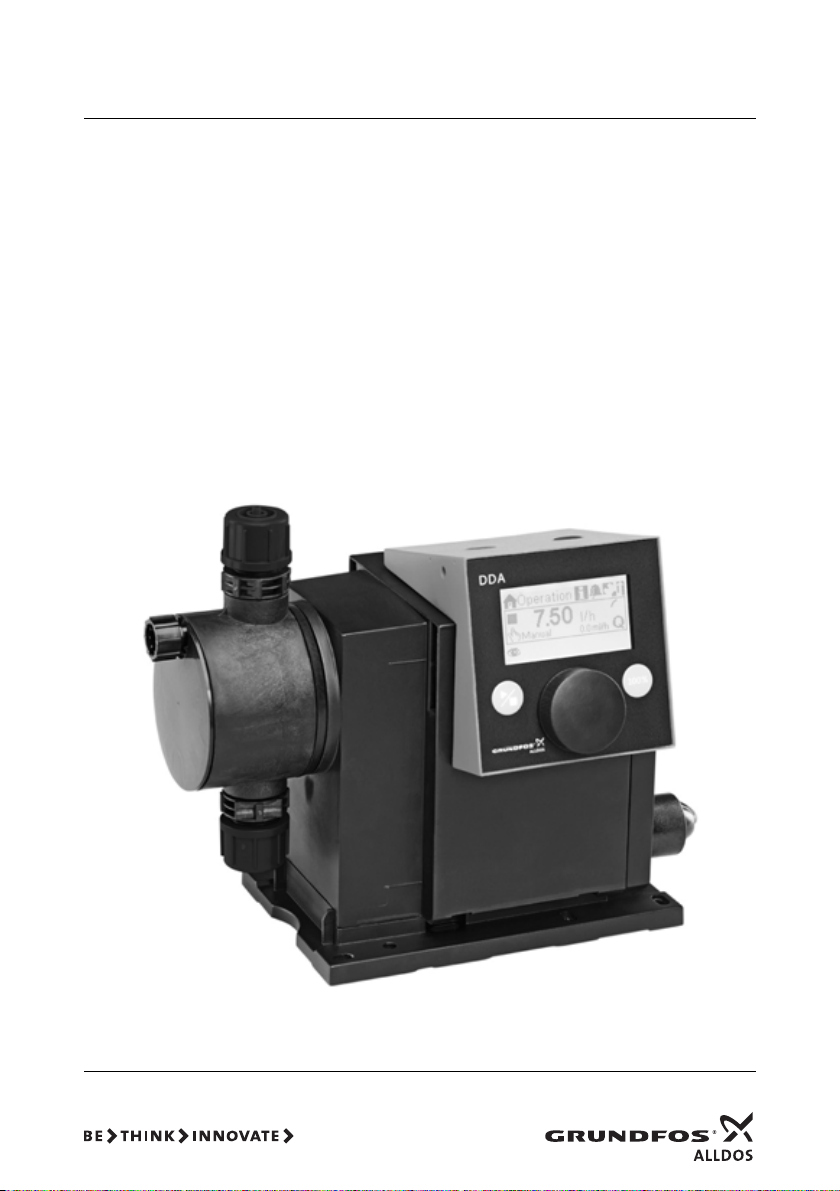

Grundfos SMART Digital DDA User manual

GRUNDFOS INSTRUCTIONS
SMART Digital - DDA
Installation and operating instructions

Declaration of conformity
2
Declaration of conformity
GB Declaration of Conformity
We, Grundfos Alldos, declare under our sole responsibility that the products
DDA, DDC and DDE, to which this declaration relates, are in conformity with
these Council directives on the approximation of the laws of the EC member
states:
– Machinery Directive (2006/42/EC).
Standards used: EN 809: 1998, EN ISO 12100-1+A1: 2009,
EN ISO 12100-2+A1: 2009.
– Low Voltage Directive (2006/95/EC) *.
Standard used: EN 60204-1+A1: 2009.
– EMC Directive (2004/108/EC).
Standards used: EN 61000-6-2: 2005, EN 61000-6-4: 2007.
* Only for products with operating voltage > 50 VAC or >75 VDC.
Pfinztal, 1 November 2010
Ulrich Stemick
Technical Director
Grundfos Water Treatment GmbH
Reetzstr. 85, D-76327 Pfinztal, Germany
Person authorised to compile technical file and
empowered to sign the EC declaration of conformity.

English (GB)
3
English (GB) Installation and operating instructions
Original installation and operating instructions.
CONTENTS Page
1. Safety instructions 4
1.1 Identification of safety instructions in
these instructions 4
1.2 Qualification and training of personnel 4
1.3 Safety instructions for the operator/
user 4
1.4 Safety of the system in the event of a
failure in the dosing pump 4
1.5 Dosing chemicals 5
2. General 5
2.1 Applications 5
2.2 Improper operating methods 5
2.3 Warranty 6
2.4 Nameplate 6
2.5 Type key 7
2.6 Device overview 8
3. Technical data / dimensions 9
3.1 Technical data 9
3.2 Dimensions 11
4. Assembly and installation 12
4.1 Pump assembly 12
4.1.1 Requirements 12
4.1.2 Align and install mounting plate 12
4.1.3 Engage pump in mounting plate 12
4.1.4 Adjusting control cube position 12
4.2 Hydraulic connection 13
4.3 Electrical connection 14
5. Commissioning 16
5.1 Setting the menu language 16
5.2 Deaerating the pump 17
5.3 Calibrating the pump 17
6. Operation 19
6.1 Control elements 19
6.2 Display and symbols 19
6.2.1 Navigation 19
6.2.2 Operating states 19
6.2.3 Sleep mode (energy-saving mode) 19
6.2.4 Overview of display symbols 20
6.3 Main menus 21
6.3.1 Operation 21
6.3.2 Info 21
6.3.3 Alarm 21
6.3.4 Setup 21
6.4 Operation modes 22
6.4.1 Manual 22
6.4.2 Pulse 22
6.4.3 Analog 0/4-20 mA 23
6.4.4 Batch (pulse-based) 24
6.4.5 Dosing timer, cycle 25
6.4.6 Dosing timer, week 25
6.5 Analog output 26
6.6 SlowMode 26
6.7 FlowControl 27
6.8 Pressure monitoring 28
6.8.1 Pressure setting ranges 28
6.8.2 Calibration of pressure sensor 28
6.9 Flow measurement 29
6.10 AutoFlowAdapt 29
6.11 Auto deaeration 29
6.12 Key lock 30
6.13 Display Setup 30
6.13.1 Units 30
6.13.2 Additional display 30
6.14 Time/date 31
6.15 Bus communication 31
6.16 Inputs/outputs 31
6.16.1 Relay outputs 31
6.16.2 External stop 32
6.16.3 Empty and low-level signals 32
6.17 Basic settings 32
7. Service 33
7.1 Service system 33
7.2 Perform service 33
7.2.1 Dosing head overview 34
7.2.2 Dismantling the diaphragm and valves 34
7.2.3 Reassembling the diaphragm and
valves 34
7.3 Resetting the service system 34
7.4 Repairs 34
8. Faults 35
8.1 List of faults 36
8.1.1 Faults with error message 36
8.1.2 General faults 38
9. Disposal 38
Warning
Prior to installation, read these
installation and operating instructions.
Installation and operation must comply
with local regulations and accepted
codes of good practice.

English (GB)
4
1. Safety instructions
These installation and operating instructions contain
general instructions that must be observed during
installation, operation and maintenance of the pump.
It must therefore be read by the installation engineer
and the relevant qualified operator prior to
installation and start-up, and must be available at the
installation location at all times.
1.1 Identification of safety instructions in
these instructions
The safety instructions are identified by the following
symbols:
1.2 Qualification and training of personnel
The personnel responsible for the installation,
operation and service must be appropriately
qualified for these tasks. Areas of responsibility,
levels of authority and the supervision of the
personnel must be precisely defined by the operator.
If necessary, the personnel must be trained
appropriately.
Risks of not observing the safety instructions
Non-observance of the safety instructions may have
dangerous consequences for the personnel, the
environment and the pump and may result in the loss
of any claims for damages.
It may lead to the following hazards:
• Personal injury from exposure to electrical,
mechanical and chemical influences.
• Damage to the environment and personal injury
from leakage of harmful substances.
1.3 Safety instructions for the
operator/user
The safety instructions described in these
instructions, existing national regulations on health
protection, environmental protection and for accident
prevention and any internal working, operating and
safety regulations of the operator must be observed.
Information attached to the pump must be observed.
Leakages of dangerous substances must be
disposed of in a way that is not harmful to the
personnel or the environment.
Damage caused by electrical energy must be
prevented, see the regulations of the local electricity
supply company.
Only orginal accessories and original spare parts
should be used. Using other parts can result in
exemption from liability for any resulting
consequences.
1.4 Safety of the system in the event of a
failure in the dosing pump
The dosing pump was designed according to the
latest technologies and is carefully manufactured
and tested.
If it fails regardless of this, the safety of the overall
system must be ensured. Use the relevant
monitoring and control functions for this.
Warning
If these safety instructions are not
observed, it may result in personal
injury!
Caution
If these safety instructions are not
observed, it may result in malfunction
or damage to the equipment!
Note
Notes or instructions that make the job
easier and ensure safe operation.
Caution
Before any work to the pump, the pump
must be in the ’Stop’ operational state
or be disconnected from the mains.
The system must be pressureless!
Caution
Make sure that any chemicals that are
released from the pump or any
damaged lines do not cause damage to
system parts and buildings.
The installation of leak monitoring
solutions and drip trays is
recommended.

English (GB)
5
1.5 Dosing chemicals 2. General
The DDA dosing pump is a self-priming
diaphragm pump. It consists of a housing
with stepper motor and electronics, a
dosing head with diaphragm and valves and the
control cube.
Excellent dosing features of the pump:
• Optimal intake even with degassing media, as
the pump always works at full suction stroke
volume.
• Continuous dosing, as the medium is sucked up
with a short suction stroke, regardless of the
current dosing flow, and dosed with the longest
possible dosing stroke.
2.1 Applications
The pump is suitable for liquid, non-abrasive, non-
flammable and non-combustible media strictly in
accordance with the instructions in these installation
and operating instructions.
Areas of application
• Drinking water treatment
• Wastewater treatment
• Swimming pool water treatment
• Boiler water treatment
• CIP (Clean-In-Place)
• Cooling water treatment
• Process water treatment
• Wash plants
• Chemical industry
• Ultrafiltration processes and reverse osmosis
•Irrigation
• Paper and pulp industry
• Food and beverage industries
2.2 Improper operating methods
The operational safety of the pump is only
guaranteed if it is used in accordance with section
2.1 Applications.
Warning
Before switching the supply voltage
back on, the dosing lines must be
connected in such a way that any
chemicals in the dosing head cannot
spray out and put people at risk.
The dosing medium is pressurised and
can be harmful to health and the
environment.
Warning
When working with chemicals, the
accident prevention regulations
applicable at the installation site
should be applied (e. g. wearing
protective clothing).
Observe the chemical manufacturer's
safety data sheets and safety
instructions when handling chemicals!
Warning
If the diaphragm leaks or is broken,
dosing liquid will escape from the
discharge opening on the dosing head
(see fig. 3).
Take suitable precautions to prevent
harm to health and damage to property
from escaping dosing liquid!
Check daily whether liquid is escaping
from the discharge opening!
Changing the diaphragm, see section
7. Service.
Caution
A deaeration hose, which is routed into
a container, e. g. a drip tray, must be
connected to the deaeration valve.
Caution
The dosing medium must be in liquid
aggregate state!
Observe the freezing and boiling points
of the dosing medium!
Caution
The resistance of the parts that come
into contact with the dosing medium,
such as the dosing head, valve ball,
gaskets and lines, depends on the
medium, media temperature and
operating pressure.
Ensure that parts in contact with the
dosing media are resistant to the
dosing medium under operating
conditions, see data booklet!
Should you have any questions
regarding the material resistance and
suitability of the pump for specific
dosing media, please contact
Grundfos.
Warning
Other applications or the operation of
pumps in ambient and operating
conditions, which are not approved,
are considered improper and are not
permitted. Grundfos cannot be held
liable for any damage resulting from
incorrect use.
Warning
The pump is NOT approved for
operation in potentially explosive
areas!
Warning
A sunscreen is required for outdoor
installation!

English (GB)
6
2.3 Warranty
A guarantee claim in accordance with our general terms of sale and delivery is only valid if the following
requirements are fulfilled:
• The pump is used in accordance with the information within this manual.
• The pump is not dismantled or incorrectly handled.
• The maintenance is carried out by authorised and qualified personnel.
• Original spare parts are used for repairs during maintenance.

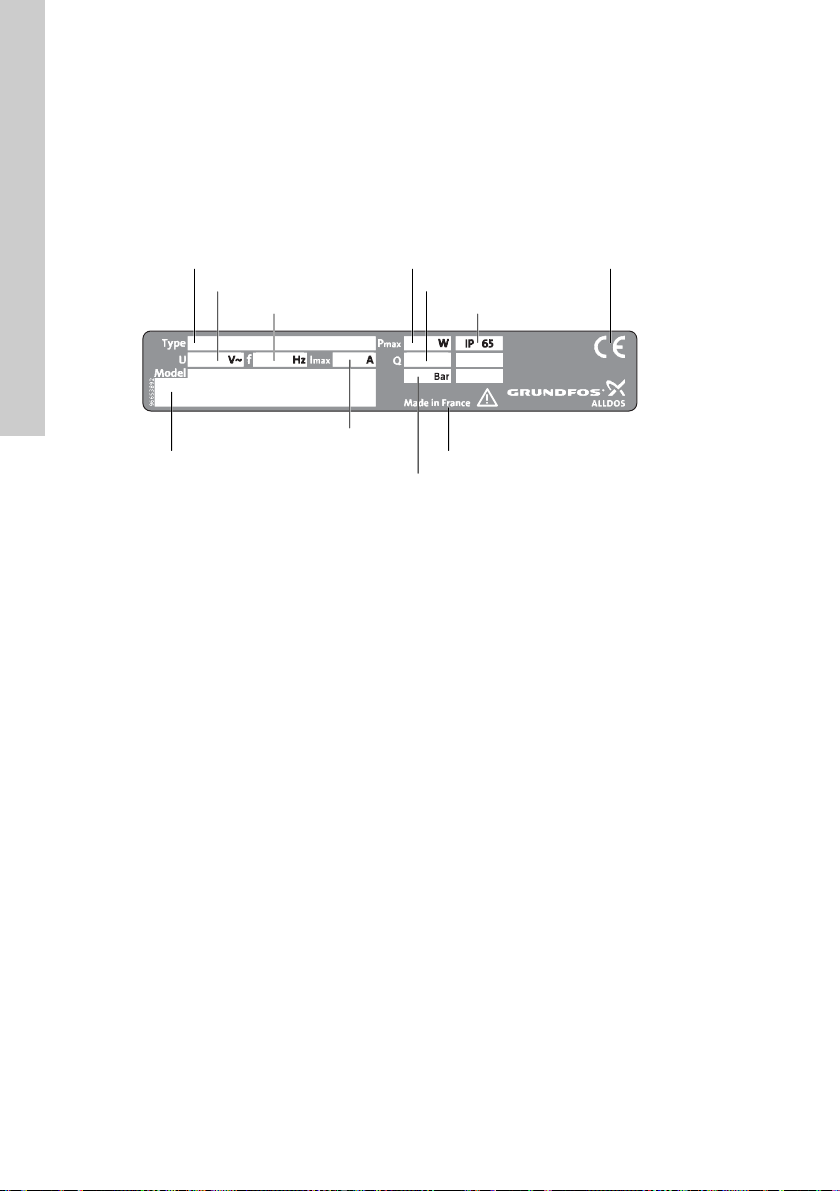

2.4 Nameplate
Fig. 1 Nameplate
TM04 1116 1110
psi
gphl/h
P
Type designationVoltage Frequency Max. dosing flow Power consumption
Enclosure class
Mark of approval, CE mark, etc.
Model Current consumption Country of production
Max. operating pressure

English (GB)
7
2.5 Type key
The type key is used to identify the precise pump and is not used for configuration purposes.
*) including: 2 pump connections, foot valve, injection unit, 6 m PE discharge hose, 2 m PVC suction hose,
2 m PVC deaeration hose (4/6 mm)
Code Example DDA 7.5- 16 AR- PP/ V/ C- F- 3 1 U2U2 F G
Pump type
Max. flow [l/h]
Max. pressure [bar]
AR
FC
FCM
Control variant
Standard
AR with FlowControl
FC with integrated flow measurement
PP
PVC
PV
SS
PVC-P3
Dosing head material
Polypropylene
PVC (polyvinyl chloride) (PVC dosing heads only up to 10 bar)
PVDF (polyvinylidene fluoride)
Stainless steel DIN 1.4401
PVC with Plus3
E
V
T
Gasket material
EPDM
FKM
PTFE
C
SS
Valve ball material
Ceramic
Stainless steel DIN 1.4401
FControl cube position Front-mounted (can be changed to the right or left)
3Voltage 1 x 100-240 V, 50/60 Hz
1
2
Valve type
Standard
Spring-loaded (HV version)
U2U2
U7U7
AA
VV
XX
I001
I002
I003
I004
Suction/discharge side connection
Hose, 4/6 mm, 6/9 mm, 6/12 mm, 9/12 mm
Hose 1/8" x 1/4"; 0.17" x 1/4"; 1/4" x 3/8"; 3/8" x 1/2"
Threaded Rp 1/4", female (stainless steel)
Threaded 1/4" NPT, female (stainless steel)
No connection
Installation set*
Hose, 4/6 mm (up to 7.5 l/h, 16 bar)
Hose, 9/12 mm (up to 60 l/h, 13 bar)
Hose 0.17" x 1/4" (up to 7.5 l/h, 16 bar)
Hose, 3/8" x 1/2" (up to 60 l/h, 10 bar)
F
B
G
I
E
J
L
Power plug
EU (Schuko)
USA, Canada
UK
Australia, New Zealand, Taiwan
Switzerland
Japan
Argentina
GDesign Grundfos Alldos

English (GB)
8
2.6 Device overview

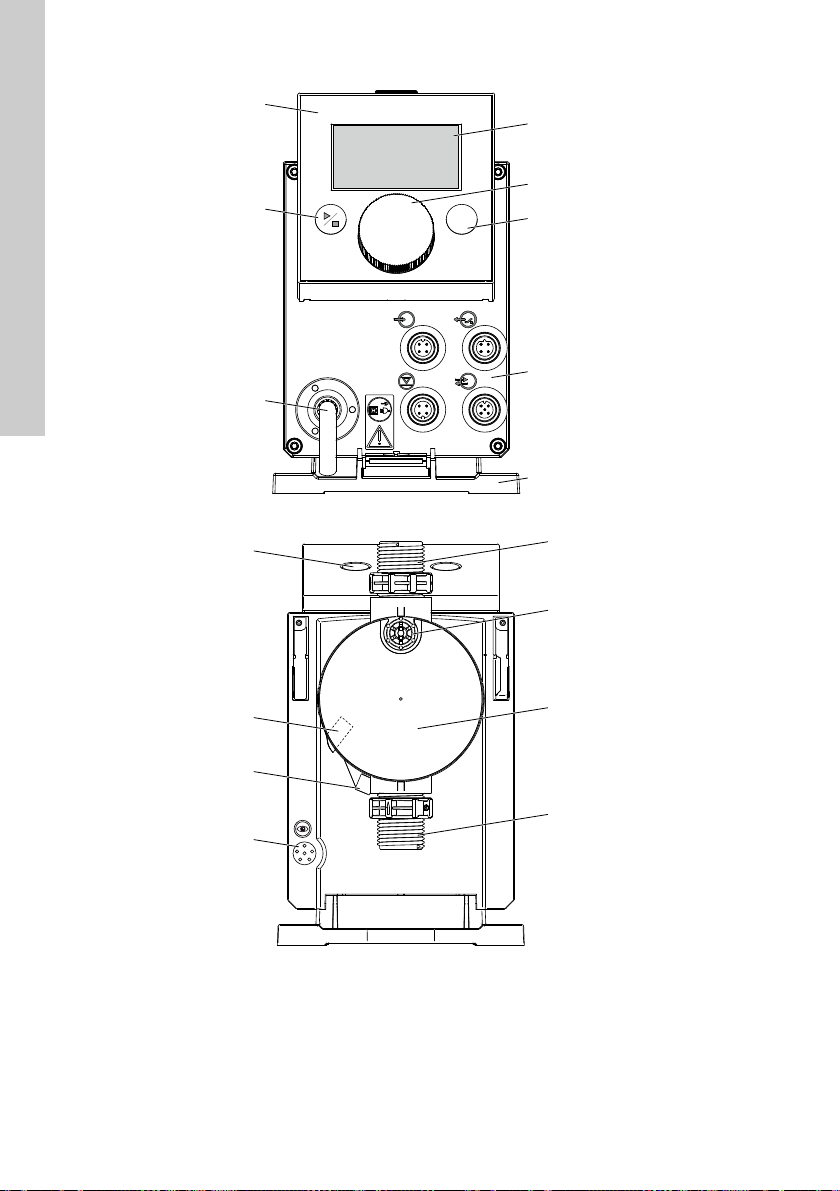

Fig. 2 Front view of the pump
Fig. 3 Rear view of the pump
TM04 1129 0110
Start/stop key
(Sect. 6.1)
Mains connection
Control cube Graphic LC display
(Sect. 6.2.2)
Click wheel (Sect. 6.1)
100 % key (Sect. 6.1)
Signal inputs, outputs
(Sect. 4.3)
Mounting plate
100%100%
TM04 1133 0110
FlowControl connection
FC/FCM
Deaeration valve
Dosing head
Valve, suction side
Connection, deaeration
hose
Valve, discharge side
Control cube assembly
screws
Drain opening in case of
diaphragm breakage

English (GB)
9
3. Technical data / dimensions
3.1 Technical data
Data DDA pump type
7.5 - 16 12-10 17-7 30-4
Mechanical
data
Turndown ration (setting range) [1:X] 3000 1000 1000 1000
Max. dosing flow [l/h] 7.5 12.0 17.0 30.0
[gph] 2.0 3.1 4.5 8.0
Max. dosing flow with SlowMode 50 % [l/h] 3.75 6.00 8.50 15.00
[gph] 1.00 1.55 2.25 4.00
Max. dosing flow with SlowMode 25 % [l/h] 1.88 3.00 4.25 7.50
[gph] 0.50 0.78 1.13 2.00
Min. dosing flow [l/h] 0.0025 0.0120 0.0170 0.0300
[gph] 0.0007 0.0031 0.0045 0.0080
Max. operating pressure [bar] 16 10 7 4
[psi] 230 150 100 60
Max. stroke frequency 1) [Strokes/
min] 190 155 205 180
Stroke volume [ml] 0.74 1.45 1.55 3.10
Accuracy of repeatability [%] ±1
Max. suction lift during operation2) [m] 6
Max. suction lift when priming with wet
valves 2) [m] 2 3 3 2
Min. pressure difference between suction
and discharge side [bar] 1 (FC and FCM: 2)
Max. pressure, suction side [bar] 2
Max. viscosity in SlowMode 25 % with
spring-loaded valves 3) [mPa s]
(= cP) 2500 2500 2000 1500
Max. viscosity in SlowMode 50 % with
spring-loaded valves 3) [mPa s]
(= cP) 1800 1300 1300 600
Max. viscosity without SlowMode with
spring-loaded valves 3) [mPa s]
(= cP) 600 500 500 200
Max. viscosity without spring-loaded
valves 3) [mPa s]
(= cP) 50 300 300 150
Min. diameter of hose/pipe on suction/
discharge side 2) 4) [mm] 4 6 6 9
Min. diameter of hose/pipe on suction
side for highly viscous media (HV) 4) [mm] 9
Min. diameter of hose/pipe on discharge
side for highly viscous media (HV) 4) [mm] 9
Max. media temperature [°C] 45
Min. media temperature [°C] -10
Max. ambient temperature [°C] 45
Min. ambient temperature [°C] 0
Max. storage temperature [°C] 70
Min. storage temperature [°C] -20

English (GB)
10
1) The maximum stroke frequency varies depending on calibration
2) Data is based on measurements with water
3) Maximum suction lift: 1 m, dosing flow reduced (approx. 30 %)
4) Length of suction line: 1.5 m / length of discharge line: 10 m (at max. viscosity)
5) With E-Box.
Electrical
data
Voltage [V] 100-240 V, 50-60 Hz
Length of mains cable [m] 1.5
Max. current consumption (100 V) [A] 8
Max. current consumption (230 V) [A] 25
Max. power consumption P1[W] 18 / 245)
Enclosure class IP 65, Nema 4X
Electrical safety class II
Signal input
Max. load for level input 12 V, 5 mA
Max. load for pulse input 12 V, 5 mA
Max. load for external stop 12 V, 5 mA
Min. pulse length [ms] 5
Max. pulse frequency [Hz] 100
Impedance at 0/4-20 mA analog input [Ω]15
Max. resistance in level circuit [Ω]1000
Max. resistance in pulse circuit [Ω]1000
Signal
output
Max. ohmic load on relay output [A] 0.5
Max. voltage on relay output [V] 30 VDC / 30 VAC
Impedance at 0/4-20 mA analog output [Ω]500
Weight/ size
Weight (PVC, PP, PVDF) [kg] 2.4 2.4 2.6
Weight (stainless steel) [kg] 3.2 3.2 4.0
Diaphragm diameter [mm] 44 50 74
Sound
pressure
level Max. sound pressure level [dB(A)] 60
Approvals CE, CSA-US, NSF61, GHOST, C-Tick
Data DDA pump type
7.5 - 16 12-10 17-7 30-4

English (GB)
11
3.2 Dimensions
Fig. 4 Dimensional drawing
TM04 1103 0110
161 17
D
B
C
A1
G 5/8"
A
200.8
100%
110
4 x Ø6
105
120
17.5
168
Pump type A [mm] A1 [mm] B [mm] C [mm] D [mm]
DDA 7.5 - 16 280 251 196 46.5 24
DDA 12-10/17-7 280 251 200.5 39.5 24
DDA 30-4 295 267 204.5 35.5 38.5

English (GB)
12
4. Assembly and installation
4.1 Pump assembly
The pump is delivered with a mounting plate.
The mounting plate can be mounted vertically
e. g. on a wall or horizontally e. g. on a tank. It takes
just a few quick steps to firmly secure the pump to
the mounting plate by means of a slot mechanism.
The pump can easily be released from the mounting
plate for maintenance.
4.1.1 Requirements
• The mounting surface must be stable and must
not vibrate.
• Dosing must flow upwards vertically.
4.1.2 Align and install mounting plate
•Vertical installation: Mounting plate slot
mechanism must be above.
•Horizontal installation: Mounting plate slot
mechanism must be opposite the dosing head.
• The mounting plate can be used as a drill
template, please see fig. 4 for drill hole distances.
Fig. 5 Locate mounting plate
1. Indicate drill holes.
2. Drill holes.
3. Secure mounting plate using four screws,
diameter 5 mm, to the wall, on the bracket or the
tank.
4.1.3 Engage pump in mounting plate
1. Attach the pump to the mounting plate support
clamps and slide under slight pressure until it
engages.
Fig. 6 Engaging the pump

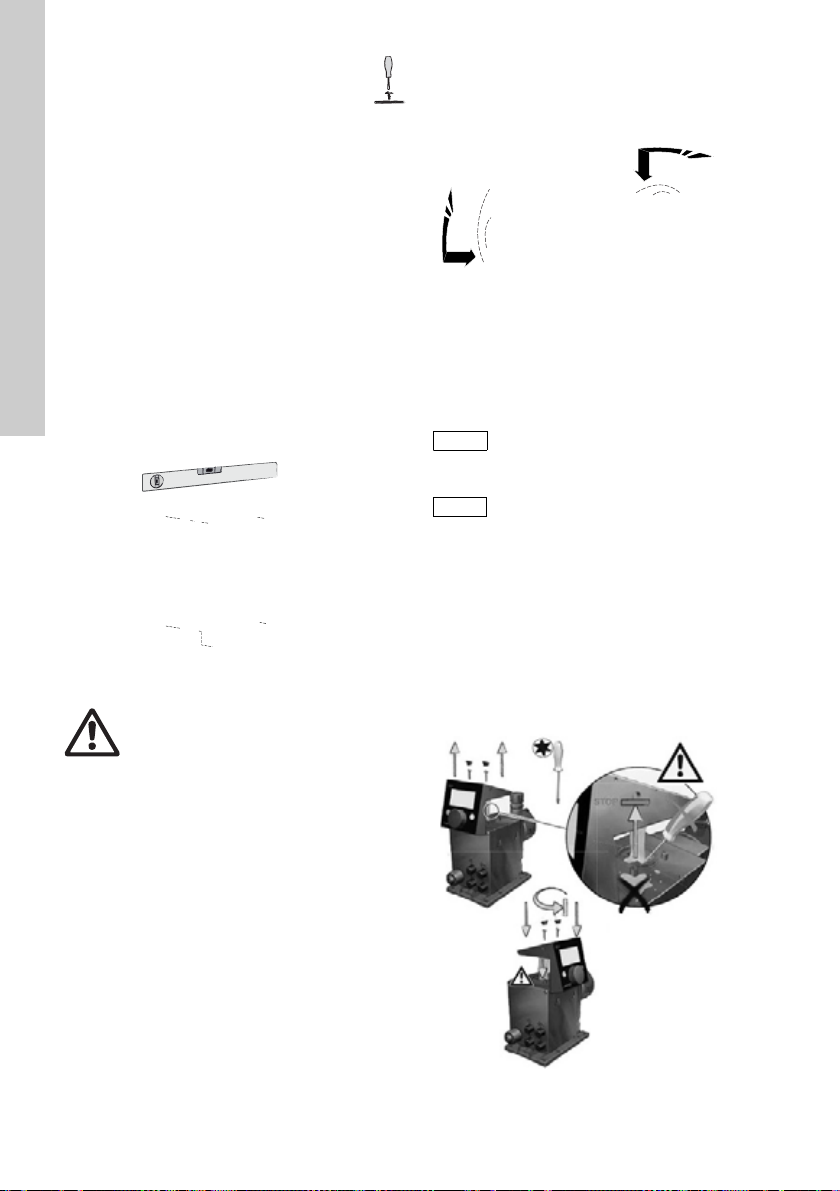

4.1.4 Adjusting control cube position
The control cube is fitted to the front of the pump on
delivery. It can be turned by 90 ° so that the user can
select to operate the pump from the right or left side.
1. Carefully remove both protective caps on the
control cube using a thin screwdriver.
2. Loosen screws.
3. Carefully lift off control cube only so far from the
pump housing that no tensile stress is produced
on the flat band cable.
4. Turn control cube by 90 ° and re-attach.
– Make sure the O-ring is secure.
5. Tighten screws slightly and attach protective
caps.
Fig. 7 Adjusting control cube
TM04 1162 0110
Warning
Make sure that you do not damage any
cables and lines during installation!
TM04 1159 0110
Caution
The enclosure class (IP65 / Nema 4X)
and shock protection are only
guaranteed if the control cube is
installed correctly!
Caution
Pump must be disconnected from the
power supply!
TM04 1182 0110
IP65, Nema 4X

English (GB)
13
4.2 Hydraulic connection
Important information on installation
• Observe suction lift and line diameter, see
section 3.1 Technical data.
• Shorten hoses at right angles.
• Ensure that there are no loops or kinks in the
hoses.
• Keep suction line as short as possible.
• Route suction line up towards the suction valve.
• Installing a filter in the suction line protects the
entire installation against dirt and reduces the
risk of leakage.
•Only control variant FC/FCM: For discharge
quantities < 1 l/h we recommend the use of an
additional spring-loaded valve (approx. 3 bar) on
the discharge side for the safe generation of the
necessary differential pressure.
Hose connection procedure
1. Push union nut and tensioning ring across hose.
2. Push cone part fully into hose, see fig. 8.
3. Attach cone part with hose to corresponding
pump valve.
4. Tighten union nut manually.
– do not use tools!
5. Tighten up union nuts after 2-5 operating hours if
using PTFE gaskets!
6. Attach deaeration hose to the corresponding
connection (see fig. 3) and run into a container
or a collecting tray.
Fig. 8 Hydraulic connection
Installation example
The pump offers various installation options. In the
picture below, the pump is installed in conjunction
with a suction line, level switch and multifunction
valve on a Grundfos tank.
Fig. 9 Installation example
Warning
Risk of chemical burns!
Wear protective clothing (gloves and
goggles) when working on the dosing
head, connections or lines!
Caution
The dosing head may contain water
from the factory check!
When dosing media which should not
come into contact with water, another
medium must be dosed beforehand!
Caution
Faultless function can only be
guaranteed in conjunction with lines
supplied by Grundfos!
Caution
The lines used must comply with the
pressure limits as per section
3.1 Technical data!
TM04 1155 0110
Note
Pressure differential between suction
and discharge side must be at least
1 bar / 14.5 psi!
Caution
Tighten up the dosing head screws
once before commissioning and after
2-5 operating hours at 3 Nm.
TM04 1183 0110
Union nut Tensioning ring Cone part
Hose
Deaeration
hose
Tank
Multifunction
valve
Suction line
with empty
signal

English (GB)
14
4.3 Electrical connection
The rated voltage of the pump, see section 2.4 Nameplate, must conform to local conditions.
Signal connections
Fig. 10 Wiring diagram of the electrical connections
Warning
The enclosure class (IP65 / Nema 4X) is only guaranteed if plugs or protective caps are
correctly installed!
Warning
The pump can start automatically when the mains voltage is switched on!
Do not manipulate mains plug or cable!
TM04 1121 0110
2
1
34
2
1
3
4
5
23
4
1
2
1
3
►2
1
GND
GND
BUS BUS
GND
12
34
12
34
12
5
34
34
12

English (GB)
15
Analog, external stop and pulse input
Level signals: empty and low-level signal
GENIbus, analog output
Relay outputs

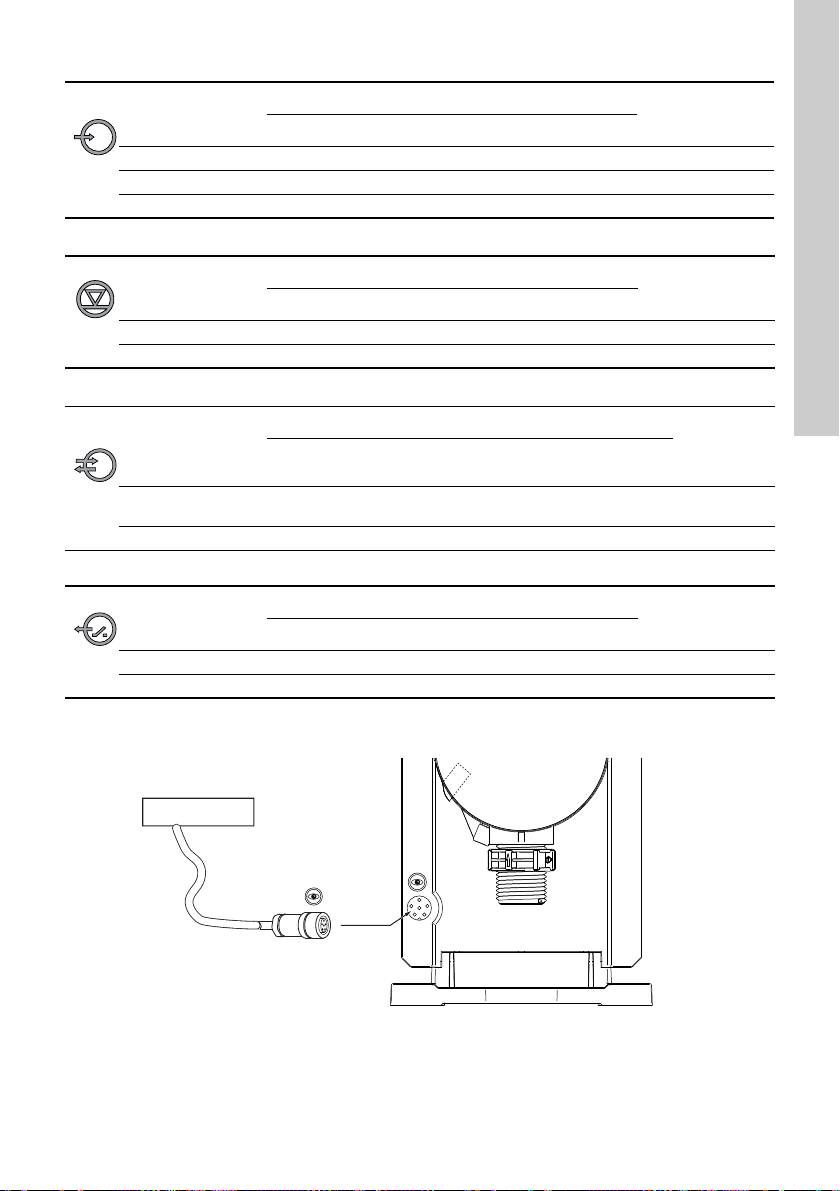

FlowControl signal connection
Fig. 11 FlowControl connection
Function Pins Plug type
1/brown 2/white 3/blue 4/black
Analog GND/ (-) mA (+) mA mA signal
External stop GND X Pulse
Pulse GND X Pulse
Function Pins Plug type
1/brown 2/white 3/blue 4/black
Low-level signal X GND Pulse
Empty signal X GND Pulse
Function
Pins
Plug type
1/brown 2/white 3/blue 4/black 5/yellow/
green
GENIbus +30 V GENIbus
TXD GENIbus RXD GND Bus
Analog output (+) mA GND/ (-) mA mA signal
Function Pins Plug type
1/brown 2/white 3/blue 4/black
Relay 1 X X Pulse
Relay 2 X X Pulse
TM04 1158 0110
Sensor

English (GB)
16
5. Commissioning
5.1 Setting the menu language
For description of control elements, see Section 6.

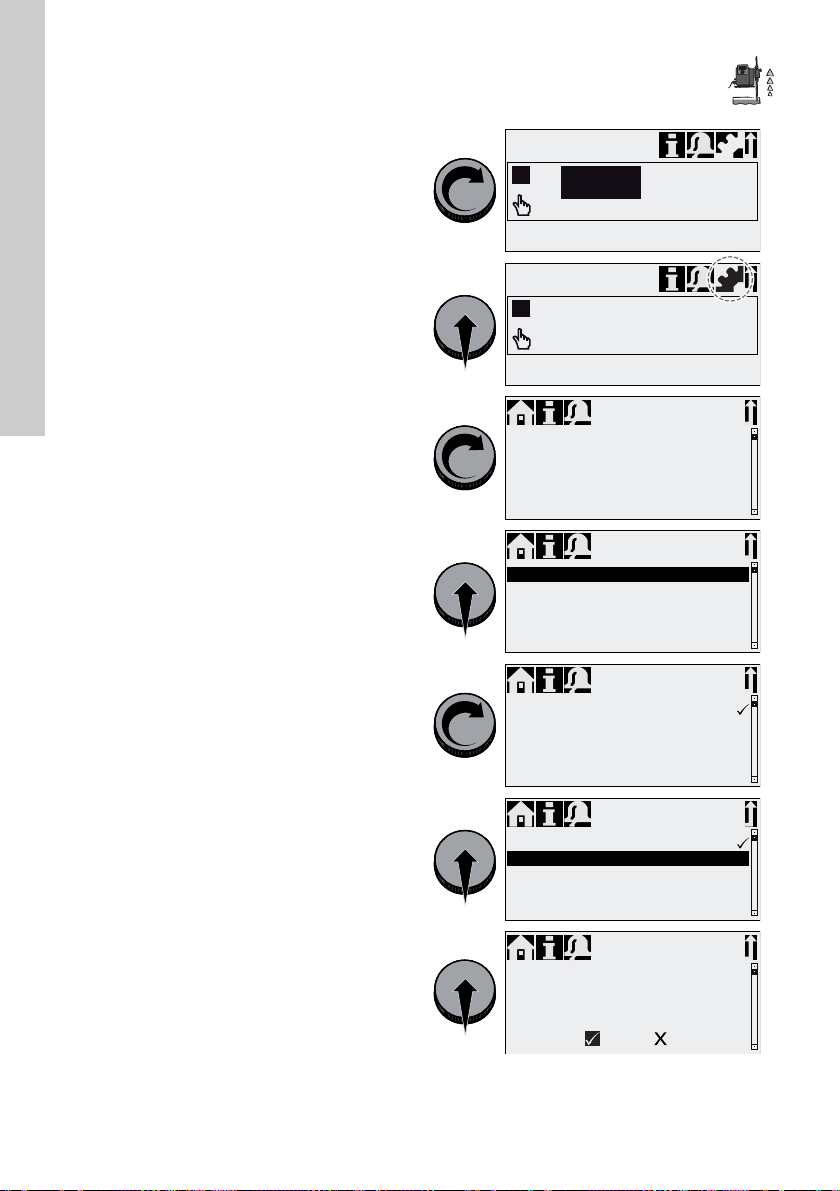

1. Turn click wheel to highlight the cog symbol.
2. Press the click wheel to open the ’Setup’ menu.
3. Turn the click wheel to highlight the ’Language’
menu.
4. Press the click wheel to open the ’Language’
menu.
5. Turn the click wheel to highlight the desired
language.
6. Press the click wheel to select the highlighted
language.
7. Press the click wheel again to confirm the
’Confirm settings’ prompt and apply the setting.
Fig. 12 Set menu language
TM04 1184 1110
Operation
English >
Manual >
Actual flow
Off
❑
Language
Operation mode
Analog output
SlowMode
FlowControl active
Operation
Setup
Setup
Setup
Setup
Setup
l/h
Manual
7.50 l/h
Manual
English >
Manual >
Actual flow
Off
❑
Language
Operation mode
Analog output
SlowMode
FlowControl active
❑
❑
❑
❑
English
Deutsch
Francais
Espanol
Italiano
❑
❑
❑
❑
English
Deutsch
Francais
Espanol
Italiano
Confirm
settings?
7.50

English (GB)
17
5.2 Deaerating the pump
1. Open deaeration screw by approximately half a
turn.
2. Press and hold down the 100 % key (deaeration
key) until liquid flows continuously without any
bubbles from the deaeration hose.
3. Close deaeration screw.
5.3 Calibrating the pump
The pump is calibrated in the factory for media with a
viscosity similar to water at maximum pump
backpressure (see section 3.1 Technical data) .
If the pump is operated with a backpressure that
deviates or if dosing a medium whose viscosity
deviates, the pump must be calibrated.
For pumps with FCM control variant, it is not
necessary to calibrate the pump if there is deviating
or fluctuating backpressure as long as the
’AutoFlowAdapt’ function has been enabled
(see section 6.10 AutoFlowAdapt).
Requirements
• The hydraulics and electrics of the pump are
connected (see section 4. Assembly and
installation).
• The pump is integrated into the dosing process
under operating conditions.
• The dosing head and suction hose are filled with
dosing medium.
• The pump has been deaerated.
Warning
The deaeration hose must be
connected correctly and inserted into a
suitable tank!
Note
Press the 100 % key and
simultaneously turn the clickwheel
clockwise to increase the duration of
the process to up to 300 seconds. After
setting the seconds, do not press the
key any longer.

English (GB)
18

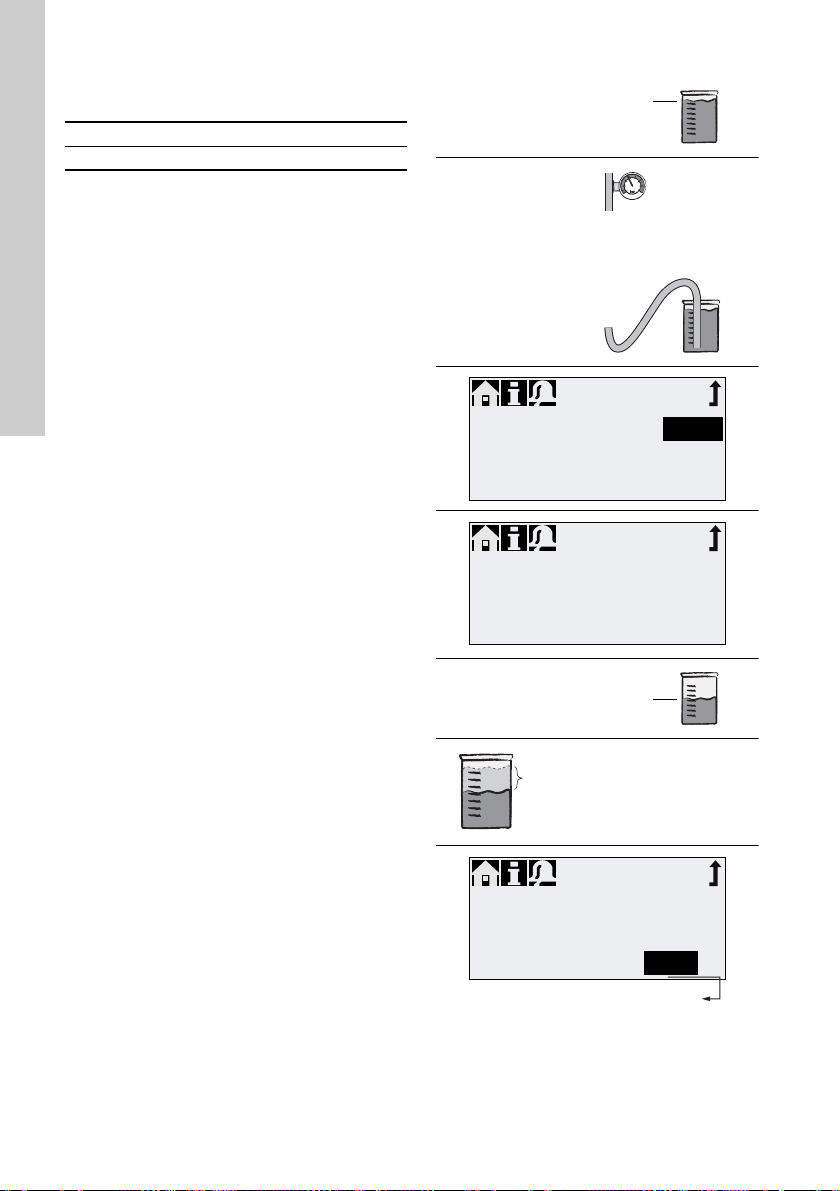

Calibration process - example for DDA 7.5 - 16
1. Fill a measuring beaker with dosing medium.
Recommended filling volumes:
2. Read off and note down the fill volume V1
(e.g.300ml).
3. Place the suction hose in the measuring beaker.
4. Start the calibration process in the ’Setup >
Calibration’ menu.
5. The pump executes 200 dosing strokes and
displays the factory calibration value
(e.g.125ml).
6. Remove the suction hose from the measuring
beaker and check the remaining volume V2
(e.g.170ml).
7. From V1and V2 , calculate the actual dosed
volume Vd = V1-V2
(e. g. 300 ml - 170 ml = 130 ml).
8. Set and apply Vdin the calibration menu.
– The pump is calibrated.
DDA type 7.5 - 16 12-10 17-7 30-4
Medium V10.3 l 0.5 l 1.0 l 1.5 l
TM04 1154 1110
V2= 170 ml
Vd = V1-V
2= 130 ml
V1= 300 ml
Calibration
Calibration
Strokes
Calibrat. volume
200
STOP
START
0.0 ml
Strokes
Calibrat. volume
200
125 ml
Calibration
Calibrat. volume
STOP
START
ml
Strokes 200 130
Actual dosed volume Vd

English (GB)
19
6. Operation
6.1 Control elements
The pump control panel includes a display
and the following control elements.
Fig. 13 Control panel
Keys
Click wheel
The click wheel is used to navigate through the
menus, select settings and confirm them.
Turning the clickwheel clockwise moves the cursor
clockwise in increments in the display. Turning the
clickwheel anti-clockwise moves the cursor anti-
clockwise.
6.2 Display and symbols
6.2.1 Navigation
In the ’Info’, ’Alarm’ and ’Setup’ main menus, the
options and submenus are displayed in the rows
below. Use the ’Back’ symbol to return to the higher
menu level. The scroll bar at the right edge of the
display indicates that there are further menu items
which are not shown.
The active symbol (current cursor position) flashes.
Press the click wheel to confirm your selection and
open the next menu level. The active main menu is
displayed as text, the other main menus are
displayed as symbols. The position of the cursor is
highlighted in black in the sub-menus.
When you position the cursor on a value and press
the click wheel, a value is selected. Turning the
clickwheel clockwise increases the value, turning the
clickwheel anti-clockwise reduces the value. When
you now press the click wheel, the cursor will be
released again.
6.2.2 Operating states
The operating state of the pump is indicated by a
symbol and display colour.
6.2.3 Sleep mode (energy-saving mode)
If in the ’Operation’ main menu the pump is not
operated for 30 seconds, the header disappears.
After 2 minutes, the display switches to the
’Operation’ main menu and the display brightness is
reduced. This state will be cancelled when the pump
is operated or a fault occurs.
TM04 1104 1120
Key Function
Start/stop
key Starting and stopping the pump.
100 % key The pump doses at maximum flow
regardless of the operation mode.
100%
7.49 l/h
Manual
7.50
l/h
Operation
Start/stop key
Graphical LC
display
Click wheel
100 % key
Display Fault Operating state
White - Stop Standby
Green - Running
Yellow Warning Stop Standby Running
Red Alarm Stop Standby

English (GB)
20

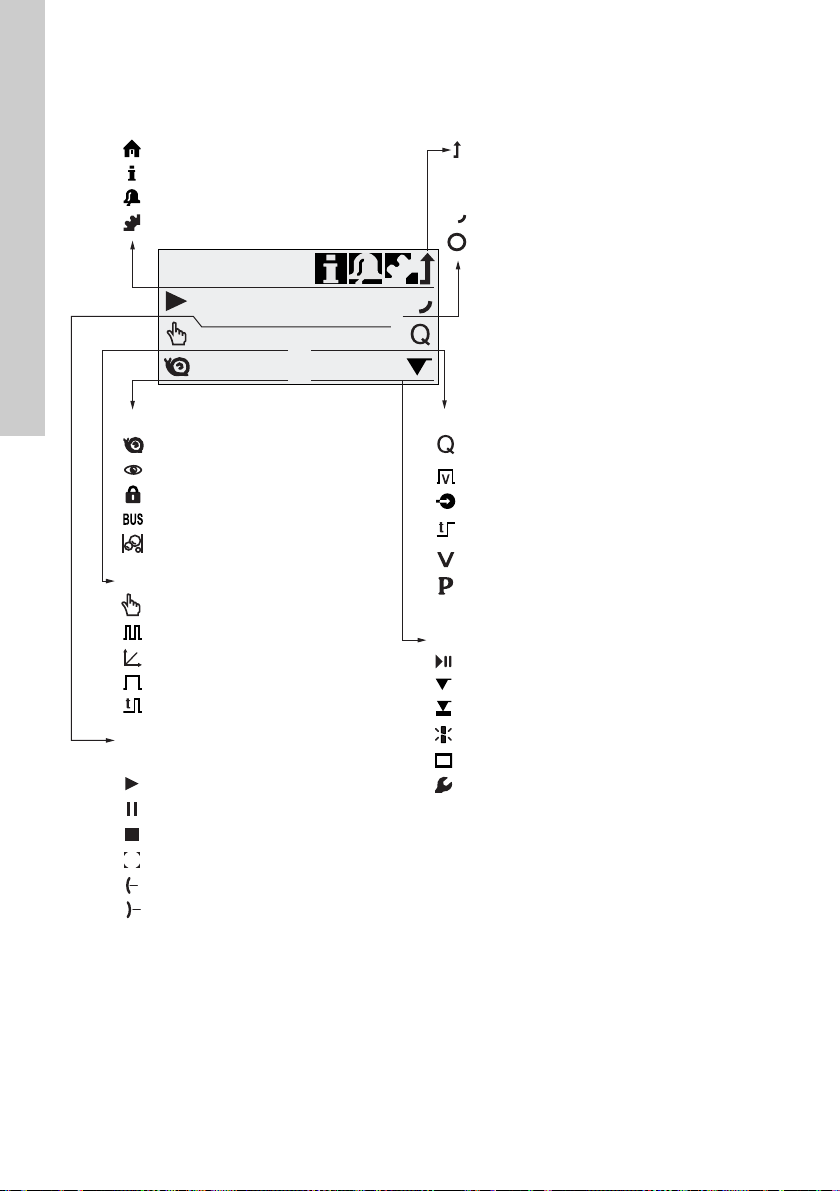

6.2.4 Overview of display symbols
The following display symbols may appear in the menus.
Fig. 14 Overview of display symbols
TM04 1161 1710
100%
Operation
Operation
Operating state (Sect. 6.2) and
dosing flow
7.48 l/h
Manual 7.48l/h
Operation mode
Activated functions
Top row with main menus (Sect. 6.3)
Info
Alarm
Setup
Back
SlowMode (Sect. 6.6)
FlowControl (Sect. 6.7)
Key lock (Sect. 6.12)
Bus (Sect. 6.15)
Auto deaeration (Sect. 6.11)
Manual (Sect. 6.4.1)
Pulse (Sect. 6.4.2)
Analog 0/4-20 mA (Sect. 6.4.3)
Batch (Sect. 6.4.4)
Timer (Sect. 6.4.5, 6.4.6)
Running
Standby
Stop
Deaerating
Diaphragm position 'out’ (Sect. 7.)
Additional display (Sect. 6.13.2)
AR, FC variant: Target flow
FCM variant: Actual flow
Remaining batch volume (Batch/Timer)
Time until next dosing process (Timer)
Input current (Analog)
Blocked drive - flashing symbol
Run display
Running - rotates when pump is dosing
External stop (Sect. 6.16.2)
Empty signal (Sect. 6.16.3)
Low-level signal (Sect. 6.16.3)
Cable break (Sect. 6.4.3)
E-box (Sect. 6.15)
Service (Sect. 7.)
Total dosed volume
Actual backpressure
Signal and error display
Diaphragm position ’in’ (Sect. 7.)
