Special features of your DVD player
Your DVD player gives you perfect digital video playback in studio quality.
It also provides superb cinema-quality audio playback – in stereo or with digital
multi-channel sound – depending on the type of DVD and the HiFI system or
stereo television.
Your DVD player is equipped with a multi-channel decoder for Dolby digital and
DTS digital Surround Sound.
Other features of DVD video include the choice of audio channel and language,
choice of subtitle language, and various camera recording angles.
In addition to DVDs, your DVD player can also play MP3, video and audio CDs.
Your DVD player is suitable for DVDs with regional code 2.

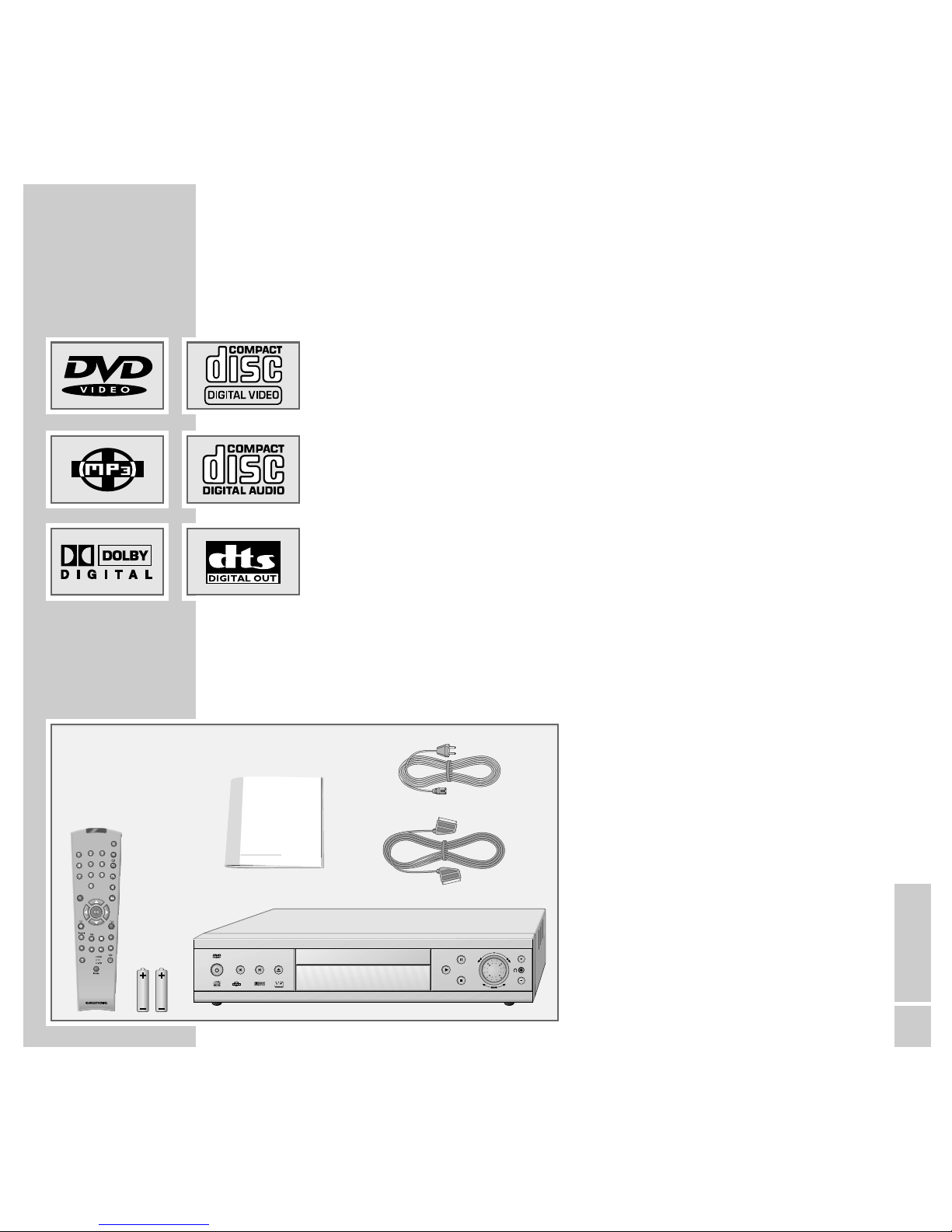

Packing contents
1 GDP 6150/1 DVD player
2 2 batteries, 1.5 V, micro type
3Remote control
4Operating manual
5Power cord
6 EURO-AV cable
GDP 6150/1 DVD PLAYER______________________________
Tele Pilot 81 D
Title
ǵXenaro
ǵ
DVD-PLAYER
1
3
2
4
5
6

6
Please note the following points when setting up the DVD player:
This DVD player set is designed to play video and audio signals from compact
discs (DVD and CD).
Any other use is expressly prohibited.
If the DVD player is subject to a sudden change in temperature, for example if
brought in from the cold to a warm room, connect it to the mains supply and let
it stand for at least two hours before you insert a DVD.
The DVD player is designed for use in dry rooms. If you do use it in the open,
please ensure that it is protected from moisture, such as rain or water splashes.
Place the DVD player on a hard, level surface. Do not place any objects such as
newspapers on the DVD player or any cloth or similar articles underneath it.
Do not place the DVD player close to heating units or in direct sunlight, as this
will impair cooling.
Do not insert foreign objects in the air vents or the disc compartment.
Never open the DVD player casing under any circumstances. The manufacturer
accepts no liability for damage resulting from improper handling.
Do not place any vessels such as vases on the DVD player, as they may spill
liquid, thus presenting a safety risk.
SET-UP AND SAFETY ______________________________________________
ǵXenaro
Krieg im Balkan
ǵXenaro
ǵXenaro
°C2h
°C
naro
ǵXenaro

SET-UP AND SAFETY_________________________________________________________________
ENGLISH
7

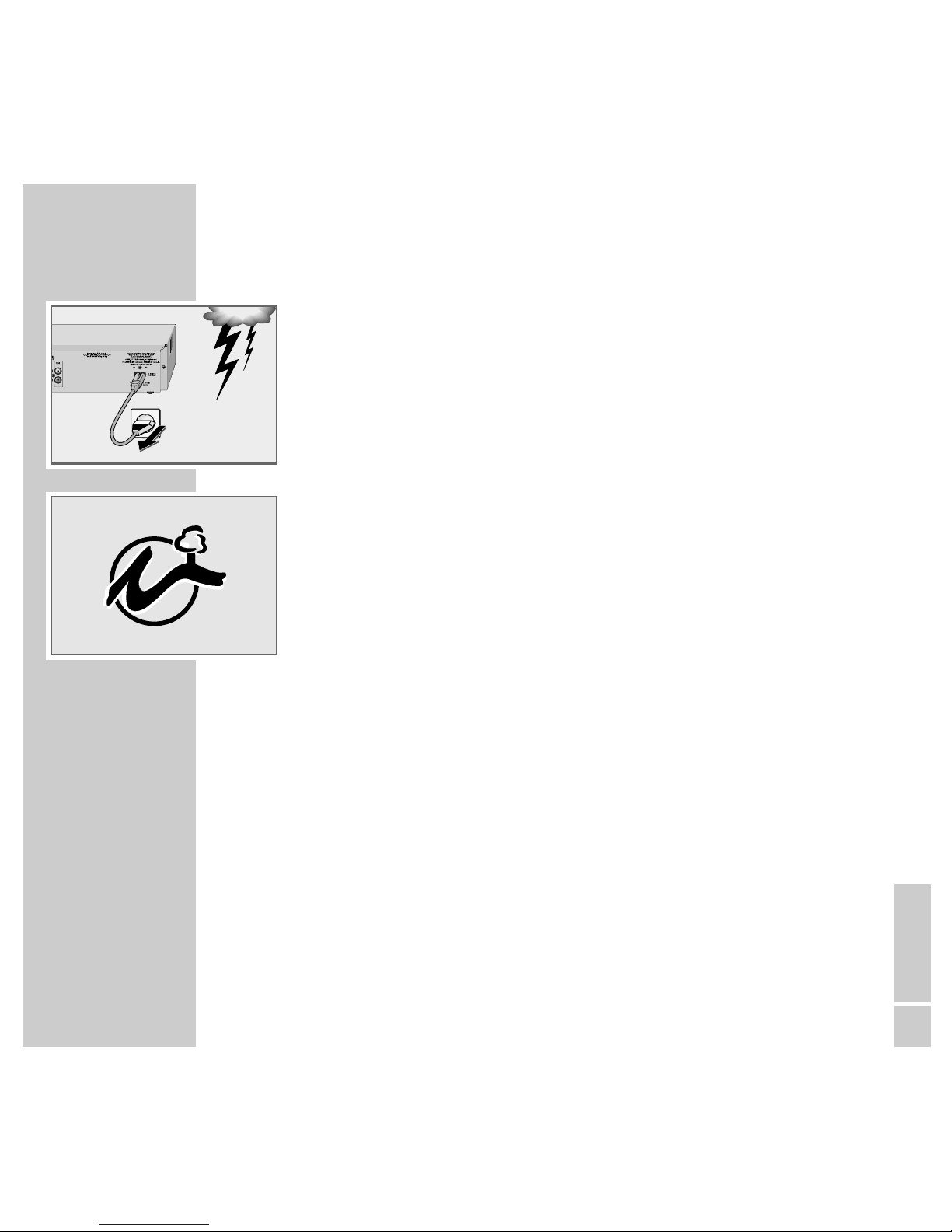

Thunderstorms are a danger to all electrical devices. Even if the DVD player is
switched off, it can be damaged by a lightning strike to the mains. Always
remove the mains plug during an electrical storm.
If the DVD player is unable to scan DVDs or CDs perfectly, use a standard
commercial cleaning CD to clean the laser optics. Other cleaning methods may
damage the laser optics.
Always keep the disc compartment closed to prevent dust from collecting on the
laser optics.
This DVD player is designed to the highest technological and environmental
standards. Only ecologically compatible, high quality materials have been
used. The batteries included are free of mercury and cadmium.
The range of materials used has been deliberately restricted and all the larger
plastic parts have been labelled. This DVD player is easily disassembled to
make servicing easier and optimise recycling.
Guarantee:
We wish to point out explicitly that only operating software authorized by GRUNDIG is
permissible for the DVD player. You can obtain this software from your dealer, or in the
near future from the Grundig Websites www.grundig.com or www.grundig.de. Any
instance of operating software from a dubious Internet source being loaded into the device
will impair functioning and also, due to unauthorized intervention, invalidate any claims
under the guarantee. As a rule, GRUNDIG declines to refund any costs resulting in such
cases. Any repair costs thus due, even those occurring within the guarantee period, are to
be paid by the customer.

8

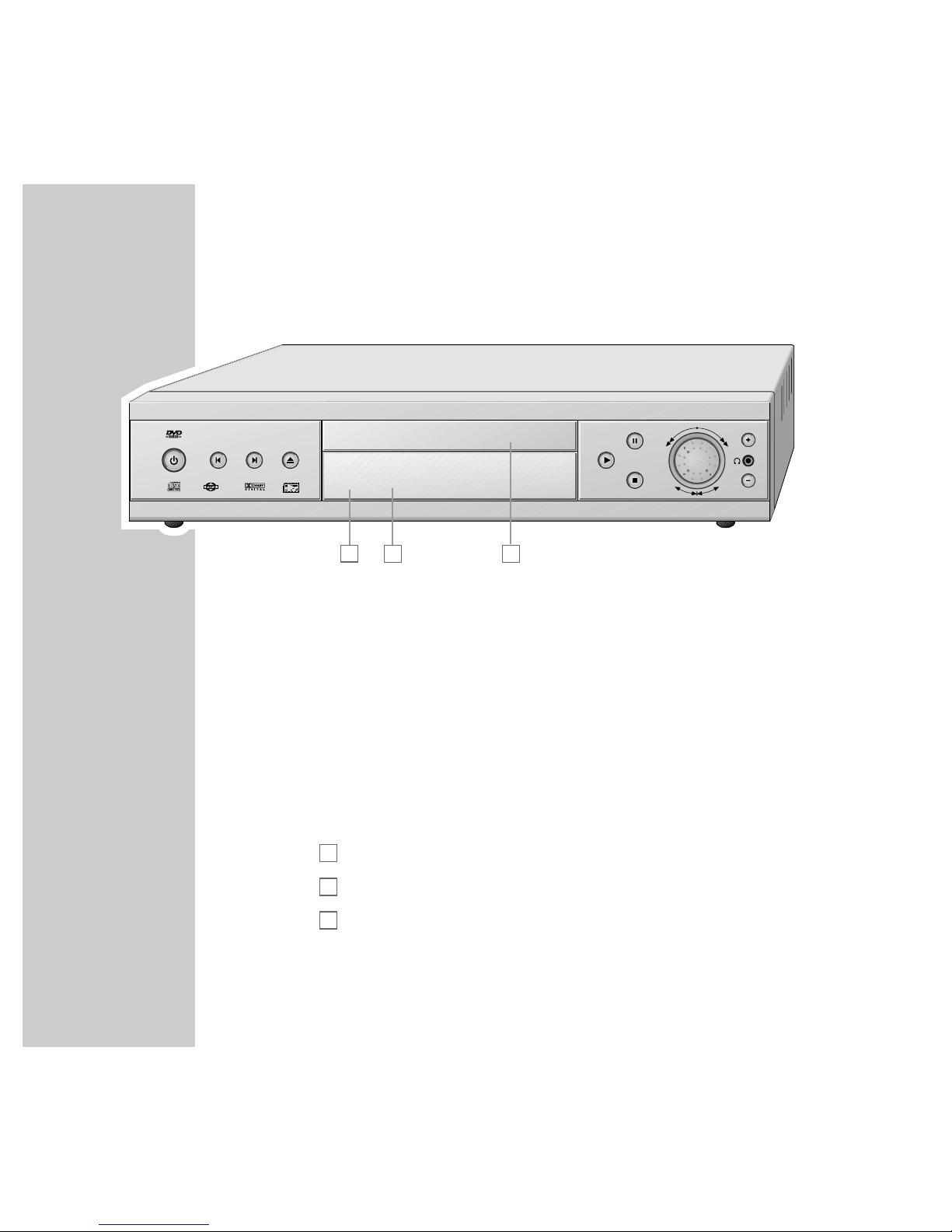

The front of the DVD player
9Press once to switch the DVD player from Low-Power Stand-by to Stand-
by. Press »9« again to switch the DVD player on.
To switch to Stand-by, press »9« once. To switch to Low-Power Stand-
by, press »9« longer.
Brief display: » LP StbY «.
Switching the DVD player off does not mean it is disconnected from the
mains.
5Selects the previous title or section during playback.
6Selects the next title or section during playback.
əOpens and closes the disc compartment.
Stand-by indicator.
Display.
Compartment for DVDs/CDs.
8Starts playback.
Press and hold down to switch the video strobe function on.
7Press once to activate the ”RESUME” function.
Press twice to switch to ”STOP” mode.
C
B
A
OVERVIEW________________________________________________________________________
ǵXenaro
B C
A

ENGLISH
9
!Press once to pause.
Press twice to advance the picture playback frame by frame.
Press and hold down to start the playback at half speed (slow motion).
Function wheel: Switches to forwards/reverse frame search at various
speeds during playback.
Jog wheel: Moves the frame forwards/reverse step-by-step during
playback pause.
yHeadphone jack for connecting a stereo headphone set with a jack plug
(ø 3.5 mm).
+ – Adjust the volume of the headphones at the »y« jack.

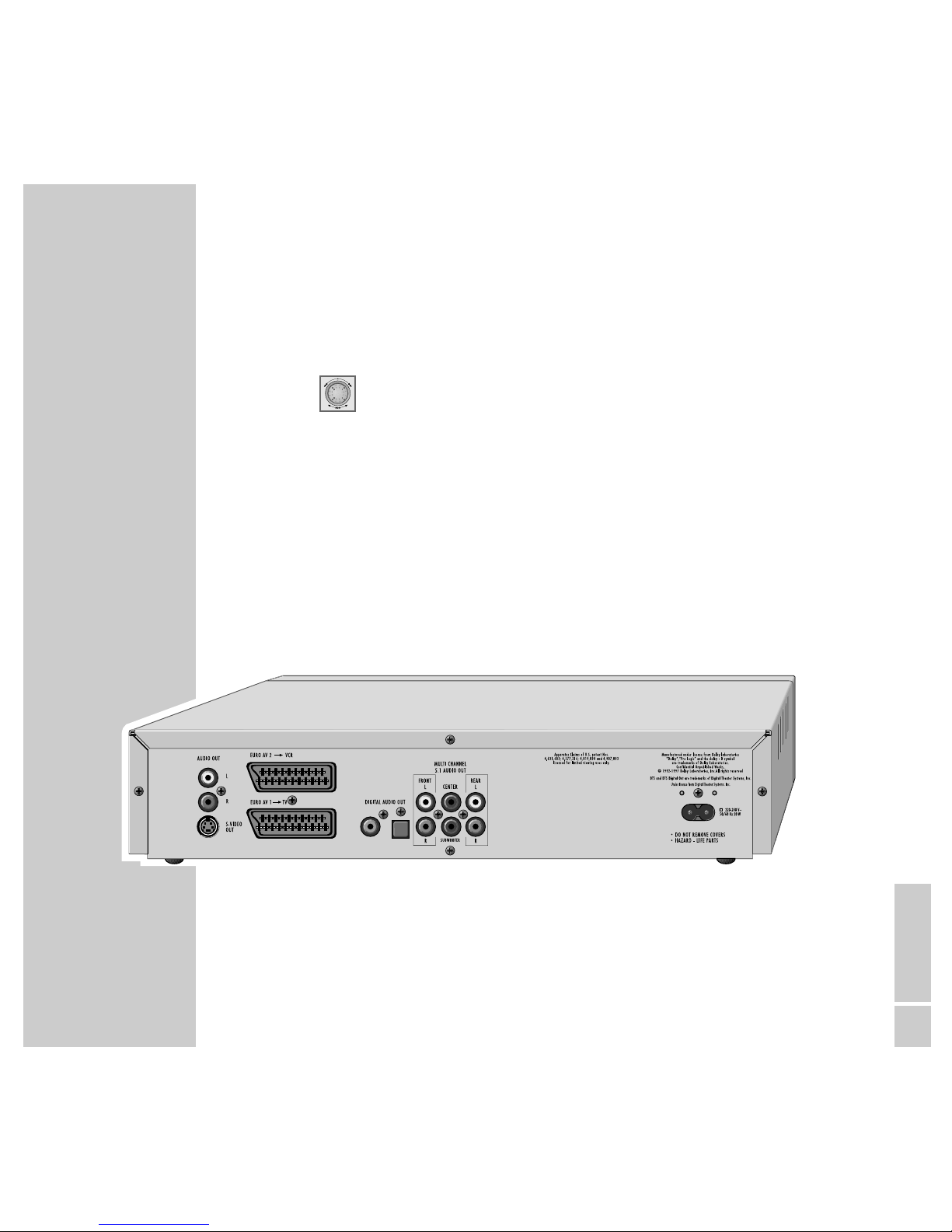

The back of the DVD player
AUDIO OUT L R Audio output jacks (left/right channel) for
connection to a HiFi system.
S-VIDEO OUT Video-output jack for connecting a television set
with an S-VIDEO jack.
EURO AV ➞VCR Video/audio output jack for connecting a video
recorder.
OVERVIEW__________________________________________________________________________________

OVERVIEW__________________________________________________________________________________
10
EURO AV ➞TV Video/audio output jack for connecting a
television set.
DIGITAL AUDIO OUT Audio output jack (coaxial and optical) for
PCM/MPEG2/AC3/DTS signals, for connecting
a digital multi-channel audio-/video amplifier.
MULTI-CHANNEL Multi-channel/audio output jacks.
5.1 AUDIO OUT
FRONT LR Audio output socket, for connecting an amplifier
for front loudspeakers or active front
loudspeakers.
CENTER Audio output socket, for connecting an amplifier
for a middle loudspeaker or an active middle
loudspeaker.
SUBWOOFER Audio output socket, for connecting an amplifier
for a subwoofer or an active subwoofer.
REAR LR Audio output socket, for connecting an amplifier
for surround loudspeakers or active surround
loudspeakers.
220-240 V~ 50/60 Hz 20 W Socket for power cord.
Caution:
Do not connect any devices while the DVD player is switched on.
Never touch the inside of the sockets and plugs of the connecting cables. An
electrostatic discharge can damage the DVD player.

ENGLISH
11
The remote control
9Switches the DVD player on from stand-by mode (the red indicator on the
DVD player is lit) and off again (stand-by).
1 ... 0 Numeric keys for various inputs.
vZooms in on scenes during playback.
bFor marking and repeating sections on DVDs and video CDs or tracks on
audio CDs.
nSelects various camera angles for certain scenes or passages on the DVD
during playback.
iCalls up the DVD player menu.
dSwitches the sound of the television set off (mute).
xQuits the menu or returns to the previous menu level.
AS Select various functions in the menus.
as Select various functions in the menus;
»a« quits the menu or returns to the previous menu level.
OK Displays various information on the television screen during playback, such
as the title or chapter number and playing time.
Confirms selections made from the menus.
.Calls up the disc menu of the DVD/video CD during playback; switches the
content menu of a MP3 CD on and off.
Title Calls up the title menu of a DVD during playback;
calls up the info menu of a MP3 CD.
cMarks scenes on a DVD.
ll Freeze-frame for DVDs and video CDs. Pause for audio CDs
Press and hold down for slow motion (DVD).
7Interrupts the currently running function (STOP).
8Starts playback from the point where it was interrupted (Resume).
OVERVIEW__________________________________________________________________________________
Tele Pilot 83 D
Title

OVERVIEW__________________________________________________________________________________
12
56 Selects the previous/next title or section during playback.
m, Switches to reverse/forward frame search at various speeds during
playback.
dSwitches between the original and the dubbed language during DVD
playback.
MODE Switches the remote control from DVD player operation to television or video
recorder operation.
The available options are described from page 57 onwards.
yFor selecting and displaying subtitles on the DVD during playback.
The display elements of the DVD player
»ŀ« Playback.
»!« Pause/Freeze-Frame.
» « DVD inserted.
»VCD« VCD inserted.
»pA-B« One of the Repeat functions is activated.
»=D« The DVD provides a Dolby Digital audio signal.
»
01 TITLE« Number of the title on a DVD.
»
01 CHAPTER« Number of the section on a DVD or CD or the track on a music CD.
» « Function display for playback, pause, search etc., switched off on
delivery.
»
0:00:00 « Total or elapsed playing time in hours, minutes and seconds.
06
TITLE CHAPTER
A-B
03 0:02:45
VCD

ENGLISH
13

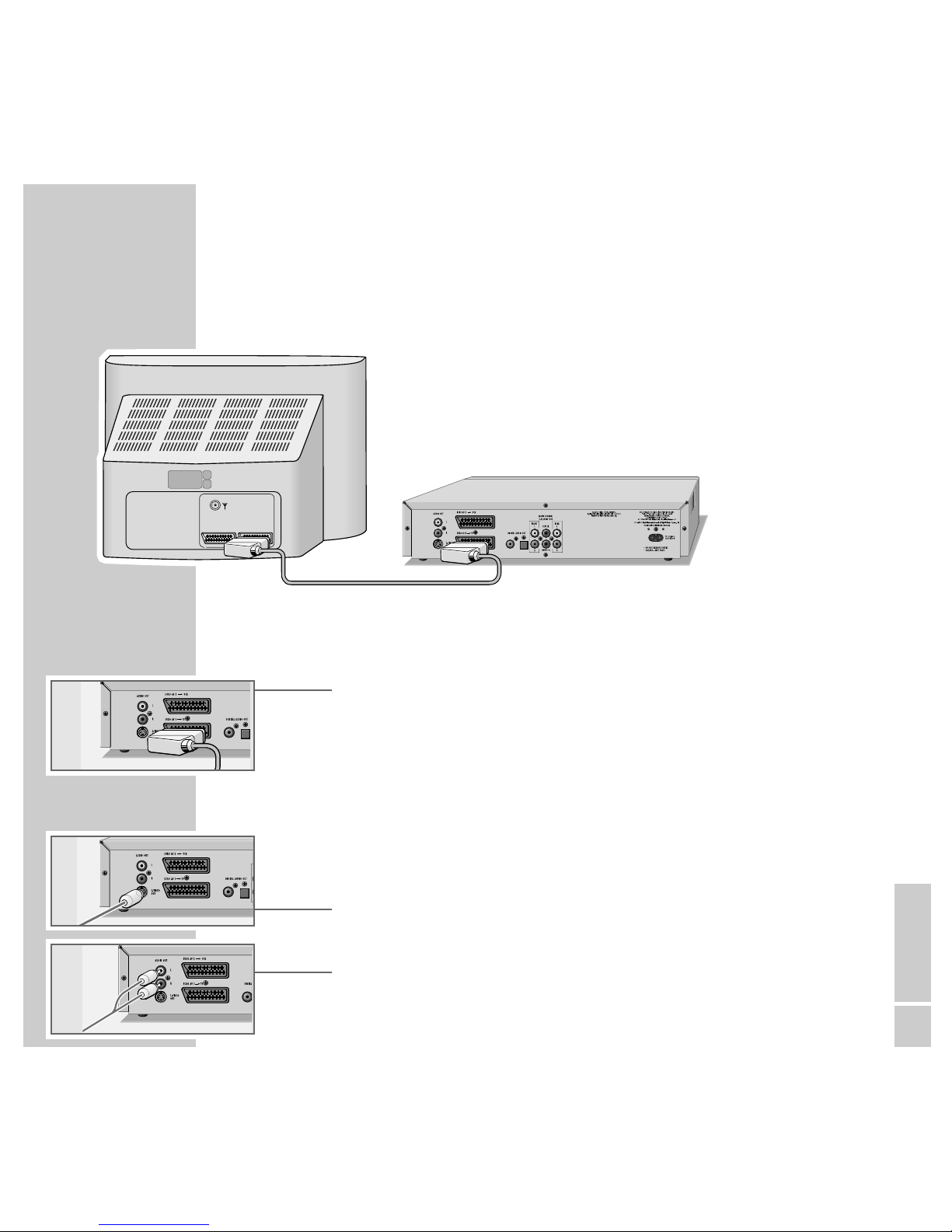

Connecting the television ...
... using a EURO-AV cable
1Plug the EURO-AV provided cable into the »EURO AV ➞TV« socket on
the DVD player and into the appropriate socket (AV 2) on the television.
Note:
If the DVD player is connected via the »EURO AV ➞TV« socket, you must
carry out the setting described in ”Selecting the video output socket (RGB or
S-Video)” on page 16.
... using a Y/C cable (S-VIDEO) and cinch cable
1Plug a standard Y/C cable into the »S-VIDEO OUT« socket on the DVD
player and into the appropriate socket (S-VIDEO IN) on the television.
2Plug a standard cinch AV cable into the »AUDIO OUT L R« sockets on the
DVD player and the appropriate sockets (AUDIO IN) on the television.
CONNECTION AND PREPARATION_______
AV1 AV2

CONNECTION AND PREPARATION_______________________________________
14
Note:
If the DVD player is connected via the »S-VIDEO OUT« socket, you must
carry out the setting described in ”Selecting the video output socket (RGB or
S-Video)” on page 17.
If the DVD player is connected to a television set with a 16:9 format, observe
the settings described in the ”Selecting the screen format of the television”
section on page 16.
The colour norm of the DVD player’s screen menus has to be adapted to the
format of the television. Make sure to observe the settings described in the
”Setting the TV system” section on page 43.
Connecting to a HiFi system with analogue
two-channel stereo sound
As an alternative to using the television’s speakers, the sound can also be played
back through a HiFi system.
1Plug a standard cinch cable into the »AUDIO OUT L R« sockets on the
DVD player and into the appropriate sockets on the HiFi system.
Caution:
Do not connect the DVD player’s »AUDIO OUT L R« sockets to the
PHONO sockets (record player input) on the HiFi system.
RL
AUDIO
INPUT

ENGLISH
15

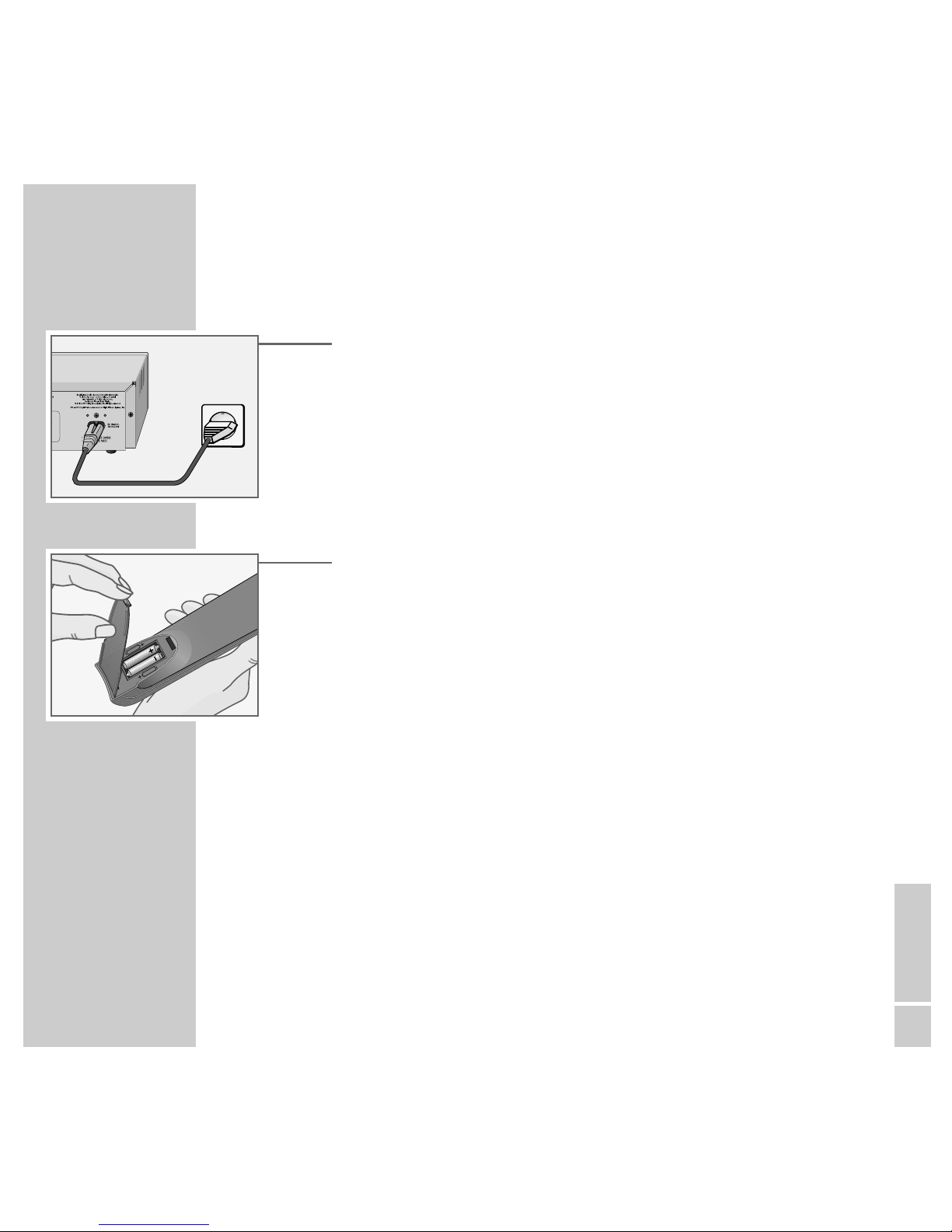

Connecting the power cord
1Plug the power cord supplied into the »220-240V~« socket on the back
of the the DVD player.
2Insert the power cord plug into the socket.
Caution:
The only way to disconnect the DVD player from the mains supply is to pull
the plug.
Inserting batteries in the remote control
1Open the battery compartment by pressing the snap-catch, and remove the
lid.
2When inserting the batteries (micro type, for example, LR03 or AAA
2 x 1.5 V), observe the polarity marked on the battery compartment.
Note:
If the DVD player no longer reacts properly to remote control commands, the
batteries may be flat. Always remove flat batteries. No liability is accepted
for damage resulting from leaking batteries.
Environmental note:
Batteries, including those which are heavy metal-free, may not be disposed
of with household waste. Please dispose of used batteries in an environ-
mentally sound manner. Find out about the legal regulations which apply in
your area.
Other connection options ...
For how to connect analogue multi-channel audio/video amplifiers or active
loudspeakers, see page 48 onwards.
Connecting a digital amplifier is described on page 53.
Connecting a video recorder is described on page 56.
CONNECTION AND PREPARATION_______________________________________

Setting the language
When the DVD player is first operated, the »Player language« menu appears
automatically. You can now choose the language of the user guide. When this is
selected, the language of the DVD menu and the dubbed language are automa-
tically set in the same language.
1Select the desired language for the screen menus using »A« or »S« and
press »OK« to confirm.
Note:
If this setting is not confirmed with »OK«, the »Player language« menu
appears when the system is switched on again.
You can change these settings at any time after first operating the system, see
the settings in the ”Selecting the language of the screen menu” chapter on
page 43 and in the ”Language settings” chapter on page 46.
Adapting the DVD player to the television set
Selecting the screen format of your television set
If your television has a 16:9 screen format, then select the »16 : 9« setting.
These default settings also have an influence on the settings in the »Picture«
menu item.
On a conventional television set with a 4:3 screen format, select the »4 : 3« set-
ting.
1Press »i« to call up the main menu.
2Select the »Installation« menu with »S« or »A« activate with »OK«,
or
select directly using »1 ... 0«.
16
OPERATION_____________________________________________________________________
Player language
select
and choose
Deutsch
English
Francais
Nederlands
Italiano
Español
Portugues
Svenska
S
Player Menu
ǵ
select exit
and choose
back
1 Picture
2 Sound
3 Disc preferences
4 Child lock
5 Installation
* * * *

OPERATION________________________________________________________________________________
ENGLISH
17
3Select the »TV format« line with »S« or »A« and activate with »OK«.
4Select the screen format required (4:3 or 16:9 wide screen) with »S« or
»A« and confirm with »OK«.
Selecting the video output socket (RGB or S-Video)
1Select the »Video output« line with »S« or »A« and activate with »OK«.
2Select the desired video output (»RGB« for »EURO AV ➞TV« socket or
»S-Video« for »S-VIDEO OUT« socket) with »S« or »A« and confirm
with »OK«.
3Press »i« to quit the menu.
TV format
select
and choose
16:9 widescreen
4:3
Video output
select
and choose
S-Video
RGB

DVD and video CD features
You can recognise DVDs, s-video CDs and video CDs by the logo on the label.
Depending on the contents of the DVD, s-video CD or video CD (films, video
clips etc.), they may carry one or more titles.
Each title may contain one or more chapters. Titles and chapters can be selected
easily and conveniently.
You can control and direct playback of a DVD, s-video CD or video CD using
the menu of the DVD player on the television screen.
Some of the DVD player’s functions, such as video strobe or slow motion, can
not be selected when playing back a video CD. This depends on the video CD.
Special DVD features
DVDs have a title menu which provides an overview of the titles available and
the passages they contain.
Some of the DVD player’s functions, such as slow motion, freeze-frame and
auto-play, can also be controlled by the DVD itself. It is therefore possible that
the freeze-frame function, for example, cannot be selected during certain scenes.
Many DVDs have audio tracks recorded in up to eight languages.
This enables you to select the language you prefer.
Many DVDs are recorded by the manufacturer with subtitles in several languages.
You can select subtitle superimposition from up to 32 different languages.
Since films are released in different parts of the world at different times, all DVD
players world-wide are given a regional code. Your DVD player has been given
region code 2.
DVDs can also be given a supplementary regional code. If you insert a DVD
with different code to that of the DVD player, a reference to the regional code
appears on the television screen. The DVD player will not be able to play back
the DVD.
18
DVD/VIDEO CD PLAYBACK ____________________________

DVD/VIDEO CD PLAYBACK_____________________________________________________
ENGLISH
19
Before playback
Preparation
1Switch on the television and select the channel for the DVD player.
2If a HiFi system is connected to the DVD player, switch on the HiFi system and
select the appropriate audio input for the DVD player.
3Press »9« to switch on the DVD player.
– On-screen display: »no disc«.
Note:
When the parental lock is activated, the »D« display appears.
You must deactivate this lock. See the chapters on locking and releasing the
disc compartment of the DVD player on page 34.
Inserting a DVD/video CD
1Press »ə« on the DVD player.
– The disc tray opens.
2Insert the desired DVD/video CD in the disc tray with the label facing
upwards.
3Press »ə«.
– DVD-player display: »DVD«,or »VCD«, the current chapter and the elapsed
playing time of the DVD or Video-CD.
Playback starts automatically.
Note:
If the DVD/video CD has not been authorised, the rating must be changed.
(See the chapter on the parental lock on page 35).
If the »-« symbol appears on the television screen, then the selected func-
tion is not possible with this DVD/video CD.
gen
no disc
gen
Ø
gen ə
ǵXenaro
0:02
:45
03
06
TITLE CHAPTER
PROG
0:02
:45
03
06
TITLE CHAPTER
PROG
0:02
:45
03
06
TITLE CHAPTER
PROG
5

Playing back a title
1After the disc compartment closes and the DVD is scanned, playback starts
automatically.
2To pause playback (freeze-frame), press »!«.
3Press »8« again to resume playback.
4End playback by pressing »7«.
Note:
Depending on the DVD/video CD you are using, you may have to select a
title or chapter from the DVD’s/video CD’s table of contents.
Use the »A«, »S«, »a« or »s« buttons to select it and then press »OK«
to confirm.
If the selection is numbered, use the »1 ... 0« keys.
Calling up information
You can call up information on the title, chapter and playing time for display on
the screen.
1Press »OK« to see the Info line.
– This provides information on:
The type of disc, current title number, current chapter number,
playing time, remaining playing time, language options, audio system,
subtitle language, camera position and bit rate.
2Press »OK« to hide the Info line.
20
gen
ľ
gen
II
gen
....
DVD/VIDEO CD PLAYBACK_____________________________________________________
5
Einstellungen
DVD T1 /2 C33 /45 01:35:55 00:26:28
Fen 1/3 =5.1 yen1 /14 n2 /4 Mbit/s 3
gen ■
