Network Dome Camera
Quick Guide

1
Quick Guide
About this guide
The guide includes instructions for using and managing the product.
Pictures, charts, images and all other information hereinafter are for
description and explanation only. The information contained in the
guide is subject to change, without notice, due to firmware updates
or other reasons.
Please find the latest version at WWW.GRUNDIG-SECURITY.COM
Limitation of Liability / Legal Disclaimer
Abetechs GmbH (Grundig Security) undertakes all reasonable efforts
to verify the integrity and correctness of the contents in this
document, but no formal guarantee shall be provided. Use of this
document and the subsequent results shall be entirely on the user’s
own responsibility. Abetechs GmbH (Grundig Security) reserves the
right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The product described herein, with its hardware, software and
documentation is provided “as is”, without any warranty, expressed
or implies, including without limitation, merchantability, satisfactory
quality, fitness for a particular purpose, and non-infringement of a
third party.
In no event will our company and its employees or agents be liable to
you for any special, consequential, incidental, or indirect damages,
including among others, damages for loss of business profits,
business interruption, or loss of data or documentation, in
QG-GD-CI-CC2616V-2019-06-23-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY

2
connection with the use of this product, even if our company has
been advised of the possibility of such damages.
Regarding to products with internet access, the use of the product
shall be wholly at your own risks. Our company shall not take any
responsibilities for abnormal operation, privacy leakage or other
damages resulting from cyber-attack, hacker attack, virus inspection,
or other internet security risks; however our company will provide
timely technical support if required. Surveillance laws vary by
jurisdiction before using this product in order to ensure that your use
conforms to the applicable law. Our company shall not be liable in
the event that this product is used with illegitimate purposes.
In the event of any conflicts between this manual and the applicable
law, the later prevails.
Trademark:
Each of trademarks herein is registered. The name of this product
and other trademarks mentioned in this manual are the registered
trademark of their respective company.
Copyright of this document is reserved. This document shall not be
reproduced, distributed or changed, partially or wholly, without
formal authorization.
OPEN SOURCE SOFTWARE LICENSE INFORMATION
The software components provided with Grundig products may
contain copyrighted software that is licensed under various open
source software licenses. For detailed information about the
contained open source software packages, the used package
versions, license information and complete license terms, please
refer to the product detail pages on our website. The complete open

3
source software license information is also included in firmware files
of affected products. Please also check your product’s CD-ROM and
manuals for additional information.
You may obtain the complete corresponding open source part of a
specific product from us for a period of three years after our last
shipment of this product by sending an email to: info@grundig-
security.com
Safety Instruction
Make sure that you only use the power adapter that is specified in
the specifications sheet of the product. If you use any other adapter
or connect the power supply incorrectly, this may cause explosion,
fire, electric shocks or damage the product. Do not connect several
devices to one power adapter as this may cause an adapter overload
and can lead to over-heating and fire. Make sure that the plug of the
power adapter is firmly connected to the power socket.
Do not place containers with liquids on the product. Do not place
conducting items like tools, screws, coins or other metal items on the
product. These may fall from the product or can cause fire or electric
shocks or other physical injuries.
Do not push or insert any sharp items or any objects into the device
as this may cause damage to the product, fire, electric shocks and/or
physical injuries.
Do not block any ventilation openings, if there are any. Ensure that
the product is well ventilated to prevent any over-heating.
Do not subject the device to physical shock or drop the product.

4
If the product uses batteries, please use a battery type that is
recommended by the manufacturer. Improper use or replacement of
the battery may result in the hazard of explosion.
Do not use any accessories that are not recommended by GRUNDIG.
Do not modify the product in any way.
If the product starts to smell or smoke comes out of the device,
immediately stop using the product and disconnect it from the power
supply to prevent fire or electric shocks. Then contact your dealer or
the nearest service center.
If the product does not work correctly, contact your dealer or nearest
service center. Never open, disassemble or alter the product yourself.
GRUNDIG cannot accept any liability or responsibility for problems
caused by attempted and unauthorized repair and maintenance.
Special Installation Instructions for IP Cameras
Make sure that the latest firmware is installed on the IP Device. You
may get the latest firmware from grundig-security.com website or
from [e-mail].
Do not touch the sensor module with your fingers.
Do not aim the camera or camera lens at a strong light such as the
sun or a bright lamp. Irreversible damage to the camera can be
caused by a strong light.
Do not expose the sensor of the product to laser beams as this may
damage the sensor.

5
If the product supports IR, you need to take some precautions to
prevent IR reflection. Do not install the product close to reflective
surfaces of objects as this may cause reflection. If the product has a
dome cover, please remove the protection film only after installation
to prevent dust or grease on the camera which can cause reflection.
The foam ring around the lens must be seated flush against the inner
surface of the bubble to isolate the lens from the IR LEDS. Fasten the
dome cover to the camera body so that the foam ring and the dome
cover are attached seamlessly.
For cleaning, use a clean cloth with a bit of ethanol and wipe it
carefully and gently. In any case, do not use alkaline detergents.
If a glove is provided in the package, please use it to open the product
cover. Never touch the product cover directly with fingers, because
the acidic sweat of the fingers may damage the surface coating of the
product cover.

6
Table of Contents
1 Appearance Description ................................................................. 7
2 Installation...................................................................................... 9
3 Setting the Network Camera over the LAN .................................. 13
3.1 Wiring ........................................................................... 13
3.2 Activating the Camera................................................... 14
3.2.1 Activation via Web Browser................................ 14
Activation via IP-Finder Software........................ 15
3.3 Modifying the IP Address .............................................. 17
4 Accessing via Web Browser .......................................................... 20

7
1Appearance Description

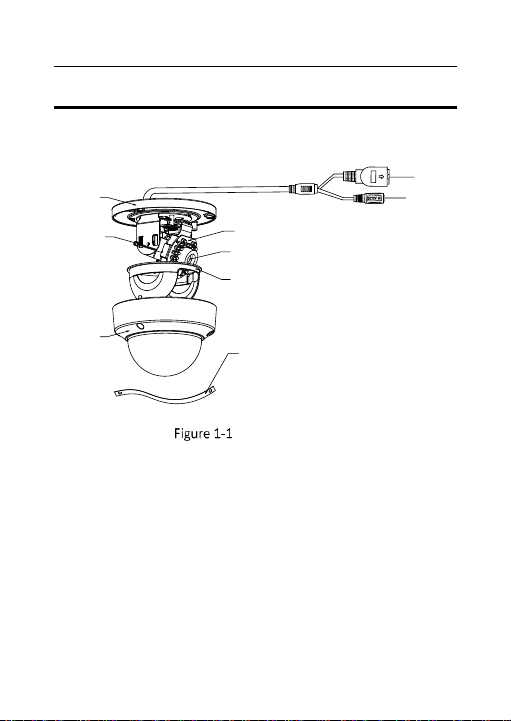

This series of cameras has two types, and shares the same
appearance, shown as the figure 1-1.
1
2
3
6
7
8
9
4
5
Camera Overview

8
Description of Type I/II Camera
No.
Description
1
Mounting Base
2
Tilt Adjusting Screw
3
Bubble
4
Network Interface
5
Power Interface
6
IR LED
7
Lens
8
Black Liner
9
Safety Rope
Note: Power on the camera when pressing the RESET button, and
press button for another 10 seconds to restore the default settings,
including the user name, password, IP address, port No., etc.

9
2Installation
Steps:
1. Attach the dill template to the ceiling.
2. Drill the screw holes and cable hole (optional) in the ceiling
according to the drill template.
Note: Cable hole is required when you adopt ceiling outlet to route
the cables.
Drill Template

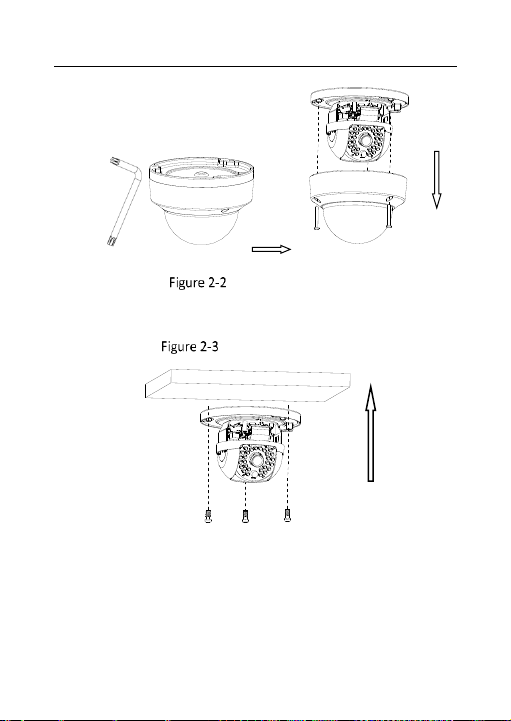

3. Loosen the set screws with a hex wrench (supplied) to remove
the bubble.
Drill Template
Hole A: for cables routed through the ceiling
screw hole 1: for Mounting Base
1
1
1
A

10
Remove the Bubble
4. Fix the mounting base on the ceiling with supplied screws.
Fix the Mounting Base
5. Route the cables through the cable hole.
Note: If required, you can route cables through the side opening on
the side of the mounting base.
Side Opening

11
Side Opening
6. Connect the corresponding cables, such as power cable and
network cable.
7. Power on the camera to check whether the image on the monitor
is gotten from the optimum angle. If not, adjust the camera to get
an optimum angle.
Notes:
●Type I supports 2-axis adjustment. Loosen the tilt adjusting screw
to adjust the tilt angle [0° to 70°], hold the black liner to adjust the
pan angle [0°to 355°]. See the figure below.
Tilt Adjusting
Screw
0° to 75°
0° to 355°
Type I Camera 2-Axis Adjustment

12
●Type II camera supports 3-axis adjustment. Loosen the tilt adjusting
screw to adjust the tilt angle [0° to 75°], hold the black liner to
adjust the pan angle [0° to 355°], and hold the lens to rotate the
camera [0° to 355°]. See the figure below.
Tilt Adjusting
Screw
0° to 355°
0° to 355°
0° to 75°
Type II Camera 3-Axis Adjustment
8. Reinstall the bubble, and tighten the screws.
Bubble Reinstallation

13
3Setting the Network Camera over the
LAN
Note:
You shall acknowledge that the use of the product with Internet
access might be under network security risks. For avoidance of any
network attacks and information leakage, please strengthen your own
protection.
If the product does not work properly, contact your dealer or the
nearest service center for help.
3.1 Wiring

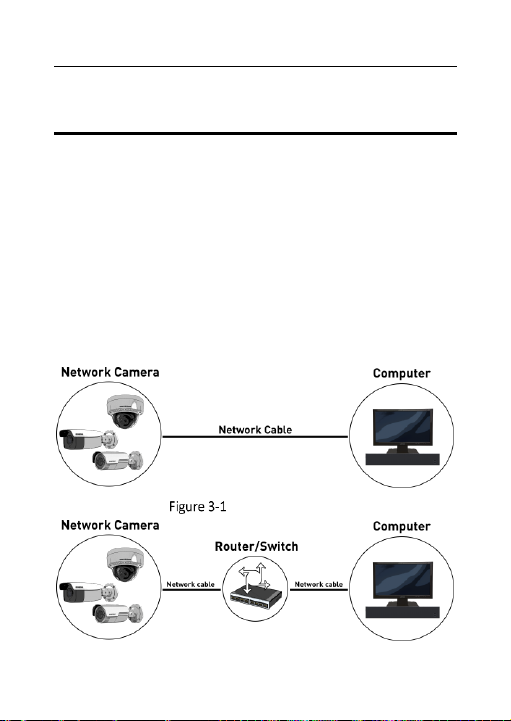

Connect the camera to network according to the following figures.
Connecting Directly

14
Connecting via a Switch or a Router
3.2 Activating the Camera
You are required to activate the camera first by setting a strong
password for it before you can use the camera.
Activation via Web Browser, Activation via Grundig IP-Finder, and
Activation via Client Software are all supported. We will take
activation via Grundig IP-Finder software and Activation via Web
Browser as examples to introduce the camera activation.
Note:
Refer to the User manual for Activation via Client Software.
3.2.1 Activation via Web Browser
Steps:

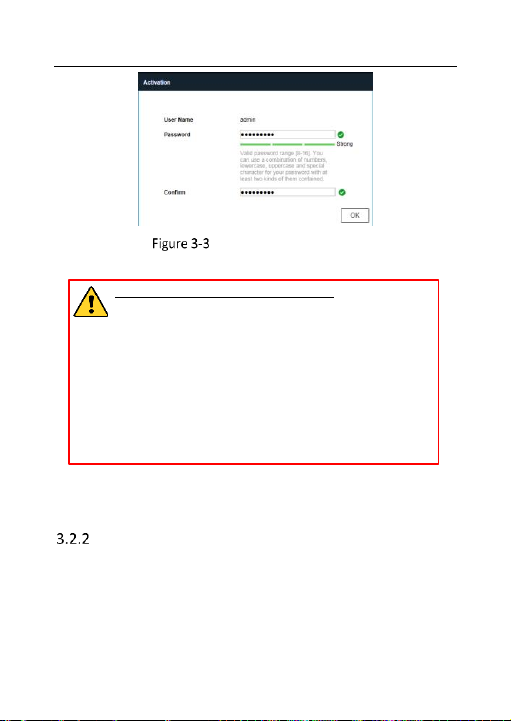

1. Power on the camera. Connect the camera to
your computer or the switch/router which
your computer connects to.
2. Input the IP address into the address bar of the
web browser, and press Enter to enter the
activation interface.
Notes:
⚫The default IP address of the camera is 192.168.1.100.
⚫The computer and the camera should belong to the same
subnet.
⚫For the camera enables the DHCP by default, you need to use
the Grundig IP-Finder software to search the IP address.

15
Activation Interface(Web)
3. Create a password and input the password into the password field.
STRONG PASSWORD RECOMMENDED–We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Confirm the password.
5. Click OK to save the password and enter the live view interface.
Activation via IP-Finder Software
Grundig Finder software is used for detecting the online device and
activating the camera.
Get the Grundig Finder software from the supplied disk or the official
website and install the software according to the prompts. Follow the

16
steps to activate the camera, please refer to the User manual for
other two activation methods.
Steps:
1. Run the Finder software to search the online devices.
2. Check the device status from the device list and select the inactive
device.
Grundig IP-Finder Interface
Note:
The software supports activating the camera in batch. Refer to the
user manual of Grundig Finder software for details.
3. Create and input the new password in the password field, and
confirm the password.

17
STRONG PASSWORD RECOMMENDED–We highly
recommend you create a strong password of your own
choosing (using a minimum of 8 characters, including
upper case letters, lower case letters, numbers, and
special characters) in order to increase the security of
your product. And we recommend you reset your
password regularly, especially in the high security
system, resetting the password monthly or weekly can
better protect your product.
4. Click Activate to start activation.
You can check whether the activation is completed on the popup
window. If activation failed, make sure that the password meets
the requirement and try again.
3.3 Modifying the IP Address
Purpose:
To view and configure the camera via LAN (Local Area Network), you
need to connect the network camera in the same subnet with your
PC.
Use the Grundig IP-Finder software or client software to search and
change the IP address of the device. We take modifying the IP
Address via Grundig IP-Finder software as an example to introduce
the IP address modification.
For IP address modification via client software, refer to the user
manual of client software.
Steps:

18
1. Run the Grundig IP-Finder software.
2. Select an activate device.
3. Change the device IP address to the same subnet with your
computer by either modifying the IP address manually or checking
the checkbox of Enable DHCP.
Modify the IP Address

19
4. Input the admin password and click Modify to activate your IP
address modification.
The batch IP address modification is supported by the Grundig IP-
Finder. Please refer to the User Manual of Grundig IP-Finder for
details.
