GS Teletech GST-IC-ELITE-TNR User manual

Version
1.1
Date
January 28th, 2019
Page
1/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
1
GST-IC-ELITE-TNR
(outdoor)
USER MANUAL
GS Teletech Inc.

Version
1.1
Date
January 28th, 2019
Page
2/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
2
[CHANGE RECORD]
DATE
NAMES
DESCRIPTIONS
VERSION
REMARK
January 10th, 2019
Y.J.KIM
Original Draft
1.0
January 28th, 2019
Y.J.KIM
Changed the only outdoor type
1.1

Version
1.1
Date
January 28th, 2019
Page
3/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
3
[TABLE OF CONTENTS]
CHAPTER’s INDEX
1. GENERAL ......................................................................................................................................... 7
1.1. Purpose ......................................................................................................................................................................... 7
1.2. Copyright ...................................................................................................................................................................... 7
2. INTRODUCTION............................................................................................................................. 8
2.1. System Overview ........................................................................................................................................................ 8
2.2. Main Features.............................................................................................................................................................. 9
3. SYSTEM DESIGN .......................................................................................................................... 10
3.1. Perspective View.......................................................................................................................................................10
3.2. Exterior View .............................................................................................................................................................11
3.3. Interior View (Outdoor)...........................................................................................................................................12
3.4. External Interface (Indoor & Outdoor).................................................................................................................13
4. SYSTEM SPECIFICATION............................................................................................................. 14
4.1. RF Performance.........................................................................................................................................................14
4.2. ICS General Performance........................................................................................................................................15
4.3. CH Capacity Information.........................................................................................................................................15
4.3.1. LTE Band 41 ........................................................................................................................................................................................... 15
4.3.2. NR Band N41........................................................................................................................................................................................ 16
4.5. Configuration & Mechanical Specification.........................................................................................................17
5. SYSTEM BLOCK CONFIGURATION ........................................................................................... 18
5.1. RF Signal Flow (Outdoor) ........................................................................................................................................18
5.2. Data Signal Flow .......................................................................................................................................................19
5.3. Power Supply Flow ...................................................................................................................................................20

Version
1.1
Date
January 28th, 2019
Page
4/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
4
6. STATUS/ CONTROL & ALARM MONITORING....................................................................... 21
6.1. Status Monitoring and Control Parameters.......................................................................................................21
6.2. Alarm Monitoring.....................................................................................................................................................22
7. WEB-UI OVERVIEW ..................................................................................................................... 24
7.1. Configuration the Laptop to Connect to the Repeater .....................................................................................24
7.2. Login-In Screen..........................................................................................................................................................25
7.3. RF Status & Control..................................................................................................................................................26
7.4. Alarm Configuration ................................................................................................................................................27
7.5. Communication Configuration...............................................................................................................................28
7.6. User Management ....................................................................................................................................................29
7.7. Alarm Log...................................................................................................................................................................30
7.8. Log ...............................................................................................................................................................................31
7.9. Troubleshooting ........................................................................................................................................................32
7.10. Software Update.......................................................................................................................................................33
7.11. System Reset .............................................................................................................................................................34
7.12. Factory Default Setting...........................................................................................................................................35
7.13. Configuration Transfer.............................................................................................................................................36
8. SYSTEM INSTALLATION.............................................................................................................. 37
8.1. Warnings and Hazards .............................................................................................................................................38
8.1.1. Electric Shock........................................................................................................................................................................................ 38
8.1.2. Exposure to RF ..................................................................................................................................................................................... 38
8.2. Cabling ........................................................................................................................................................................39
8.3. Installation Guide for Crew ...................................................................................................................................41
8.3.1. Wall Mount Installation.................................................................................................................................................................... 41
8.4. Cable Connection......................................................................................................................................................44
8.4.1. AC Power cable connection ........................................................................................................................................................... 44
8.4.2. FAN Power Cable Connection (OPTION) ................................................................................................................................. 44
8.4.3. RET Cable Connection (Option) ................................................................................................................................................... 45
8.4.4. Local Maintenance Connection.................................................................................................................................................... 45

Version
1.1
Date
January 28th, 2019
Page
5/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
5
8.4.5. Grounding cable Connection ........................................................................................................................................................ 46
9. FCC WARNING STATEMENT ...................................................................................................... 47
FIGURE’s INDEX
Figure 1. GST-IC-ELITE-TNR Application Configurations ................................................................................................... 8
Figure 2. GST-IC-ELITE-TNR Perspective View .................................................................................................................10

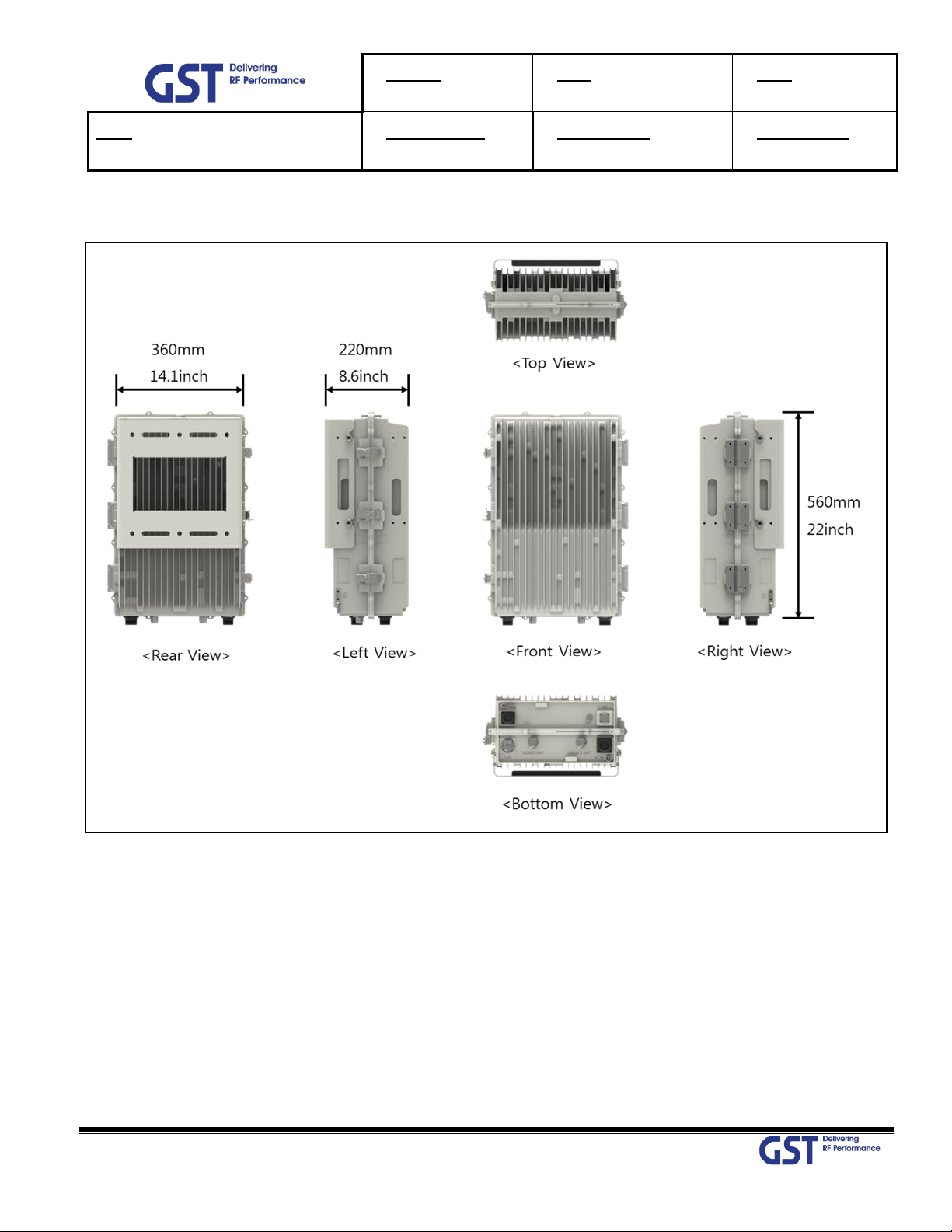

Figure 3. GST-IC-ELITE-TNR Exterior View .......................................................................................................................11
Figure 5. GST-IC-ELITE-TNR Interior View(Outdoor) .......................................................................................................12
Figure 6. GST-IC-ELITE-TNR External Interface ...............................................................................................................13
Figure 8. GST-IC-ELITE-TNR RF Signal Flow (Outdoor)....................................................................................................18
Figure 9. GST-IC-ELITE-TNR Signal and Data Flow ...........................................................................................................19
Figure 10. GST-IC-ELITE-TNR Power Supply Flow ............................................................................................................20
Figure 19. Laptop Configuration for connecting the Web-UI.........................................................................................24
Figure 20. The way to Log-in on the Web Browser Screen ............................................................................................25
Figure 21. RF Status monitoring & Control.......................................................................................................................26
Figure 22. System Alarm Configurations ...........................................................................................................................27
Figure 23. System Information for connecting configurations ......................................................................................28
Figure 24. System Information about User Management................................................................................................29
Figure 25. The way to check System Alarm Log ..............................................................................................................30
Figure 26. The way to read a Log History.........................................................................................................................31
Figure 27. The information of Contact point in case of occurring Field Troubleshooting ........................................32
Figure 28. The way to reload new software using the Web-UI......................................................................................33
Figure 29. The way to reset the system using the Web-UI ............................................................................................34
Figure 30. The way to restore Factory Default Setting for repeater ...........................................................................35
Figure 31. The way to down/ up load configuration between laptop and repeater ..................................................36
Figure 37. GST-IC-ELITE-TNR-Outdoor Cabling Diagram .................................................................................................39
Figure 31. Mounting Bracket Shape ...................................................................................................................................41
Figure 44. Fixing the Bracket for installing a Wall Mount ..............................................................................................42
Figure 45. The way to hang the system for Wall Mounting ............................................................................................43
Figure 46. The way to fix firmly the System for Wall Mounting....................................................................................43
Figure 49. RJ-45 Interface for connecting the Local Maintenance ..............................................................................45
Figure 50. The way to install the Frame Ground Cable and Lug specifications..........................................................46

Version
1.1
Date
January 28th, 2019
Page
6/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
6
TABLE’s INDEX
Table 2. GST-IC-ELITE-TNR Unit Configuration .................................................................................................................12
Table 3. GST-IC-ELITE-TNR External Interface Description ............................................................................................13
Table 4. GST-IC-ELITE-TNR RF Performance Description ................................................................................................14
Table 5. GST-IC-ELITE-TNR ICS General Performance .....................................................................................................15
Table 6. GST-IC-ELITE-TNR Operation Band for LTE Band 41 .........................................................................................16
Table 7. GST-IC-ELITE-TNR Operation Band for NR Band N41........................................................................................16
Table 8. GST-IC-ELITE-TNR Mechanical & Environment conditions...............................................................................17
Table 10. GST-IC-ELITE-TNR RF Signal Flow (Outdoor) ...................................................................................................18
Table 11. GST-IC-ELITE-TNR Data Signal Flow ..................................................................................................................19
Table 12. GST-IC-ELITE-TNR Power Supply Flow..............................................................................................................20
Table 13. GST-IC-ELITE-TNR Status Monitoring and Control Parameters .....................................................................22
Table 14. Monitoring Alarm Parameters ............................................................................................................................23
Table 13. GST-Ic-ELITE-TNR Installation Accessories.......................................................................................................37
Table 13. GST-IC-ELITE-TNR-Outdoor Connecting Cable.................................................................................................39
Table 14. AC Power Connector Configuration...................................................................................................................44
Table 15. GST-IC-ELIT TNR FAN Power Cable Connection...............................................................................................44
Table 16. GST-IC-ELIT TNR RET Cable Connection ...........................................................................................................45

Version
1.1
Date
January 28th, 2019
Page
7/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
7
1. General
1.1. Purpose
This document introduces features, specifications, structures and operation guideline for the GST-
IC-ELITE-TNR LTE & NR
1.2. Copyright
All text and image in this document are subject to the copyright of GS Teletech Inc.
This document may not be reproduced, distributed, or modified without the written permission
of GS Teletech Inc.

Version
1.1
Date
January 28th, 2019
Page
8/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
8
2. Introduction
2.1. System Overview
GST-IC-ELITE-TNR is designed to improve coverage and capacity of LTE Band 41 and NR Band N41 services in all
shadowed and blanked areas of Sprint network.
GST-IC-ELITE-TNR receives and improves weak signals as cancelling the multi-path interference even if there is a lack
of isolation between Donor and Service antenna.
This solution does not request any costs for Backhaul installation, so will save OPEX and CAPEX.
Figure 1. GST-IC-ELITE-TNR Application Configurations

Version
1.1
Date
January 28th, 2019
Page
9/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
9
2.2. Main Features
•Maintain the Quality of Demodulation performance on the Overlay-Cell Region using Delay-Reduction
Technology (Less than 4us for LTE & 2.41us for NR)
•Provide the SNMP Solution
•Ensure the Uplink-Sensitivity and Suppress Rising-UL noise floor under high out-power at Downlink using
PIMD-Reduction Technology
•Excellent RF Specifications
- High Gain: more than 95dB
- Low Noise figure under all system gain condition: Less than 5dB
- Grate Performance of Interference Cancellation: G=I+10dB
- High Rejection: More than -50dBc at Band Edge ± 1MHz for LTE BAND
More than 30dBc at Band Edge ± 1MHz For NR BAND
More than 50dBc at Band Edge ± 1.5MHz for NR BAND
•Adaptable functions for Operation
- RS (Pilot) Aware, Smart ALC & ASD, Attenuator for each Band
- Maximum 60MHz (20MHz *3carrier) for LTE and 60MHz for NR
•Complies with NEMA 4 (equal to IP66) for indoor & Outdoor application
•Apply for Cascade 6 chain installation

Version
1.1
Date
January 28th, 2019
Page
10/ 47
Title
USER MANUAL
Prepared by
Reviewed by
Approved by
© 2019 GS Teletech Inc. All rights reserved
10
3. System Design
3.1. Perspective View
Fan may be used as an option if A is installed in an enclosed space.
Figure 2. GST-IC-ELITE-TNR Perspective View
