GS Teletech SpeedCell User manual

SpeedCell Repeater
INSTALLATION GUIDE
Ver. 1.0

SpeedCell Repeater Installation Guide Ver. 1.0

Contents of Box
Contents Picture Quantity Contents Picture Quantity
SpeedCell Repeater System
PSU Unit
4.3”(W) x 16.9”(H) x 10.7”(D) , 15 lbs
DFM Unit
2.8”(W) x 16.9”(H) x 10.7”(D), 9.9 lbs
800/900 AMP Unit
3.9”(W) x 16.9”(H) x 10.7”(D) , 19 lbs
1900 AMP Unit
3.9”(W) x 16.9”(H) x 10.7”(D), 15.2 lbs
1EA
Ground Cable
6.6ft (2m) 1EA
Power Cord
5.9ft (1.8m) 1EA
Ethernet Cable
6.6ft (2m) 1EA
Mounting Bracket
23.2”(W) x 18.5”(H) x 2.75”(D), 23.5 lbs 1EA Lag Screw
1/2” x 2” 4EA
CD which contains
- User Manual
- Installation Guide
1EA Ground Sems Screw
M4 x 8mm 4EA

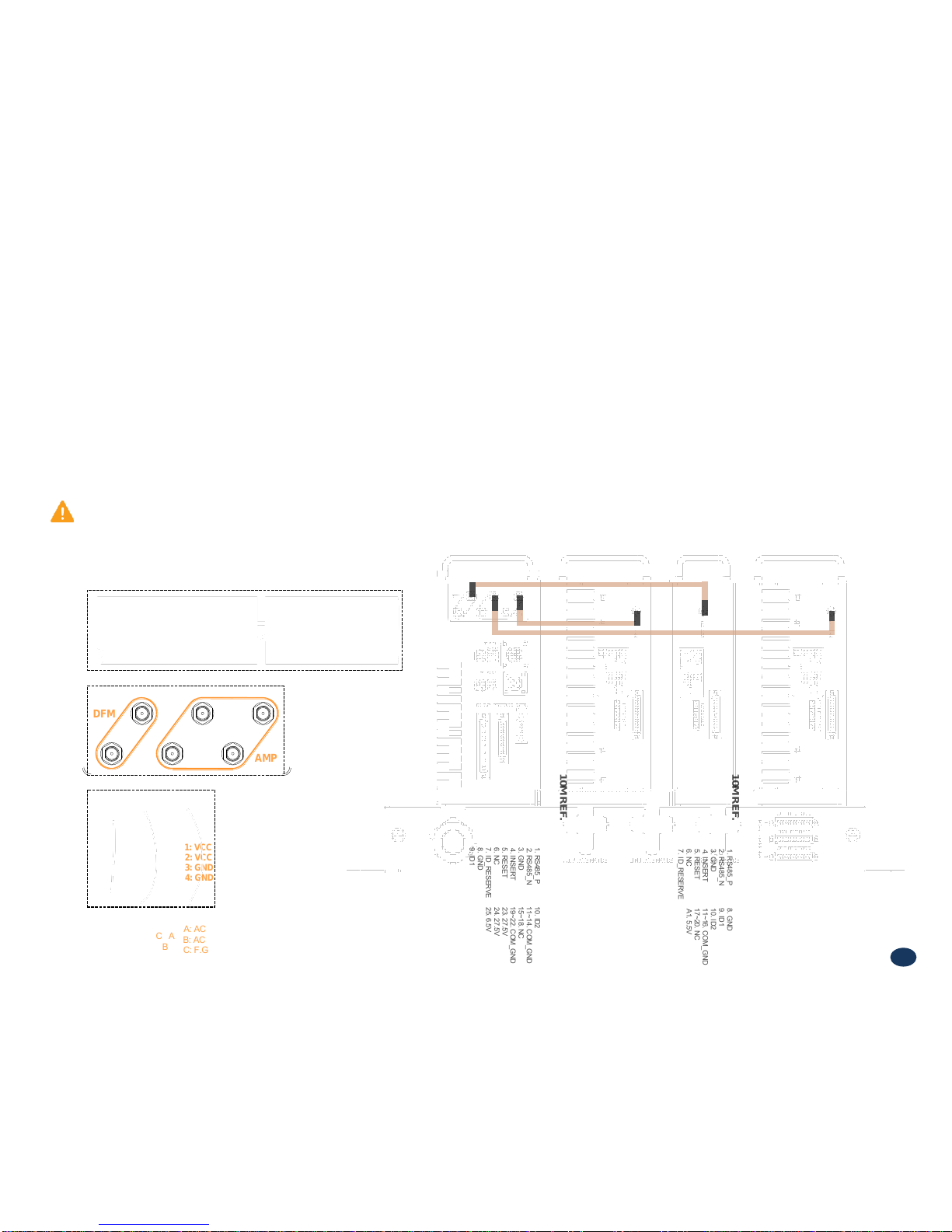

RF Cable Set
Front RF Cable 2EA, Top RF Cable 4EA,
Reference Cable 3EA
1EA MountingSems Screw
M6 x 10mm 8EA
3

UL/FCC: This equipment complies with UL and FCC
This publication provides instruction for installing the SpeedCell repeaters.
The images for the User Interface in this publication may vary from the repeater’s depending on its S/W
Version.
Copyright
© 2011, GS Teletech, Inc.
All Rights Reserved
Printed in Republic of Korea
RevisionHistory
Certification
Date
Version
Changes
03/2011
version 1.0
4

WARNING! EXPOSURE TO RF
Working with the repeater while in operation, may expose the technician to RF electromagnetic fields
that exceed FCC rules for human exposure. Visit the FCC website at http://www.fcc.gov/oet/rfsafety
to learn more about the effects of exposure to RF electromagnetic fields.
Warnings and Hazards
WARNING! ELECTRICSHOCK
Opening the BDA (bi-directional amplifier) could result in electric shock and may cause severe injury.
WARNING! DAMAGE TO EQUIPMENT
Operating the BDA with antennas in very close proximity facing each other could lead to severe damage to the repeater.
RF EXPOSURE & ANTENNA PLACEMENT
Actual separation distance is determined upon gain of antenna used.
Please maintain a minimum safe distance of at least 8inch while operating near the donor and the server antennas. Also,
the donor antenna needs to be mounted outdoors on a permanent structure.
WARRANTY
Opening or tampering the BDA will void all warranties.
CAUTION: REPEATER SHOULD BE INSTALLED AS CLOSE AS POSSIBLETO POWER SOURCE.
CAUTION: THIS REPEATER IS FOR INDOOR USE ONLY AND SHOULD BE LOCATED INSIDE OF BUILDING.
CAUTION: RISK OF EXPLOSIONIF BATTERY ON CONTROLLERBOARD IS REPLACED WITH AN INCORRECT TYPE.
CAUTION: DISPOSEOF USED BATTERIESACCORDING TO THE INSTRUCTIONS
5

<Picture 1> Mounting the Bracket
on a Wood-Framed Wall.
Mounting Repeater
Wood-Framed Wall
• It is recommended to first attach a sheet of plywood to the wall. The sheet of plywood should be anchored to the studs in the wall.
• Using a pencil, mark the location for each of the mounting bracket's four mounting holes on the plywood.
• Place the mounting bracket over the four lag screws heads.
• Thread a lag screw at the positions marked in step 2.
Mounting Bracket
Lag Screw
1/2” x 2”
Wood-Framed Wall
6

Hang and Grounding
<Picture 2> Hanging the PSU Unit.
• Hang the PSU unit to the mounting bracket.
• Locate the two Mounting Sems Screws (M6 x10mm) underneath the PSU unit. Tighten bolts until secure.
Mounting Sems Screw
M6 x 10mm
7

Hang and Grounding
• Hang the rest of the units in the following order: 1900 AMP, DFM, 800/900 AMP.
• Locate the two Mounting Sems Screws (M6 x10mm) underneath each unit. Tighten bolts until secure.
<Picture 3> Hanging the Rest of Units.
CAUTION
Units must be hung in the following order only: PSU -> 1900 AMP -> DFM -> 800/900 AMP.
8

Hang and Grounding
Ground Cable
• Connect ground cables of each unit to the bracket using Ground Sems Screws (M4 x 8mm) as displayed at the picture below.
CAUTION
Groundcables must be properly grounded to provide both EMI and voltage surge protection for the repeater.
<Picture 3> Grounding of the PSU, 1900 AMP, DFM, 800/900 AMP Units.
9

Hang and Grounding
<Picture 4> Grounding the Bracket.
• Locate the ground lug on the underside (or side) of the bracket.
• Crimp the ground cable to the ground lug.
• Route the free end of the ground cable to an approved (per local code or practice) ground source.
CAUTION
Groundcable must be properly grounded to provide both EMI and voltage surge protection for the repeater.
10
