GSE 675 User manual

GSE Model 675
PRECISION SCALE
USER’S GUIDE
Version 3.1

Model 675
USER’S GUIDE
Version 3.1

GSE 675 Precision Scale User’s Guide
Copyright © 2008 GSE. All rights reserved.
Published by:
GSE
1525 Fairlane Circle
Allen Park, MI 48101
USA
Information in this User’s Guide is subject to change without notice due to correction or enhancement. The
information described in this manual is solely the property of GSE. No part of this manual may be
reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying
and recording and sold for any monetary figure without the express written permission of GSE.

i
Table of Contents
CHAPTER 1:REFERENCE................................................................................................................ 1
ENCLOSURE................................................................................................................................................. 1
LOAD CELL ................................................................................................................................................. 2
DISPLAY...................................................................................................................................................... 2
KEYPAD ...................................................................................................................................................... 3
Keypad Functions................................................................................................................................... 3
Alpha Entry............................................................................................................................................. 4
REAR PANEL CONNECTIONS........................................................................................................................ 5
Scale 2 Connections (Remote Scale) ...................................................................................................... 5
Communication Port Connections.......................................................................................................... 5
Remote key connections.......................................................................................................................... 6
CHAPTER 2:CONFIGURATION ..................................................................................................... 7
F1 –QUICK COUNT ..................................................................................................................................... 8
Quick Count Setup Menu........................................................................................................................ 8
Setup the Quick Count Mode .................................................................................................................. 8
Advanced Setup Menu .......................................................................................................................... 11
F2 –GSE CUSTOM .................................................................................................................................... 12
APW LOOKUP ........................................................................................................................................... 12
Setup the APW Lookup Mode ............................................................................................................... 12
APW Lookup Setup Menu ..................................................................................................................... 13
Set Modes ............................................................................................................................................. 15
Advanced Setup Menu .......................................................................................................................... 17
F3 –GSE DEFAULT................................................................................................................................... 18
CHAPTER 3:OPERATION .............................................................................................................. 19
QUICK COUNT ........................................................................................................................................... 19
Sample and Count................................................................................................................................. 19
Accumulate ........................................................................................................................................... 20
APW LOOKUP ........................................................................................................................................... 21
Sample and Count................................................................................................................................. 21
Accumulate ........................................................................................................................................... 23
GSE DEFAULT .......................................................................................................................................... 23
CHAPTER 4:CALIBRATION.......................................................................................................... 25
CALIBRATION METHODS ........................................................................................................................... 25
General Notes on Calibration .............................................................................................................. 25
Access Calibration from APW Lookup or Quick Count Mode ............................................................. 26
Access Calibration from the Weigh Mode ............................................................................................ 26
CHAPTER 5:LEGAL FOR TRADE................................................................................................ 33
NTEP REQUIREMENTS .............................................................................................................................. 33
NTEP CUSTOM SETUP .............................................................................................................................. 34
Accessing the Custom Setup List .......................................................................................................... 34
SEALING AND AUDIT TRAILS..................................................................................................................... 34
Physical Seal ........................................................................................................................................ 34
Audit Trails........................................................................................................................................... 35
OMIL Requirements ............................................................................................................................. 36
CHAPTER 6:TROUBLESHOOTING ............................................................................................. 37
Operational Errors............................................................................................................................... 37
Calibration Errors................................................................................................................................ 38
Communication Errors......................................................................................................................... 39

1
Chapter 1: REFERENCE
The “Reference” chapter describes the major components of the Model 675 Precision Scale. Keypad functions, load
cell installation, display and connections are described in this chapter.
Enclosure
The enclosure is made of die cast aluminum with rib enforcement. This design provides extra strength and
durability. The enclosure is painted with powder coat finish and the counting surface is stainless steel. The enclosure
also includes built in carrying handles and a line cord wrap for ease of portability.
Figure 1: Model 675 Outline Drawing
IMPORTANT!
The Model 675 does not include an on/off switch and, therefore, must be installed near a power outlet socket
that is easil
y
accessible and in kee
p
in
g
with UL/CSA Safet
y
Standards.
INFORMATION IMPORTANT!
Prendre note que les model 675 ne sont pas munis d'interrupteurs "Marche / Arrêt". Par conséquent, il devront
être installés près d'une source d'alimentation secteur accessible pour demeurer sous les exigences des normes de
sécurité UL/CSA.

Model 675 User’s Guide
2
Load Cell
The load cell can be exchanged by removing two M6 1x 20mm (size) bolts from the bottom plate and two M6 1 x
16mm (size) bolts from the top spider assembly.
The load cell cable connects to J15 of the main board. The J15 connector is accessible from the load cell cavity of
the Model 675 enclosure
Figure 2: Model 675 Load Cell Installation
Install the new load cell by placing it in the load cell cavity. Fasten the load cell by installing the bolts on the
bottom plate. Reinstall the spider assembly.
NOTE: When exchanging a load cell with another, the overload stop and corner overloads must be reset. See Table
1 for specifications.
Table 1: Load Cell Overload Stops
Load Cell Stop Set to
Load Cell Center Overload 120 % of full scale
Corner Overloads 60 % of full scale
Display
A large 16 line x 40 character graphic LCD provides excellent visibility with user defined help screens and
prompting. The large graphic display features a backlight for use in poorly lit areas.
Figure 3: Model 675 Graphic Display

Chapter 1
3
Keypad
The Model 675 comes standard with a durable and versatile polymeric switch plate. The keys are large and easy to
use. The keypad is easily cleaned with a damp cloth or non-abrasive cleaner.
Figure 4: Model 675 Keypad
KEYPAD FUNCTIONS
All of the keys perform different functions. Some keys have more than one function.
Key(s) Description
3
4
5
6
7
Act as soft keys which will perform a specific function. Refer to the text on the display
for the function of each soft key.
:Subtracts the weight of the tare from the displayed weight. Commonly used for
removing the weight of a container.
<Performs a gross zero and displays the gross mode.
9Performs a sample for an accurate parts counting and calculates an average piece
weight.
Toggles between the available units.
Selects between all enabled scales. The current scale number will be shown on the
display.
=Print data from a specified communication port.
>Select among modes such as Gross, Net, Tare, Quantity and Average Piece Weight.
KClear the entry buffer or answer “NO” to a question.
Enter data or answer “YES” to a question.
;Enable/disable alpha entry mode. Refer to page 4 for setup information.
8Turn the scale on or off.
J- H, INumeric keys used to manually enter a value for tare weight, average piece weight,
sample size etc.

Model 675 User’s Guide
4
Multiple Key Functions
Keys Description
=and Press at the same time to default database on power up.
Jand KPress at the same time to backspace during an alpha entry.
ALPHA ENTRY
The Model 675 provides quick and easy alpha entry. The [ALPHA] key becomes the “Alpha enable/disable” key.
The alpha characters assigned to each numeric key mimic a telephone layout with the addition of the [0/space]
key. This allows additional ASCII characters to be accessed via the decimal point key. The display will show ™
while an alpha entry is in progress and > when the “Alpha” entry mode is disabled. If the ALPHA graphic icon is
enabled, it will also show on the display if an alpha entry is in progress.
Character Entry
When alpha characters and other non-numeric characters are to be entered using the front panel keypad, use the
[ALPHA] key to "build" the entry:
Press the [ALPHA] key to initialize the alpha entry mode. ALPHA will be shown on the display, indicating the
[ALPHA] key is active. Press the [ALPHA] key again to turn alpha entry off.
Keys [2] – [9] have uppercase and lowercase alphabetic characters assigned to them. The [ . ] key scrolls through the
remaining characters. The [0/SPACE]is used for inserting a space. Press the [CLR] + [0 /SPACE]keys
simultaneously to backspace one character.
To enter characters, press the corresponding number key on the keypad. The first character in the sequence
(depending on the “Alpha” mode selected) will appear first. Continue pressing the key before the timeout occurs to
scroll through the characters for that key. Refer to Table 2 for character key assignments.
Table 2: Character Key Assignments
Key Character
[1] 1
[2] 2 A B C a b c
[3] 3 D E F d e f
[4] 4 G H I g h i
[5] 5 J K L j k l
[6] 6 M N O m n o
[7] 7 P Q R S p q r S
[8] 8 T U V t u v
[9] 9 W X Y Z w x y Z
[.] . - : / # \ ! “ $ %&‘ ( ) * +, ; <=>?@[ ] ^_` { | } ~
[0] 0
S
p
a
c
e

Chapter 1
5
Rear Panel Connections
The Model 675 comes standard with 2 communication ports, which use Male DB-9 connectors. Also a remote base
can be connected to the SCALE 2 Female DB-9 connector. The positions that are shown with dotted lines are
available for options such as scale 3 and 4, Ethernet, communication ports and setpoints. Simply cut along the dotted
line with a knife where the option will be installed. See Chapter 2: Option Installation of the Model 672/675
technical reference manual for complete details on installing options.
ETHERNET
AUX 3
AUX 2
PS/2
COM 4
COM 3
675 PRECISION COUNTING SCALE
AUX 1
90-250VAC
50-60Hz 0.8A
SCALE 2COM 1
COM 2
SCALE 2CONNECTIONS (REMOTE SCALE)
If a 4-wire load cell cable is being used, jumpers will need to be installed between sense and excitation. The
jumpers will be installed on the DB9 connector being installed on the load cell cable. The intention of pins 8 and 9
on the DB9 are to connect the sense and excitation in 4 wire load cell applications without having to solder two
wires in one hole. Refer to Table 3 for scale 2 pin out connections.
Table 3: Scale 2 DB 9 Connector Pin Out
DB9 pin
designation Connection Load Cell Cable
1 + Signal 4 or 6 wire
2 - Signal 4 or 6 wire
3 + Sense 4 wire (connect a wire jumper to pin 8)
4 - Sense 4 wire (connect a wire jumper to pin 9)
5 - Excitation 4 or 6 wire
6 + Excitation 4 or 6 wire
7 Chassis Ground 4 or 6 wire
8 + Excitation 4 wire (connect a wire jumper to pin 3)
9 - Excitation 4 wire (connect a wire jumper to pin 4)
COMMUNICATION PORT CONNECTIONS
Comm port 1 and 2 are standard on the Model 675. Comm port 3 and Comm port 4 are optional. Refer to Table 4
for communication port pin outs.
Table 4: Communication Ports 1 - 4 Pin Out
DB9 pin Comm 1 Comm 2 Comm 3 (optional) Comm 4 (optional)
1 No connection TTL No connection No connection
2 RXD RXD RXD RXD
3 TXD TXD TXD TXD
4 + 5 V + 5V + 5V + 5V
5 ISO Ground Ground Ground Ground
6 Ground Ground Ground Ground
7 RTS RTS No connection No connection
8 CTS CTS CTS No connection
9 Remote Key 1 Remote Key 2 No connection No connection
Powe
r
Standard
O
p
tionsO
p
tions
NOTE: The means CAUTION. Disconnect power before servicing

Model 675 User’s Guide
6
Comm 2 Jumper (J24)
These jumpers are only on board rev E and higher (420992-40682 rev E). This allows for a choice in scanner power
supply pins and to minimize modifications to a cable or connector.
Comm port 2 has a pin on the DB 9 connector which provides + 5 volts to supply power to a scanner. The jumpers
will reroute the power (+ 5 volt) on comm port 2 to either pin 9 or pin 4 depending on jumper orientation.
Table 5: Power Jumpers
J24 Position Orientation
Pin# Parallel to rear panel Perpendicular to rear panel
4Remote Key + 5 Volt
9 + 5 Volt Remote Key
Jumper Configuration
Factory Default Previous Configuration
The power (+ 5 volt) and remote key pins are switched. Refer to Figure 5 for the jumper location on the main board.
Figure 5: J24 Location on Main Board
REMOTE KEY CONNECTIONS
The Model 675 allows for two remote key inputs. The inputs can be used for invoking a macro to perform tasks
such as zero, print, tare etc. See the chart below for comm port and pin assignment. Refer to the Model 672/675
technical reference manual for function key assignment.
Table 6: Remote Key
Remote Key Port Pins Macro
1 Comm 1 6 and 9 6
2 Comm 2 6 and 9 7

7
Chapter 2: CONFIGURATION
The GSE 675 Precision Counting Scale comes from the factory with the Application Menu enabled. This
is where you will choose the preferred method of parts counting or weighing. See the explanations of each
method below. After each counting method are the instructions for setting up that method.
Refer to Chapter 4 for operating instructions of each method.
F1 F2 F3 F4 F5
Figure 6: Model 675 Power Up Screen

Model 675 User’s Guide
8
F1 – Quick Count
The QUICK COUNT mode is designed for performing a quick sample and count. The soft keys are used in
secession from left to right to increase speed and ease of parts counting. Basic functionality is offered to
simplify operation. Below are the available soft keys and an explanation of their purpose in the QUICK
COUNT mode.

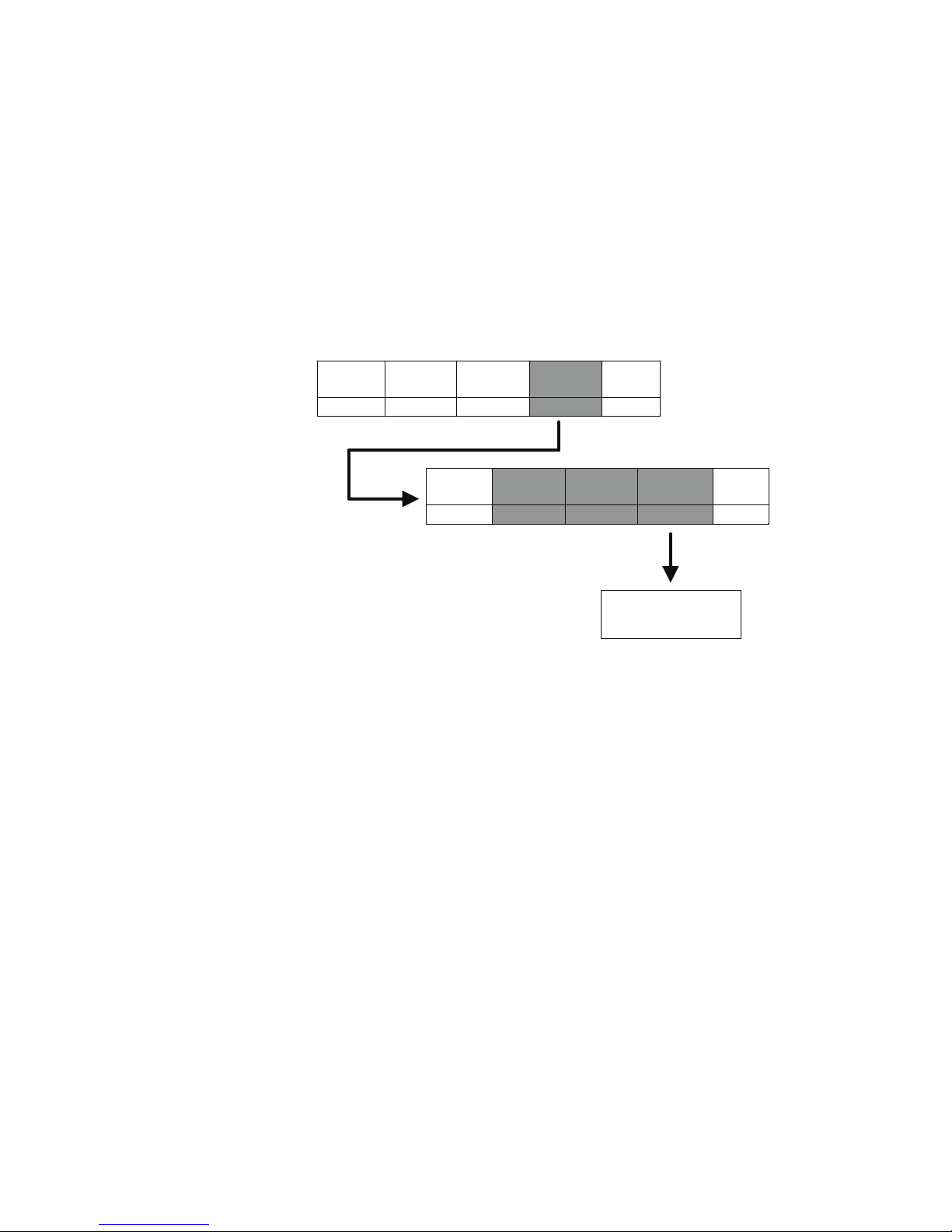

QUICK COUNT SETUP MENU
Use the [F4] Setup menus key from the “Quick Count” screen to gain access to different menus. Menu
items shaded in gray are multiple level.
Change
Sample
Clear
Totals
Key-In
APW
Setup
Menus
Exit
F1 F2 F3 F4 F5
Cal Display
Style
Print
Formats
Advance
Setup
Exit
F1 F2 F3 F4 F5
See Advanced Menu
Section for complete
details
SETUP THE QUICK COUNT MODE
1. Press [F1] from the “Application Menu”. The display will come up with an explanation of the “Quick
Count” menu.
2. At this time you can choose the “Quick Count” mode by pressing [ENTER] (YES) or return to the
“Application Menu” by pressing [F5] (Exit) or [CLR] (NO).
The “Quick Count” file will load automatically and return to the “Quick Count” mode.

Chapter 2
9
Setup
This menu was designed for accessing the items that will need to be changed the most often. Below is an
explanation of the choices in the menu. Follow the instructions on the display for each key.
FUNCTION
KEY PARAMETER DESCRIPTION DEFAULT
SETTING KEYPRESS
3CHANGE
SAMPLE
Change the default
sample size 10 Key in new sample size and press [Enter] to
accept or [F5] to escape
4CLEAR TOTALS Clears the accumulation
registers Not applicable Press [Enter] to clear totals or [Clr] to escape
5KEY-IN APW Key in an average piece
weight for sample 0 Key in new average piece weight and press
[Enter] or [F5] to escape
6SETUP MENUS Continues on to the
Setup Menus Not applicable Press [F4] to continue
Setup Menus
This is the next level of menus, which offer more advanced setup.
FUNCTION
KEY PARAMETER DESCRIPTION DEFAULT
SETTING KEYPRESS
3CAL Calibration any of the
enabled scales Not applicable Key in access code and press Enter or press [F5]
to escape
4DISPLAY STYLE Chose how the display
will appear Style 2 Press either [F1] – [F3] to chose the desired display style or [F5] to escape
5PRINT MENU Choose what
information to print out Not applicable Continues on to the Print Menu selections
6ADVANCE SETUP Continues on to the
Advanced Setup Menu Not applicable See page 11
Cal (Calibration)
Refer to Chapter 4 for complete instructions on calibrating the Model 675.
Display Style
Choose one of the display types and press [F5] (EXIT) to save the change and return to the main menu.
STYLE 1
This is the classic GSE 2x5 display. The weight or quantity will be displayed in larger font while the
prompts will be to the right of the weight display.
STYLE 2
This style incorporates the classic GSE 2x5 display along with two smaller displays, which will show other
parameters. Press the [SELECT] key from the QUICK COUNT to toggle through the different parameter
choices.

Model 675 User’s Guide
10
Preset Print Formats
The preset print formats are viewable on the LCD display. Use the [F3] left arrow and [F4] right arrow
keys to view all transmit styles. Choose the desired format by viewing it on the screen. Press the [F5]
(EXIT) key to save the format and return to the main menu.
Print #1 Print #2
Quantity: 30 Quantity: 30
APW: 0.1234 APW: 0.1234
Tare: 1.515 lb Tare: 1.515 lb
10:10:00 am 01/30/2005
Print #3 Print #4
Quantity: 30 Part#: 123
Tare: 1.515 lb Quantity 55
APW 0.4481
Scale #: 2 Tare 1.623 lb
Print #5 Print #6
10.025 lb Gross Quantity: 55
2.500 lb Tare QTY Total: 510
7.525 lb Net Total Accums: 10
Print #7
Part#:Quantity 55
APW 0.4481
Tare 1.623 lb
10:10:00 am 01/30/2005

Chapter 2
11
ADVANCED SETUP MENU
The advanced menu will allow access to the time/date, setup mode and application files. Use the arrow
keys to navigate to the desired tab. This is common on the preprogrammed methods of counting such as
QUICK COUNT and APW.
Time/Date
1. From the time/date tab, press [ENTER] to access the configuration screen. The time can be changed
with the [F1] key. The date can be changed with the [F2] key.
2. Key in the time or date by following the format on the display and press [ENTER] to accept the entry.
3. Press [F5] (EXIT) to return to the main menu.
Setup (Setup Mode Access)
This tab allows access to the setup mode to make changes to parameters such as full scale, count accuracy
and baud rate etc. Please refer to the Model 672/675 technical reference manual for details on more
advanced setups and configurations.
Access the setup mode:
1. From the Setup tab press [ENTER].
2. Key in the access code and press [ENTER].
Apps (Application Menu)
Access the Application Menu to switch to another operating mode or the factory default mode.
1. From the Apps tab press [ENTER].
2. Key in the access code and press [ENTER]. The Apps Menu will automatically load.
NOTE: Press [F5] at any time to abort loading the Apps Menu.
Scanner
This tab was specifically designed to show the string received from a scanner. Scan a label and the raw
scanner data will be shown on the display. This is very useful for troubleshooting an input interpreter.

Model 675 User’s Guide
12
F2 – GSE Custom
Presently APW LOOKUP is the only application offered under GSE Custom.
The APW LOOKUP offers the flexibility of storing and recalling part numbers. The average piece weight
and part description will be stored and recalled with the part number.
APW Lookup
The APW LOOKUP offers the flexibility of storing and recalling part numbers. The average piece weight
and part description will be stored and recalled with the part number.
Figure 7: Model 675 APW Lookup Screen
SETUP THE APW LOOKUP MODE
1. Press the [F2] (GSE Custom) from the “Application Menu”.
2. Press [F1] (APW Lookup). The display will come up with an explanation of the “Application Menu”
menu.
3. At this time you can choose the “Application Menu” mode by pressing [ENTER] (YES) or return to
the menu choices by pressing [F5] (Exit) or [CLR] (NO).
4. The “Application Menu” file will load and will return to the “Application Menu” mode.
F1 F2 F3 F4 F5

Chapter 2
13
APW LOOKUP SETUP MENU
Use the [F5] Setup key from the “Application Menu” screen to gain access to different menus.
Change
Sample
Delete
Part#
Key-In
APW
Setup
Menus
Exit
F1 F2 F3 F4 F5
Cal Display
Style
Print
Menu
Advance
Setup
Exit
F1 F2 F3 F4 F5
Style
1
Style
2
Style
3
Set
Modes
Exit
F1 F2 F3 F4 F5
Next Enable Disable Exit
F1 F2 F3 F4 F5
Print
Part#s
D-Load
Part#s
Print
Formats
Exit
F1 F2 F3 F4 F5
Comm
1
Comm
2
Exit
F1 F2 F3 F4 F5
Comm
1
Comm
2
Exit
F1 F2 F3 F4 F5
See Advanced Menu
Section for complete
details

Model 675 User’s Guide
14
Setup
This menu was designed for accessing the items that will need to be changed most often. Below is an
explanation of the choices in the menu. Follow the instructions on the display for each key. The cell
shaded in gray has a multiple level menu.
FUNCTION
KEY PARAMETER DESCRIPTION DEFAULT
SETTING KEYPRESS
3CHANGE
SAMPLE
Change the default
sample size 10 Key in new sample size and press Enter to accept
or [F5] to escape
4DELETE PART # Delete specified part
number
Will not show
until a part number
is established
Key in part # and press [F3]. Press [F5] to enter
the setup. Press [F2] to delete part #.
5KEY-IN APW Key in an average piece
weight for sample 0 Key in new average piece weight and press
[Enter] or [F5] to escape
6SETUP MENUS Continues on to the
Setup Menus Not applicable Press [F4] to continue
The YES key is [ENTER] the NO key is [CLR].
Setup Menus
This is the next level of menus, which offer more advanced setup. The cells shaded in gray have a multiple
level menu.
FUNCTION
KEY PARAMETER DESCRIPTION DEFAULT
SETTING KEYPRESS
3CAL Calibration any of the
enabled scales Not applicable Key in access code and press [Enter] or press
[F5] to escape
4DISPLAY STYLE Chose how the display
will appear Style 2 Press either [F1] – [F3] to chose the desired display style or [F5] to escape
5PRINT MENU Choose what
information to print out Not applicable Continues on to the Print Menu selections
6ADVANCE SETUP Continues on to the
Advanced Setup Menu Not applicable See page 17
Cal (Calibration)
Refer to Chapter 5 for complete instructions on calibrating the Model 675.
Display Style
Different display styles are offered to help customize the Model 675 parts counter to fit your needs. Choose
one of the display types and press [F5] (EXIT) to save the change and return to the main menu. By using
the [SELECT] key several modes can be viewed from the “Application Menu” screen. See the section on
Set Modes on page 15.
STYLE 1
The top display will show the weight or quantity in larger font while the second display will show the part
number in medium font. Press the [SELECT] key from the “Application Menu” screen to toggle through
the different parameter choices.
