GSR Laser Tools GSR1000B User manual

GPS Trip Meter
GSR1000B
1
WWW.GPSSPEED.COM.AU
AU
Introduction .............................................................................................................................. 2
Features ................................................................................................................................ 2
Optional Accessories.................................................................................................................. 2
Package Contents ........................................................................................................................ 3
Installation ................................................................................................................................ 4
Navigating the Menu .................................................................................................................... 4
Main Display .............................................................................................................................. 4
Main Menu................................................................................................................................. 5
Preload Trips ........................................................................................................................... 5
Setup Menu............................................................................................................................. 6
Freeze Setup Menu ................................................................................................................ 6
Contrast Setup Menu .............................................................................................................. 7
Backlight Setup Menu ............................................................................................................. 7
Calibrate Tripmeter ............................................................................................................... 7
Technical Specifications ............................................................................................................... 8
Table Of Contents
w ww.gsrlasertools.com.au

GPS Trip Meter
GSR1000B
2
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU
Congratulations on your purchase of a GSR1000B GPS Trip Meter. All products are manufactured
to the highest standards of quality and will provide many years of reliable service.
Introduction
Features
Optional Accessories
GPS Antenna - Bulkhead Mount
Utility
•2 trip counters.
•Individual count up/down, freeze, reset.
•External reset switch.
•No connection to vehicle required.
Functionality
•Statistics display.
•Current position.
•Preloadable trips.

GPS Trip Meter
GSR1000B
3
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU

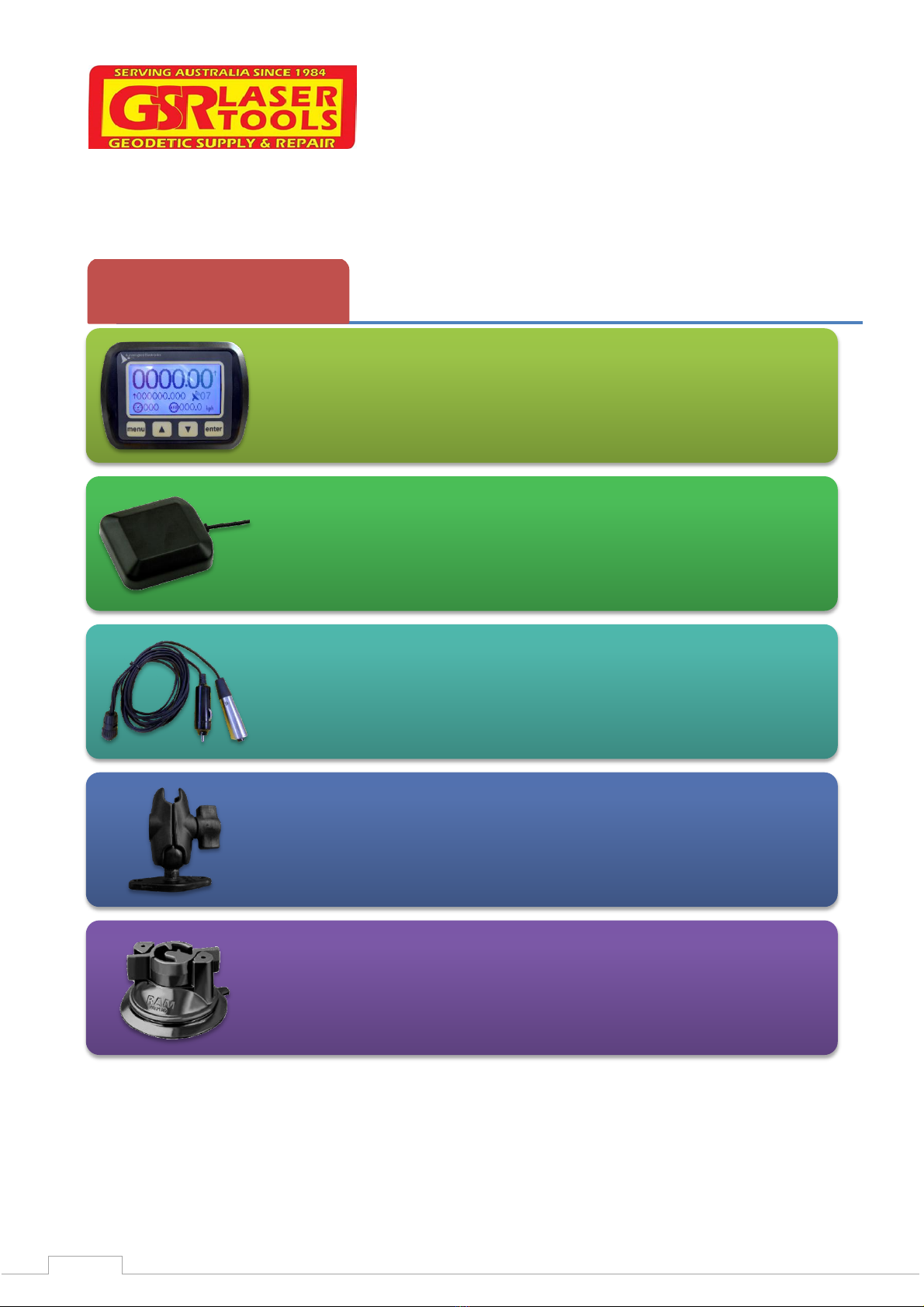

Package Contents
1 x GSR1000B GPS Trip Meter
1 x GPS Antenna - Magnetic/SMA
1 x wiring loom –handheld reset switch,
car power adapter, integrated fuse
1 x RAM 1“ diameter ball mount
1 x RAM suction cup base

GPS Trip Meter
GSR1000B
4
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU
1) Ensure that power to the vehicle is isolated;
2) Mount the GSR1000B Trip Meter on your preferred surface (e.g. dashboard) using the
supplied ball or suction mount;
3) Insert the power connector into the vehicle’s accessory power socket (12V DC);
4) Plug the 6-way connector on the wiring loom into the Trip Meter;
5) Screw the GPS antenna connector onto the female connector located on the back panel
of the Trip Meter;
6) Restore power to the vehicle and apply power to the Trip Meter.
The Trip Meter should, under normal circumstances, operate with at least 7
satellites. Should performance degrade inspect the GPS antenna for wear or
damage. The antenna may require replacement after several years depending
upon vehicular and environmental conditions.
Installation
Navigating the Menu
Main Display
The main display shows the two trip counters, satellite count, current
and average speed. The arrow keys select the direction of trip A or B if
set to do so in the configuration menu (see below).
From the Main Display, the Menu key will enter the main menu;
from the main menu, Menu is used to step back one level, the
arrow keys to navigate through a menu and to select the
highlighted item.

GPS Trip Meter
GSR1000B
5
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU
The odometric functions of the Trip Meter utilise GPS technology and, given good
satellite coverage, achieve greater than 99% accuracy. The number of satellites
currently tracked by the device is shown in the lower-right corner of the display;
while four is the minimum number required to obtain speed readings, seven to
ten is typical.
Reset Trip B
Resets trip counter B to zero.
Current Position
Displays the current lat/long. Press
Menu to return to the menu.
Trip A Dir
Sets the direction of counter A. Press
Enter to cycle between Up, Down or
Select. Select enables the use of the
arrow keys to change direction
from the main display.
Trip B Dir
Sets the direction of counter B.
Average Based On:
Set the counter on which to base
average speed. Press Enter to toggle.
Show Statistics
Display detailed trip information. Press
Menu to return to the menu.
Preload Trips
Sets the starting trip values.
Setup
Displays the general setup menu.
Preload Trip A
Set the starting value of Trip A.
Preload Trip B
Set the starting value of Trip B.
Reset A…
Sets the action to take when Trip A is reset.
Press Enter to toggle. “preloads”will cause
Trip B to reset to its preloaded value; “leaves”
will leave Trip B at its current value.
Main Menu
Preload Trips

GPS Trip Meter
GSR1000B
6
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU

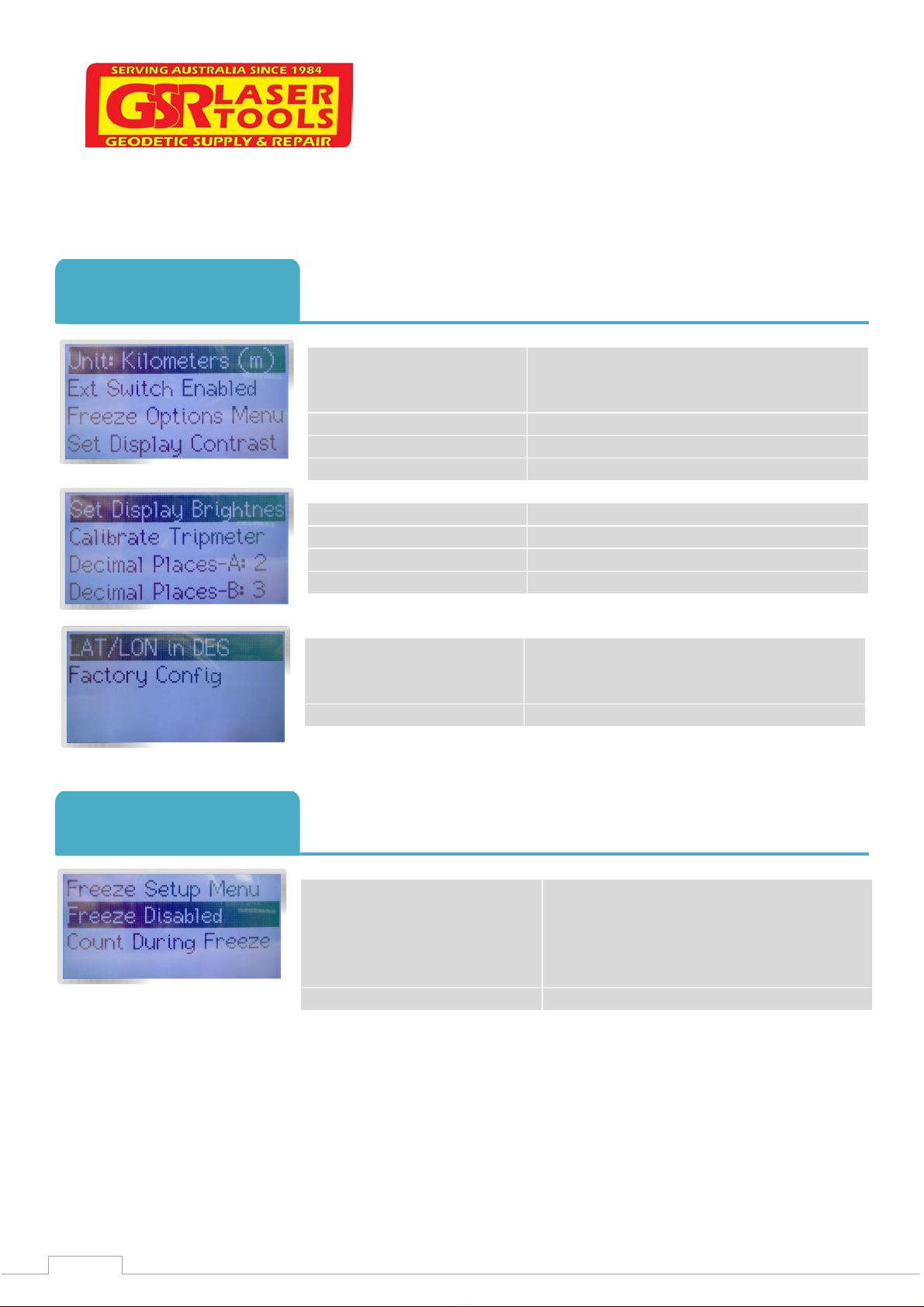

Unit
Set the display units to kilometres,
miles, nautical miles or metres per
minute. Press Enter to cycle.
Ext Switch
Press Enter to toggle.
Freeze Options Menu
Displays the Freeze Setup Menu.
Set Display Contrast
Displays the Contrast Setup Menu.
Set Display Brightness
Displays the Backlight Setup Menu.
Calibrate Tripmeter
Displays the Calibration Menu.
Decimal Places-A
Press Enter to cycle from 0 to 3.
Decimal Places-B
Press Enter to cycle from 0 to 3.
LAT/LON in…
Press Enter to toggle between DEG
(degrees) and DMS (degrees, minutes,
seconds).
Factory Config
For administrative use only.
Freeze…
Press Enter to cycle between
Disabled, A Enabled, B Enabled and
AB Enabled. Freezing, when not
disabled, is activated by pressing
Enter at the main display.
Count/Halt During Freeze
Press Enter to toggle.
Setup Menu
Freeze Setup Menu

GPS Trip Meter
GSR1000B
7
www.gsrlasertools.com.au
WWW.GPSSPEED.COM.AU
AU
Contrast
Use the arrow keys to set.
Press Enter To Save
The setting will be retained when
the unit is powered off.
Press Menu To Exit
The previous setting is retained.
Brightness
Use the arrow keys to set.
Press Enter To Save
The setting will be retained when
the unit is powered off.
Press Menu To Exit
The previous setting is retained.
Adjust Tripmeter by:
Use the arrow keys to set.
Press Enter To Save
The setting will be retained when
the unit is powered off.
Press Menu To Exit
The previous setting is retained.
Contrast Setup Menu
Backlight Setup Menu
Calibrate Tripmeter

GPS Trip Meter
GSR1000B
8
WWW.GPSSPEED.COM.AU
AU
Speed range
Minimum 2km/h; maximum 999km/h (or mi/h)
General
50 channel tracking receiver
Update rate
4Hz
Accuracy, horizontal
< 5m (50%), < 8 (90%)
Accuracy, altitude
< 10m (50%), < 16 m (90%)
Accuracy, velocity
< 0.06m/sec = 0.22km/h
Acquisition, after loss of lock
< 2s (90%)
Acquisition, first time power applied
< 38s (50%), < 42s (90%)
Acquisition, temporary loss of power
< 10s (50%), < 13s (90%)
Operational limits, altitude
18000m
Operational limits, velocity
1000km/h
Input voltage
9V to 36V
Power consumption
Maximum 1.2W (100mA @ 12V), including antenna
Dimensions
110mm (width), 80mm (height), 30mm (depth); face
82mm wide
GPS Antenna dimensions
51mm (L), 42mm (W), 14mm (H)
GPS Antenna cable length
5m
GPS Antenna connector type
Male SMA
Operating temperature
-40°C to +85°C
Storage temperature
-55°C to +105°C
Humidity
5% to 95% R.H. non condensing at 60°C
CE Compliance
ETSI EN 301489-1 V1.9.2 (2011-09)
ETSI EN 301489-19 V1.2.1 (2002-11)
ETS 300487: 1996+A1: 1997
EN 60950-1: 2006+ A11: 2009 + A1: 2010+A12: 2011
Technical
Specifications
GSR
Unit
Wangara
Ph:
[email protected]
www.gsrlasertools.com.au
4058 9409 08
6065 WA
Drive Prindiville 7/ 7
Tools Laser
For us email or call please information further
