GT POWER GT3500i User manual

GT3500i
3300 WATT INVERTER GENERATOR

2.
3.
www.gtpower.co.nz
www.gtpower.co.nz
Contents
GT3500i
Introduction.............................................3
Environmental Protection..........................3
Scope of Product.......................................3
Description of Symbols.............................3
Specifications......................................3
Safety Information.....................................4
Features & Controls.................................7
Control Functions......................................8
Preparation before Operating.................10
Operating the Generator..........................11
Maintenance.........................................15
Storage...........................................18
Parameters....................................20
Electrical Diagram...................................21
Warranty................................................23

2.
3.
www.gtpower.co.nz
www.gtpower.co.nz
Introduction
Your new GT POWER Generator will more
than satisfy your expectations. It has been
manufactured under stringent quality stand-
ards to meet superior performance criteria.
You will nd your new tool easy and safe to
operate, and, with proper care, it will give
you many years of dependable service.
CAUTION: Carefully read through
this entire Instruction Manual before
using your new GT POWER Genera-
tor. Take special care to heed the
Cautions and Warnings.
Your generator has many features that will
make your job faster and easier. Safety,
performance, and dependability have been
given top priority in the development of this
tool, making it easy to maintain and operate.
Environmental
Protection
Recycle unwanted materials instead of
disposing of them as waste. All tools, hoses
and packaging should be sorted, taken to
the local recycling centre and disposed of in
an environmentally safe way.
Scope Of Product
This product is suited for home and camping,
back-up power, rural and commercial
applications.
Description
Of Symbols
The rating plate on your tool may show sym-
bols. These represent important information
about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Conforms to
relevant standards
for electromagnetic
compatibility.
Specifications
AC Output: 230V AC ~ 50Hz
Rated Power: 3000W
Peak Power: 3300W
Phase: Single
Power Factor: COS O = 1
Displacement: 212cc
Engine: LC170F-3
Rated Speed: 3100 RPM
Fuel Tank Capacity: 9L
Fuel Type: Unleaded petrol
Engine Oil Type: SAE30
Operation Noise Level: 68.5dBA / 7m
Net Weight: 34kg
GT3500i

4.
5.
www.gtpower.co.nz
www.gtpower.co.nz
Safety Information
Read this manual carefully and become
familiar with your generator. Know its
applications, its limitations and any
hazards involved.
Throughout this brochure, on tags and
decals afxed to the generator, DANGER,
WARNING, CAUTION and NOTICE marks
are used to alert personnel with special
instructions about a particular operation that
may be hazardous if performed incorrectly,
or carelessly. Observe them carefully. Their
denitions are as follows:
DANGER: indicates a hazard which,
if not avoided, will result in death or
serious injury.
WARNING: indicates a hazard which,
if not avoided, could result in death or
serious injury.
CAUTION: indicates a hazard which,
if not avoided, could result in minor or
moderate injury.
NOTE: covers some practices which
may not be related to personal injury.
A running engine gives off carbon monox-
ide, an odourless, colourless, poison gas.
Breathing carbon monoxide could result
in death,serious injury, headache, fatigue,
dizziness,vomiting, confusion, seizures,
nausea or fainting.
• Operate this product ONLY outdoors.
• Install a battery operated carbon monoxide
alarm near the bedrooms.
• Keep exhaust gas away from entering a
conned area through windows, doors,
ventilation intakes, or other openings.
• NEVER operate this product inside any
building, carport, porch, mobile equipment,
marine applications, or enclosure, even if
windows and doors are open.
WARNING: Starter cord kickback
(rapid retraction) will pull hand and
arm toward engine faster than you
can let go which could cause broken
bones, fractures, bruises, or sprains
resulting in serious injury.
• When starting engine, pull cord slowly
until resistance is felt and then pull rapidly
to avoid kickback.
• NEVER start or stop engine with electrical
devices plugged in and turned on.
WARNING: Fuel and its vapours are
extremely ammable and explosive
which could cause burns, re or
explosion resulting in death, serious
injury and/or property damage.
When Adding or Draining Fuel
• Turn generator engine OFF and let it cool
at least 2 minutes before removing fuel
cap. Loosen cap slowly to relieve pressure
in tank.
• Fill or drain fuel tank outdoors.
• DO NOT overll tank, Allow space for fuel
expansion.
• If fuel spills, wait until it evaporates before
starting engine.
• Keep fuel away from sparks, open ames,
pilot light, heat, and other ignition sources.
• Check fuel lines, tank, cap and ttings
frequently for cracks or leaks. Replace if
necessary.
• DO NOT light a cigarette or smoke.
GT3500i

4.
5.
www.gtpower.co.nz
www.gtpower.co.nz
When Starting Equipment
• Ensure spark plug, mufer, fuel cap and
air cleaner are in place.
• DO NOT crank engine with spark plug
removed.
When Operating Equipment
• DO NOT operate this product inside any
building, carport, porch, mobile equipment,
marine applications or enclosure.
• DO NOT tip engine or equipment at angle
which causes fuel to spill.
• DO NOT stop engine by moving choke
control to “OFF” position.
When Transporting or Repairing
Equipment
• Transport/move/repair with fuel tank
EMPTY or with fuel valve OFF.
• DO NOT tip engine or equipment at angle
which cause fuel to spill.
• Disconnect spark plug wire.
When Storing Fuel or
Equipment with Fuel in Tank
• Store away from furnaces, stoves,
water heaters, clothes dryers, or other
appliances that have light or other ignition
source because they could ignite fuel
vapours.
WARNING: Generator voltage
could cause electrical shock or burn
resulting in death or serious injury.
• Use approved transfer equipment to
prevent back feed by isolating generator
from electric utility workers.
• When using generator for backup power,
notify utility company.
• Use a ground fault circuit interrupter in any
damp or highly conductive area, such as
metal decking or steel work.
• DO NOT touch bare wires or receptacles.
• DO NOT use generator with electrical
cords which are worn, frayed, bare or
otherwise damaged.
• DO NOT operate generator in the rain or
wet weather.
• DO NOT handle generator or electrical
cords while standing in water, while bare-
foot, or while hands or feet are wet.
• DO NOT allow unqualied persons or
children to operate or service generator.
WARNING: Exhaust heat/gases could
ignite combustibles, structures or dam-
age fuel tank causing a re, resulting
in death, serious injury and/or property
damage. Contact with mufer area
could cause burns resulting in serious
injury.
• DO NOT touch hot parts and AVOID hot
exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (1.5m) of clearance
on all sides of generator including overhead.
CAUTION: Excessively high operating
speeds could result in minor injury and/
or generator damage. Excessively low
speeds impose a heavy load.
• DO NOT tamper with governor spring,
links or other parts to increase engine
speeds. Generator supplies correct rated
frequency and voltage when running at
governed speed.
WARNING: Unintentional sparking
could cause re or electric shock
resulting in death or serious injury.
GT3500i

6.
7.
www.gtpower.co.nz
www.gtpower.co.nz
When Adjusting or Making
Repairs to the Generator
• Disconnect the spark plug wire from
the spark plug and place the wire where it
cannot contact spark plug.
When Testing for Engine Spark
• Use approved spark plug tester.
• DO NOT check for spark with spark plug
removed.
Other Safety Precautions
WARNING: Starter and other rotating
parts could entangle hands, hair,
clothing, or accessories resulting in
serious injury.
• DO NOT connect to a home power
system. See “Connecting to a Home
Power Supply” on the following page
• NEVER operate generator without
protective housing or covers.
• DO NOT wear loose clothing, jewellery or
anything that could be caught in the
starter or other rotating parts.
• Tie up long hair and remove jewellery.
• DO NOT modify generator in any way.
NOTE: Exceeding generators
wattage/amperage capacity could
damage generator and/or electrical
devices connected to it.
• DO NOT exceed the generator’s wattage/
amperage capacity.
• Start generator and let engine stabilise
before connecting electrical loads.
• Turn electrical loads OFF and disconnect
from generator before stopping generator.
NOTE: Improper treatment of
generator could damage it and
shorten its life.
• Use generator only for intended uses.
• If you have questions about intended use,
ask dealer or contact local service center.
• Operate generator only on level surfaces.
• DO NOT expose generator to excessive
moisture, dust, dirt, or corrosive vapor.
• DO NOT use in the rain.
• DO NOT insert any object through cooling
slots.
• If connected devices overheat turn
them off and disconnect them from
generator.
- or if electrical output is lost.
- or if equipment sparks, smokes, or emits
ames.
- or if unit vibrates excessively.
GT3500i

6.
7.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Features and Controls
Read this Operating Manual and the Safety Rules section before operating your generator.
Compare the illustrations with your generator, to familiarise yourself with the locations of
various controls and adjustments. Save this manual for future reference.
1. Frame
2. Fuel Gauge
3. Fuel Tank Cap
4. Fuel Tank
5. Control Panel (See Diagram 2)
6. Earth Terminal
7. 3 in 1 Switch Knob
(Engine/Fuel Valve/Choke)
8. Recoil Starter Grip
9. Inverter Ducted Fan
10. Mufer
11. Oil Drain Bolt
12. Oil Filler Cap
13. Air Cleaner
14. Carburetor
15. Spark Plug
Diagram 1.
Diagram 2.
1. Oil Warning Light
2. Overload Indicator Light
3. AC Pilot Light
4. ESC Switch (Engine Smart Control)
5. AC Receptacle
6. DC Protector
7. DC Receptacle
8. AC Overload Protector/Switch
9. Earth Terminal
10. Parallel Receptacle

8.
9.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Control Functions

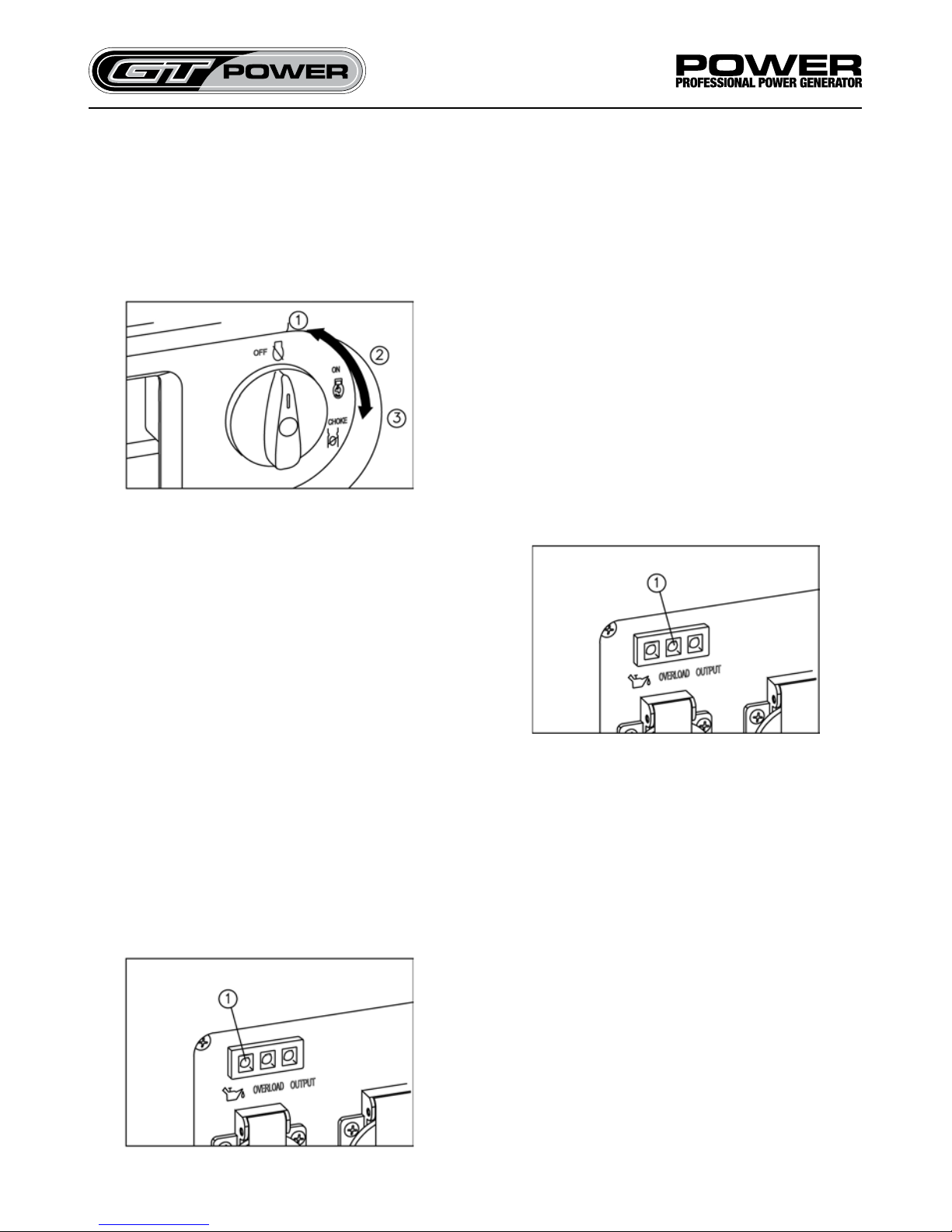

3 in 1 Switch Knob
1. Engine/fuel valve OFF means the ignition
circuit is switched off. Fuel is switched
off. The engine will not run.
2. Engine switch \fuel valve means ignition
circuit is switched on.
Fuel is switched on. Choke is switched
off. The engine can run.
3. Engine switch \fuel valve \choke ON
Ignition circuit is switched on. Fuel is
switched on. Choke is switched on. The
engine can be started.
TIP: The choke is not normally required to
start a warm engine.
Oil Warning Light
When the oil level falls below the lower
level, the oil warning light comes on and
then the engine stops automatically. Unless
you rell with oil, the engine will not start
again.
TIP: If the engine stalls or does not start,
turn the engine switch to “ON” and then
pull the recoil starter. If the oil warning light
ickers for a few seconds, the engine oil is
insufcient. Add oil and restart.
Overload Indicator Light (Red)
The overload indicator light comes on when
an overload of a connected electrical device
is detected, the inverter control unit over-
heats, or the AC output voltage rises. Then,
the AC protector will trip, stopping power
generation in order to protect the generator
and any connected electric devices. The AC
pilot light (Green) will go off and the over-
load indicator light (Red) will stay on, but the
engine will not stop running.
When the overload indicator light comes on
and power generation stops, proceed as
follows:
1. Turn off any connected electric devices
and stop the engine.
2. Reduce the total wattage of connected
electric devices within the rated output.
3. Check for blockages in the cooling air
inlet and around the control unit. If any
blockages are found remove.
4. After checking, restart the engine.
NOTE: The overload indicator light may
come on for a few seconds at rst when
using electric devices that require a large
starting current, such as a compressor or a

8.
9.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
submergible pump. However, this is not a
malfunction.
AC Pilot Light (Green)
The AC pilot light comes on when the
engine starts and produces power.
Engine Smart Control
When the ESC switch is turned to “ON”, the
economy control unit controls the engine
speed according to the connected load. The
results mean better fuel consumption and
less noise.
When the ESC switch is turned to “OFF”,
the engine runs at the rated (3100 r/min)
Regardless of whether is a load connected
or not.
NOTE: The ESC must be turned to“OFF”
when using electric devices that require a
large starting current, such as a compressor
or a submergible pump.
DC Protector
The DC protector turns “OFF” automatically
when an electric device connected to the
generator is operating over peak wattage. To
operate the equipment again, switch the DC
protector button to “ON”.
NOTICE: Reduce the load of the connected
electric device below the specied rated
output of the generator if the DC protector
turns off. If the DC protector turns off again,
stop using device immediately and consult
your nearest GT POWER Dealer.
Ground (Earth) Terminal
The Ground (Earth) terminal (9) purpose is
to connect the generator frame to a ground-
ing point such as an earth stake to prevent
against electric shock from the generator
frame in the case of a short circuit or other
electrical malfunction of the generator or
the connected load. It is not required to be
connected for operation of the generator,
it is an additional safety feature. If in doubt
if grounding protection is required for your
application, pleae check witrh a registered
electrician as to your local regulations.

10.
11.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Preparation before
Operating
Adding Engine Oil
Please add correct oil before starting the
generator.
Above 5oC - use SAE 30
Between 5oC to -15oC - use 10W-30
Oil Capacity - 0.6L
NOTE: Improper treatment of
generator could damage it and
shorten its life. DO NOT attempt
crank or start the engine before it
has been properly serviced with the
recommended oil. This could result in
an engine failure.
• Place generator on a at, level surface.
• Remove oil cap and dipstick. Wipe
dipstick clean.
Parallel Operation Outlets
The diagram below shows the terminal (10)
for connecting parallel cables used for
running two GT3500i Inverter Generators
simultaneously. The rated output when
running in parallel is 5.6Kva and the rated
current is 24.3A/230V.
More information on using the Parallel Kit is
described in the manual included with the
Parallel Kit - available separately.
• Slowly ll oil into engine through the oil
lter until it reaches the full mark on the
dipstick.
• Stop lling occasionally to check oil level.
Be careful to not overll.
• Install oil ll cap and fasten the cap
properly.
• Check engine oil level before starting
each time thereafter.

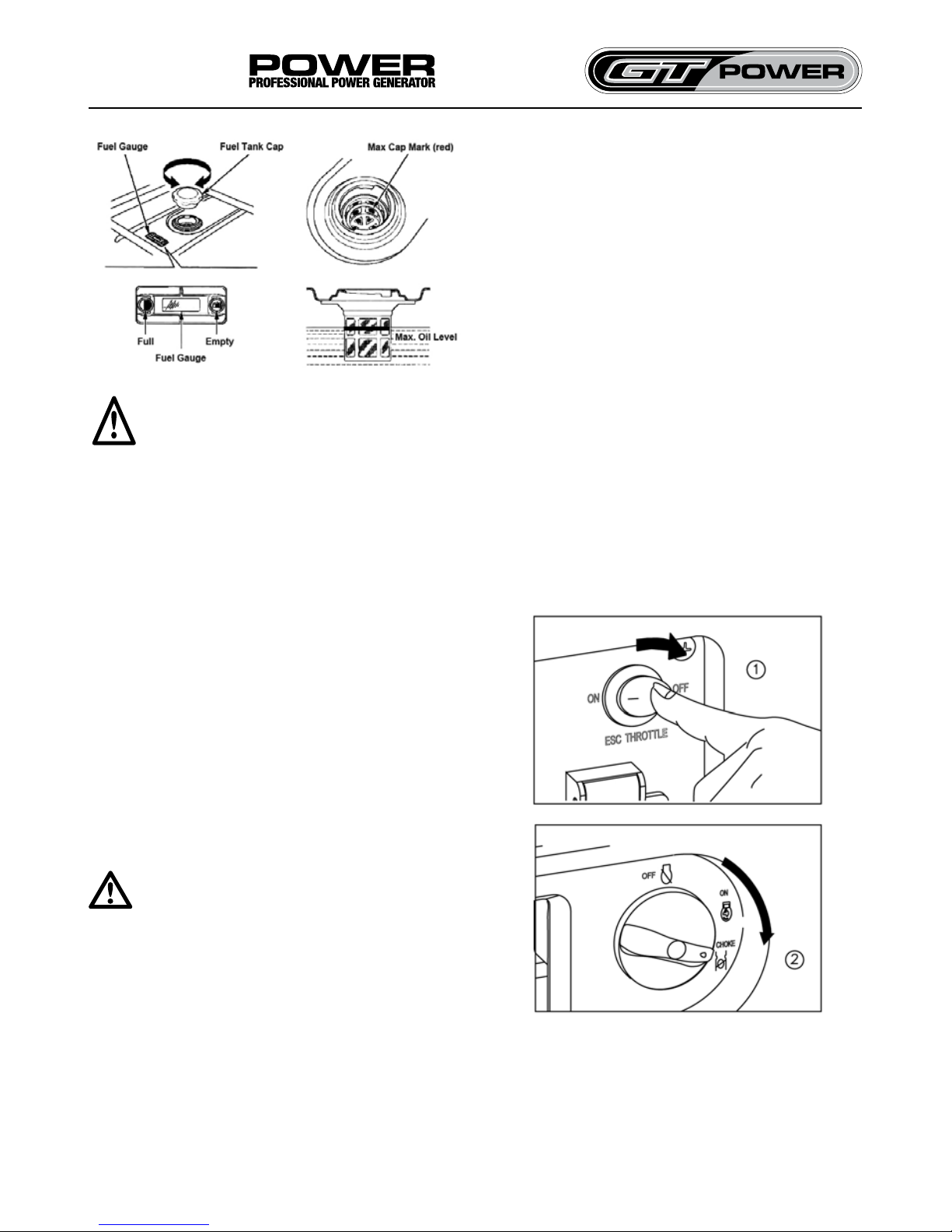

Adding Fuel
DANGER: Never ll tank indoors.
Never ll fuel tank when engine is
running or hot. Turn generator engine
OFF and allow engine to cool entirely
before lling fuel tank. Avoid spilling
gasoline on HOT engine. Keep fuel
away from sparks, open ames, pilot
lights, heat, and other ignition
sources. DO NOT light a cigarette or
smoke when lling the fuel tank. Fuel
is highly FLAMMABLE and its
vapours are EXPLOSIVE.
• Use only regular UNLEADED gasoline.
Fuel tank capacity is 9.0L
Do not use any fuel with more than 10%
added ethanol, and never use E85 fuel.
•Do not mix oil with gasoline.
• Install fuel cap and wipe up any spilled
gasoline.
CAUTION: Do not overll the fuel
tank. Allow space for fuel expansion.
IF the fuel tank is overlled, fuel
can overow onto a HOT engine and
cause FIRE or EXPLOSION. If fuel
spills, wait until it evaporates before
starting engine. Check fuel lines,
tank, cap and ttings frequently for
cracks or leaks. Replace if necessary.

10.
11.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
CAUTION: It is important to prevent
gum deposits from forming in fuel
system parts such as the carburetor,
fuel hose or tank during storage.
Alcohol-blended fuels (called gasohol),
ethanol or methanol) can attract
moisture, which leads to separation
and formation of acids during storage.
Acidic gas can damage the fuel
system should be emptied before
storage for 30 days or longer. See the
“Storage” section. Never use engine
or carburetor cleaner products in the
fuel tank as permanent damage may
occur.
• The generator can be used with the rated
output load at standard atmospheric
conditions:
Operating
the Generator
WARNING: Never operate the engine
in a closed area or it may cause
unconsciousness and death within a
short time. Operate the engine in a
well ventilated area. The generator
has been shipped without engine oil.
Do not start the engine untill lled
with sufcient engine oil.
Ambient temperature: 25
Barometric pressure: 100kPa
Relative humidity: 30%
• The output of the generator varies due to
change temperature, altitude (lower air
pressure at higher altitude) and humidity.
• The output of the generator is reduced
when the temperature, the humidity and
the altitude are higher than standard
atmospheric conditions.
• Additionally, the load must be reduced
when using in conned areas, as
generator cooling is affected.
Starting The Engine
Before starting the engine, do not connect any
electric devices. Turn the ESC switch to “OFF”
(1).
Turn the 3 in 1 switch to “CHOKE” (2)
a. Ignition circuit is switched on.
b. Fuel is switched on.
c. Choke is switched on.

12.
13.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
NOTE: The choke is not required to
start a warm engine. Turn the choke
knob to the “ON” position.
Firmly grasp the recoil handle and pull slowly
until increased resistance is felt. Pull rapidly up
and away.
Grasp the carrying handle rmly with the other
hand to prevent the generator from falling over
when pulling the recoil starter.
After the engine starts, warm up the engine
until the engine does not stop when the 3 in 1
switch is returned to the “ON” position (3).
NOTE: When starting the engine, with
the ESC “ON” and there is no load on
the generator:
In ambient temperature below 0 32 ),
the engine will run at the rated ( r/min)
for 5 minutes to warm up the engine.
In ambient temperature below 5 41 ),
the engine will run at the rated r/min
(3600r/min) for 3 minutes to warm up
the engine.
Stopping The Engine
a. Turn off any electric devices.
b. Turn the ESC to “OFF” (1).
c. Disconnect any electric devices.
The ESC unit operates normally after
the above time period, while the ESC
is “ON”.
Turn the 3 in 1 switch to “OFF” (2).
Alternating Current (AC)
Connection
WARNING: Before starting the engine,
do not connect any electric devices.
Turn the ESC switch to “OFF” (1).
NOTE: Be sure all electric devices
including the lines and plug connections
are in good condition before connecting
to the generator.
Be sure the total load is within generator
rated output.

12.
13.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
1. Start the engine.
2. Turn the ESC to “ON”.
3. Plug in to AC receptacle.
4. Make sure the AC pilot light is on.
5. Turn on any electric devices.
NOTE: The ESC must be turned “OFF”
before increasing engine speed to
rated rpm.
Be sure the receptacle load current is
within receptacle rated current.
Most motorised appliances require more than
their electrical rating for startup. When an
electric motor is started, the overload indicator
(red) may come on. It is normal for this to go
off within four seconds If the overload indicator
(red) stays on, consult your GT POWER
dealer.
If the generator is connected to multiple loads
or electricity consumers, please remember to
connect the one with the highest starting
current rst. Connect the one with the lowest
starting current last.
If the generator is overloaded, or if there is a
short circuit in a connected appliance, the
overload indicator (red) will go ON. The
over-load indicator (red) will stay ON, and after
about 4 seconds, current to the connected
appliance(s) will shut off, and the output
indicator (green) will go OFF. Stop the engine
and investigate the problem. Determine if the
cause is a short circuit in a connected
appliance or an overload, correct the problem
and restart the generator.
Battery Charging
The generator DC rated voltage is 12V. Before
starting to charge the battery, make sure that
the DC protector is turned on. Start the engine
rst, and then connect the generator to the
battery for charging.
1. Start the engine.
2. Connect the red battery charger lead to the
positive (+) battery terminal.
3. Connect the black battery charger lead to
the negative (-) battery terminal.
4. Turn the ESC “OFF” to start battery
charging.
NOTE: Be sure the ESC is turned off
while charging the battery.
Be sure to connect the red battery charger
lead to the positive (+) battery terminal, and
connect the black lead to the negative (-)
battery terminal. DO NOT REVERSE THESE
POSITIONS.
The DC protector turns off automatically if
current above the rated ows during battery
charging. To restart charging the battery, turn
the DC protector on by pressing its button to
“ON”. If the DC protector turns off again, stop
charging the battery immediately and consult
your GT POWER Dealer.
NOTE: Follow instructions in the
owner’s manual to determine the end
of battery charging.
Measure the specic gravity of electrolyte to
determine if the battery is fully charged. At full
charge, the electrolyte specic gravity is
between 1.26 and 1.28.
It is advisable to check the specic gravity of
the electrolyte at least once every hour to
prevent overcharging the battery.
WARNING: Never smoke or make
and break connections at the battery
while charging. Sparks may ignite the
battery gas. Battery electrolyte is

14.
15.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
AC Parallel Operation
Before connecting an appliance to either
generator, make sure that it is in good working
order and that its electrical rating does not
exceed that of the receptacle. During parallel
operation, the ESC switch should be in the
same position on both generators.
1. Connect the parallel operation cable
between the GT3500i to another GT3500i
following the instructions supplied with the
cable kit.
2. Start the engines and make sure the output
indicator (green) on each generator comes
on.
3. Plug an appliance into the AC receptacle.
4. Turn on the appliance.
WARNING: Make sure that everything
is in good working order. A faulty
appliance or power cord can create a
potential for electrical shock.
NOTE: If an appliance begins to
operate abnormally, becomes
sluggish, or stops suddenly, turn if off
immediately. Disconnect the appliance
and determine whether the problem
is the appliance, or if the rated load
capacity of the generator has been
exceeded.
Make sure that the combined electrical
rating of the tools or appliance do not
exceed that of the generator. Never
exceed the maximum for more than 30
minutes.
Never connect different generator
models.
poisonous and dangerous, causing
severe burns, etc. contains sulfuric
(sulphuric) acid. Avoid contact with
skin, eyes or clothing.
Don’t remove the parallel operation
cable when the generator is in
operation.
For single generator operation, the
parallel operation cable must be
removed.
WARNING: Substantial overloading
that continuously lights the overload
indicator (red) may damage the
generator
Marginal overloading that temporarily
light the overload indicator (red)
may shorten the service life of the
generator.
Limit operation requiring maximum
power to 30 minutes.
Maximum power in parallel operation
is; 6.0kVA. For continuous operation,
do not exceed the rated power. Rated
power in parallel operation is: 5.6kVA.
Electric & Electronic Appliances
When supplying precision equipment,
electronic controllers, PCs, electronic
computers, microcomputer based equipment
or battery chargers, keep the generator
a sufcient distance away to prevent
electrical interference from the engine. Also
ensure that electrical noise from the engine
does not interfere with any other electrical
devices located near the generator.
NOTE: If the generator is to supply
medical equipment, advice should rst
be obtained from the manufacturer,
a medical professional or hospital.
Some electrical appliances or general-
purpose electric motors have high
starting currents, and cannot therefore
be used. Consult the equipment
manufacturer for further advice.

14.
15.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Maintenance
Perform maintenance as shown below.
More frequent service is required when
operating in adverse conditions.
Pre-operation Check - Daily:
Check, clean & replace where necessary:
• Sparkplug
• Fuel level & leakage.
• Fuel hose for cracks & damage.
• Oil level - top up if necessary
Every 6 Months or 100 Hours:
Check, clean & replace where necessary:
• Air lter - more often if used in wet or dusty areas
• Mufer screen
• Spark arrester
• Replace oil
Every 12 Months or 300 Hours:
Check, clean & replace where necessary:
• Fuel lter
• Crankcase breather hose
Have a Service Dealer perform the following:
• De-carbonise cylinder head
- more frequently if necessary
• Valve clearance
• Fittings & fasteners
Maintenance Schedule
General Recommendations
The warranty of the generator does not
cover items that have been subjected to
operator abuse or negligence. To receive full
value from the warranty, the operator must
maintain the generator as instructed in this
manual.
Some adjustments will need to be made
periodically to properly maintain the
generator.
Generator maintenance consists of keeping
the unit clean and dry. Operate and store
the unit in a clean dry environment where it
will not be exposed to excessive dust, dirt,
moisture or any corrosive vapours. Cooling
air slots in the generator must not become
clogged with debris.
• Check for any foreign materials while
changing the engine oil and report to
repair agent if necessary
• Check the cleanliness of the generator
frequently and clean when dust, dirt, oil,
moisture or other foreign substances are
visible on its exterior surface.
CAUTION: Never insert any object or
tool through the air cooling slots, even
if the engine is not running.
NOTE: DO NOT use a garden hose
to clean generator. Water can enter
the engine fuel system and cause
problems. In addition, if water enters
the generator though cooling air slots,
some water will be retained in voids
and crevices of the rotor and stator
winding insulation. Water and dirt build-
up on the generator internal windings
will eventually decrease the insulation
resistance of these windings.
NOTE: If you are not familiar with
maintenance work, have a GT
POWER Service Dealer do it for safety.
WARNING: Stop the engine before
starting maintenance work.

16.
17.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i

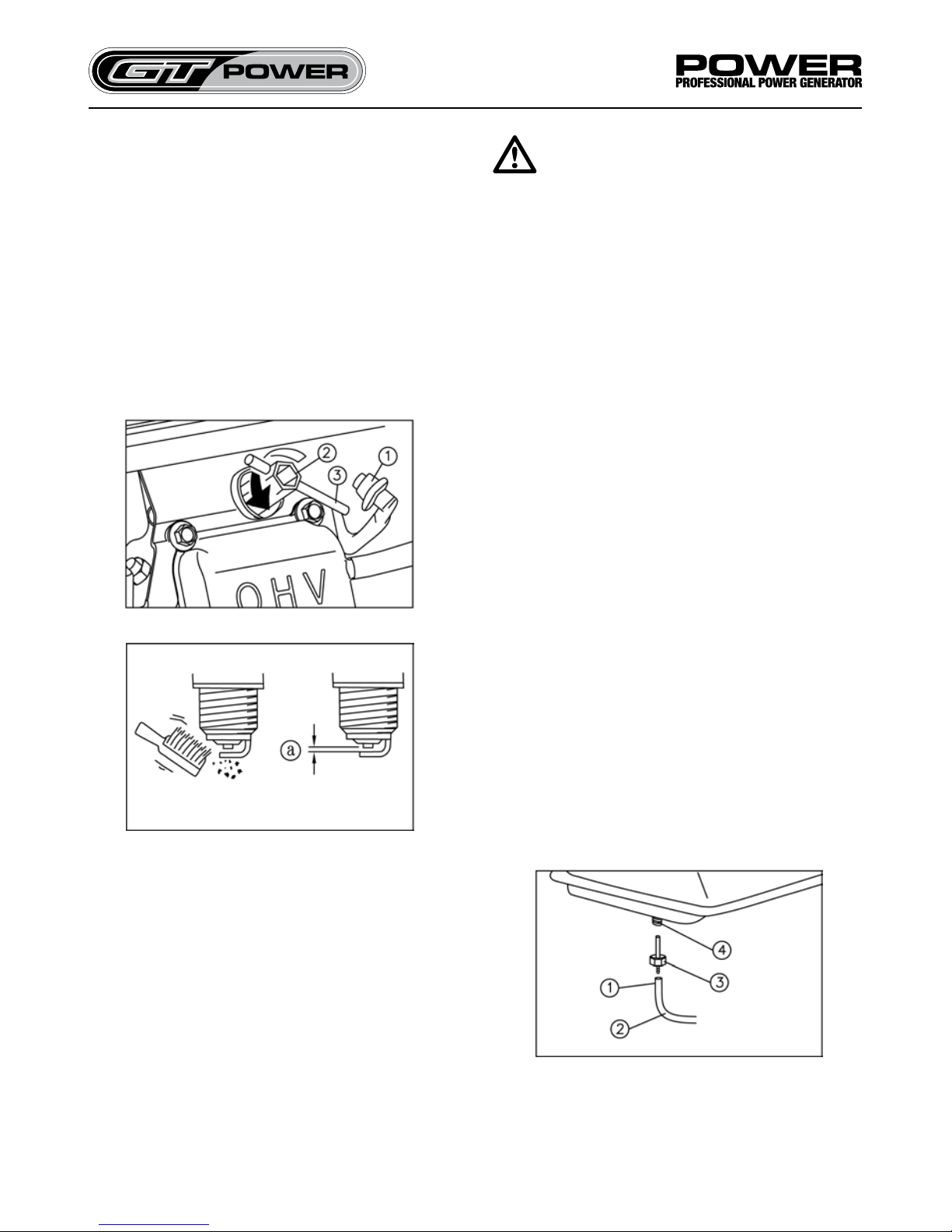

Spark Plug Inspection
The spark plug is an important engine
component, which should be checked
periodically.
1. Noise suppressor cap assembly (1) Install
spark plug wrench box (2) on the spark plug
appropriately.
2. Insert the handlebar(3) into the tool and turn
it counterclockwise to remove the spark
plug.
3. Check for discoloration and remove the
carbon. The porcelain insulator around the
center electrode of spark plug should be
a medium-to- light tan color.
4. Check the spark plug type and gap.
Standard spark plug:
BPR6ES/BP6ES NGK
F7RTC/F7TC
Spark plug gap: 0.6-0.7mm
5. Install the spark plug.
NOTE: If a torque wrench is not
available when installing a spark
plug, a good estimate of the correct
torque is 1/4-1/2 turn past nger tight.
However, the spark plug should be
tightened to the specied torque as
soon as possible.
6. Install the spark plug cap and spark plug
cover.
Carburetor Adjustment
The carburetor is a vital part of the engine.
Adjusting should be left to a dealer with the
professional knowledge and specialised
equipment to do so properly.
Clean Fuel Filter
1. Drain the fuel in the fuel tank. Hold the tube
clip (1) downward and pull out the fuel tube
(2) which connects to the fuel tank, then
disassemble fuel lter.
2. Put the fuel lter into noncombustible
or higher ash point solvent and clean it.
3. Assemble fuel lter to the main jet on the
fuel tank then assemble fuel tube to main jet
on the fuel tank and install tube clip.

16.
17.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Engine Oil Replacement
Avoid draining the engine oil immediately after
stopping the engine. The oil is hot and should
be handled with care to avoid burns.
1. Place the generator on a level surface and
warm up the engine for several minutes.
2. Remove the oil ller cap (1).
3. Place an oil pan under the engine, remove
the oil drain bolt (4) and drain the oil from
the oil tank.
4. Check oil ller cap (1), O-ring (2), Oil drain
bolt (4) and Oil ller cap packing (3).
Replace immediately if any are damaged.
5. Assemble oil drain bolt (4) and oil ller cap
packing (3).
6. Add oil till to a suitable level then tighten oil
ller cap (1).
NOTE: Do not tilt the generator
when adding engine oil. This could
result in overlling and damage to the
engine.
Air Filter
1. Remove air lter cover and foam element (1).
2. Wash the foam element in solvent and dry.
3. Add oil to foam element and squeeze out
any excess. Foam element should be wet
but not dripping to avoid damage.
4. Insert the foam element into the air lter
case.
NOTE: Be sure the foam element
sealing surface matches the air lter
cover so there is no leak. The engine
should never run without the air lter;
this will lead to piston and cylinder
wear.
5. Install the air lter case cover in its original
position.

18.
19.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
MuferScreen
WARNING: The engine and mufer will
be very hot after the engine has been
run. Avoid touching the engine and muf-
er while they are still hot with any part
of your body or clothing during inspec-
tion or repair.
1. Remove the nut (1), Remove the mufer
cap (2), Remove the mufer screen (3) ,
Remove the spark arrester (4).
2. Clean the carbon on the mufer screen
with a wire brush.
3. Check the mufer screen and spark ar-
rester, replace if damaged.
4. Install spark arrester.
WARNING: Never use an engine
without an appropriate spark arrester
in forest areas! Doing so may cause
a re!
Storage
Long term storage of your machine will require
some preventive procedures to guard against
deterioration.
Drain the Fuel
1. Turn the 3 in 1 switch to “OFF”.
2. Remove the fuel tank cap, remove the lter.
Extract the fuel from the fuel tank into an
approved gasoline container using a
commercially available hand siphon. Then,
install the fuel tank cap.
3. Fuel is highly ammable and poisonous.
Check “Safety Rules” (See page 4) carefully
wipe off spilled fuel immediately with a
clean, dry, soft cloth, since fuel may
deteriorate painted surfaces or plastic parts.
4. Start the engine and leave it to run until it
stops. The engine stops in approx. 20 mins.
Time by running out of fuel.
NOTE: Do not connect any electrical
devices. (Unloaded operation). Duration
of the running engine depends on the
amount of the fuel left in the tank.
5. Drain the fuel from the carburetor by
loosening the drain screw on the carburetor
oat chamber.
6. Turn the 3 in 1 switch to “OFF”.
7. Tighten the drain screw.
Engine
Perform the following steps to protect the
cylinder, piston ring, etc. from corrosion.
1. Remove the spark plug; pour about 15ml of
SAE 10W-30 into the spark plug hole and
reinstall the spark plug.

18.
19.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
2. Turn the engine over several times using the
recoil starter (with 3 in 1 switch knob off) to
coat the cylinder walls with oil.
3. Pull the recoil starter until you feel
compression. (This prevents the cylinder and
valves from rusting).
4. Then stop pulling.
5. Clean the outside of engine and spray with an
anti-rust compound.
6. Store the generator in a dry, well-ventilated
place, with the cover placed over it.

20.
21.
www.gtpower.co.nz
www.gtpower.co.nz
GT3500i
Parameters
Engine LC170F-3
Engine type Single cylinder, 4-Stroke,
forced air cooling, OHV
Displacement / CC 212
Fuel type Unleaded Gasoline
Fuel capacity / L 9
Continue Running Time (at rated power) 6
Fuel Tank Capacity / L 0.6
Spark Model No. BPR6ES/BP6ES(NGK)
F7RTC/F7TC
Starting mode Recoil starter
Length×Width×Height/mm 484×420×417
Net weight/kg 34
Model No.
Generator Type
Rated frequency /Hz
Rated voltage /V
Max. output power /KVA
Rated output power /KVA
Power factor
AC output quality
THD/%
Noise Level dB/LPA (3/4 load) (3/4 load)dB
DC Output/ V-A
GT3500i
Inverter
50
230
3.3
3.0
1.0
ISO8528 G2
≤5
68.5
12-8
Overload
Protect
DC
AC
Non-fuse Protector
Control by inverter
overload protect program
Generator
Engine
Generator
Set
