Preface
Thank you for choosing GTAKE SLR03 Series Solar Water Pump Drives. This user manual
presents a detailed description of SLR03 series with respect to product features, structural
characteristics, functions, installation, parameter settings, troubleshooting, etc. Be sure to
carefully read through the safety precautions before use, and use this product on the premise
that personnel and equipment safety is ensured.
IMPORTANT NOTES
 Please assure the intactness of product enclosure and all safety covers before installation.
Operation must conform to the requirements of this manual and local industrial safety
regulations and/or electrical codes.
 Contents of this manual may be subject to appropriate modification as a result of product
upgrade, specification change and update of the manual.
 In the event of damage or loss of user manual, users may ask local distributors, offices or
our Technical Service Department for a new one.
 If any item as stated in this manual is not clear, please contact our Technical Service
Department.
 If any anomaly occurs after power up or during the operation, it is essential to stop the
machine and identify the fault or seek technical services as soon as possible.
 Telephone number of our Technical Service Department: ([phone].

SLR03 User Manual Chapter 1 Product Information
Table of Contents
Preface .............................................................................................................................. - 1 -
Chapter 1 Product Information ........................................................................................ - 1 -
1.1 Model Explanation .................................................................................................. - 1 -
1.2 Nameplate Information ............................................................................................ - 2 -
1.3 Information of Product Model .................................................................................. - 2 -
1.4 Wiring Diagram ....................................................................................................... - 4 -
1.5 Technical Features of SLR03 .................................................................................. - 5 -
1.6 Parts Drawing ......................................................................................................... - 7 -
Chapter 2 Installation and Wiring .................................................................................... - 8 -
2.1 Installation Environment .......................................................................................... - 8 -
2.2 Main Circuit Terminals and Wiring ........................................................................... - 8 -
2.3 Control Terminal Wiring ........................................................................................... - 9 -
2.4 Functions of communication 485 terminal ....................................................................... - 10 -
Chapter 3 Operation and Run Instructions ......................................................... - 11 -
3.1 Key functions on keypad ........................................................................................ - 11 -
3.2 Prompt Message Status ......................................................................................... - 11 -
3.3 First-time Power up ............................................................................................... - 14 -
Chapter 4 Parameters Lists .............................................................................. - 16 -
Chapter 5 Parameters Specification .................................................................. - 40 -
5.1 Plug-and-Play Mode ............................................................................................... - 41 -
5.2 Expert mode .......................................................................................................... - 46 -
Chapter 6 Troubleshooting ............................................................................... - 89 -

SLR03 User Manual Chapter 1 Product Information
6.1 Fault Causes and Troubleshooting ........................................................................ - 89 -
Chapter 7 Maintenance .................................................................................... - 96 -
7.1 Routine Inspection ................................................................................................ - 96 -
7.2 Regular Maintenance ............................................................................................ - 97 -
7.3 Replacement of Vulnerable Parts .......................................................................... - 98 -
7.4 Storage ................................................................................................................. - 99 -
Appendix Communication Protocol ................................................................. - 101 -
1. Networking Mode ...................................................................................................- 101 -
2. Interface Mode .......................................................................................................- 101 -
3. Communication Mode ............................................................................................- 102 -
4. Protocol Format ......................................................................................................- 102 -
5. Protocol Function ...................................................................................................- 104 -
6. Operation Instructions ............................................................................................ - 116 -
7. LRC/CRC Generation .............................................................................................- 120 -

SLR03 User Manual Chapter 1 Product Information
- 1 -
Chapter 1 Product Information
1.1 Model Explanation
Model shown on product nameplate indicates the series name, applicable type of power supply,
power class and the version of software and hardware, etc. via the combination of numbers,
symbols and letters.
Fig. 1-1 Product model explanation
 ATTENTION:
2S stands for input voltage 200V AC-240V AC, 100VDC-390VDC
4T stands for input 380V AC-480V AC, 200VDC-780VDC
3.7: 3.7kW
Solar pump drive
2：100V-390V DC input
4：200V-780V DC input
S：single-phase motor
T：three-phase motor
SLR 03 - 4 T 3.7 B

SLR03 User Manual Chapter 1 Product Information
- 2 -

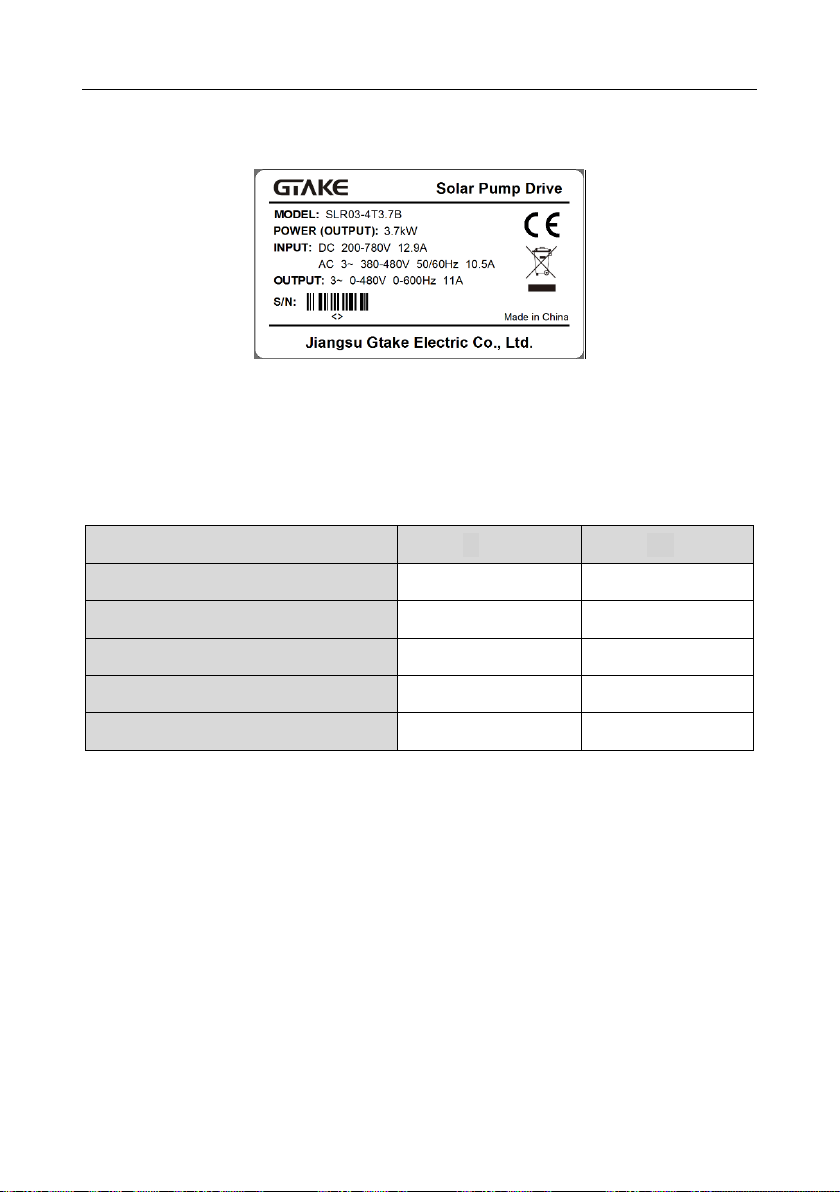

1.2 Nameplate Information
Fig. 1-2 Nameplate information
1.3 Information of Product Model
Table 1-1 SLR03 input voltage requirement
Drive model
SLR03-2S□□□
SLR03-4T□□□
AC input voltage (V)
220V monophase
400V triphase
Max. DC voltage (V)
390V
780V
Min. DC voltage (V)
100V
200V
Recommended DC input voltage (V)
100V~390V
200V~780V
Recommended solar panel voltage (V）
360V
620V

SLR03 User Manual Chapter 1 Product Information
- 3 -
Table 1-2 SLR03 model and technical data
■SLR03-2S□□□ Three phase output
Drive model
Power
rating
(kW)
Rated output
current
(A)
Max. DC
input current
(A)
3-phase rated
AC input
current
(A) *
Applicable
motor
(kW)
SLR03-2S0.4B
0.4
2.6
4
3.2
0.4
SLR03-2S0.75B
0.75
4.5
7.7
6.3
0.75
SLR03-2S1.5B
1.5
7.5
11
9
1.5
SLR03-2S2.2B
2.2
10
18.4
15
2.2
■SLR03-4T□□□ Three-phase input/output, heavy duty
Drive model
Power rating
(kW)
Rated output
current
(A)
Max DC input
current (A)
Max AC input
current (A)
Applicable
motor (kW)
SLR03-4T0.75B
0.75
3.8
4.2
3.5
0.75
SLR03-4T1.5B
1.5
4.8
6.1
5.0
1.5
SLR03-4T2.2B
2.2
8
7.4
6.0
2.2
SLR03-4T3.7B
3.7
11
12.9
10.5
3.7
SLR03-4T5.5B
5.5
16
17.9
14.6
5.5
SLR03-4T7.5B
7.5
21
25
20.5
7.5

SLR03 User Manual Chapter 1 Product Information
- 4 -

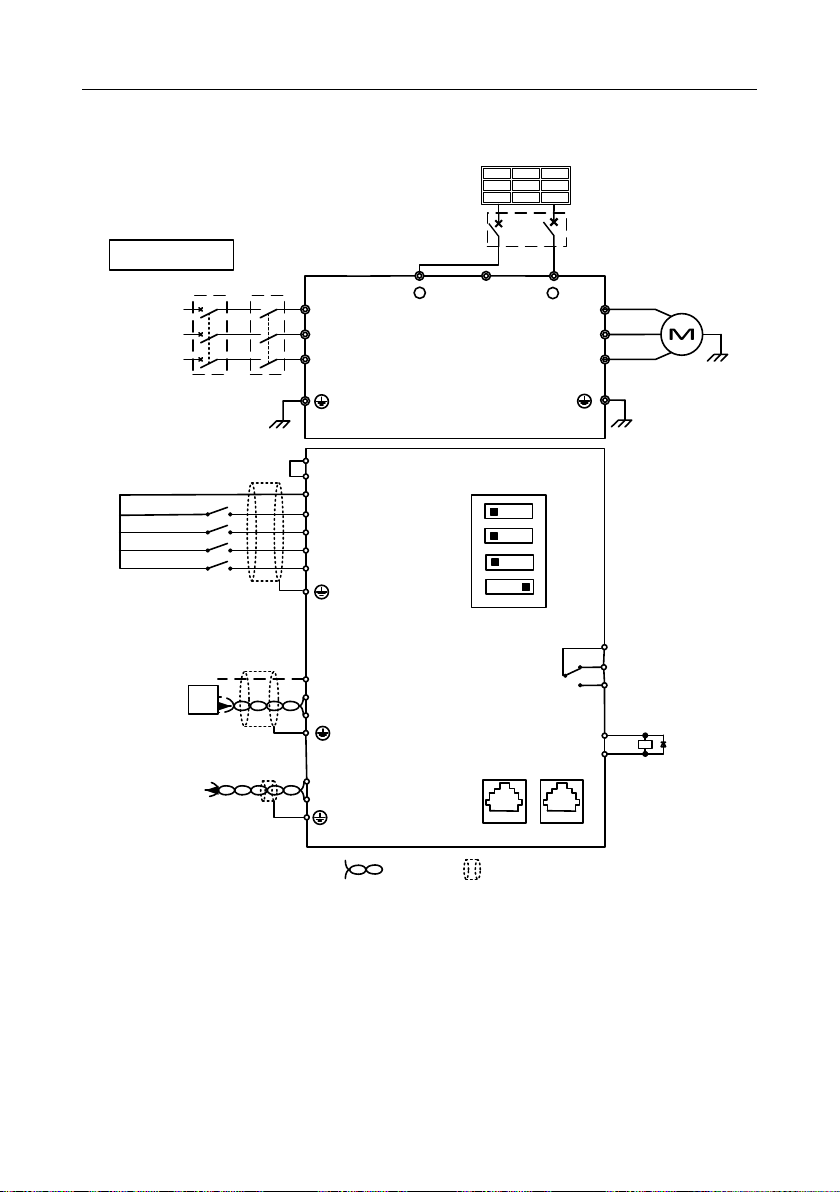

1.4 Wiring Diagram
Motor
Ground
R
S
T
U
V
W
Power Supply
Ground
+BR
Circuit
breaker Con tactor
Three-phase
power supply
380V 50/60Hz
PLC
X1
X2
X3
X4
COM
RA
RB
RC
+24V
Y1
+10V
AI
GND
Relay o utput 1
250V AC/3A
30V DC/3A
Open collector
output 1
GK610
Analog input reference
voltage
POT
AO
GND
Paired Cable Shielded Cable
Analo g In
DC:0~10V/0~20mA
Analog Out
DC:0~10V/0~20mA
Main
Circuit
Digital In 1
Digital In 2
Digital In 3
Digital In 4
-
Control
Circuit
R & T for single
phase input
1.Keypad network port
2.Double network po rt
supports m ulti-level 485
co mmu ni cat io n
+24V
Jumper
DIP switch
Default value is 1:
OFF, 2 : O FF, 3: OFF, 4: ON
Detailed definition is: 1 (ON is
Current input, OFF is voltage
input),
2 (ON: 120Ω terminal resistance,
OFF: no term inal resistance),
3 (ON: current output),
4 (ON: voltage o utput)
 Note: 3 and 4 dip switches
are exclusive, cannot be ON at
the same time.
AI_ I
AI
485_ TERM
485_
AO
AO AO _I
AO _V
123 4
O
N
Solar panel
Fig. 1-3 Wiring diagram

SLR03 User Manual Chapter 1 Product Information
- 5 -
SLR03 drive terminals have following default configuration.
X1
Stop (0) / Start (1)
X2
Solar mode (0) / Grid AC power supply constant speed mode (1)
X3
Solar mode (0) / Grid AC power supply constant pressure mode (1)
X4
Local control (0): control panel control / Remote control (1): terminal
control
AI1
Actual water pressure feedback, occupied in AC constant pressure
mode (i.e. X3 activated)
AO1
Output frequency
1.5 Technical Features of SLR03
Table 1-3 Technical Features of SLR03
DC power
supply
DC input
voltage
SLR03-2S□:100V DC~390V DC
(360V DC recommended)
SLR03-4T□:200V DC~780V DC
(620V DC recommended)
Max. input
current
See Section 2.3
AC power
supply
Rated AC
input voltage
3-phase
AC208V/AC220V/AC230V/AC240V/AC380V/AC400V/
AC415V/AC440V
Frequency
50Hz/60Hz, tolerance ±5%
Voltage
range
Continuous voltage fluctuation ±10%, short fluctuation
-15%~+10%, i.e. 200V: 170V~264V, 400V: 323V~484V
Voltage out-of-balance rate <3%, distortion rate as per
the requirements of IEC61800-2
Rated input
current
See Section 2.3
Power output
Applicable
motor (kW)
See Section 2.3
Rated
See Section 2.3

SLR03 User Manual Chapter 1 Product Information
- 6 -
current (A)
Output
frequency
(Hz)
0.00~ 600.00Hz; unit: 0.01Hz
Overload
capacity
150% - 1min, 180% - 10s, 200% - 0.5s every 10 mins
Control
characteristics
V/f patterns
V/f control
Range of
speed
regulation
1:100
Speed
accuracy
±0.5%
Starting
torque
0.5Hz: 180%
Protection
functions
Refer to Chapter 7- Troubleshooting
Environment
Place of
operation
Indoors, no direct sunlight, free from dust, corrosive
gases, flammable gases, oil mist, water vapor, water drop
or salt, etc.
Altitude
0-2000m. De-rate 1% for every 100m when the altitude is
above 1000 meters
Ambient
temperature
-10℃-40℃. The rated output current should be derated
1% for every 1℃ when the ambient is 40℃-50℃
Relative
humidity
0~95%, no condensation
Vibration
Less than 5.9m/s2 (0.6g)
Storage
temperature
-40℃~+70℃
Others
MPPT
Efficiency
Up to 99.9%
IP grade
IP20
Cooling
method
Forced air cooling

SLR03 User Manual Chapter 1 Product Information
- 7 -

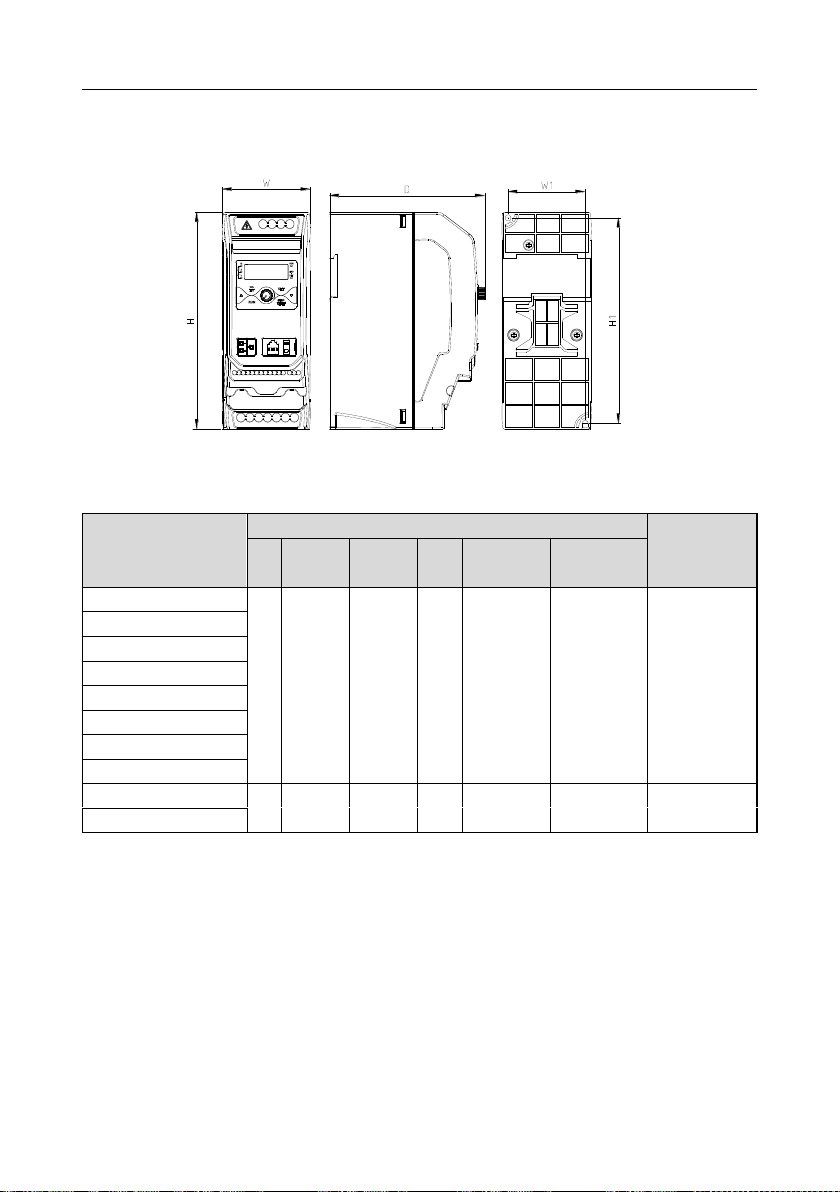

1.6 Parts Drawing
Model
External and installation dimensions (mm)
Weight
(kg)
W
H
D
W1
H1
Mounting
hole dia
SLR03-2S0.4B
75
180
133
66
170.5
5
1.1
SLR03-2S0.75B
SLR03-2S1.5B
SLR03-2S2.2B
SLR03-4T0.75B
GK610-4T1.5B
GK610-4T2.2B
SLR03-4T3.7B
SLR03-4T5.5B
100
224.5
152.5
88
214.5
5
1.8
SLR03-4T7.5B

SLR03 User Manual Chapter 2 Installation and Wiring
- 8 -
Chapter 2 Installation and Wiring
2.1 Installation Environment
1） Ambient temperature is in the range of -10℃~ 40℃.
2） Drive should be installed on surface of flame retardant object, with adequate surrounding
space for heat dissipation.
3） Installation should be performed where vibration is less than 5.9m/s2 (0.6g).
4） Protect from moisture and direct sunlight.
5） Protect the cooling fan by avoiding oil, dust and metal particles.
6） Do not expose to an atmosphere with flammable gases, corrosive gases, explosive gases
or other harmful gases.
7） Prevent drilling residues, wire ends and screws falling into drive.
8） Ventilation part of the drive should be installed outside, away from harsh environment (e.g.
textile facilities with fiber particles and chemical facilities filled with corrosive gases).
2.2 Main Circuit Terminals and Wiring
WARNING
 Wiring should be in strict accordance with this manual, otherwise hazard of electric
shock or equipment damage exists.
 Since leakage current of the drive may exceed 3.5mA, for safety's sake, the drive and
the motor must be grounded so as to avoid hazard of electric shock.
 Be sure to perform wiring in strict accordance with the drive terminal marks. Never
connect three-phase power supply to output terminals U, V and W. Failure to comply
will result in equipment damage.
 Only mount braking resistors at terminals and BR when need. Failure to comply will
result in equipment damage.
 Signal wires should be far away from main power lines to the best of possibility. If this
cannot be ensured, vertical cross-arrangement shall be implemented, otherwise
interference noise to control signal may occur.
 If motor cables are longer than 50m, it is recommended output AC reactor be used.
Failure to comply may result in faults.
+

SLR03 User Manual Chapter 2 Installation and Wiring
- 9 -
2.3 Control Terminal Wiring
WARNING
 AC 220V signal is prohibited from connecting to other terminals than control terminals
RA, RB and RC. Failure to comply may result in equipment damage.
 Shielded cables are highly recommended and the cables should be as short as possible
in order to avoid any faults caused by interference.
Table 2-1 Control terminal specification
Category
Terminal
Terminal
designation
Specification
Analog
input
+10V
Analog input
reference
voltage
Maximum output current 5mA
The resistance of external potentiometer
should be larger than 2kΩ
GND
Analog ground
Isolated from COM interiorly
AI
Analog input
0~20mA: input impedance 500Ω,
maximum input current 25mA;
0~10V: input impedance 22kΩ, maximum
input voltage 10V;
Switch on control board for jumping from
0~20mA and 0~10V, factory default:
0~10V
Analog
output
AO
Analog output
0~20mA: impedance 200Ω~500Ω
0~10V: input impedance ≥10kΩ,
Switch on control board for jumping from
0~20mA and 0~10V, factory default:
0~10V
GND
Analog ground
Isolated from COM interiorly
Digital
input
+24V
+24V
24V±10%, Isolated from GND interiorly
Maximum load: 200mA
PLC
Digital input
Common
terminal
Used for switching between high and low
levels, short-circuited with +24V when
delivery, i.e. low value of digital input valid
COM
+24V ground
Isolated from GND interiorly
X1~X3
Digital input
Terminals 1~3
Input: 24VDC, 5mA
Range of frequency: 0~200Hz
Range of voltage: 10V~30V

SLR03 User Manual Chapter 2 Installation and Wiring
- 10 -
Category
Terminal
Terminal
designation
Specification
X4
high-speed
pulse input
Pulse input: 0.1Hz~20kHz
Range of voltage: 10V~30V
Digital
output
Y1
Open collector
output
Range of voltage: 0~24V;
Range of current: 0~50mA
Relay
output
RA/RB/
RC
Control board
relay output
RA-RB: NC; RA-RC: NO
Contact capacity: 250VAC/3A, 30VDC/3A
Communi
cation
485
terminal
CN6/CN
7
Communication
485
Standard network cable, maximum
communication distance 3M recommended
2.4 Functions of communication 485 terminal
Pin
1
2
3
4
5
6
7
8
Definition
+5V
GND
485+
485-
485+
485-
GND
+5V
Attention:
The pin definitions of the two network ports are the same. If connecting to a 120Ω terminal
resistor is needed, turn the DIP switch No. 2 to the ON side; a common network cable can be
used to connect, and shielded network cables are highly recommended.
1 2
ON
34

SLR03 User Manual Chapter 4 Operation and Run Instructions
- 11 -
Chapter 3 Operation and Run Instructions
3.1 Key functions on keypad
3.2 Prompt Message Status
Prompt message status shall be displayed upon the completion of some operation. For
instance, the "bASIC" prompt message would be displayed upon the completion of parameter
initialization.
Table 3-1 Prompt characters
Prompt
symbol
Meaning
Prompt
symbol
Meaning
bASIC
When A0-01 is set to 0
CPyb1
Backup parameter value
dISP1
When A0-01 is set to 1
LoAd
Parameter upload to
control panel
USEr
When A0-01 is set to 2
dnLd1
Parameter download from
control panel (motor
parameter excluded)
ndFLt
When A0-01 is set to 3
dnLd2
Parameter download from
control panel (motor
parameter included)
LoC-1
Control panel locked 1 (all locked)
P-SEt
Password has been set

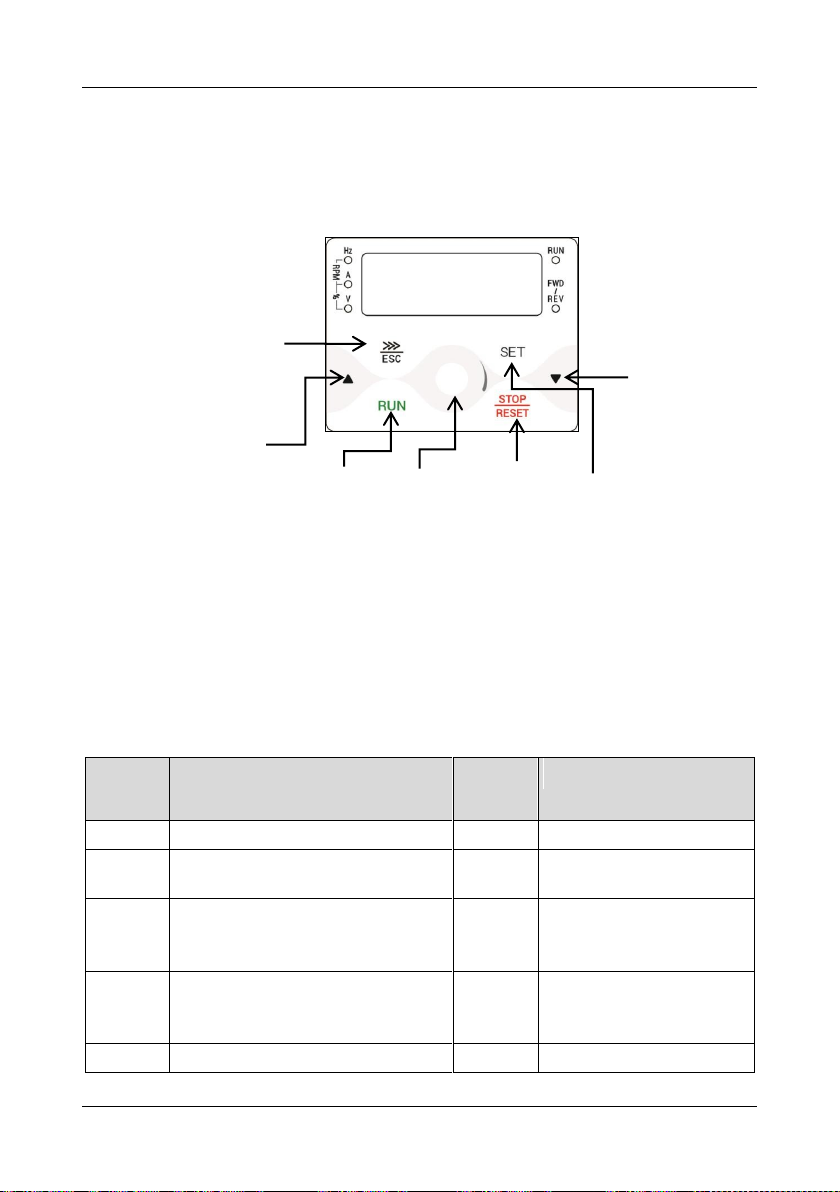

Hz/A/V/RUN/FWD/REV:
Frequency, current,
voltage, run, forward, &
reverse;
Shift/escape:
Short press as shift
key; long press for
1s as escape key
Increase
Run
Potentiometer:
Frequency set
source; process
PID setting
Stop/Reset
Confirm
Decrease

SLR03 User Manual Chapter 4 Operation and Run Instructions
- 12 -
LoC-2
Control panel locked 2
(all locked except RUN,
STOP/RESET)
P-CLr
Password cleared
LoC-3
Control panel locked 3
(all locked except STOP/RESET)
TUNE
Motor parameter
identification in process
LoC-4
Control panel locked 4
(all locked except shift )
LoU
Drive undervoltage
PrtCt
Control panel protection
CLr-F
Clear fault record
UnLoC
Control panel lock cleared
dEFt1
Restore to factory default
parameters (motor
parameter excluded)
rECy1
Read the backup parameter value to
parameter
dEFt2
Restore to factory default
parameters (motor
parameter included)
SLP-S
Storing the current frequency as
sleep frequency at F6-12
LLr-S
Operating the dry run
protection program
LLr-F
Dry run protection program failed
Table 3-2 shows meanings of the characters displayed on control panel.
Table3- 2 Meanings of displayed characters
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
0
A
I
T
1
b
J
t
2
C
L
U
3
c
N
v
4
d
n
y
5
E
o
-

SLR03 User Manual Chapter 4 Operation and Run Instructions
- 13 -
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
Displayed
character
Character
Meaning
6
F
P
8．
7
G
q
．
8
H
r
9
h
S

SLR03 User Manual Chapter 4 Operation and Run Instructions
- 14 -
3.3 First-time Power up
Perform wiring in strict accordance with technical requirements as set forth in Chapter 3 -
Installation and Wiring. The flow chart of first-time power up is as shown in below:
3.3.1 Flow chart of first-time power up of asynchronous motor
Make sure power lines are connected correctly
A0-03=3 restored to factory default
Press the button RUN to pump water till maximal power point
Stop the motor. Then press The buttons ESC+Set simultaneously or program b1-02=1 or exchange any two
of U, V, W (power should be cut off before motor wiring exchange) to reverse the pump rotation till
maximal power point.
Ready
Make sure motor lines are connected with U, V, W
Set parameters A0-09=0， d0-01~d0-06 according to motor na mepla te
Judge and se lect the di rection which pumps more water
Press the button STOP to stop
End
Press the button RUN to pump water
Fig. 3-1 Flow chart of first-time power up for asynchronous motor

SLR03 User Manual Chapter 4 Operation and Run Instructions
- 15 -
3.3.2 Flow chart of first-time power up of synchronous motor
Make sure power lines are connected correctly
A0-03=3 restored to factory default
Press the button RUN to pump water till maximal power point
Stop the motor. Then press the buttons ESC+Set simultaneously or program b1-02=1 or
exchange any two of U, V, W (power should be cut off before motor wiring exchange) to
reverse the pump rotation till maximal power point.
Ready
Make sure motor lines are connected with U, V, W
Set parameters d0-01~d0-06 according to motor nameplate
Judge and select the direction which pumps more water
Press the button STOP to stop
End
Press the button RUN to pump water
After D0-22 is set to 4, press RUN to perform identification
Wait till the finish of identification
A0-09=03
Fig. 3-2 Flow chart of first-time power up for synchronous motor

SLR03 User Manual Chapter 5 Parameters Specification
- 16 -
Chapter 4 Parameters Lists
SLR03 parameter groups are listed below:
Category
Parameter group
Reference page
Group A: system parameters
and parameter management
A0: system parameters
A1: user-defined display parameters
Group b: Run parameter
setting
b0: frequency setting
b1: start/stop control
b2: Accel/Decel parameters
Group C: input and output
terminals
C0: digital input
C1: digital output
C2: analog and pulse input
C3: analog and pulse output
Group d: motor and control
parameters
d0: parameters of motor 1
Group E: enhanced function
and protection parameters
E0: enhanced function
E1: protection parameters
Group F: application
F0: MPPT process PID adjustment
F1: Multi - step pressure
F5: AC constant water pressure PID
F6: Dedicated Parameters
Group H: communication
parameters
H0: MODBUS communication
parameters
Group U: monitoring
U0: status monitoring
U1: history fault
 ATTENTION:
Change attribute:
"△" means the value of this parameter can be modified in stop and run status of drive;
"×" means the value of this parameter cannot be modified when drive is running;
"◎" means this parameter is a measured value that cannot be modified;
Factory default: The value when restored to factory default. Neither measured
parameter value nor recorded value will be restored.
Scope: the scope of setting and display of parameter values
Parameter
Designation
Scope
Factory
default
Attr
Group A: System Parameters and Parameter Management
Group A0: System Parameters
