HTL-2
Operating Manual
HOTSPOT Test Device

ADICOS HTL-2 - Operating manual
Article number: 410-2410-008
Index: EN20
Release date: 03.02.2020
– Translation –
Manufacturer:
GTE Industrieelektronik GmbH
Helmholtzstr. 21, 38-40
41747 Viersen
GERMANY
Support hotline: [phone]
E-Mail: [email protected]
© 2020 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied,
changed, or distributed without explicit approval by the manufacturer!
Subject to technical changes!
ADICOS®and GSME®are registered trademarks of GTE Industrieelektronik GmbH.

I
ADICOS HTL-2 410-2410-008 EN20
SHORT DESCRIPTION
Abstract
The Advanced Discovery System (short: ADICOS) detects fire scenarios early in an industrial
environment. It incorporates various independent detector units that make it possible to realiably
detect the detection goal stipulated during planning through appropriate configuration and
parameterization.
The detector units are connected with a central unit through the ADICOS M-Bus. The central
unit makes it possible to supply power to and parameterize each individual detector and stores
all sensor data for statistical evaluations.
In combination with the SOLO 760 battery baton from the company No Climb Products Ltd.
(detectortesters.com), the ADICOS HTL-2 serves as a test device for all ADICOS detectors of
the type HOTSPOT.

II ADICOS HTL-2410-2410-008 EN20
CONTENTS
Contents
1 About this manual .......................................... 3
1.1 Objecive............................................ 3
1.2 Explanation of symbols .................................. 3
1.3 Abbreviations......................................... 4
1.4 Storing the instruction manual .............................. 4
2 Safety instructions........................................... 5
2.1 Intended use ......................................... 5
2.2 Standards and regulations ................................ 5
2.3 Qualification of staff .................................... 6
2.4 Modification ......................................... 6
2.5 Accessories and replacement parts........................... 6
3 Scope of delivery........................................... 7
4 Construction and function ..................................... 8
4.1 Overview ........................................... 8
4.2 Function ............................................ 9
4.3 Display and control elements............................... 9
5 Preparation for operation......................................10
5.1 Removing dirt.........................................10
5.2 Charging the battery baton................................10
5.3 Mounting the battery baton................................10
5.4 Mounting the telescope pole ...............................10
6 Putting into operation ........................................11
7 Detector test ..............................................12
7.1 Preparing for the Detector Test..............................12
7.2 Testing HOTSPOT detectors ...............................12
7.3 Evaluating the detector test ................................12
9 Maintenance..............................................14
9.1 Cleaning............................................14
9.2 Storage.............................................14
10 Disposal.................................................15
11 Technical information ........................................15

3
ADICOS HTL-2 410-2410-008 EN20
ABOUT THIS MANUAL
1 About this manual
1.1 Objecive
This manual describes the proper assembly, wiring, commissioning, and operation of ADICOS
branching and connection boxes. After commissioning, they are used as reference work in the
case of faults.
It is exclusively addressed to knowledgeable specialist personnel (–› Chap. 2, Safety
instructions).
1.2 Explanation of symbols
This manual features a continuous structure for best possible comprehension. The following
labels are used.
Action objecives
Action objectives describe the result to be achieved by the subsequent instructions. Action
objectives are presented in bolt font.
Action instructions
Action instructions describe the activities to be performed in order to achieve the action objective
previously mentioned. Action instructions are presented as follows.
►Individual action instruction
1 First of several sequential action instructions
2 Second of several sequential action instructions
3 etc.
Intermediate states
In case of describable intermediate states or results, which are the result of action steps
(e.g. displays, internal function steps, etc.), they are presented as follows.
ZIntermediate state
Warnings signs
This manual uses the following information types.
DANGER!
This type of warning indicates a danger that directly causes death or serious
injury.

ABOUT THIS MANUAL
4ADICOS HTL-2410-2410-008 EN20
WARNING!
This type of warning indicates a danger that may result in death or serious injury.
CAUTION!
This type of warning indicates a danger that may result in injury.
NOTICE!
This type of warning provides information that is of immediate importance for
further operation of the equipment.
Tips and recommendations
This type of hint provides information that is immediately relevant to the continued
operation of the device.
1.3 Abbreviations
This instruction manual uses the following abbreviations.
Abbr. Meaning
ADICOS Advanced Discovery System
SOLO Testing system of the company No Climb Products Ltd. for fire detectors
HTL HOTSPOT test device
1.4 Storing the instruction manual
Store this document close at hand in the carrying case of the test device so you can look up
information as needed.

5
ADICOS HTL-2 410-2410-008 EN20
SAFETY INSTRUCTIONS
2 Safety instructions
To safely operate ADICOS HTL-2, you absolutely must read, understand, and follow these
instructions and the safety information they contain in their entirety.
WARNING!
Fire and explosion hazard due to hot plate
The ADICOS HTL-2 uses a hotplate that can cause fires on contact with foreign
bodies or explosions in ex-zones.
−You must read and comply with this instruction manual in
its entirety!
2.1 Intended use
In combination with the SOLO 760 battery baton from the company No Climb Products
Ltd. (detectortesters.com), the ADICOS HTL-2 is used to check the functioning of infrared
detectors of the type ADICOS HOTSPOT. In that context, the operating parameters addressed
in Chapter 11 on technical information must be complied with. Any use deviating from that
requires previous consultation with the manufacturer.
Compliance with this instruction manual and observance of all applicable country-specific
regulations is part of proper use.
2.2 Standards and regulations
When ADICOS detectors are tested, the safety and accident prevention measures valid for
each specic case of application must be observed.
The following standards and guidelines are of critical importance for dealing with fire detection
systems:
Regulation Description
VDE 0800 Telecommunications - general terms, requirements and tests for the safety
of equipment and devices
VDE 0833 Fire alarm systems
VDE 0845 Protection of telecommunications systems against the effects of lightning,
static charging and surges from high voltage systems - measures against
surges
VdS 2095 Automatic fire detection systems, planning, and installation
DIN 14675 Fire detection systems - construction and operation

SAFETY INSTRUCTIONS
6ADICOS HTL-2410-2410-008 EN20
2.3 Qualication of staff
All work performed on ADICOS systems must be performed only by qualified staff. Qualified
staff is considered to be persons who can perform tests on special fire detection systems and
recognize possible dangers owing to their specialist training, knowledge, and experience and
their knowledge of relevant provisions.
Tests by ADICOS detectors
ADICOS detectors may be tested only by staff who have been authorized and
appropriately schooled to do so!
An approval for hot work is absolutely necessary!
2.4 Modication
NOTICE
Property damage due to unauthorized change
Any form of arbitrary change can cause property damage.
−A modication of the ADICOS HTL-2 is expressly prohibited!
2.5 Accessories and replacement parts
NOTICE!
Property damage through the use of incorrect components
The use of parts other than the original spare parts and the original accessories
of the manufacturer may result in short-circuit damage.
−Use only original spare parts and Original accessories
The following accessories are available for the HTL-2.
Art. no. Description
430-2402-105 SOLO 760 battery baton*
430-2402-106 SOLO 725 battery fast charger*
430-2403-105 SOLO 100 telescope extension pole*
*Manufacturer: No Climb Products Ltd.

7
ADICOS HTL-2 410-2410-008 EN20
STRUCTURE
3 Structure
Number Description
1Carrying case
1HTL-2 test device

CONSTRUCTION AND FUNCTION
8ADICOS HTL-2410-2410-008 EN20

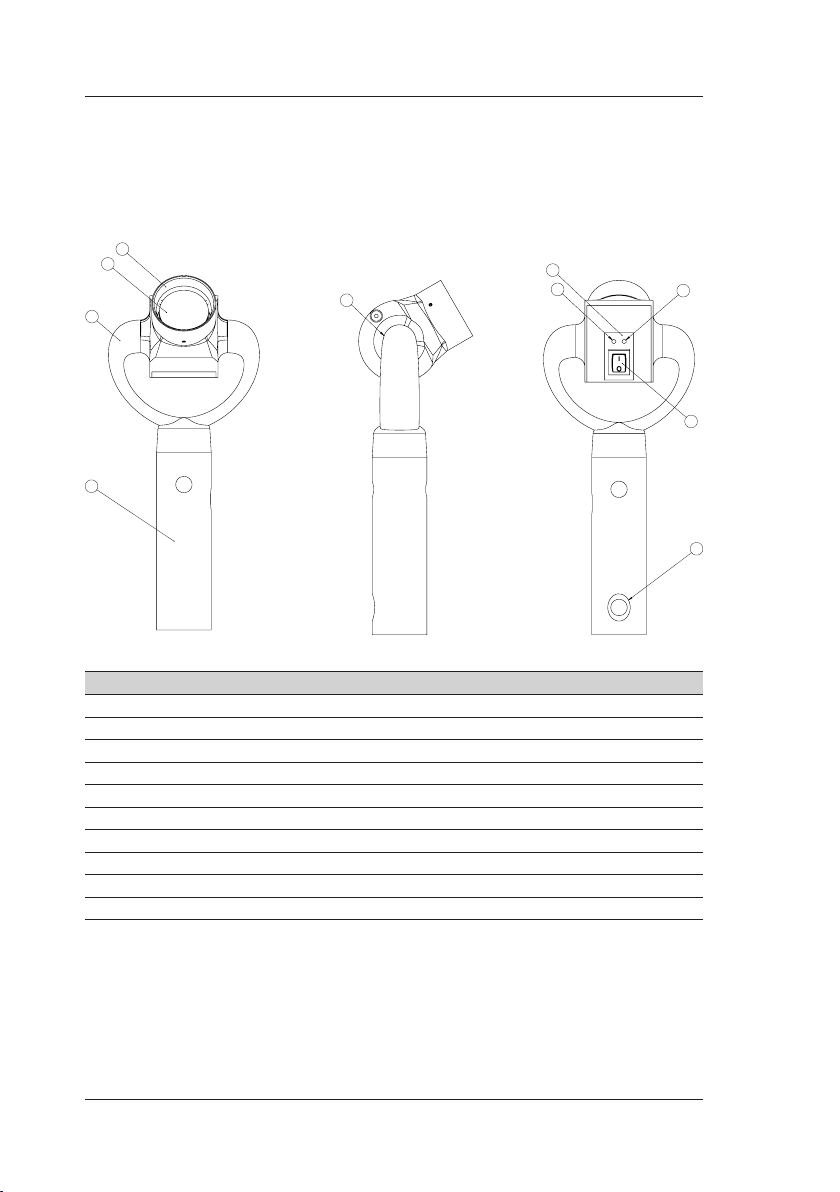

4 Construction and function
4.1 Overview
No. Description
HTL test tube
HTL hot plate
HTL holder
HTL connection element for SOLO 760
Swivel joint
HTL control panel
Operating LED (green)
Heating LED (red)
ON/OFF switch
Stop hole for SOLO 760 battery baton
1
3
4
2
78
9
10
5
6

9
ADICOS HTL-2 410-2410-008 EN20
CONSTRUCTION AND FUNCTION
4.2 Function
In combination with the SOLO 760 battery baton from
the company No Climb Products Ltd., ADICOS HTL-
2 makes it possible to easily trigger tests and check
the functions of ADICOS infrared detectors of the
type HOTSPOT in installation situations in industrial
equipment.
For this purpose, its hot plate, which is regulated
to maintain a temperature of 100 ... 105 °C, is
pressed against the opcits of the HOTSPOT detec-
tor to be tested, meaning that the entire view range
of the detector sensor is homogenously stimulated.
4.3 Display and control elements
HTL control panel
Operating switch The operating switch is located in the control
panel of the HTL-2 and can be used to turn the
device on and off.
Operating LED The operating LED is located to the left above
the operating switch in the control panel. It
shines green when the HTL-2 is operated and
blinks when the battery is low.
Heating LED The heating LED is located to the right above
the operating switch in the control panel. It
shines red when the heating function of the
HTL-2 is active.

PREPARATION FOR OPERATION
10 ADICOS HTL-2410-2410-008 EN20
5 Preparation for operation
5.1 Removing dirt
DANGER!
Fire hazard due to deposits
Deposits in the test tube of the ADICOS HTL-2 (e.g. carbon dust) can ignite
during operation.
−Clean the device before each use!
5.2 Charging the battery baton
Check charge status
Before you mount the SOLO 760 battery baton, you must check the charging
status of the batteries located inside.
−If needed, charge the batteries according to the
manufacturer‘s instructions!
5.3 Mounting the battery baton
1 Insert the SOLO 760 battery baton into the HTL connection
element from below with the connection socket first until it
reaches the locking knob
2 Press down the locking knob and slide in the baton until it
makes contact
3 Twist the battery baton, exerting pressure, until it snaps into
place with an audible click
5.4 Mounting the telescope pole
1 Insert the SOLO 760 battery pole into the SOLO 100 telescope extension pole until it
reaches the locking knob
2 Orient the pole so that the free locking knob of the battery baton and the corresponding
engaging hole of the telescope pole are aligned
3 Press down the locking knob and slide in the pole until it clicks into place with an audible
click
KLICK!

11
ADICOS HTL-2 410-2410-008 EN20
PUTTING INTO OPERATION
6 Putting into operation
DANGER!
Risk of re due to active hot plate
The ADICOS HTL-2 uses an active hot plate and can cause fires and explosions
if used improperly.
−Operate the device only if you have a permit for hot work!
−Do not operate the device in areas where there is danger
of explosion!
−Do not leave an activated device unsupervised!
DANGER!
Burns due to active hot plate
The ADICOS HTL-2 uses an active hot plate that can cause severe burns if it
comes into contact with the skin.
−Do not touch the hot plate!
−Do not operate the device in the carrying case!
DANGER!
Fire hazard due to deposits
Deposits in the test tube of the ADICOS HTL-2 (e.g. carbon dust) can ignite
during operation.
−Clean the device before each use!
Check charge status
Before you mount the SOLO 760 battery baton, you must check the charging
status of the batteries located inside.
−If needed, charge the batteries according to the
manufacturer‘s instructions!
Turning on the HTL-2
1 Actuate the operating switch (position I)
ZThe operating LED shines green
ZThe heating LED shines red
ZThe HTL hot plate is being heated
2 Wait until the heating LED extinguishes. Depending on
the temperature and the charging state of the SOLO
760 battery baton, this can take up to 10 minutes.
ZThe HTL-2 is ready for use.

DETECTOR TEST
12 ADICOS HTL-2410-2410-008 EN20
7 Detector test
WARNING!
Risk of injury due to falling deposits
Deposits on the ADICOS detectors can drop when touched during testing and
cause injury.
−Wear appropriate protective clothing
7.1 Preparing for the Detector Test
1 Use ADICOS software to call up the detectors to be tested
2 Call up the thermal image of the detector
3 Select the tab “Max.-Werte T”
4 In “Zusatz-F.” in the lower-left section, select “Max T” in the window
5 Press the button “Max Löschen”
7.2 Testing HOTSPOT detectors
►Press the heated HTL-2 with the test tube directly against
the sensor of the detector to be tested and hold it there
for several seconds.
►Turn off HTL-2 after testing.
Use the operating switch to do so (position O)
7.3 Evaluating the detector test
Depending on the parameterization of the detector, the test is successful if an alarm is triggered
and if the “Max T” thermal image, which displays the highest temperature of every pixel, uni-
formly displays the temperature of the HTL hot plate after the test. To do this...
1 Use the ADICOS software to call up the detector to be
tested
2 Call up the thermal image of the detector
3 Select the tab “Max.-Werte T”
4 In “Zusatz-F.” in the lower-left section, select “Max T” in
the window
5 Configure an appropriate color spread

13
ADICOS HTL-2 410-2410-008 EN20
MAINTENANCE
8 Malfunctions
Description of malfunction Possible cause Solution
Operating LED and heating
LED do not light up
Batteries are empty Charge the SOLO battery baton
(–› Chapter 5.2)
Operating LED and heating
LED do not light up
Battery baton
improperly inserted
Remove the SOLO Akkustange
and connect it again
(–› Chapter 5.3)
Operating LED and
heating LED blink
Low battery power Charge the SOLO battery baton
(–› Chapter 5.2)
Heating LED does not go out Low battery power Charge the SOLO battery baton
(–› Chapter 5.2)
9 Maintenance
9.1 Cleaning
Cleaning the HTL test tube
1 Blow out the test tube with compressed air if it gets dirty
2 Clean the hot plate with a moist towel
Do not use any aggressive cleaning agents!
Cleaning the HTL case
►Clean the outer surfaces of the HTL-2 with a moist towel as needed
Do not use any aggressive cleaning agents!
Maintaining the HTL swivel joints
1 If it becomes difficult to rotate the HTL-2 swivel joints, blow them out with compressed air
2 Grease the swivel joints with penetrating oil (e.g. WD-40)
9.2 Storage
Store the device in its carrying case when it is not in use.

DISPOSAL
14 ADICOS HTL-2410-2410-008 EN20
WARNING
Risk of injury from swirling particles
When cleaning the ADICOS HTL-2 with compressed air, dirt particles can be
whirled up and cause injuries to the eyes and respiratory tract.
−Wear appropriate protective clothing
10 Disposal
After the end of its utilization time, return the device to the
manufacturer, who guarantees environmentally friendly dis-
posal of all components.
11 Technical information
General
Measurements: mm 265 x 110 x 60 (L x W x H)
Weight: kg 0.2
Electrical properties
Power consumption: A 1.0 ... 1.2
Max. operating time:
(with completely charged
SOLO 760 battery baton)
h 3.5
Environmental conditions
Temperature range: °C +10 ... +40
Humidity range: % < 95 (non-condensing)

15
ADICOS HTL-2 410-2410-008 EN20
DISPOSAL
