Gtech HV04 Operator's manual

www.gtechonline.co.uk
HV04
Safety and instruction manual for
Germguard hand-held vacuum
HJGL=;L=<:Q
+9PDQXDOYLQGG 

Introduction
It is my pleasure to introduce the HV04 Germguard™ Handheld Vacuum from Gtech.
Germguard™ is an antibacterial treatment proven to be 99.9% effective against over
50 common household germs including E-coli, Salmonella, Listeria and MRSA.Key
components, such as handles and dust collection bins have been treated with Gtech’s
unique Germguard™ anti-bacterial protection formula, which prevents bacterial growth on
surfaces you regularly touch, and is effective for the entire life of the products.
You will only find Germguard™ protected products from Gtech.
Designed, patented and developed in the heart of England we hope that you find this
product helps you effortlessly stay on top of your household cleaning. If you have any
queries or comments about your new vacuum, we would love to hear from you.
Our friendly customer service team are available from 9am-5.30pm Monday-Thursday, and
9am-3.30pm on Fridays on 01905 345891 or, alternatively, please visit our website
www.gtechonline.co.uk. Thank you for your purchase from Gtech, we hope you have many
happy hours using your HV04.
Nick Grey,
Chairman, Grey Technology
Contents
pg
3 Important safeguards
5 Unpacking: part location
6 Assembly
7 Battery charging & recharging
8 Operating the vacuum
10 Emptying and cleaning the dust bin
11 Cleaning the dust bin & filter
12 Troubleshooting
12 Gtech customer services helpline
13 Environmental, product recycling and Battery removal
14 Technical specifications and Declaration of conformity
15 Warranty information
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
2
+9PDQXDOYLQGG 

WARNING:
Read all instructions. Failure to follow all
instructions listed below may result in electric
shock, fire and/or serious injury.
WARNING:
When using any electrical appliance, basic
safety precautions should always be ob-
served, including the following, to reduce the
risk of fire, electrical shock, leaking batteries
or personal injury.
Personal Safety:
• The intended use is described in this
manual. The use of any accessory or
attachment or the performance of any
operation with this appliance other
than those recommended in this instruction
manual may present a risk
of personal injury.
• Not to be used as a toy; pay close
attention when used by or near children.
Children must be supervised to ensure they
do not play with the appliance,
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
• Store in a dry place.
• Store out of reach of children.
• Use extra care when cleaning on stairs.
• Use only with the manufacturers
recommended attachments.
• Do not use without the filter in place.
• Keep the product and all accessories away
from hot surfaces.
Electrical safety:
• Never modify the charger in any way.
• The charger has been designed for a
specific voltage. Always check that the
mains voltage is the same as that stated on
the rating plate.
• Only use the charger supplied with the
product. Do not attempt to use the charger
with any other product nor attempt to
charge this product with another charger.
• Before use check charger cord for
signs of damage or ageing.
• Do not abuse the charger cord; never carry
the charger or charger stand by the cord.
• Never pull the charger cord to disconnect
from a socket; grasp the charger and pull
to disconnect.
• Keep the charger cord away from hot
surfaces and sharp edges.
• Do not handle the charger or the unit with
wet hands.
• Do not store or charge the unit outdoors.
• Unplug the charger before cleaning.
• To avoid damage it is not recommended
to wrap the cord around the charger for
storage. A damaged or entangled charger
cord can increase the risk of fire and
electric shock.
Important safeguards
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 3
IMPORTANT:
READ ALL INSTRUCTIONS BEFORE USE.
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
+9PDQXDOYLQGG 

Battery use and care:
• Do not attempt to use the charger with any
other product nor attempt to charge this
product with another charger.
• Using a charger from a different product
may cause a risk of fire.
• Leaks from battery cells can occur under
extreme conditions. If the liquid gets on
the skin wash immediately with soap and
water. If the liquid gets into the eyes, flush
them immediately with clean water for a
minimum of 10 minutes and seek
medical attention.
• This product contains NiMH batteries. Do
not incinerate batteries or expose to high
temperatures, as they may explode.
• When the battery pack is not in use, keep
away from other metal objects such as:
paper clips, coins, keys, nails, screws, or
other small metal objects that can make a
connection from one terminal to another.
• Shorting the battery terminals may cause
burns or fire.
• The battery must be removed from the
appliance before it is discarded.
• The battery is to be disposed of safely.
• The appliance must be disconnected
from the mains supply when removing
the battery.
• In an emergency situation contact
professional help immediately!
Service:
• Before using the machine and after any
impact, check for signs of wear or damage
and repair as necessary.
• Do not use the appliance if any part is
damaged or defective.
• Repairs should be carried out by a
service agent or a suitably qualified
person in accordance with relevant safety
regulations. Repairs by unqualified persons
could be dangerous.
• Never modify the appliance in any way as
this may increase the risk of
personal injury.
• Only use replacement parts or accessories
provided or recommended by the
manufacturer.
Intended use:
• This product has been designed for dry
vacuum cleaning use only.
• Do not use to pick up liquids or on wet
surfaces.
• Do not pick up anything that is flammable,
burning or smoking.
• Use only as described in this manual.
This product is intended for DOMESTIC
USE ONLY
Warning label descriptions:
Read instruction
manual before use
Do not use in rain
or leave outdoors
whilst raining.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
4
+9PDQXDOYLQGG 

Unpacking: part location
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 5
4
2
3
1
6
5
10
9
7
8
1Main Unit
2Power Switch/Charging Indicator
3 Dust Bin Release Button
4 Dust Bin
5V-head
6 Crevice Tool
7 Brush Tool
8 Upholstery Tool
9Charger Jack
10 Charging Adaptor
7
8
+9PDQXDOYLQGG 

Assembly
To attach a chosen tool, push it firmly onto the front of the unit until it is secure.
The unit is supplied with a range of accessories for cleaning in different situations.
To remove a tool, firmly grip the unit and pull the tool away.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
6
V-head
Crevice tool
Upholstery tool
Brush tool
+9PDQXDOYLQGG 

Battery charging & recharging
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 7
1
2
WARNING: if the battery is damaged in any way do not attempt to charge it and
replace it immediately.
Before use check the power supply and charger cables for signs of damage or ageing.
A damaged charger cable can increase risk of fire or electric shock.
Fully charge the battery before first use.
1Switch off the unit before charging. The unit will not charge when switched on. Connect the
supplied battery charger directly into the charging socket on the rear of the product.
2Plug the charger into a suitable electrical socket and switch on. The power button will light
up when the battery is charging.
3 The power button light turns off when the battery is fully charged. The charge time for a
fully discharged battery is 12 hours.
4Once the battery is fully charged switch off the electrical socket and unplug the charger
from the socket. Do not pull the charger cord, grasp the charger and pull to disconnect
from the socket.
WARNING: do not pull the charger by the cord.
WARNING: Only use the charger provided with the product. Using another charger may
damage the product and battery.
WARNING: Never run the battery empty and then put the product away without switching it
off - deep discharge can damage the battery.
Do not attempt to use the charger with any other product nor attempt to charge this
product with any other charger as this will invalidate your guarantee.
To maintain peak performance of your hand-held vacuum, it is recommended that
the unit be fully discharged, then completely recharged at least once a month.
+9PDQXDOYLQGG 

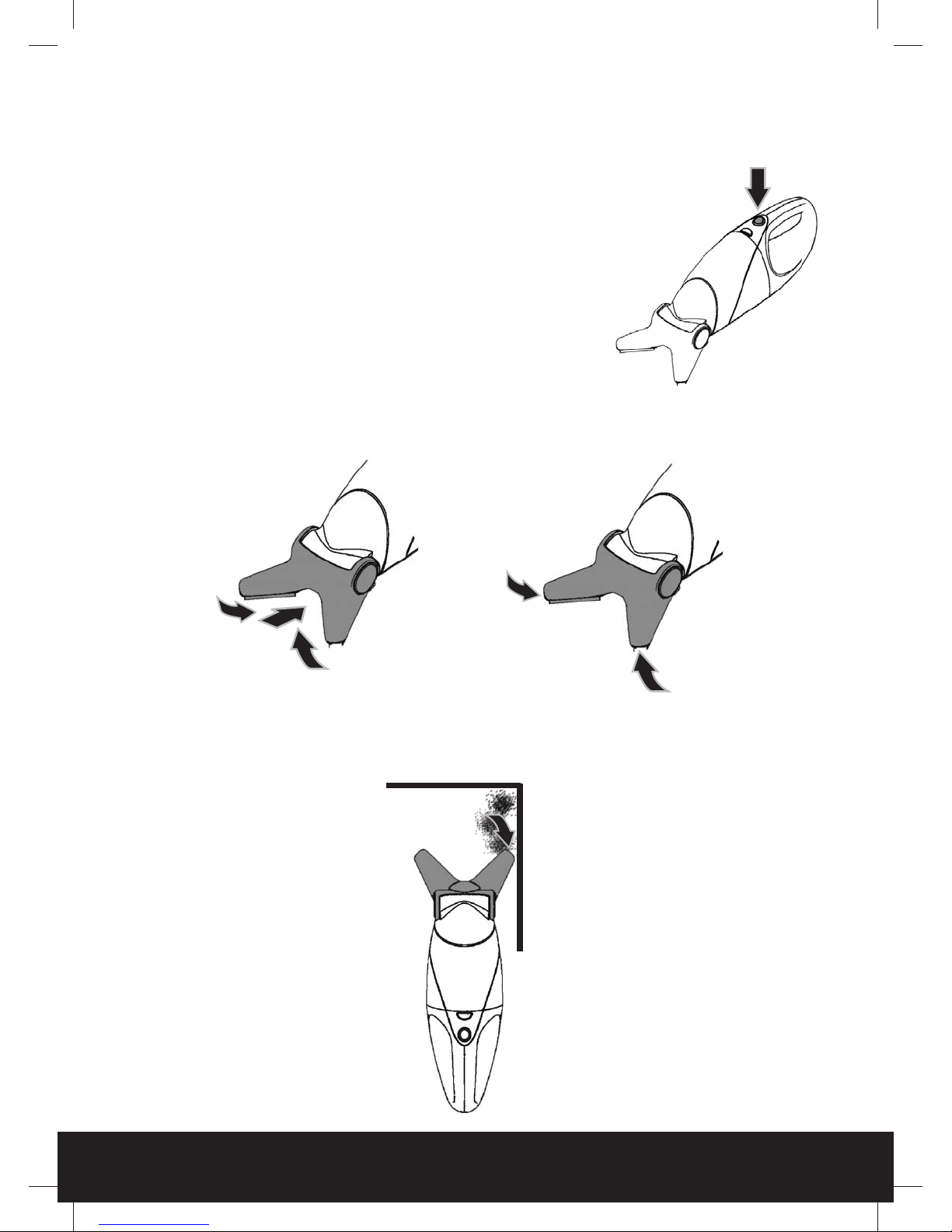

The V-head is ideal for vacuuming large surfaces such as tables or kitchen work surfaces.
Dust and large objects are collected in the V shape.
For cleaning along edges and into corners the dirt can be collected through the
openings at the ends of the head.
Using the vacuum
WARNING: this unit is designed for dry vacuuming use only.
Do not use to pick up liquids or on wet surfaces.
Do not pick up anything that is flammable, burning or smoking.
To start the unit press and release the power button
To stop the unit press and release the power button
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
8
+9PDQXDOYLQGG 

For extra control when cleaning the head can be steered from side to side.
When cleaning up to a vertical surface the V-head can be turned to collect all the dust.
The upholstery tool is ideal for use on fabrics around the home such as sofas, curtains, cush-
ions and car upholstery.
The crevice tool can be used with or without the brush attachment for vacuuming in those
normally inaccessible places, such as stairs, window frames, car interiors etc.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 9
+9PDQXDOYLQGG 

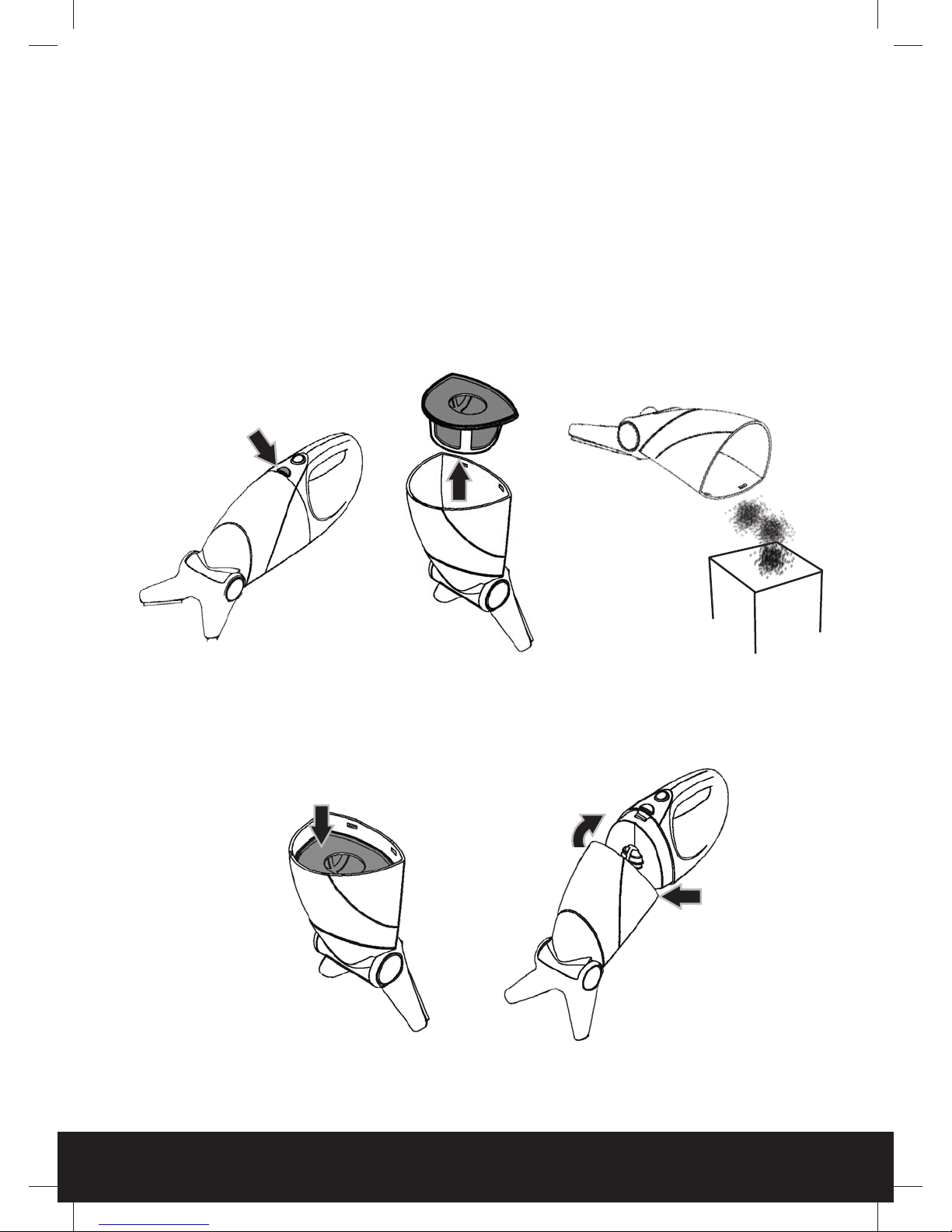

Removing and emptying the dust bin
To maintain optimum performance the Dust Bin should be emptied regularly. It is recommend-
ed to empty the Dust Bin after every use, and should always be emptied when full.
1Press the release button and remove the Dust Bin.
2Hold the Dust Bin upright to avoid spilling dust, and pull the filter to remove
from the Dust Bin.
3Empty the dirt into a waste bin.
4Replace the filter back into the Dust Bin.
5Locate the Dust Bin onto the hooks on the bottom of the unit and push until it
is securly fitted in place.
WARNING: never use the unit without the filter fitted.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
10
2
5
31
4
+9PDQXDOYLQGG 

The inside of the Dust Bin can be washed or wiped with a damp cloth.Ensure the Dust Bin is
fully dry before re-fitting to the unit.
Cleaning the dust bin and filter
To ensure long and reliable service and to maintain optimum performance and suction power
the filter should be cleaned regularly.
CAUTION: do not accidentally turn the unit on while cleaning it.
The filter can be quickly cleaned by tapping against the side of a waste bin to release dust
trapped in the filter.
The filter is washable and for more thorough cleaning can be washed under running water.
Remove the foam filter before cleaning.Ensure the filter is fully dry before
re-fitting into the Dust Bin.
WARNING: do not use water, solvents, or polishes to clean the outside of the unit. Wipe
clean with a dry cloth.
WARNING: never immerse the unit in water and do not clean in a dishwasher
WARNING: never use the unit without the filter fitted.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 11
+9PDQXDOYLQGG 

Troubleshooting
Problem Possible reason Possible solution
Poor cleaning and
dust pick up.
1. Blocked opening in tool.
2. Blocked opening in unit.
3. Filter dirty.
4. Dust Bin not
correctly fitted to unit.
5. Battery flat.
1. Check openings in tools for
blockages.
2. Remove tool and check for
blockages.
3. Clean filter.
4. Check fitting.
5. Recharge battery for 12 hours.
Cleaning time low. 1. Battery flat. 1. Recharge battery for 12 hours.
Unit fails to operate. 1. Battery flat. 1. Recharge battery for 12 hours.
No light when
charger first
connected.
1. Charger not fully
pushed into mains socket.
2. Mains socket not
switched on.
3. Charger cord not fitted
correctly into rear of unit.
4. Defective mains socket
or charger.
5. Power button is in
“ON” position.
1. Push the charger fully into
mains socket.
2. Switch on mains socket.
3. Check charger cord is fully engaged in
the socket on the product.
4. Consult a qualified electrician to
check the socket. Contact customer
service centre or dealer.
5. Press power button once to
ensure unit is switched “OFF”.
If the product needs to be repaired or replaced only use parts which are approved by the
manufacturer.
For further help, technical advice, or to order spare or replacement parts contact the Gtech
Customer Services Helpline.
In the unlikely event that you should experience any problems with the product please do not
take it back to the shop. For help and assistance please call the Gtech customer services
helpline.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
12
Tel: [phone] email: [e-mail]
+9PDQXDOYLQGG 

This marking indicates that this product is covered by legislation for waste electrical
and electronic products (2002/96/EC) and that the product should not be disposed
of with other household waste throughout the EU.
When the product has reached the end of its life please do not dispose of it with general
household waste. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources.
The product contains a NiMH battery which should not be disposed of with general
household waste. The battery should be removed from the product and disposed of properly
at a recognised recycling facility.
For information on the disposal and recycling of electrical products contact your local council,
civic amenity site, recycling centre or retailer.
Alternatively visit www.recycle-more.co.uk for advice on
recycling or to find your nearest recycling facilities.
Environmental and product recycling
Battery removal
At the end of the product’s or battery’s life the battery should be
removed for disposal and recycling.
Only a technically competent person should remove the battery.
If you are unsure how to remove the battery then we recommend
to contact a professional domestic appliance repair technician for
this service.
Run the product until the battery is flat and the motor
has stopped.
Remove the screw and lift off the battery cover.
Lift the battery pack so the connectors can be seen.
Slide the clear plastic covers from the battery connectors.
Push the latch on the connector and pull the connector from the
battery terminal.
Remove the battery pack from the product.
Dispose of the battery safely in accordance with your local
authority.
WARNING: NEVER touch both the metal battery terminals at
the same time with any metal objects as this will short circuit
the battery and may create sparks that can cause small
burns.
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 13
+9PDQXDOYLQGG 

WARNING: ONLY USE THE CHARGER PROVIDED WITH THE PRODUCT. USING ANY
OTHER CHARGER MAY DAMAGE THE PRODUCT AND THE BATTERY.
Declaration of conformity
Grey Technology Ltd
Units 1&2 Cupola Court
Worcester
WR5 1RL
Declare that the productHV04 Hand-held Vacuum
complies with the essential health and safety requirements of the following directives:
2004/108/E - EMC Directive
73/23 EEC - Low Voltage Directive
Technical documentation holder: Grey Technology Ltd, Units 1&2 Cupola Court, Worcester, WR5 1RL
Standards and technical specifications referred to:
EN60335-1
EN60335-2-2
EN50366
EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk
14
HV04 Technical specification
Battery type
Charging period for full discharged battery
Charger output
Charger input
Charger type
Weight
9.6V DC, 1.5Ah NiMH
12 hours
14V DC, 200mA
100-240V~50/60Hz 0.2A
JOD-S-140020BS or
YHSAFB1400200W1EU
1.3kg

+9PDQXDOYLQGG 

Grey Technology has provided the HV04 Germguard Hand-held Vacuum with a
12 month guarantee.
In Guarantee: Please retain your receipt as proof of purchase. In the rare and unfortunate
event of your Gtech product being faulty, please accept our apologies and we will aim to
remedy the problem as fast as possible once brought to our attention. However please be
aware that due to Company Policy Grey Technology can only repair or replace all or part of
the product if proof of purchase is provided and the claim is made within 12 months of the
purchase date.
If your product is within the 12 months warranty period you should either return this product with
its receipt to the retailers where the product was purchased or if a simple part or advice is required
ring the Gtech Helpline where we will be more than happy to assist. Please note: Gtech cannot
refund any monies if the product was brought from a third party.
We would like to remind our customers that the Gtech guarantee does not cover any
unauthorised repairs and will be annulled:
1. if the product has been damaged due to incorrect use or maintenance.
2. if any part is modified or replaced or if it is used in any way that is not
recommended by Gtech.
3. if it is used with any parts not produced or not recommended by Gtech.
4. if it is used for purposes other than those specified by Gtech.
Please note: the battery is a consumable item and is not covered by the
12 month guarantee.
If after reading the manual and following the instructions you are sure that the product is
defective please call the Gtech Helpline on 01905 345891. A customer service advisor will be
on hand to deal with any problems you have with our product. To assist them please be ready
with the product, a detailed description of the problem, and your proof of purchase.
Out of Guarantee: If your Gtech product is over 12 months old and you need any parts or
advice then please contact our Helpline. Parts will be sent out usually within 3 weeks of
request.
WARNING: Only use the charger supplied with the product. Using another charger
may damage the product and the battery and will invalidate your guarantee.
Warranty information
helpline 01905 345891 email [e-mail] web www.gtechonline.co.uk 15
+9PDQXDOYLQGG 

Grey Technology Ltd
Units 1& 2 Cupola Court
Spetchley
Worcestershire
WR5 1RL
Tel: [phone]
email: [e-mail]
web: www.gtechonline.co.uk 09/10
+9PDQXDOYLQGG 
