Gtech HV01 Operator's manual

Safety and Instruction Manual for
HV01 Cordless Handheld
Vacuum Cleaner
www.greytechnology.co.uk

Introduction
We have designed the HV01 cordless vacuum to take floorcare to a new level. After
spending thousands of development hours at our HQ in Spetchley, Worcestershire our
engineers produced V-technology, which is capable of delivering immense cleaning
performance right up to the edges of any room, on any surface. Combined with our
innovative ‘touch steering’ which allows the HV01 to change direction instantly, we believe
that we have produced the easiest to use and most stylish handheld vacuum cleaner on
the market today. Thank you for your purchasing your HV01 from Gtech, we hope you have
many happy hours using it.
Nick Grey,
Chairman, Grey Technology
Contents
pg
3 Important Safeguards
5 Unpacking: Part Location
6 Assembly
7 Battery Charging & Recharging
8 Operating the Vacuum
10 Emptying and Cleaning the Dust Collector
11 Cleaning the Dust Collector & Filter
12 Troubleshooting
12 Gtech Customer Services Helpline
13 Environmental, Product Recycling and Battery Removal
14 Technical Specifications and Declaration of Conformity
15 Warranty Information
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
2

WARNING:
Read all instructions. Failure to follow all
instructions listed below may result in
electric shock, fire and/or serious injury.
WARNING:
When using any electrical appliance,
basic safety precautions should always
be observed, including the following, to
reduce the risk of fire, electrical shock,
leaking batteries or personal injury.
Personal Safety:
•Theintendeduseisdescribedinthis
manual. The use of any accessory or
attachment or the performance of any
operation with this appliance other
than those recommended in this
instruction manual may present a risk
of personal injury.
•Nottobeusedasatoy;payclose
attention when used by or near children.
Children must be supervised to ensure
they do not play with the appliance,
•Thisapplianceisnotintendedforuse
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
•Storeinadryplace.
•Storeoutofreachofchildren.
•Useextracarewhencleaningonstairs.
•Useonlywiththemanufacturers
recommended attachments.
•Donotusewithoutthelterinplace.
•Keeptheproductandallaccessories
away from hot surfaces.
Electrical safety:
•Nevermodifythechargerinanyway.
•Thechargerhasbeendesignedfora
specific voltage. Always check that the
mains voltage is the same as that stated
on the rating plate.
•Onlyusethechargersuppliedwith
the product. Do not attempt to use
the charger with any other product nor
attempt to charge this product with
another charger.
•Beforeusecheckchargercordfor
signs of damage or ageing.
•Donotabusethechargercord;never
carry the charger or charger stand by
the cord.
•Neverpullthechargercordto
disconnectfromasocket;graspthe
charger and pull to disconnect.
•Keepthechargercordawayfromhot
surfaces and sharp edges.
•Donothandlethechargerortheunit
with wet hands.
•Donotexposethechargingstand
to water.
•Donotstoreorchargetheunit
outdoors.
•Unplugthechargerbeforecleaningthe
charger or charger stand.
Important Safeguards
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 3
IMPORTANT:
READALLINSTRUCTIONSBEFOREUSE.
RETAININSTRUCTIONSFORFUTUREREFERENCE.

Battery use and care:
•Donotattempttousethechargerwith
any other product nor attempt to charge
this product with another charger.
•Usingachargerfromadifferentproduct
may cause a risk of fire.
•Leaksfrombatterycellscanoccur
under extreme conditions. If the liquid
gets on the skin wash immediately with
soap and water. If the liquid gets into the
eyes, flush them immediately with clean
water for a minimum of 10 minutes and
seek medical attention.
•ThisproductcontainsNiMHbatteries.
Do not incinerate batteries or expose
to high temperatures, as they may
explode.
•Whenthebatterypackisnotinuse,
keep away from other metal objects
such as: paper clips, coins, keys, nails,
screws, or other small metal objects
that can make a connection from one
terminal to another.
•Shortingthebatteryterminalsmay
cause burns or fire.
•Thebatterymustberemovedfromthe
appliance before it is discarded.
•Thebatteryistobedisposedofsafely.
•Theappliancemustbedisconnected
from the mains supply when removing
the battery.
•Inanemergencysituationcontact
professional help immediately!
Service:
•Beforeusingthemachineandafter
any impact, check for signs of wear or
damage and repair as necessary.
•Donotusetheapplianceifanypartis
damaged or defective.
•Repairsshouldbecarriedoutbya
service agent or a suitably qualified
person in accordance with relevant
safety regulations. Repairs by unqualified
persons could be dangerous.
•Nevermodifytheapplianceinanyway
as this may increase the risk of
personal injury.
•Onlyusereplacementpartsor
accessories provided or recommended
by the manufacturer.
Intended use:
•Thisproducthasbeendesignedfordry
vacuum cleaning use only.
•Donotusetopickupliquidsoronwet
surfaces.
•Donotpickupanythingthatis
flammable, burning or smoking.
•Useonlyasdescribedinthismanual.
This product is intended for
DOMESTIC USE ONLY
Warning label descriptions:
Read instruction
manual before
use
Do not use in rain
or leave outdoors
whilst raining.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
4

1
11
2
3
4
6
7 8
5
10
9
Unpacking: Part location
1Main Unit
2Power Switch/Charging Indicator
3 Dust Bin Release Button
4 Dust Collector
5V-head
6 Crevice Tool
7Upholstery Tool
8Brush Tool
9Charger Plug
10 Charging Adaptor
11 Charging Stand
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 5

V-head
Crevice tool
Upholstery tool
Brush tool
Assembly
Push the tool onto the front of the unit until it is secure.
The unit is supplied with 3 heads and a brush tool attachment for cleaning in
different situations.
To remove tool, firmly grip the unit and pull the tool.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
6

Switch off the unit before charging. The unit will not charge when switched on.

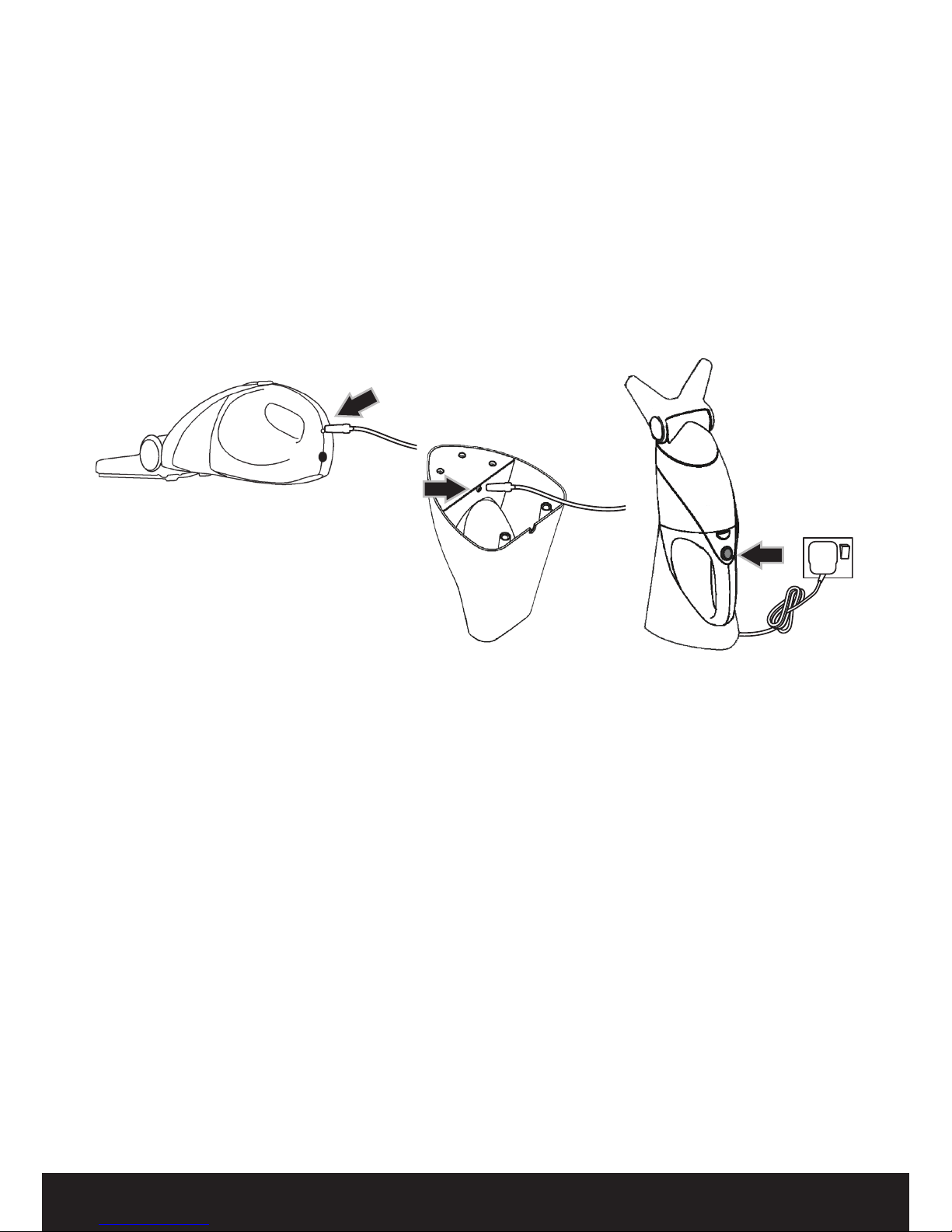

The product can be charged in 2 ways:
1Connect the charger directly into the charging socket on the rear of the product.
2Connect the charger into the charging socket located in the bottom of the charging
stand, then place the product on the charging stand.
WARNING: if the battery is damaged in any way do not attempt to charge it and
replace it immediately.
Fully charge the battery before first use.
Battery Charging & Recharging
WARNING: ONLY USE THE CHARGER PROVIDED WITH THE PRODUCT.
DO NOT ATTEMPT TO USE THE CHARGER WITH ANY OTHER PRODUCT
NOR ATTEMPT TO CHARGE THIS PRODUCT WITH ANOTHER CHARGER
AS THIS MAY DAMAGE THE PRODUCT AND THE BATTERY, AND WILL
INVALIDATE YOUR GUARANTEE.
3Plug the charger into a suitable electrical socket and switch on.
The power button will light when the battery is charging.
Note:thelightwillturnoffwhenthebatteryisfullycharged.Forafullydischarged
battery the charge time is 12 hours.
CAUTION: once the battery is fully charged switch off the electrical socket and
unplug the charger from the mains socket.
The unit can be left on the charging stand so it is always ready to use.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 7
1
2
3

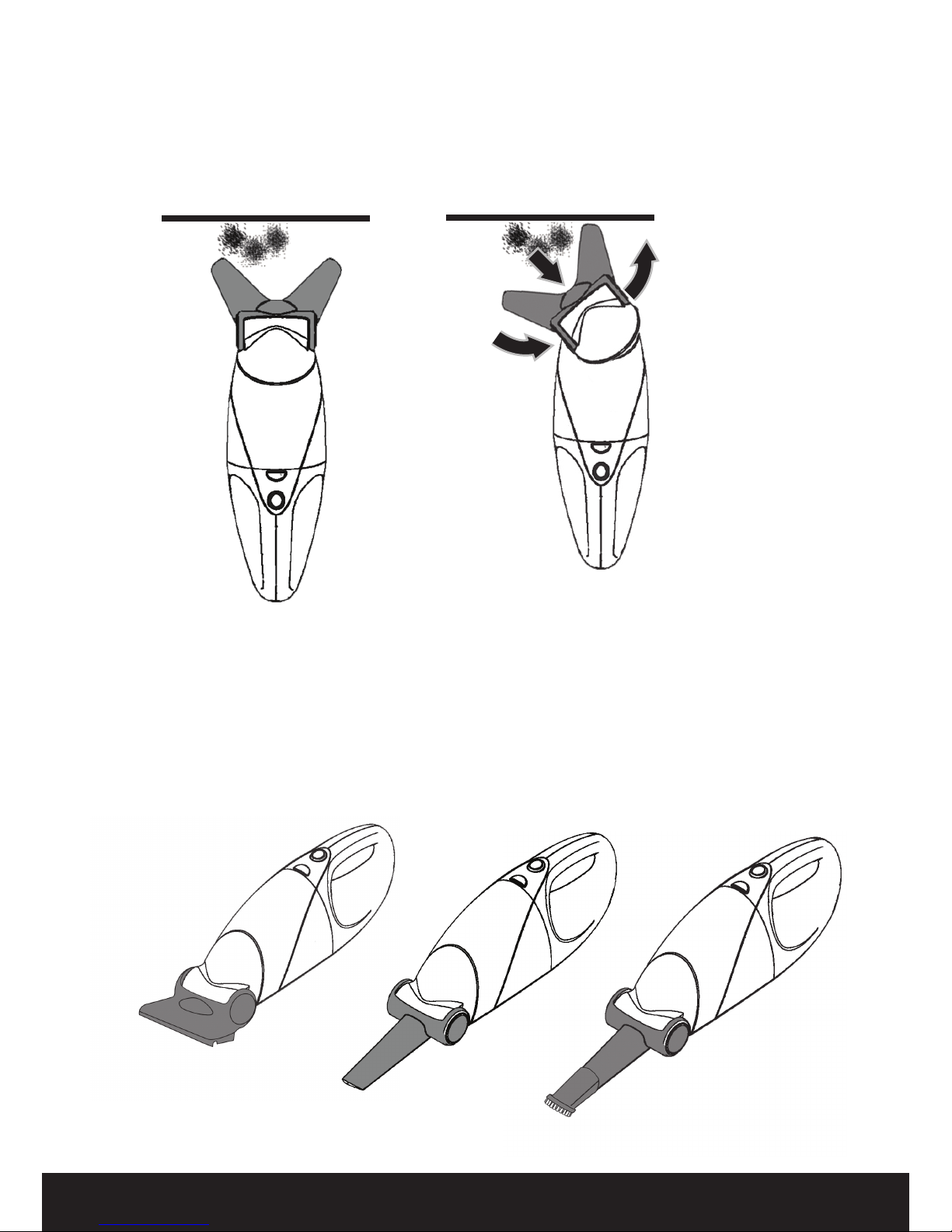

The V-head is ideal for vacuuming large surfaces such as tables or kitchen work surfaces.
Dust and large objects are collected in the V shape.
For cleaning along edges and into corners the dirt can be collected through the
openings at the ends of the head.
Using the Vacuum
WARNING: this unit is designed for dry vacuuming use only.
Do not use to pick up liquids or on wet surfaces.
Do not pick up anything that is flammable, burning or smoking.
To start the unit press and release the power button
To stop the unit press and release the power button
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
8

For extra control when cleaning the head can be steered from side to side.
When cleaning up to a vertical surface the V-head can be turned to collect all the dust.
The upholstery tool is ideal for use on fabrics around the home such as sofas, curtains,
cushions and car upholstery.
The crevice tool can be used with or without the brush attachment for vacuuming in
those normally inaccessible places, such as stairs, window frames, car interiors etc.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 9

Removing and Emptying the Dust Collector
To maintain optimum performance the dust collector should be emptied regularly. It
is recommended to empty the dust collector after every use, and should always be
emptied when full.

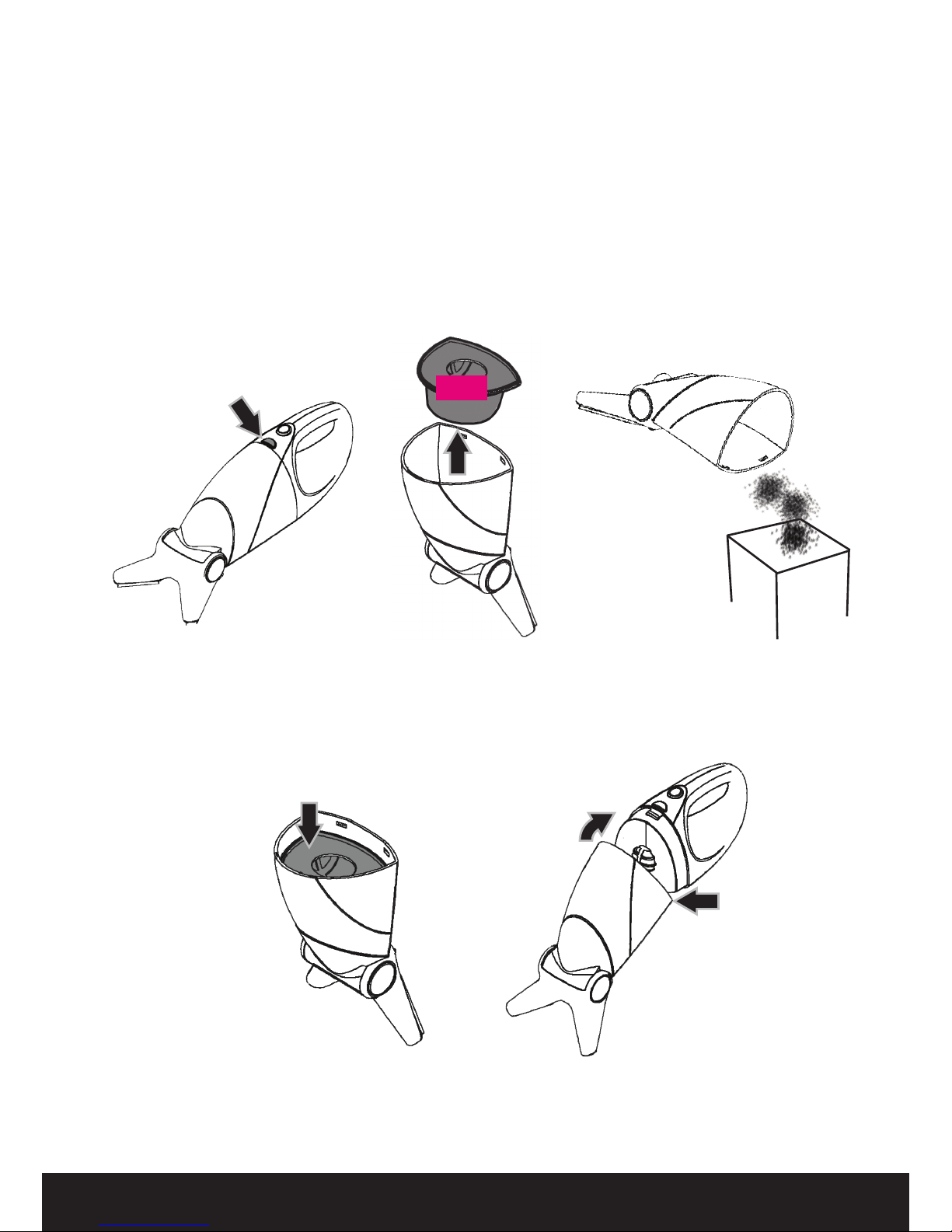

1Press the release button and remove the dust collector.
2Hold the dust collector upright to avoid spilling dust, and pull the filter to remove
from the dust collector.
3Empty the dirt into a waste bin.
4Replace the filter back into the dust collector.
5Locate the dust collector onto the hooks on the bottom of the unit and push until it
is securly fitted in place.
WARNING: never use the unit without the filter fitted.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
10
2
5
31
4
TBC

The inside of the dust collector can be washed or wiped with a damp cloth. Ensure the
dust container is fully dry before re-fitting to the unit.
Cleaning the Dust Collector and Filter
To ensure long and reliable service and to maintain optimum performance and suction
power the filter should be cleaned regularly.
CAUTION: do not accidentally turn the unit on while cleaning it.
The filter can be quickly cleaned by tapping against the side of a waste bin to release
dust trapped in the filter.
The filter is washable and for more thorough cleaning can be washed under running
water. Remove the foam filter before cleaning. Ensure the filter is fully dry before
re-fitting into the dust collector.
WARNING: do not use water, solvents, or polishes to clean the outside of the
unit. Wipe clean with a dry cloth.
WARNING: never immerse the unit in water and do not clean in a dishwasher
WARNING: never use the unit without the filter fitted.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 11
TBC

Troubleshooting
Problem Possible reason Possible solution
Poor cleaning and
dust pick up.
1. Blocked opening in tool.
2. Blocked opening in unit.
3. Filter dirty.
4. Dust collector not
correctly fitted to unit.
5. Battery flat.
1. Check openings in tools for
blockages.
2. Remove tool and check for
blockages.
3. Clean filter.
4. Check fitting.
5. Recharge battery for 12 hours.
Cleaning time low. 1. Battery flat. 1. Recharge battery for 12 hours.
Unit fails to operate. 1. Battery flat. 1. Recharge battery for 12 hours.
Nolightwhen
charger first
connected.
1. Charger not fully
pushed into mains socket.
2. Mains socket not
switched on.
3. Charger cord not fitted
correctly into charger
stand or rear of unit.
4. Unit not well located on
charging stand.
5. Defective mains socket
or charger.
6. Power button is in
“ON”position.
1. Push the charger fully into
mains socket.
2. Switch on mains socket.
3. Check charger cord is fully
engaged in the socket on the charging
stand or product.
4. Re-position unit on charging stand.
5. Consult a qualified electrician
to check the socket. Contact
customer service centre or dealer.
6. Press power button once to
ensureunitisswitched“OFF”.
If the product needs to be repaired or replaced only use parts which are approved by
the manufacturer.
For further help, technical advice, or to order spare or replacement parts contact the
Gtech Customer Services Helpline.
In the unlikely event that you should experience any problems with the product
please do not take it back to the shop. For help and assistance please call the
Gtech customer services helpline.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
12
Tel: [phone] email: [e-mail]

This marking indicates that this product is covered by legislation for waste
electrical and electronic products (2002/96/EC) and that the product should
not be disposed of with other household waste throughout the EU.
When the product has reached the end of its life please do not dispose of it with
general household waste. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources.
TheproductcontainsaNiMHbatterywhichshouldnotbedisposedofwithgeneral
household waste. The battery should be removed from the product and disposed of
properly at a recognised recycling facility.
For information on the disposal and recycling of electrical products contact your local
council, civic amenity site, recycling centre or retailer.
Alternatively visit www.recycle-more.co.uk for advice on
recycling or to find your nearest recycling facilities.
Environmental and Product Recycling
Battery Removal

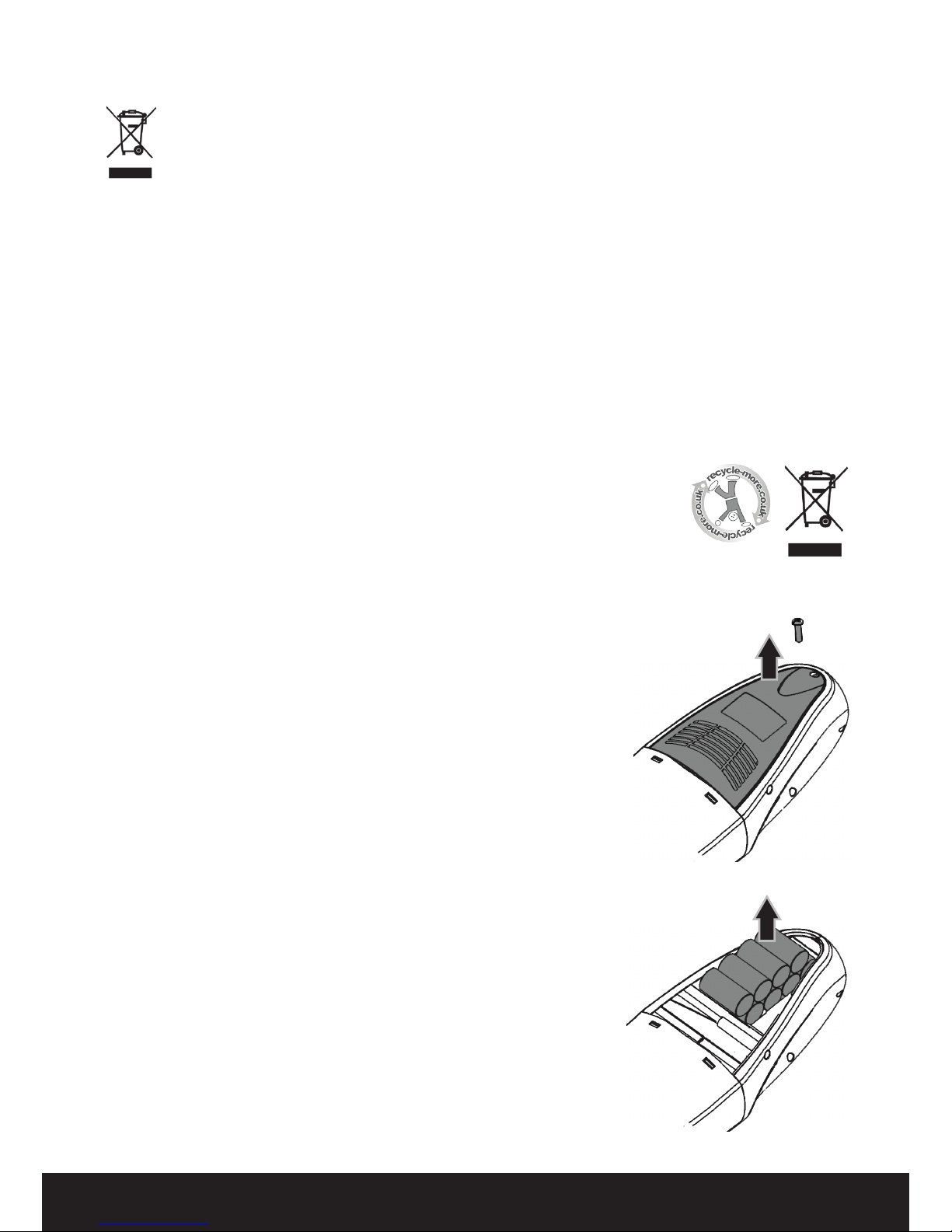

At the end of the product’s or battery’s life the battery should
be removed for disposal and recycling.
Only a technically competent person should remove the
battery. If you are unsure how to remove the battery then we
recommend to contact a professional domestic appliance
repair technician for this service.
Run the product until the battery is flat and the motor
has stopped.
Remove the screw and lift off the battery cover.
Lift the battery pack so the connectors can be seen.
Slide the clear plastic covers from the battery connectors.
Push the latch on the connector and pull the connector from
the battery terminal.
Remove the battery pack from the product.
Dispose of the battery safely in accordance with your local
authority.
WARNING: NEVER touch both the metal battery
terminals at the same time with any metal objects as
this will short circuit the battery and may create sparks
that can cause small burns.
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 13

WARNING: ONLY USE THE CHARGER PROVIDED WITH THE PRODUCT. USING
ANY OTHER CHARGER MAY DAMAGE THE PRODUCT AND THE BATTERY.
Declaration of conformity
Grey Technology Ltd
Units 1&2 Cupola Court
Worcester
WR5 1RL
Declare that the product HV01 Cordless Handheld Vacuum Cleaner
complies with the essential health and safety requirements of the following directives:
2004/108/E - EMC Directive
73/23 EEC - Low Voltage Directive
Technical documentation holder: Grey Technology Ltd, Units 1&2 Cupola Court, Worcester, WR5 1RL
Standards and technical specifications referred to:
EN60335-1
EN60335-2-2
EN50366
EN55014-1
EN55014-2
EN61000-3-2
EN61000-3-3
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk
14
HV01 Technical specification
Battery type
Charging period for full discharged battery
Charger output
Charger input
Charger type
Weight
9.6VDC,1.5AhNiMH
12 hours
14.4V DC, 200mA
230V ~ 50Hz
KB2B-140-0200D
1.6kg

Grey Technology has provided the HV01 Cordless Handheld Vacuum Cleaner with a
12 month guarantee.
In Guarantee: Please retain your receipt as proof of purchase. In the rare and
unfortunate event of your Gtech product being faulty, please accept our apologies and
we will aim to remedy the problem as fast as possible once brought to our attention.
However please be aware that due to Company Policy Grey Technology can only repair
or replace all or part of the product if proof of purchase is provided and the claim is
made within 12 months of the purchase date.
If your product is within the 12 months warranty period you should either return this product
with its receipt to the retailers where the product was purchased or if a simple part or advice
is required ring the Gtech Helpline where we will be more than happy to assist.
Please note: Gtech cannot refund any monies if the product was brought from
a third party.
We would like to remind our customers that the Gtech guarantee does not cover any
unauthorised repairs and will be annulled:
1. if the product has been damaged due to incorrect use or maintenance.
2. if any part is modified or replaced or if it is used in any way that is not
recommended by Gtech.
3. if it is used with any parts not produced or not recommended by Gtech.
4. if it is used for purposes other than those specified by Gtech.
Please note: the battery is a consumable item and is not covered by the 12
month guarantee.
If after reading the manual and following the instructions you are sure that the product is
defective please call the Gtech Helpline on 0870 7944001. A customer service advisor
will be on hand to deal with any problems you have with our product. To assist them
please be ready with the product, a detailed description of the problem, and your proof
of purchase.
Out of Guarantee: If your Gtech product is over 12 months old and you need any parts
or advice then please contact our Helpline. Parts will be sent out usually within 3 weeks
of request.
WARNING: Only use the charger supplied with the product. Using another
charger may damage the product and the battery and will invalidate your
guarantee.
Warranty Information
helpline 0870 7944001 email [e-mail] web www.greytechnology.co.uk 15

Grey Technology Ltd
Units 1& 2 Cupola Court
Spetchley
Worcestershire
WR5 1RL
Tel: [phone]
email: [e-mail]
web: www.greytechnology.co.uk 03/09
