GTR SPRINTCAR BLEEDERS User manual

BATTERIES
1 x 9 volt battery is required in each unit,
these can be either conventional throw
away batteries or rechargeable. Battery
voltage is displayed on main screen
however due to the option of conventional
or throwaway batteries the voltage differs
between the two. Therefore, this will need
to be monitored between different types
of batteries to get an accurate reading.
To install battery:
- Remove battery-retaining cap (shown
in figure 1) using 3/32 allen key.
- Install battery into housing
(figure 2a & 2b).
- Re-fit battery-retaining cap ensuring
cap screws are firmly tightened.
Figure 1. Figure 2a. Figure 2b.
WWW.GTRDEVELOPMENTS.COM
GTR SPRINTCAR BLEEDERS MANUAL

OPERATION
Turning on:

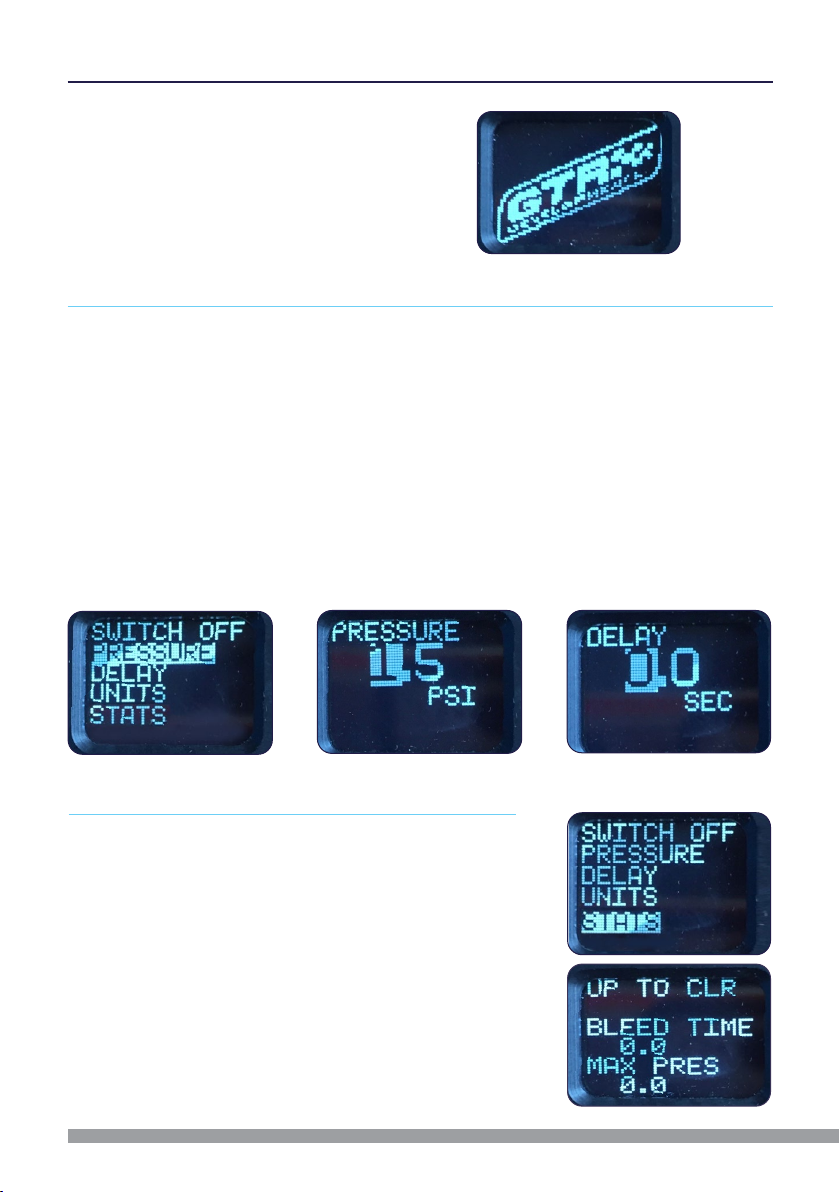

- Push joystick located on face of bleed
unit to the left this will bring the GTR logo
on screen (figure 3) for approximately 3
seconds then display the main screen.
Main menu:
- Press right this will take you to Main menu.
GTR DEVELOPMENTS
Stats:
- Scroll down to STATS (figure 7), press
right, this feature will show the time the
bleed unit has bled air from the tyre, and
the maximum pressure the bleeder has
recorded during the race (figure 8).
- This feature requires resetting between
every race if used.
- Press up in this feature to reset.
Figure 3.
Figure 7.
Figure 8.
Figure 4.
Setting desired Tyre pressure:
- Scroll down to PRESSURE (figure 4),
press to the right, this will allow setting
of pressure by pushing up or down to
the desired setting. Then by pressing
right this will set the desired setting
(figure 5) and take you back to the
operation display.
Setting desired delay:
This feature is used to prevent the bleeder
venting during spikes in tyre pressures due
to rough track conditions. The delay will
only allow the bleeder to operate when
the pressure has reached the set pressure
for the set delay time before venting.
- Scroll down to DELAY (figure 6), press to
the right, this will allow setting of time
delay by pushing up or down to desired
setting. Then by pressing right this will
set the desired setting, and take you
back to the operation display.
Figure 5. Figure 6.

- GTR Bleeders are retained in the
rear axle using a taper lock and quick
release ¼ turn fastening system
between lock and bleeder unit (figure
11). No drilling of the axle required!!!
GTR DEVELOPMENTS WWW.GTRDEVELOPMENTS.COM
INSTALLATION OF LOCKING UNIT
Sleep:
- When the bleeder is in operation and after approximately 30 seconds of no movement
on the joystick the screen will go to sleep and show ‘zzz’. When the unit is asleep it
will still function correctly.
Figure 12.
Figure 11.
- Will require a long series 3/32 allen key
/ tee handle to install lock in axle.
- When installing lock into the axle
ensure the 4 x cap screws (figure 12)
are loose. Insert lock into axle, lightly
tighten 2 x cap screws opposite each
other until the lock starts to tighten in
axle.
- When bleed unit is inserted into lock
but not rotated into the locked position,
push bleed unit into axle until the
spacer ring on the bleed unit is fully
supported in the axle but allowing the
bleed unit wings to protrude, enabling
easy fitment and removal of bleed unit.
- Tighten the 4x cap screws to lock in
evenly and firm.
Motion Detection Feature:
This feature prevents bleeding during red light
stoppages etc.
- To turn this feature on or off, scroll down in the
main menu to MOTION (figure 9), press right,
press up or down to turn on or off (figure 10).
- When turned on the bleeder will not operate
until the vehicle is moving. However if the
bleeder is fitted to the car and the tyre pressure
is above the set pressure you can press the
navigation switch up once and this will make
the bleeder bleed down to set pressure.
Figure 9.
Figure 10.

Disclaimer
FOR RACING PURPOSES and OFF ROAD
USE ONLY!
Please read the following carefully. If purchasing
a part(s) termed “For Racing Purposes Only”, you
agree to the following:
Vehicle racing is an inherently dangerous sport with
significant risk of personal injury or even death.
When a user participates in vehicle racing and/or
track events, he accepts the risk inherent therein.
GTR Developments Ltd, its employees, and affiliates
makes no warranty that the use of its products or
parts guarantees personal safety or freedom from
physical injury or operates as a life saving device.
GTR Developments Ltd will honor the Consumer
Guarantees Act (CGA) for products as follows:
- Be of acceptable quality (durable, safe, fit for
purpose, free from defects, acceptable in look or
finish).
- Match the description provided in the above
instruction manual.
- Arrive on time (within a reasonable time if not
agreed) and in good condition.
- Have spare parts and repair facilities available.
GTR Developments Ltd disclaims all liability for any
special, direct, incidental or consequential damages,
or any damages whatsoever, including, without
limitation, the loss of life or limb, or damages due
to bodily or personal injury, which may arise or
result from the sale, installation, or use of any of its
products and parts.
It is the user’s responsibility to inspect and verify the
dimensions, specifications, and performance of all
products and parts as being appropriate for the use
to which the user will put them prior to any actual
installation and/or use of said products and parts.
GTR Developments Ltd products and parts are
to be inspected by the user before each use for
evidence of damage, defect or wear. Any deviation
by the user from the manufacturer’s specifications
concerning use, maintenance, repair, alterations and
modifications constitutes willful negligence.
The installation of GTR Developments Ltd products
or parts may adversely affect other vehicle
components, safety equipment or manufactured
goods (collectively “goods”). GTR Developments Ltd
assumes no responsibility for any damage to other
goods, or bodily injury that may arise due to failure
of other goods, due to installation and/or use, either
proper or improper, of its products or parts.
The liability of GTR Developments Ltd is limited
to the replacement of defective products or parts
found under examination by manufacturer to be
defective in material or workmanship within 60
days after purchase, and which has not been caused
by an accident, improper use, alteration, tampering,
excessive use, misuse, modification or abuse. The
damage of the user shall be deemed liquidated in
the costs of replacement of the product or part.
GTR Developments Ltd assumes no responsibility
for errors, omissions, diagrams, pictures,
illustrations or text in these instructions or the
documents contained herewith.
By purchasing or using this product, the user
agrees that if any provision of this Disclaimer is
held to be illegal, invalid or unenforceable under
present or future law, such provision shall be fully
severed from the Disclaimer and this Disclaimer
shall be construed and enforced as if such illegal,
invalid or unenforceable provision never comprised
a part hereof, and the remaining provisions hereof
shall remain in full force and effect and shall not
be affected by the illegal, invalid or unenforceable
provision, there shall be added automatically as part
of this Disclaimer a provision as similar in its terms
to such illegal, invalid or unenforceable provision as
may be possible and be legal, valid and enforceable.
Thank you
2020 GTR DEVELOPMENTS LTD
PRECAUTIONS
- Regularly check torque of lock retaining
screws in axle.
- Regularly inspect quick release spring
and Teflon button for tension and
security.
- Regularly inspect air lines, fittings and
o-rings for damage after each use.
- Keep bleed unit dry and away from
water ie; pressure washer.
- Ensure bleeder unit and lock plastic
rings are the correct size for your
application as incorrect size could cause
the unit to come free of the axle. GTR
can supply correct sizes as required.
WWW.GTRDEVELOPMENTS.COM
