Gude Expert Power Meter User manual

Expert
Power
Meter
Manual
The Energy Meter for IT environments

Manual
Expert Power Meter
© 2008 Gude Analog- und Digitalsysteme
Rev. 1.1

1
Expert Power Meter
Inhalt
Inhalt
Security Advise
2
1
. Description
3
2
. Hardware
4
2.1 Extent of delivery
4
2.2 Starting up the device
4
2.3 LCD-Panel
5
2.4 Status LED
5
3
. Con guration
6
3.1 Automatic con guration by using DHCP
6
3.2 Con guration by using Gbl_Conf.exe
6
3.3 Con guration by using the Webinterface
7
3.4 IP Access Control List
12
3.5 SNMP
12
3.6 Syslog
13
4
. Operating
14
4.1 Operating at the device
14
4.2 Controling EPM by webinterface
15
5
. Product Features
16
5.1 Bootloader mode
16
5.2 Firmware update
16
5.3 Technical information
17
5.4. Default Settings
17
6
. Support
18
D
eclaration of CE conformity
1
9
C
ontact
20

Expert Power Meter
2
Security Advise
The
device must be installed only by quali ed personnel accord-
ing to the following installation and operating instructions.
T
he
manufacturer does not accept responsibility in case of improper
use of the device and particularly any use of equipment that may
cause personal injury or material damage.
T
he device contains no user-serviceable parts. All repairs must
be performed by factorytrained service personnel.
C
heck that the power cords, plugs and sockets are in proper
condition.
T
he device can be connected only to 230V AC (50 or 60 Hz)
sockets.
A
lways plug the device into properly earthed power sockets.
T
he device is intended for indoor use only. Do NOT install them
in an area where excessive moisture or heat is present.
B
ecause of safety and approval issues it is not allowed to modify
the device without our permission.
P
lease note the safety advises and manuals of connected de-
vices, too.
T
he device is NOT a toy. It has to be used or stored out or range
of children.
P
ackaging material is NOT a toy. Plastics has to be stored out of
range of children. Please recycle the packaging materials.
I
n case of further questions, about installation, operation or usa-
ge of the device, which are not clear after reading the manual,
please do not hesitate to ask our support team.

3
Expert Power Meter
1. Description
Expert Power Meter
(
EPM
) is a 19“ device, that makes it pos-
sible to measure energy consumption for two channels.
It operates as an energy consumption meter and measures cur-
rent, voltage and active/apparent power. All of these information
can be requested by Ethernet or directly at the device.
The energy consumption meter measures the spent energy on
two counters, one shows the total energy consumption since
starting-up
EPM
, the other counter is resettable.

Expert Power Meter
4
2.1 Extent of delivery
Included in delivery are
:
•
Expert Power Meter
(
Expert Power Meter (Expert Power Meter
EPM
)
•
Power supply cable (IEC)
•
CD-ROM containing Software and Manual
2. Hardware
2.2 Starting up the device
1.) Connect the power supply cable to the
EPM
Power Connec-
tor
on the back side of
tor on the back side of tor
Expert Power Meter
.
Your
EPM
is now booting and shortly after read
y for being con-
nected to consumers and the Ethernet.
2.) Plug the Ethernet cable into the connector
on the front side
2.) Plug the Ethernet cable into the connector on the front side 2.) Plug the Ethernet cable into the connector
of
EPM
.
3.) Connect the power cable of one or both consumers
to the
power-out connectors on the back side of
EPM
.
If a consumer is activ
e,
EPM
will automatically start to count the
energy consumption.

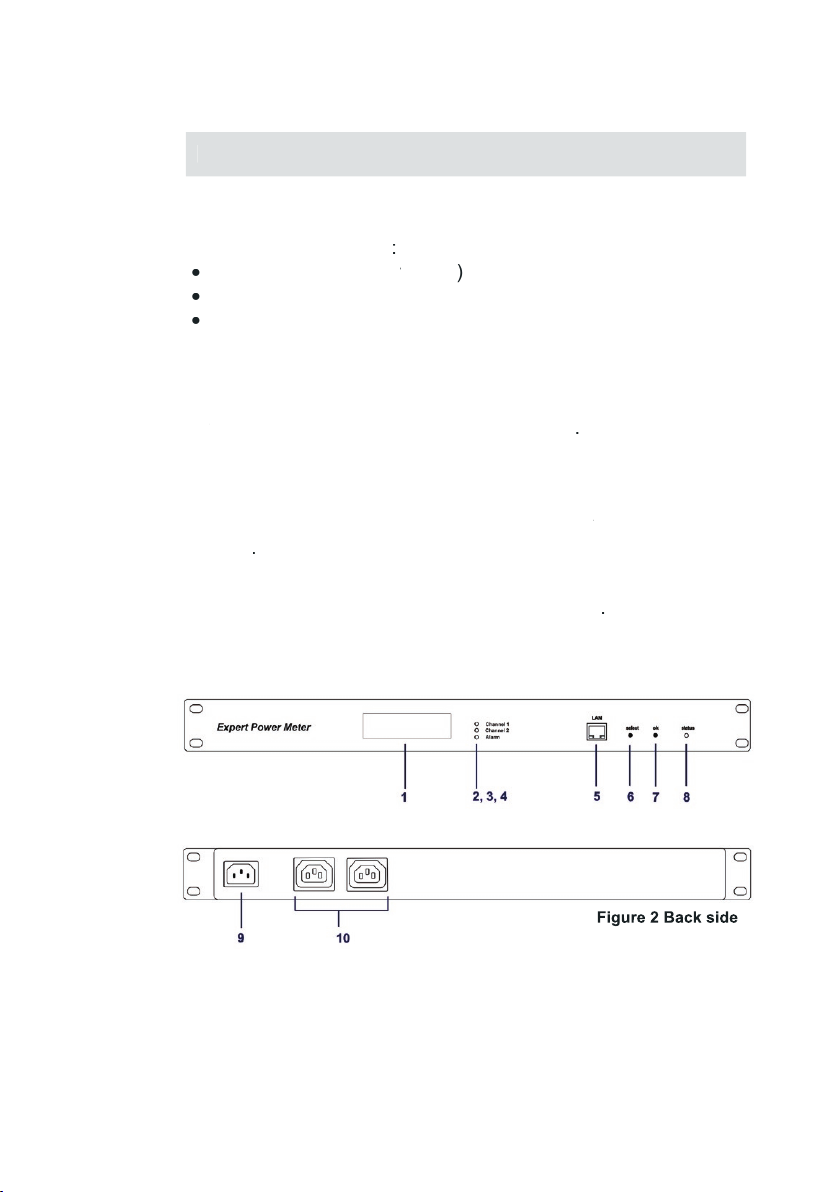

Figure 1 Front side
Figure 2 Back side
1. 2-line LCD-Display
2. Channel 1 LED
3. Channel 2 LED
4. Alarm LED
5. Ethernet Connector
6. Button „select“
7. Button „ok“
8. Status LED
9. EPM Power Connector (10A)
10. 2 x Consumer Power Connector (10 A)

5
Expert Power Meter
2.3 LCD-Panel
While booting up the device, the product name
, the version of
the  rmware and the IP address of
EPM
are visible:
-
Product name (A) and ver-
sion of the  rmware (B)
- IP address (B) of
EPM
After booting up energy consumption counters for both client
channels are displayed:
- Channel 1 counter (D)
- Channel 2 counter (E)
2.4 Status LED
The Status LED (8) shows different states of the device:
•
Status LED red: Device is not connected to the ether-
net
•
Status LED orange: Device is connected to the
ether-
net, TCP/IP settings are not allocated
•
Status LED green: Device is connected to the ethernet,
TCP/IP settings allocated, device is ready to use
•
Status LED blinks
alternately red and green
:
Device is
in Bootloader mode.
A
B
C
D
E

Expert Power Meter
6
3.2
Con guration by using
Gbl_Conf.exe
To change the TCP/IP settings of your
EPM
you
need the tool
Gbl_Conf.exe
. This tool can be found on the CD-ROM or is free
to download from our website
www.gude.info
.
Addi
tionally you can update the  rmware, deactivate passwords
and IP ACL and set
EPM
back to default settings, when you use
this tool (see more in chapter 5).
To check the current con guration, please
choose your
EPM
from the list in the left window.
If the displayed IP address is the default IP address
(192.168.0.2)
no DHCP server is located in your network or it was not possible
to provide a free IP address to
EPM
.
In this case, activate the bootloader mode of
EPM
and enter a
valid IP address and the network mask. Save your con guration:
Program Device
g
Save Con g
.
De
activate the bootloader
mode of
EPM
. Then choose
Search
g
All Devices
to
refresh the status of
Gbl_
Conf.exe
.
N
ow
Gbl_Conf.ex
e
shows
the updated TCP/IP con gu-
ration of
EPM
.
3. Con guration
3.1 Automatic con guration by using DHCP
After power-up,
EPM
looks for a DHCP
server in the network
and requests a free IP address from this server.
Please check at your DHCP server, which IP address was
provided to
EPM
and make sure, that this IP address will be
reserved.

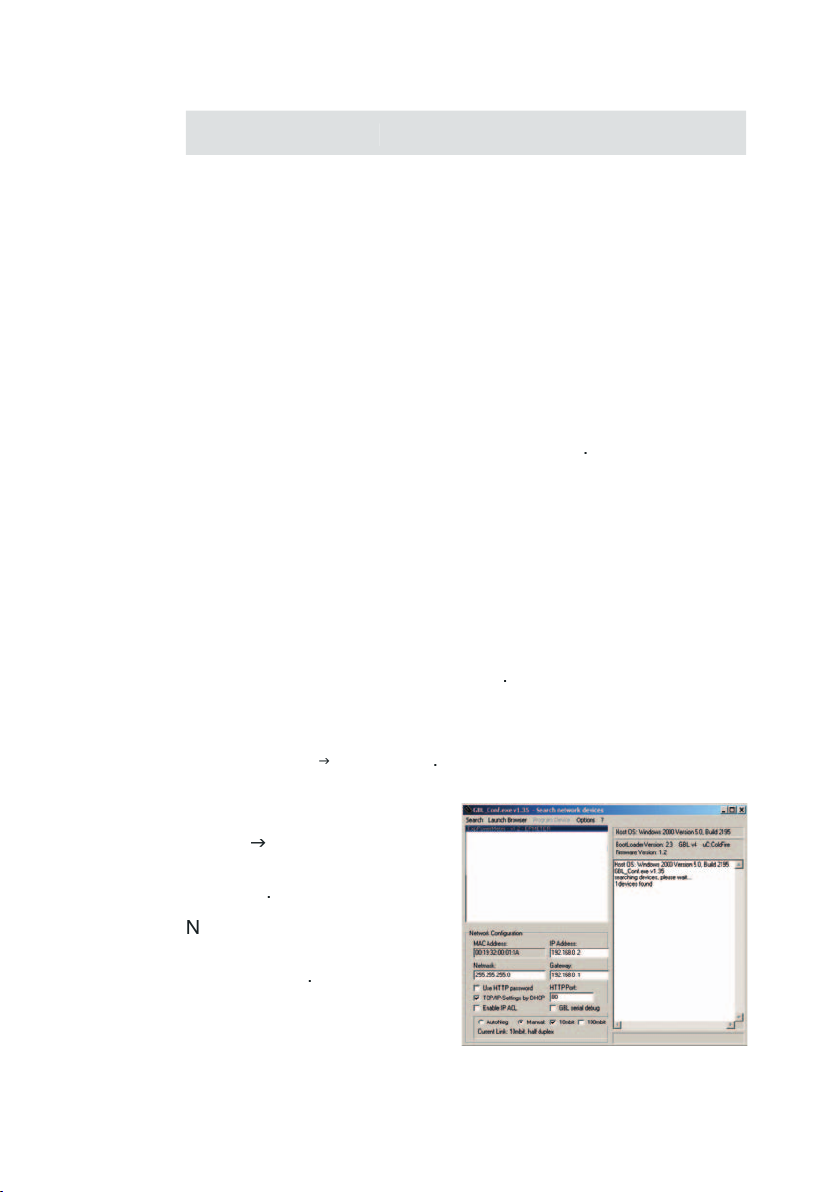

Figure 3
Gbl_Conf.exe

7
Expert Power Meter
3.3 Con guration by using the Webinterface
Open your Browser. Enter the IP address of
EPM
, to connect
with it:
http://“IP-Address of
EPM
“/
and Login.
To enter the con guration menu, click on „Con guration“ on the
upper left side of the screen.
Con guration - Channels
Channel 1
/
Channel 2
Shows the energy consumption
(kWh) since the last counter-reset
for this channel.
Channel 1 total
/
Channel 2
total
Shows the energy consumption
(kWh) since power up for this chan-
nel.
Reset Channel 1/Reset
Channel 2
Click on the button to reset the
counter of this channel.
Figure 5 Con guration
- Channels

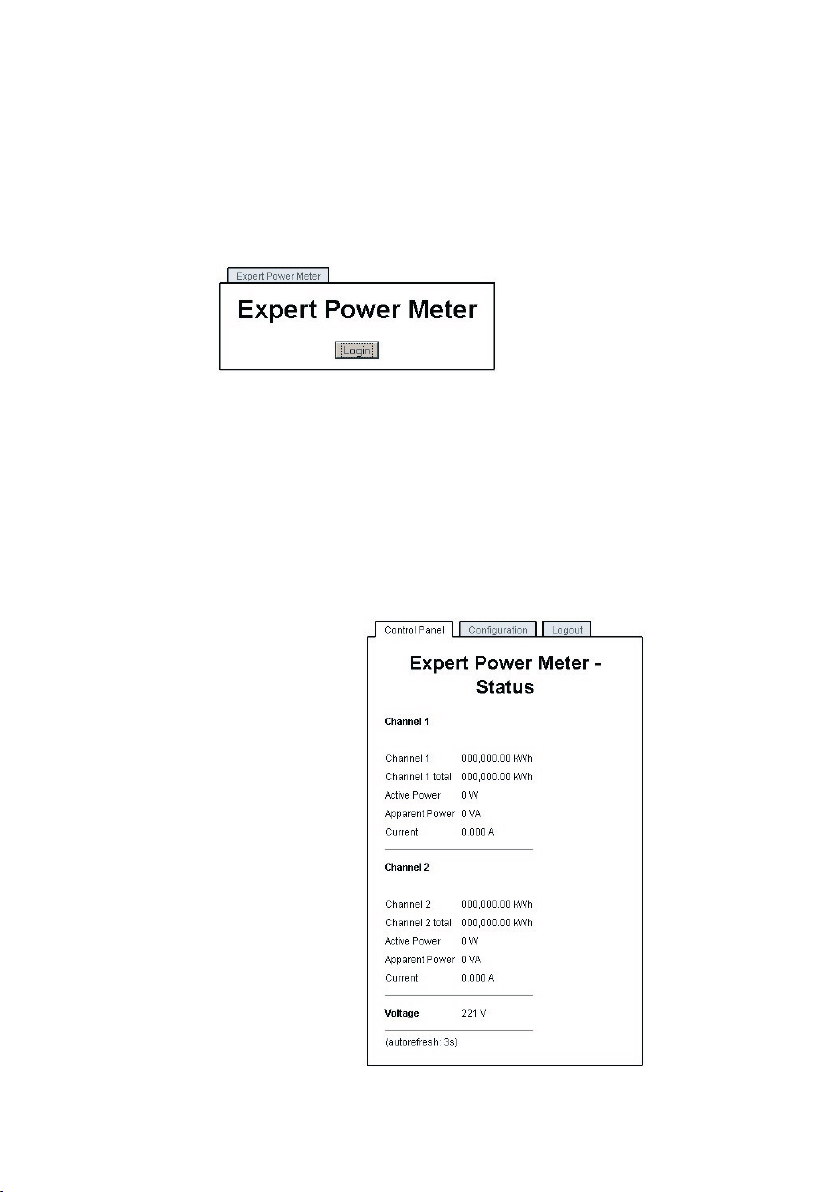

Figure 4 Log in

Expert Power Meter
8
Con guration - IP Address
Hostname
Enter the host name of
EPM
.
EPM
uses this name to connect with
DHCP server.
Special signs may destabilize
your network.
IP Address
Here you can change the IP ad-
dress of
EPM
.
Netmask
Here you can change the netmask of
EPM
.
Gateway
Here you can change the standard gateway of
EPM
.
Use DHCP
Here you can set, if
EPM
shall get its TCP/IP settings directly from
your DHCP server. If DHCP is activated,
EPM
proves if a DHCP
server is active inside of your LAN. Then
EPM
requests TCP/IP
settings from this server. If there is no DHCP server inside of your
network, we recommend to deactivate this function.

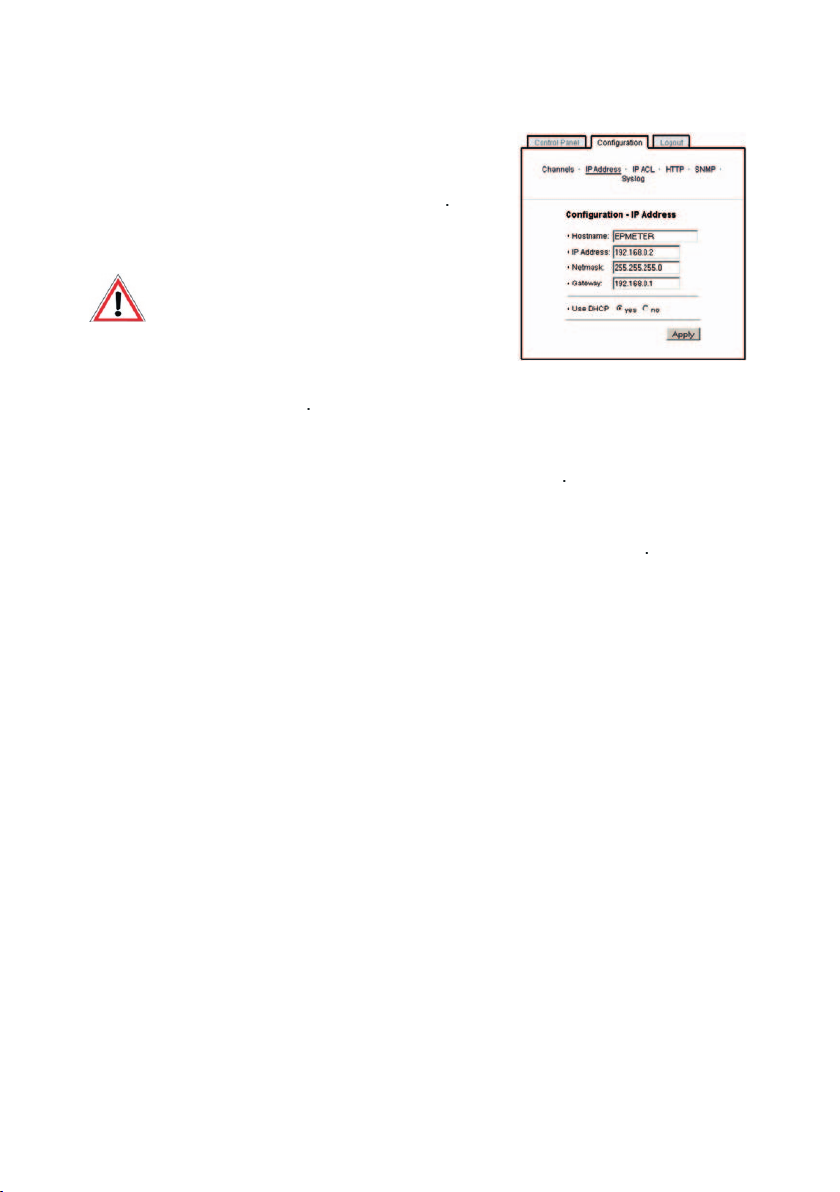

Figure 6 Con guration - IP
address

9
Expert Power Meter
Con guration IP ACL
Reply ICMP-Ping requests
Here you can set, if
EPM
shell react
on pings.
Enable IP Filter
Here you can activate the IP Access
Control List (IP ACL) of
EPM
.
If you locked yourself out by mis-
take, please activate the boot
loader
mode of
EPM
, start
Gbl_Conf.exe
and deactivate IP ACL.
If IP ACL is active,
DHCP and SNMP only work, if all neces-
sary servers and clients are registered in this List.

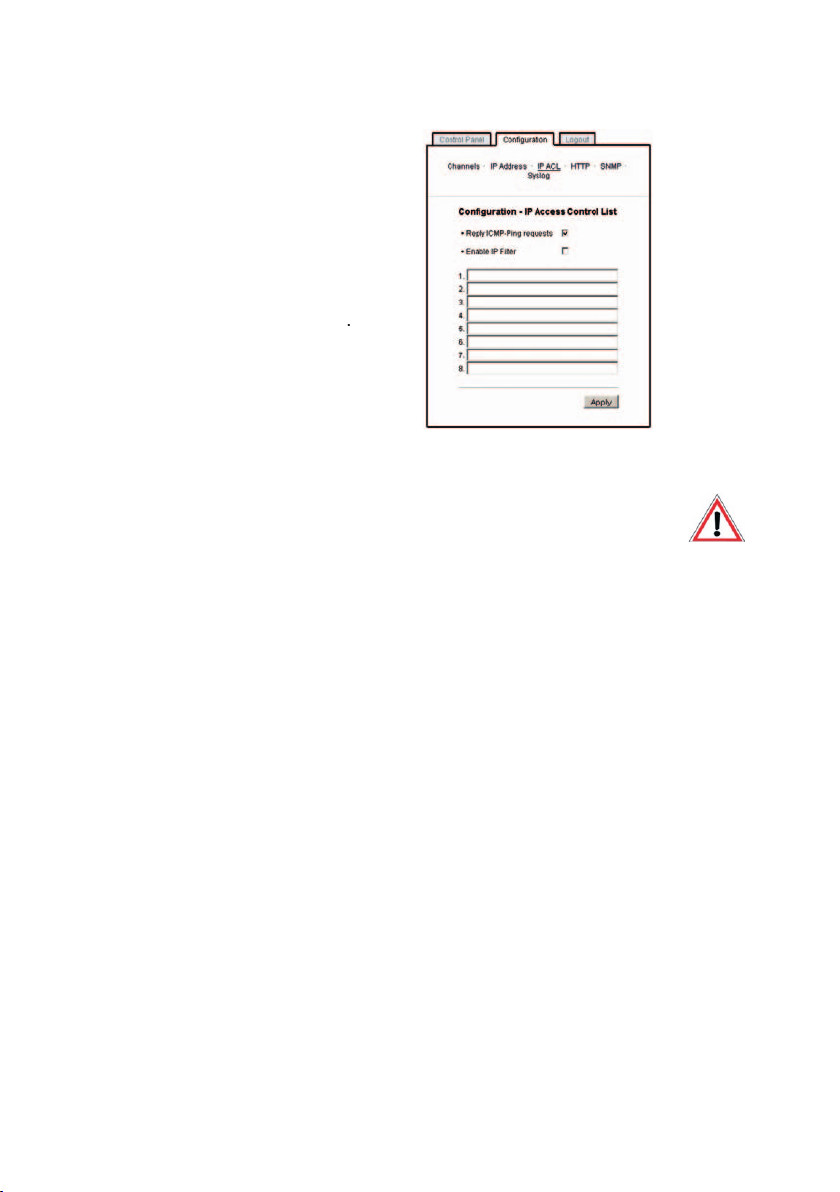

Figure 7 Con guration
IP ACL

Expert Power Meter
10
Con guration - HTTP
HTTP Port
Here you can enter the HTTP port number, if necessary. Pos-
sible numbers are 1 ... 65534 (standard: 80). To get access to
EPM
, you have to enter the port number behind the IP address
of
EPM
:
http://192.168.0.2:1720/
Require HTTP Password
If it is required, you can activate a
password request. Then you have
to enter two passwords, one ad-
ministrator password and one user
password. Each password has a
maximum length of 15 signs. If an
administrator password is active
you can log in to change settings
only with this password. User are
able to log in with the user pass-
word to see the monitor informa-
tion.
If you have forgotten your password, activate the bootloader
mode of
EPM
, start
Gbl_Conf.exe
and deactivate the password
request.
Figure 8 Con guration - HTTP

11
Expert Power Meter
Con guration - SNMP
Enable SNMP-get
Here you can activate SNMP of
EPM
SNMP public community
Here you can enter the SNMP
community public
Download SNMP-MIB
Here you can download the MIB of
EPM
.
Use SNMP only if your network is  tted for. More information
about the SNMP functions of EPM, you can  nd in chapter
3.6, on http://www.gude.info/wiki or ask our support team.
Con guration - Syslog
Use Syslog
Here you can activate syslog of
EPM
.
Syslog Server IP
If syslog is active enter here the IP
address of you syslog server.
Syslog Port
If syslog is active enter here the
port number, that your syslog
server uses to receive syslog
information.
Figure 10 Con guration
- Syslog
Figure 9 Con guration
- SNMP

Expert Power Meter
12
3.4 IP Access Control List
IP Access Control List (IP ACL) acts as an IP  lter for
EPM
.
Wether it is active hosts and subnets only can contact
EPM
, if
their IP adresses are stated in this IP ACL.
e.g.:
„http://192.168.0.1“
or
„http://192.168.0.1“ or „http://192.168.0.1“
„http://192.168.0.1/24“
If you locked yourself out by mistake, please activate the boot-
loader mode of
EPM
, start
Gbl_Conf.exe
and deactivate IP
ACL.
You can  nd more information about con guration of IP ACL in
chapter 3.3 or have a look at
www.gude.info/wiki
.
3.5 SNMP
To get detailed status information of
EPM
SNMP can be used.
SNMP communicates via UDP (port 161) with
EPM
:
Supported SNMP commands:
- SNMPGET:
request status information
- SNMPGETNEXT:
request the next status information
You will need a Network Management System, e.g. HP-Open
View, OpenNMS, Nagios etc., or the command line tools of NET-
SNMP to request information of
EPM
via SNMP.
SNMP Communities
SNMP authenti es requests by so called communities.
The public community has to be added to SNMP-read-requests
and the private community to SNMP write requests. You can see
the SNMP communites like read/write passwords. SNMP v1 and
v2 transmit the communities without encryption. Therefore it is
simple to spy out these communities. We recommend to use a
DMZ or IP ACL.

13
Expert Power Meter
3.6 Syslog
Syslog messages are simple text messages transmitted to a
syslog server using UDP.
Linux OS regularly have a syslog daemon installed, e.g. sys-
log-ng. For Windows there are some freeware tools available.
On following events,
EPM
will send a syslog message:
- Booting up
- Switching off
- Activation/deactivation of syslog
- Load more than 10 A, load again less than 10 A
You can  nd more information about con guration of Syslog in
chapter 3.3 or have a look at
www.gude.info/wiki
.
MIBs
All information, that can be requested or changed, the so
called
„Managed Objects“, are descripted in „Management Information
Bases“ (MIBs).
There are three MIBs, which can be requested from
EPM
:
„system“, „interface“ and „gadsepm“
„system“ and „interface“ are standardised MIBs (MIB-II).
„gadsepm“ (GUDEADS-EPM-MIB=“gadsepm“) was created
especially for
EPM
.
At least, there are so called Object Identi ers (OID) subordi-
nated to those three structures. An OID describes the location of
an information inside a MIB.
You can  nd more information about con guration of SNMP in
chapter 3.3 or have a look at
www.gude.info/wiki
.

Expert Power Meter
14
Figure 11 Menu
4. Operating
4.1 Operating at the device
To switch the device directly you can use the
buttons „
select
“
select“ select
and „
ok
“ on the front side. With „
ok“ on the front side. With „ok
select
“ you are able to switch
select“ you are able to switch select
between several menu items, to select one of them press the
button „
ok
“. (see Figure 11)
ok“. (see Figure 11)ok

15
Expert Power Meter
4.2 Controling EPM by webinterface
Open your Browser. Enter the IP address of
EPM
, to connect
with it:
http://“IP-Address of
EPM
“/
and Login.
Expert Power Meter - Status
Channel
Shows the energy consumption
(kWh) since the last counter
reset for this channel.
Channel total
Shows the energy con-
sumption
(kWh) since
power-up for this channel.
Active Power
Shows the current active
power (W) of the consumer
connected to this channel.
Apparent Power
Shows the current appar-
ent power (VA) of the con-
sumer connected to this
channel.
Current
Shows the current (A) of
this channel.
Figure 13 Status
Figure 12 Login

Expert Power Meter
16
5.1 Bootloader mode
To activate the Bootloader mode of your
EPM
press the buttons
„
select
“ and „
select“ and „select
ok
“ simultaneously for three seconds.
ok“ simultaneously for three seconds.ok
Whether
EPM
is in Bootloader mode, you can see by using the
Gbl_Conf.exe
: „BOOT-LDR“ is added to the host name of your
EPM
. Moreover the status LED blinks regularly and the follow-
ing information is shown on the LCD-Panel:
While your
EPM
is in Bootloader mode you can
update the
 rmware, deactivate IP ACL and passwords and reset the de-
vice to fab settings.
To deactivate the Bootloader mode, press the buttons „
select
“
select“ select
and „
ok
“ again simultaneously for three seconds.
ok“ again simultaneously for three seconds.ok
5. Product Features
5.2 Firmware update
To update the  rmware of
EPM
, you need
the software tool
Gbl_Conf.exe
and an up-to-date version of the  rmware.
Activate the Bootloader mode of
EPM
and choose it in
Gbl_
Conf.exe
. Now execute
Program Device
g
Firmware Update
,
choose the location of the new  rmware and con rm.
The up-to-date versions of the  rmware and
Gbl_Conf.exe
can
be downloaded from our website
www.gude.info
.
Bootloader V X.X
„Current IP Address“

17
Expert Power Meter
5.4. Default Settings
In order to res
tore the default settings bootloader mode of
EPM
must be activated (
see 5.1
). Besides that the program
Gbl_Conf.exe
is required.
Run
Gbl_Conf.exe
and select the
EPM
whose settings should
be restored. Then click on
Program Device
g
Reset to Fab de-
fault
.
Please notice that all current settings will be deleted. The default
settings will be loaded when
EPM
’s bootloader mode is deacti-
vated.
5.3 Technical information
Connections:
Ethernet (RJ45)
2 Power Ports (IEC C13, 10A)
EPM Power-inlet (Plug IEC C14, 10A)
Netweork:
10 MBit 10baseT Ethernet
Protocols:
TCP/IP, HTTP, SNMP, Syslog
Power:
230 V, 10A
Temperature:
0°C-50°C
Dimensions:
19“, 1 ru
Default Settings EPM
Name:
EPMeter
IP address:
192.168.0.2
Netmask:
255.255.255.0
Gateway:
192.168.0.0
DHCP:
enabled
Password:
disabled
IP ACL:
disabled
HTTP Port:
80

Expert Power Meter
18
6. Support
More information, current drivers and software can be found on
http://www.gude.info
.
In case of further questions, about installation or operation of
EPM
, please have a look at
www.gude.info/wiki
and do not hesi-
tate to contact our support (
[email protected]
).
