Guilin Feiyu Technology G5 GS User manual

3-Axis Gimbal for Sony Camera
Guilin Feiyu Technology Incorporated Company
V 1.1ENUser Manual

Camera thumb screw
Adapter(Clamping plate)
1
1. Product Overview
Function button
Status indicator
Joystick
Cross arm
Vertical arm
Tilt axis
Roll axis
Pan axis
Trigger button
Retaining ring
Self-timer
shortcuts
1/4-20 Thread Mount
Single hand grip
Micro USB port

1/4 thumb screw
2
Cold shoe mount 1/4-20
Inch screw
Dual-hand grip accessories
Retaining ring
Single hand grip
Hand grip installation
Dual-hand grip foldable set (Optional)
Included items
22650 Li-ion
battery
Micro USB cable
Retaining ring
Make sure to tighten the retaining
ring until fully locked!
!

12
Tips：you need to install the waterproof shell
before you can perform the following steps
3
Place the camera correctly on the clamping plate
and attach the tilt axis ,use the camera thumb
screw to secure the camera through the middle
chute atthe bottom of clamping plate.
2. User Guide
Install the Sony camera
(1) Please install the camera before powering
on the gimbal.
(2) When not in use, turn off the gimbal and then
remove the camera.
Attention !
!
Single hand grip
Dual hand grip
Insert battery
Remove the hand grip and insert the
provided 22650 battery.

4
3
Option 1: charging with micro USB cable.
Micro USB cable
Gimbal charging
* Please fully charge the battery before powering on the gimbal for the first time.
5V/1A USB charger
(not included)
Option 2: remove the battery and charge in external charger (not included).

5
4
If the camera is tilted to the left,
then loose camera thumb screw,
move the camera to the right,try
to adjust to the best balance,and
then tighten the camera thumb
screw .
If the camera is tilted to the right,
then loose camera thumb screw,
move the camera to the left,try to
adjust to the best balance,and then
tighten the camera thumb screw.
Best balance
Balance the gimbal
How to balance gimbal

6
5Power on / off
Power on：
Power off：
Attention: make sure the camera is secure before powering on the gimbal.
3. Functions Modes
press and hold the function button until the status indicator turns green and gimbal beeps.
press and hold the function button until the status indicator changes from a flashing red to a
solid red light and gimbal beeps.
Trigger button
Temporary Lock
Function button
Double clicks
Double clicks
Single click
Function
Triple clicks
Reset to default
Press & Hold
Centers the camera away from the user on all 3 axes ( pan, tilt and roll)
and switches back to the default pan mode
Explanation
Function Explanation
Pan mode
Follow mode In the follow mode, the joystick is pushed to the left / right to push and
control the angle is -25 ° ~ + 25 °
Selfie mode Camera pans around 180 ° so that its main camera faces user
Default mode
In the pan mode or follow mode, holding the trigger button temporarily
locks panning and tilting until released
Four clicks Both the panning and tilting directions can be rotated Motion Control mode
Five clicks Initialization After the initialization succeeds or fails, you can click the function button
to wake up the gimbal
Instructions of button
Note:the firmware upgrade may occur manual operation function and the actual product features do not match,
please get the latest version manual on the official website.

Explanation of indicator status
Indicator status Mode / Status
Blue light flashes once
Blue light flashes twice
Blue light constant on
Blue light keeps flashing
Red light flashes three times
Red light keeps flashing
The current mode of the gimbal can be identified
by the indicator status.
7
Up
Down
Left
Explanation of joystick control
Function
button
Self-timer
shortcuts
Status
indicator
Press and Hold he self-timer shortcuts, the lens will rotate 180 °,
release to restore.
!When battery is low, the status indicator
will blink red three times every 5 seconds.
Please charge gimbal or replace the battery.
Pan mode
Follow mode
Lock mode / Gimbal initializing
Initialization failure / Malfunction
Low power
Gimbal powering off
Pan mode (Default mode )
Follow mode
Lock mode
Reset
The orientation of the camera is fixed.
Return to pan mode, all to return to default.
The rolling and tilting direction are fixed, and the camera moves
according to the hand movement direction of the user.
Modes
The rolling direction is fixed, and the camera moves according
to the hand movement direction of the user.
Right

8
Manual Lock
Manually move camera to desired position,
and hold for half a second.New tilt and/or
pan positions are automatically saved.
Camera can be manually positioned while lock mode ,
follow mode or pan mode. both the pan and tilt can be
manually set.
Motion Control Mode
8 hours / turn
4 hours / turn
1 hour / turn (default)
30 minutes / turn
15 minutes / turn
2 minutes / turn
4 minutes / turn
8 minutes / turn
30 seconds / turn
24 seconds / turn
18 seconds / turn
12 seconds / turn
1 minute / turn
G5 GS Rotation speed
The G5 GS gimbal can easily create constant speed moves
by using the motion control mode. This mode can be used
for recording both regular video and timelapse photography.
For best results, attach gimbal to the FeiyuTech tripod,
or other tripod, to keep it completely still.
1.Set motion speed in Feiyu ON App
To set the motion speed, connect to the Feiyu ON App and select
desired speed from the motion control option in the settings menu.
Motion Control speed reference table

9
Tilting
Panning
Tilting
Panning
Record the first position (rotation start position) by manually moving
camera to desired position. Hold in position for half a second. Click the
function button to record rotation start position.
Record the second position (rotation end position) by manually
moving camera to desired position. Hold in position for half a
second. Click the function button to record rotation end position. Gimbal will automatically move back to rotation start position and start
moving to rotation end position at a constant speedas determined by user
in the Feiyu ON App.
Exit operations:
1.Gimbal automatically exits motion control mode once move completes.
2.Click the function button to exit the motion control mode during automatic rotation and reset the gimbal.
3.Enter the motion control mode or motion control setting, double click the trigger button to exit the motion control mode and reset the gimbal.
4.Set rotation end position
3.Set rotation start position
5.The gimbal is motion control from rotation start position to
rotation end position
2.Enter motion control mode by clicking the function
button 4 times

?
G series
G5 GS
?
G series
α2000
4. Download and connect App
1
2
App Store
Download " Feiyu ON " and install it.
(1) iOS version: (2) Android version:
Google play
Connecting App
Start the App on your camera,follow the instructions to connect the camera with gimbal via bluetooth.
Connect Connect
FY_ G 5 GS_XX
Choose a gimbal
FY_XXX_XX
FY_XXX_XX
FY_XXX_XX
×
10
Feiyu ON Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Feiyu ON Download
GuiLin FeiYu Technology Incorporated Company
Feiyu ON
Reset
All follow Panning follow Locking
360°
* Scan QR codes to automatically link to App
download pages.

11
PC
5. Firmware Upgrade
Micro USB cable
Feiyu ON
Later Download
Your Gimbal version is V1.54,
The latest version is V1.54,
do you want to upgrade?
Query Update
Settings Updata
Please visit the G5 GS product page on official website (www.feiyu-tech.com) to download the relevant
programs for upgrading firmware, including: USB driver, firmware upgrade software, and product firmware.
Follow instructions provided on website.
Option 1: connect the gimbal with PC via micro USB cable.(1)
Option 2: connect the gimbal to the Feiyu ON App, to upgrade the firmware though the App.(2)

13
2
12

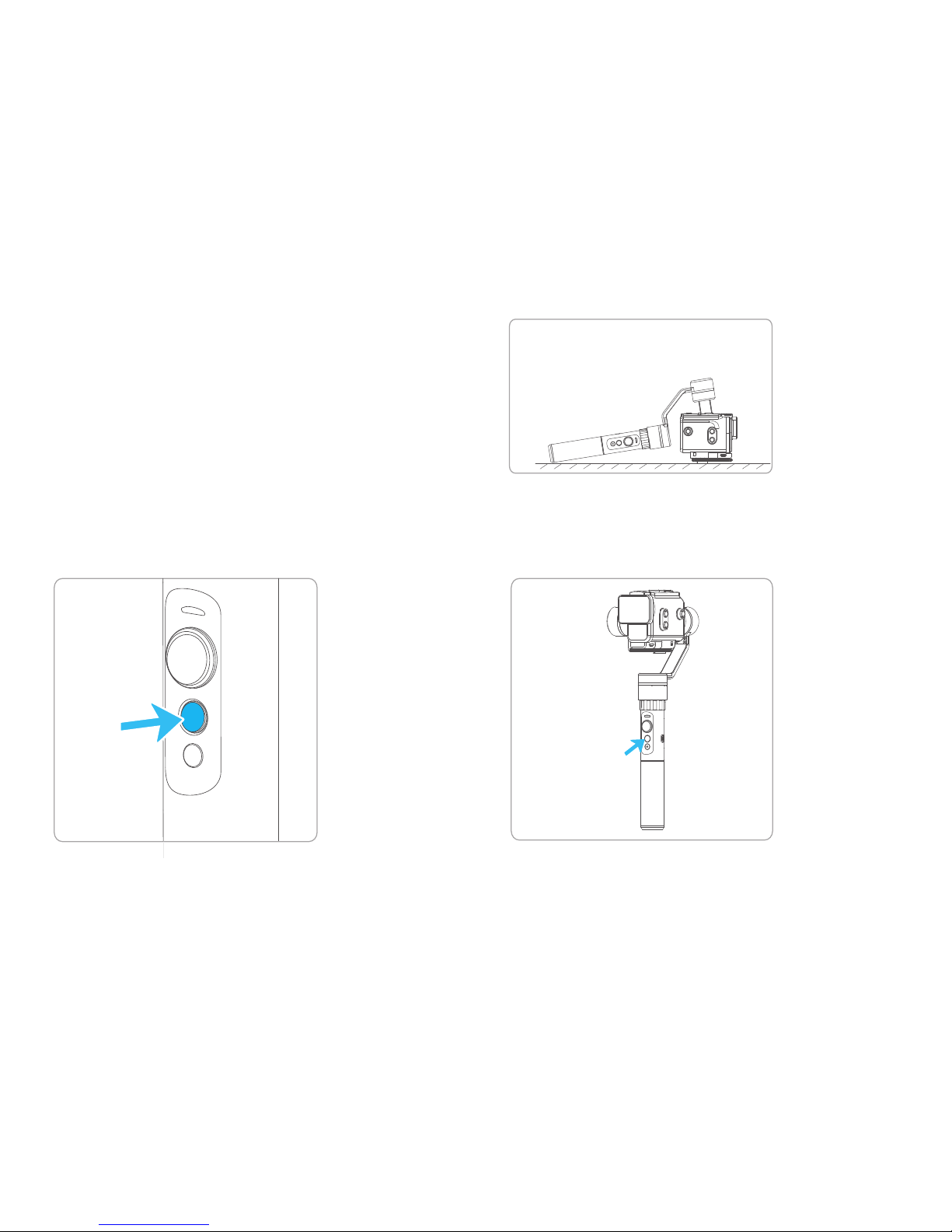

6. Gimbal Initialization
You can initialize your gimbal when:
（1）Camera fails to remain level.
（2）Gimbal has no been used for a long period
of time.
（3）Gimbal is used in extreme temperature
variations.
Instructions:
Place the gimbal on a flat, horizontal surface. The
gimbal will automatically initialize after a few
seconds detecting no movement. The blue light will
flash three times to indicate end of initialization.
Click the function button five times. The
motors will stop working. Status indicator
turns solid blue.
After the initialization is successful, click the function
button to wake up.
Note: if the initialization is not successful, click the function
button to wake up. restart initialization process.
Single click

13
Weight 314g （Not including battery and camera ）
AS50 sony camera and 130 ~ 200g sony camera
7. Technical Specifications
(Unit:mm)
Panning speed
Adaption camera and
mobile camera width range
Operation time
Tilting speed
Max. Tilting Range
Max. Rolling Range
Max. Panning Range
7 Hours
Min: 2°/s - Max: 75°/s
Min: 3°/s - Max: 150°/s
+/- 160°
No limit
No limit
68.8
266.1
116.3

14
D I S C L A I M E R
FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal
at any time.
You can get the latest user manual from the official website: www.feiyu-tech.com
The company assumes no liability for any risks related to or resulting from the debug and use of
this product (including direct, indirect or third-party losses).
Any user for illegal purpose prohibited. Users are responsible for use products.
For any unknown sources of using, we will not be at any services.
Updating and changes of product firmware and program me may cause changes in function
descriptions in this user manual, please read the instructions carefully before upgrading the
firmware and use the corresponding user manual.
Attention
Please correctly assemble the gimbal in accordance with the diagram.
Please install the camera before turning on the gimbal.
When the gimbal is not in use or placed on the table, please ensure it is powered off.

Guilin Feiyu Technology Incorporated Company
For more information, please visit our official website
Due to software and hardware improvements, your actual product might differ from the descriptions
and pictures in this user manual. You can get the latest user manual from the official website.
