Guilin Feiyu Technology G6 Plus User manual

Guilin Feiyu Technology Incorporated Company
V1.1E NUser Manual
Instructions
3-Axis Stabilized Handheld Gimbal
for Camera

Catalogue
1. G6 Plus Overview 1
www.feiyu-tech.com
2. Quick Start Guide 3
3. Balance the Gimbal 4
4. Basic Operation 7
Balance Adjustment of the Pan Axis 4
Balance Adjustment of the Roll Axis 5
Balance Adjustment of the Tilt Axis 6
Modes 7
Introduction of Display 7
Joystick - operation 8
5. Advanced Operation 12
6. Specifications 15
Manual Lock 12
Auto-rotation Mode 12
Connecting to Camera 13
Firmware Upgrade 13
Function Button - operation 8
Shutter Button - operation 8
Setting Button - operation 9
Swith Camera Modes 9
Setup Parameter 9
Horizontal Adjustment Button - operation 10
Trigger Button - operation 10
Multifunction Knob - Zooming control / Follow focus / Control 3 Axis 10
App - Download and Connecting 11
Gimbal Initialization 14

26650 Li-ion Battery
X1
Micro USB Cable
X1
Mount Adapter
X1
Tilt Axis Knob Ring
Cross Arm
Pan Axis
Vertical Arm
Handle
Pan Axis Knob Ring
1/4-20 Thread
Mount
Multifunction
Knob
Tilt Axis
Trigger
Button
1. G6 Plus Overview
01
www.feiyu-tech.com
Roll Axis Knob Ring
Sliding Arm Roll Axis
Thumb Screw
Adapter Thumb Screw
1/4-20 Thread
Mount
Joystick
Shutter
Button
Display
Micro USB Port
Micro USB Port
(1) Used for charging the gimbal (input 5V / 2A ), the gimbal
can be used while being charged, but it is not available for
external power supply.
Used for fixing the camera or mobile phone to the adjustment
sliding plate
Used for fixing the adjustment sliding plate.
Used for expand other accessories, such as the
tripod which built-in 1/4 inch screw,extension
rod and so on
(2) Used for firmware upgrade (computer), please refer to
the firmware upgrade operation steps for details.
Please stuff up this port by the dustproof plug when it is not in use.
Setting Button
Accessories
Introduction of Interface and screws
3
4
2
1
4
1
2
3
4
56
7
8
1
6
2
3
5
6
4
1
5
2
3
4
31/4-20 Thread Mount 4
Thumb Screw
1Adapter Thumb Screw 2
Function
Button
ON / OFF
Adjustment
Sliding Plate
Adapter
(Clamping plate)
Horizontal
Adjustment
Button

Display
Introduction of Display and Bottons
Introduction of Axis and Knob
1Joystick 2
Tilt Axis
Take the camera lens as the base point, and control the
camera lens to move upward or downward by tilt axis.
Used for fixing the sliding arm.
1
Tilt Axis Knob Ring
2
Roll Axis
Take the camera lens as the base point, and control
the camera lens to tilt to the left or tilt to the right by
roll axis.
Used for fixing the cross arm.
3
Roll Axis Knob Ring
4
Pan Axis
Take the camera lens as the base point, and control
the camera lens to turn left or turn right by pan axis.
Used for fixing the vertical arm.
5
Pan Axis Knob Ring
6Used for holding the gimbal by one hand.
Introduction of Other Components
Sliding Arm
Used for adjusting the up and down centre-of-gravity
position of tilt axis.
Used for fixing the camera.
1
Adapter (Clamping plate)
2
Adjustment Sliding Plate
Used for adjusting the front and back position of camera
so as to adjust the front and back centre-of-gravity .
position of tilt axis
Used for adjusting the centre-of-gravity position of roll axis.
3
Cross Arm
4
Used for adjusting the centre-of-gravity position of pan axis.
Vertical Arm
5
Handle
6
Function Button
3Shutter Button 4
Setting Button
5Horizontal Adjustment Button 6
Trigger Button
7Multifunction Knob 8
Bluetooth
Battery Level
WiFi
Modes
Camera
Mode
HF
Up
Left Right
Down
Double tap Follow mode
Quadruple tap Auto-rotation Mode
Five tap Initialization
Refer to Page 8
Refer to Page 9
（After connecting your camera）
Refer to Page 10
Refer to Page 10
Refer to Page 8
Refer to Page 10
Triple tap Rotate 180° in horizontal
Panning Mode / Lock ModeSingle tap
Power on / Power offLong press After connecting the gimbal to camera via Feiyu
On App, shutter button can control the camera
for shooting.
Please refer to the chapter "Connecting to camera" in page 13
Please refer to the chapter "Connecting to camera" in page 13
Single tap Swith camera modes / main interface
You can control the horizon angle via the horizontal
adjustment button.
Swith the interface for camera parametersLong press
Double tap Reset
(1) Achieve the control to the focal length of camera,
such as follow focus, zoom.
(2) Achieve the control to the angle of three axes of
the gimbal
Lock ModePress and hold
02
www.feiyu-tech.com

Smartphone
Adapter
（Optional Accessory）
Smartpnone Place in the
smartphone adapter
Correctly place the smartphone on the smartphone
adapter(Optional accessory), and tighten it with
thumb screw in the middle sliding chute.
Put the Camera on Put the Smartphone on
Correctly place the camera on the adjustment sliding
plate, and tighten it with thumb screw in the middle
sliding chute.
Available mobile phone width: 57~84mm
Camera Installation Smartphone installation
Pocket Camera
ILDC
GoPro Sports Camera
If the camera doesn't have the 1/4-20 screw hole, please
put the camera on mount adapter,which has 1/4-20 screw
hole, and then mount it following above steps.
You can also take down the adjustment sliding plate from
the adapter, install it to the bottom of the camera, and then
install to the adapter.
Compatible
for Reference
2. Quick Start Guide
Remove the bottom cap, insert a 26650
battery and then tighten the cap.
Type 26650
5000mAhBattery Capacity
Install Battery
1
Put the Camera / Smartphone on
3
Charging
2
(Equipped by user)
Output: 5V / 2A
Charging with Micro USB cable as shown below.
Micro Port USB Port
Micro USB
Cable
Please fully charge the battery before power on
the gimbal for the first time.
TIP
03
www.feiyu-tech.com
LockUnlock
Bottom of the Adapter (Clamping plate)
Safety lock
Adjustment
Sliding Plate
Thumb Screw
Unscrew
Take
Down
Unlock
1
2
3

Power on / off
Long press the function button, the display will
show and release it when you hear the
beep tone.
Please refer to the follow chapter "Balance
the Gimbal" for operation
3. Balance the Gimbal
Power on the gimbal after the center of
gravity of 3 axis is balanced.
Balance the Gimbal
4Power on / off 5
Unbalanced center of gravity can lead to a
decrease in stability, even the camera cannot be
balanced.
NOTE (1) Please mount the camera or smartphone before
powering on the gimbal.
(2) When the battery is low, please charge the gimbal.
(3) When not in use, turn off the gimbal and then remove
the battery.
NOTE
04
www.feiyu-tech.com
Balance Adjustment of the Pan Axis
1
* After adjustment, be sure to tighten the pan axis knob ring
( Before power on )
Vertical Arm
Pan Axis Knob Ring
Loosen
Move
Level Ground

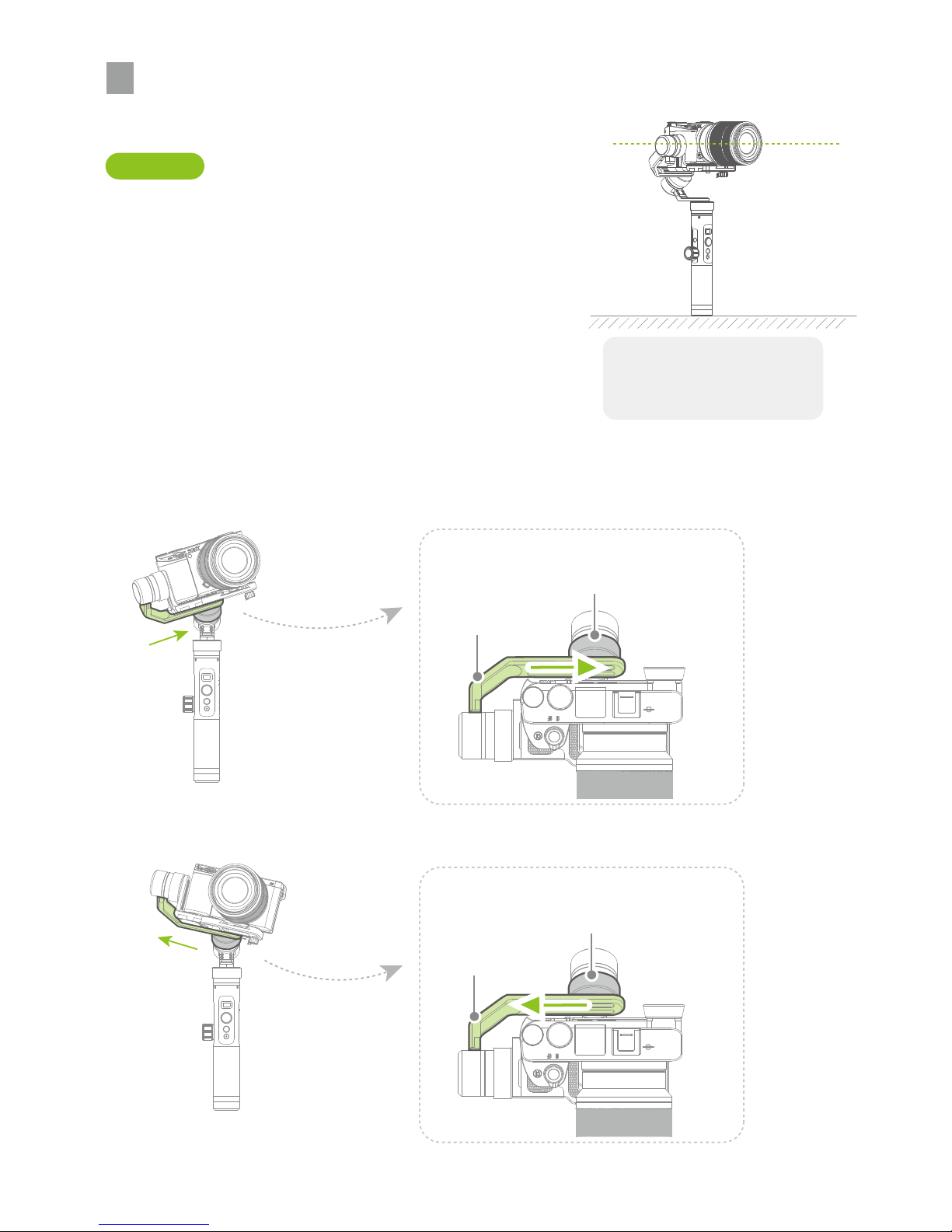

(1) Hold the handle of gimbal, keep the handle parallel
to the level ground.
(2) Loosen the pan axis knob ring
（Slightly loose until the vertical arm can be moved）
(3) Move and adjust the position of vertical arm,
until the vertical arm is parallel to the level ground
(4) Tighten the pan axis knob ring
Move and adjust the position
of vertical arm
Vertical Arm
Handle
Steps
After adjustment
Vertical arm is parallel
to the level ground

05
www.feiyu-tech.com
Balance Adjustment of the Roll Axis
2
* After adjustment, be sure to tighten the roll axis knob ring
Level Ground
(1) Stand the gimbal on level ground.
(2) Loosen the roll axis knob ring
（Slightly loose until the roll arm can be moved）
(3) Move and adjust the position of roll arm, until the
camera is parallel to the level ground.
( Refer to lever principle )
(4) Tighten the roll axis knob ring
After adjustment
Camera is parallel
to the level ground
Cross Arm
Roll axis knob ring
Loosen
Move
Cross Arm
Roll axis knob ring
Loosen
Move
Steps

06
www.feiyu-tech.com
Balance Adjustment of the Tilt Axis
3
* After adjustment, be sure to tighten the thumb screw
(1) Stand the gimbal on level ground.
(2) Loosen the tilt axis knob ring
（Slightly loose until the sliding arm can be moved）
(3) Move the sliding arm to the lowest position.
Move the sliding arm
to the lowest position
Step 1
(1) Loosen the thumb screw on the bottom of the adapter(Clamping plate)
(Slightly loose until the adjustment sliding plate can be moved）
(2) Move and adjust the position of adjustment sliding plate,
until the camera lens is parallel to the level
(3) Tighten the thumb screw
(1) At any pitching angle, give an angle to the camera
at random.
(2) Slightly adjust the position of sliding arm, until it
keeps still without shaking
(3) Tighten the tilt axis knob ring
Step 2
* After adjustment, be sure to tighten the tilt axis
knob ring
Step 3
Level Ground
Level Ground
After adjustment
At any pitching angle, it can keep still
without shaking
After adjustment
Camera lens is parallel
to the level ground
Move
Adjustment
sliding plate
Thumb
Screw
Loosen
Loosen
Tilt axis knob ring

Please refer to the chapter
"Connecting to camera" in
page 13

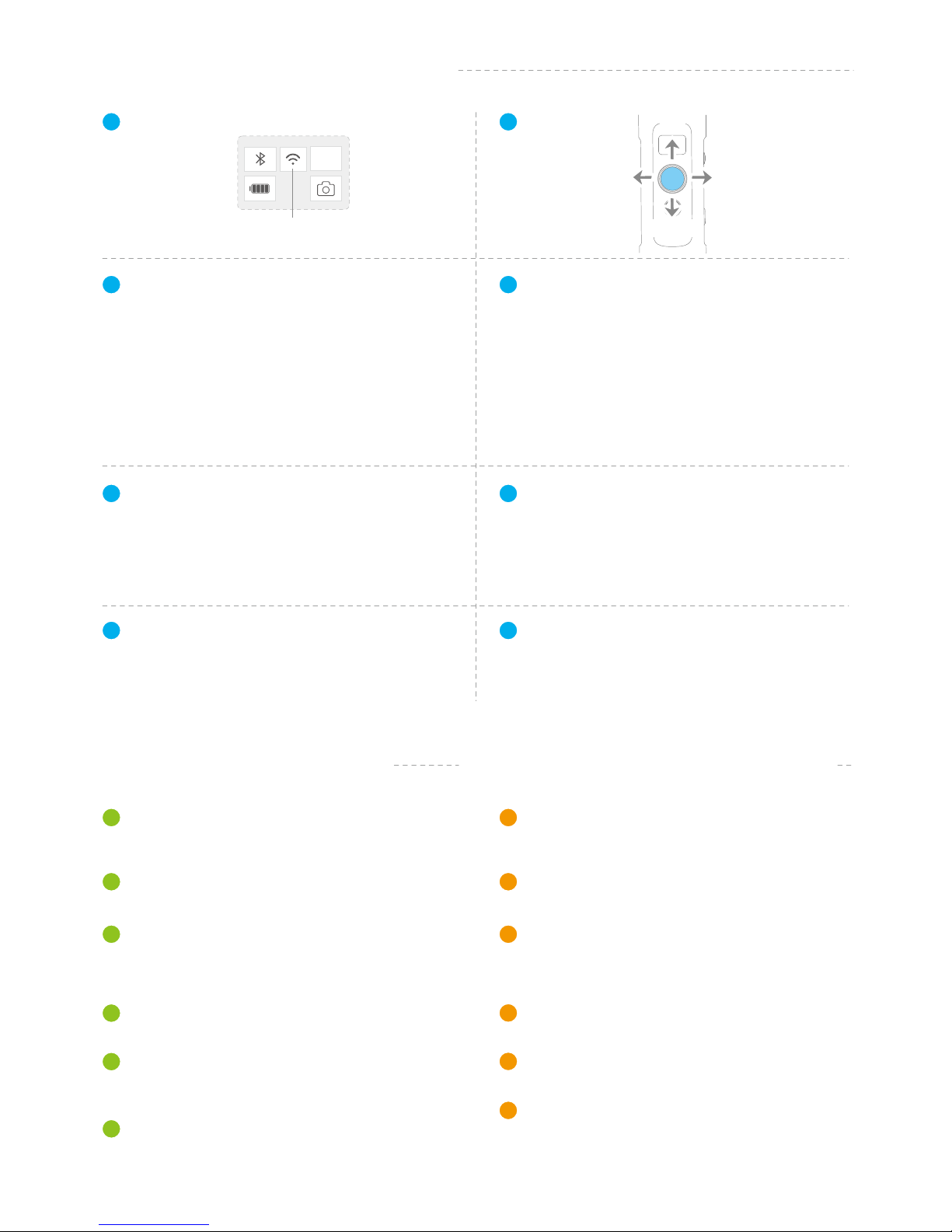

Display icon Mode / Status
HF
AF
Panning Mode
Follow Mode
Lock Mode
LK
SET WIFI VIA APP Prompt for users to open the App
settings in order to connect via WiFi
Bluetooth is connected
Bluetooth is not connected
Display icon Mode / Status
Camera photo shooting
Camera video shooting
WiFi is connected
WiFi is not connected
Battery Level
Camera is not
connected

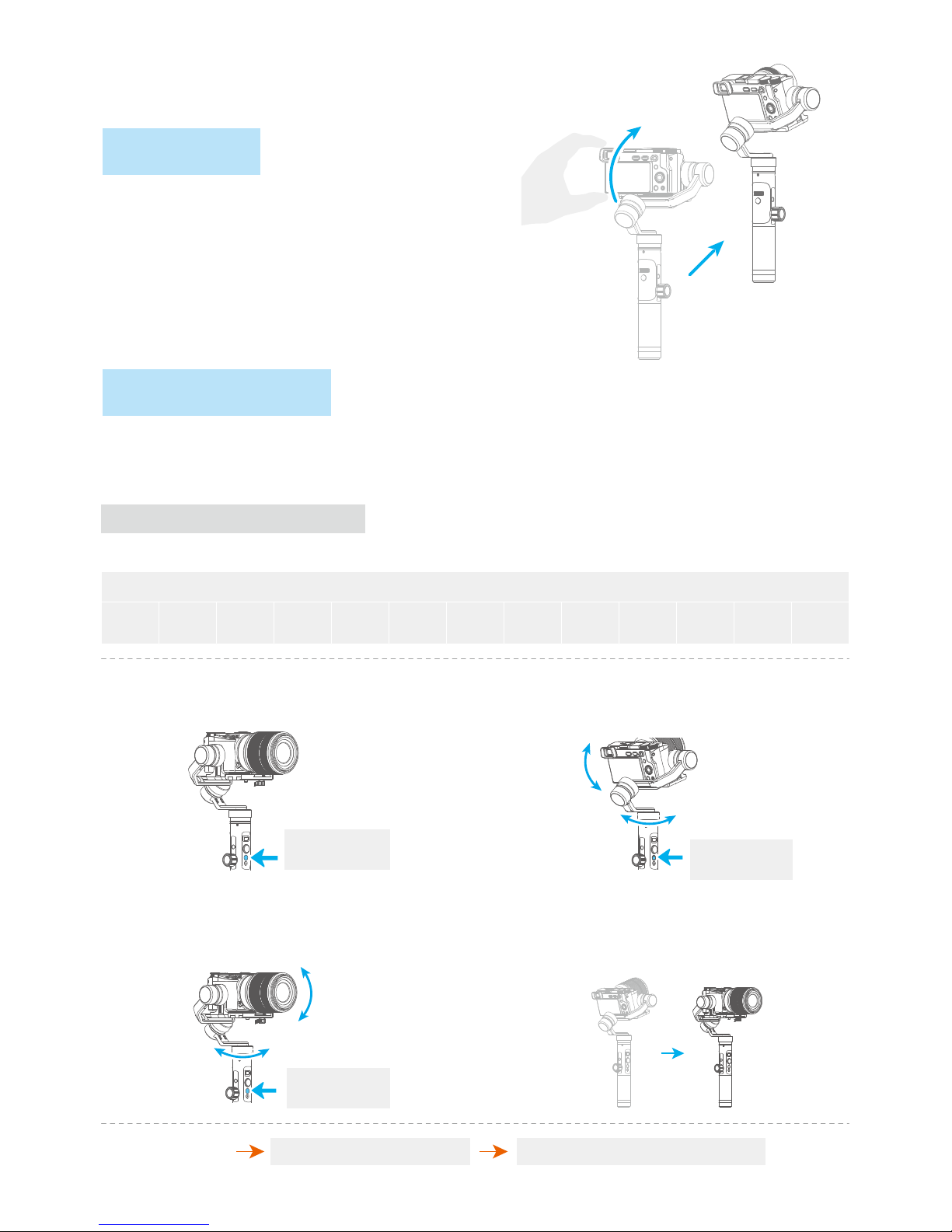

The roll and tilt direction are fixed, and the camera moves according to the left-right movements of the
user's hand.
The orientation of the camera is fixed.
The roll direction is fixed, and the camera moves according to the left-right movements, up-down
movements of the user's hand.
Return to panning mode, three axises return to default position.
Panning Mode（Default mode）
Panning Mode Default
Follow Mode
Follow Mode
Reset
Lock Mode
Lock Mode
Modes
Introduction of Display
4. Basic Operation
07
www.feiyu-tech.com

Function Button - operation
Shutter Button - operation
After connecting the gimbal to camera/smartphone via Feiyu On/ Vicool
App, single tap it to control the recording of the camera / smartphone.
Please refer to the chapter "Connecting to camera" in page 13
Joystick - operation
Up
Left Right
Down
Upward
(1) Camera lens upward
(2) Select the option above
Downward
(1) Camera lens downward
(2) Select the option below
Move to right
(1) Camera lens move to right
(2) Select the option on the right
(3) Confirm
Move to left
(1) Camera lens move to left
(2) Select the option on the left
(3) Cancel
Note: The firmware upgrade may occur manual operation function and the actual product features do not match.
Please find the latest manual on the official website.
Please refer to the chapter "Auto-rotation Mode" in page 12
Please refer to the chapter "Gimbal Initialization" in page 14
Single tap
Enter auto-rotation mode
Enter initialization
Single tap to switch between panning mode
and lock mode
Panning Mode /
Lock Mode
Single tap Shooting / Start shooting / Stop shooting
Double tap Follow mode
Triple tap Rotate 180° in
horizontal
Quadruple tap Auto-rotation Mode
Five tap Initialization
Single tap to switch between panning mode
and lock mode
Under all follow, single tap to switch to locking
mode
Function
Button
Joystick
Shutter
Button
On the main interface of
the gimbal display
08
www.feiyu-tech.com

Long press
Setting Button - operation
Camera photo shooting
Camera video shooting
Swith camera modes
HF
Main interface of
the display screen
Swith Camera Modes
Setup Parameter
After connecting the gimbal to camera via Feiyu On App, the setting button can switch the camera modes.
Using the setting button and joystick to setup parameters.
Support Cameras for Reference:
Sony RX0 / GoPro HERO series sports cameras / Panasonic LX10 / Panasonic GH4
Please refer to the chapter "Connecting to camera" in page 13
Single
tap
Single
tap
Setting
Button
Setting
Button
Joystick
ISOWB
Move to right To the right option / Confirm
Move to up / down Modify Parameters
Move to left To the left option / Cancel
HF
兆像素White
Balance
兆像素Light
Sensitivity
Left Right
Down
Up
Using the joystick
to set up parameters
Interface for camera
parameters
Setting Parameters:
Main interface of
the display screen Setting Button
Setting Button
Joystick Explanation
auto
100
125
200
400
800
6400
3200
1600
12800
Setting
ISO
AWB Auto white balance
Tungsten
Daylight
Shade
Cloudy
WB
Setting
09
www.feiyu-tech.com

Horizontal Adjustment Button - operation
Trigger Button - operation
You can control the horizon angle via the
horizontal adjustment button.
Trigger Button
Press and hold Quickly follow
Double tap Reset
In the panning mode or follow mode, press and hold
the trigger button to enter quickly follow, release it
to return previous mode
Return to panning mode, tilt,roll and pan axis return
to initial level
10
www.feiyu-tech.com
Multifunction Knob - Zooming control / Follow focus /
Control 3 Axis
Multifunction
Knob
Single tap /
Long press
Rotate
Long press Select the device you want to control
Camera supports
zooming control
Camera supports
follow focus
Single tap Switch adjustment option
Rotate Adjust by rotating
Display
Display
Explanation
Explanation
Single tap
Control
Camera
Control
Gimbal
Control
Camera
Control
Gimbal Roll Control
Pan Control
Zoom Zooming control
Follow focus
Control the pan axis rotation
Control the roll axis rotation
Control the tilt axis rotation
Tilt Control
Single tap
Switch adjustment option
Switch adjustment option
Follow Focus
* After connecting your camera
*
*
Please refer to the chapter "Connecting to camera" in page 13
Long press the
multifunction knob
Default
Default
The control angle is -30° ~ +30°
Horizontal
Adjustment
Button

1 2 3
App - Download and Connecting
11
www.feiyu-tech.com
Turn on the Bluetooth and run the App on smartphone, follow on the instructions to connect smartphone to
gimbal via bluetooth. Take the Feiyu ON app connecting for example.
App Store Google play
Connecting App
Or search and download the "Feiyu ON" / "Vicool" App on the following application platform:
iOS Version Android Version iOS Version Android Version
Using the Feiyu ON App when you
mount your camera on the gimbal
Using the Vicool App when you mount
your smartphone on the gimbal
* Requires iOS 9.0 or later, Android 5.0 or later

Manual Lock
Auto-rotation Mode
12
www.feiyu-tech.com
5. Advanced Operation
Set rotation speed in Feiyu ON App
Camera can be manually positioned while in panning mode ,
follow mode or lock mode. Both the pan axis and tilt axis can
be manually set up.
The G6 Plus gimbal can easily create constant speed movements in the auto-rotation mode.
This mode can be used for recording both regular video and motion timelapse photography.
For better performance, attach gimbal to the FeiyuTech tripod, or other tripod, to keep it completely still.
Take the tilt axis setting for example:
Manually move camera to desired position,and hold for half a
second. New tilt and/or pan positions are automatically saved.
Connect to the Feiyu ON App and select desired speed from the auto-rotation mode rate option in the settings menu.
Both the pan and tilt directions can be rotated.
G6 Plus Rotation Speed
18s/ turn
9s/ turn 24s/ turn 30s/ turn 1min/ turn 2min/ turn 15min/ turn
8min/ turn
4min/ turn 4h/ turn
1h/ turn
(Default) 8h/ turn
30min/ turn
Record the first position (rotation start position) by manually moving
camera to desired position. Hold in position for half a second. Single
tap the function button to record rotation start position.
Enter auto-rotation mode by quadruple tapping the function
button.
Record the second position (rotation end position) by manually
moving camera to desired position. Hold in position for half a second.
Single tap the function button to record rotation end position.
The gimbal automatically restores to the start position, while the
tilt axis and pan axis start rotating at a constant speed according
to pre-set speed to end position, repeat step (2) (3) to start again.
( 2 ) Set rotation start position
( 3 ) Set rotation end position ( 4 ) Start auto rotation movements
( 1 ) Enter auto-rotation mode
function button
Quadruple tap
Pan
Tilt
function button
Single tap
function button
Single tap
Pan
Tilt
Trigger button Exit the auto-rotation mode and reset
Double tap
Exit

Feiyu ON
Connecting to Camera
Firmware Upgrade
G6 Plus gimbal can connect to the camera by Feiyu ON App.
Operations available after connecting to the camera:
(1) Turn on your sports camera's WiFi (2.4GHz)
Steps of connecting to camera:
(2) Successively select "Settings" -- "Parameters Settings" --"WiFi Settings" on Feiyu ON App
(3) Select camera model
(4) Select your camera connection name and enter the correct connection password of your camera
(5) Waiting for connecting
(6) Connect successfully
If icon appears on the display screen, it means the gimbal failed to connect to the camera, try to
restart gimbal or camera, or reconnect according to above steps.
Button Operation Function
Setting Button Single tap Single tap in the main interface of the gimbal display can switch to the camera
modes
Shutter Button Single tap On the main interface of the gimbal display, single tap for photo shooting /
start shooting / stop shooting
If the WiFi is not connected for a long time, please restart the camera's WiFi.
Connect the gimbal to the Feiyu ON App, to upgrade the firmware through the App.
Settings Updata
Query Update
Later Download
Your Gimbal version is ***,
The latest version is ***,
do you want to upgrade?
13
www.feiyu-tech.com

Gimbal Initialization
Adjusting Steps
Tap the function button for 5 consecutive times
and hear the "beep" sound, and the motor will
stop working and "Initing" shows up.
After the initialization is done, single tap the function
button to wake up and return to the main interface.
Place the gimbal on the table unmoved, and the
gimbal automatically detect whether or not it is
placed on a static flat surface, and then its
initializing will start automatically showing "Initing"
on the display, and "Success" will be displayed after
the initializing has been successfully completed.
NOTE: If the initialization is not successful for a long
time, long press the function button to turn
off the gimbal,restart it and then initialize.
You can initialize your gimbal when:
（1） When camera is not level
（2） If not used for a long period of time
（3） In case of extreme temperature variations
1
2
3
Five tap
Single tap
Initing
Display
InitingSuccess
Display
14
www.feiyu-tech.com

6. Specifications
108mm
294mm
156mm
Specifications
Product Name G6 Plus 3-Axis Stabilized Handheld Gimbal for Camera
Compatible Cameras
for Reference
Sony RX100 / Sony a6300 (16-50 or 28-70mm) / Sony a6500 (16-50 or
28-70mm) / Canon M10 (15-45mm) / Canon G3X , ect.
Sony RX0 / GoPro HERO series sports cameras
Fit for smartphone with smartphone adapter(Optional accessory)
Payload 800g （ In center of gravity balanced state ）
Weight 663g ( Not including the battery, camera, camera lens, etc. )
Operation Time 9 Hours
Panning Speed 3°/s ~ 150°/s
Tilting Speed 2°/s ~ 75°/s
Max. Tilting Range 260°
Max. Rolling Range 320°
Max. Panning Range 360°
15
www.feiyu-tech.com

Guilin Feiyu Technology Incorporated Company
For more information, please visit our official website
Due to software and hardware improvements, your actual product might differ from the descriptions
and pictures in this user manual. You can get the latest user manual from the official website.
[phone]
Prohibit any user for any illegal purpose. Users will be responsible for all behaviors of purchase and use products.
The Company assumes no liability for any risks related to or resulting from the debug and use of this product (including the direct,
indirect or third-party losses).
For any unknown sources of using, we will not be at any services.
The updating and changes of product firmware and program may cause changes in function descriptions in this user manual,
please read the instructions carefully before upgrading the firmware and use the corresponding user manual.
You can get the latest user manual from the official website: www.feiyu-tech.com
FeiyuTech reserves the right to amend this manual and the terms and conditions of use the gimbal at any time.
D I S C L A I M E R
