Guilin Woodpecker Medical Instrument HL11-M4 User manual

Dental Turbine Handpiece Instruction Manual
Please read the manual carefully before use
GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD.

Content
1 Product introduction ............................................................................................................ 1
2 Manual instruction.................................................................................................................. 6
3 Cleaning, Disinfection and Sterilization ............................................................................ 12
4 Maintenance.......................................................................................................................... 27
5 Trouble shooting .................................................................................................................. 30
6 Storage, transportation condition....................................................................................... 32
7 Environment protection....................................................................................................... 32
8 After service.......................................................................................................................... 33
9 Symbol instruction............................................................................................................... 33
10. European authorized representative .............................................................................. 35
11 Special instruction.............................................................................................................. 36

1
1 Product introduction
Intended use: For dental clamping of cutting tools for molar surgery.
1.1 Product prole
Dental turbine handpiece is driven by compressed gas of high-speed rotation, which stimulating the
specic features of the bur, drilling, grinding and other operations on teeth. Main characteristics:
a.Variety of head size design, suitable for the requirements of di󰀨erent therapeutic areas.
b.Newest designed handpiece head angle, better operation visual and angle, improve working e󰀩ciency.
c.High precision of cartridge, low radial beat when highly running, low noise, high e󰀩ciency of cutting.
d.Newest handpiece design, easy cleaning.
e.Handpiece and bur key can be autoclaved with high temperature.
1.2 Type
HL11 -M4, HL11-B2, HP11-M4, HP11-B2, HP13-M4,

2
HP13-B2, HP33-M4, HP33-B2, HP33Q-M4, HP33F-M4.
1.3 Components
The components of the equipment are listed in the
packing list.
1.4 Structure and components
1.4.1 This equipment is mainly composed by cartridge,
head and handpiece.

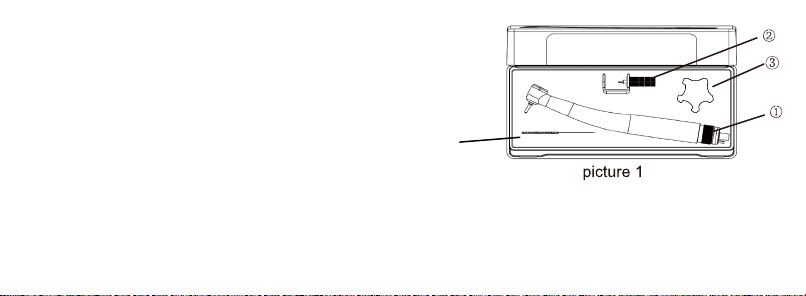

1.4.2 Picture of handpiece and main spare parts
Note: ①.handpiece ②.Bur key（only for the wrench
type）③.Cap spanner ④.Cleaning needle
1.5 Scope of application .
Using the dental gripping high speed bur for drilling, grinding and other surgery.
④

3
1.6 Contraindication
1.6.1The homophile patients are forbidden to use this equipment.
1.6.2The patients with heart pacemaker are forbidden to use this equipment.
1.6.3The doctors with heart pacemaker are forbidden to use this equipment.
1.6.4The heart disease patient, pregnant woman and children should be cautious to use this equipment.
1.7 Cautions
1.7.1 Before using this equipment, please read every article of this instruction carefully.
1.7.2 This equipment is special manufactured for dental prevention and treatment, could not be used for
other purpose.
1.7.3 This equipment is high speed rotating handpiece, please be careful when operating.
1.7.4 This equipment could only be used by professional dentists.
1.7.5 It is prohibited to bump and fall when operating.

4
1.7.6 Do please lock the bur and back cap before operation.
1.8 Main technical specications
Type Air pressure
(kgf/cm2)
speed
(r/min) Noise(dB) Chuck type Head size Water
spray Remark
HL11-M4
HL11-B2 2.0-2.2 370000~450000 ＜70 Wrench type standard single __
HP11-M4
HP11-B2 2.0-2.2 370000~450000 ＜70 Push-button standard single __
HP13-M4
HP13-B2 2.5-2.7 320000~400000 ＜70 Push-button super single __

5
Type Air pressure
(kgf/cm2)
speed
(r/min) Noise(dB) Chuck type Head size Water
spray Remark
HP33-M4
HP33-B2 2.5-2.7 280000~400000 ＜70 Push-button super triple __
HP33Q-M4 2.5-2.7 330000~400000 ＜70 Push-button super triple With Kavo
connector
HP33F-M4 2.5-2.7 330000~400000 ＜70 Push-button super triple optical ber
Note: 1. “B2” means two-hole connector, “M4” means four-hole connector.
2. The gas consumption of each model in recommended operating pressure is ≤35L/min.
3.When water pressure is 0.05~0.20MPa(0.5~2.0kgf/cm²), ow is greater than 50mL/min.
4.When air pressure is 0.15~0.25MPa(1.5~2.5kgf/cm²)~ow is greater than 1.5NL/min.

6
1.9 Working condition
1.9.1 Environment temperature：+5℃～+40℃
1.9.2 Relative humidity：30% ～75%
1.9.3 Atmospheric pressure：70kPa～106kPa
2 Manual instruction
2.1 Regarding the bur
2.1.1 Do not use disqualication bur.
2.1.2 Diameter handpiece of bur isΦ1.59-Φ1.60mm, in conformity with ISO international standard.
2.1.3 Do not use the bur which is bended, defect, injured.
2.1.4 Please keep the bur clean. The dirt will stock in the hole of spring of handpiece, result in loosing and
abnormal wear of the chuck.

7
2.1.5 Do not use short bur (mini bur) on standard handpiece, otherwise the bur will drop o󰀨 because of
carelessness.
2.1.6 Do not use long bur on mini handpiece, otherwise the bearing will damage because of overload of
head.
2.1.7 Before operation, know well the rotation speed and specication whether in conformity with this
handpiece.

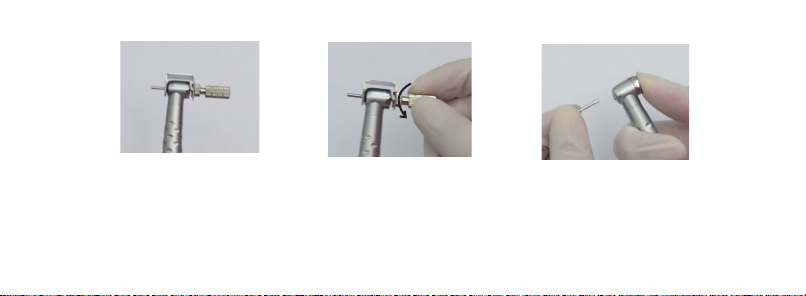

2.2 Install and uninstall of the bur (wrench type handpiece)
2.2.1 Pull the head of bur key back, make it cover the head of handpiece. (picture 2)
2.2.2 Forward the bur key, make the tip into the hole and lock, anti-clockwise 1/4 rotation(avoid over
rotation), then bur is unlock, take it out.
2.2.3 While installing the bur, clockwise rotation, screw tight. (Picture 3)
2.3 Install and uninstall of the bur. (push-botton type handpiece): press the back cup, you can get

8
out the bur (picture 4)
picture 2
picture 3 picture 4
2.4 Enter the bur into the end, otherwise the bur will drop o󰀨, and lead to unbalance load of the
cartridge and accelerated the damage of the bearing.
2.5 Handpiece and handpiece tube connection
2.5.1 Handpiece and handpiece tube connection(without quick connector): connect the inlet tube, water

9
inlet, turn back tube and atomization tube of handpiece interface to the handpiece tube. To tighten the
thread direction of rotation
2.5.2 Handpiece and handpiece tube connection(with quick connector): connect the inlet tube, water inlet,
turn back tube and atomization tube of quick connector interface to the handpiece tube. Fix the quick
connector with the wrench, To tighten the thread direction of rotation

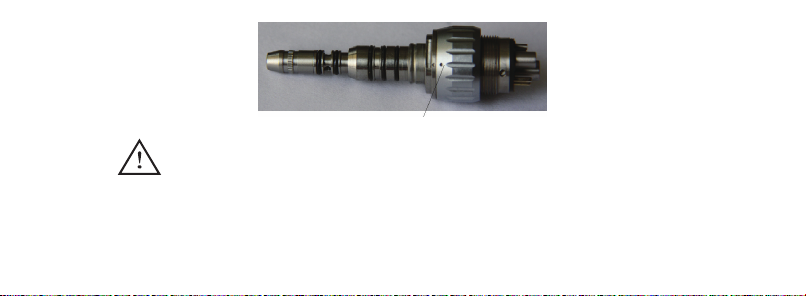

2.5.3 Installation and use for quick connector.
A) Remove the quick connector, clench the handpiece and quick connector, and pull back
B) Install the quick connector, press the quick connector to the handpiece, check the handpiece before
operating in the patient’s month.
C) Control of atomization: two transferred to the same straight line is the largest, Adjust to the right the
water ow slowly decreases until stop.

10
Water ow reaches the maximum when the two points in the same line
2.6 Cautions
2.6.1 The operator of dental handpiece must be with professional training, and familiar with the relative
usage information.
2.6.2 Gripping part of bur could not be too short, otherwise it will lead to unbalance load of the cartridge
and accelerated the damage of the bearing.

11
2.6.3 Don’t operate the handpiece when there is no bur or standard stick on it, otherwise the head
of chuck will be threw out because of the anti-force, and damage the bearing.
2.6.4 Please don’t press the cover until the handpiece is totally stopped.
2.6.5 Please do the pre-operation inspection outside patients oral before operating. If there is abnormal
phenomenon like loose, vibrating, noisy or fever, please stop it and contact the manufacturer or its
authorized maintenance center.
2.6.6 Damaged handpiece cartridge might probably cause high noisy, and damage the hearing if long-time
use, please replace it timely.
2.6.7 Please use the standard bur, handpiece size is 1.59-1.60mm, should in conformity with the third rule
of ISO1797 standard, max length is 25mm, in conformity with ISO6360-1 standard. It might lead to the
accident like sudden snapped, throw out etc., if the bur is bended, aw, variant, damage and inconformity,
cause hurt and damage the handpiece.

12
2.6.8 Install the bur or the standard stick on the handpiece, even it is not in use.
2.6.9 Please don’t install or un-install the bur or handpiece until the machine is totally stopped.
2.6.10 The pressure and ow of the air and water source must meet the requirement of this machine.
2.6.11 Use the dry, clean compressed air to make sure the working life of the handpiece, maintenance the
air compressor, air and water lter system regularly to ensure the quality of compressed air and water. Use
unltered water might lead to block of pipeline joint and earlier damage of atomizing.
2.6.12 This machine could not be used in easy exploded environment, such as anesthetic gas.
3 Cleaning, Disinfection and Sterilization
This Manual is only applicable to the reprocess of high speed turbine handpiece manufactured by Guilin
Woodpecker Medical Instrument Co., Ltd.
Note:

13
1. Before use, please carefully read the Instruction Manual of handpiece.
2. Before rst use, please must clean and sterilize the handpiece.
Warnings
The use of ultrasound cleaning device and strong cleaning and disinfection uids (alkaline pH>9 or acid
pH <5) can reduce the life span of products. The manufacturer takes no responsibility in such cases.
The products may not be exposed to temperature above 138℃.
This device shall not be exposed to high temperature above 138℃.
3.1 Processing limit
The products have been designed for a large number of sterilization cycles. The materials used in
manufacture were selected accordingly. However with every renewed preparation for use, thermal and
chemical stresses will result in ageing of the products. The allowed maximum times of sterilization for
handpiece is 600 times. The allowed maximum times of sterilization for the bur key is 1000 times.

14
3.2 Initial processing
3.2.1 Processing principles
It is only possible to carry out e󰀨ective sterilization after the completion of e󰀨ective cleaning and
disinfection. Please ensure that, as part of your responsibility for the sterility of products during use, only
su󰀩ciently validated equipment and product-specic procedures are used for cleaning/disinfection and
sterilization, and that the validated parameters are adhered to during every cycle.
Please also observe the applicable legal requirements in your country as well as the hygiene regulations
of the hospital or clinic, especially with regard to the additional requirements for the inactivation of prions.
3.2.2 Post-operative treatment
The post-operative treatment must be carried out immediately, no later than 30 minutes after the
completion of the operation. The steps are as follows:
1. Remove the handpiece from the comprehensive dental treatment instrument, and rinse away the dirt on

15
the surface of handpiece with pure water (or distilled water/deionized water);
2. Dry the handpiece with a clean, soft cloth and place it in a clean tray.
Cautions
1. The water used here must be pure water, distilled water or deionized water.
3.2.3 Preparation before cleaning
Steps:
Tools: Bur key(only for the wrench type), tray, soft brush, clean and dry soft cloth.
1. Use the bur key provided by Guilin Woodpecker Medical Instrument Co., Ltd to remove the bur from
handpiece and put it into the tray.
2. Use a clean soft brush to carefully brush the screw thread, head and back cover of the handpiece until
the dirt on surface is not visible. Then use soft cloth to dry the handpiece and accessories and put them
into a clean tray. The cleaning agent can be pure water, distilled water or deionized water.

16

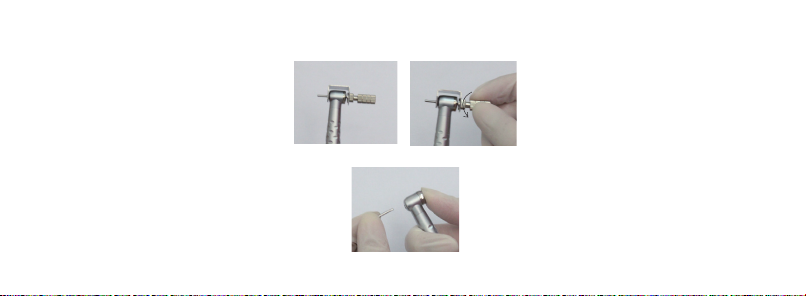

Disassembling steps:
For the wrench type: install the bur key into the head and than turn the handle ,get the bur out.
For the push button type: one hand press the back cover,anther hand pull the bur out.

17
3.3 Cleaning
The cleaning should be performed no later than 24 hours after the operation.
The cleaning can be divided into automated cleaning and manual cleaning. Automated cleaning is
preferred if conditions permit.
3.3.1 Automated cleaning
•The cleaner is proved to be valid by CE certication in accordance with EN ISO 15883.
▪There should be a ushing connector connected to the inner cavity of the product.
▪The cleaning procedure is suitable for the handle, the ushing period is su󰀩cient, and ultrasonic cleaning
is prohibited.
It is recommended to use a washer-disinfector in accordance with EN ISO 15883. For the specic
procedure, please refer to the automated disinfection section in the next section "Disinfection".
Precautions:

18
1. The cleaning agent does not have to be pure water.It can be distilled water, deionized water or multi-
enzyme. But please ensure that the selected cleaning agent is compatible with the handpiece.
2. In washing stage, the water temperature should not exceed 45 °C, otherwise the protein will solidify and
it would be di󰀩cult to remove.
3. After cleaning, the chemical residue should be less than 10 mg/L.
3.4 Disinfection
Disinfection must be performed no later than 2 hours after the cleaning phase. Automated disinfection is
preferred if conditions permit.
Automated disinfection-Washer-disinfector
The washer-disinfector is proved to be valid by CE certication in accordance with EN ISO 15883.
Use high temperature disinfection function. The temperature does not exceed 134 ° C, and the disinfection
under the temperature cannot exceed 20 minutes.
