Gulfstream La Mira 9660 User manual

PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE
OWNER MANUAL
IDJET®, La Mira™, Gulfstream Inc.®are trademarks of Gulfstream Inc.
Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444,
#D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882,
#D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182
© 2021 All rights reserved. Design and Specifications are subject to change without notice.
Chair 9660

Table of Contents
Safety and Precautions ...................................................................................... 1-2
Identifying Parts.................................................................................................. 3-4
Foot-Spa Clearance ........................................................................................... 5
INSTALLATIONS
Attaching Seat .................................................................................................... 6
IDJET Assembly................................................................................................. 7-8
Plumbing Connections ....................................................................................... 9-10
Operations and Use ........................................................................................... 11-12
Cleaning & Maintenance .................................................................................... 13-14
Warranty & Service ............................................................................................ 15
Owner Manual

SAFETY & PRECAUTION 1
Thank you for purchasing the La Mira Spa from Gulfstream Inc. Please carefully read the instructions before install-
ing the spa. Carefully follow the instructions and your spa will give you years of beauty and service.
This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct
operation. If a Class A GFCI protected outlet is not available, DO NOT USE THIS PRODUCT! Please
contact a licensed electrician for installation of a Class A GFCI according to local electric codes, or equivalent.
THIS PRODUCT IS FOR INDOOR USE ONLY
DISCONNECT POWER SUPPLY CORD BEFORE SERVICING AND CLEANING
The foot-spa must be installed by a licensed plumber and electrician in accordance with local codes. Plumbing and
Electrical Installation instructions must be adhered to in order for the warranty to be in effect and to ensure the utmost
in safety. The chair and spa have a maximum seating capacity of 350 pounds.
The foot-spa is not intended to be stood in or used as a step. The portable foot-spa model is movable, standing in tub
or using as a step may cause severe damage to the unit as well as possible serious injury to the person.
Warning
If a crack occurs in the glass bowl, DO NOT manually handle the bowl unless the proper attire is worn.
Under no circumstances may the bowl be used by your customers as you could be held accountable for
any injury that may occur. Gulfstream is not liable for any injury that may occur.
Warning
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised
at all times
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The IDJET is Inductively driven and is insulated twice. Therefore, it does not require to be bonded.
Save these instructions
1. Hot water is dangerous and should be checked BEFORE using.
2. The maximum temperature of the water should never exceed 100 degrees F.
3. Always enter and exit the Foot Spa slowly and carefully.
4. NEVER bring and / or operate any electrical devices into or near the Foot Spa.
5. NEVER run the pump (Jet/Motor) unless the pump body is fully submerged in water.
Water level in the bowl is to be above the top of Jet body.
DO NOT Run Jet dry.
Warning

SAFETY & PRECAUTION 2
GROUNDING METHODS
Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI),
DO NOT use a grounding adapter.
The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code.

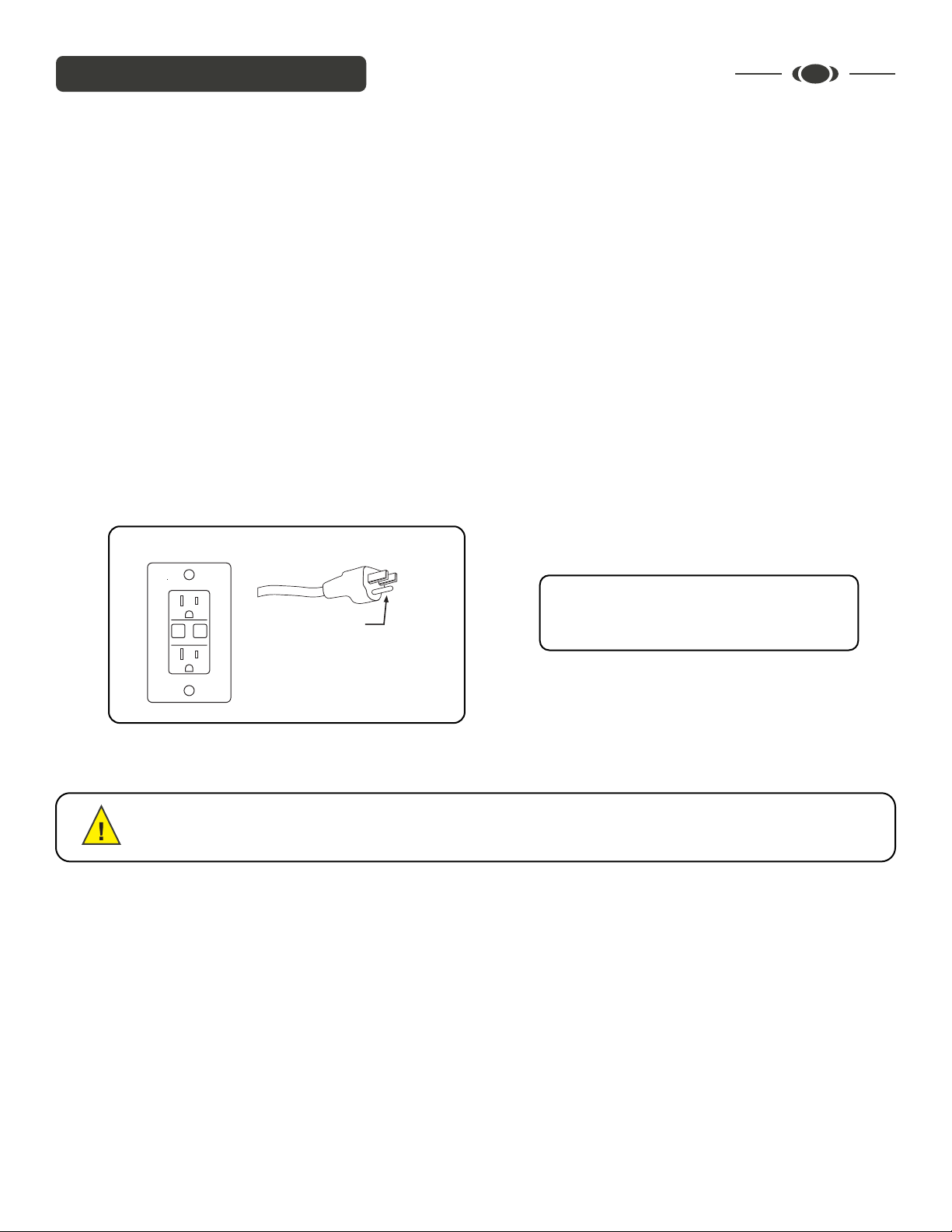

GROUNDING INSTRUCTIONS
This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter. The ground-fault
interrupter can be in the outlet shown in illustration A or in the circuit breaker (fuse) box. If your outlet or circuit breaker
(fuse) box is not equipped with a ground-fault interrupter, you must have your electrician install one (5 amps/unit
required).
In the event of an electrical short-circuit, the ground-fault circuit interrupter will turn off the electrical power to the unit
immediately, greatly reducing the likelihood of serious injury. This appliance is for use with a nominal 120-volt circuit and
has a grounding plug that looks like the plug illustrated in the sketch. The outlet must be properly installed and grounded
in compliance with all local codes and ordinances.
If it is necessary to use an extension cord, use only a three-wire extension cord that has a three-blade grounding plug
and a three-slot receptacle that will accept the plug on the appliance.
Replace any damaged cord.
OPERATION AND USE INSTRUCTIONS, (READ AND FOLLOW ALL INSTRUCTIONS)
1. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised
at all times.
2. CAUTION: This unit should not be used by persons with open wounds, cuts or sores on their feet or legs, or by
persons with poor circulation, or by persons with heart conditions. If in doubt, the client should consult with his
or her physician.
3. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer
4. Do not operate with a damaged cord or plug. If unit malfunctions or is damaged in any manner,
contact an authorized service representative for examination or repair.
5. Never drop or insert any objects into any opening.
6. Do not block jets during pedicure operation.
7. Water temperature should be checked before use. Water temperature should never exceed 100 degrees
Fahrenheit.
8. Never bring any electrical devices into the unit or operate electrical devices near it.
9. The unit must be connected to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI).
10. Connect the unit only to a properly grounded outlet. See grounding instructions.
11. Close supervision is necessary when the unit is used by, on or near children or invalids.
IMPORTANT! At the end of the day, ALWAYS turn the main power OFF!
including the power switch on the chair.
Warning
Grounding PIN
GROUND-FAULT
INTERRUPTER OUTLET
NEMA 5-15R
NOT INCLUDED
A B
COMPLIANCE WITH LOCAL CODES AND/OR
INSPECTIONS IS THE RESPONSIBILITY OF
THE PURCHASER AND/OR INSTALLER.

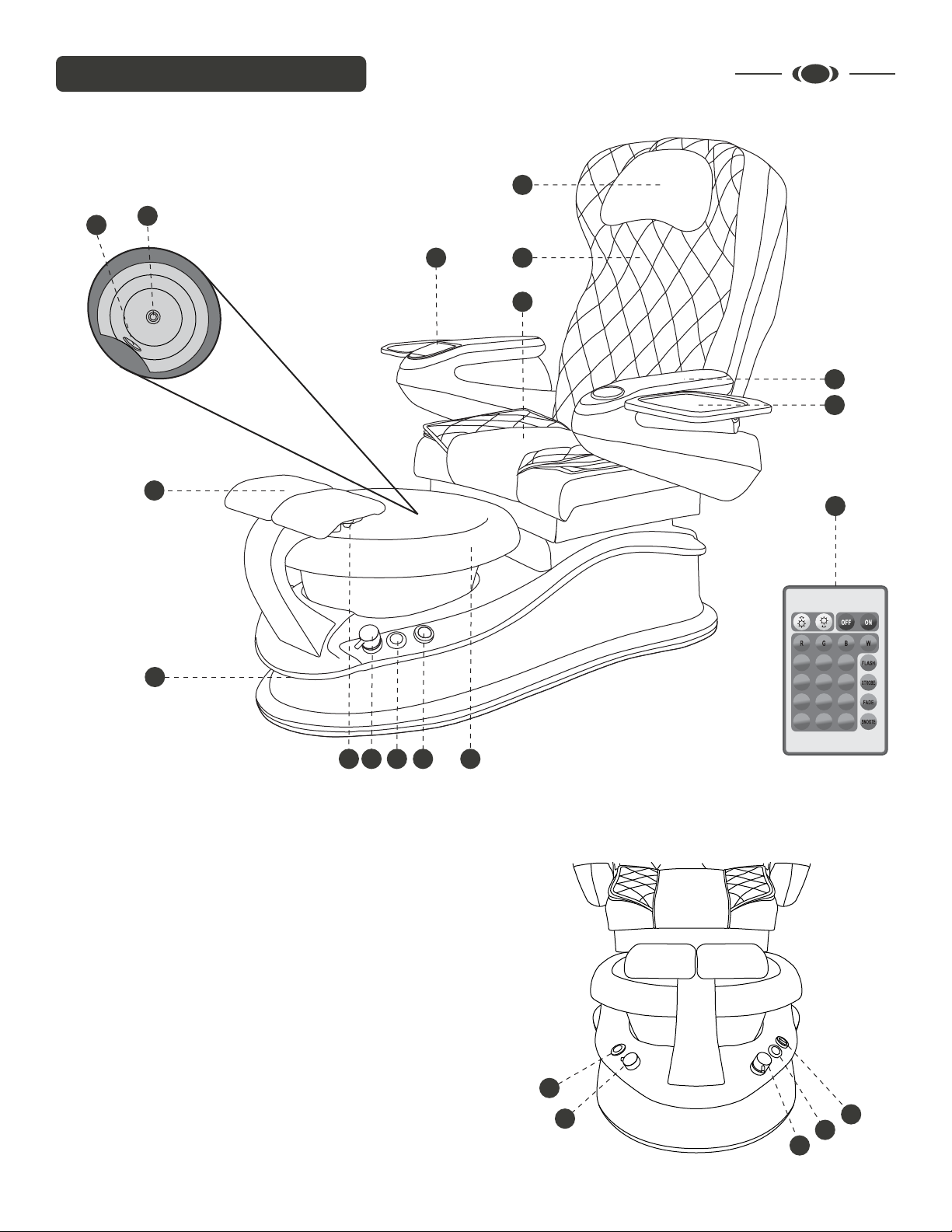

IDENTIFY YOUR FOOT-SPA 3
1. Chair Remote Control
2. Headrest Pillow
3. Back Cushion & Massage
4. Seat Cushion
5. Wooden Armrest
6. Flip-up Manicure Tray
7. Glass Bowl
8. Chair Forward/Backward Auxiliary Button
9. Jet Control (ON/OFF)
10. Water Mixer Control
11. Hand Spray under Footrest
12. LED Tirm
13. Adjustable Footrest
14. Jet Mount
15. Drain
16. Discharge Pump Switch (Optional)
17. Drain Control
18. Remote Control for LED Trim
18
13
12
10 9 7811
2
3
4
1
5
6
Front
Back
15
14
16
17
10
9
8

SEAT OPERATION
SPA DIMENSION
IDENTIFY YOUR FOOT-SPA 4
1
2
3
Armrest can be raised up/down
Manicure tray can be folded up/down
Chair Sliding
Reclining 25°
Height of Chair
42”
Height of Base
16”
Width of Base
30”
Length of Base
52”
Width of Base
30”
Width of Seat 22”
(without Arms)
Seat Height 9.5”
(with Frame)
Width of Seat 31”
(with Arms)
Width of Seat 46”
(with Trays)

TYPICAL FOOT-SPAS
WALL CLEARANCE

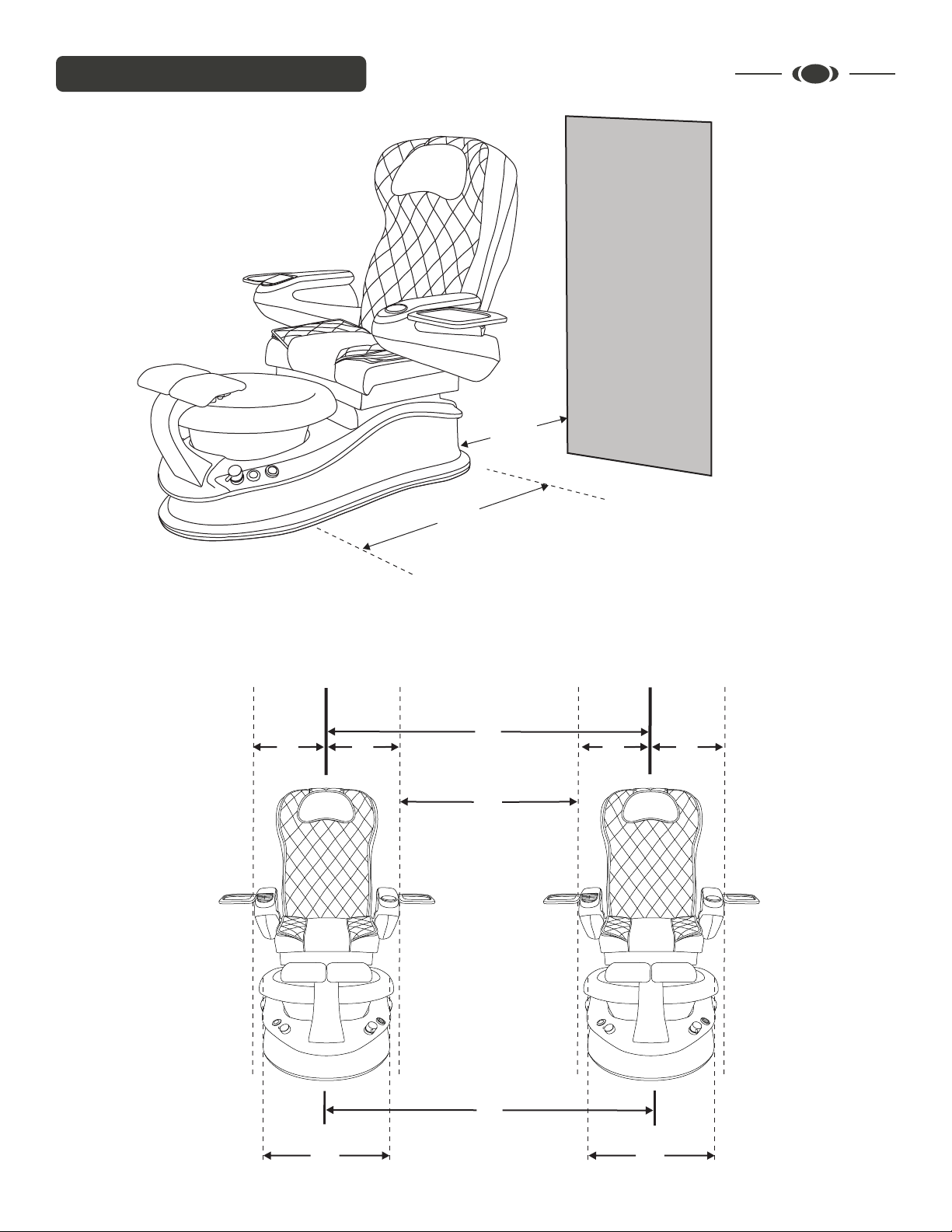

FOOT-SPA CLEARANCE 5
36’’
60’’
60’’
16’’16’’ 16’’ 16’’
28’’
Foot-spa #1
Center Center
Foot-spa #2
Clearance
30’’ 30’’
Wall
20"
Minimum
Distance from center drain
to the back of the spa

INSTALLATIONS 6
Attaching The Seat to The Base

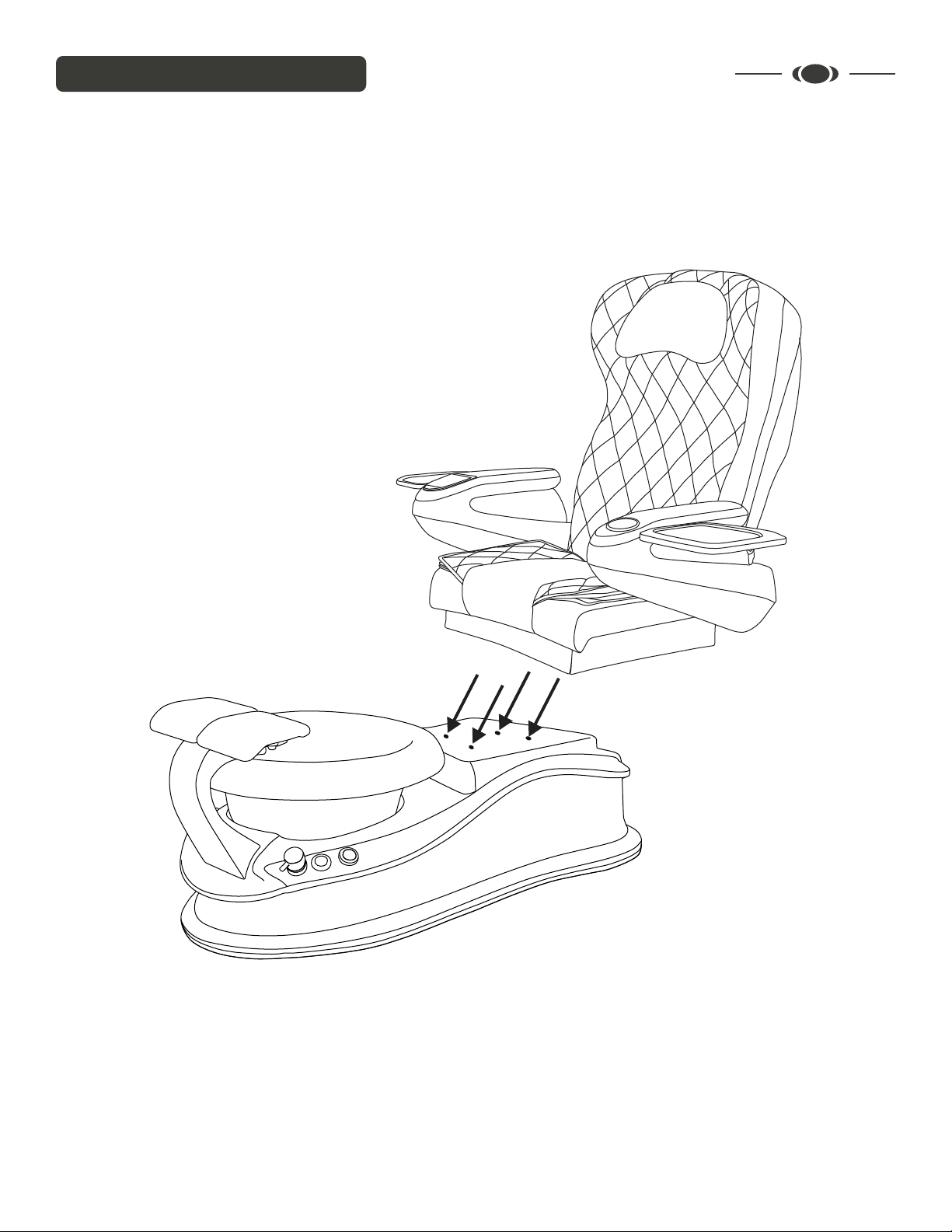

Align the seat with the pre-drilled holes on the base then
tightly secure with the nuts and bolts provided.
Attach trays or remote stand to armrest with screws provided.

INSTALLATIONS 7

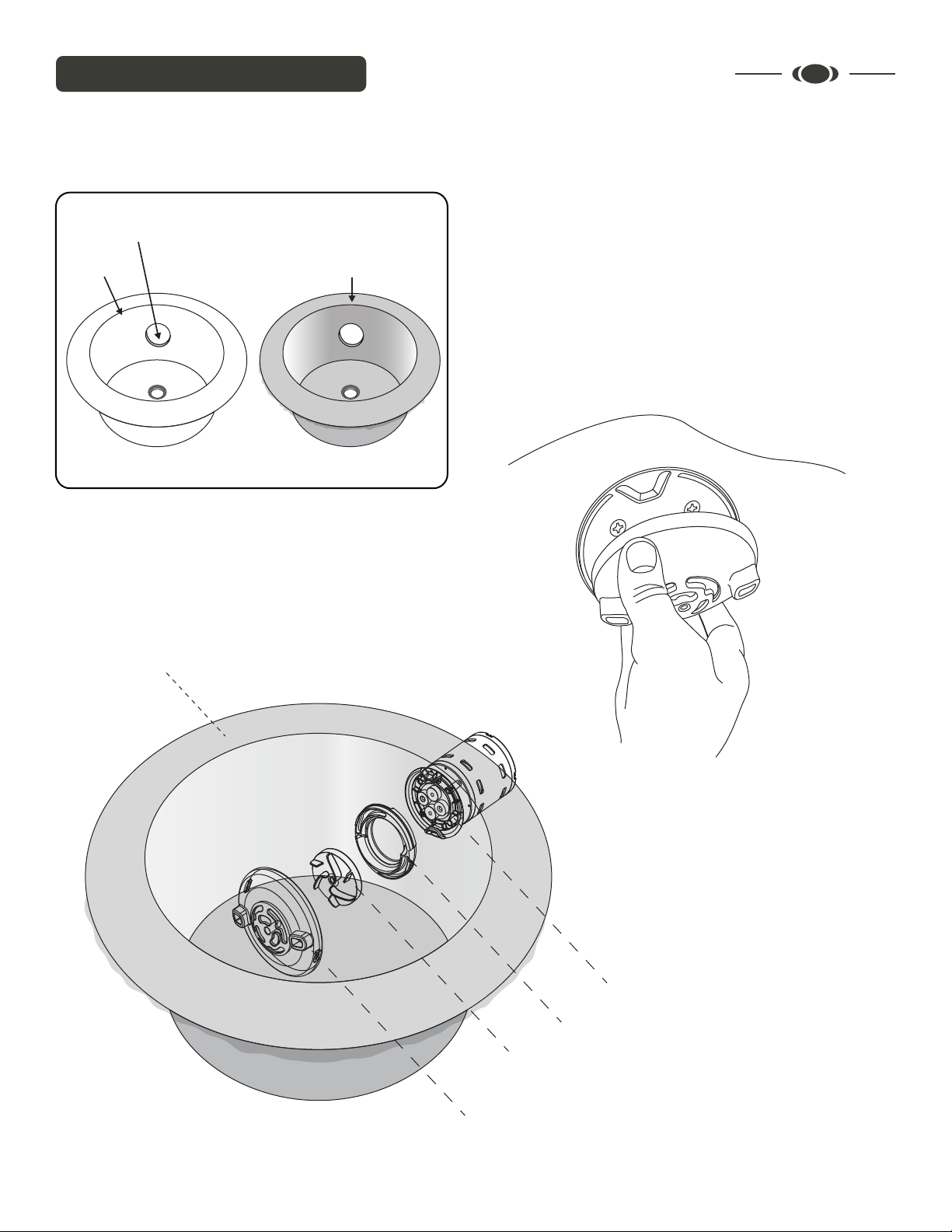

IDJET Unit Removal
Jet Mount located on tub/bowl wall
Cap Jet Body Jet MountImpeller
Wall
Ceramic Nest
Viton Tip
To remove the jet unit from tub/bowl. To remove the jet unit components.
Turn the Cap counter-clockwise in the arrow direction
IDJET Unit Components
Screws
To install the IDJET unit. Assemble all jet unit components in order as before removal, place the jet unit on tub/bowl wall.
Note: All jet unit components must be assembled in sequence of order to avoid malfunction.
Please call manufacturer for repair or replacement

INSTALLATIONS 8
Poly Liner InstallationPoly Liner Installation
Fit elastic edge over bowl rim and form liner to bowl contours as
shown in the Fig.1
Align the impeller unit and shoe onto the Jet Mount.
as shown in Fig.2
To remove, pull the impeller unit as shown in Fig.3 from
the Jet Mount and pierce liner over drain, then once drained,
pull up the plastic liner.
To avoid risk of infection disease, discard the liner after each use.
Soft Plastic Liner
on the Glass Bowl
Jet Mount Fixed
to Motor Behind
Fig.1
Glass Bowl
Soft Plastic Liner
Impeller
Jet Body
Jet Mount located on tub/bowl
Cap
Fig.2
Fig.3

Optional
P-Trap supplied by plumber
Gravity Sink
2’’ - 3’’ drain pipe
to sewer line
P-Trap
P-Trap
INSTALLATIONS 9

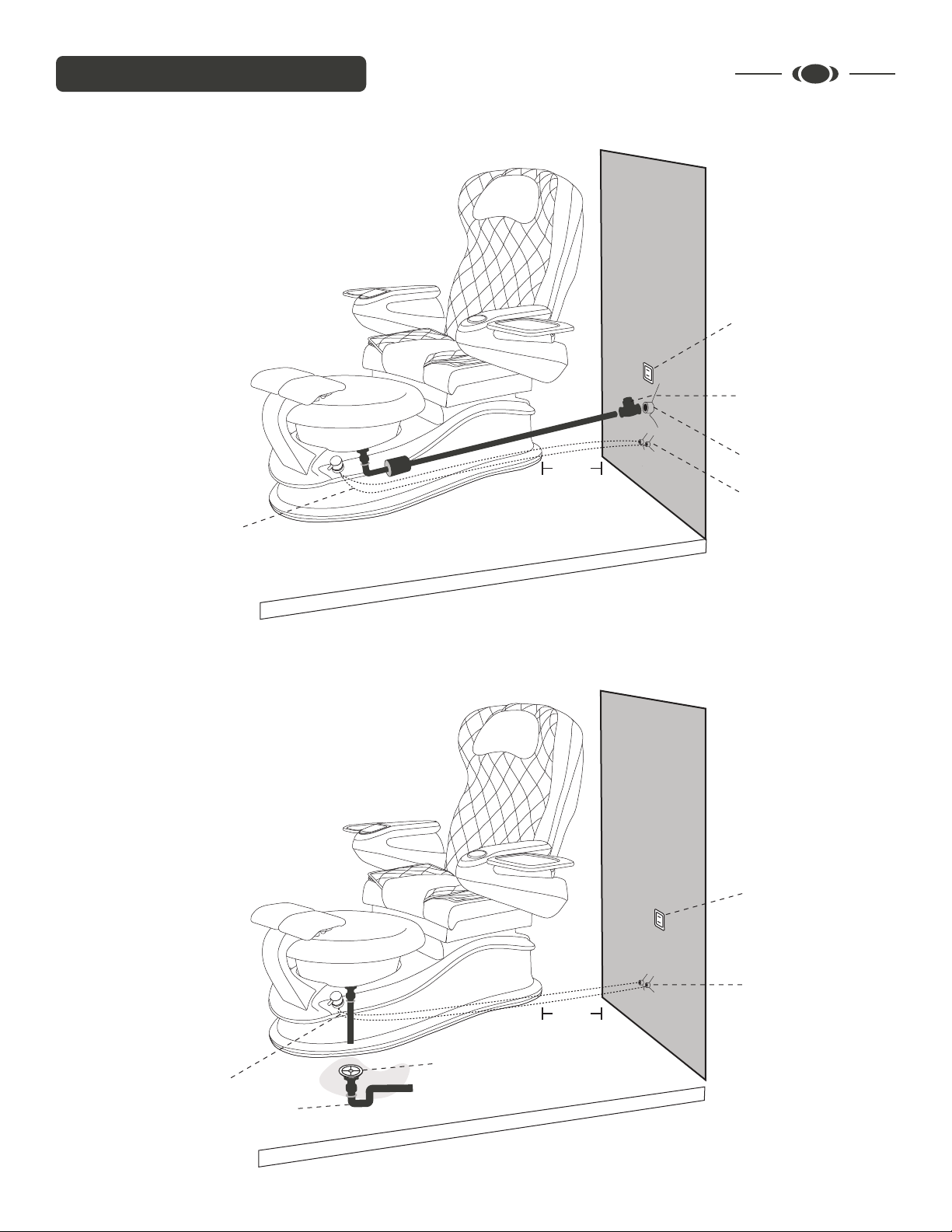

Typical Gravity Sink (Direct Drain)
Installation Wall
GFI Outlet Required
Floor
3/8” Hot & Cold Hoses
Existing 3/8” Hot & Cold
Water Supply
*Backwater valve optional.
Plumbing Connections
1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up to 7 ft. high, but this
will increase the length of the drain time. The drain connection is at the rear of the unit by a 1/2” fitting.
2. Gravity drain uses a standard gravity drain. A floor drain is recommended. P-Trap is not installed nor supplied.
The floor drain should already have a P-Trap and the UPC codes do not allow double P-Traps in the system.
3. Hot and cold water supply connections are located at the rear of the unit (3/8” fittings).
Please be advised that the hot and cold water supply lines are not fitted with optional back flow Preventers unless
ordered at initial sale.
4. Have a qualified licensed electrician to install the wiring according to local codes.
The IDJET is 1/18 HP, 120V A.C., 0.55 AMP. 60HZ. GFI protected circuit must be used to supply power to
the unit. The roller back massage chair uses a 115V A.C. supply.
5. Spa base should be anchored securely to the floor. The base may be anchored through
the opening in the back of the base wherever access is convenient for the installer.
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE UNIT. DAMAGE
AS A RESULT WILL VOID THE WARRANTY.
20"
Minimum

Gravity Sink
2’’ - 3’’ drain pipe
to sewer line
P-Trap
Typical Discharge Pump Installation
Wall
GFI Outlet Required
Floor
3/8” Hot & Cold Hoses
Existing 3/8” Hot & Cold
Water Supply
*Backwater valve optional.
INSTALLATIONS 10

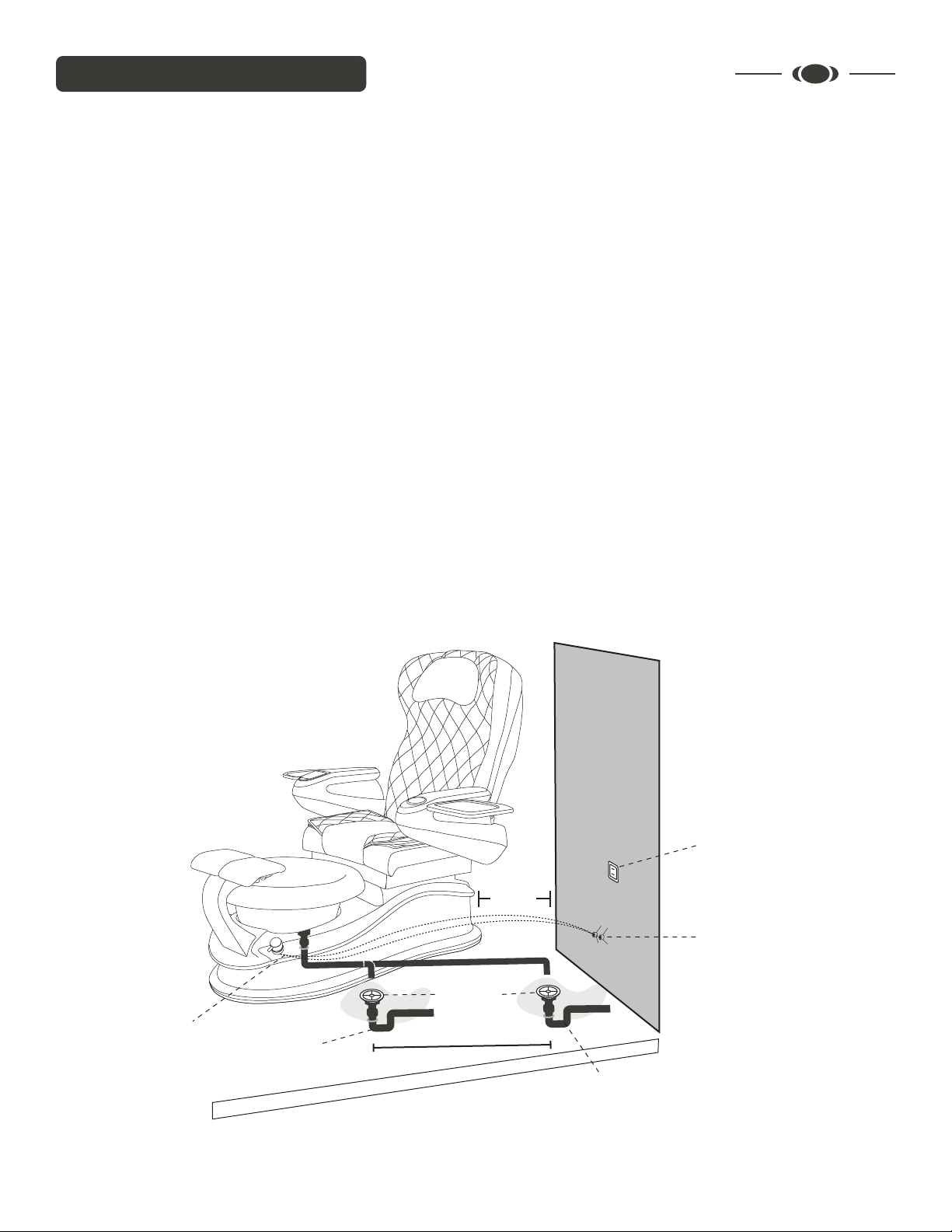

Typical Gravity Sink (Direct Drain)
Installation
Wall
Floor
GFI Outlet Required
Existing 3/8” Hot & Cold
Water Supply
*Backwater valve optional.
Existing Drain Pipe
Standard Check Valve
with pump.
P-Trap supplied by plumber
3/8” Hot & Cold Hoses
20"
Minimum
20"
Minimum

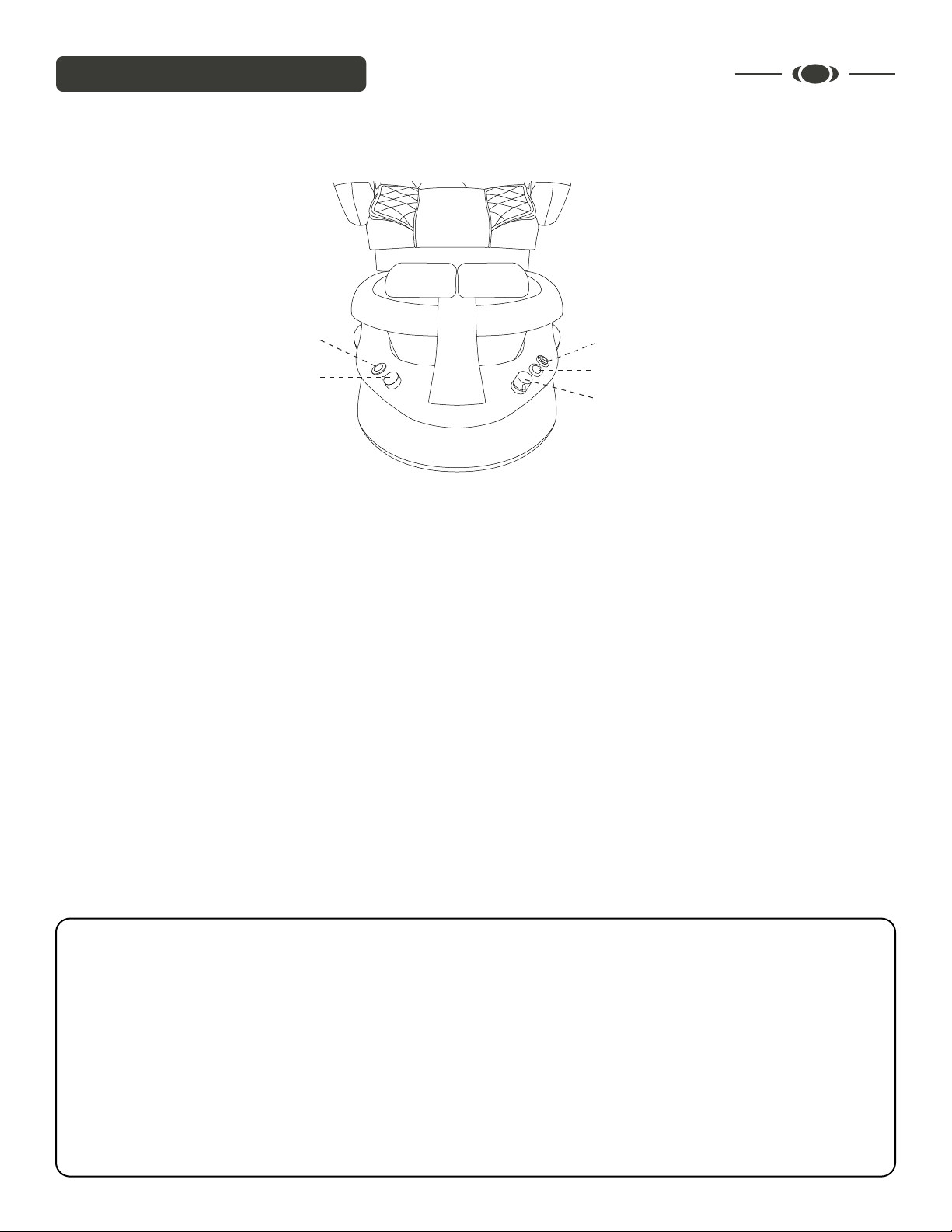

Control Panel (Left and Right Side)
OPERATIONS & USE 11
1. To fill water:
The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa.
This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to the
temperature that is desired. The IDJET body must be completely submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING OR MINERAL OIL BASED ADDITIVES IN THE WATER.
2. To start whirlpool:
Press the 'J' labeled button. This will start your IDJET motor. You may stop the whirlpool function at any time by
pressing the button again.
3. To drain Footspa bowl:
Turn drain control knob to "pop-up" drain plug.
- If gravity drain (no discharge pump); water in bowl empties with duration determined by waste water plumbing
characteristics.
- If optional discharge pump has been installed; then press discharge pump button to activate 2-minute timer
controlled pump. Average drain time approximately one minute (depending on plumbing characteristics).
4. The Shiatsu Roller back massage Chairs are equipped with a state of-the-art robotic massage system.
This system is easy to use. The remote has a one-touch power button that initiates a pre-programmed massage
session. Various massage functions are also available for selection via this remote. The chair's position can also be
adjusted; forward/backward as well as reclined to the client's preference (see illustrations on page 12).
Note: Read and Follow Chair Manual Instructions
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions.
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised
at all times.
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The IDJET is driven through magnetic induction and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
Discharge Pump Switch (Optional) Chair Forward/Backward Auxiliary Button
Jet Control (ON/OFF)
Water Mixer Control
Drain Control
Control Panel

OPERATIONS & USE 12
LED Trim Remote
(LED Light
with wireless remote
are optional.)
Shiatsu Remote Control
Please refer to instruction manual for operations
96609621
A conveniently located
auxiliary button to help
the technician move
the customer's seat
back/forward easily.

131313
CLEANING & MAINTENANCE& USE
Please refer the diagrams to remove jet covers for cleaning
Gulfstream Inc. highly recommends the following cleaning regimen. You should always contact your local governing
agency for their specific cleaning and disinfecting requirements and regulations for pedicure spas. For your clients
safety, always use the regulations as a minimum standard for cleaning and disinfecting. Combining your states
standards with the regimen listed below will provide your clients with a safe and healthy pedicure spa environment
experience.
Routine maintenance:
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge, are all that are usually
needed. A soft bristled brush may be used when excessive residue is present. Use a mild soap and water solution to
clean the upholstery, but do not over wet. Wipe dry with a clean towel. No internal maintenance of the spa
components are necessary. Remove IDJET caps and spray with disinfectant after each use. For extra protection,
our recommendation is that the system be flushed daily or weekly depending on use. To flush the IDJET system fill the
spa with hot water to just above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry with
clean soft cloth.
The use of oil based products can build up in the whirlpool system, causing clogging in the jets. Adherence to the
above cleaning will minimize build up. Gulfstream Inc. does not recommend the use of mineral oil based products.
TESTING/FLUSHING FOOT SPA
After the foot spa has been installed, fill tub with water just above the jets. Carefully check for leaks at the drain and
motor mount. After checking underside for leaks, turn on system by pushing whirlpool button and watch for leaks as
water circulates. Let tub run full cycle. Open drain plug for water discharge.
NOTE:
Cleaning or sanitizing is NOT disinfecting. According to the Centers for Disease Control and Prevention (CDC), and
the US Environmental Protection Agency (EPA), disinfecting occurs only when there is a reduction of pathogenic
microbes at 99.999%. Sanitizing is only a reduction of 99.9%. Cleaning of whirlpool pedicure spas requires surfactant
and chelating detergents that are low-foaming and have the ability to remove body oils, organic oil additives, mineral
oil, skin cells, nail clippings etc. that can accumulate both in the basin and the jets which may become a fertile area
for micro organisms to grow.

CLEANING & MAINTENANCE& USE 14
Cleaning The Jet (Step by Step)
Warning
!- Do not run IDJET® without the jet being completely submerged in water. This will void your warranty
Cap
Jet Body
Impeller
IDJET Components
1. Pull Jet off from the Jet Mount in
the pedicure bowl.
2. Turn the Cap off the Jet
counter-clockwise.
3. Separate the three components
of the Jet: Cap, Impeller
and Jet Body.
4. Wash each component of
the Jet in a recommended
or high quality solution
or cleaning agent.
5. Reassemble the Jet using
the following directions:
- Place the impeller with blades
facing up in the center of the Jet Body.
- Take Cap and turn clockwise with
Jet Body until click.
- Place on Jet Mount.

OPERATIONS & USE 13 OPERATIONS & USE 13 WARRANTY & SERVICE 15
No dealer or other person has any authority to bind Gulfstream Inc. to changes or additions to this warranty or its products.
Accordingly, Gulfstream Inc. Is not responsible for such warranties or representations.
Gulfstream warrants to the original purchaser that the new pedicure spa will be free from defect during the Standard Warranty Period
(listed below). The shipping date and the uniquely-coded Serial Number on the back of each spa chair will justify the start of the
warranty period for the product. The warranty is null and void if the pedicure spa is taken from its initial place of installation, or it is not
installed in accordance with federal, state or local codes and ordinances. Also, this warranty does not apply if the pedicure spa has
been subject to misapplication, improper installation or maintenance, negligence, improper cleaning or other circumstances beyond
Gulfstream's control.
Warranty
1. Limited Three(3) Years warranty on Spa Shell.
2. Limited One(1) Year warranty on the Whirlpool Pump.
3.. Limited One(1) Year warranty on the IDJET.
4. Limited One(1) Year warranty on the Glass Bowl.
5. Limited One(1) Year Parts-Only warranty which covers the Hydraulic System, Discharge Pump, Massage System and All
Electrical Components.
6. Gulfstream will pay standard shipping charges on all replacement parts during the first 90 days of the stated Warranty Period.
After 90 days the consumer is responsible for all labor and shipping costs incurred.
Exclusions
1. Damage to pump parts and/or motor parts due to obstruction in plumbing lines etc.
2. Staining, fading or discoloration of plastic surfaces due to exposure and/or the use of harmful cleaning agents or chemicals.
3. Staining, fading or discoloration caused by improper or poor water additives not related to the maintenance of proper water
are not covered by this warranty.
4. Staining, fading or discoloration of the seat, armrests or footrests.
5. Freight damage, misuse, neglect, accident, natural disaster and abuse.
6. Unauthorized repairs.
Service
1. The Dealer shall forward all warranty-related matters to our Customer Service Department.
2. Serial Numbers and Original Invoice must accompany all warranty claims.
3. Customers are responsible for shipping defective parts back to Gulfstream. These parts must be packaged correctly in order to
protect against any further damage.
4. All parts are to be shipped by UPS Ground Service, average 2-5 days.
5. All defective parts must be shipped back to Gulfstream within 30 days of receiving the new replacement parts or
warranty will be void.
6. Any warranty claim that cannot be determined over the phone, the customer must send photos and original
invoice directly to Gulfstream before any repairs can be performed.
7. Any service performed on the product without Gulfstreams authorization will also void the Warranty.
8. Each service call from the customer will be assigned a Claim Number. The Claim Number will stay open until the
problem is resolved.

Gulfstream Inc.
Cambridge, Ontario, Canada
Tel.: [phone]
Fax: [phone]
www.gulfstreaminc.com
Manufacturer of Luxurious Pedicure Spas,
High Quality Salon and Spa Furniture
IDJET®, La Mira™, Gulfstream Inc.®are trademarks of Gulfstream Inc.
Patent #D709619, #8726430, #8680699, #D701318, #8662848, #8531048, #8366418, #D670938, #D670354, #D662340, #D660444,
#D650084, #D646082, #D636090, #D632798, #D628704, #D615326, #D613099, #D612509, #D610697, #D600950, #D596883, #D596882,
#D590188, #D589285, #D588844, #D583960, #D583576, #D583171, #D565739, #D556480, #7111334, #6991182
© 2021 All rights reserved. Design and Specifications are subject to change without notice.
