Gulfstream 9700 User manual

© Design and Specifications are subject to change without notice
2010 All rights reserved.
PLEASE SAVE THIS MANUAL
FOR FUTURE REFERENCE
OWNER MANUAL
® ®
TM
Cleanjet , La Lili
Chair 9600
FOOT-SPA
Chair 9700
TM
Patent #D610697, #D600950
Patent Pending

Table of Contents
Safety and Precautions
INSTALLATIONS
Attaching Seat
Jet Assembly
Plumbing Connections
1-2
Identifying Parts 3-4
7
8-9
Warranty & Service 14
6
Owner Manual
Operations and Use
Cleaning & Maintenance
10-11
12-13
Foot-spa Clearance 5

SAFETY & PRECAUTION
1
Thank you for purchasing the La Lili spa from Gulfstream Inc. Please carefully read the instructions before installing
the spa. Carefully follow the instructions, your spa will give you years of beauty and service.
This product is to be connected to a branch circuit outlet protected by a Class A GROUND FAULT CIRCUIT
INTERRUPTER (GFCI), and the GFCI shall be tested regularly for continued protection and correct
operation. If a Class A GFCI protected outlet is not available, DO NOT USE THIS PRODUCT! Please
contact a licensed electrician for installation of a Class A GFCI according to local electric codes, or equivalent.
THIS PRODUCT IS FOR IN DOOR USE ONLY
DISCONNECT POWER SUPPLY CORD BEFORE SERVICING AND CLEANING
!!
Foot-spa must be installed by a licensed plumber and electrician in accordance with local codes. Plumbing and
Electrical Installation instructions must be adhered to in order for the warranty to be in effect and to insure the utmost
in safety. Chair and spa have a maximum seating capacity of 350 pounds.
The foot-spa is not intended to be stood in or used as a step. The portable foot-spa model is movable, standing in tub
or using as a step may cause severe damage to the unit as well as possible serious injury to the person.
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised at all
times
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
1. Excessive water temperature is dangerous and should be checked BEFORE use.
2. Maximum temperature of the water should never exceed 100 degrees F.
3. Always enter and exit the Foot Spa slowly and carefully.
4. NEVER bring and / or operate any electrical devices into or near the Foot Spa.
If a crack occurs in the glass bowl, DO NOT manually handle the bowl unless the proper attire is worn.
Under no circumstances must the bowl be used by your customers as you can be held accountable for
any injury that may occur. Gulfstream is not liable for any injury that may occur.
Warning
!!
Warning
!!
Warning
!!

SAFETY & PRECAUTION
2
GROUNDING METHODS
Because this unit must be connected to a circuit with a ground-fault circuit interrupter (GFCI), DO NOT use a grounding
adapter.
The use of a grounding adapter is prohibited in Canada by Part I of the Canadian Electrical Code.
GROUNDING INSTRUCTIONS
This appliance must be plugged into an outlet equipped with a ground-fault circuit interrupter. The ground-fault interrupter
can be in the out-let shown in illustration A or in the circuit breaker (fuse) box. If your outlet or circuit breaker (fuse) box is not
equipped with a ground-fault interrupter, you must have your electrician install one.
In the event of an electrical short-circuit, the ground-fault circuit interrupter will turn off the electrical power to the unit
immediately, greatly reducing the likelihood of serious injury. This appliance is for use with a nominal 120-volt circuit and has
a grounding plug that looks like the plug illustrated in the sketch. The outlet must be properly installed and grounded in
compliance with all local codes and ordinances.
If it is necessary to use an extension cord, use only a three-wire extension cord that has a three-blade grounding plug and a
three-blade grounding plug and a three-slot receptacle that will accept the plug on the appliance. Replace or repair a
damaged cord.
OPERATION AND USE INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS.
1. IMPORTANT! At the end of the day, ALWAYS turn the main power OFF!
2. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised
at all times.
3. CAUTION: This unit should not be used by persons with open wounds, cuts or sores on their feet or legs, or by
persons with poor circulation, or by persons with heart conditions. If in doubt, the client should consult with his
or her physician.
4. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended
by the manufacturer
5. Do no operate with a damaged cord or plug. If unit is malfunctions or is damaged in any
manner, contact an authorized service representative for examination or repair.
6. Never drop or insert any objects into any opening.
7. Do not block jets during pedicure operation.
8. Water temperature should be checked before use. Water temperature should never exceed 100 degrees
Fahrenheit.
9. Never bring any electrical devices into the unit or operate electrical devices near it.
10. The unit must be connected to a supply circuit that is protected by a ground-fault circuit interrupter (GFCI).
11. Connect the unit only to a properly grounded outlet. See grounding instructions.
12. Close supervision is necessary when the unit is used by, on or near children or invalids.
COMPLIANCE WITH LOCAL CODES OR
INSPECTIONS IS THE RESPONSIBILITY OF
THE PURCHASER AND/OR INSTALLER

11
10
Front
Back
IDENTIFY YOUR FOOT-SPA
3
1
8
5
6
7
4
3
2
12
13 14
1. Tub & Glass Insert
2. Adjustable Footrest
3. Seat Cushion
4. Flip-out Manicure Tray
5. Back Cushion & Massage
6. Headrest Pillow
7. Wooden Armrest
8. Hand Spray Model # ST700.20
9. Front Control Panel
10. Drain
11. Jet 2X
12. Drain Control
13. Water Control
14. Jet Control
9

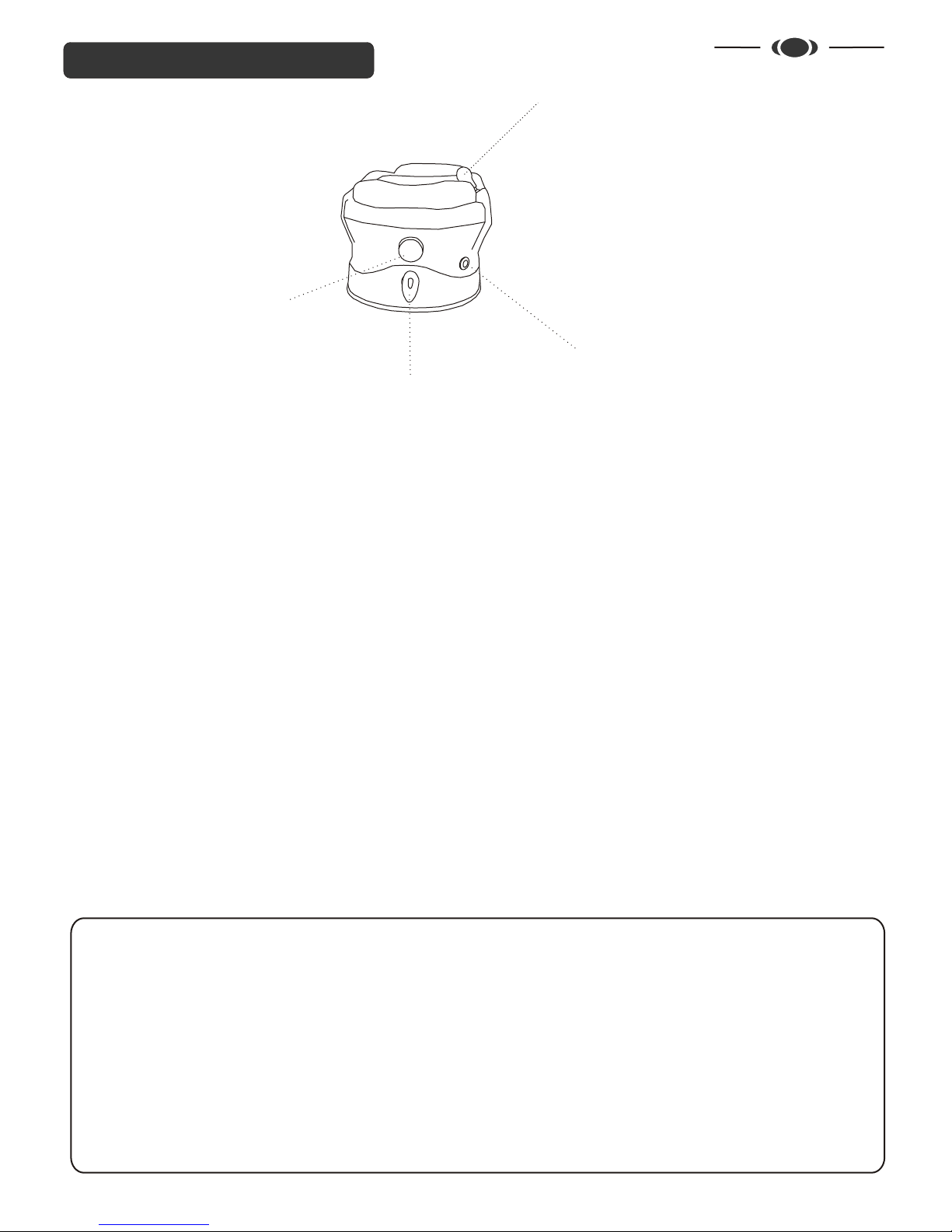

Control Panel

4
IDENTIFY YOUR FOOT-SPA
1
2
3
Armrest can be raised up/down
Reclining
Sliding
5 ’5’
7’’2
32’’
43’’
15’’
SEAT OPERATION
SPA DIMENSION

5

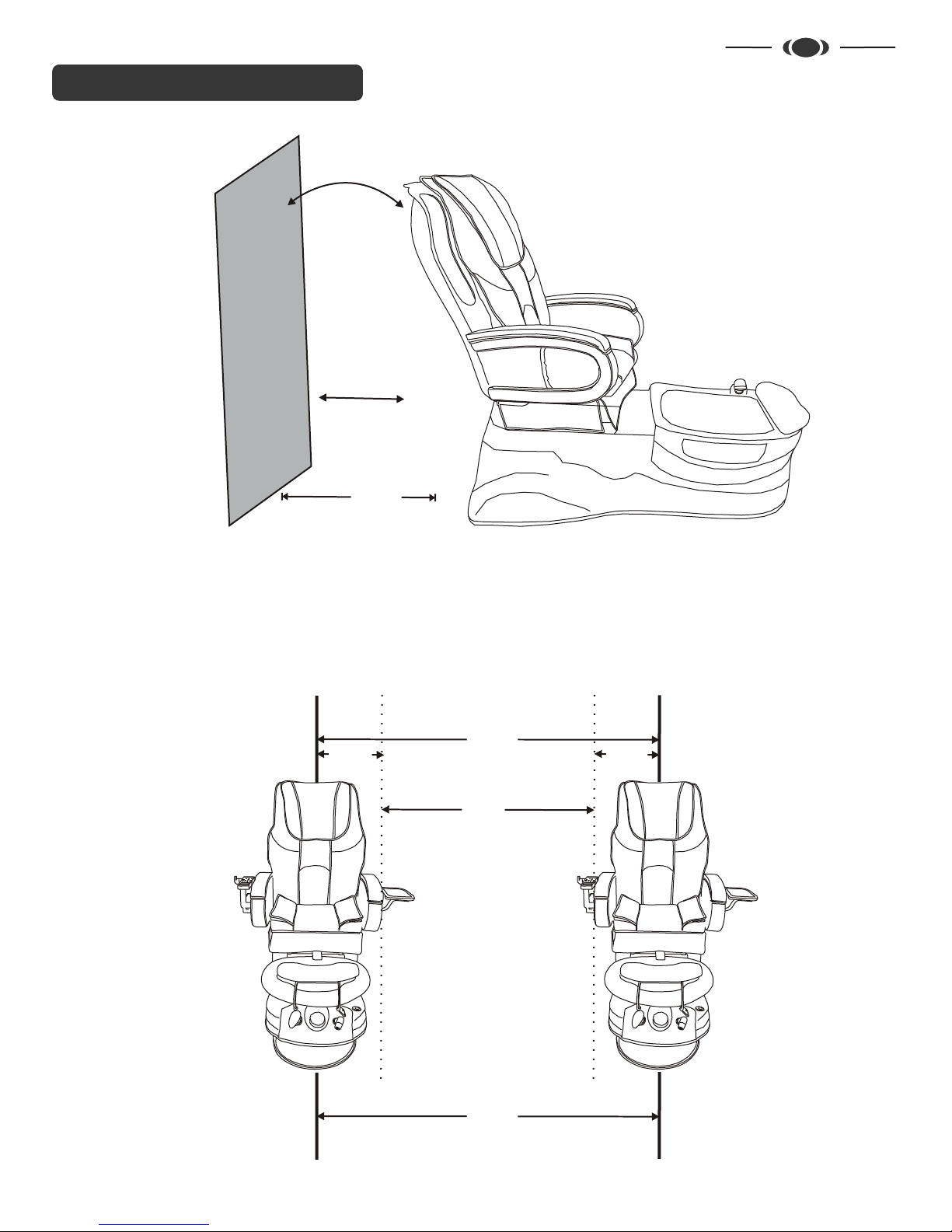

FOOT-SPA CLEARANCE
Wall
16’’
60’’
60’’
16’’
16’’
28’’
Foot-spa #1
Center Center
Foot-spa #2
TYPICAL FOOT-SPAS
Clearance
WALL CLEARANCE

6
INSTALLATIONS

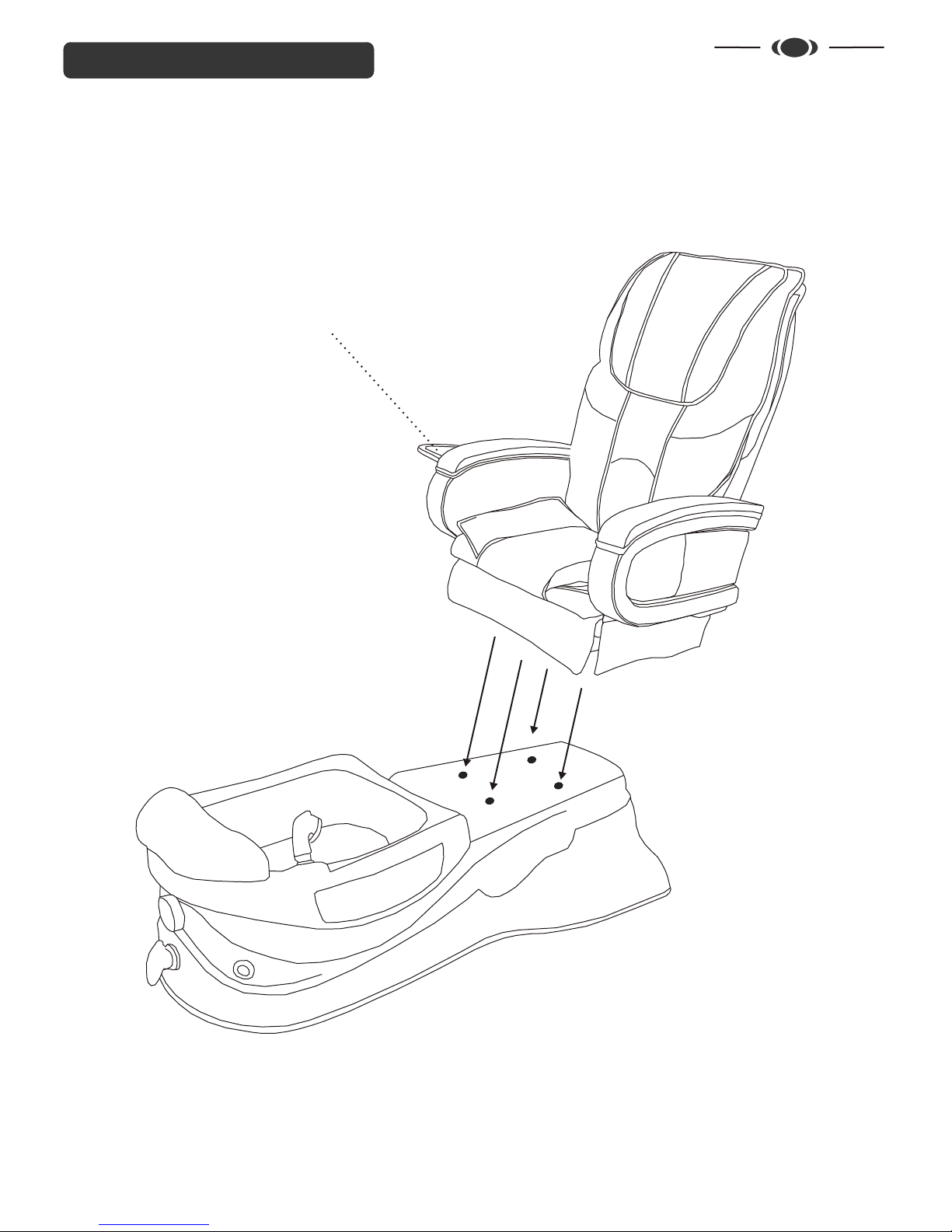

Align the seat with the pre-drilled holes on
the base then tightly secure with the nuts
and bolts provided.
Attach trays or remote stand to armrest
with screws provided
Attaching The Seat to The Base

7
INSTALLATIONS
Cleanjet Unit Removal
Plate & Anchors located on tub/bowl wall
Impeller Housing
Top Plate
Wall
Ball
Washer
Anchor Pins
To remove the jet unit from tub/bowl.
Gently pull out the jet unit from the anchor pins
To remove the jet unit components.
Turn the top plate counter-clockwise in the arrow direction
Jet Unit Components
To install the jet unit. Assemble all jet unit components in order as before removal, snap the jet unit onto the anchor pins located on tub/bowl
wall securely.
Note: All jet unit components must be assembled in sequence of order to avoid malfunction.
Screws
Base Plate & Anchors located inside tub/bowl
Wall
Anchor Pins
Screws
Option 1:
Remove the jet unit and screws from the base plate in Fig.1. Pull out the U-shape clamp and motor behind the tub/bowl wall as shown in Fig.2
Option 2:
Remove the plastic cap lock at the end of the U-shape clamp by turning counter-clockwise. Remove the U-shape clamp and push the motor and base
plate forward inside the tub/bowl as shown in Fig.2
Fig.1
Removing Base Plate and Motor
Clamp to hold
the motor and
seal the cap to tub
Fig.2 Plastic Cap Lock
Motor
Tub/Bowl
Jet motor components are located behind the tub/bowl wall
Disconnect the foot-spa unit from any electrical source before
Disassemble the jet unit. All surface must be dry. Some jet
Components may contain sharp object and very hot after usage.
Warning
!!

INSTALLATIONS 8
1. Discharge pump may be connected to an existing sink drain or floor drain. It can also pump up to 7 ft high, but this
will increase the length of the drain time. The drain connection is at the rear of the unit by a 3/4” fitting.
2. Gravity drain uses a standard gravity drain. A floor drain is recommended. Connection via a P-Trap is supplied.
3. Hot and cold water supply connections are located at the rear of the unit (½” fittings).
Please be advised that the hot and cold water supply lines are not fitted with optional back flow Preventers unless
ordered at initial sale.
4. Have a qualified licensed electrician to install the wiring according to local codes.
The Cleanjets are 1/10 hp, 120V, 1.2 AMP 60OHZ. A 15 amp GFI protected circuit must be used to supply power to
the unit. The roller back massage chair uses a 115V supply.
5. Spa base should be anchored securely to the floor. The base may be anchored through
the opening in the back of the base wherever access is convenient for the installer.
6. Hand Held sprayer Model # ST700.20 meets the requirements of ASME A112.18.1-2005/CSA, B125.1-05
FAILURE TO ANCHOR THE BASE MAY RESULT IN PERSONAL INJURY OR DAMAGE TO THE UNIT.
DAMAGE AS A RESULT WILL VOID THE WARRANTY.
Plumbing Connections
GFI Outlet Required
Existing ½’’ Hot & Cold
Water Supply
Back-flow Preventer
Vacuum Breaker (Optional)
P-Trap
F oor
l
Wall
16 ’ - 24’’’
½” Hot & Cold Hoses
Optional
Typical Gravity Sink (Direct Drain)
Installation
Gravity Sink
2’’ - 3’’ drain pipe
to sewer line

INSTALLATIONS 9
GFI Outlet Required
Existing Drain Pipe
Discharge Pump
Drain Elbow
oo
Fl r
Wall
16’’ - 2 ’
4’
Ft- Le th
oo spa ng
½” Hot & Cold Hoses
Typical Discharge Pump Installation
GFI Outlet Required
Existing Drain Pipe
Minimum slope of 1/4’’
per foot to sewer line
P-Trap
ooFl r
Wall
16 ’ - 24 ’’ ’
Foot-spa Length
½” Hot & Cold Hoses
Typical Gravity Drain Installation
Existing ½’’ Hot & Cold
Water Supply
Back-flow Preventer
Vacuum Breaker (Optional)
Existing ½’’ Hot & Cold
Water Supply
Back-flow Preventer
Vacuum Breaker (Optional)
Check Valve

1. To fill water:
The foot-spa is provided with a single hot and cold mixing valve located on the front of your spa.
This is a pressure balance valve that requires you to lift the handle to start the water flow and to adjust to the
temperature that is desired. The clean jet motor must be completely submerged in water.
CAUTION: DO NOT USE FOAMING, SUDSING OR MINERAL OIL BASED ADDITIVES IN THE WATER.
2. To start whirlpool:
Press the button as shown. This will start your Clean Jet motor. You may stop the whirlpool function at any time by
pressing the button again.
3. The foot-spa is equipped with a hand held sprayer Model # ST700.20. To activate the hand shower, pull the hand
shower from the receptacle and depress the thumb control on the sprayer handle. This will turn on the water. When
You release pressure on the thumb control this will turn the water off.
4. To drain whirlpool tub:
The spa is equipped with a built in optional discharge pump. Open the drain plug by turning the control knob with as
shown. Press discharge pump timer button on the front of base (pump will run for approx. 2 min.) Average time for
drain 1 minute.
5. 9600 & 9700 chairs Shiatsu Roller back massage is equipped with a state of-the-art massage system. The
massage system is easy to use; the remote has a one touch power that starts select your own massage. You can
also adjust the front to rear position of the chair and the reclining back. By using the remote your client can adjust the
back to the most comfortable position.
13
Control Panel
Water Control
Drain Control
Jet On/Off
OPERATIONS & USE 10
BASIC PRECAUTIONS SHOULD ALWAYS BE OBSERVED, INCLUDING THE FOLLOWING:
1. Read and follow all instructions
2. DANGER. To reduce the risk of injury, do not permit children to use this unit unless they are supervised at all
times
3. Use this unit only for its intended use as described in this manual. Do not use attachments that are not
recommended by the manufacturer.
4. Never drop or insert any object into any opening.
5. Do not block jets during whirlpool operation.
6. The unit must be connected to an electrical supply circuit that is protected by a ground fault circuit interrupter.
7. The clean jet motor is magnetically driven and is insulated twice. Therefore it does not require to be bonded.
Save these instructions
Hand Spray
Model # ST700.20

OPERATIONS & USE 11
9620, 9700, 9600 Shiatsu Remote Control
Please refer to instruction manual for operations
LCD
Timing
Auto
Neck
Shoulder
Power
Pause
Kneading
Knocking
Width
Lower
Adjustment
Incline
Seat
Forward
Seat
Backward
Recline
Intensity
Air On/Off
Back Waist
Kneading
Upper
Adjustment
Speed
Knocking
Timing
Upper
Body Knead Flap Knead
Flap
Neck
Shoulder Press Knock
Back
Waist
Back
Stretching
Speed Width
Seat
On/Off Intensity
Mode
Seat
Forward Seat
Backward
Seat
Incline
Seat
Recline
Power
LCD
TT960
Manual

Gulfstream Inc. highly recommends the following cleaning regimen. You should always contact your local governing
agency for their specific cleaning and disinfecting requirements and regulations for pedicure spas. For your clients
safety, always use the regulations as a minimum standard for cleaning and disinfecting. Combining your states
standards with the regimen listed below will provide your clients with a safe and healthy pedicure spa environment
experience.
Routine maintenance:
Powdered cleansers or abrasives are NOT RECOMMENDED. A clean towel or sponge, are all that are usually
needed. A soft bristled brush may be used when excessive residue is present. Use a mild soap and water solution to
clean the upholstery, but do not over wet. Wipe dry with a clean towel. No internal maintenance of the spa
components is necessary. Remove clean jet caps and spray with disinfectant after each use. For extra protection, our
recommendation is that the system be flushed daily or weekly depending on use. To flush the clean jet system fill spa
with hot water to just above the jets. Add disinfectant. Run whirlpool for 15 minutes, drain and then wipe dry with
clean soft cloth.
NOTE:
Cleaning or sanitizing is NOT disinfecting. According to the Centers for Disease Control and Prevention (CDC), and
the US Environmental Protection Agency (EPA), disinfecting occurs only when there is a reduction of pathogenic
microbes at 99.999%. Sanitizing is only a reduction of 99.9%. Cleaning of whirlpool pedicure spas requires surfactant
and chelating detergents that are low-foaming and have the ability to remove body oils, organic oil additives, mineral
oil, skin cells, nail clippings etc that can accumulate both in the basin and the jets which may become a fertile area for
micro organisms to grow.
The use of oil based products can build up in the whirlpool system causing clogging in the jets. Adherence to the
above cleaning will minimize build up. Gulfstream does not recommend the use of mineral oil based products.
TESTING/FLUSHING FOOT SPA
After foot spa has been installed, fill tub with water just above the jets. Carefully check for leaks at drain and over
flow. After checking underside for leaks turn on system by pushing whirlpool button and watch for leaks as water
circulates. Let tub run full cycle. Open drain plug for water discharge.
CLEANING & MAINTENANCE 12
Please refer the diagrams to remove jet covers for cleaning

CLEANING & MAINTENANCE 13
Cleaning The Magnet Jet (Step by Step)
1. Pull Magnet Jet off from the pedicure bowl
2. Turn the Top Plate of the Magnet Jet counter-clockwise
3. Separate the three components of the Magnet Jet: Top Plate, Magnet, Back Plate
4. Wash each component of the Magnet Jet in a recommended or high quality solution or cleaning agent
5. Reassemble the Magnet Jet using the following directions:
- Notice that on the Back Plate there is a small hole (1/16’’ of an inch), this small hole indicates the bottom of the
Back Plate
- Put the Magnet, with the three circles facing upwards, in the center of the plate on top of the Magnet and the
Back Plate
so that the tab is slightly left from the “top”
- Turn the Top Plate clockwise until you hear a “click-sound”
** Note: there are 3 pegs on the back of the Back Plate, the pegs which has small holes (1/18’’ of an inch) should
be aligned with the Top Plates tab after the “click-sound”
6. Remount the Magnet Jet onto the pedicure bowl by aligning the pegs so that the tab is at the top of the Magnet Jet
Top Plate Magnet Back Plate Top Back Plate Bottom
Three Magnet Jet Components
Warning
!!
®
- Do not run Cleanjet MAX without water. This will void your warranty
- Do not place two wet ends in the same bowl when cleaning
the jet’s strong magnets could cause injury (pins your fingers)
- Do not attach two wet ends to each other. Doing so will cause
breakage to wet ends and will void the warranty
