SILEATM
INSTALLATION INSTRUCTIONS
R. 7/21
Pull Installation........................................................2
Drawer Removal & Installation.............................3
Pendaflex Bars..........................................................4
Digital Lock..............................................................6
Adjustable Shelves...................................................7
Side Access Locker..................................................9
Floating Shelves.....................................................11
Mobile Pedestal......................................................13
Trough & End Caps..............................................14

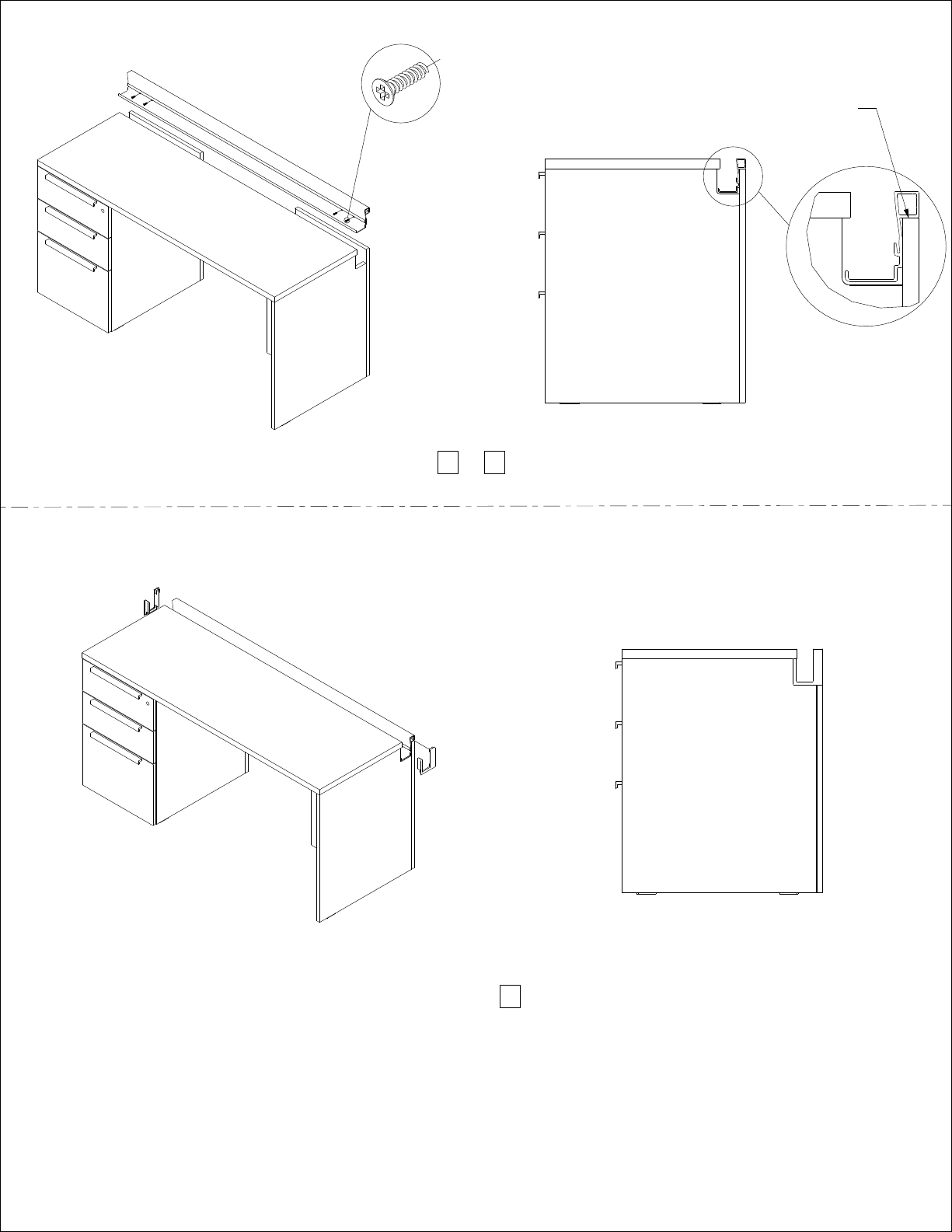

Hanging Mod Panels............................................16
Worksurface Joining.............................................18
Wall Mount Worksurface....................................21
Wall Access Panel Build.......................................22
Modular Station Build..........................................24
Wall Mount Wall...................................................31
Wall Shelf................................................................33
Magnetic Wall........................................................35
Wall Mount Cabinet/Workwall..........................36
Wall Mount Filler Strip........................................38
Surface Mount Units.............................................40
Surface Mount Inserts...........................................42
External Tops.........................................................43
Legs..........................................................................46
Riser/Laptop Tray Attach.....................................49
External Stiffener...................................................51
Credenzas-Bridges-Returns HGT ADJ..............52
Full Mod and Half Mod HGT ADJ.....................64
Telescoping HGT ADJ..........................................73
Shrouded T Height ADJ.......................................86
Bookcase Height ADJ...........................................90
Split Top Desk........................................................92
Cantilever Desk...................................................104
Smart Storage.......................................................114
Smart Pedestal......................................................115
Height Adjustable Table Initiation....................117
L-Shape Desk........................................................120
J-Star Use Instructions........................................128

ASSEMBLY INSTRUCTION

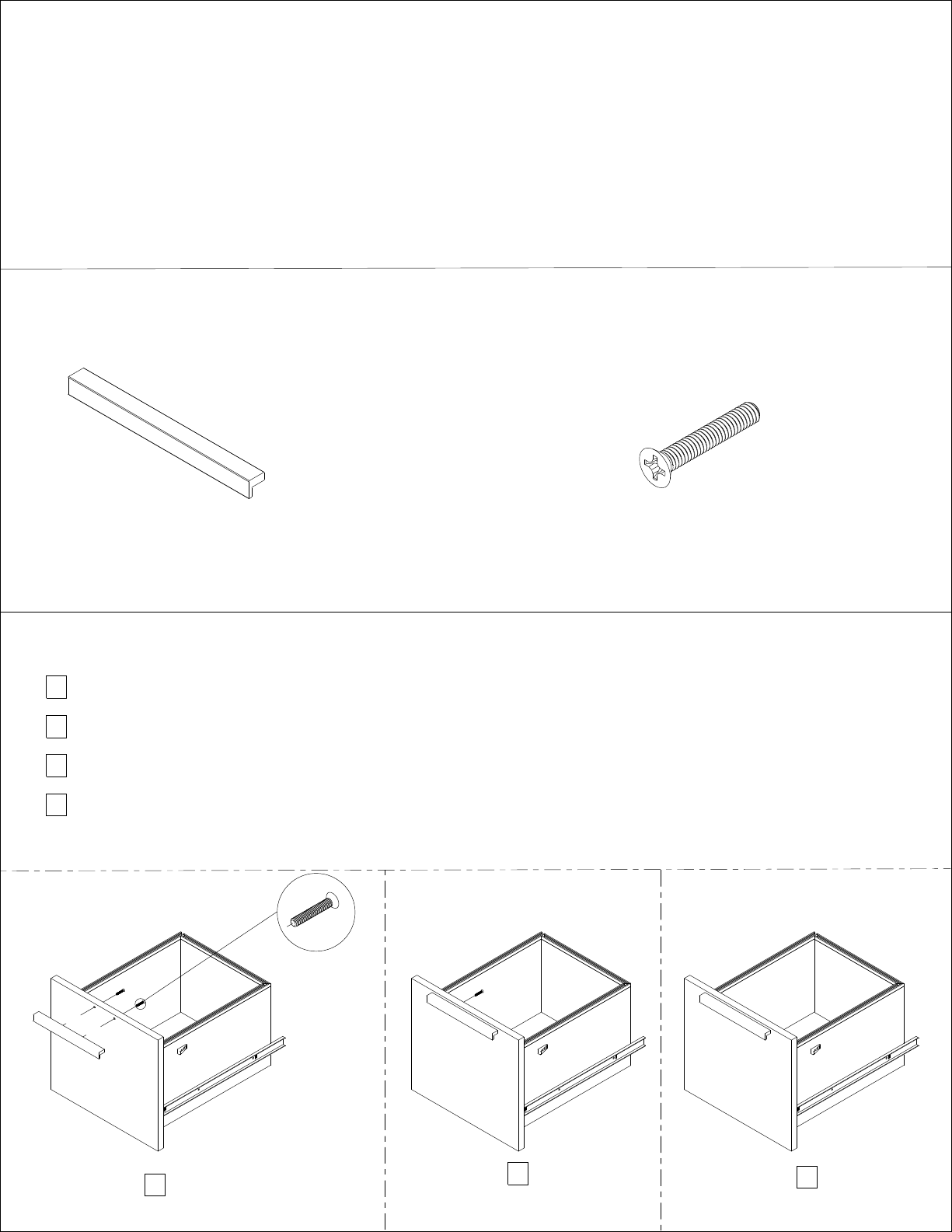

PULL INSTALLATION
GENERAL NOTES:
1. ALWAYS PROTECT THE PULLS AND DRAWERS DURING INSTALLATION.
2. MAKE SURE TO POSITION THE PULL PROPERLY TO LINE UP WITH THE SCREW HOLES
3. DEPENDING ON THE HARDWARE PACK, THE NUMBER OF PULLS AND SCREWS WILL VARY.
PULL HARDWARE
FRONT MOUNT PULL SCREW 8X32 -1 FLAT HEAD PH
PULL INSTALLATION SETUP
1 REMOVE PULLS AND SCREWS FROM HARDWARE BAG MAKING SURE NOT TO DAMAGE THEM IN THE PROCESS
2 ALIGN THE PULL UP TO THE DRAWER FRONT MAKING SURE YOU LINE UP THE HOLES PROPERLY
3 PARTAILLY SCREW IN THE FIRST SCREW SO THAT YOU CAN ALIGN THE PULL IF NEEDED
4 ONCE BOTH SCREWS ARE PARTIALLY IN, START TO TIGHTEN BOTH SCREWS
24
3
S2013-0002-00
REV A
DATE: 11-JUL-2018
PAGE 1 OF 1
1" FLAT HEAD
MACHINE SCREW

PAGE 1 OF 1
ASSEMBLY INSTRUCTIONS

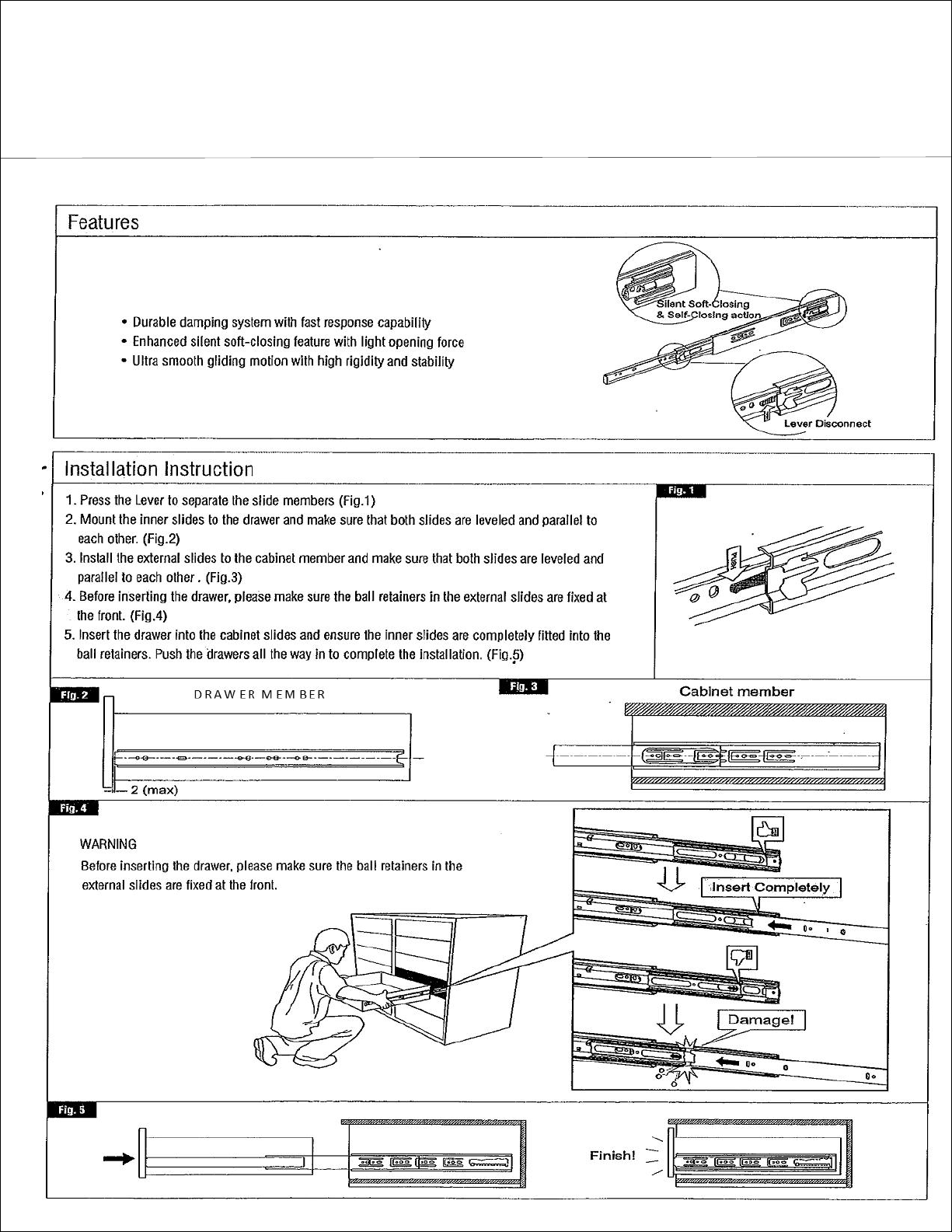

DRAWER REMOVAL AND INSTALLATION
GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
2. BE CAREFUL WHEN INSTALLING SLIDES AND DO NOT USE FORCE.
DRAWER REMOVAL AND INSTALLATION SETUP
S2013-0004-00
REV A
DATE: 03-AUG-2018

ASSEMBLY INSTRUCTION
PENDAFLEX BARS
GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
2. LAMINATE AND WOOD/PAINT PENDAFLEX BARS ARE LOCATED IN THE SAME POSITION.
19013-0022-00
REV B
DATE: 05-NOV-2018

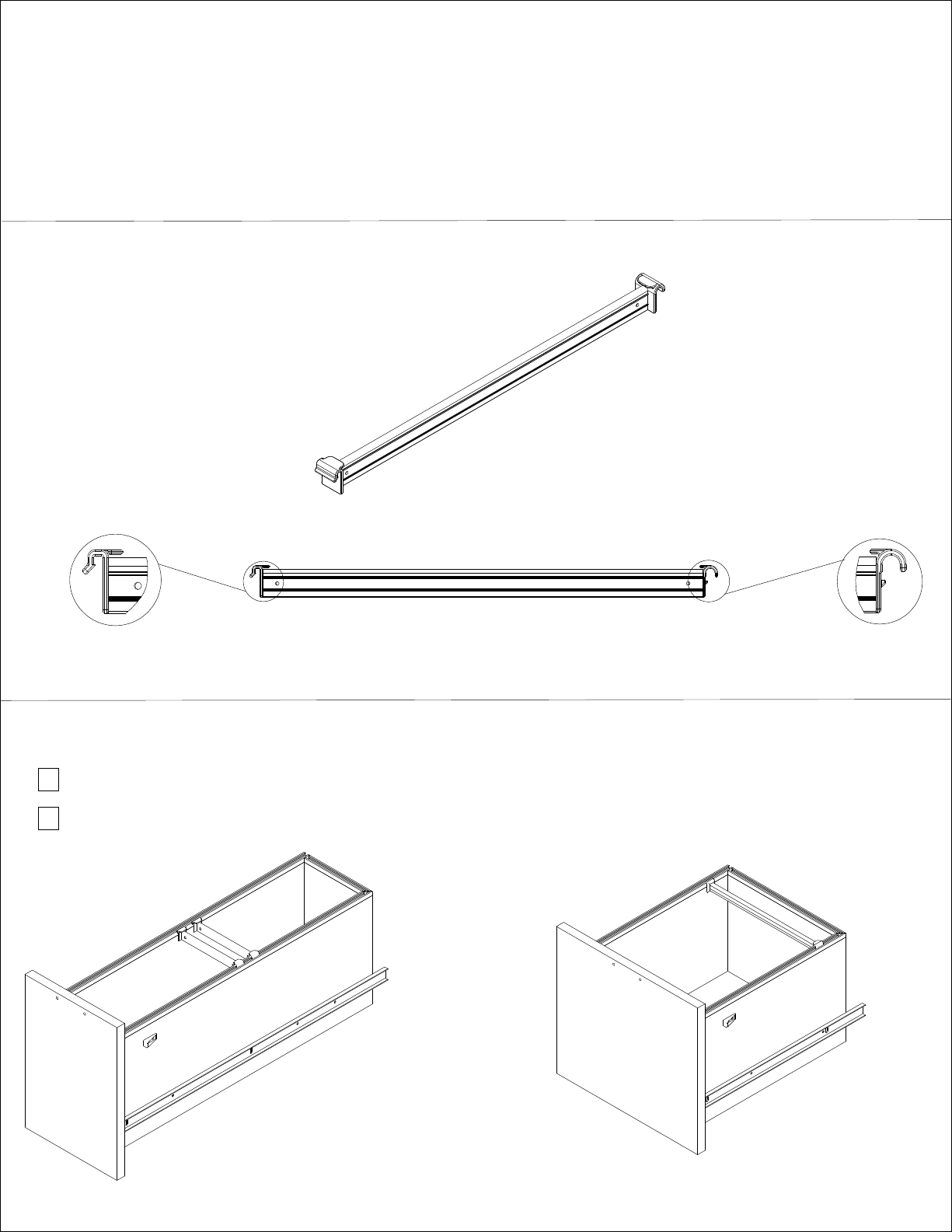

PENDAFLEX BAR EXAMPLE
PENDAFLEX BARS SETUP
1 DEPENDING ON THE DRAWER BODY, DIFFERENT LENGTHS OF PENDAFLEX BARS WILL BE PROVIDED
2 WHEN MOVING PENDAFLEX BARS, BE CAREFUL AS TO NOT DAMAGE THE UNIT OR THE BARS

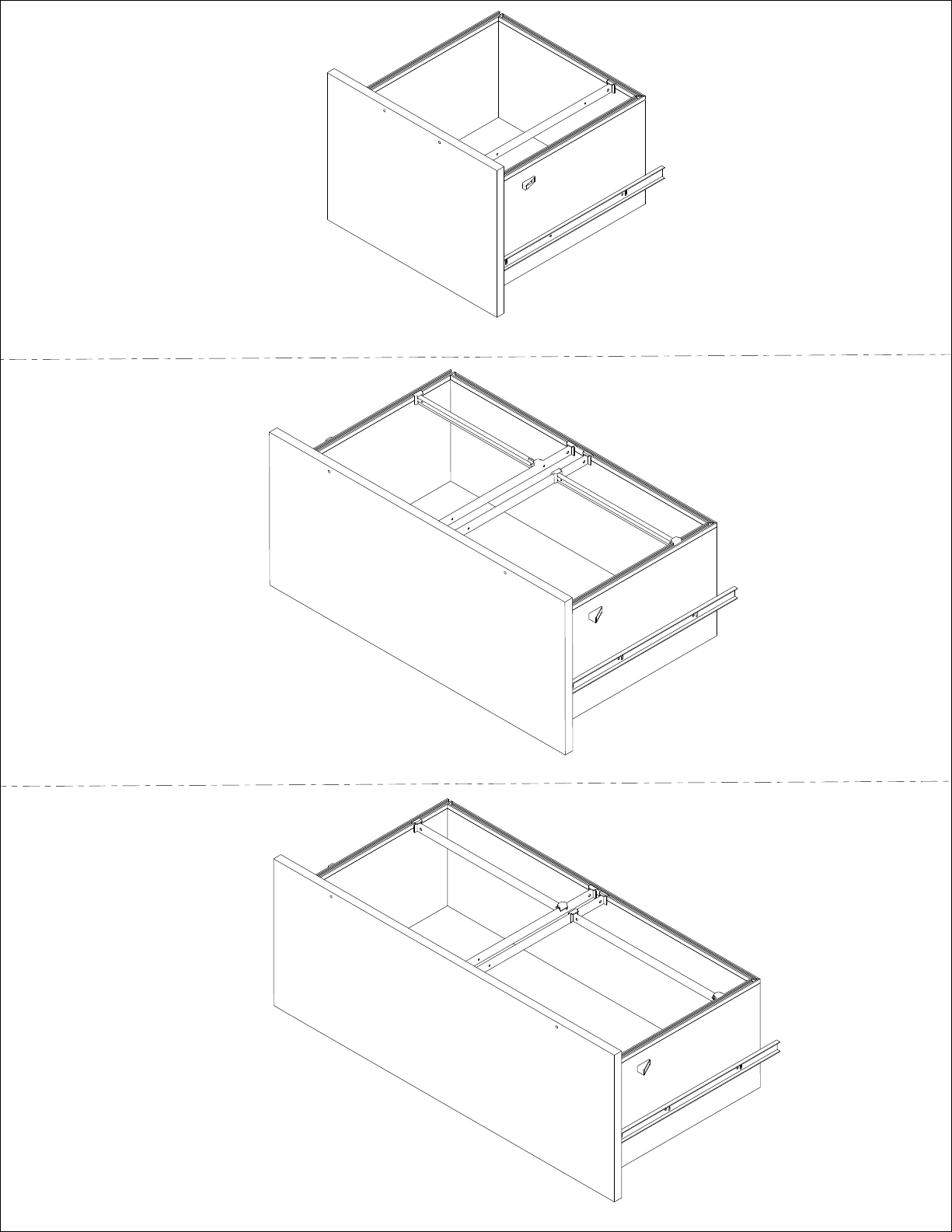

9W DRAWER BODY 15W DRAWER BODY
PAGE 1 OF 2
**PENDAFLEX-PENDAFLEX
BAR SIDE**
**PENDAFLEX BAR-DRAWER SIDE**
SCALE 0.120
DETAIL B

18W DRAWER BODY
30W DRAWER BODY
36W DRAWER BODY PAGE 2 OF 2
SEE DETAIL C
SEE DETAIL D

ASSEMBLY INSTRUCTIONS

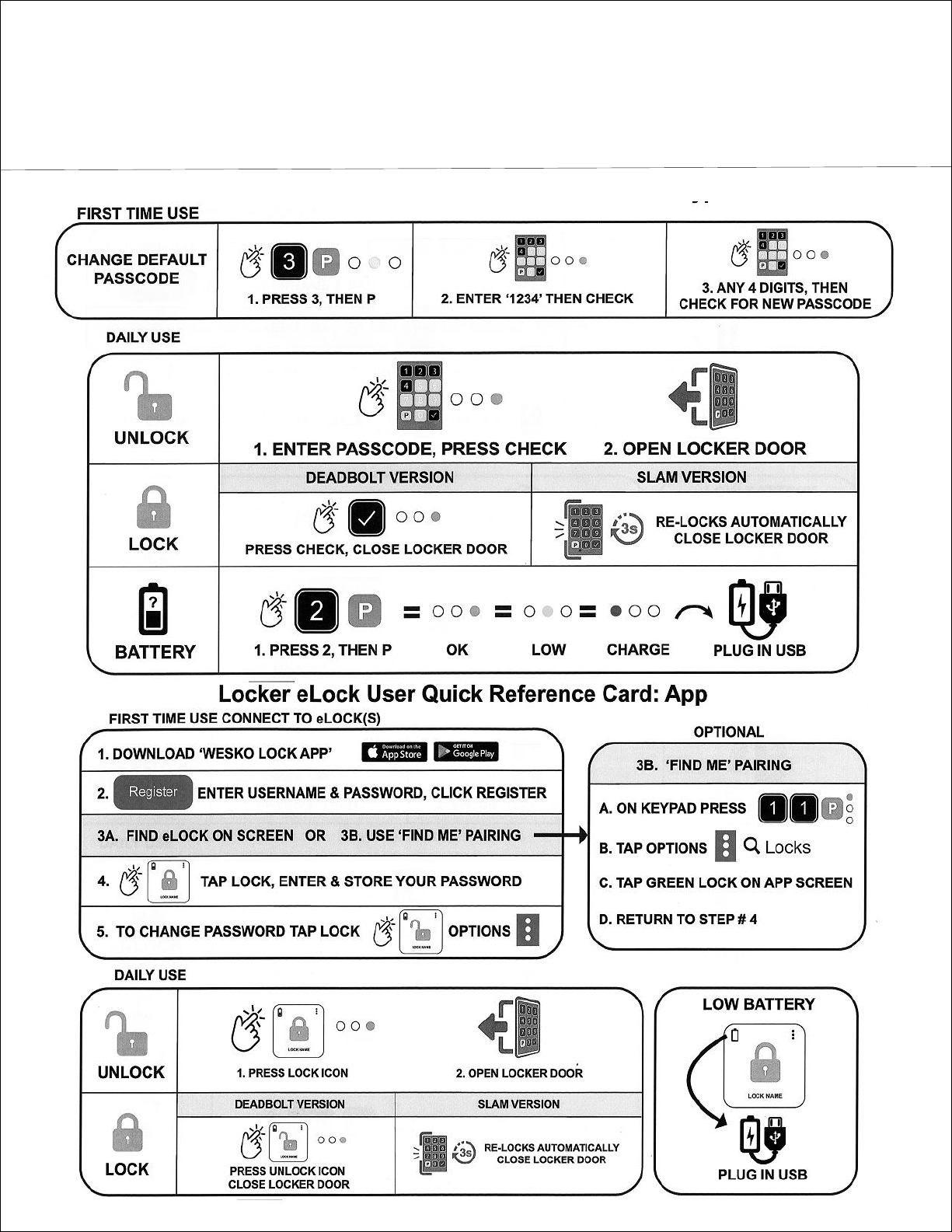

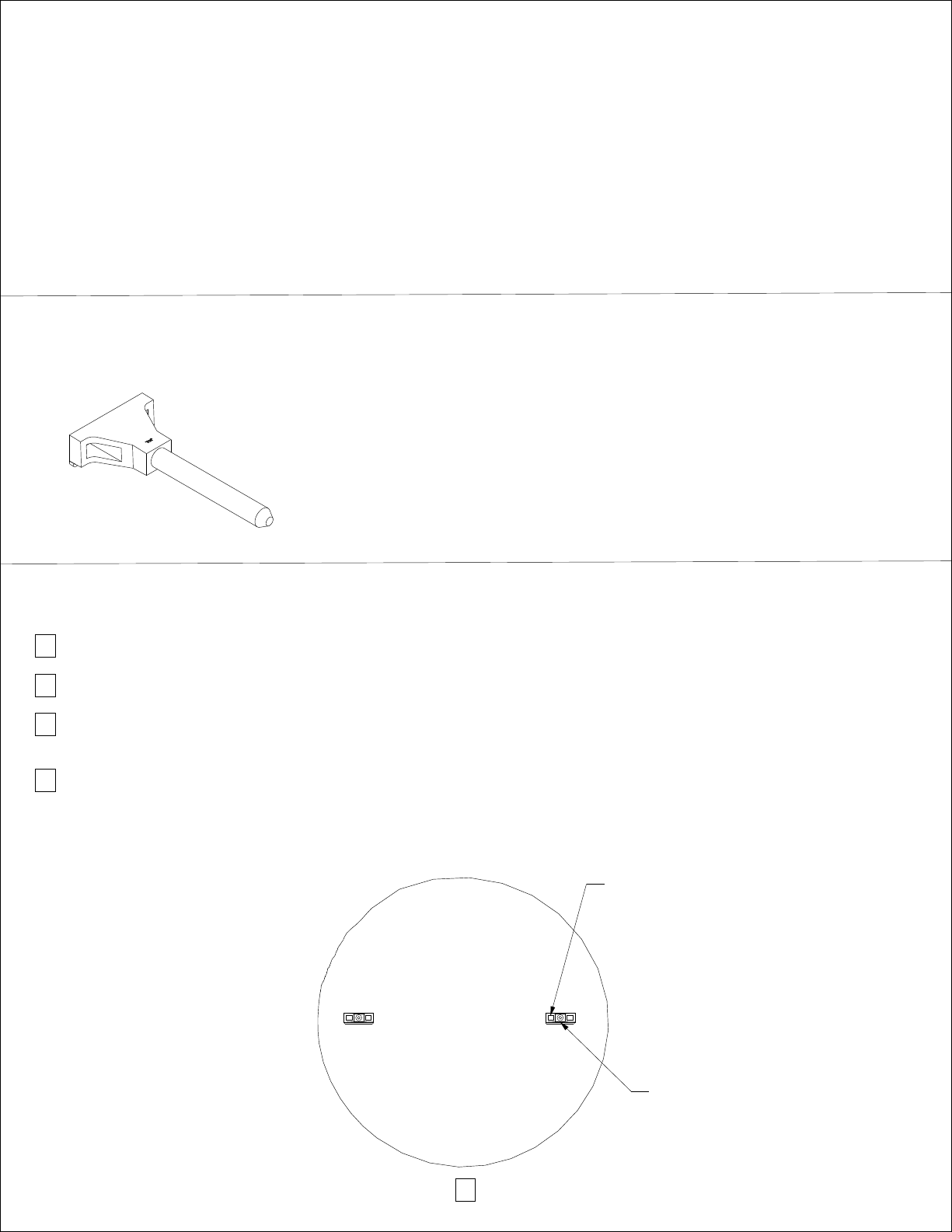

DIGITAL LOCK
S2013-0005-00
REV A
DATE: 20-JUL-2018
GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
DIGITAL LOCK SETUP
PAGE 1 OF 1

ASSEMBLY INSTRUCTION
ADJUSTABLE SHELVING
GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
2. INSTALLATION PROCESS FOR THE ADJUSTABLE SHELF IS THE SAME
FOR LAM, WOOD AND PAINT.
3. SHELVES WILL BE INSTALLED IN THE UNIT.

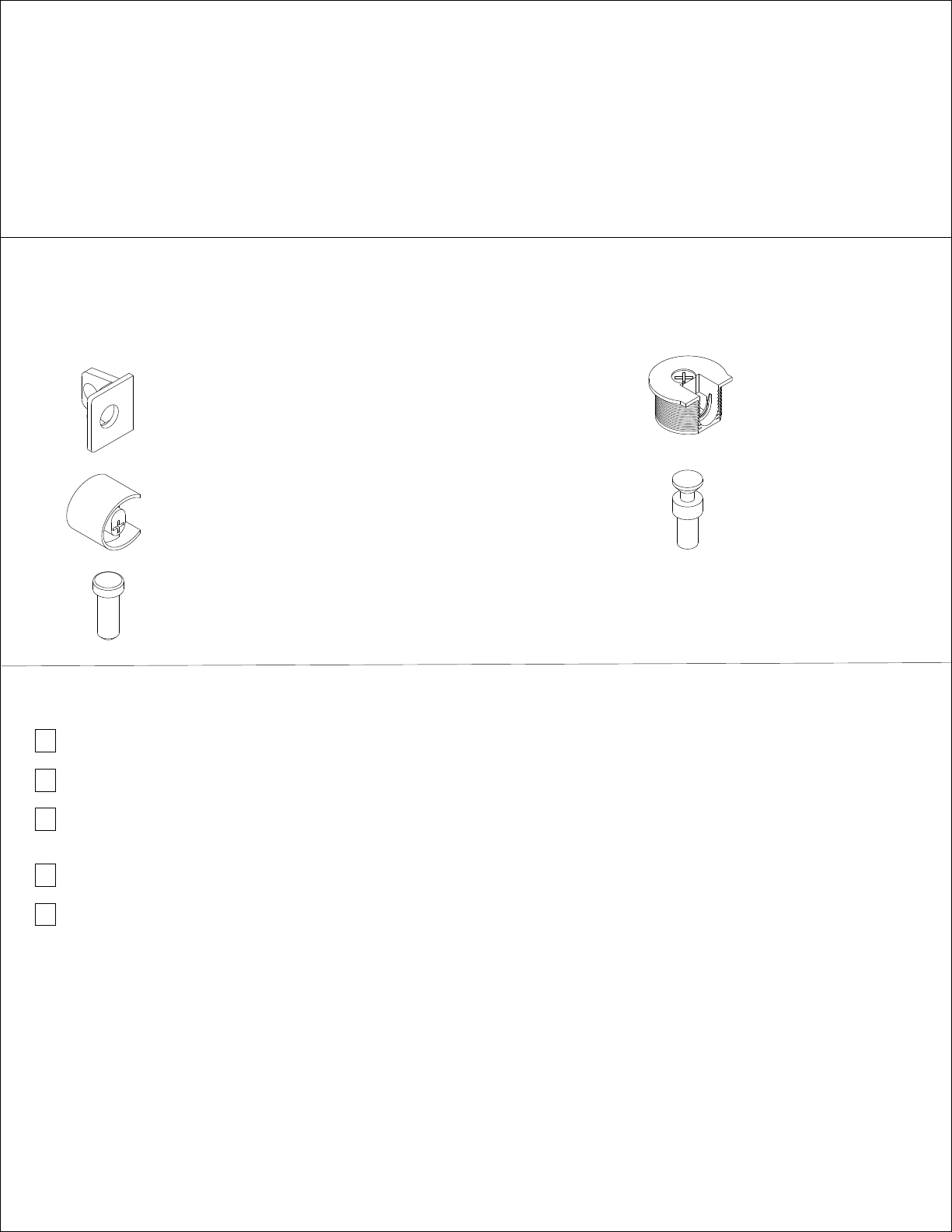

ADJUSTABLE SHELVING HARDWARE
WOOD/PAINT LAMINATE
SHELF CLIP
INSERT PLASTIC SHELF
SHELF PIN
RAFIX CAM
REMOVABLE RAFIX PIN

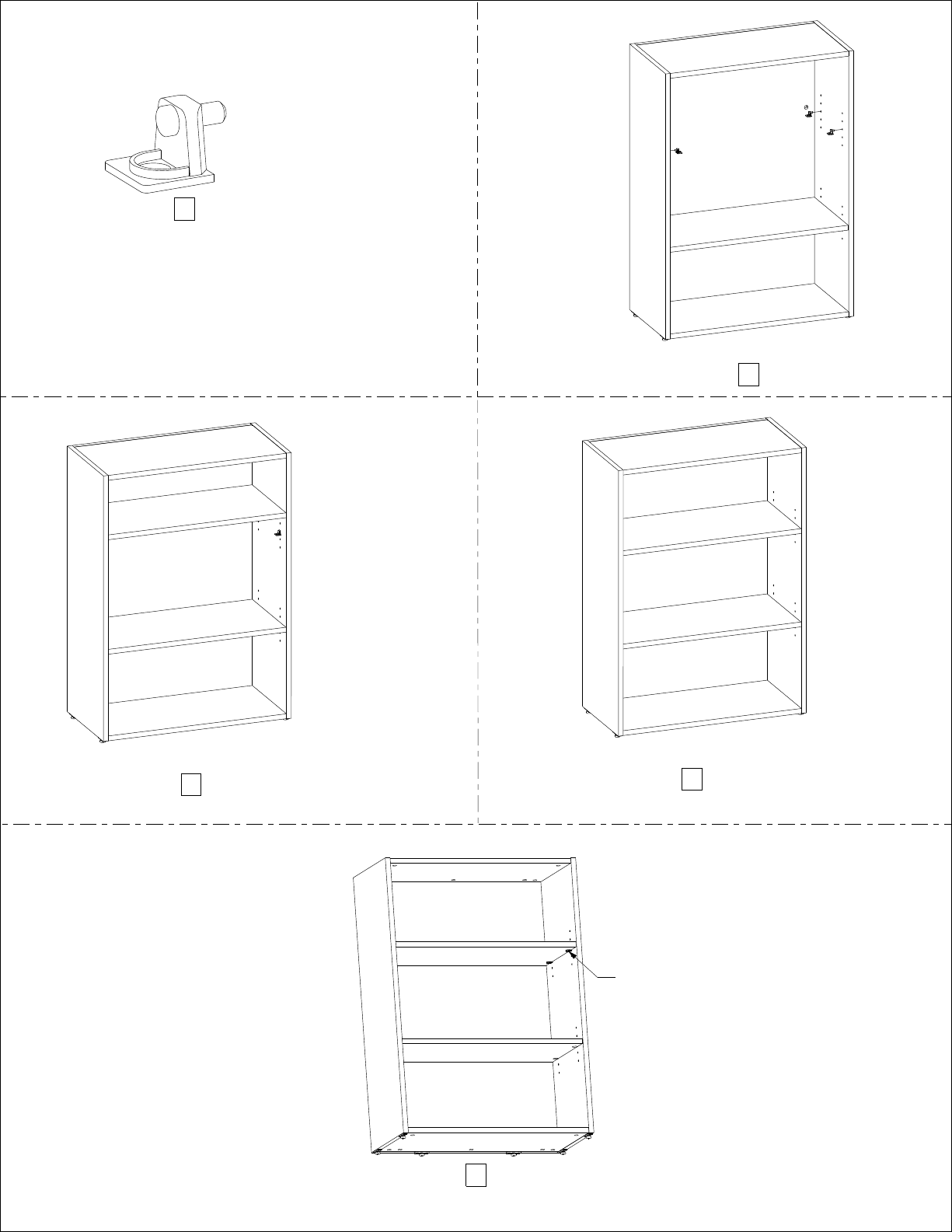

ADJUSTABLE SHELVING SETUP
1 INSERT THE SHELF PIN THROUGH THE SHELF CLIP HOLE
2 INSERT THE PIN INTO THE DESIRED HOLE IN THE END PANEL
3 ONCE ALL PINS AND SHELF CLIPS ARE IN THE DESIRED LOCATION
BRING THE SHELF INSIDE THE UNIT ABOVE ALL FOUR PINS
4 BRING SHELF DOWN ONTO THE PINS AND CLIP INTO PLACE
5 USE A SCREW DRIVER TO TIGHTEN THE INSERT INTO PLACE
**LAMINATE WORKS IN THE SAME FASHION JUST DIFFERENT HARDWARE**
**BE CAREFUL WHEN MOVING SHELVES AS TO NOT PULL OUT THE PINS TOO HARD AND DAMAGE THE PANELS**
**THE UNIT WILL HAVE THE ADJUSTABLE SHELVES ALREADY INSTALLED**
19013-0018-00
REV A
DATED: 13-JUL-2018
PAGE 1 OF 2

1
2
34
5
PAGE 2 OF 2
SHELF PIN AND
SHELF CLIP
TIGHTEN DOWN SCREW

3 LAY DOOR ON FLAT SURFACE FACE DOWN, INSTALL HINGES ON DOOR WITH
(2) #6x5/8"LG FLAT HEAD SCREWS ON EACH HINGE INTO PROVIDED BORING
REF "HINGE" VIEW
4 FOR GLASS DOOR: INSTALL FOOT STOP AT BOTTOM LOWER CORNER USING (3)
FLAT HEAD SCREWS #6x5/8"LG, DOOR COMES WITH BORING FOR TWO LOCATIONS
TO ACCOMADATE UNEVEN FLOORS
5 MOUNT DOOR. HINGES WILL SNAP INTO BASE PLATES ALONG END PANEL

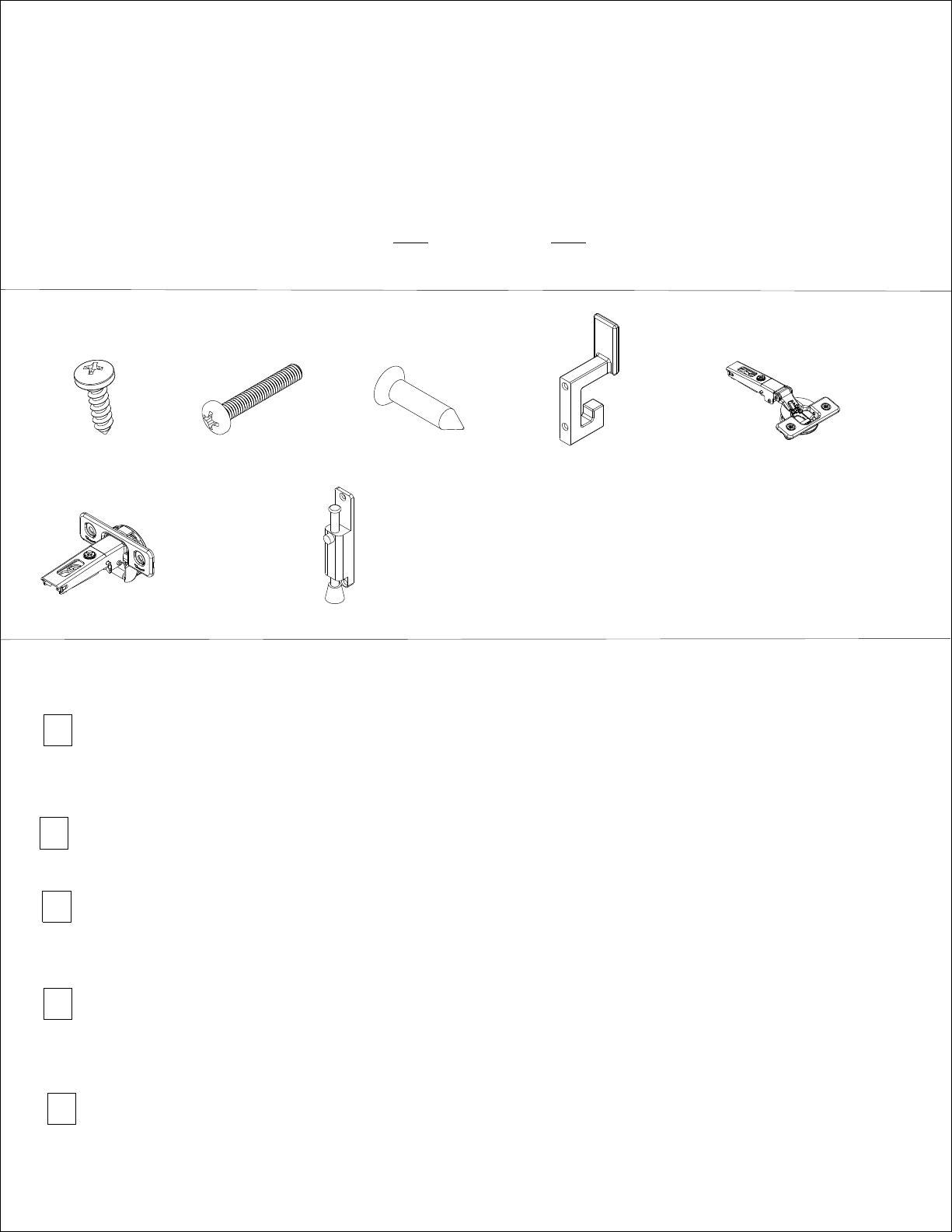

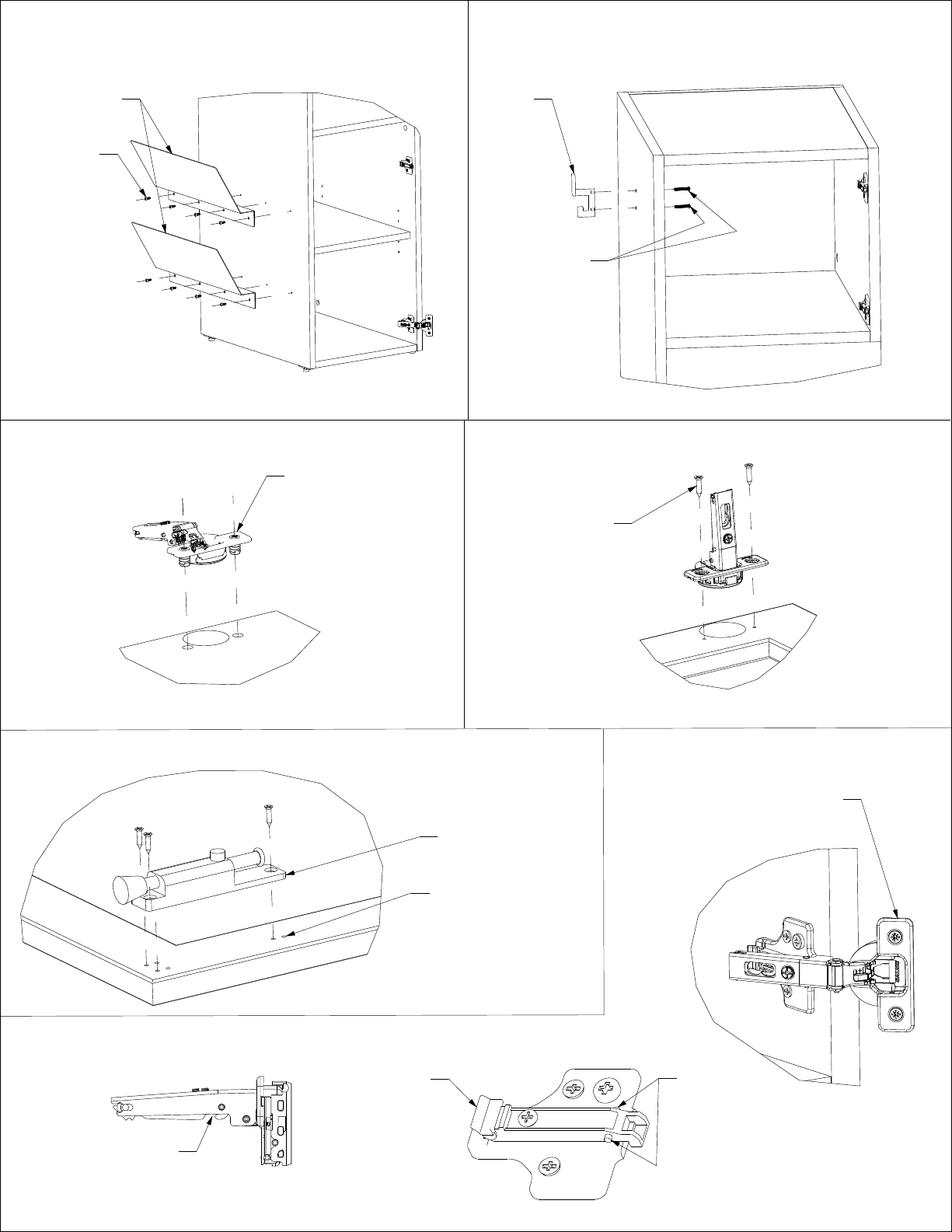

SIDE ACCESS LOCKER SETUP
#10x5/8 BLK
PAN HEAD
M7 x .7 x 25mm
SILVER PAN HEAD
#6x5/8 SILVER
FLAT HEAD COAT HOOK SOFT CLOSE HINGE
(WOOD DOORS)
SOFT CLOSE HINGE
(GLASS DOORS) DOOR STOP
SIDE ACCESS LOCKER HARDWARE
GENERAL NOTES
1. ALWAYS PROTECT THE UNIT DURING INSTALLATION.
2. WOOD/PAINT UNITS WILL SHIP ASSEMBLED. LAMINATE UNITS WILL SHIP UNASSEMBLED.
19013-0016-00
REV: B
DATE: 13-NOV-2018
1 PLACE UNIT AND ADJUST GLIDES UNTIL UNIT IS LEVEL. END PANEL OF
ADJOINING UNIT SHOULD BE FLUSH AT BOTTOM. FOR WOOD AND PAINT UNITS
THE GLIDES WILL NEED TO BE SCREWED INTO GLIDE PLATES
WARNING
LEVEL UNIT BEFORE MOUNTING DOOR.
2 INSTALL METAL SHOE RACKS USING (8) #10X5/8"LG PAN HEAD SCREWS, LOCATE
USING PRE-DRILLED HOLES NEAR BOTTOM OF END PANEL. REF "SHOE RACK" VIEW
PAGE 1 OF 2
ASSEMBLY INSTRUCTIONS
SIDE ACCESS LOCKER

SHOE RACK COAT HOOK
LAMINATE DR HINGE HINGE DR GLASS
FOOT STOP
HINGE HOOKS
TO ACCEPT
LATCH PINS
HINGE CONNECTION
SHOE RACK
SCREW
5/8"LG
BLACK
PAN HEAD
(8 PLCS)
COAT
HOOK
SCREW
M4 x .7
25mm LG
PAN HD
LAMINATE
HINGE
PRESS IN
PLACE AND
TIGHTEN
SCREWS
PROVIDED
PILOT HOLES
FRAME,
INTO ALUM
DIRECTLY
SCREW
SCREW FOOT STOP
IN PLACE
TWO SETS OF HOLES
PROVIDED FOR
ADJUSTMENT
HOOK HINGE OVER
BASE PLATE LATCH PINS
AND PIVOT INTO CATCH
BASE PLATE
LATCH PINS
CATCH
PAGE 2 OF 2
