GVS KI/U 0401.1 User manual

K-BUS®Universal Interfaces, 4 fold_V1.1
KI/U 0401.1
KNX/EIB Home and Building Control System
User Manual

Attentions
1. Please keep devices away from strong magnetic field, high
temperature, wet environment;
2. Do not fall the device to the ground or make them get hard impact;
3. Do not use wet cloth or volatile reagent to wipe the device;
4. Do not disassemble the devices.

Contents
Chapter 1 General--------------------------------------------------------------------------------------------------------------------------- 1
1.1. Product and functional overview------------------------------------------------------------------------------------------------ 1
Chapter 2 Technical data----------------------------------------------------------------------------------------------------------------- 2
Chapter 3 Dimension and Connection diagram--------------------------------------------------------------------------------- 3
3.1. Dimension diagram------------------------------------------------------------------------------------------------------------------3
3.2. Connection diagram-----------------------------------------------------------------------------------------------------------------3
Chapter 4 Project design and programming--------------------------------------------------------------------------------------4
4.1. Overview of the functions----------------------------------------------------------------------------------------------------------4
Chapter 5 Parameter setting description in the ETS---------------------------------------------------------------------------5
5.1. Description of setting parameter in part of device channel--------------------------------------------------------------5
5.1.1. Parameter window “General Setting”------------------------------------------------------------------------------------ 5
5.1.2. Parameter window “Switch X”----------------------------------------------------------------------------------------------6
5.1.3. Parameter window “Switch/dimming, X”-------------------------------------------------------------------------------12
5.1.4. Parameter window “Value/force output, X”--------------------------------------------------------------------------- 15
5.1.5. Parameter window “Scene control, X”--------------------------------------------------------------------------------- 18
5.1.6. Parameter window “Switching sequence, X”-------------------------------------------------------------------------22
5.1.7. Parameter window “Counter, X”----------------------------------------------------------------------------------------- 25
5.1.8. Parameter window “Multiple operation, X”----------------------------------------------------------------------------29
5.1.9. Parameter window “Shutter control, X”-------------------------------------------------------------------------------- 32
5.2. Description of setting parameter in part of LED channel---------------------------------------------------------------36
5.2.1. Parameter window “Flashing, X”-----------------------------------------------------------------------------------------36
5.2.2. Parameter window “Switch, X”------------------------------------------------------------------------------------------- 38
5.2.3. Parameter window “Control by Input, X”------------------------------------------------------------------------------ 39
5.2.4. Parameter window “Indicate Object In, X”---------------------------------------------------------------------------- 40
5.2.5. Parameter window “Indicate Object Out, X”--------------------------------------------------------------------------41
5.2.6. Parameter window “Indicate object In and Out, X”-----------------------------------------------------------------42
Chapter 6 Communication object description----------------------------------------------------------------------------------43
6.1. Communication object “Switch”------------------------------------------------------------------------------------------------43
6.2. Communication object “Switch/dimming”----------------------------------------------------------------------------------- 44
6.3. Communication object “Value/Force output”------------------------------------------------------------------------------- 44
6.4. Communication object “Scene control”-------------------------------------------------------------------------------------- 45
6.5. Communication object “Switch sequence”--------------------------------------------------------------------------------- 46
6.6. Communication object “Counter”---------------------------------------------------------------------------------------------- 47
6.7. Communication object “Multiple operation”-------------------------------------------------------------------------------- 48
6.8. Communication object “Shutter control”-------------------------------------------------------------------------------------49
6.9. Communication object “LED X-flashing”------------------------------------------------------------------------------------ 49
6.10. Communication object “LED X-Switch”------------------------------------------------------------------------------------ 50

K-BUS®KNX/EIB Universal Interfaces
1
Chapter 1 General
The Universal Interfaces can install to be system with KNX bus and other device, which are mainly
use in building control system. The functions are both simple to operate and intuitive, users can program
it according to the requirement to implement the function systematically.
This manual provides technical information about the Universal Interfaces in detail for users as well
as assembly and programming, and explains how to use the Universal Interfaces by the application
examples.
1.1. Product and functional overview
The Universal Interfaces achieve the functional applications via conventional push buttons/switches,
communicate by technical binary, which are used to control the devices such as the Dimmer Actuator/the
Switch Actuator, to control domestic appliance indirectly. At the same time, they also enable the control
of LEDs. The extremely compact design enables the device to be inserted in a conventional 80mm or
86mm wiring box.
The Universal Interfaces connect to the bus though the KNX connection terminals and have no use
for additional supply voltage. It is available to assign the physical address and set the parameters by
Engineering design tools ETS with VD4 (higher than edition ETS3).
The Universal Interfaces have many functions that can be used in a wide variety of application
areas. The following list provides an overview:
Switching and dimming function.
Control of blinds and shutters.
Sending of values e.g. temperature values、water line.
Recalling and storing of scenes.
Trigger an LED for reporting an operation.
Operation of various loads by multiple push button actions.
Operation of several loads in a fixed switching sequence.
Standard counting and differential counting.
Each channel of a device can adopt any of the functions described above.

K-BUS®KNX/EIB Universal Interfaces
2
Chapter 2 Technical data
Power supply
Operation voltage
21~30V DC, via the KNX bus
Input/output
4 fold inputs
Can be individually configured per input
4 fold LED
Can be individually configured per LED
Input scanning voltage
20 V DC
Input current
0.5mA
LED output voltage
5V DC
LED output current
max.2.5mA, limited via series resistor of 2KΩ
Safety
Short-circuit-proof, overload protection, reverse
voltage protection
Operating and
display
Programming LED and button
For assignment of the physical address
Green LED flashing
Indicate the application layer running normally
Connections
Input/output
2*5-pin cables, approx. 30 cm long, can be
extended to max. 10 m
KNX
via bus connecting terminal
Temperature
Operation
-5°C…45°C
Storage
-25°C…55°C
Transport
-25°C…70°C
CE mark
In accordance with the EMC guideline and the low voltage guideline
Approvals
EIB/KNX certificate
Installation
Standard 80mm or 86mm wall box
Size
46mm×46mm×11.7mm
Weight
0.05 KG

K-BUS®KNX/EIB Universal Interfaces
3
Chapter 3 Dimension and Connection diagram
3.1. Dimension diagram
3.2. Connection diagram
1
KNX bus connection terminal
4
LED terminal
2
Programming LED
5
KEY terminal
3
Programming button

K-BUS®KNX/EIB Universal Interfaces
4
Chapter 4 Project design and programming
4.1. Overview of the functions
Application program
Number of
communication objects
Max. number of
group address
Max. number of
associations
Universal Interfaces, 4 fold
40
80
80
The following functions can be set separately for each input:
Switch sensor: For switching the lighting or scanning a floating contact; Distinction between
short/long operation and cyclical sending of the contact state are possible.
Switch/dimming sensor: For switching/dimming the lighting; There are start/stop dimming and
stepwise dimming, as well as dimming via a single push button are possible.
Value/Forced operation: For sending the valued of different data types(e.g. temperature values). It
is possible to send different values or data types for short/long operation, possible to activate/deactivate
the forced operation of actuators.
Control scene: For recalling and storing the states of several actuator groups. The actuator groups
can either be controlled via max. 5 individual objects or via an 8 bit scene object.
Switching sequence: For the operation of several actuator groups in a preselected sequence, e.g. the
latching relay.
Counter: For counting input pulses. Various data types of the counter can be set. It is able to set the
counting rate, whether to sending the current counting values cyclically and the differential counter when
enables an additional counter. The differential counter can be reset and run out in report, thereby, it is
convenient to count the daily consumption.
Push button with multiple operations: For triggering various functions depending on the
frequency of the operation. A long operation can also be detected and a function can be triggered.
Shutter sensor: For movement and adjustment of a shutter or blind. Eight present operation modes
are possible in total.
Control LED: For controlling a light-emitting diode, switching and flashing. As the switch, it is with
time limit that turns off automatically after a preset time; as the flash, it is able to set the flashing rates.

K-BUS®KNX/EIB Universal Interfaces
5
Chapter 5 Parameter setting description in the ETS
Parameters and objects in the device application are outlined in this section. Parameters and
objects which are assigned to each channel, are equivalent and described in the following sections using
output A as an example.
5.1. Description of setting parameter in part of device channel
5.1.1. Parameter window “General Setting”
Parameters for the functions which affect the complete device can be set via the Fig.1.
Fig.1 parameter window “General Setting”
Parameter “Limit number of Tele.”
It is use to limit the number of sending telegrams to decrease the burthen of bus. It is possible to set
how many telegrams can be sent within an adjustment period.Options:
Yes
No
Parameter “Period”
It is able to set the limit time of sending telegrams.Options:
100ms
500ms
1s

K-BUS®KNX/EIB Universal Interfaces
6
……
1min
10min
Parameter “Max. Number Tele. Within a period [1…255]”
It is able to set the Max. number of sending telegrams within a setting period.Options: 1~255
5.1.2. Parameter window “Switch X”
Parameter window “Switch X” can be shown in Fig.2 and Fig.4. Fig.2 do not distinguish between
long and short operation while Fig.4 opposite.

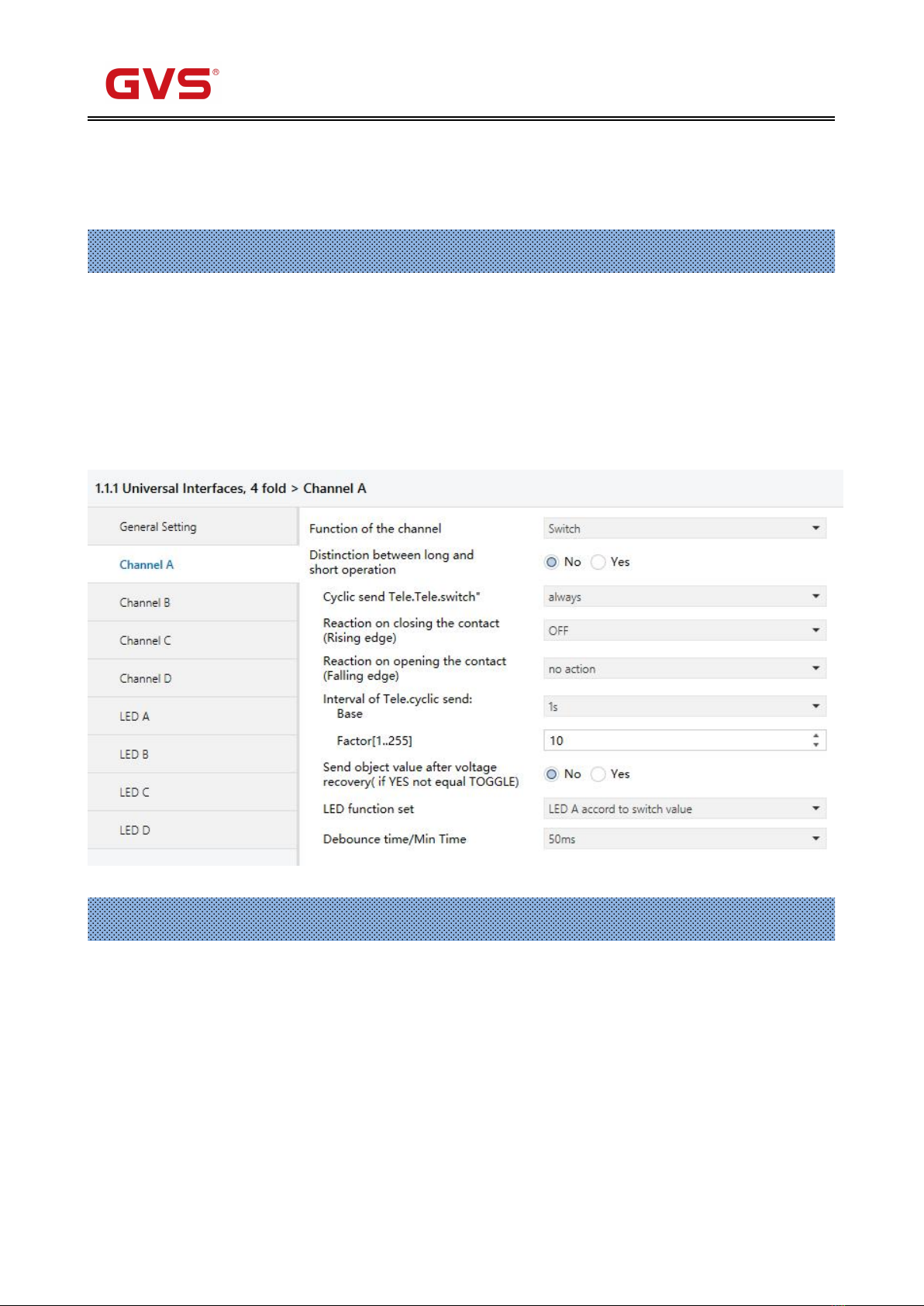

Fig.2 Parameter window “Switch X”(do not distinguish between long and short operation)
Parameter “function of the channel”
The parameter determines the function option in the channel; the current option is “switch”. If “No
function” is selected, it means the channel is disabled.Options:
No function
Switch
Switch/Dimming
Value/Forced output
Scene control

K-BUS®KNX/EIB Universal Interfaces
7
Switching sequence
Counter
Multiple operations
Shutter Control

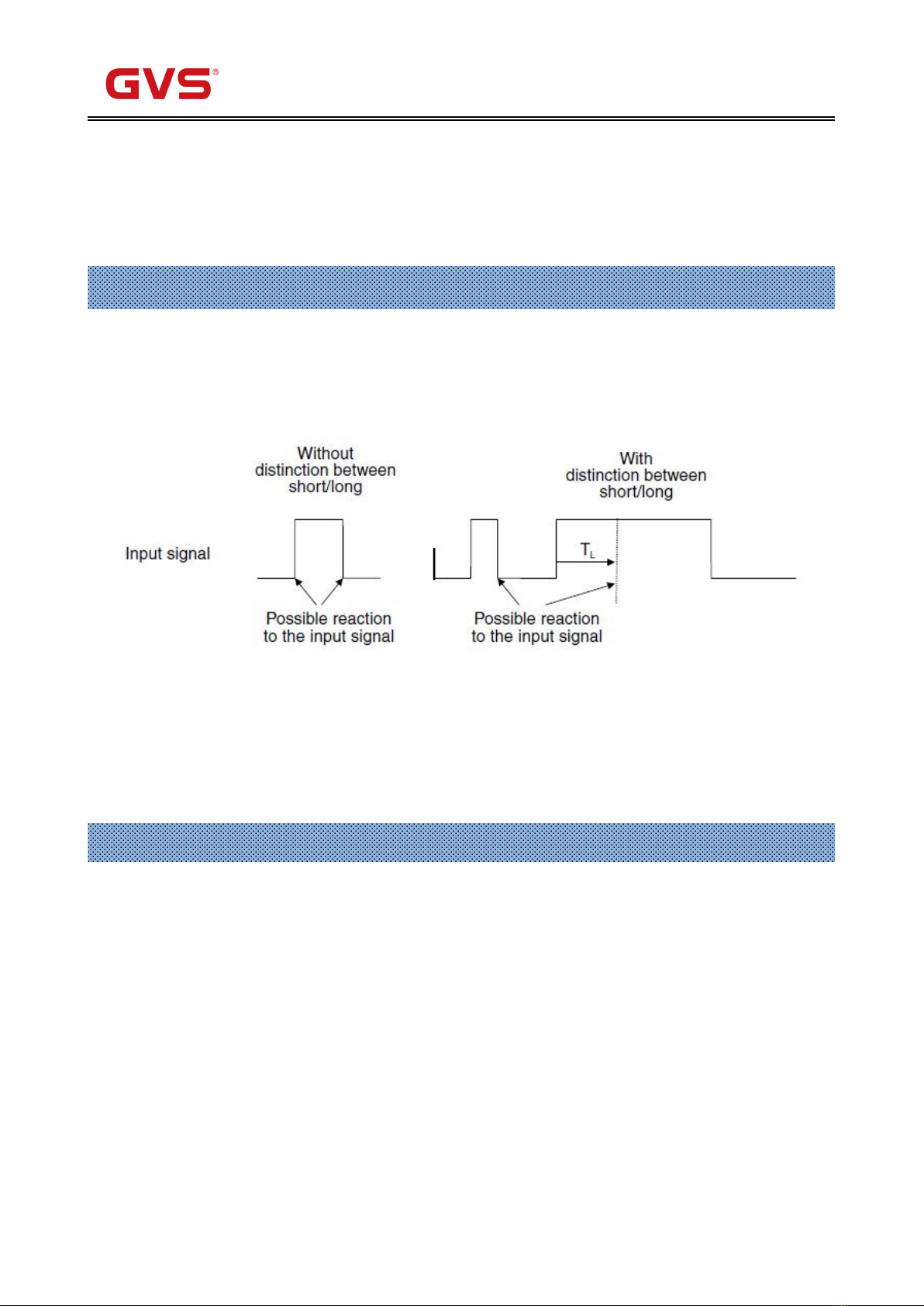

Parameter “Distinction between long and short operation”
This parameter sets whether the input distinguishes between a short and long operation. If “yes” is
selected, there is a waiting period after the opening/closing of the contact to determine whether the
operation is long or short. Only then is a possible reaction triggered. The following drawing clarifies the
function:
Options:
No
Yes
Note: The long operation in the below chapters are the same with here.
Parameter “Cyclic send Tele. ‘Tele. Switch’”
This parameter is visible if there is no distinction between a short and long operation. It is able to set
whether to send the current value of object “Tele. Switch, X” cyclically on the bus.Options:
No
Always
If switch off
If switch on
If the parameter value “always” is selected, the object sends cyclically on the bus, regardless of its
value is 0 or 1. If the parameter value “if switch off” or “if switch on” is set, only the corresponding object
value is sent cyclically.

K-BUS®KNX/EIB Universal Interfaces
8
Parameter “Reaction on closing the contact (rising edge)”
Parameter “Reaction on opening the contact (fall edge)”
This parameter is visible if there is no distinction between a short and long operation. It can be set
the operation to open and close the contact.Options:
No action
Off
On
Toggle
Stop cyclic transmission
If the parameter “Toggle” is selected, negate the operation, that means negate the current value. For
example, if “On” is selected, when negate it will carry out “Off” operation. If the parameter “Stop cyclic
transmission” is selected, it will stop the cyclical sending telegram till there is a new object value to be
sent. If the parameter “No action” is selected, it will not implement any operation.
Parameter “Interval of Tele. Cyclic send: Base× Factor”
This parameter is used to set the interval time between two telegrams that are sent cyclically, it is
visible if cyclical sending has been set. Transmission cycle time =Base× Factor.
Base options: 1s
10s
…
1h
Factor options: 1…255
Parameter “Send object value after voltage recovery (if yes not equal toggle)”
It can be set whether to send the value of the object “Tele. Switch, X” on the bus after voltage
recovery, this parameter is visible if there is no distinction between a short and long operation.Options:
No
Yes
If the parameter “Yes” is selected, it will send the current value of the object “Tele. Switch, X” on the
bus. Only when the value “Toggle” has not been set in either of the two parameters “Reaction on
opening/closing the contact”, the value of the object “Tele. Switch, X” can be send on the bus. If one of
the two parameters has the value “TOGGLE”, no values are sent in general on the bus after bus voltage
recovery. If “No reaction” or “Stop cyclic transmission” is selected, there is no values are sent on the bus
either.

K-BUS®KNX/EIB Universal Interfaces
9
Parameter “LED function set”
This parameter set the LED direction to indicate the status according to the object “Tele. Switch, X”.
There are A, B, C, D 4 LEDs to choose, each LED has 2 options. If the parameter “LED X accord to
switch value” is selected, LED indicate status is the same with the current value of the object “Tele.
Switch, X”; if the parameter “LED X toggle by switch value” is selected, LED indicate status is negate to
the current value of the object “Tele. Switch, X”.Options:
No action
LED A accord to switch value
LED A toggle by switch value
……
LED D accord to switch value
LED D toggle by switch value
Note: If the four channels invocate the same option, the priority of channel A is the highest, it
will indicate the status according to the value of the object “Tele. Switch, X” in channel A. Then
the priority of channel B is higher, then it’s C, the last is D. The priority of LED X in function
channel in the device is higher than the LED X channel, the LED X can not be implement any
operation in channel LED X which is used in the function channel in the device. If the parameter
“LED function” is set “LED A accord to switch value” or “LED A toggle by switch value” options,
the operation had been set in LED A can not be carry out.
Parameter “Debounce time”
It can set the vibration time to prevent unwanted multiple operation by bouncing of contacts in
vibration time, which means the effective time of the contact operation.Options:
10ms
20ms
……
150ms
Min. operation
The “minimum operation” time can only be set when there is no distinction between a short and a
long operation. This parameter is different from others, the effective time of the contact operation is not
only means the effective time when contact close, but also the contact open. The parameter window can
be shown in Fig. 3:

K-BUS®KNX/EIB Universal Interfaces
10
Fig. 3 Parameter window “X-Mini Time”
Parameter “Minimum operation time: Base × Factor”
The effective time of the contact operation is: Base × Factor
Base options: 100ms
…..
1min
Factor options: 1~255
Note: The parameter window and the explanation of parameter “Min. operation” in the
“Debounce time” in the below chapters are the same with here.
Fig. 4 Parameter window “Switch X” (distinguish between a short and long operation)

K-BUS®KNX/EIB Universal Interfaces
11
Parameter “Connect contact type”
This parameter is visible when there is a distinction between a short and long operation, it is used to
define whether the contact is a normally open contact or a normally close contact in general. Options:
Normally closed
Normally open
The parameter introduced in this chapter is use “Normally open” as the example; the normally close
is just opposite.
Parameter “Reaction on short operation” or “Reaction on long operation”
This parameter is visible when there is a distinction between a short and long operation. It is able to
set the operation when preset a short and long operation. When the button operation is confirm to a
short or a long operation, the object value will be update immediately.Options:
No action
Off
On
Toggle
Parameter “Long operation after: Base× Factor”
This parameter is visible if there is a distinction between a short and long operation. The period TL is
defined here, after which an operation is interpreted as “long”. TL = Base× Factor
Base options: 100s
1s
……
1h
Factor options: 2~255
Parameter “Number of objects for short/long object operation”
This parameter is visible if there is a distinction between a short and long operation. It is able to set
one or two communication objects, when one communication object is set, long and short operation
share one communication object; when two communication objects are set, long and short operation use
one communication object separately.Options:
1 object
2 objects

K-BUS®KNX/EIB Universal Interfaces
12
5.1.3. Parameter window “Switch/dimming, X”
Parameter window “Switch/dimming, X” will be shown in Fig. 5, it is visible when Function of the
channel “Switch/Dimming” is selected. The function enables the operation of dimmable lighting. 1 button
operation is also possible.

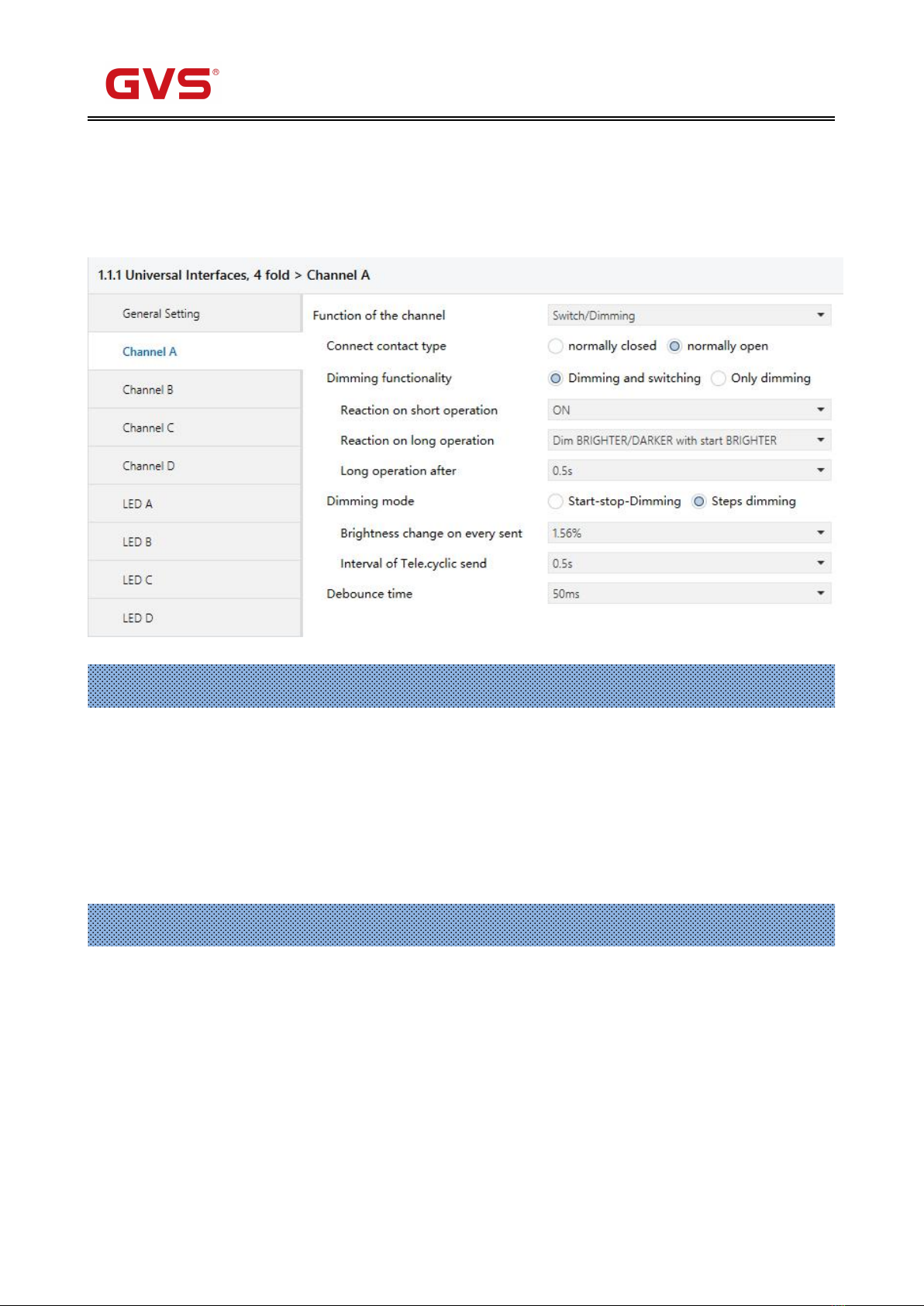

Fig. 5 Parameter window “Switch/Dimming”
Parameter “Connect contact type”
This parameter defines whether the contact at the input is a normally open contact or a normally
closed contact.Options:
Normally closed
Normally open
The parameter introduced in this chapter is use “Normally open” as the example, the normally close
is just opposite.
Parameter “Dimming functionality”
This parameter determines whether the lighting is only dimmed or whether it should also be
switched.Options:
Dimming and switching
Only dimming
If the parameter “Only dimming” is selected, there is no distinction between a short and long
operation. The dimming command is therefore carried out immediately after the push button action; there
is no delay to determine whether the operation is long or short. If the parameter “Dimming and switching”

K-BUS®KNX/EIB Universal Interfaces
13
is selected, the push button action need to delay to determine whether the operation is long or short. In
this case, the lighting is dimmed via a long operation and switched via a short operation.
Parameter “Reaction on short operation”
This parameter is visible if the value “Dimming and switching” has been set in the parameter
“Dimming functionality”. It is able to set the operation after triggered the object “Switch, X”, that’s a short
operation.Options:
No action
Off
On
Toggle
Parameter “Reaction on long operation”
This parameter is visible if the value “Dimming and switching” has been set in the parameter
“Dimming functionality”. It is able to set a dim brighter or a dim darker after a long operation.Options:
Dimming brighter
Dimming darker
Dim brighter/darker with start brighter
Dim brighter/darker with start darker
The parameter “Dim brighter/darker with start darker” is selected, it can be dim brighter or dim
darker after a long operation, it is just dim darker first and the latter operation negate.
Note: The long and short operation is individual; they are not operation on one object.
Parameter “Long operation after”
This parameter is visible if the value “Dimming and switching” has been set in the parameter
“Dimming functionality”. The period TL is defined here, after which an operation is interpreted as
“long”.Options:
0.3s
0.5s
……
10s
Parameter “Reaction on operation”
This parameter is visible if the value “Only dimming” has been set in the parameter “Dimming

K-BUS®KNX/EIB Universal Interfaces
14
functionality”. There is no distinction between a short and long operation. The operation and the option of
the parameter “Reaction on long operation” are the same. It is able to set a dim brighter or a dim darker
after a long operation.Options:
Dimming brighter
Dimming darker
Dim brighter/darker with start brighter
Dim brighter/darker with start darker
Parameter “Dimming mode”
This parameter defines the dimming mode is start-stop dimming or steps dimming.Options:
Start-stop dimming
Steps dimming
If “Start-stop dimming” is selected, the dimming mode is start-stop dimming; it begins the dimming
process with a dim darker or brighter telegram and ends the dimming process with a stop telegram.
Cyclical sending of the dimming telegram is not required in this case.
If “Step dimming” is selected, the dimming mode is step dimming, the dimming telegram is sent cyclically
during a long operation. Once the operation has finished, a stop telegram ends the dimming process.
Parameter “Brightness change on every sent”
This parameter is only visible for “Dimming steps”. It can be set, which change in brightness
(percentage value) causes a dimming telegram to be sent cyclically.Options:
100%
50%
……
1.56%
Parameter “Interval of Tele. Cyclic send”
This parameter is only visible for “Dimming steps”. It is able to set the interval of telegram cyclic
sending after a long operation.Options:
0.3s
0.5s
……
10s

K-BUS®KNX/EIB Universal Interfaces
15
Parameter “Debounce time”
It can set the vibration time to prevent unwanted multiple operation by bouncing of contacts in
vibration time, that means the effective time of the contact operation.Options:
10ms
20ms
……
150ms
Min. operation
A minimum operation time can only be set if the value“Only dimming” has been set in the parameter
“Dimming functionality”. The parameter window will be shown in Fig. 3.
5.1.4. Parameter window “Value/force output, X”
Parameter window “Value/force output , X” will be shown in Fig. 6 and Fig. 7, in Fig. 6 there is a
distinction between a short and long operation while in Fig.7 is just opposite.
Fig. 6 Parameter window “Value/force output, X” (distinguish with a short and long operation)

K-BUS®KNX/EIB Universal Interfaces
16

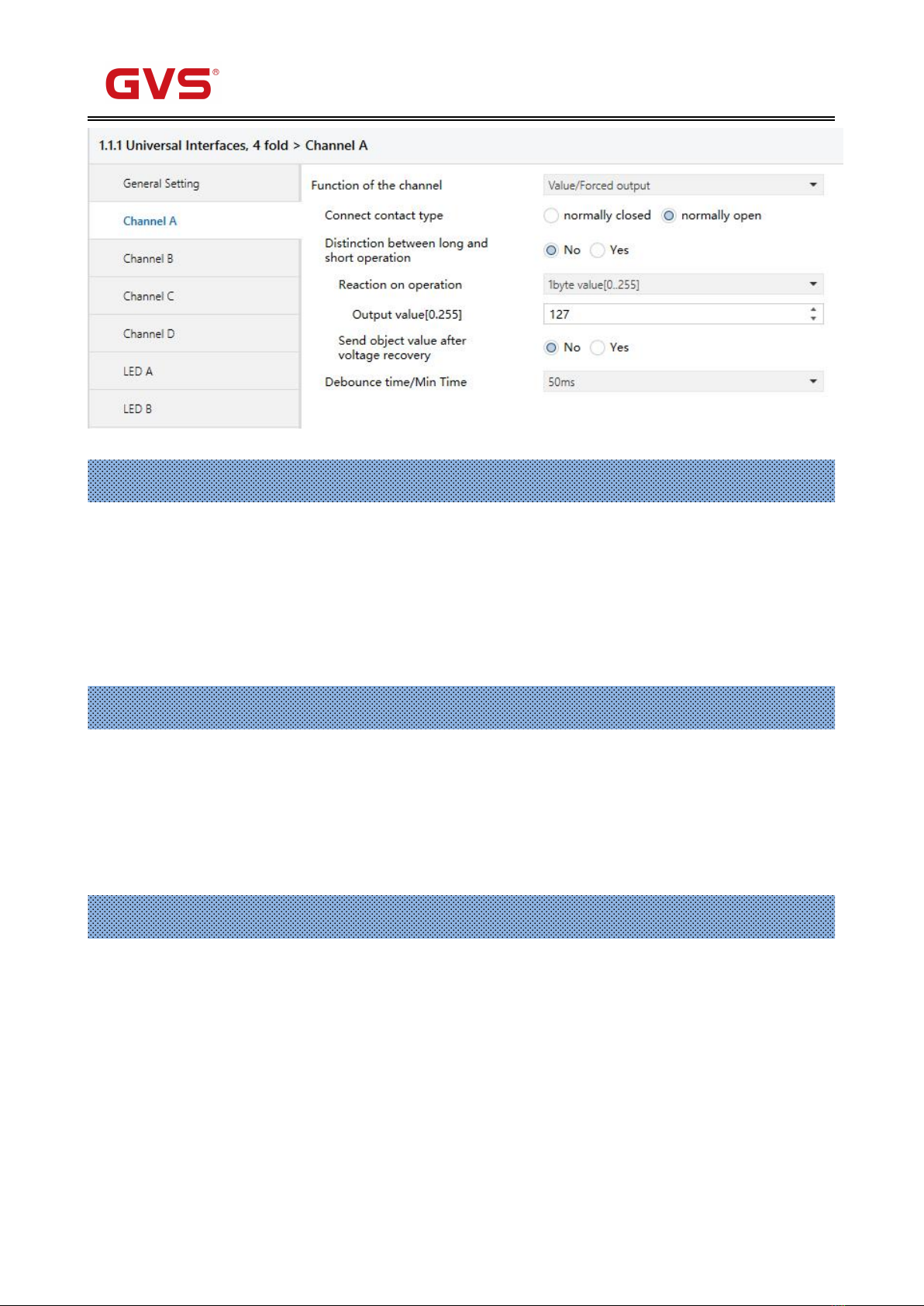

Fig. 7 Parameter window “Value/force output, X” (do not distinguish with a short and long operation)
Parameter “Connect contact type”
This parameter defines whether the contact at the input is a normally open contact or a normally
closed contact.Options:
Normally closed
Normally open
The parameter introduced in this chapter is use “Normally open” as the example; the normally close
is just opposite.
Parameter “Distinction between long and short operation”
This parameter sets whether the input distinguishes between a short and long operation. If “yes” is
selected, there is a waiting period after the opening/closing of the contact to determine whether the
operation is long or short.Options:
No
Yes
Parameter “Reaction on operation”
This parameter is visible if there is no distinction between a short and a long operation. It defines the
data type that is sent when the contact is pressed.Options:
No reaction
1 bit value [0, 1]
……
4 byte value [0…4294967295]

K-BUS®KNX/EIB Universal Interfaces
17
Parameter “Reaction on short operation”/ “Reaction on long operation”
This parameter is visible if there is no distinction between a short and long operation. It defines the
data type that is sent after a short or long operation.Options:
1 bit value [0, 1]
……
4 byte value [0…4294967295]
Parameter “Output value […]”
This parameter defines the value which is sent on operation. The value range is dependent on the
selected data type. Two values can be set here when there is a distinction between a short and long
operation.
Parameter “Long operation after: Base× Factor [0…255]
This parameter is visible if there is a distinction between a short and long operation. The period TL is
defined here, after which an operation is interpreted as “long”. TL = Base x Factor.
Base options: 100s
1s
…..
1h
Factor options: 2~255
Parameter “Send object value after voltage recovery”
This parameter defines whether to send object value of “Tele. Value, X” on the bus after the voltage
recovery. This parameter is visible if there is no distinction between a short and long operation. If “yes” is
selected, the device sends the object “Tele. Value, X” on the bus after bus voltage recovery.Options:
No
Yes
Parameter “Debounce time”
It can set the vibration time to prevent unwanted multiple operation by bouncing of contacts in
vibration time, which means the effective time of the contact operation.Options:
10ms
20ms
……
150ms
Min. operation
A minimum operation time can only be set if there is no distinction between a short and long
operation. The parameter window will be shown in Fig. 3.
