GVS K-BUS BNIP-00 User manual

IP Interface with Secure_V1.1
BNIP-00/00.S
KNX/EIB Home and Building Control System
User Manual

Attentions
1. Please keep devices away from strong magnetic field, high temperature,
wet environment;
2. Please do not fall the device to the ground or make them get hard impact;
3. Please do not use wet cloth or volatile reagent to wipe the device;
4. Please do not disassemble the devices.

Contents
Chapter 1 Summary ------------------------------------------------------------------------------------------------------ 1
Chapter 2 Technical Data ------------------------------------------------------------------------------------------------ 2
Chapter 3 Dimension and Connection Diagram ----------------------------------------------------------------------- 3
3.1. Dimension diagram -----------------------------------------------------------------------------------------------3
3.2. Connection diagram ----------------------------------------------------------------------------------------------3
Chapter 4 Parameter setting description in the ETS ------------------------------------------------------------------4
4.1. Parameter window “General” ------------------------------------------------------------------------------------4
4.2. Use of the integrated tunneling servers ------------------------------------------------------------------------7
4.3. KNX Secure --------------------------------------------------------------------------------------------------------9
4.4. Unloading the device ------------------------------------------------------------------------------------------- 15
4.5. Read device information --------------------------------------------------------------------------------------- 16
Chapter 5 Factory setting ---------------------------------------------------------------------------------------------- 17
Chapter 6 Web Configuration ------------------------------------------------------------------------------------------ 18

KNX/EIB IP Interface with Secure
1
Chapter 1 Summary
The IP Interface with Secure is designed for an intelligent building control system, which is used for
facilitating communication between the Ethernet network and the KNX system. KNX telegram can be
sent to or received from other devices via the network.
The device supports the KNX Secure protocol (KNXnet/IP Security).
The device serves as an interface between KNX installations and IP networks, and can configure,
parameterize and commission the KNX installation as well as group monitoring via the LAN using the
ETS software.
The bus connection is carried out via using KNX bus connection terminals.
The device adopts an Ethernet RJ45 interface to connect with LAN network. The network interface
can be operated with a transmission speed of 10/100Mbit/s Auto Sensing.
The IP address of the device can be fixed or can be received from a DHCP server. If you need to
remain the IP address static or here no DHCP server on the network, you can assign a fixed IP address
to the device via ETS.
It can support the UDP/TCP telegram and the port number 3671， and support up to 5 KNX IP client
connections， please refer to chapter 3.3.
It is able to use the Engineering Tool Software ETS (ETS5 or later) with a .knxprod file to allocate
the physical address and set the parameter.
It is a modular installation device. It can be installed in the distribution board on 35mm mounting
rails according to EN 60 715.
This manual provides detail technical information on the function as well as assembly and
programming of the device for users, and explains how to use the interface device by the application
examples.
Note: The device does not support programming itself using an IP tunneling connection, but it
can be programmed via a broadcast connection (Realtek PCIe GBE Family Controller).
The device also does not support bus monitoring.

KNX/EIB IP Interface with Secure
2
Chapter 2 Technical Data
Power supply
Operation voltage
21-30V DC, via the KNX bus
Current consumption
<19.5mA, 24V; <15.5mA, 30V
Power consumption
<470mW
Connections
KNX
Via bus connection terminal (red/black)
LAN
RJ45 socket for10/100Base-T, IEEE 802.3
network, Auto Sensing
Operating and
display
Programming LED and
button
For assignment of the physical address
LAN LED ON
Network connection indicator
LAN LED flashing
Telegram traffic between the device and network
KNX LED ON
KNX bus connection indicator
KNX LED flashing
Telegram traffic between the device and KNX bus
Temperature
Operation
–5 °C ... + 45 °C
Storage
–25 °C ... + 55 °C
Transport
– 25 °C ... + 70 °C
Ambient
Humidity
<93%, except condensation
Design
Modular installation device, on 35mm mounting rail
Dimensions
36 mm×90 mm×64mm
Weight
0.1KG
Housing, colour
Plastic housing, Beige
Application program
Max. number of
communication objects
Max. number of
group address
Max. number of
associations
IP Interface with Secure
0
0
0

KNX/EIB IP Interface with Secure
3
Chapter 3 Dimension and Connection Diagram
3.1. Dimension diagram
3.2. Connection diagram
①LAN LED ON, indicate that network connect normally
LAN LED flashing, indicate that telegram traffic between
device and network
②KNX LED ON, indicate that KNX bus connect normally
KNX LED flashing, indicate that telegram traffic between
KNX bus and device
③LAN connection
④Programming LED, red LED ON for assignment of
physical address
⑤Programming button, to enter or exit the physical
address programming mode
Reset the device to the factory configuration: press the
programming button and hold for 4 seconds then
release, repeat the operation for 4 times, and the
interval between each operation is less than 3 seconds
⑥KNX bus connection terminal

KNX/EIB IP Interface with Secure
4
Chapter 4 Parameter setting description in the ETS
4.1. Parameter window “General”
Parameter window “General” is shown in fig. 4.1.1. The device information,including company
name, project name,DNS server can be set here.
Fig 4.1.1 “General” parameter window
Parameter “Company Name (30 char.)”
This parameter is used to set the company name the device belongs to. Maximum 30 characters
can be input.
Parameter “Project Name (30 char.)”
This parameter is used to set the project name the device belongs to. Maximum 30 characters can
be input.
Parameter “DNS server”
This parameter is used to set the DNS server address.
Parameter “IP settings...”
Configuration in ETS windows-->Properties
Configure the IP parameters of the IP device in the properties window of ETS.
Device name: Device-->Properties-->Settings-->Name
The device name can be entered in the Settings Properties window. The device name loaded into
the device can be changed in the Name field, as shown in Figure 4.1.2 below.

KNX/EIB IP Interface with Secure
5
The device name is used for identification of the device on the LAN. For example, the installation
location can be identified by the names assigned to the devices, e.g. IP interface, hall, etc
Note: Only the first 30 characters of the device name are loaded into the device; the rest is
truncated.

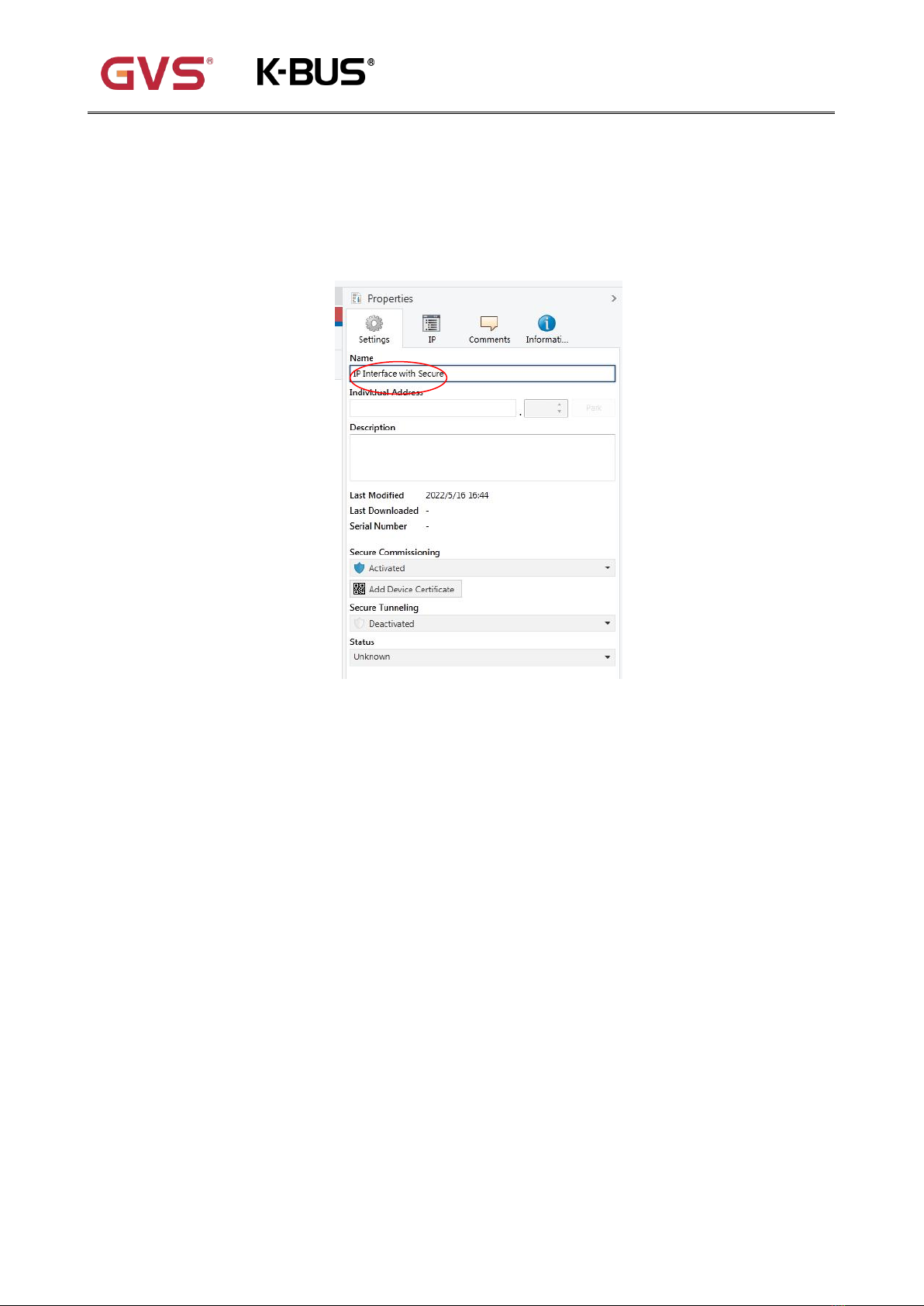

Fig. 4.1.2 Settings
IP addresses: Device-->Properties-->IP
The IP address can be defined in the IP Properties window, as shown in Figure 4.1.3 below.
The following options are available for setting the IP address:
Options:
Obtain an IP address automatically
Use a static IP address

KNX/EIB IP Interface with Secure
6
Fig. 4.1.3 IP
Obtain an IP address automatically：In the default setting the IP Interface with Secure expects the
assignment of an IP address by a DHCP (dynamic host configuration protocol) server. This server
responds to a request by assigning a free IP address to the device. If a DHCP server is not available in
the network, the device will be inaccessible.
Use a static IP address：If no DHCP server is installed on the network or if the IP address should
remain the same, it can be assigned as static. When assigning static IP addresses, ensure that each
device receives a different IP address, and also configure the matching subnet mask and default
gateway.
The MAC address is read from the device after a download
The multicast address is only displayed here, 224.0.23.12, it can not be changed.
The commissioning password and the authentication code are only visible when KNX Secure is
activated, and are required for IP tunneling connections.

KNX/EIB IP Interface with Secure
7
4.2. Use of the integrated tunneling servers
The IP Interface with Secure offers 5 additional physical addresses, which can be used for a
tunneling connection, shown in fig. 4.2.1. These so-called tunneling servers can be used with the ETS
as a programming interface or with another visual display client, with smartphone, with tablet, with bus
tool etc.
Fig.4.2.1 Tunneling
The physical address of each tunneling connection can be changed in the setting property window,
and their physical addresses must fit the topology.
In ETS, the first five free addresses in the line are assigned automatically after the device has
been inserted into a line. This is a property of the ETS and cannot be changed.
The addresses will be available in the device after the first download.
If this is not desired, the setting can be changed manually in the Properties window via activated
the Park, shown in fig. 4.2.2. This tunnel will receive the address 15.15.255 after download. If the option
Park is selected for all tunneling servers, all tunneling servers will be assigned the address 15.15.255.
( 15.15.255 is the default address for devices with no physical address assigned)
Fig.4.2.2 Setting - Park
