GW Instek LCR-817 User manual

LCR-800 Series User Manual
i
CONTENTS PAGE
1. INTRODUCTION……………………………………..……...
1
2. PRECAUTIONS BEFORE OPERATION…….…………….
2-1.Unpacking the instrument………………….…………….
2-2.Checking the Line Voltage…………………..……………
2-3.Environment……………………………………..………..
2-4.Equipment Installation and Operation…………………
2
2
2
3
3
3. PANEL DESCRIPTION…...……………………..…………..
4
OPERATION…………….………………………………...….
4-1.Connects to DUT… .………………..………….……..…...
4-2.Start-Up……….....……………………………..………….
4-3.Zeroing…………………………………………………….
4-4.Menu Functions.…..…………………
……………………
4-5.Measurement Conditions…..……………………………..
8
8
8
8
11
18
4.
5. SPECIFICATIONS…………………………………………...
35
6. MESSAGE CODE.…………………………………………....
42
7. MAINTENANCE....…………………………………………...
7-1.Cleaning……………………………………………………
7-2.Battery Replacement…………………………………… ...
7-3.Recall Calibration………………………………………...
43
43
43
44
8.OPTION 1 (BIN Function for LCR-826/827/829 only)……..
8-1. BIN Functions for Components Sorting……………..….
8-2. BIN Setting Conditions.....……………………………….
8-3. BIN Range Setting: Component Sorting Range..............
46
46
48
54
9. OPTION 2 (RS-232, for LCR-816/817/819 only)……………
9-1.On-line procedure…………………………………………
9-2.RS232 VIEWER Software Operation…………………...
9-3.The Configuration of Cable
………………………………
63
63
67
72
LCR-800 Series User Manual
ii
SAFETY TERMS AND SYMBOLS
These terms may appear in this manual or on the product:
WARNING: Warning statements identify condition or practices
that could result in injury or loss of life.
CAUTION: Caution statements identify conditions or practices
that could result in damage to this product or other property.
The following symbols may appear in this manual or on the product:
DANGER ATTENTION Protective Earth (ground)
High Voltage refer to Manual
Conductor Terminal
Terminal

LCR-800 Series User Manual
iii
FOR UNITED KINGDOM ONLY
NOTE: This lead / appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with the
colours marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth
terminal marked with the letter E or by the earth symbol or coloured
Green or Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is
marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal
marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact
the supplier.
LCR-800 Series User Manual
iv
This cable/appliance should be protected by a suitably rated and approved
HBC mains fuse: ref er to the rating information on the equipment and/or
user instructions for details. As a guide, cable of 0.75mm2should be
protected by a 3A or 5A fuse. Larger conductors would normally require
13A types, depending on the connection method used.
Any moulded mains connector that requires removal /replacement must be
destroyed by removal of any fuse & fuse carrier and disposed of
immediately, as a plug with bared wires is hazardous if a engaged in live
socket. Any re-wiring must be carried out in accordance with the
information detailed on this label.

LCR-800 Series User Manual
v
EC Declaration of Conformity
We
GOOD WILL INSTRUMENT CO., LTD.
No. 95-11, Pao-Chung Rd., Hsin-Tien City, Taipei Hsien, Taiwan
declares that the below mentioned product
LCR-817/819/827/829/816/826
are herewith confirmed to comply with the requirements set out in the Council
Directive on the Approximation of the Law of Member States relating to
Electromagnetic Compatibility (89/366/EEC, 92/31/EEC, 93/68/EEC) and Low
Voltage Equipment Directive (73/23/EEC).
For the evaluation regarding the Electromagnetic Compatibility and Low Voltage
Equipment Directive, the following standards were applied:
EN 61326 -1: Electrical equipment for measurement, control and laboratory use ––
EMC requirements (1997+A1: 1998)
Conducted and Radiated Emissions
EN 55011Group I class A: 1998 Electrostatic Discharge EN61000-4-2: 1995
Current Harmonic
EN 61000-3-2: 2000 Radiated Immunity EN 61000-4-3: 1996
Voltage Fluctuation
EN 61000-3-3: 1995 Electrical Fast Transients EN 61000-4-4: 1995
———————————————— Surge Immunity
EN 61000-4-5: 1995
———————————————— Conducted Susceptibility
EN 61000-4-6: 1996
———————————————— Power Frequency Magnetic field
EN 61000-4-8: 1993
———————————————— Voltage Dips/ Interrupts
EN 61000-4-11: 1994
Low Voltage Equipment Directive 73/23/EEC& amended by 93/68/EEC
Safety Requirements
EN 61010-1: 1993+A2: 1995; IEC 61010-1: 1990+A1: 1992+A2: 1995
LCR-800 Series User Manual
1
1. INTRODUCTION
The precise LCR meter series are automatic, user programmable instruments
that provide high reliability and great precision for measuring a wide variety of
impedance parameters. The frequency range of LCR-819/829 covers from 12Hz
to 100kHz, LCR-817/827 from 12Hz to 10kHz, LCR-816/826 from 100Hz to
2kHz, and LCR-821 from 12Hz to 200kHz. The basic accuracy is 0.1% for
LCR-827/829, 0.05% for LCR-817/819, and 0.1% for LCR -816/826/821. The
measured results can be displayed on the high quality LCD monitor with decimal
points and units. The measured result resolution is five full digits for Inductance
(L), Capacitance (C), Resistance (R) and absolute value of impedance (|Z|)
(four full digits for Dissipation factor (D), Quality factor (Q), R with C, R with L,
2 digits after decimal dot for phase angle (?)). In the meantime, the LCD monitor
is also shown the control status and parameters of settings. The keypads are easy
for menu programming. The LCR Meters’ test fixture (option) is a method of
convenient, reliable, guarded 4-terminal/2 wires connection of radial and axial
leaded components to the LCR Meters. Test conditions can be stored and
recalled from internal memory that will reduce the setup time for measurement
preparing.

LCR-800 Series User Manual
2
2. PRECAUTIONS BEFORE OPERATION
2-1. Unpacking the instrument
The product has been fully inspected and tested before shipping from the
factory. Upon receiving the instrument, please unpack and inspect it to
check if there are any damages caused during transportation. If any damage
is found, notify the bearer and/or the dealer immediately.
2-2. Checking the Line Voltage
The LCR Meters can be operated with AC power source between 100V
rated voltage and 240V rated voltage at a frequency of 50 to 60Hz, no AC
voltage selector is necessary. Power connection to rear panel is through an
AC inlet module comprised of an AC connector and fuse holder. To change
the fuse proceed as follows:
lRemove the fuse holder by inserting a small flat head screwdriver
behind the small tab to force the holder outward.
lInstall the correct fuse (slow-blow, 3A, 250Vac).
lRe-install the fuse holder back into the LCR Meters AC inlet module,
push in and lock.
WARNING. To avoid electrical shock the power cord protective
grounding conductor must be connected to ground.
WARNING. To avoid personal injury, disconnect the power cord
before removing the fuse holder.
LCR-800 Series User Manual
3
2-3. Environment
The normal ambient temperature range of the LCR Meters is from 10°to
50°C. To operate the instrument over this specific temperature range may
cause damage to the circuits.
Do not use the LCR Meters in a place where strong magnetic or electric
field exists as it may disturb the measurement.
2-4. Equipment Installation and Operation
Ensure there is proper ventilation for the vents in the LCR meters case. If
this equipment is used not according to the specification, the protection
provided by the equipment may be impaired.
WARNING: This is a Class A product. In a domestic environment
this product may cause radio interference in which case the user
may be required to take adequate measures.

LCR-800 Series User Manual
4

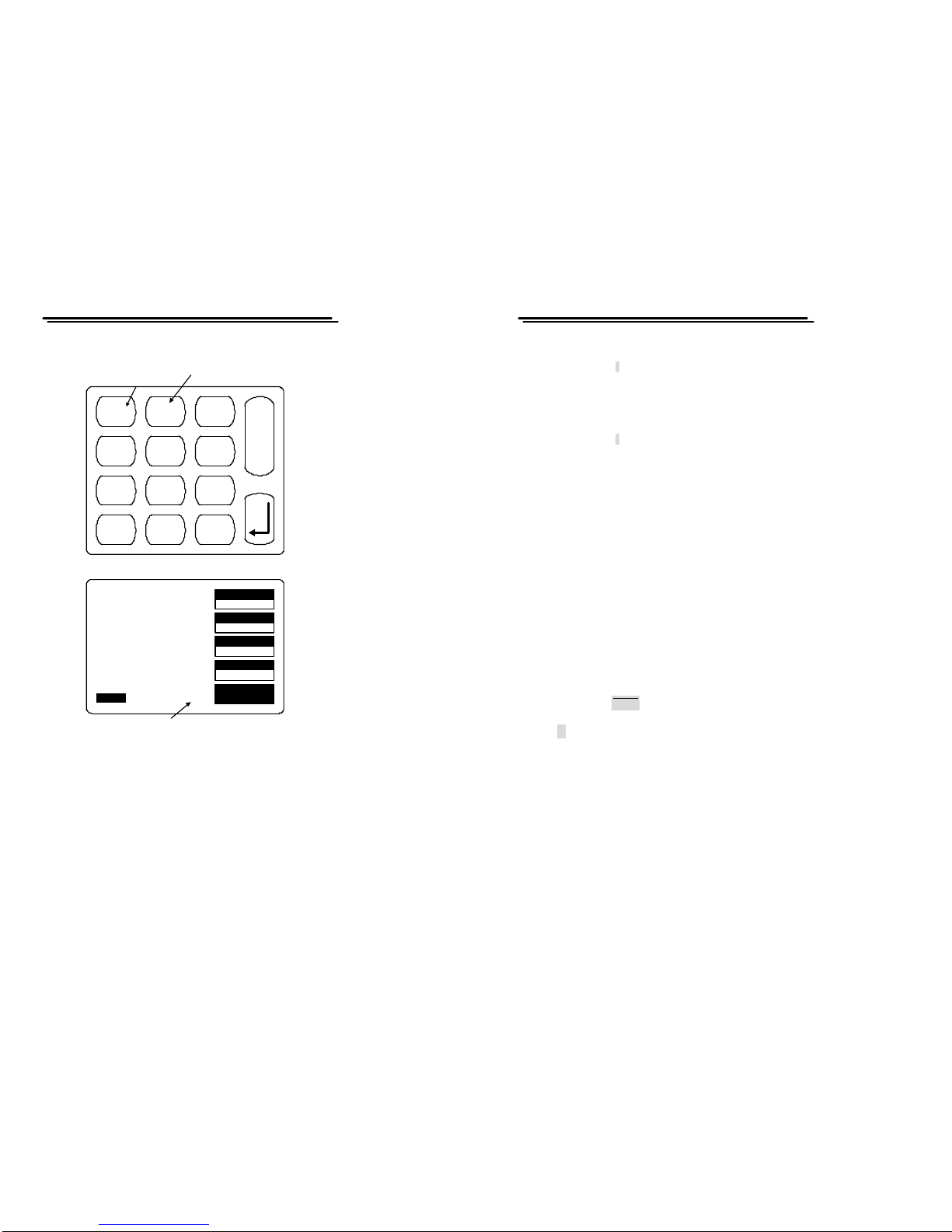

3. PANEL DESCRIPTION
(1). Power Switch
Turns AC Power on or off.
(2). Function key 一F1
Soft key functions as indicated on the adjacent LCD monitor.
(3). Function key 一F2
Soft key functions as indicated on the adjacent LCD monitor.
(4). Function key 一F3
Soft key functions as indicated on the adjacent LCD monitor.
(5). Function key 一F4
Soft key functions as indicated on the adjacent LCD monitor.
(6). MENU key
Enters menu display mode or exits sub menu back to main menu.
(7). Compound key
lFor making numerical entries as labeled.
lTurns the “RANGE HOLD” mode on or off.
(8). Compound key
lFor making numerical entries as labeled.
lTurns the “CONSTANT VOLTAGE” mode on or off.
(9). Compound key
lFor making numerical entries as labeled.
lMeasures the unit of Dissipation and Quality Factor in PPM.
(Note: The models of LCR-816 and 826 do not have this function.)
LCR-800 Series User Manual
5
(10). Compound key
lFor making numerical entries as labeled.
lSelects the “INTERNAL BIAS” mode or “EXTERNAL BIAS” mode. (If
this key function is switched to “INTERNAL BIAS” mode, the bottom
of LCD monitor will display the “INT.B” message. If the external DC
bias is selected, the bottom of LCD monitor will display the “EXT.B”
message. )
(11). Compound key
lFor making numerical entries as labeled.
lTurns the INTERNAL BIAS mode or EXTERNAL BIAS mode “ON” or
“OFF”.
(12). Compound key
lFor making numerical entries as “－“ (the negative sign).
lInputs the “TEST FREQUENCY”.
(13).START (Compound key)
lStarts measurement sequence. Normally used in the “MANU” (Triggered)
mode.
lSelects “AUTO” or “MANU” mode by pressing this key for 3 seconds at
least.
lThe LCR Meters will process the measurement automatically, if the
“AUTO” mode is selected.
(14). ↵key (ENTER)
This key enables programming of all special functions, test frequency, test
voltage, averaging, delay, and nominal value etc.
(15). •Symbol key
Inputs the decimal point
(16). Numeral key—“2”

LCR-800 Series User Manual
6
(17). Numeral key—“3”
(18). Numeral key—“5”
(19). Numeral key—“6”
(20). Numeral key—“9”
(21). Primary Display
This line can display the measured Inductance, Capacitance, or Resistance.
(22). Secondary Display
This line can display the measured Quality Factor or Dissipation or ESR or
EPR.
(23). Instrument status or indicates measurement results based on entered test
limits.
(24). Test conditions
(25). Input terminals
BNC connectors, connects to device under test (DUT).
Connectors of th e LCR Meters BIAS
Lforce (current, low) ＋
Lsense (potential low) ＋
Hsense (potential high) －
Hforce (current, high) －
LCR-800 Series User Manual
7
FRONT PANEL

LCR-800 Series User Manual
8
4. OPERATION
4-1. Connects to DUT
The LCR Meters utilize the structure of four wires measurement which allows
accurate, easy, and stable measurements and avoids mutual inductance and
interference from measurement signals, noise and other factors inherent with
other types of connections. For the accuracy of measurement, GOODWILL
produces the cable set and test fixture (option) for connection directly to the
front panel BNC connectors.
4-2. Start-Up
Connects the power cord of the LCR Meters to the mains socket -outlet. Presses
the POWER button of front panel to apply the AC power to the LCR Meters.
4-3. Zeroing
In order to eliminate strayed capacitance and impedance of test cable during the
measurement, the LCR Meters should be zeroed to correct for test cable and/or
test fixture errors before taking measurements. The corrections are calculated
and stored in memory of the LCR Meters during the zeroing process. Open and
short circuit zeroing should be done for test cable and/or test fixture. For the best
accuracy, the test cable and/or test fixture should be zeroed once per day at least
and each time test cable or test fixture is changed in general.
The zeroing process of open and short circuits are following:
Open Circuit
lThe test cable or test fixture should be open with no component connected.
lPress MENUkey.
lPress F1 key to select “OFFSET”menu.
lPress F1 key to select open circuit zeroing (the “CAP OFFSET”is indicated
on the adjacent LCD monitor. ).
LCR-800 Series User Manual
9
lAfter the BAR at the bottom of LCD monitoris filled to the full, the zeroing
process is done.
lIf the zeroing process is successful, a message of “OK”will appear on the
LCD monitor. If failed, a message of “FAIL”will appear on the LCD
monitor.
Short Circuit
lThe test cable should be connected or test fixture shorted (using a clean
copper wire, as short as possible).
lPress MENUkey.
lPress F1 key to select “OFFSET”menu.
lPres s F2key to select short circuit zeroing (the “R/L OFFSET”is indicated
on the adjacent LCD monitor. ).
lAfter the BAR at the bottom of LCD monitor is filled fully, the zeroing
process is done.
lIf the zeroing process is successful, a message of “OK”will appear on the
LCD monitor. If failed, a message of “FAIL”will appear on the LCD
monitor.
Test Condition:
Test voltage=1V
Test speed = SLOW
R.H =OFF
C.V=OFF
For the summary, the zeroing menu can be chosen through menu selection as
shown in Figure 4-1 abov e.
NOTE: The “Open Circuit” and “Short Circuit” have to pass the test,
otherwise, the accuracy of the LCR Meters will become worse.

LCR-800 Series User Manual
10
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press menu
key
Press F1key
to the zeroing
menu
EXIT
OPEN TEST
SHORT TEST
CAP
OFFSET
R/L
OFFSET
Press F1 KEY for
open test
Press F2KEY for
short test
Figure 4-1: Summary of zeroing menu
LCR-800 Series User Manual
11
4-4. Menu Functions
All the LCR Meters’ programmable functions are controlled by the easy to use
menu displays. User can enter the menu mode by selecting the MENU key that
calls up four top level menus, OFFSET, SORT, SETTING and CALBRAT .
Each one of these is comprised of a sub menu list whose functions are described
in detail below. User can enter one of four functions by pressing the
corresponding function key (just adjacent LCD monitor, see figure 4-2).
4-4-1. Primary & Secondary Display
For the LCR Meters, four combinations of two parameters can be measured and
displayed simultaneously. One referred to the “Primary Display” (displayed
first) and the other to the “Secondary Display”. Depending on the component
type the primary and secondary display could be L& Q, C& D, C& Ror R
and Q, and add L&R and Z &? to LCR-821. The parameter can be chosen by
pressing F3 key as shown in Figure 4-3.
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press F1 key
to the zeroing
menu
Press F2 key
to the bin sort
menu
Press F3 key
to the utility
menu
Press F4 key
to the
calibration
menu
Press MENU key
to exit menu screen
Figure 4-2: four main menu screen

LCR-800 Series User Manual
12
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Primary
Display Secondary Display
Figure 4-3. Primary & Secondary display
User can select R/Q for resistor measurement; select L/Q or L/R for inductor
measurement; select Z/? for impedance measurement, select either C/Dor
C/Rfor capacitor measurement.
Note: Only LCR -821 can select Z/?, L/R measurement modes.
4-4-2. Series & Parallel Equivalent Circuit
Impedance that is neither a pure resistance nor a pure reactance can be
repres ented at any specific frequency by either a series or a parallel combination
of resistance and reactance. Such representation is called “equivalent circuit”.
The component value of the “Primary Display” depends on which equivalent
circuit (series or parallel) is chosen. In normal, the component manufacturer
shall specify how a component is to be measured (usually series) and at what
frequency.
lMeasurement Function
Measurement Mode Series Equivalent Circuit
Parallel Equivalent
Circuit
R/Qüü
C/Düü
Press F3 key
successively in
order to select the
different
measurement mode
(R/Q, C/D, C/R,
L/Q, Z/ ?}, L/R)
LCR-800 Series User Manual
13
C/Rüü
Z/? (degree)ü
L/Rüü
Suggested Test Conditions:
Inductors less than 10µH: Series, 100kHz.
Inductors from 10 µH to 1mH: Series, 10kHz.
Inductors from 1mH to 1H: Series, 1kHz.
Inductors greater than 1H: Series, 0.1kHz.
Capacitors less than 10pF: Parallel, 100kHz.
Capacitors from 10 to 400pF: Series or Parallel, 10kHz.
Capacitors from 400 to 1µF: Series, 1kHz.
Capacitors greater than 1µF: Series, 0.1 or 0.12kHz.
Resistor less than 1kΩ: Series, 1kHz.
Resistor from 1kΩto 10MΩ: Parallel, 0.25kHz.
Resistor greater than 10 MΩ: Parallel, 0.03kHz
Unless for special reason, always select “Series” for capacitors and inductors.
This has traditionally been standard practice. For very small capacitance or
inductance, select a higher test frequency for better accuracy. For very large
capacitance or inductance, select a lower test frequency for better accuracy. For
dc resistance, select a lower test frequency to minimize ac effects.
Because the reactive component most likely to be represented in a low resistance
resistor is series inductance, the “Series” is selected for a resistor below about
1kΩ. If a resistor large than 10M Ω, select “Parallel” that because the reactive
component most likely to be represent in a high resistance resistor is shunt
capacitance. If the Q is less than 0.1, the measured Rp is probably very close to
the dc resistance.
The total loss of a capacitor can be expressed in several ways, including D and
“ESR” (Equivalent Series Resistance). “ESR” is typically much larger than

LCR-800 Series User Manual
14
actual “ohmic” series resistance of the wire leads and foils that are in series with
the heart of a capacitor physically, because ESR includes also the effect of
dielectric loss. ESR is related to D by the formula: ESR = Rs = D/ωCs.Where ω
represents “omega” = 2 pi time frequency.
Although it is traditional to measure series inductance of inductors, there are
situations in which the parallel equivalent circuit better represents the physical
component. For small “air-core” inductors, the significant loss mechanism is
usually “ohmic” or “copper loss” in the wire, therefore the series circuit is
appropriate. Nevertheless, for an “iron core”, the significant loss mechanism can
be “core loss”, therefore, the parallel equivalent circuit is appropriate which
being a better model of the inductor.
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Press F4 key to
select the Series
or Parallel circuit
Figure 4-4. Selections of Series & Parallel Circuit
4-4-3. Measurement Displays
The measured results of the LCR Meters can be shown on the LCD monitor in
three ways: VALUE, DELTA%, or DELTA . User can press F2 key to select the
appropriateitem for measurement.
LCR-800 Series User Manual
15
VALUE
The LCD monitor will display the measured value of both the primary and
secondary parameter, shown with decimal and units. The resolution of primary
display (L, C, R or Z) is five digits. The resolution of secondary display (D, Q or
R with C) is four digits. The resolution of secondary display (?) is at 2 digits after
decimal point. The message “TESTING” is displayed when a test is in process.
DELTA%
The “DELTA%” shows the percent deviation of the measured L, C, R or Zvalue
from a stored NOMINAL VALUE. The sign of deviation is indicated.
DELTA
The LCR difference is similar to the DELTA% except that the deviation is shown
in suitable units (ohms, henries, etc).
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Press F2 key to select the
three different measuring
display ("VALUE",
"DELTA%", or "DELTA").
Figure 4-5. Types of measurement display

LCR-800 Series User Manual
16
4-4-4. Nominal Value
Allows entry of a “Nominal Value” for the primary parameter which is the basis
for the measurement result in “DELTA” or “DELTA %”. Accepts numerical entry
up to five digits with decimal. Units are depended on which measurement
displays selected.
Steps of “Nominal Value” input (Figure 4-6):
lPress MENUkey.
lPress F2key to select “SORT”menu.
lPress F1key to select “Nominal Value” (the “NOM.VAL” is indicated on
the adjacent LCD monitor).
lInput the nominal value via the numeral keys (5 digits with decimal
maximum).
lPress ↵key
lAfter the BAR at the bottom of LCD monitor is filled full y, the “Nominal
Value” input is done.
4-4-5. Selection of Measurement Speed
One of three measurement speeds SLOW, MEDIUM, or FAST could be
selected (Figure 4-7). The continuous mode speeds are about 1, 5, and 12
measurement per second respectively. The trade-off is accuracy vs. speed.
LCR-817/819 will take a more accurate measurement at a slower rate. The
trade -off is as follows
SLOW
speed
:
More than 1measurement per second, at 0.05% accuracy
(or better)
MEDIUM
speed
:
More than 3measurementsper second, at 0.1% accuracy
(or better)
FAST
speed
:
More than 7measurementsper second, at 0.24% accuracy
(or better)
LCR-800 Series User Manual
17
* For the details of accuracy, please refer to the specifications.
* Regarding the models LCR -827 & 829, please refer to 4-6-2 Handler Interface
Timing.

LCR-800 Series User Manual
18
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press menu
key
Press F2 key
to the sort
menu
NOM.VAL
24.870
HANDLER
EXIT
NOM.VAL = 77.000pF
OPTION 1
Press F1 key to
input the
nominal value
Figure 4-6. Steps of “Nominal Value” input.
LCR-800 Series User Manual
19
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Press F1 key to select the three different measurement
speed. (SLOW, MEDIUM, or FAST)
Figure 4-7. Selection of measurement speed
4-5. Measurement Conditions
4-5-1. Bias Voltage
There are two available bias voltage modes: “Internal” and “External”.
Internal:
An internal DC 2 volts bias voltage will apply to the device under test.
External:
An external DC bias voltage between 0 and 30 volts can be applied to the device
under test. The external bias connection is located on the rear panel. The
maximum current is 200mA. The supply of bias voltage has to be floating, don’t
connect either side to ground. It’s better to wait approximately 1 second for
taking a reading after initiating a testing process, therefore, the device under test
will stabilize after bias voltage applied. The DC bias voltage should be applied
only to capacitors in general. If the DC bias voltage is applied to device of low
impedance, the unreliable testing results will occur.

LCR-800 Series User Manual
20
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Press the numerical 7key
to select either internal or
external bias voltage
Press the numerical8key to
turn either internal or external
bias voltage on or off.
0
R.H ._
FREQ
1
C.V 2 3
4
PPM 5 6
7
BIAS 8 ON/OFF 9S
T
A
R
T
Indication of internal or
external bias voltage
Figure 4-8. Selection of “BIAS” voltage
LCR-800 Series User Manual
21
Steps of “BIAS” voltage selection (Figure 4-8, please note that the models of
LCR-816 and 826 do not have this function):
lPress compound key 7to selects the “INTERNAL BIAS” or “EXTERNAL
BIAS” on the main menu. (If this key function is switched to “INTERNAL
BIAS”, the bottom of LCD monitor will display the “INT.B” message. If
the external DC bias is selected, the bottom of LCD monitor will display the
“EXT.B” message.
lPress compound key 8to turn either “INTERNAL BIAS” or “EXTERNAL
BIAS” mode “ON” or “OFF” on the main menu.
4-5-2. Test Frequency
The numerical input of test frequency accepts up to 5 digits with decimal. User
can input any desired frequencies, however, the actual frequency executed for the
LCR Meters is always the closest one of the 504 available frequencies. The 504
frequencies can be calculated by the following formulas:
3kHz/n, where n range is from 13 to 250
(freq. 0.012 to 0.23077kHz)
60kHz/n, where n range is from 4 to 256
(freq. 0.23438 to 15kHz)
200kHz/n, where n range is from 1to 13 (freq. 15.385 to 200 kHz)
The “nominal value” of an available frequency can be calculated from the proper
one of the three formulas.
The range of test frequency between 12Hz and 10kHz is for LCR-817/827,
between 12Hz and 100kHz for LCR-819/829, between 100Hz and 2kHz for
LCR-816/826, and between 12Hz and 200kHz for LCR-821. To select the test
frequency, just key in the desired frequency via these numerical keys, the LCR
Meters will take the nearest available test frequency from the 504 available test
frequencies automatically.
Steps of “Test Frequency” selection (Figure 4-9):
lPress compound keyFREQ.
lInput the desired frequency in kilohertz.
lPress ↵key.
Note: After test frequency has been changed, the zeroing of “Open/Short

LCR-800 Series User Manual
22
circuit”must be done again for the best accuracy.
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU INT.B OFF
R.H OFF
C.V OFF
Press -key to input test
frequency Press enter key to confirm the inputs.
0
R.H ._
FREQ
1
C.V 2 3
4
PPM 5 6
7
BIAS 8
ON/OFF 9S
T
A
R
T
test frequency
Figure 4-9. Inputs of test frequency
LCR-800 Series User Manual
23
4-5-3. D/Q in PPM (parts per million)
If the value of D or Q is less than 0.0100, user can select DQ in PPM to improve
the resolution by a factor of 100. The units of D and Q in PPM are dimensionless
and expressed as a decimal ratio with the multiplier of 1000000. User can just
press compound key 4to select the unit of D or Q in PPM. To disable the DQ in
PPM feature, press the same key again.
4-5-4. Test Voltage
The range of test voltage is from 5mV to 1.275V in increments of 5mV. The
actualvoltage through the DUT is never more than the source voltage. The DUT
impedance and the source resistance of the LCR Meters decide the actual test
voltage. The smallest voltage through the DUT will be 20% smaller of the source
voltage in general. The programming of test voltage is as follows (Figure 4-10):
lPress MENUkey.
lPress F3key to select “SETTING”menu.
lPress F2key to select “VOLT” menu.
lInput the desired value via the numeral keys.
lPress ↵key
lAfter the BAR at the bottom of LCD monitor is filled full y, the “Test
Voltage”input is done.
4-5-5. Constant Voltage Source
If the DUT have to be measured at a particular test voltage, the LCR Meters
provides the constant voltage feature. After “Constant Voltage” is selected, The
LCR Meters will keep a source resistance of 25Ω. Therefore, the test voltage is
constant for any DUT impedance which large than 25Ω. If “Constant Voltage” is
selected, the measurement accuracy will cause a reduction by a factor of three.
User can just press compound key 1to select the feature of “Constant Voltage”.
To disable this feature, press the same key again.

LCR-800 Series User Manual
24
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU
R.H OFF
C.V OFF
INT.B OFF
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press menu
key
Press F3key
to the setting
menu
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
MOMORY NO: 1
VOLTAGE = 1.000 V
AVERAGE = 1
Press F2 key to
input the desired
test voltage
Test Voltage
Figure 4-10. Programming of test voltage.
LCR-800 Series User Manual
25
4-5-6. Range Hold
If a DUT is removed from the test cable or fixture during the “Continuous” mode,
the feature of “Range Hold” can avoid range switching. Due to the test time can
be reduced, “Range Hold” is a useful utility for repetitive devices measurement.
User can just press compound key 0to select the feature of “Range Hold”. To
disable this feature, press the same key again.
4-5-7. Averaging
If this function is enable, the testing time will multiple by the number of tests
(from 1 to 255). Hence, the accuracy can be enhanced. The measurement time
will be increased to the contrary. The programming of “Averaging” is as follows
(Figure 4-11):
lPress MENUkey.
lPress F3key to select “SETTING”menu.
lPress F3key to select “AVGE” menu.
lInput the desired value via the numeral keys.
lPress ↵key
lAfter the BAR at the bottom of LCD monitor is filled to the full, the
“Averaging” input is done.

LCR-800 Series User Manual
26
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU
R.H OFF
C.V OFF
INT.B OFF
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press menu
key
Press F3 key
to the setting
menu
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
MOMORY NO: 1
VOLTAGE = 1.000 V
AVERAGE = 1 Press F3 key to
input the desired
averaging amount
Figure 4-11. Programming of averaging.
LCR-800 Series User Manual
27
4-5-8. Memory
The LCR Meters have two memory functions: Recall and Store. The current
measurement conditions can be saved into the memory unit or recalled a
previously saved measurement conditions set from the LCR Meters memory.
There are 100 memory blocks totally. The programming of “Memory Store /
Recall” can be used as described below (Figure 4-12):
lPress MENUkey.
lPress F3key to select “SETTING”menu.
lPress F1key to select “MEMORY” menu.
lPress compound key 1to recall a previously saved memory block. or
lPress compound key 2to store the current measurement conditions into
memory.
lInput the number of desired memory block. (1~100)
lPress ↵key
lAfter the BAR at the bottom of LCD monitoris filled to the full,the process
of “Memory Store/Recall” is done.
Remark: For LCR-827/829, the function of Recall and Store is not only used in
the normal memory status, also it can be extended to sorting and
BIN-SUM setting.

LCR-800 Series User Manual
28
SPEED
SLOW
DISPLAY
VALUE
MODE
L/Q
CIRCUIT
SERIES
MENU
L 1.2345H
Q 0.6789
TESTING
F : 1.000 kHz
V : 1.000 V
AUTO MANU
R.H OFF
C.V OFF
INT.B OFF
OFFSET
SORT
SETTING
CALBRAT
EXIT
CAP. R/L OFFSET
SET SORT
SET PARAMETER
CALIBRATION
Press menu
key
Press F3 key
to the setting
menu
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
MOMORY NO: 1
VOLTAGE = 1.000 V
AVERAGE = 1
Press F1 key to
select the memory
store/recall function
Figure 4-12. Programming of memory store/recall.
LCR-800 Series User Manual
29
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
STORE NO:
VOLTAGE = 1.000 V
AVERAGE = 1
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
(1)RECALL:(2)STORE
VOLTAGE = 1.000 V
AVERAGE = 1
Press compound key
1
to
select the memory recall
function
MOMORY
1
VOLT
1.000
AVGE
1
EXIT
RECALL NO:
VOLTAGE = 1.000 V
AVERAGE = 1
Input number of desired memory block for memory recall function
Press compound key
2
to
select the memory store
function
Input number of desired memory block for memory store function
Figure 4-12. Programming of memory store/recall. (Cont.)

LCR-800 Series User Manual
30
4-5-9. Handler Interface(Only for LCR -826/827/829)
HANDLER
INTERFACE
FUNCTION Signal Name
Pin NO.
Start Measurement (I) /I_E_TRIG 24
End of test (O) /O_EOM 23
Data acquisition over , DUT removal OK.(O) /O_INDEX 22
RLC FAIL(O) /O_P_HI
/O_P_LO
/O_P_OVER
19
20
15
No-Go , D or Q Fail /O_S_REJ
/O_S_OVER 21 14
Go , BIN 1 Judgement /O_BIN_ 1 1
Go , BIN 2 Judgement /O_BIN _2 2
Go , BIN 3 Judgement /O_BIN_ 3 3
Go , BIN 4 Judgement /O_BIN_ 4 4
Go , BIN 5 Judgement /O_BIN_ 5 5
Go , BIN 6 Judgement /O_BIN_ 6 6
Go , BIN 7 Judgement /O_BIN_ 7 7
Go , BIN 8 Judgement /O_BIN_ 8 8
Go , BIN 9 Judgement /O_BIN_ 9 9
Go , BIN 10 Judgement /O_BIN_10 10
Go , BIN 11 Judgement /O_BIN_ 11 11
Go , BIN 12 Judgement /O_BIN_ 12 12
Go , BIN 13 Judgement /O_BIN_ 13 13
Panel Lock /I_K_LOCK 25
GND GND 16,18
VCC VCC 17
LCR-800 Series User Manual
31
Handler Interface Typical Electrical Characteristics
Voltage Output Rating
Comparison Signals
Low
High Maximum Current
Note
/BIN1-/BIN9
/AUX_BIN
/OUT_OF_BIN **
/PHI ≦0.5V
+5V∼+24V
5mA
/PLO
Control Signals
/INDEX
/EOM
* R408∼R427 Pull-highResistor need to be changed.
Handler Interface Typical Electrical Characteristics
Input Input Current (Low)
Pull-high Voltage Note
Comparison Signals
Low
High +5V +12V
/EXT_TRIG ≦1V
5V∼15V
5mA 12mA
/KEY_LOCK ≦1V
5V∼15V
5mA 12mA
lInput Signals
/I_E_TRIG: This signal is a measurement start signal. To start
measurement by setting low pulse to minimum 5us for
/I_E_TRIG signal. This is a low edge active.
/I_K_LOCK: This signal is to lock all front panel controls. The front panel
is disable when /I_K_LOCK is at low level, and enable
when /I_K_LOCK is at high level.

LCR-800 Series User Manual
32
lMeasurement Complete signal:
/O_INDEX: This signal will go the low level when analog measurement is
completed and will go the high level when next trigger is
active. The handler can then remove the DUT from the fixture
and replace it with another DUT during the time when
/O_INDEXis at low level.
lCompare Output Signals:
/O_BIN_1 -/O_BIN_13 : The GO judgment is active according to the
measured value judgment results (low level),
for example, if the comparator assigns a
component to BIN1, the /O_BIN_1 line will go
the low level till T4 (see Handler Interface
Timing). /O_BIN_2 -/O_BIN_13 are all
inactive (high level).
/O_P_HI: Main parameter failure: When the main parameter is greater than
Max, it will go the low level till T4 (see Handler Interface
Timing).
/O_P_LO: Main parameter failure: When the main parameter is lower than
Min, it will go the low level till T4(see Handler Interface
Timing).
/O_P_OVER: It will go the low level when main parameter is greater than
Max or is lower than Min.
/O_S_REJ,/O_S_OVER: It will go the low level when secondary is greater
than D_Max (if MODE=C/D) or is lower than
D_Min.
LCR-800 Series User Manual
33
lJudgment Complete Signal
/O_EOM: This signal becomes active (low level) when the measurement
and comparator judgment are completed, and all handler
interface output are stable. It will go the high level when next
trigger Signal (/I_E_TRIG) becomes active (low edge).

LCR-800 Series User Manual
34
4-5-10. Handler Interface Timing(only for LCR-826/827/829)
LCR-800 Series User Manual
35
Time Minimum
Value Maximum Value
T1
Trigger Pulse Width
5 us
T2
Measurement Start
Delay Time 140 us
T3
/EOM Delay Time
After Data Output
5 us
T4
Calculation and
binning Time 6 ms
SPEED
Analog Measurement Time(T5) Trigger Wait Time After /EOM
Output (T6)
0.012kHz
0.1kHz
0.12kHz
1kHz
10kHz100kHz
OFF
BIN
VALUE
SLOW
817ms
901ms
901ms
903ms
873ms 873ms
2ms
4ms
16ms
MEDIUM
817ms
125ms
105ms
59ms
53ms
53ms
2ms
4ms
16ms
FAST 817ms
125ms
103ms
27ms
17ms
17ms
2ms
4ms
16ms
ACCURACY
MODEL FAST MEDIUM SLOW
LCR-827
LCR-829
LCR-826 0.5% 0.2% 0.1%
*DATA:/O_BIN_1 -_BIN_13,/O_P_OVER,/O_S_OVER,/O_S_REJ,/O_P_HI,/O_P_LO
