SAFETY INSTRUCTIONS
3
Table of Contents
SAFETY INSTRUCTIONS ................................................... 5
GETTING STARTED........................................................... 9
PSW Series Overview ........................... 10
Appearance.......................................... 14
Theory of Operation............................. 20
OPERATION.................................................................... 31
Set Up.................................................. 32
Basic Operation ................................... 42
Parallel / Series Operation................... 53
Test Scripts .......................................... 65
CONFIGURATION........................................................... 73
Configuration....................................... 74
ANALOG CONTROL........................................................ 87
Analog Remote Control Overview......... 88
Remote Monitoring............................ 103
COMMUNICATION INTERFACE .....................................106
Interface Configuration ...................... 107
MAINTENANCE .............................................................111
FAQ ...............................................................................113
APPENDIX .....................................................................115
PSW Default Settings......................... 115
Error Messages & Messages .............. 117
LCD Display Format........................... 117

PSW Series User Manual
4
PSW Specifications ............................ 118
PSW Dimensions ............................... 127
Declaration of Conformity.................. 130
INDEX............................................................................131

SAFETY INSTRUCTIONS
5
SAFETY INSTRUCTIONS
This chapter contains important safety
instructions that you must follow during
operation and storage. Read the following before
any operation to insure your safety and to keep
the instrument in the best possible condition.
Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING Warning: Identifies conditions or practices that
could result in injury or loss of life.
CAUTION Caution: Identifies conditions or practices that
could result in damage to the PSW or to other
properties.
DANGER High Voltage
Attention Refer to the Manual
Protective Conductor Terminal
Earth (ground) Terminal

PSW Series User Manual
6
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Do not place any heavy object on the PSW.
Avoid severe impact or rough handling that
leads to damaging the PSW.
Do not discharge static electricity to the PSW.
Use only mating connectors, not bare wires, for
the terminals.
Do not block the cooling fan opening.
Do not disassemble the PSW unless you are
qualified.
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. the
PSW falls under category II.
Measurement category IV is for measurement performed at the
source of low-voltage installation.
Measurement category III is for measurement performed in the
building installation.
Measurement category II is for measurement performed on the
circuits directly connected to the low voltage installation.
Measurement category I is for measurements performed on
circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 85VAC~265VAC
Frequency: 47Hz~63Hz
To avoid electrical shock connect the protective
grounding conductor of the AC power cord to
an earth ground.

SAFETY INSTRUCTIONS
7
Cleaning the PSW Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid.
Do not use chemicals containing harsh material
such as benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
Relative Humidity: 20%~ 85%
Altitude: < 2000m
Temperature: 0°C to 50°C
(Pollution Degree) EN 61010-1:2001 specifies the pollution degrees
and their requirements as follows. The PSW falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -25°C to 70°C
Relative Humidity: <90%
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.

PSW Series User Manual
8

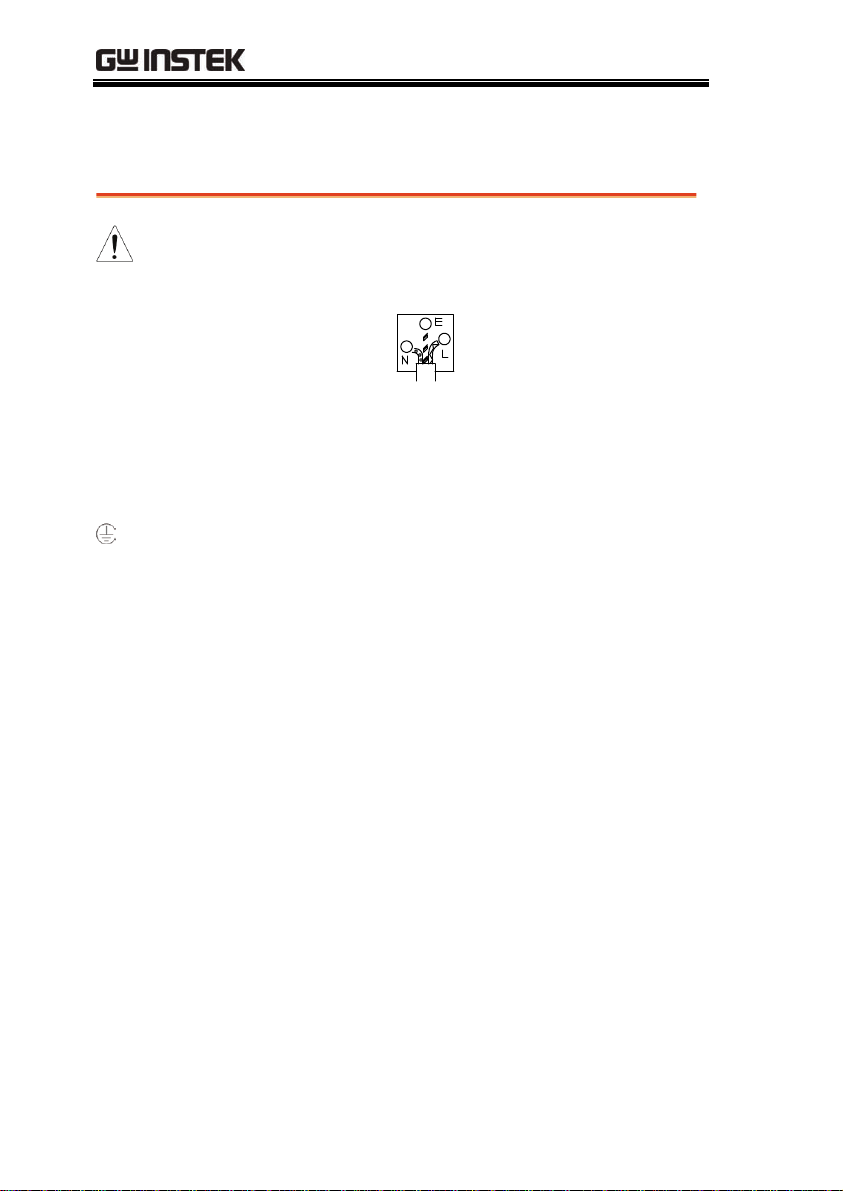

Power cord for the United Kingdom
When using the power supply in the United Kingdom, make sure
the power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the
following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with
the coloured marking identified in your plug/appliance, proceed
as follows:
The wire which is coloured Green & Yellow must be connected to
the Earth terminal marked with either the letter E, the earth symbol
or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the
terminal marked with the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment
or contact the supplier.
This cable/appliance should be protected by a suitably rated and
approved HBC mains fuse: refer to the rating information on the
equipment and/or user instructions for details. As a guide, a cable
of 0.75mm2should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the
connection method used.
Any exposed wiring from a cable, plug or connection that is
engaged in a live socket is extremely hazardous. If a cable or plug is
deemed hazardous, turn off the mains power and remove the cable,
any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above
standard.

GETTING STARTED
9
GETTING STARTED
This chapter describes the power supply in a
nutshell, including its main features and front /
rear panel introduction. After going through the
overview, please read the theory of operation to
become familiar with the operating modes,
protection modes and other safety considerations.
PSW Series Overview....................................................... 10
Series lineup..............................................................................................................10
Main Features...........................................................................................................11
A
ccessories................................................................................................................11
Package Contents.....................................................................................................13
Appearance ..................................................................... 14
PSW Front Panel .....................................................................................................14
Rear Panel.................................................................................................................17

PSW Series User Manual
10
PSW Series Overview

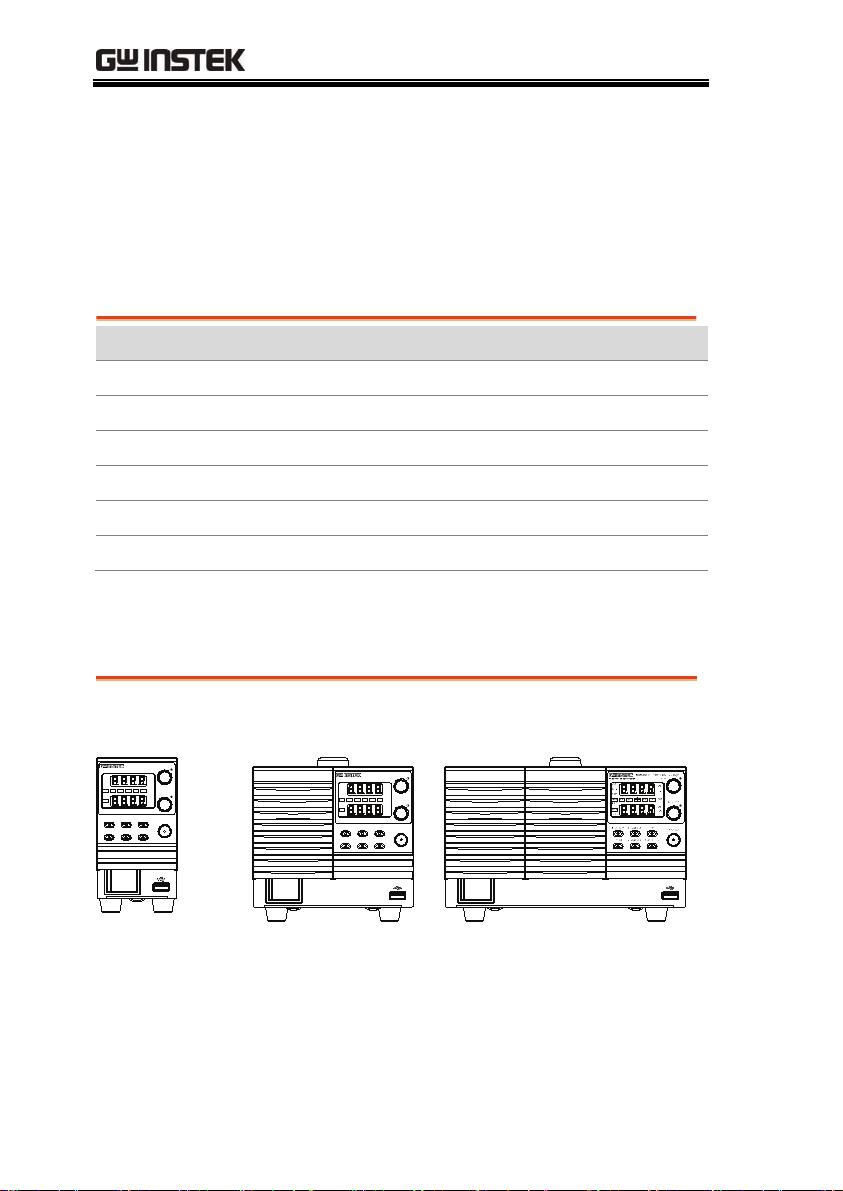

Series lineup
The PSW series consists of 6 models, divided into 3 different model
types covering 3 power capacities: Type I (360 Watt), Type II (720
Watt) and Type III (1080 Watt).
Model name Type Voltage Rating Current Rating Power
PSW 30-36 Type I 0~30V 0~36A 360W
PSW 80-13.5 Type I 0~80V 0~13.5A 360W
PSW 30-72 Type II 0~30V 0~72A 720W
PSW 80-27 Type II 0~80V 0~27A 720W
PSW 30-108 Type III 0~30V 0~108A 1080W
PSW 80-40.5 Type III 0~80V 0~40.5A 1080W
Apart from the differences in output, each unit differs in size. The
720 and 1080 watt models are larger than the 360 watt models to
accommodate the increase in power.
360 Watt models
Type I
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PSW 30-36 360W
Multi-Range DC Power Supply Voltage
Current
720 Watt models
Type II
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PSW 30-72 720W
Voltage
Current
Multi-Range DC Power Supply
1080 Watt models
Type III

GETTING STARTED
11
Main Features
Performance High performance/power
Power efficient switching type power supply
Low impact on load devices
Fast transient recovery time of 1ms
Fast output response time
Features OVP, OCP and OTP protection
Adjustable voltage and current slew rates
User adjustable bleeder control to quickly
dissipate the power after shutdown to safe
levels.
Extensive remote monitoring and control
options
Support for serial and parallel connections
Power on configuration settings.
Supports test scripts
Web server monitoring and control
Interface Ethernet port
Analog connector for analog voltage and current
monitoring
USB host and device port
Accessories
Standard
Accessories
Part number Description
Region dependant User manual
4323-30600101 Power cord (Type I/II)

PSW Series User Manual
12
4320-91001101 Power cord (Type III)
63SC-XF100201 Output terminal cover: top
63SC-XF100301 Output terminal cover:
bottom
GTL-123 Test leads: 1x red, 1x black
PSW-004 Basic Accessory Kit:
M4 terminal screws and
washers x2, M8 terminal
bolts, nuts and washers x2,
Air filter x1, Analog control
protection dummy x1,
Analog control lock level x1
Optional
Accessories
Part number Description
GET-001 Extended terminal
PSW-001 Accessory Kit:
Pin contact x10, Socket x1,
Protection cover x1
PSW-002 Simple IDC
Tool
PSW-003 Contact
Removal Tool
GRA-410-J Rack mount adapter (JIS)
GRA-410-E Rack mount adapter (EIA)
GUG-001 GPIB to USB adapter
GTL-246 USB Cable
57RG-30B00201 Large filter (Type II/III)
Download Name Description
psw_cdc.inf USB driver

GETTING STARTED
13
Package Contents
Check the contents before using the PSW.
Opening the box
Contents
(single unit)
Main unit
Output terminal cover
(top x1, bottom x1)
Test leads (red x1,
black x1)
M4 terminal screws
and washers x2
Air filter x1
Power cord x1 (region
dependent)
Analog control
protection dummy x1
Analog control lock
lever x1
M8 terminal bolts,
nuts and washers X2

PSW Series User Manual
14
Appearance
PSW Front Panel
PSW 80-27, PSW 30-72 (720W)
PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5,
PSW 30-36 (360W)
A
W
V
W
%W10080604020
ISR
C C
DLY
ALM
RMT
C V
VSR
Function OVP/OCP Set Output
PWR DSPLLock/LocalTest
PSW 30-36 360W
Multi-Range DC Power Supply Voltage
Current

GETTING STARTED
15

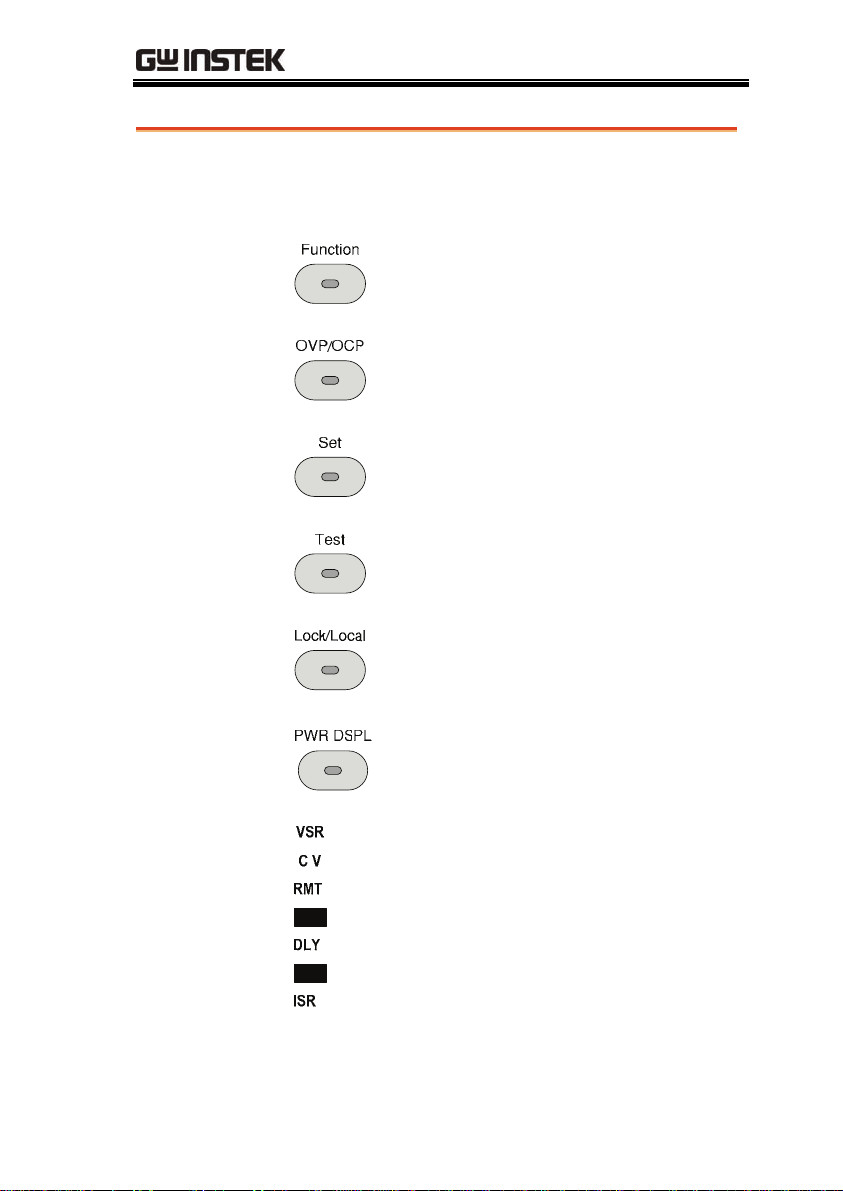

Function Keys The Function keys along with the Output key will
light up when a key is active.
The Function key is used to
configure the power supply.
Set the over current or over
voltage protection levels.
Sets the current and voltage limits.
Used to run customized scripts for
testing.
Locks or unlocks the panel keys to
prevent accidentally changing
panel settings.
Toggles the display from viewing
V/AV/WA/W.
Display
Indicators
Voltage Slew Rate
Constant Volta
g
e Mode
Remote Control Mode
ALM
Alarm on
Dela
y
Outpu
t
C C
Constant Current Mode
Current Slew Rate

PSW Series User Manual
16
40
100
Power bar
Indicates the current power output
as a percentage.

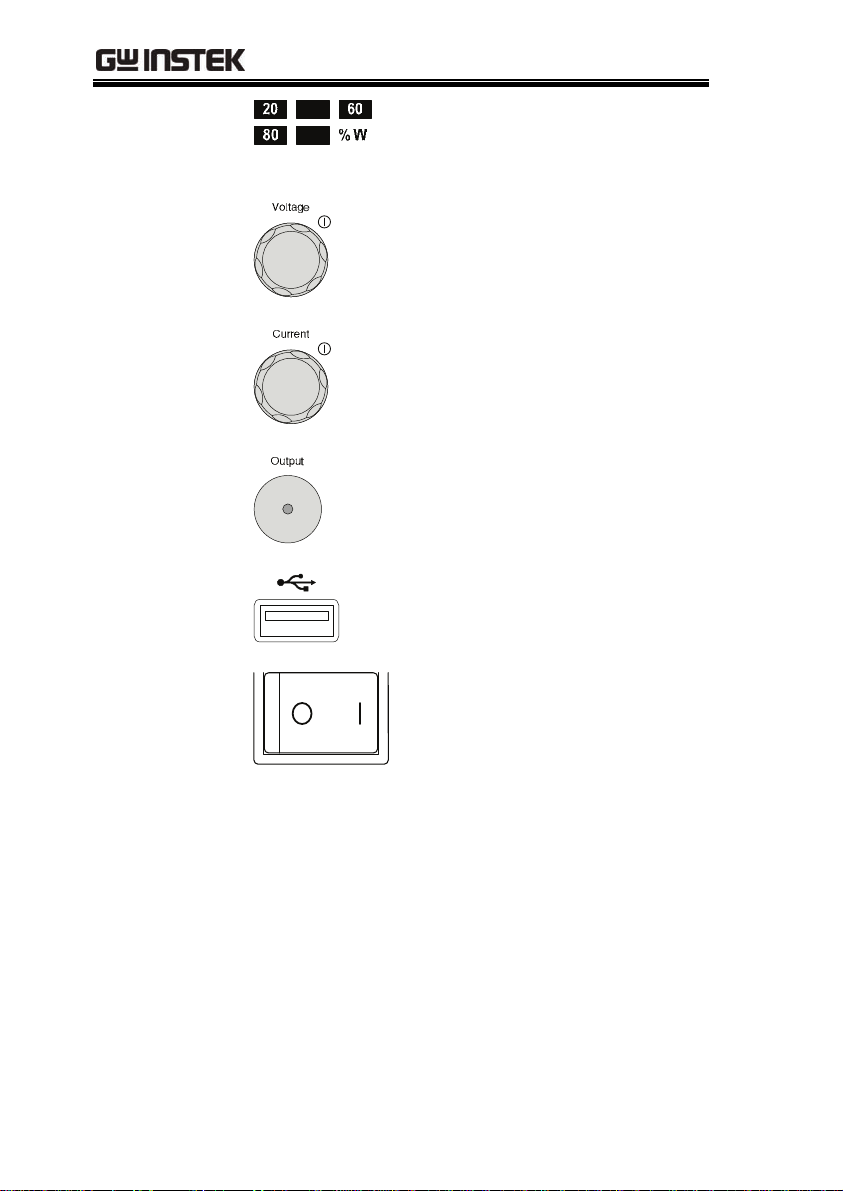

Voltage Knob
Sets the voltage.
Current Knob
Sets the current.
Output
Press to turn on the output. The
Output key will light up when the
output is active.
USB
USB A port for data transfer,
loading test scripts etc.
Power Switch
Used to turn the power on/off.

GETTING STARTED
17
Rear Panel
PSW 80-27, PSW 30-72 (720W)
PSW 80-40.5, PSW 30-108 (1080W) PSW 80-13.5,
PSW 30-36 (360W)
AC Input

PSW Series User Manual
18
Analog Control
Connector
Standard 26 pin MIL connector
(OMRON XG4 IDC plug).
The analog control connector is
used to monitor current and voltage
output, machine status (OVP, OCP,
OTP etc.), and for analog control of
the current and voltage output.
Use an OMRON XG5 IDC socket as
the mating socket.
Output Terminals
Positive (+) and negative (-) output
terminals.
Chassis ground
Sense (-) and Sense (+) terminals.
USB B port
The USB B port is used for remote
control.
Fans Temperature controlled fans
Ethernet Port
The ethernet port is used for remote
control and digital monitoring from
a PC.
Line Voltage
Input
(Type I/TypeII)
Type I: PSW 30-36/80-13.5
Type II: PSW 30-72/80-27
Voltage Input: 100~240 VAC
Line frequency: 50Hz/60 Hz
(Automatically switchable)

GETTING STARTED
19
Line Voltage
Input
(Type III)
Type III: PSW 30-108/80-40.5
Voltage Input: 100~240 VAC
Line frequency: 50Hz/60 Hz
(Automatically switchable)

PSW Series User Manual
20
Theory of Operation
The theory of operation chapter describes the basic principles of
operation, protection modes and important considerations that
must be taken into account before use.
Operating Area Description
Description
The PSW power supplies are regulated DC
power supplies with a high voltage and current
output. These operate in CC or CV mode
within a wide operating range limited only by
the output power.
The operating area of each power supply is
determined by the rated output power as well
as the voltage and current rating. For example
the operating area and rated power output for
the PSW 30-36 is shown below.
When the power supply is configured so that
the total output (current x voltage output) is
less than the rated power output, the power
supply functions as a typical constant current,
constant voltage power supply.
If however, the power supply is configured
such that the total output (current x voltage
output) exceeds the rated power output, the
