H/p/cosmos Robowalk expander f-m Manual

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

original directions for use

h/p/cosmos®robowalk®expander

h/p/cosmos®model names

development, production, sales &service

h/p/cosmos®robowalk®expander F-M

h/p/cosmos®robowalk®expander B-M

h/p/cosmos®robowalk®expander F-QP

h/p/cosmos®robowalk®expander B-QP

h/p/cosmos®robowalk®expander AW

h/p/cosmos sports &medical gmbh

Am Sportplatz 8

DE 83365 Nussdorf-Traunstein

Germany

phone +49 86 69 86 42 0

fax +49 86 69 86 42 49

[email protected]

www.h-p-cosmos.com

manual-version

version 1.1, revision 06.02.2014

order-no.: [cos30022man-en]

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

These directions for use are only valid for the original configuration of the first delivery of this device. Changes of the system

configuration or retrofittings of additional equipment or accessories can result in invalidity of these directions for use. In case

of alterations of the device or the additional equipment, the latest version of these directions for use or the corresponding

additional information should be always considered.

The latest version of the directions for use is always available in PDF version on the h/p/cosmos website:

http://www.h-p-cosmos.com/en/company/downloads.htm

NIt is strictly forbidden to perform any amendments of the technical design, technical specifications, labelling

and configurations of this device and the accessories connected to it.

NAny amendments, unauthorized, poor or lack of service / maintenance will result in loss of manufacturer’s

liability and warranty.

NNeglecting or ignoring these two previous listed prohibitions and warnings may also result in serious injury

or even death.

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

Dear customer,

We would like to express our gratitude for putting your trust in us, in deciding for this top of the range equipment.

Since 1988 h/p/cosmos®has been developing and manufacturing running machines, systems and accessories for

applications in sports, rehabilitation, medicine, diagnostics and science. When it comes to technology, ergonomy, design and

safety, we have set extremely high standards for ourselves.

With the h/p/cosmos®robowalk®expander we want to make your work easier and give you and your patients the chance to

achieve your therapy results in a faster and more comfortable way.

Because the power of the expanders, you must pay special attention to the mentioned safety regulations.

If proper notice is taken to the safety regulations, the operation of your h/p/cosmos®device is almost without any risk. The

neglect of the safety regulations could result in dangerous situations and serious accidents. Therefore please read the

directions for use and the danger precautions before taking the device into operation.

Some simple maintenance and monitoring (no repair work!), as described, can easily be done or even has to be done by

yourself. All kinds of installation and repair work and most maintenance work are to be performed only by trained and

authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done

by the customer and which work has to be done by authorized technicians only:

The customer/user should perform this maintenance and monitoring work. Some safety checks or monitoring

have to be performed on daily basis. It is not expedient to contract certified technicians for such maintenance

work. However, where it is practical, all maintenance and monitoring work marked with this symbol can also

be performed by certified technicians.

All installation, maintenance, repair and monitoring work marked with this symbol must only be performed by

trained and authorized technicians who have been certified by h/p/cosmos. Customers / users must not

perform these kinds of tasks and work.

We recommend calling our competent service team or entering into a maintenance contract for a routine service at an

interval of 6 or 12 months for standard machines and standard applications. A form for registration of your institution and

device is included in the delivery. In order to be able to supply you with the latest technical information and service, it is

important for you to fill out the form. Therefore please fill out the form for registration immediately and send it back via fax,

email or mail.

These directions for use as a firm part of the delivery have to be accessible to the user at any time. It has been written with

great care. Should you, however, still find any details which do not correspond with your device, please notify to us so we

can correct any mistakes as soon as possible.

We wish you a lot of fun and success while exercising and working with your h/p/cosmos®robowalk®expander.

Franz Harrer

President & CEO

h/p/cosmos sports & medical gmbh

content

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

1Model overview............................................................................................................................................................... 6

2Introduction .................................................................................................................................................................... 7

2.1 Description ....................................................................................................................................................................... 7

2.2 Safety equipment ............................................................................................................................................................. 7

3Intended and forbidden use .......................................................................................................................................... 8

3.1 Intended use..................................................................................................................................................................... 8

3.2 Forbidden use .................................................................................................................................................................. 8

4Safety notes, warnings, precautions............................................................................................................................ 9

4.1 General............................................................................................................................................................................. 9

4.2 Preparation of the patient / user ....................................................................................................................................... 9

4.3 Preparation of the device ............................................................................................................................................... 10

4.4 During exercise .............................................................................................................................................................. 10

4.5 Machine care.................................................................................................................................................................. 10

4.6 Danger zones ................................................................................................................................................................. 11

5Operation ...................................................................................................................................................................... 12

5.1 Connection to safety arch............................................................................................................................................... 12

5.2 Attachment of cuffs......................................................................................................................................................... 13

5.3 Setting the load .............................................................................................................................................................. 14

5.4 Connecting the expander ............................................................................................................................................... 17

6Application Examples.................................................................................................................................................. 18

7Service........................................................................................................................................................................... 20

7.1 Safety notes, warnings, precautions .............................................................................................................................. 20

8Installation ......................................................................................................................................................... 22

8.2 Installation –Front.......................................................................................................................................................... 23

8.3 Installation –Front (airwalk se) ...................................................................................................................................... 29

8.4 Installation –Back .......................................................................................................................................................... 32

8.5 Installation checklist and instruction of the user ............................................................................................................. 40

9Maintenance and safety inspections ..................................................................................................... 41

9.1 Preventive maintenance ............................................................................................................................ 41

9.2 Immediate maintenance ..................................................................................................................................... 41

9.3 Maintenance Checklist ................................................................................................................................................... 42

content

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

9.4 Change of expanders and hooks ........................................................................................................................ 47

9.5 Regular inspections / examinations ..................................................................................................................... 52

9.6 Hygiene and cleansing .......................................................................................................................................... 52

9.7 Spare parts & consumables ........................................................................................................................................... 53

10 Technical data .............................................................................................................................................................. 54

10.1 h/p/cosmos robowalk®expander.................................................................................................................................... 54

10.2 Economic life time .......................................................................................................................................................... 54

10.3 Force curves................................................................................................................................................................... 55

11 Disposal ........................................................................................................................................................................ 56

12 Appendix 1: Certificates .............................................................................................................................................. 57

12.1 Certificate of the TSA (TÜV) according to ISO 9001...................................................................................................... 57

12.2 Certificate of the TSA (TÜV) according to EN ISO 13485.............................................................................................. 58

13 Appendix 2: Protocols ................................................................................................................................................. 60

13.1 Adjustment table............................................................................................................................................................. 60

13.2 Instruction protocol, checklist ......................................................................................................................................... 63

13.3 Instruction protocol, signatures ...................................................................................................................................... 65

14 Appendix 3: Symbols................................................................................................................................................... 66

15 Contact .......................................................................................................................................................................... 67

model overview

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

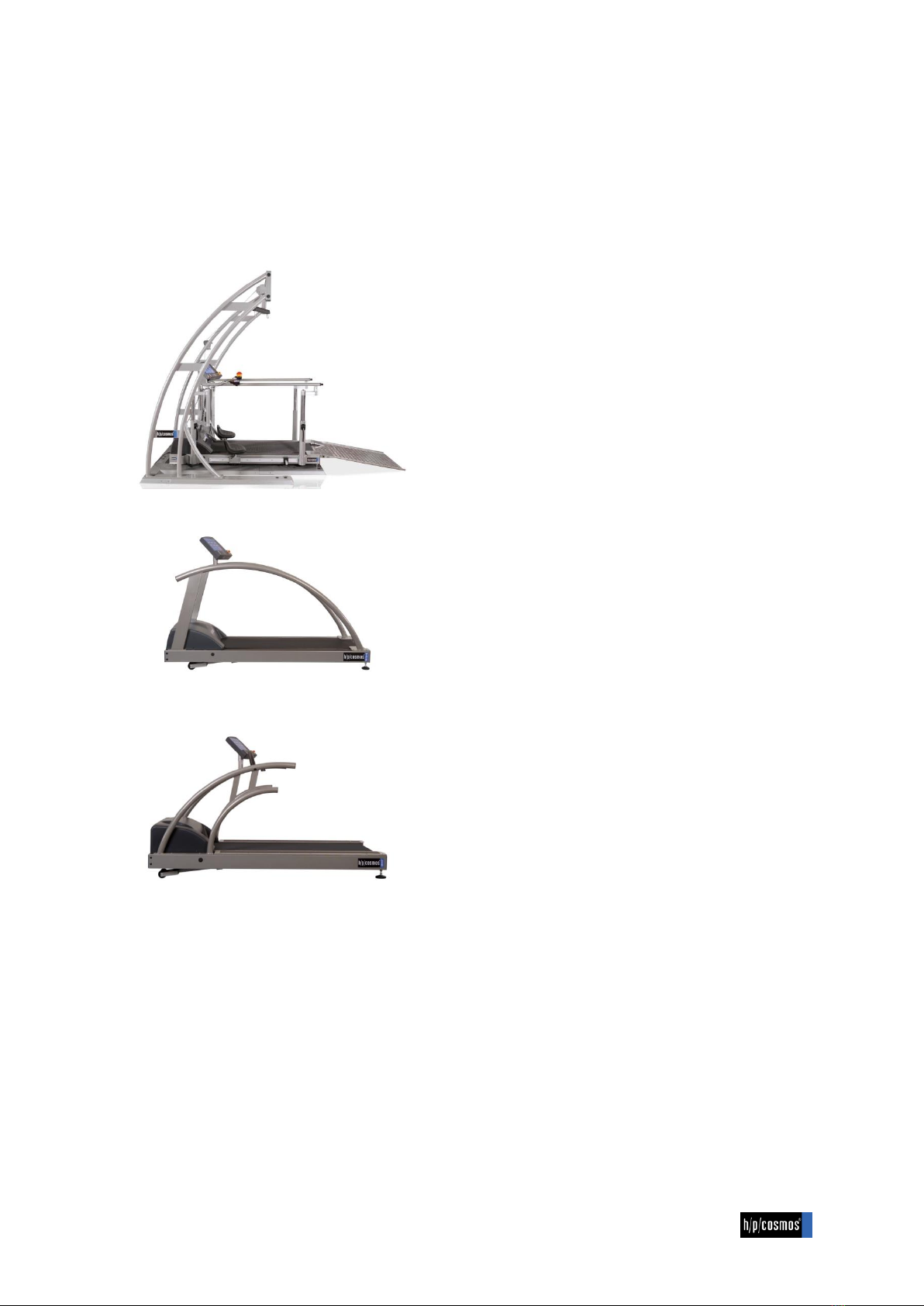

1Model overview

The h/p/cosmos®robowalk®expander can be used in combination with the following running machines:

medical

running machines

sports & fitness

running machines

h/p/cosmos®locomotion®150/50 E med

h/p/cosmos®locomotion®150/50 DE med

h/p/cosmos®locomotion®190/65 E med

h/p/cosmos®locomotion®190/65 DE med

h/p/cosmos®locomotion®190/65-3p E med

h/p/cosmos®locomotion®190/65-3p DE med

h/p/cosmos®stratos®lt med

h/p/cosmos®stratos®med

h/p/cosmos®mercury®lt med

h/p/cosmos®mercury®med

h/p/cosmos®Kistler Gaitway®II F

h/p/cosmos®Kistler Gaitway®II S

h/p/cosmos®stratos®lt

h/p/cosmos®stratos®

h/p/cosmos®mercury®lt

h/p/cosmos®mercury®

h/p/cosmos®stellar®lt med

h/p/cosmos®stellar®med

h/p/cosmos®quasar®lt med

h/p/cosmos®quasar®med

h/p/cosmos®pulsar®lt

h/p/cosmos®pulsar®

h/p/cosmos®pulsar®lt 3p

h/p/cosmos®pulsar®3p

h/p/cosmos®stellar®lt

h/p/cosmos®stellar®

h/p/cosmos®quasar®lt

h/p/cosmos®quasar®

instruction

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

2Introduction

2.1 Description

The h/p/cosmos robowalk®expander is attached to the h/p/cosmos treadmill. In total

it consists of 8 expander cables, 4 in the front, and 4 in the rear. The expander cables

are attached to the patient via leg cuffs.

With the h/p/cosmos robowalk®expander you can either support or load the patient.

In manual locomotion therapy the systems assists the therapist in moving the

patient’s legs rather than moving them only manually. This leads to reduced fatigue in

both patient and therapist and will enable extended treatment time leading to more

successful therapy. The robowalk®expander is a great help for the especially

challenging work with neurological patients.

In order to strengthen specific muscle groups it is also possible to load the patient

with the expander cables.

For gait correction the patient may be supported and/or loaded in a way the patient is

automatically driven in the right gait pattern.

In manual locomotion therapy the front robowalk®expander system with its traction

force support can be compared to a power steering system of a vehicle. The power

consuming work and motion is supported by the system, but not fully replacing the

human effort.

The h/p/cosmos robowalk®expander is easy to use and therapists will appreciate the

simple settings. Forces and angles of tension cables can be set individually via raster

holes to match the skills of the patient or the requirements of the therapist. Due to the

flexibility of the expander cables, the movement can be set from almost any point in

front of or behind the patient. The rear expanders have very different functions and

benefits compared to the front expanders. The rear cables do not create traction

support like the front cables, but work as a resistance system for muscle training and

gait correction. The rear expander cables can even be set outside the width of the

treadmill so that adjustments from the side can be made to the patient´s leg

positioning.

Since in many cases it is not required that the therapist works permanently hands on

‘contact’ with the patient, it allows the therapist to observe the movement of the

patient and to observe the treatment progress by viewing the patient from different

angles.

Once you have found the perfect setting for a patient you will want to use this at the

next visit straight away. Each setting is numbered so that the therapists can easily

record each patient´s specific setup for future therapy and training sessions.

2.2 Safety equipment

A safety system to prevent from falling must be used when using the h/p/cosmos

robowalk®expander. We recommend the h/p/cosmos safety arch with chest belt,

rope and automatic stop of the treadmill or an unweighting system that prevents from

falling. Alternatively to a safety arch an unweighting system may be utilized as a fall

prevention system. We recommend the h/p/cosmos airwalk se 135. The use of the

h/p/cosmos robowalk®expander without a fall protection system is strictly prohibited

and may lead to accidents and injuries with fatal consequences.

intended and forbidden use

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

3Intended and forbidden use

The intended use, discussed in the following, can be performed with any h/p/cosmos robowalk®expander system in

combination with an h/p/cosmos treadmill and fall stop prevention or unweighting system.

Always regard the safety istructions of the treadmill, fall stop prevention system and

unweighting system.

3.1 Intended use

NLocomotion therapy

NUnloading of patient –supporting gait cycle

NLoading of patient –concrete extra stimulation

NGait correction

NGait training

The correct loading form must be prescribed by a medical doctor. The manufacturer cannot make any declaration or

recommendation, because the therapy depends on the patient, the clinical picture, the degree of disability and the

progress of rehabilitation.

The h/p/cosmos medical equipment may be operated in medical facilities by medical staff only.

3.2 Forbidden use

NThe h/p/cosmos robowalk®expander must not be used without a fall prevention system (safety arch / unweighting

system).

NDo not modify the system and do not connect to other equipment which is not explicitly declared as compatible by

all involved manufactures.

NThe system must not be used without carefully trained specialist staff and without the staff having been instructed

on the safety regulations.

NThe subject must interrupt the training immediately if he/she starts feeling sick or dizzy and should see a doctor.

NSubjects with any kind of physical restriction must see a doctor before using the system and ask for permission.

NChildren and animals are not allowed to use the system without a supervisor (medical doctor or therapist) and

must not get near to it (4 m safety zone) without a supervisor.

NOther use than the explicitly mentioned intended use.

NIn the event of any detected and/or assumed malfunctions and/or defects or unreadable safety warning labels, the

device has to be taken out of operation, clearly marked as such and disabled. The supplier and authorized service

personnel have to be informed in writing.

NUnder no circumstances should a subject/patient or other user be overloaded or overstressed.

NAll prohibitions in the chapter entitled "Safety precautions, safety regulations, prohibition and warnings".

NAll forbidden uses as stipulated in the treadmill’s operation manual also apply.

safety notes, warnings, precautions

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

4Safety notes, warnings, precautions

4.1 General

Important notes, warnings and precautions are marked with this sign. It also reminds you of

concerns which have to be considered for measurements and connection with other devices.

NThese directions for use

Nare part of the device and must always be accessible for every user.

Nhave to be read carefully before using the device.

Nhave to be observed and followed exactly for appropriate operation and safety.

NAny other use than that explicitly listed in the field of application is prohibited.

NAll regulations and prohibitions are to be followed.

NThe safety notes, warnings and precautions of this device and it’s accessory

Nhave to be read especially careful before using or maintaining the device.

Nhave to be pointed out to every user.

Nhave to be displayed within sight of the device.

NPay special attention to all maintenance and service instructions and the safety notes, warnings and precautions in

the service manual (see chapter 7 entitled “Service”).

NThis device must only be used

Nin medical facilities.

Nunder permanent supervision of medical staff.

Nafter careful instruction by authorized service personnel.

NAll material or parts of this device are to be kept away from children and animals and should neither be drunk nor

eaten.

NSafety, reliability, function and accuracy can only be achieved if installation, commissioning, instruction, extension,

alteration, recommended preventive maintenance, safety checks and repair are performed by authorized staff.

NIn the event that a user connects standard components to support, diagnose or appraise in terms of in-house

production according to the MPG (German Medical Devices Act), he creates a system and therefore has to

perform and verify a simplified conformity validation process.

Disregard of intended and forbidden use, safety notes, warnings and precautions, unauthorized or

lack of maintenance and / or regular safety checks may lead to injuries or even death and / or can

damage the device and will result in loss of any liability and warranty.

4.2 Preparation of the patient / user

NIt is strongly recommended to consult a doctor before using an exercise device.

NSubjects with a cardiac pacemaker or those who suffer from any kind of physical restriction must see their doctor

and get permission before using the exercise device.

NAnimals are not allowed to use the running machine and must not go too near (4 m distance).

NIt is prohibited to use the device under the influence of alcohol, drugs and/or anaesthetics.

NTraining or therapy must always be performed with sports or running shoes (no spikes) and sports clothing.

It must never be used with bare feet.

NHarnesses, chest belts, waist belts, patients’ vests, forearm arm rests, leash and cuffs are not designed for direct

skin or mucous membrane contact.

NFor the attachement of the leg cuffs follow the instructions in these directions for use.

safety notes, warnings, precautions

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

4.3 Preparation of the device

NThe h/p/cosmos robowalk®expander must not be used without a fall prevention system (safety arch / unweighting

system).

NThe safety arch with chest belt system must be checked for wear and damage before each use. In particular, the

rope, harness and all links such as the snap hook and the rope brake are to be checked.

NAll wear and tear parts of the system (expander, rope, harness and all links such as snap hook and rope brake)

are to be changed immediately in case of damage.

NCheck the expanders before every use optically. In case of any damage the device has to be taken out of function

until the expander is replaced.

4.4 During exercise

NThe h/p/cosmos robowalk®expander must not be used without a fall prevention system (safety arch / unweighting

system).

NThe h/p/cosmos robowalk®expander must only be used under permanent supervision of medical staff.

NNever set too high loads if the health and the condition of the subject/patient do not permit and a medical doctor

has not authorized these loads. Disregard may cause injuries and dangerous health problems or even death.

Under no circumstances should the test person/subject/patient be overloaded.

NThe subject must interrupt training immediately if he/she starts feeling sick, dizzy or feels pain. The patient should

consult his/her doctor in this case.

NThe emergency stop of the treadmill must be within reach of the subject and the supervisory staff at all times.

NThe emergency stop of the treadmill should only be used in an emergency, especially when there is a danger of

falling. It is not to be used as a normal stop key.

NIn any case of emergency, e.g. danger of stumbling and/or falling, etc: Grab the front crossbar and/or both side

handrails and jump onto the treadmill’s foot rails (step platforms) with both feet. Press the emergency stop button

of the treadmill immediately!

NTake special care for your fingers around the cable rolls to prevent contusion.

NThe subject must be disconnected from the h/p/cosmos robowalk®expander first before it is released from the

safety construction.

4.5 Machine care

In case of any detected and/or assumed malfunctions, defects or unreadable safety labels, the

device must be left immediately. The device must be marked. The supplier and authorised service

personnel are to be informed in writing immediately.

NAll wear and tear parts are to be replaced at least every two years or earlier if necessary due to first sign of wear

and/or damage.

safety notes, warnings, precautions

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

4.6 Danger zones

No.

Illustration

Description

Illustration shows possible

danger zone around the cable

rolls. There may be risk of

being jammed. Take care for

your fingers.

Illustration shows possible

danger of expanders. Return

expanders slowly. Do not let

them shoot back to prevent

user and material from

damage.

Illustration shows possible

danger of pulling knob while

expander is under tension.

Do not pull the knob while the

expander is connected to the

patient or in any other way

under tension

(e.g. pre-tension).

Slide will shoot down

immediately!

Safety information:

“Caution! Do not pull knob

while rope is under tension!”

(According to point above.)

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5Operation

5.1 Connection to safety arch

No.

Illustration

Description

Put on the chest belt so that

the h/p/cosmos logo is at the

front.

Close the buckle.

Attach the carabiner to the

vertical belt (1).

Adjust the length of the rope.

The rope should be that long,

the patient is able to move

freely but would not touch the

running belt with the knees

when falling.

Alternatively to a safety arch an

unweighting (BWS Body

Weight Support) system may

be utilized as a fall prevention

system.

Picture left: h/p/cosmos airwalk

se 135 with locomotion 150/50

DE med treadmill.

For the correct adaption to the

unweighting system see the

correspondig directions for use.

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5.2 Attachment of cuffs

No.

Illustration

Description

1.1. There are left and right leg cuffs. A

“left/right” sign is at the end of the black

band.

2.1. Fix the cuff around the thigh (or ankle) with

the h/p/cosmos sign readable.

2.2. The Velcro tape is just for first fixation. It is

not sufficient as only fixation!

3.1. For a safe fixation close the buckle and

tighten the band by pulling.

3.2. Make sure the grommets head to front and

back.

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5.3 Setting the load

The expander slides are vertically and horizontally movable. Find the right postion to choose the direction of load for

your therapy application.

In order to increase the pulling force, make use of the pretension.

5.3.1 Vertical adjustment

No.

Illustration

Description

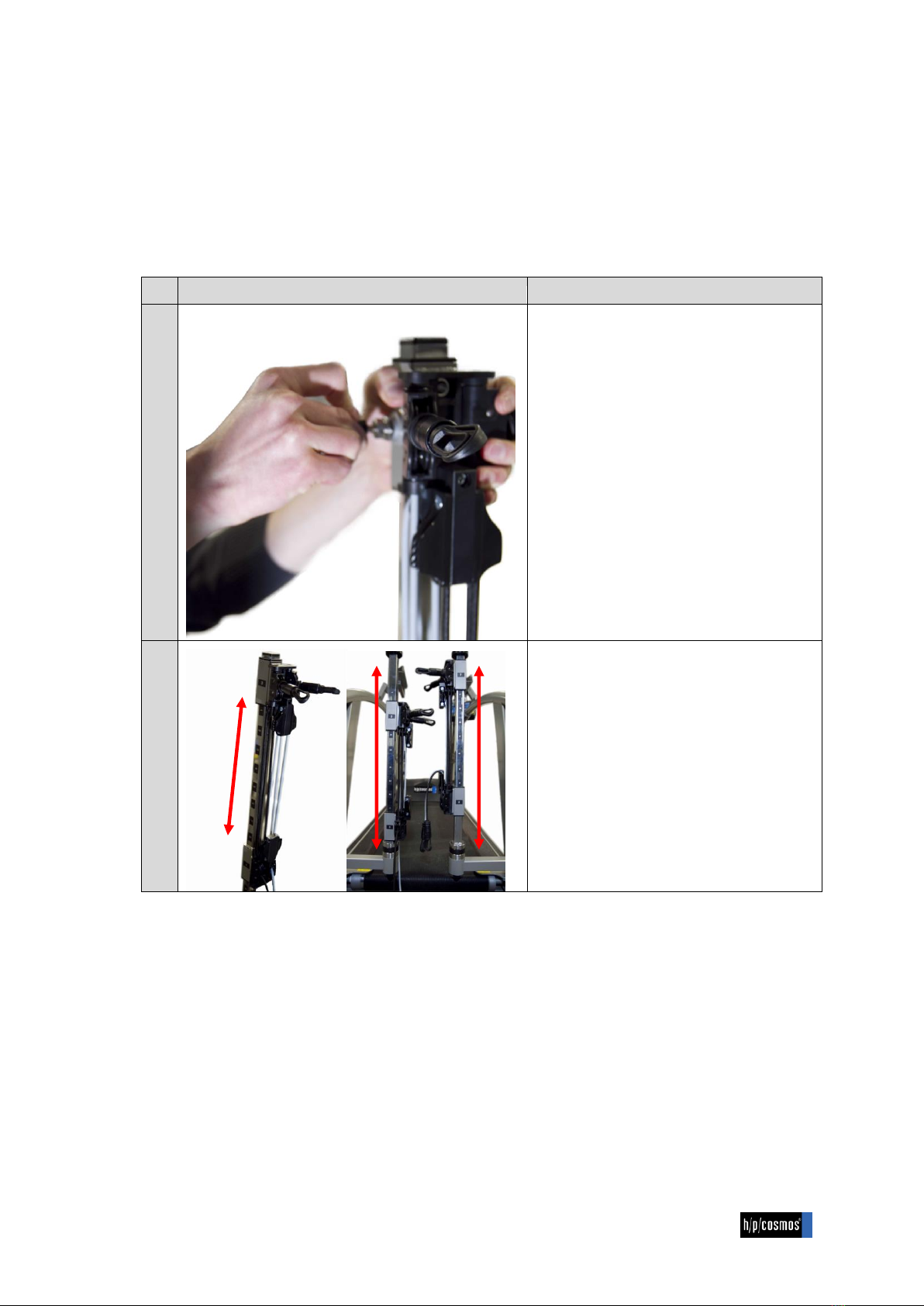

1.1. Vertical adjustment

1.1.1.Make sure the expander is not under

tension / disconnect patient

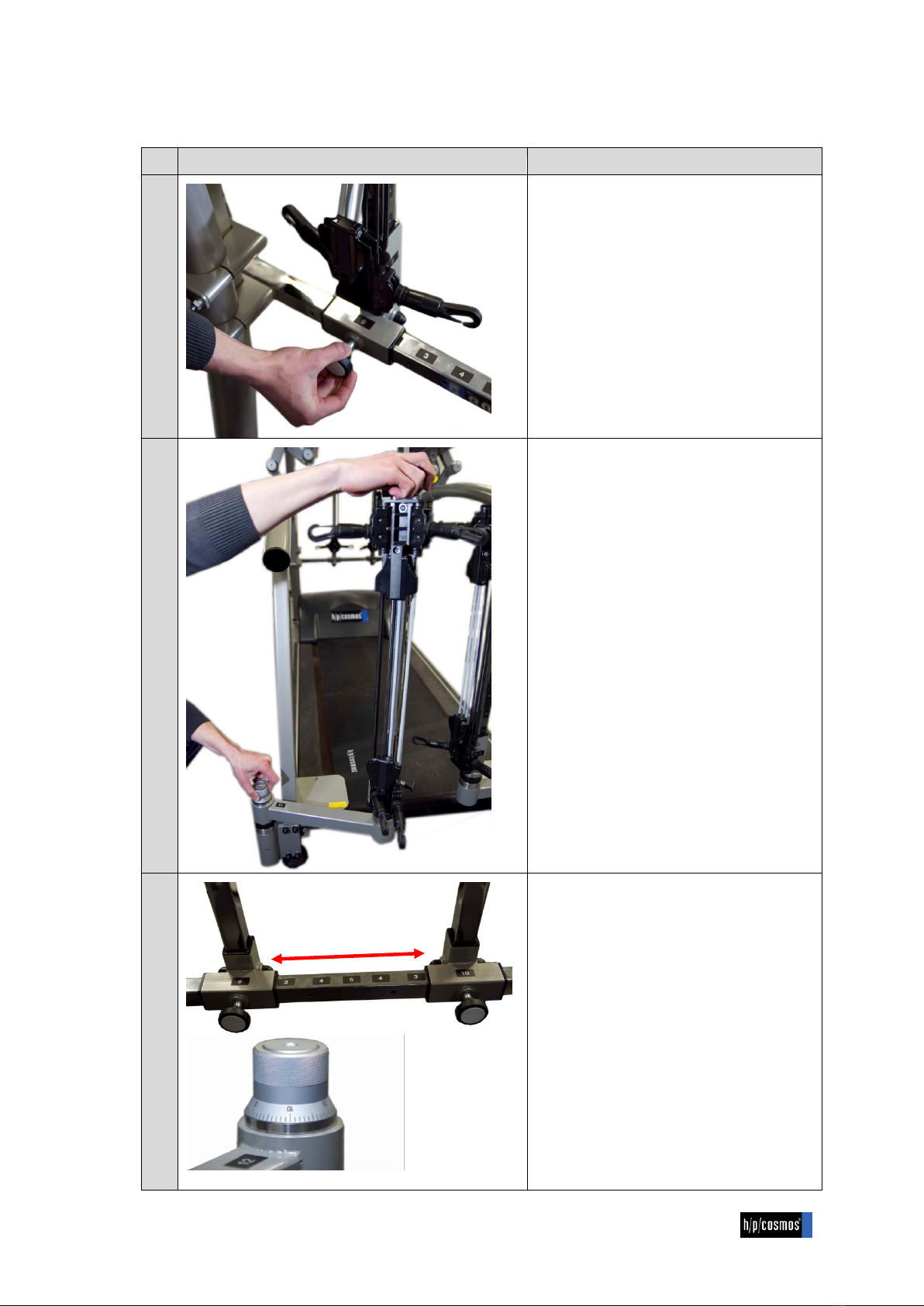

1.1.2.Pull knob, move slide to desired position,

release knob

1.1.3.Reconnect patient

2.1. Vertical adjustment

2.1.1.Front: scale 1-8, 8-1

2.1.2.Back: scale 1-5-1

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5.3.2 Horizontal adjustment

No.

Illustration

Description

1.1. Horizontal adjustment, front

1.1.1.Pull knob, move adapter unit to desired

position, release knob

2.1. Rear adjustment unit

2.1.1.Pull knob, move unit to desired position,

release knob

2.1.2.Take care for your fingers

3.1. Horizontal adjustments

3.1.1.Front, horizontal slide adjustment

3.1.2.Scale 1-5-1

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5.3.3 Pretension

No.

Illustration

Description

1.1. Pre-tension

1.1.1.Shortens expander to increase tension

1.1.2.Take care for well fitting

2.1. Pre-tension

2.1.1.Make sure expander fits and can’t

remove

2.1.2.The end of the expander must not lay on

the running surface

operation

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

5.3.4 Reproducability

As soon as you have found the right setting for your application use the adjustment table (see appendix) for

reproducability.

No.

Illustration

Description

1.1. To obtain reproducibility you have to

determine the individually optimal

adjustments for each testing person and

note it down appropriately (e.g. in a patient

file). We have deliberately refrained from

giving you standard settings for particular

heights, because the adjustment can widely

differ according to the posture and the

individual situation of the testing person.

1.2. All adjustments can be protocolled and

displayed on the adjustment table in the

appendix.

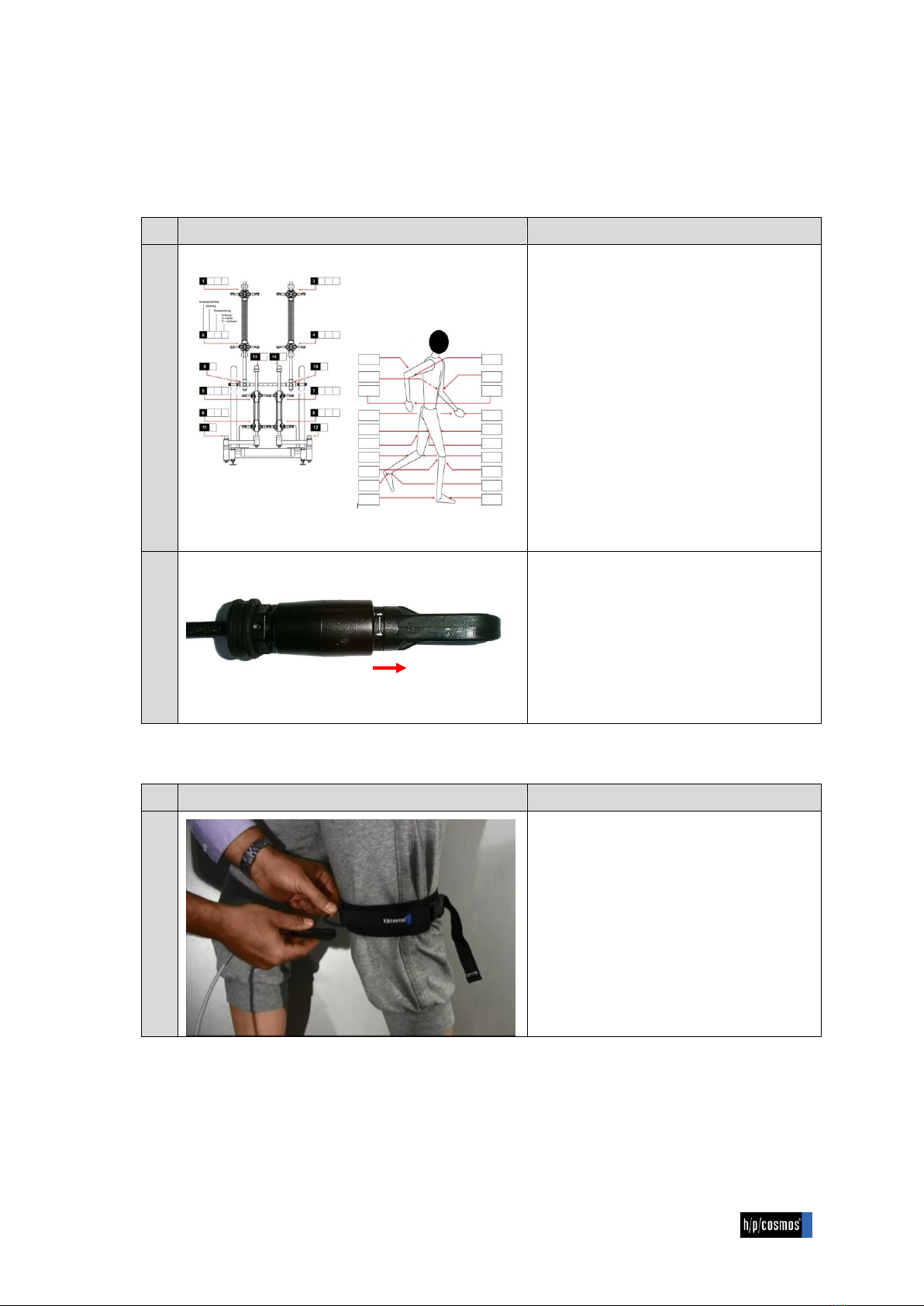

2.1. Scaled hooks

2.1.1.Scale 1-5

2.1.2.Must not be pulled further than STOP

2.1.3.No units behind

(2 not equal to 2 kg or 2 N or 2...)

2.1.4.May help to compare tension in static

state

5.4 Connecting the expander

No.

Illustration

Description

1.1. Make sure the grommets head to front and

back.

1.2. Now the expander can be attached by

linking the hook to the grommet.

application examples

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

6Application Examples

These application examples are part of a Bachelor thesis for medical professions, written in 2012 by Doerthe Beckmann

Hemmers at the European Hochschule Nordhessen in Kassel, Germany.

No.

Illustration

Description

Invigoration of the front thigh musculature:

NWalking forward

NExpander tension from dorsal

NLeg cuff mounting either on the thigh or foot

(the further distal the more muscle activity is

required)

NCave: distal tension can have negative effects on

patients with back pain as the lever action is too big

in case of strength deficits.

Invigoration of the posterior thigh musculature:

NWalking backwards

NTension from ventral

Ns.a.

Improvement of the hip joint flexion

NWalking forward

NTension from ventral

NLeg cuff mounting: thigh

NA diagonal pull has proved to be more optimal since

there will be less exercise in abduction, and more in

adduction.

Picture follows in next version

Improvement of knee flexion:

NWalking backwards

NTension from dorsal

NLeg cuff mounting: foot

Picture follows in next version

Improvement knee extension:

NWalking forward

NPull from ventral

NLeg cuff mounting: foot

NPull from ventral- cranial optimal, as more extension

is possible in the knee

application examples

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

Picture follows in next version

Improvement of the free leg phase:

NWalking forward

NPull from ventral

NLeg cuff mounting possible both in combination

thigh and foot/ lower leg as well as solo

Improvement of the stance phase:

NWalking forward

NPull from dorsal

NLeg cuff mounting ideally on the thigh

NHere the patient has to work against a resistance

and therefore reaches an improved steadfastness in

this walking phase

Improvement of the adduction in the hip joint:

NWalking forward

NPull from dorsal/ lateral

NThe more distal the leg cuff is placed the more

difficult it is for the patient resp. the more strength it

takes the patient to get the leg into adduction.

Picture follows in next version

Facilitation of coordination:

Ne.g. walking sideways, backwards or forward

NTension according to the requirements of the

therapist

NDiagonal grasping exercises towards fixed target

points

service

file: n:\article\cos30022man-en\20140206_cos30022man-en_h-p-cosmos_robowalk_expander_manual.doc

7Service

Some simple maintenance and monitoring (no repair work!), as described, can easily be done or even have to be done by

yourself. All kind of installation and repair work as well as most maintenance work is to be carried out only by trained and

authorized technicians who have been certified by h/p/cosmos. The following symbols will indicate which work can be done

by the customer and which work has to be done by authorized technicians:

The customer / user should perform this maintenance and monitoring work. Some safety checks or

monitoring (for examples of harnesses and ropes, running belt condition and position, etc.) have to be

performed on a daily basis. For this reason it is not practical to contract certified technicians for such tasks.

However, where it is practical, all maintenance and monitoring work marked with this symbol can also be

performed by certified technicians.

All installation, maintenance, repairs and monitoring work indicated with this symbol must only be

performed by trained, authorized technicians who have been certified by h/p/cosmos. Customers/users

must not perform these kinds of tasks.

We recommend calling our competent service team or entering into a maintenance contract for a routine service at an

interval of 6 or 12 months for standard machines and standard applications. A form for registration of your institution and

device is included in the delivery. In order to be able to supply you with the latest technical information and service, it is

important for you to fill out the form. Therefore please fill out the form for registration immediately and send it back.

7.1 Safety notes, warnings, precautions

7.1.1 Room conditions

Nh/p/cosmos devices must not be used outdoor and/or in environmental conditions other than those specified in the

chapter entitled „technical data“ and “Environmental requirements”.

NThe installation room has to meet the requirements of DIN and VDE installation directives.

NNever install the device in a flammable or volatile location. This may cause explosion or fire.

NNever install the device where acid or corrosive gases are present as current leakage or electric shock may result

due to corrosion.

7.1.2 Transport and Installation

NThe manufacturer does not assume liability for any damage, complaints or missing parts which are not reported

immediately upon delivery on the packing list/delivery note.

NIn order to ensure proper installation and safety, the manufacturer, an authorised service crew or an authorised

dealer must always transport and install the devices.

NFailure to comply with the conditions listed in this operation and service manual and listed in the operation and

service manuals of other respective devices which may be used in connection with this device, failure of

performing recommended maintenance and safety inspection intervals, unauthorized maintenance or amendments

of the design and/or performance and/or specifications and/or labelling of the devices shall absolve h/p/cosmos

sports & medical gmbh from any responsibility for the safety, reliability and performance of this equipment.

NAll material and all other parts should be kept away from children and animals.

NDo not modify the device and do not connect to other equipment which is not explicitly declared compatible by all

involved manufacturers.

NOnly connect accessories that are confirmed as compatible by all manufacturers.

NIf the device is to be stored unused in an unsupervised area for an extended period, ensure that children do not

have access.

NDo not put packing plastic bags, plastic foils or other materials within reach of children as suffocation may result.

This manual suits for next models

Table of contents

Other h/p/cosmos Fitness Equipment manuals

h/p/cosmos

h/p/cosmos airwalk ap Service manual

h/p/cosmos

h/p/cosmos 190/65 3p Operation instructions

Popular Fitness Equipment manuals by other brands

Kettler

Kettler 7670-700 Training and operating instructions

Fitkraft

Fitkraft FTKTLAWKAWPY user manual

CYBEX

CYBEX 772A owner's manual

CORE ENERGY FITNESS

CORE ENERGY FITNESS RBS3 owner's manual

Domyos

Domyos ST 140 operating instructions

Crivit

Crivit 396069 2201 Instructions for use

CYBEX

CYBEX 771A owner's manual

FITFIU FITNESS

FITFIU FITNESS BESP-22 instruction manual

CYBEX

CYBEX Prestige Total Access 21440-999-4 AC owner's manual

Sodex Sport

Sodex Sport S80109 Product sheet

Deltech Fitness

Deltech Fitness DF4900 Assembly instructions

Edges

Edges 17105 instruction manual

Thane Fitness

Thane Fitness AB-DOer Pro owner's manual

Joy Sport

Joy Sport CT-Unicum manual

BH FITNESS

BH FITNESS L290 Instructions for assembly and use

Conquer

Conquer Multi Function Sit Up Push Up Assembly manual

SPORTSTECH

SPORTSTECH VX350 user manual

Escape Fitness

Escape Fitness TIYR user guide

h/p/cosmos Robowalk expander F-M Manual

Popular Fitness Equipment manuals by other brands
