H2O LIFE SOURCE EcoSmart User manual

User Manual

2
EcoSmartTM Product Layout
Lid 3
Body 3
Back View 4
Installation of Tap Diverter Valve 5
Setting Up Your EcoSmartTM Alkaline Water Dispenser 6
LED Indicator Chart 7
Troubleshooting 8
Ordering Information
Filter A : Nano-UF Membrane Filter 10
Filter B : Pre-Carbon Polishing Filter 10
Filter C : KYK®Alkaline Catalysts Composite Filter 11
Filter D : Nano-UF Membrane Filter 12
Filter E : Auto-Flush UF Membrane Filter 12
Replacement Filters List 13
10-litre SMART Bottle with Tap 14
10-litre SMART Bottle without Tap 14

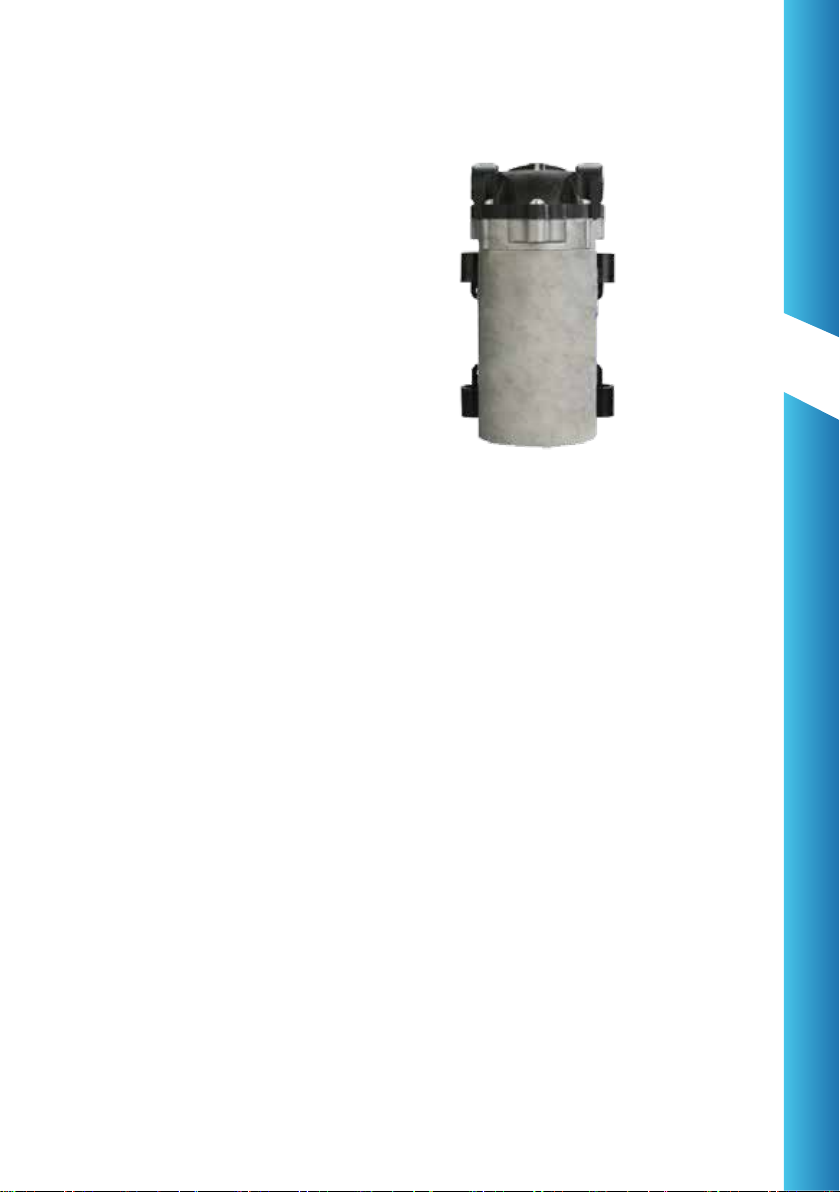

Booster Pump 15
Contents Page

3
Reset for Filter Change
Auto Refill Sensors
EcoSmart
TM
Product Layout
Lid
LED Indicator
10-litre SMART Bottle
Tap
Base Unit
Body

LED Indicator
4
Back View (Premium version)
Filter A / D: Nano-UF Membrane Filter
Filter B: Pre-Carbon Filter
Filter C: KYK®Alkaline Catalysts
Composite Filter
Booster Pump
Power Supply Switch
Waste Water Outlet
Overflow Outlet / Vent
Water Inlet
EcoSmartTM Product Layout
Booster Pump
Power Supply Switch
Waste Water Outlet
Overflow Outlet / Vent
Water Inlet
Back View (PRO version)
Filter D: Nano-UF Membrane Filter
Filter B: Pre-Carbon Filter
Filter C: KYK®Alkaline Catalysts
Composite Filter
Filter E: Auto-Flush UF Membrane Filter
EcoSmartTM Premium
Waste Water Outlet Leave it plugged Connect to drainage*
Overflow Outlet / Vent
* 200ml of waste water is discharged after water tank is full each time.
Unplugged. Leave it open Unplugged. Leave it open
EcoSmartTM PRO

5

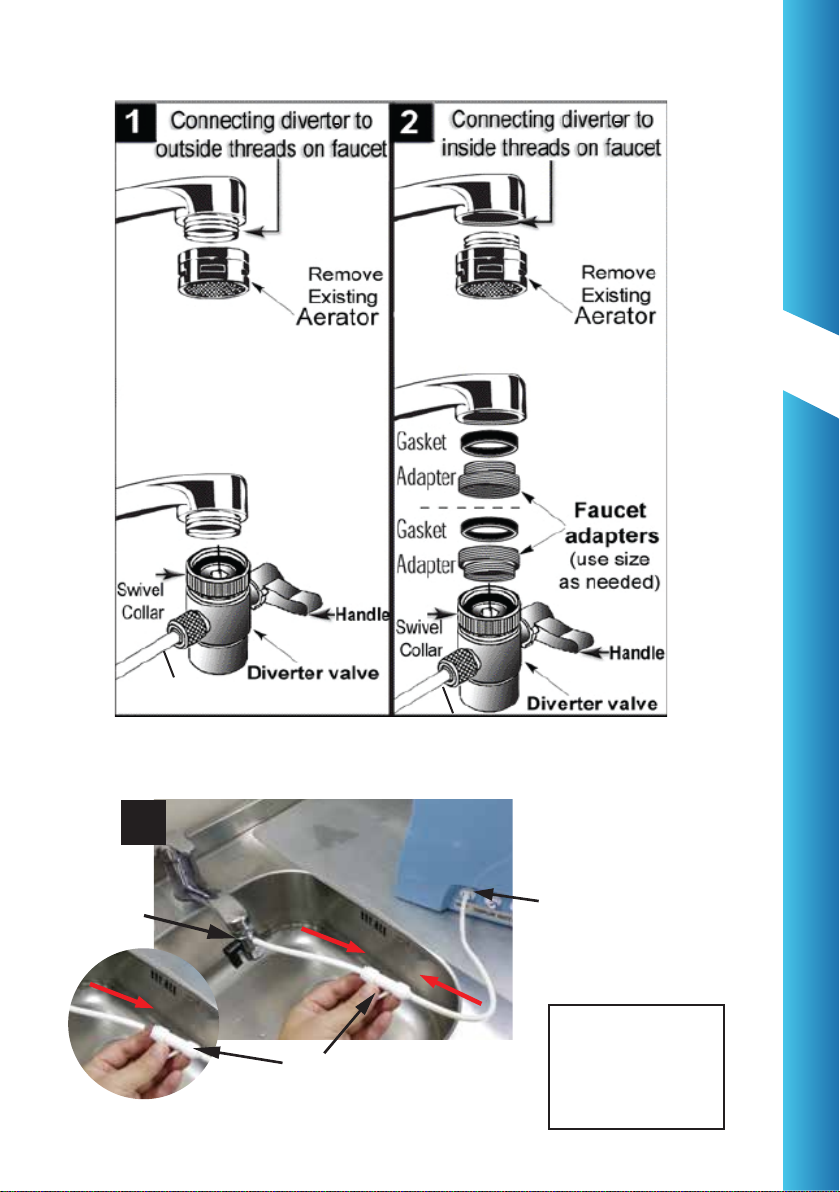

Installation of Tap Diverter Valve
Installing Dust Filter
Remark:
Maximum endurable
temperature: 45ºC
Maximum operating
pressure: 70 psi (5kg/cm2)
EcoSmart TM
EcoSmart TM
3
Tap
Diverter Valve
Dust Filter
EcoSmart TM
Water Inlet
* Cutting the tubing depends on the location of your EcoSmartTM from the tap.

Setting Up Your EcoSmartTM Alkaline Water
Dispenser
6
1. Plug in all necessary connectors to the set-up.
2. Place the 10-litre SMART Bottle onto the base unit and close the lid fully.
3. Ensure that both power and water supply have been turned on.
Refer to the LED Indicator Chart for these indications.
4. During the first few minutes, do not be alarmed at the blackish colour of the first
3 litres of water. This is a cleaning process that flushes the filters.
5. Once the water becomes clear, empty the SMART bottle by lifting the lid carefully.
6. Place the SMART bottle back onto the base unit and close the lid.
7. The auto-refill process will now begin. (This process takes place when the water
level falls below the auto-refill sensors.)
8. The refilling process will stop automatically when it reaches full capacity.
9. You may now use dispenser normally.
10. Enjoy fresh and clean alkaline water anytime, anywhere!

7
EcoSmartTM LED Light Operation:
LED 2: Indicate presence of supply water (pressure sensor). Green color
LED 3: Indicate water production. Yellow color on.
LED 4: Indicate water tank is full. Green color on.
LED 2 and 4: Blinking with BUZZ alarm indicate top cover is opened.
LED 2 Green blinking indicate replacement of Filter 1 - preset at 3000 minutes
of pump operation (Est 3000 - 4500 liters)
LED 3 Yellow blinking indicate replacement of Filter 2 - preset at 3000 minutes
of pump operation (Est 3000 - 4500 liters)
LED 2 & 3 Yellow both blinking indicate replacement of Filter 3 - preset at
3000 minutes of pump operation (Est 3000 - 4500 liters)
4 3 2 1
LED Indicator Chart
A. Normal Operation:
LED 1: Indicate power supply. Red LED on. No power: Red LED off
B. Filter Change Reminder (When water tank is full):
Blinking “red LED” with “BUZZ alarm” indicate power has been cut off due to
leak. Leak detector is wet. Rectify fault for system to resume normal operation.
LED 2: Blinking “green LED” with “BUZZ alarm”, and LED 4 is GREEN.
Water tank is full, but water is still running (back up level sensor is triggered).
Rectify fault for system to normal operation.
C. Intelligent LED for Troubleshooting
Indicate the end of water production and begin of 8 seconds auto flush
function. All LED ON: 1. Red, 2. Green, 3. Yellow, 4. Green
D. For EcoSmartTM Pro version
(EcoSmartTM with Auto-Flush & Nano-UF Membrane Filters only)

8
Troubleshooting
1. No water production
Check main power supply and main water supply. Refer to page 7 - LED
indicator chart, and ensure LED 1 & LED 2 are lighted up.
2. Buzzing alarm sound is on
(a) Close the top lid
(b) Refer to page 7 - LED indicator chart and check for potential leak.
(c) Check for faulty water level sensor.
3. Slow water flow
Where there is pre-filter(s) added to the installation, first check that this filter is
not choked with mud or impurities. If it is choked, replace it.
If slow water flow persists, proceed to steps (a) and (b).
(a) Low incoming water pressure
• Generally, this problem occurs when the incoming water pressure is
under 4.5 psi (0.3kg/cm2). If the water inlet pressure is excessively low,
Ensure both the tap diverter and the main water inlet valve is fully open.
(b) Replace the filter(s):
• First replace the Nano-UF Filter at position 1 and check the water flow.
If the problem of slow water flow persists, then proceed to replace filters
at position 2 & 3 together.
*For EcoSmartTM Pro version, the Auto-Flush UF & Nano-UF Membrane
Filters (Filter D & Filter E) to be replaced together.
4.Excessive flow of waste water
This is an unusual situation where the SMART bottle is full and yet water
continues to run, causing an overflow. This indicates that the inlet solenoid valve
is jammed with impurities. When this occurs, the "BUZZ alarm" will be turned on.
Simply turn off both water supply and electricity. Next, replace the valve.
(Refer to Section (C) on Page 7, LED 2)
5. Insufficient working pressure in Pump (for technicians only)
Connect the pressure gauge between pump and [Nano-UF membrane] to see if
the working pressure is normal. When the pressure is below 65 psi (4.5kg/cm2),
check to see if the filter is choked with mud or with a solid particle. If so, replace
the filter. If it is not choked, check the transformer to see if the voltage output is
declining. If the voltage output is declining, replace the transformer or pump.

9
Specification
DIRECT FEEDSPECIFICATIONS
1.5 LPM
720 Litres
pH 8.5 - 9.5 varies
Municipal water
Well Water (transparent) Well Water (transparent)
0.3 bar, 5 psi minimum
When there is no water supply
STORAGE TANK FEED
1.0 LPM
480 Litres
pH 8.5 - 9.5 varies
Municipal water
Suction, 2.5 meter H2O
Not applicable
Not required. No acidic water produced
5•C to 45•C
Device stops making water when bottle is full
Counter-top
48cm (Height) x 41cm (Depth) x 32 (Width), 12Kg
55cm (Height) x 50cm (Depth) x 37 (Width), 14Kg
45 Watts, CE Compliance
220V / 50-60Hz
10 Litres, Patented Cap
Water Bottle
Water Production Rate
Water Production/ Day
Output Water
Feed Water
Feed Water Pressure
Auto Shut Off
Water Drain
Feed Temperature
Level Sensor
Dimension of Device
Dimension of Package

Ordering Information
10
Filter A:
Nano-UF Membrane Filter
Japan Kitz* Hollow Fiber Module
*Kitz is a trademark of KITZ MICRO FIBER CORPORATION
Part No: EC-NUFJP-9-3-1 Filter
Filter Size: 9 inches
*Filter Capacity: up to 6,000 minutes or up to 9,000 liters4
Membrane Pore Size: ≤ 0.1 microns
Features:
• Cutting-edge technology removes contaminants
≤ 0.1 microns, as small as 0.01 microns (removal
capability of more than 99.9%)
• Secondary removal of rust, particulates, bacteria,
cyst, virus, and small molecular weight organics
• High capacity filtration of up to 3,000 minutes
• Easy-change filter design
• Suitable for urban water with turbidity ≤ 5 NTU
• Beneficial materials are not removed
*Note: Filter change is recomended when:
1. Filter capacity has reached the maximum level
2. Water flow is reduced (this is due to clogging)
3. Bad taste and odours occurring
4. Fiter change reminder is set at 3,000 minutes. For most
cases where incoming source water is good
(less sedimentation) the Nano UF filter(s) can be used for
one more cycle ie up to 6,000 minutes (9000 liters)
Features:
• cutting-edge technology removes contaminants
as small as 0.01 micron (removal capability of
more than 99.9%)
• secondary removal of rust, particulates,
bacteria, cyst, viruses and small molecular
weight organics
• high capacity filtration of up to 3,000 minutes
• easy-change filter design
• suitable for urban water with turbidity ≤ 5 NTU
• beneficial minerals are not removed
TM
Nano-UF Membrane Filter
Japan Kitz* Hollow Fiber Module
*Kitz is a trade mark of KITZ MICRO FILTER CORPORATION
Part No: EC-NUFJP-9-3-1 Filter
Filter Size: 9 inch
Filter Capacity: up to 6,000 minutes or up to 9000 litres
Membrane Pore Size: ≤ 0.1 micron
Filter B:
Pre-Carbon Filter
Taiwan Premium GAC
Part No: EC-GACTW-9-3-1 Filter
Filter Size: 9 inches
Filter Capacity: 3,000 minutes or up to 4,500 liters
Features:
• Premium pre-carbon filter removes harmful
contaminants – chlorine, chloramines, THMs, residual
pesticides and organics, bad taste and odours
• High-capacity filtration of up to 3,000 minutes
• Easy-change filter design
• Beneficial materials are not removed
*Note: Filter change is recomended when:
1. Filter capacity has reached the maximum level
2. Water flow is reduced (this is due to clogging)
3. Bad taste and odours occurring
Pre-Carbon Filter
Taiwan Premium GAC
Part No: EC-GACTW-9-3-1 Filter
Filter Size: 9 inch
Filter Capacity: 3,000 minutes or up to 4,500 litres
Features:
• premium pre-carbon filter removes harmful
contaminants - chlorine, chloramines, THMs,
residual pesticides and organics, bad taste
and odours
• high capacity filtration of up to 3,000 minutes
• easy-change filter design
• beneficial minerals are not removed
TM

Ordering Information
11
Filter C:
KYK®Alkaline Catalysts Composite Filter
Korea Patented Catalysts and Japan Post Carbon
Part No: EC-KYKAC-9-3-1 Filter
Filter Size: 9 inches
Filter Capacity: 3,000 minutes or up to 4,500 liters
Filter Composite: KYK®alkaline catalysts, non-woven
pre-filter, Japan activated premium post carbon, MinanoTM
media filter, anti-bacterial silver media filter
Features:
• Alkaline catalysts is patented with KFDA certification for
safety and efficacy; produces health enhancing alkaline
antioxidant water with smaller water clusters
• Post carbon is made from Japan’s premium activated
carbon with silver media to enhance taste and, more
importantly, inhibits bacteria activities
• High capacity filtration of up to 3,000 minutes
• Easy-change filter design
• Beneficial materials are not removed
*Note: Filter change is recomended when:
1. Filter capacity has reached the maximum level
2. Water flow is reduced (this is due to clogging)
3. Bad taste and odours occurring
Features:
• alkaline catalysts is patented with KFDA
certification for safety and efficacy; produces
health enhancing alkaline antioxidant water
with smaller water clusters
• post carbon is made from Japan’s premium
activated carbon with silver media to enhance
taste and, more importantly, inhibits bacteria
activities
• high capacity filtration of up to 3,000 minutes
• easy-change filter design
• beneficial minerals are not removed
TM
KYK® Alkaline Catalysts
Composite Filter
Korea Patented Catalysts and Japan
Post Carbon
Part No: EC-NUFJP-9-3-1 Filter
Filter Size: 9 inch
Filter Capacity: 3,000 minutes or up to 4,500 litres
Filter Composites: KYK®alkaline catalysts,
non-woven pre-filter, Japan activated
premium post carbon, MinanoTM media filter,
antibacterial silver media filter.

12
Ordering Information
Filter D
Nano-UF Membrane Filter
Made in Taiwan
Part No: EC-NUFTW-9-3-1 Filter
Filter Size: 9 inches
Filter Capacity: up to 6,000 minutes or up to 9,000 liters*
Membrane Pore Size: ≤ 0.1 microns
Features:
• Cutting-edge technology removes contaminants ≤ 0.1
microns, as small as 0.01 microns (removal capability of
more than 99.9%)
• Secondary removal of rust, particulates, bacteria, cyst,
virus, and small molecular weight organics
• High capacity filtration of up to 6,000 minutes
• Easy-change filter design
• Suitable for urban water with turbidity ≤ 5 NTU
• Beneficial materials are not removed
*Note: Filter change is recomended when:
1. Filter capacity has reached the maximum level
2. Water flow is reduced (this is due to clogging)
3. Bad taste and odours occurring
4. Fiter change reminder is set at 3,000 minutes. For most
cases where incoming source water is good
(less sedimentation) the Nano UF filter(s) can be used for
one more cycle, ie up to 6,000 minutes (9000 liters)
Filter E
Auto-Flush UF Membrane Filter
Optimized for poorer water supply
Made in Korea
Part No: QC-AUFKR-8-3-1 Filter
Filter Size: 8 inches
Filter Capacity: 6,000 minutes or up to 9,000 liters*
Membrane Pore Size: ≤ 0.1 microns
Features:
• Cutting-edge technology removes contaminants ≤ 0.1
microns, as small as 0.01 microns (removal capability of
more than 99.9%)
• Removal of rust, particulates, bacteria, cyst, virus, and
small molecular weight organics
• High capacity up to 6,000 litres, depending on incoming
quality of water
• Suitable for poorer water supply with turbidity ≤ 20 NTU
• Beneficial minerals are not removed
*Note: Filter change is recomended when:
1. Filter capacity has reached the maximum level
2. Water flow is reduced (this is due to clogging)
3. Bad taste and odours occurring
4. For most cases where incoming source water is good
(less sedimentation) the Nano UF filter(s) can be used for
one more cycle, ie up to 6,000 minutes (9000 liters)
TM
Nano-UF Membrane Filter
Made in Taiwan
Part No: EC-NUFTW-9-3-1 Filter
Filter Size: 9 inch
Filter Capacity: 6,000 minutes or up to 9,000 litres
Membrane Pore Size: ≤ 0.1 micron
Features:
• cutting-edge technology removes contaminants
≤ 0.1 micron, as small as 0.01 micron
(removal capability of more than 99.9%)
• secondary removal of rust, particulates, bacteria,
cyst, virus and small molecular weight organics
• high capacity filtration of up to 6,000
minutes
• easy-change filter design
• suitable for urban water with turbidity ≤ 5 NTU
• beneficial minerals are not removed
Auto-Flush UF Membrane Filter
Optimized for poorer water supply
Made in Korea
Part No: QC-AUFKR-8-3-1 Filter
Filter Size: 8 inch
Filter Capacity: 6,000 minutes or up to 9,000 litres
Membrane Pore Size: ≤ 0.1 micron
Features:
• cutting-edge technology removes contaminants
≤ 0.1 micron, as small as 0.01 micron
(removal
≤ capability of more than 99.9%)
• Removal of rust, particulates, bacteria,cyst, virus
and small molecular weight organics
• high capacity up to 6,000 litres depending on
incoming quality of water
• suitable for poorer water supply with turbidity
≤ 20 NTU
• beneficial minerals are not removed
TM

13
Ordering Information
PUMP
Premium Not Available
Korea Taiwan Taiwan
Taiwan Korea /Japan
Korea /Japan
Japan
Taiwan
PRO
Optional* - Underground water, heavy sedimentation. Turbidity ≤20 NTU
Auto-Flush UF with Nano UF*
Auto-Flush UF
with Nano UF*
Nano UF Pre-Carbon Alkaline Catalysts / Post Carbon / Silver
Optional*
Nano UF Pre-Carbon
Alkaline Catalysts /
Post Carbon / Silver
123
123
EcoSmart™ Premium Version
Replacement Filters List
Nano-UF Membrane Filter
Nano-UF Membrane Filter
Pre-Carbon Filter
KYK®Alkaline Catalysts Composite Filter
EC-NUFJP-9-3-1 Filter
EC-GACTW-9-3-1 Filter
EC-KPREC-9-3-1 Filter
EC-KYKAC-9-3-1 Filter
EcoSmart™ PRO Version
Replacement Filters List
Auto-Flush UF Membrane Filter
Nano-UF Membrane Filter
Pre-Carbon Filter
KYK®Alkaline Catalysts Composite Filter
QC-AFUFK-8-3-1 Filter
EC-NUFTW-9-3-1 Filter
EC-KPREC-9-3-1 Filter
EC-KYKAC-9-3-1 -Filter
A
BC
C
B
D
DE
A
D
B
C
B
C
E
D
Singapore only

14
Ordering Information
10-litre SMART Bottle with Tap
Part No: EC-SB-10PET-C-TAP
10-litre SMART Bottle without Tap
Part No: EC-SB-10PET-C

15
Ordering Information
Booster Pump
Part No: EC-DPTW-PUMP

H2O LIFE SOURCE (SEA) PTE LTD
Phlippines Representative Office
Unit 1609 Cityland 10 Tower 1, 156 H.V. Dela Costa Street
Salcedo Village, Makati City 1226
Singapore Headquater
No 38 Jalan Pemimpin #06-02 @M38 Singapore 577178
Website : www.h2olifesource.com
H2OLifeSource
SINGAPORE | MALAYSIA | MYANMAR | PHILIPPINES | THAILAND | AUSTRALIA
PSB Singapore
Korea
Conformity
Laboratories
Korea
Food & Drug
Administration
Korean
Intellectual Property
Copyright © 2008 H2O LIFESOURCE
FDA, NSF, SGS, WIPO are the registered trade-marksof the respective organization.
EcoSmartTM and 天愿水TMare registered trademarks of H2O Life Source (SEA) Pte Ltd.
