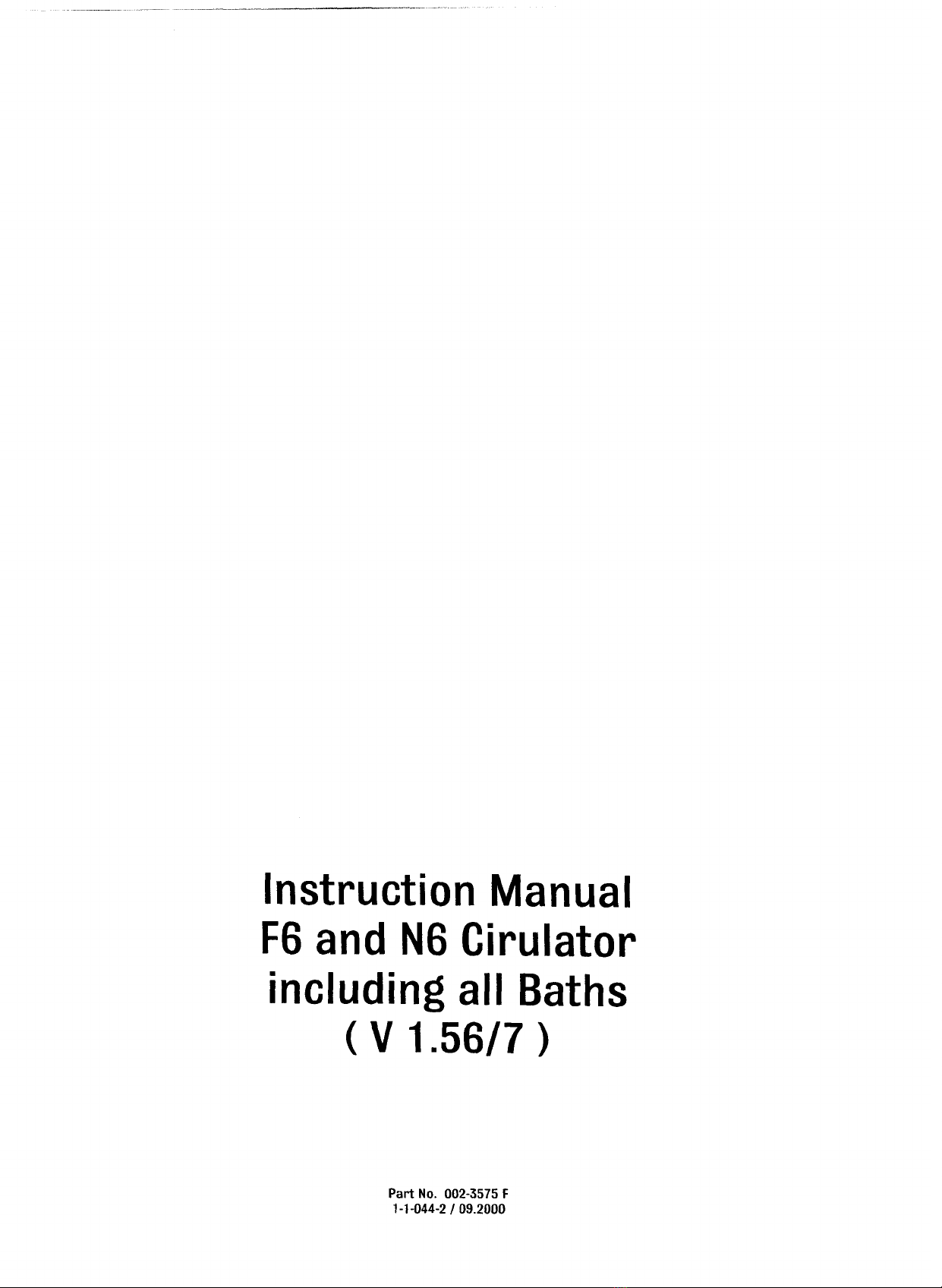

Instruction Manual
F6 and N6 Cirulator
including all Baths
( V 1.5617 )
Part No. 002-3575 F
1-1 -044-2 / 09.2000
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Table of Contents
.............................
.
1 Key to Symbols 4
..................
1.1 Symbols used inthis manual 4
...............
1.2 Symbols usedonthe unit (front) 4
1.2.1 Value alteration
........................ 5
........................
1.2.2 Menuselection 6
...............
1.3 Symbols usedon the unit (rear) 6
1.4 Symbols usedonthe display
.................. 7
.................................
1.5 MenuTree 8
2 . QualityAssurance .......................... 9
3 . Your Contactsat Thermo Haake .............. 9
................................
4 . Safety Notes 10
5 . Unit Description ............................ 13
.............................
5.1 Safety features 13
5.2 Safety class 2 accordingto DIN 12879
......... 14
................................
5.3 Applications 14
5.4 Temperatureranges
......................... 14
......................
6 . Unpacking / Setting Up 16
.....................
6.1 Transportationdamage? 16
6.2 Contents
................................... 16
6.3
Ambient conditionsaccordingto EN6101 0 ..... 16
..............
6.4 Restingtime after transportation 16
6.5 Ventilation
.................................. 16
............
6.6 Informationconcerningthe CE sign 17
6.7 Mountingonto bathbridges
................... 18
7 . FunctionalElements ........................ 19
...............................
7.1 FrontFandN 19
7.2 Rear F and N ............................... 20
..............
7.3 Bathvessel 65 (example model) 21
7.4 Refrigeratedbath C25 (example model)
........ 22
8 . Hoses ...................................... 23
8.1 Connecting Hoses ........................... 23
8.2 SelectingHoses ............................. 23
8.2.1 Plasticand rubber hoses
................ 24
8.2.2 Metalhoses ........................... 25
8.3 Tap water cooling ........................... 26
8.3.1 Connectionto cooling
(tap) water ........ 26
8.4 ExternalCoolingDevices
..................... 26
8.5 Pressure pump
............................. 27
8.5.1 Temperaturecontrollingobject (internalbath)27
8.5.2 Connectionof external closed systems .... 27
8.5.3 Connection of external open systems
..... 27
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

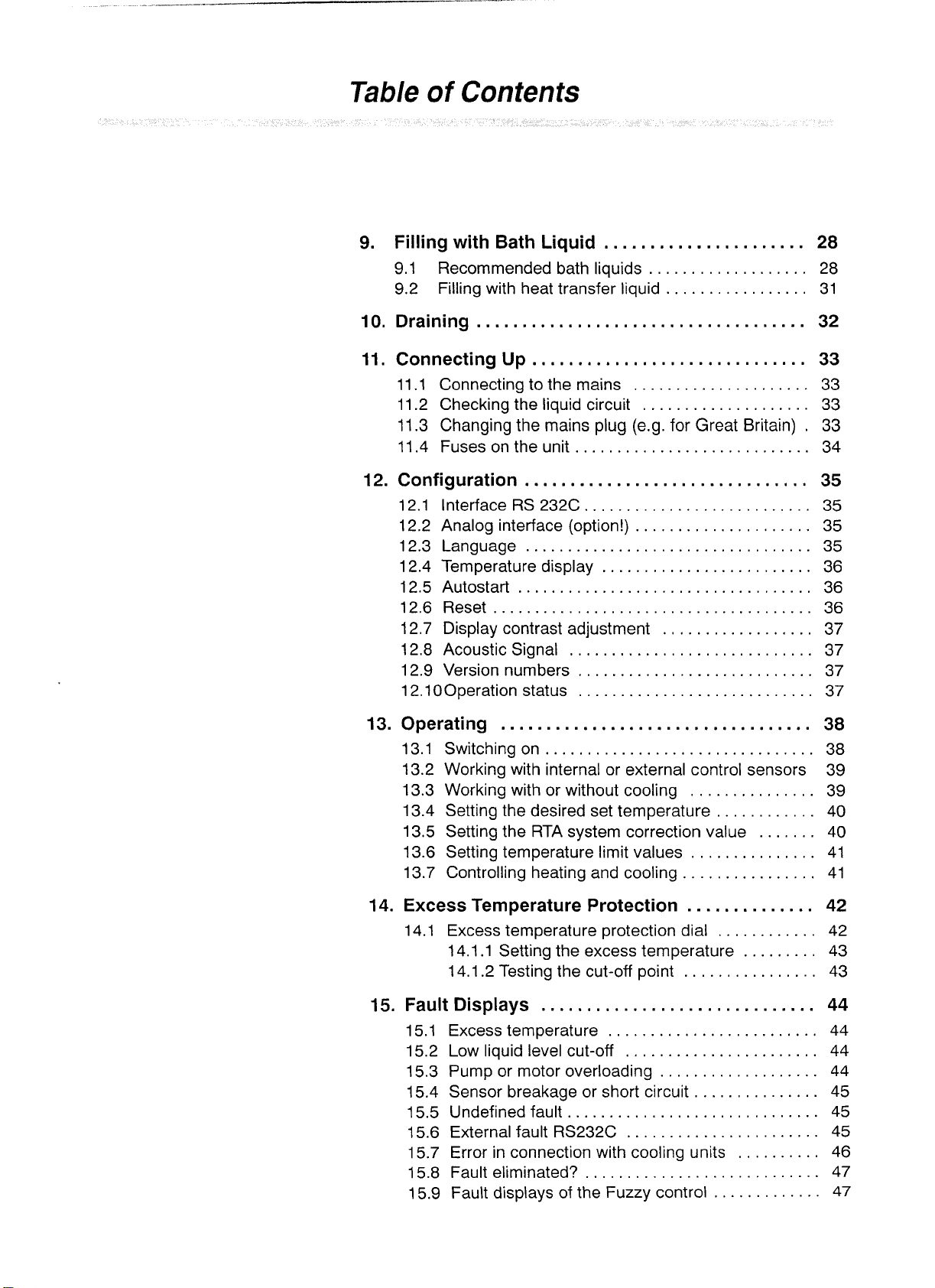

Table of Contents
9 . Fillingwith Bath Liquid ...................... 28
9.1 Recommendedbath liquids ................... 28
9.2 Fillingwith heat transfer liquid
................. 31
10 . Draining .................................... 32
11
. ConnectingUp .............................. 33
11.1 Connectingto the mains ..................... 33
11.2 Checkingthe liquid circuit
.................... 33
11.3 Changingthe mains plug (e.g.for Great Britain)
. 33
11.4 Fuses on the unit
............................ 34
12 . Configuration ............................... 35
12.1 Interface RS 232C ........................... 35
12.2 Analog interface (option!)
..................... 35
12.3 Language
.................................. 35
12.4 Temperaturedisplay
......................... 36
12.5 Autostart
................................... 36
12.6 Reset
...................................... 36
12.7 Display contrast adjustment
.................. 37
12.8 Acoustic Signal
............................. 37
12.9 Version numbers
............................ 37
12
. looperationstatus ............................ 37
.................................. . 13 Operating
13.1 Switching on ................................
13.2 Working with internal or external control sensors
13.3 Working with or without cooling
...............
13.4 Settingthe desired set temperature ............
13.5 Settingthe RTA system correction value .......
13.6 Settingtemperature limit values ...............
13.7 Controlling heating and cooling ................
14 . ExcessTemperature Protection .............. 42
14.1 Excesstemperature protection dial ............ 42
14.1.1 Settingthe excess temperature
......... 43
14.1.2Testing the cut-off point
................ 43
.............................. .
15 Fault Displays 44
15.1 Excesstemperature ......................... 44
15.2 Low liquid level cut-off
....................... 44
15.3 Pump or motor overloading
................... 44
15.4 Sensor breakageor short circuit
...............
45
15.5 Undefinedfault
.............................. 45
....................... 15.6 Externalfault RS232C 45
15.7 Error in connectionwith cooling units
.......... 46
............................ 15.8 Fault eliminated? 47
.............
15.9 Fault displays of the Fuzzy control 47
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Key to Symbols
1. Key to Symbols
1.1
Symbols used in this manual
!
Warns the user of possible damage tothe unit, draws
attention to the risk of injury or contains safety notes
and warnings.
Denotes an important remark.
Indicatesthe next operating stepto becarried out and
. ..
... what happens as a result thereof.
1.2 Symbols used on the unit (front)
Caution: Readthe instruction manual before oper-
ating.
t) lnstrument in "off'' position.
@ Instrumentin "on" position
Adjustment for settingthe cut-off point for excess tem-
@ perature protection.
w
Reset after fault of the instrument.
Selection of the basic menu or return from any sub
menu after settings have been made.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Key to Symbols

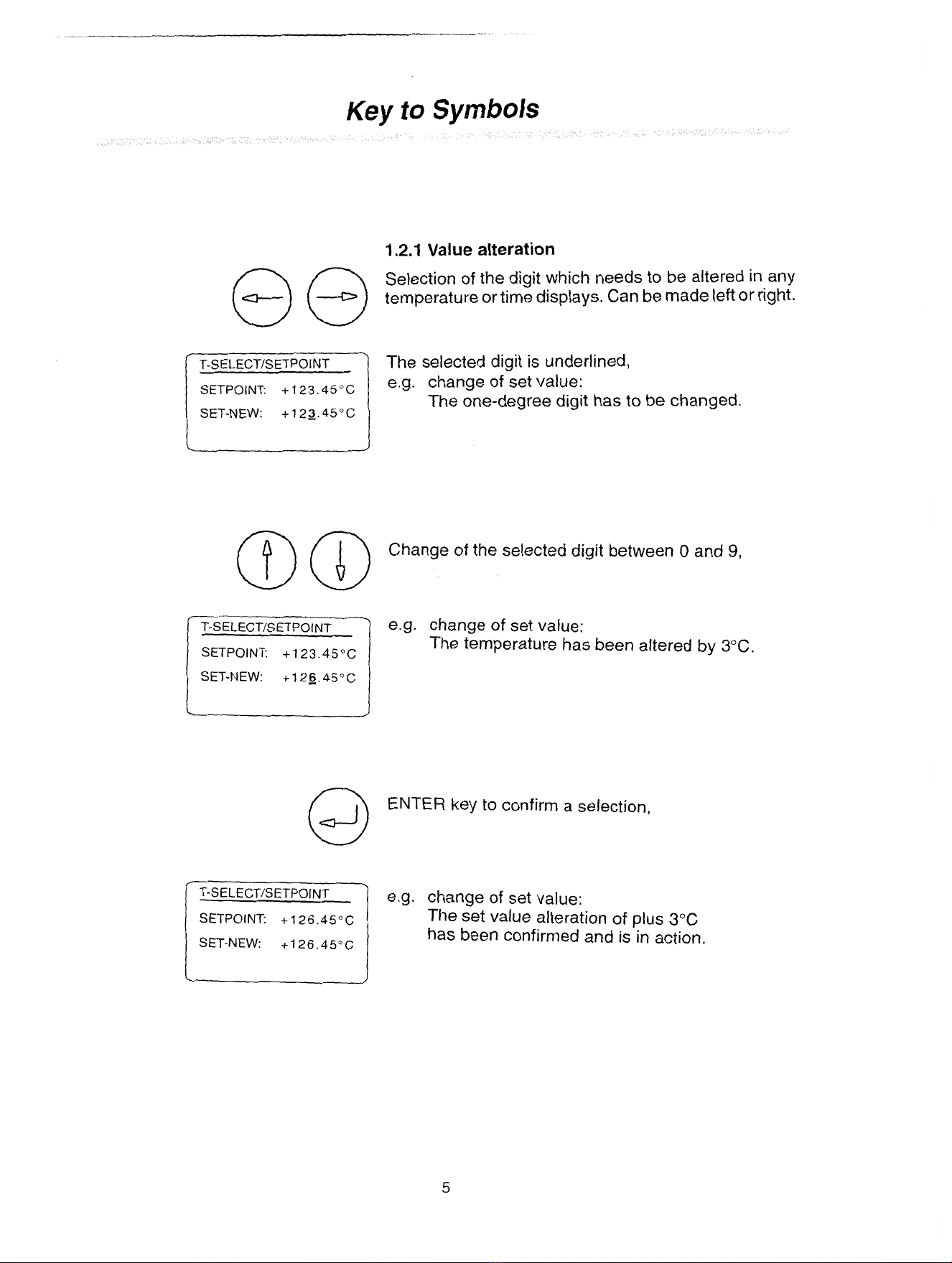

1.2.1 Value alteration
Selectionof the digit which needs to be altered in any
temperatureortimedisplays.Can
be madeleftor right.
The selected digit is underlined,
e.g. change of set value:
SET-NEW: + lZ3.45"C
The one-degreedigit hasto be changed.
0x3
Change of the selected digit between 0 and 9,
e.g. changeof set value:
SETPOINT: c123.45"C
The temperature has beenaltered by 3°C.
SET-NEW: +126.45"C
ENTER key to confirm a selection,
e.g. changeof set value:
SETPOINT +126.450~
The set value alteration of plus 3°C
SET-NEW: + 1 26.4s0C
has been confirmed and is in action.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Key to Symbols

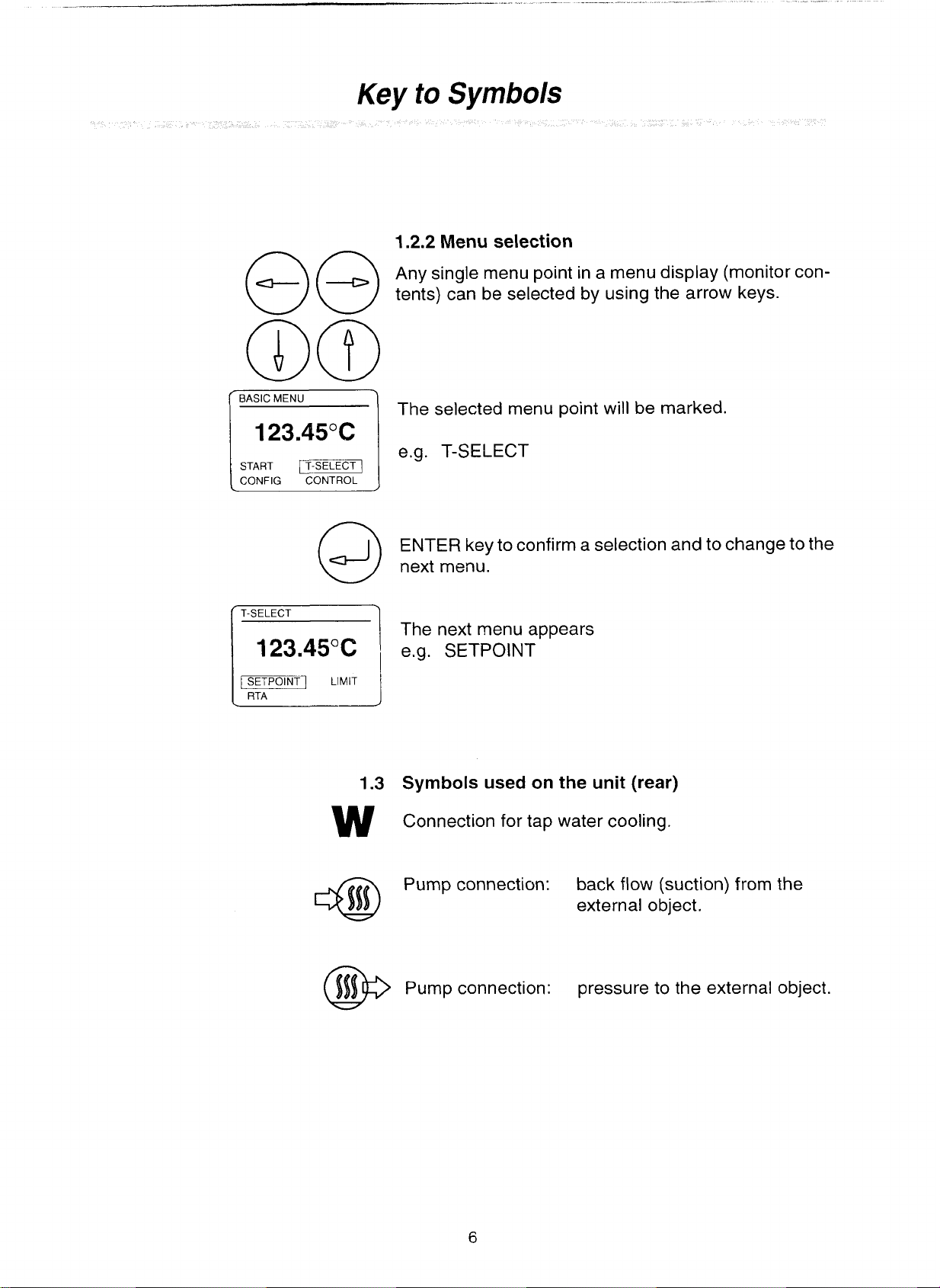

1.2.2 Menu selection
Any single menupoint ina menudisplay (monitorcon-
tents) can be selected by using the arrow keys.
BASIC MENU
The selected menu point will be marked.
ENTERkeytoconfirmaselection andto changetothe
next menu.
123.45OC
START p-1
CONFIG CONTROL
( T-SELECT
1 The next menu amears
e.g.
T-SELECT
-1 LIMIT
I RTA
1.3 Symbols used on the unit (rear)
W
Connection for tap water cooling.
Pump connection: back flow (suction) from the
external object.
@ Pump connection: pressure to the external object.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Key to Symbols

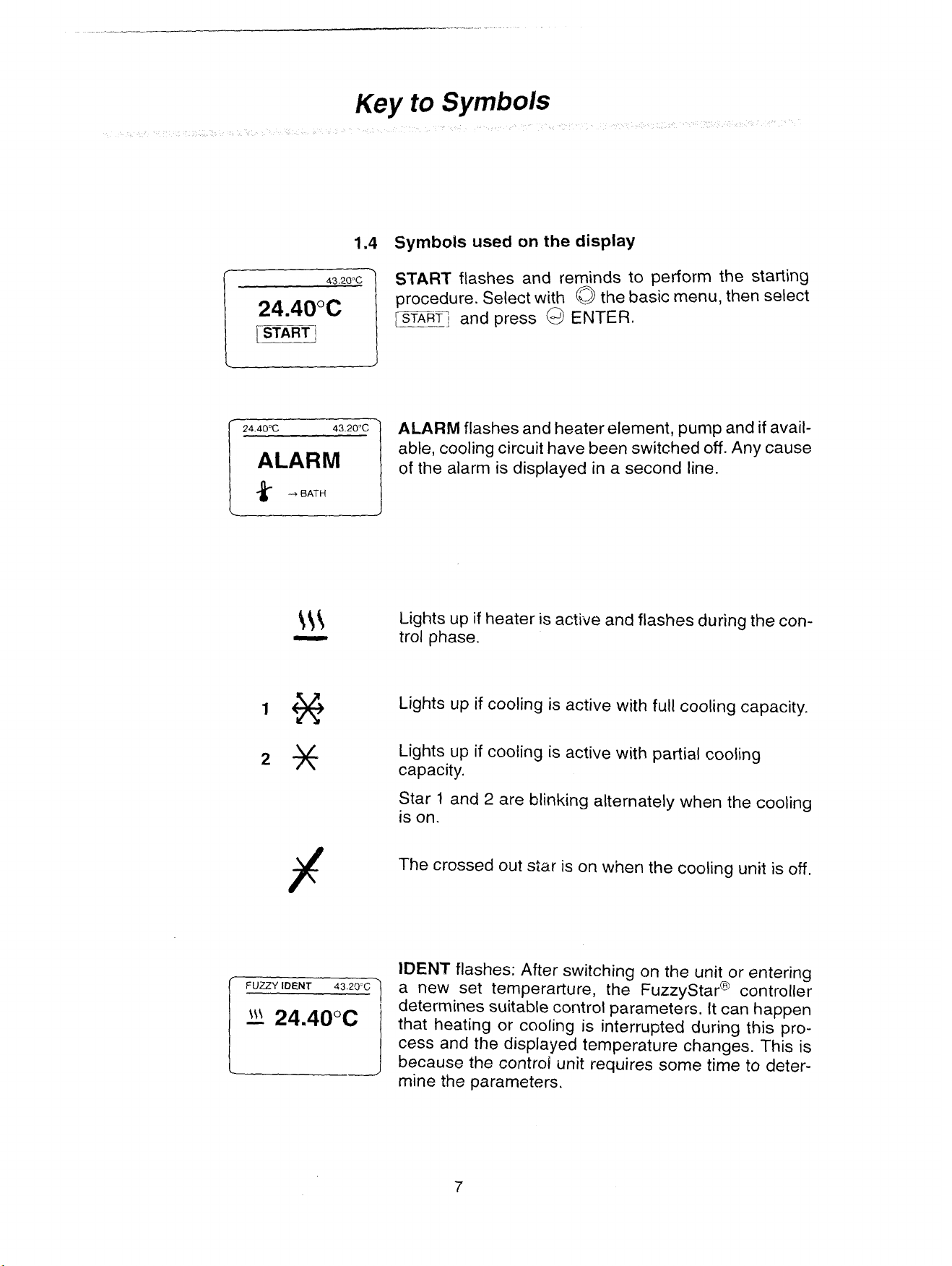

1.4 Symbols used on the display
START flashes and reminds to perform the starting
24.40°C
procedure.Selectwith thebasicmenu,thenselect
rmf;, and press @ ENTER.
ALARM flashesandheaterelement,pumpand if avail-
ALARM
abie, coolingcircuit havebeenswitchedoff.Any cause
of the alarm is displayed in a second line.
FUZZY DENT 43.20%
Lightsup ifheaterisactive andflashes duringthe con-
trol phase.
Lights up
if cooling is active with full coolingcapacity.
Lights up if cooiing is active with partialcooling
capacity.
Star
1 and 2 are blinkingalternately when the cooling
is on.
The crossedout star is on when the coolingunit is off.
IDENT flashes: After switching on the unit or entering
a new set temperarture, the ~uzzystar~controller
determinessuitablecontrol parameters. It can happen
that heating or cooling is interruptedduring this pro-
cess and the displayedtemperature changes. This is
because
the controE unit requires some time to deter-
mine the parameters.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Main menu
I
I
I CONTROL
value
LIMIT
I
START
'-1
RS485 I
[ STATUS I
I
values
I
values
value
INT-EXT
I
I I I I
value
T-DISPLAY AUTOSTART
DEUTSCH
FRANCAIS
PARTIAL MEDIUM
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Quality Assurance / Your Contacts at Thermo Haake
2. Quality Assurance
Dear customer,
Thermo Haake implements a Quality ManagementSystem
certified accordingto
EN 29001.
This guarantees the presence of organizational structures
which are necessaryto ensurethat our productsare devel-
oped, manufacturedandmanagedaccordingtoourcustom-
ersexpectations. Internalandexternalauditsarecarriedout
on a regular basis to ensure that our
QMS system is fully
functional.
We also check our productsduringthe manufacturingpro-
cesstocertifythatthey areproducedaccordingtothespeci-
ficationsaswellasto monitorcorrectfunctioningandtocon-
firmthatthey aresafe. Thisiswhy we initiatethismonitoring
process of important characteristics already during
manufacturingand recordthe resultsfor future reference.
The "Final Test" label on the product is
a sign that this unit
hasfulfilledall requirementsatthetime of final manufactur-
ing.
Please inform us if, despite our precautionary measures,
youshouldfind any productdefects.You canthushelp
US to
avoidsuchfaults
in future.
3.
Your Contacts at Thermo Haake
Please get in contact with us or the authorized agent who
suppliedyouwiththe unit ifyou have anyfurther questions.
Thermo Haake
DieselstraOe4
D-76227Karlsruhe
Thermo Haake (USA)
53 W. Century Road
Paramus, NJ 07652
Tel. +49
(0) 7214094-444 Tel. [phone]
Fax [phone] Fax [phone]
[email protected] [email protected]
The following specificationsshould be given when product
enquiries are made:
DESELSTR 4
[I] - Unit name printedon the front of the unit,
- TYP as specifiedon the name plate.
'. J
- Version of the operatingsoftware (see chap. 12.9).
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

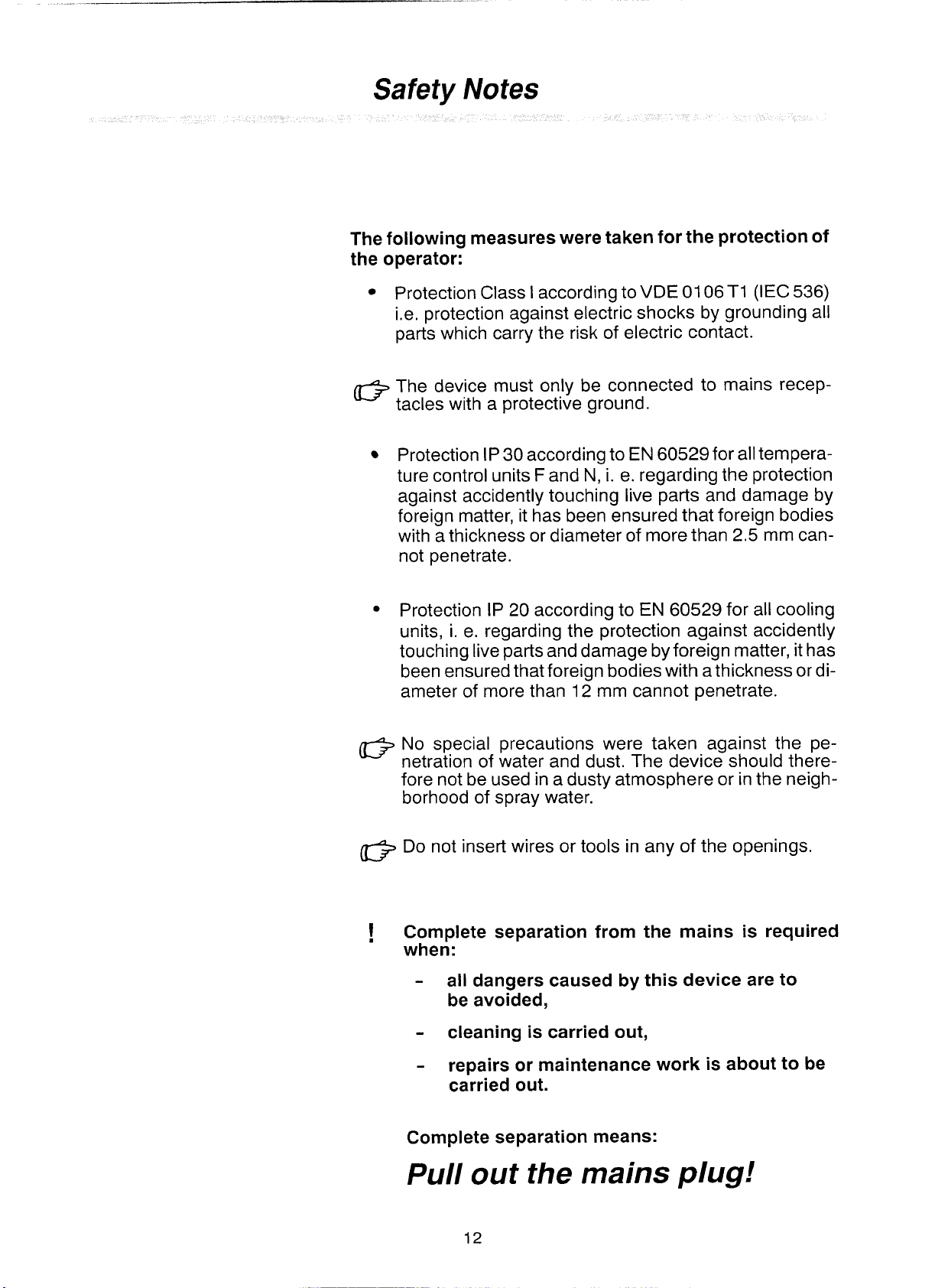

Safety Notes
4. Safety Notes
These notes are intended to draw your attention to risks
whichonly
YOU canrecognizeandavoidor overcome.They
are intendedtoenhanceyour ownsafety consciousness.
We havesetthe highestquality standardsfor ourselves and
this unit during development and production. Every unit
meets relevant safety regulations.
The correct unit usage
andproperhandlingishowever solelyyour responsibility.
The intended workplace should correspond to a laboratory
or pilot plant environment.The user should have an educa-
tion levelwhich is at least equivalent to a trained laboratory
worker or specialized chemist. The following list should be
seen as an example.
The device may not be operated ifthere are any doubts
regardingasafeoperationduetothe outer appearance
(e.g. damages).
A safe operation of the instrument cannot be guaran-
teed if the user does not comply with this instruction
manual.
Ensurethatthismanualisalwaysat handfor every unit
operator.
Only usethis unit solely for the intended application.
Repairs, alterations or modifications must only be car-
riedout by specialist personnel.Considerabledamage
can be caused by improper repairs.The Thermo Haake
servicedepartment isat your disposal for repair work.
Do notoperatethe unitwith wet or oily hands.
Do not expose the unit to spray water or immerse it in
water.
Do not clean the unit with solvents (fire risk!)
- a wet
cloth soaked in household detergent is normally suffi-
cient.
This device is not designed according to the standard
EN 60601-1: 1990 (DIN VDE 0750-1 and IEC 601-1) and
should not be operated inrooms usedfor medical pur-
posesand/or inthe vicinity of patients.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Many units partscan become hot as aresult of normal
unitfunctioning-there isahigh risk of burns!
The overall temperature of the marked zone (see fig.)
will become higher than
70°C when the bath tempera-
ture exceeds approx.
150°C. Please ensure that ade-
quate contact protectionisprovided.
Do notmovethe unitfromthe positionwhere itwas set
upduringoperationorwhen itisstillhot.Thereisahigh
risk of burns!
!
Only use the heat transfer liquids recommended by
Thermo Haake. Pleaserefertothe respective
EC Safety
Data Sheet.
!
The temperature controlling i.e. immersing of test
tubes, Erlenmeyer flasks or similar objects directly
within the circulator constitutes normal circulator
practise.
We do not know which substances are contained within
these vessels. Many substances are:
inflammable, easily ignited or explosive
hazardousto health
environmentally unsafe
i.e.: dangerous
You aloneareresponsibleforthehandlingof thesesub-
stances!
Our advice:
If indoubt, consult a safety specialist.
Read the product manufacturer's or supplier's EC
Safety DataSheet accordingto directive 91 11 55/EEC.
Read relevant regulations concerning dangerous
materials.
Observe relevant guidelines for laboratories in your
country.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Safety Notes
Thefollowing measureswere takenfor the protectionof
the operator:
ProtectionClass I accordingtoVDE 0106TI(IEC536)
i.e,protection against electric shocks by grounding all
partswhich carry the risk of electric contact.
0 The device must only be connected to mains recep-
tacles with a protective ground.
ProtectionlP30accordingto EN60529for alltempera-
ture controlunits
F and N,i. e. regardingthe protection
against accidentlytouching live parts and damage by
foreign matter,it has beenensuredthatforeign bodies
with athickness or diameter of morethan 2.5 mmcan-
not penetrate.
ProtectionIP 20 accordingto
EN 60529 for all cooling
units, i. e. regarding the protection against accidently
touchinglivepartsanddamagebyforeignmatter,ithas
beenensuredthatforeign bodieswith athickness or di-
ameter of morethan 12 mm cannot penetrate.
0 NOspecial precautions were taken against the pe-
netration of water and dust. The device should there-
fore not beusedina dusty atmosphere or inthe neigh-
borhoodof spray water.
0 Do not insertwires or tools in any of the openings.
!
Complete separation from the mains is required
when:
-
all dangers caused by this device are to
be avoided,
- cleaning is carried out,
-
repairs or maintenance work is about to be
carried out.
Complete separation means:
Pull out the mains plug!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

5. Unit Description
All unitsfulfillthe requirementsof safetyclass 2 accordingto
DIN
12879 and are thus suitablefor unsupervisedcontinu-
ous operation.
Thecirculator pumpmotorisprotectedagainstthermalover-
loading.
All temperaturesensorsarepermanentlymonitored
according
to break or short circuit. The cooling machine is
integratedintothe generalsafety circuit.
The control of the preselected temperature
is carried out
automaticallyvia the Thermo Haake ~uzz~~tar@control.
5.1 Safety features
The comprehensivesafetysystemisdesignedonthe princi-
ple of the concept of the "singlefault"
(EN 61 010). This as-
sumesthattwo separatefaultsdo notoccursimultaneously.
This systemtherefore offers protectionagainst
one (single)
fault. This one fault will effectively occur automatically
...
if you do not readthis manual,
if you do not correctly set the excess temperature
protection,i.e.the safety reserves have already been
used up.
Such faults can include e.g.:
Fault in the temperature control unit:
=. Excesstemperature poss.fire danger
Leakagein the liquid circuit or
Evaporationof heat transfer liquid:
=. Low liquid level - poss.fire danger
Pump blocked or
Heattransfer liquid is too highly viscous:
* Motor overheating - poss.fire danger
Or also:
Excesstemperature protection level not correctly set:
=+ poss.fire danger
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Unit Description
5.2 Safety class 2 accordingto DIN 12879
A variably adjustableexcesstemperature protection and in-
dependent low liquid level protection which is preset to the
lowestlevelallowthe usageof differentheattransfer liquids.
If a safety element istriggered..
.
the cause for the fault is displayed,
the safety-relevant components (heating element,
motor and compressor) are switched off immediately
i.e.the safety circuittransfers the unit to a stable, safe
condition,
the temperature of the heat transfer liquid gradually
adjusts to ambient temperature.
5.3 Applications
As open-bath circulator:
Fortemperaturecontrolling sampleswithin the circula-
tor's own bath.
As heating circulator:
Fortemperaturecontrollingclosedtemperature control
circuits such reactors, heat exchangers or similar ob-
jects.
Temperature controlling of open vessels using the
built-in combined pressure and suction pump.
5.4 Temperature ranges
Working temperature range:
The temperature range of the circulator without addi-
tional heating or cooling sources.
Operating temperature range:
The temperature range of the circulator which can be
reached if additional heating or cooling sources are
used.
Tap water canbeusedasacoolingsource. Inthiscase
the minimum working temperature possible is approx.
3°C above that of the tap water temperature.
!
High operating temperatures mean the unit sur-
faces heat up.Protectivemeasuresmust
be taken!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Unit Description
Mains cable:
The mains cables used are specially designed for
usage with heating elements. They can
be allowed to
come into contact with parts which are heated upto
a
temperature of max. 250°C.
Warning for maintenance personnel: Please en-
!
sure that the same sort of cable is used in case of
replacement!
(Order no. 082-2409)
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Unpacking / Setting Up
6. Unpacking / Setting Up
6.1 Transportation damage?
Notify carrier (forwardingmerchant, railroad) etc.
Compile a damage report.
Before returndelivery:
Informdealer or manufacturer
(Small problemscan often be dealtwith onthe spot).
6.2 Contents
2 CouplingNuts (E), 4 Hoseclamps,
6 (alreadyassembled) 1 InstructionManual
2 Plug pieces (D), 1 Warranty Card
(alreadyassembled)
(please fill out and return)
C
E 2 Hosefittings
for hoses 8 mm
0 (B),
2 Hosefittings
for hoses 12mm
0 (C)
6.3 Ambient conditions accordingto EN 61010
indoors,max. 2000 meters above sealevel,
ambienttemperature 5 ... 40" C,
relative humidity max. 80%/31 "C (+ 50%/40°C)
excess voltage category I I,contamination level 2
6.4 Restingtime after transportation
(only for refrigeratedcirculators)
As we canunfortunately not guaranteethat our refrigerated
circulatorsare alwaystransported accordingto our recom-
mendations (i.e. upright), lubrication oil can leak from the
compressor intothe cooling circuit.
If the refrigerated circulator is started up whilst still in this
state,the compressor may be damagedtothe lack of oil.
Therefore:
!
Restthe unitfor 24 hoursafter setting up.
6.5 Ventilation
Keep allventilation grids (onfront and rear) free from
obstructionto ensure unhinderedair circulation.
(
Blocked ventilation grids lead to increased unit
=
heatingwhich inturnreducesthecoolingcapacity
andthus impairs correctfunctioning.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

6.6 Informationconcerningthe CE sign
Thermo Haake circulators and cryostats carry the CE sign
whichconfirmsthatthey arecompatiblewiththe
EU guideline
89/336/EEC (electromagnetic compatibility). The tests are
carried out accordingto module
H (official sheet L380 of the
European Community) as our quality assurance system
is
certifiedaccordingto DIN 1 IS0 9001.
The specialist basic standardsto be applied are
EN 50081 -2
for interference emission and EN 50082-2 for interference
resistance.Thefollowingtests were carried out:
fa accordingto
EN 50081 EN 5501 1 class B (interferencevoltage)
EN 55011 class B (interferenceradiation)
EN 50082
EN 61 000-4-2(dischargingstatic electricity)
ENV 501 40
(electromagnetic HF field,
amplitude modulated)
EN 61000-4-4 (quick transient interference
variable)
ENV 501 41 (high-frequencyasymmetrical,
amplitudemodulated)
EN 61 000-4-8 (magneticfield with power-
engineeredfrequency)
There arethus no limitationsplacedon usage.
A declaration
of conformity can be supplied with the ordered unit on
request.
Our strictstandardsregardingminimumoperatingqualityand
the resultingconsiderable amount of time and money spent
on development and testing reflect our commitmentto guar-
antee the high level of quality of our products even under
extreme electromagnetic conditions. Practice however also
showsthat even unitswhich carry the
CE sign suchas moni-
torsor analyticalinstrumentscanbeaffectediftheir manufac-
turersacceptaninterference(e.g.theflimmeringof amonitor)
as the minimum operating quality under electromagnetic
compatibilityconditions.For this reasonwe recommendyou
to observeaminimumdistanceof approx.
1 mfrom suchunits.
The CE-signalso certifies the conformity with the EU-direc-
tive
72/23/EWG (low voltage regulation). The applied stan-
dards are
EN61 010-1 and EN61010-2-010.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Unpacking / Setting Up
6.7 Mounting onto bath bridges
The bath bridges will be delivered unassembled
by means of transportation.
rn
!
Switchoff the unitandpulloutthe mainsplug.
Loosenthe 2 crosshead screws right beside the
pump connections.
Slidethemetaljacket tothefront (slightlybending
may be necessary) and remove it.
Place the gasket around the opening and slide
the control head inclined through the opening.
!
Lift the float to avoid any damage.
Fix thejacket againwith the 2 crosshead screws.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
