HACENOR HC30M User manual

HC30M
Oxygen Concentrator
Instruction Manual
High Quality Products Global Recognizable Brand
Health Oxygen , Green life

1
Preface
Dear customer:
Thank you for your purchasing HC30M oxygen concentrator .We will be always with
you to ensure a health-friendly atmosphere for your daily life and work.We
appreciate your help if you tell us your opinions on the product and service.
Please read these manual carefully to understand quickly and thoroughly how to use
your new concentrator . Look after this document so that you may consult it in future
or pass it on to any future owner.
This document explains and stipulates the operating conditions and testing results of
the performance properly, specifications,temperature and humidity of the oxygen
concentrator .
❶Refurbishing brain activity
❷Energizing physical conditions
❸Rich oxygen generation for skin care
❹Relaxing sub-health status caused by fatigue
❺Reducing hazards of cigarettes and alcohol

2
TABLE OF CONTENTS
Section A: State-of-the-arts design and 10 function..................................................... 3
Section B: The lastest membrane separation technology............................................. 3
Section C : Special recommendation for 8 groups of potential cnsumers.....................4
Section D: Features........................................................................................................ 5
Section E: Functions.......................................................................................................5
Section F: Safety Precaution.......................................................................................... 6
Section G: PARTS............................................................................................................6
Section H: Operating Guide........................................................................................... 7
Section I: Functions........................................................................................................8
Section J: Trouble shooting............................................................................................9
Section K: Technical Information................................................................................... 9
Section L: Oxygen and health...................................................................................... 10

3
Section A: State-of-the-arts design and 10 function
1.30%±-2% concentration, life standard clean rich oxygen supply
2. Efficient oxygen supply
3.Concise film button, simplified operating procedure
4.Portable and light
5. Energy efficient, Economical Consumption
6. Convenient earphone breathing apparatus
7. Low noise, mute motor, physical oxygen generation
8.Safely broad-spectrum, oxygen concentration satisfying varied demands
9.Ergonomic Design, harmonious airflow
10. Standard parts: worldwide voltage adapter
Optional parts: specialized chargeable battery and charger, suitable for raveling and
household use.
---What can be better than it?
Section B: The Latest membrane separation technology

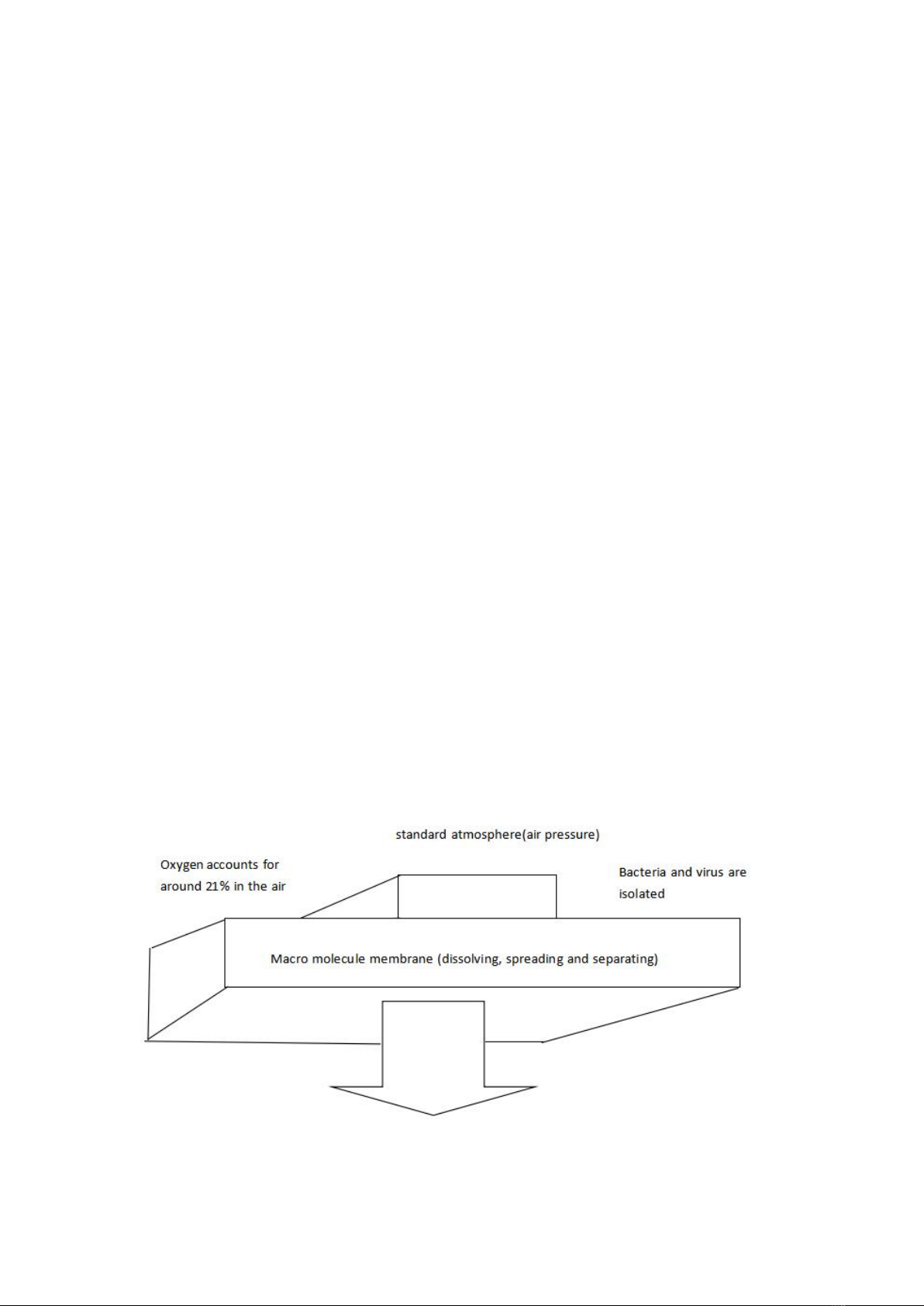

As dissolving penetration rate of molecules in membrane is different, the techno can
separate oxygen and nitrogen molecules from each other for generation around
30%+/-2% concentration oxygen.
Generating 30%+/-2% high oxygen aseptic air

4
1. In cooperating the latest biological membrane separation method for rich oxygen
generation based on the theory of different dissolving penetration rate of molecules
in membrane.
2. The appliance generates pure rich oxygen.
3. Macromolecule membrane can fully filtrate harmful substances in the air, such as
dusts, virus and bacteria, and refresh the air with rich oxygen, environmentally and
health friendly.
Completely physical rich oxygen supply, much safer, more environmental and
health friendly
Section C : Special recommendation for 8 groups of potential cnsumers
Rich oxygen, Life benefits
Regular breathing rich Oxygen increases physical ability and life activity.
1. Office working women: Skin care, maintenance to skin nutrition and elasticity and
reduction of sub-health status.
2. Aged: Prolonging life, improving immunity, preventing disease ,oxygen therapy
3. Pregnant women: Beneficial to the women and helpful to fetus Development
4. Businessman: relaxing physical and metal tension, improving physical ability,
reducing sub-health status and improving work efficiency .
5. Students : Improving remembrance , refreshing and reducing mental fatigue .
6. Workers : Releasing fatigue , refreshing and increasing physical ability .
7. Patients: Increasing the auxiliary treatment of Cardio-cerebral vascular diseases,
diabetes and respiratory diseases.
8. Plateau tourism / Mountain climbing lovers: Releasing the symptoms of lacking of
oxygen on plateau.
Mini oxygen plant resolves the oxygen supplement problem

5
Section D: Features
1. Styled design, selected material, compact structure, simplified ear-phone shaped
oxygen.
2. Mild airflow supplied for a harmonious atmosphere.
3. Advanced technology incorporated for precise oxygen concentration control to
30+/-2% for rich oxygen achievement.
4. Simplified concise control system with intensive design under the control of only 1
knob.
5. International standard adapter (100-240v) safely withstands serious change of
power pressure and frequency.
6.Furnished with Chargeable battery can be used at home, in a car and even the
place without power supply.
7. Direct Currency and brushless motor ensuring quiet running and economical
power Consumption. Vector frequency conversion bringing powerful driving.
Section E: Functions
1. Mechanical Principles
This machine incorporates physical mechanism to generate and supply rich oxygen of
30+/-2% concentration by the means of vacuum pump and macromolecules.
2. Application
Ambient temperature: 5~40℃Humidity:below90%RH
3. Storage
Ambient temperature: 0~40℃Humidity:below80%RH
4. Control Button
Caution: This appliance should be kept away from dusts and oil vapor. If the
appliance is operated in an area where temperature and humidity values are
beyond required degree, or altitude is high,oxygen concentration and airflow might
be affected .

6
Section F: Safety Precaution
1. Don’t stop the appliance by directly disconnecting the power supply,
2. Children or handicapped should be looked after while the appliance is in operation
in order to avoid physical hazards.
3. Ensure that the area is well ventilated while the appliance is in operation.
4. Keep the fan and side air inlet clear from obstacles and clean the filter regularly
depending on the usage frequency, but never be over6 months.
5. Damaged electrical cable must be replaced by the wire designated or provided by
authorized distributor or the manufacturer.
6. Prevent any liquid substance from entering the appliance. If this happens, cease
the operating appliance and contact competent technicians for repair.
7. Do not tilt the appliance when the appliance is in operation to avoid collision
between the compression pump and case,excessive noise and wobble.
The adapter and the chargeable battery are specialized for the appliance. Change
to other specifications will result in uncertain operation or damage to generating
unit
Section G: PARTS

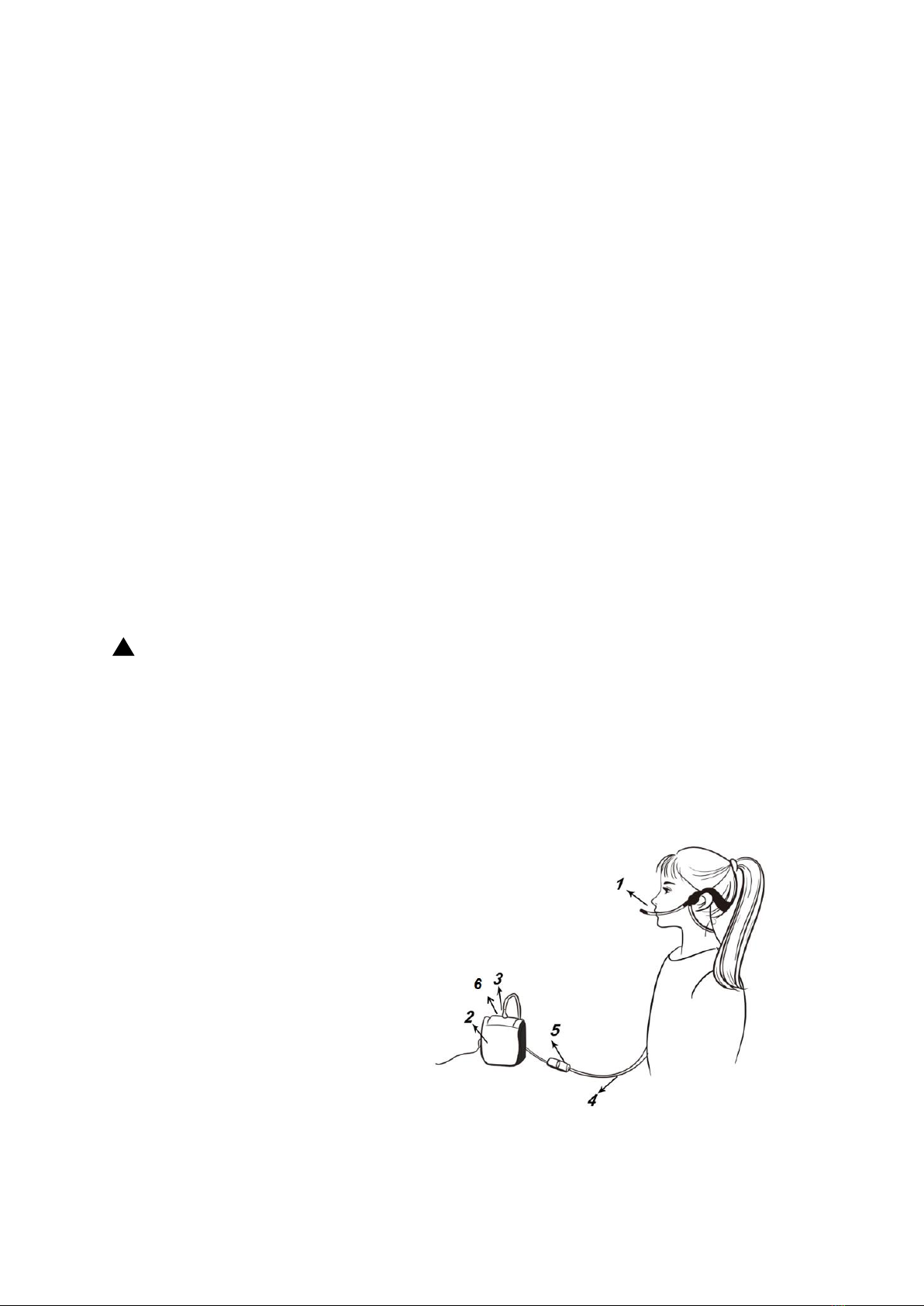

Parts for the whole unit :

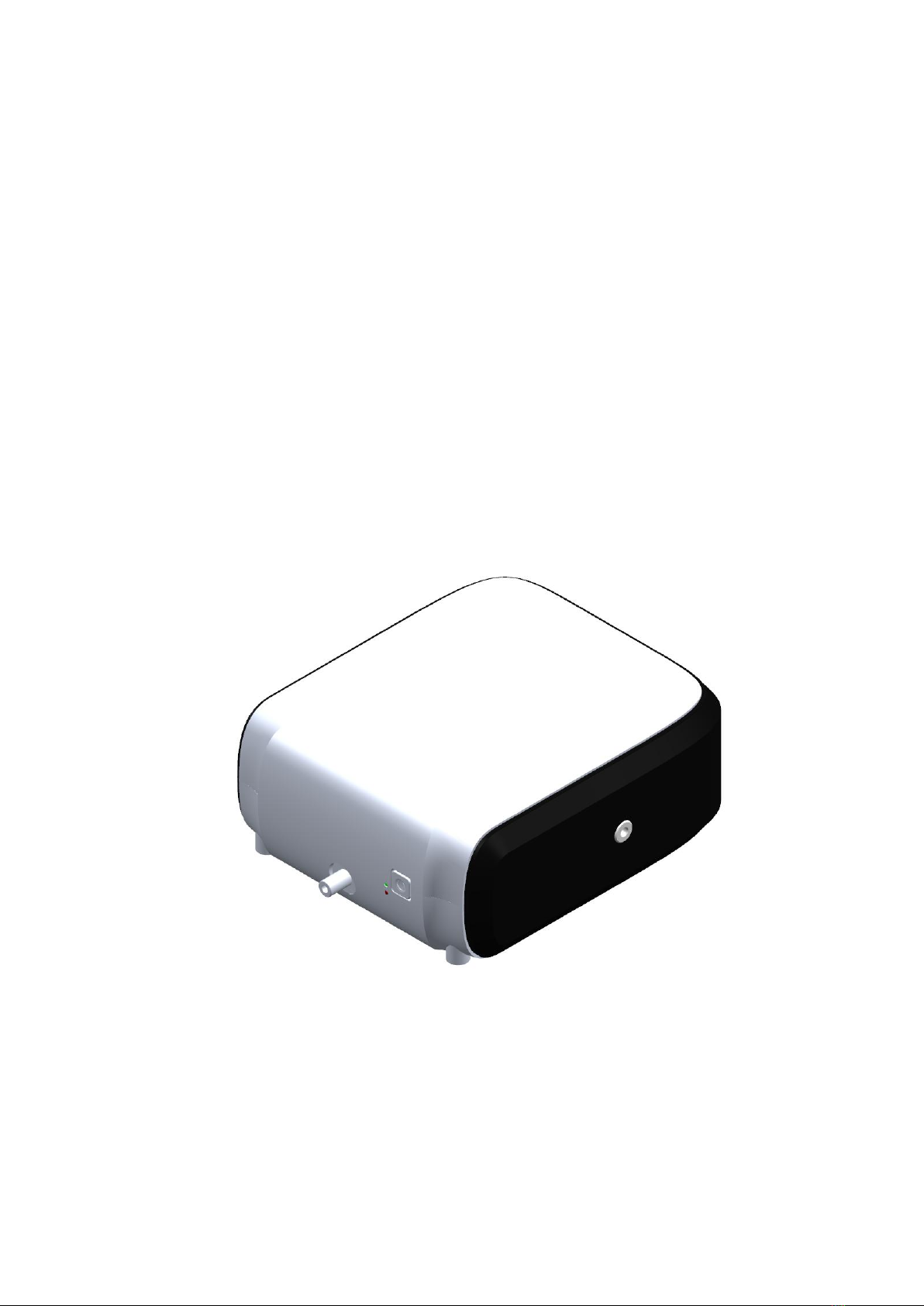

1. Oxygen breathing apparatus
2. Oxygen concentrator unit
3. Oxygen outlet
4. Oxygen hose
5. Water oxygen separator
6. Operating button

7
Section H: Operating Guide

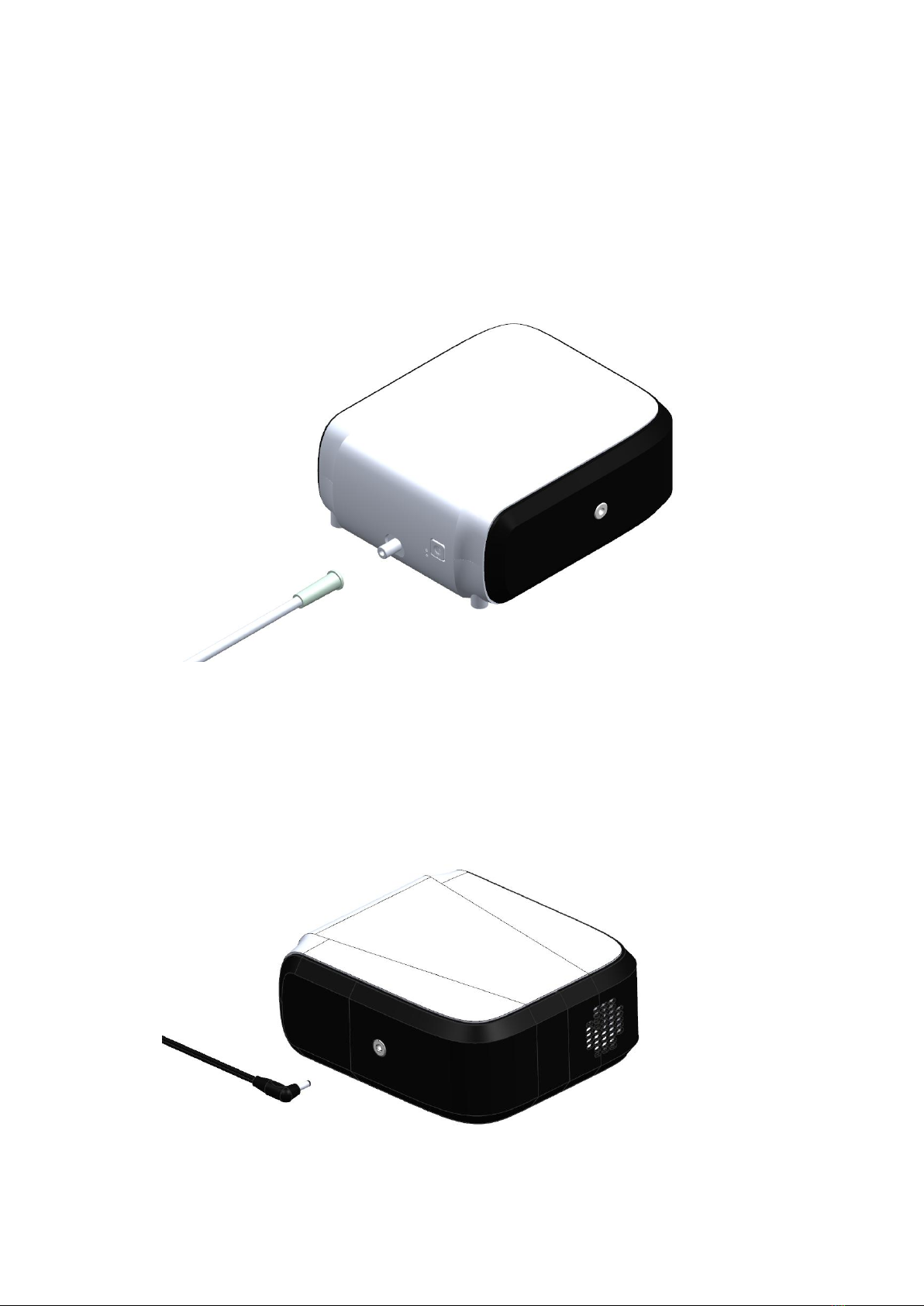

1. After unpacking, assemble the oxygen concentrator
2. Connect all the parts the holder frame to the oxygen outlet of the generating unit
with the oxygen hose.
3. Connect the device to the power supply as shown

8

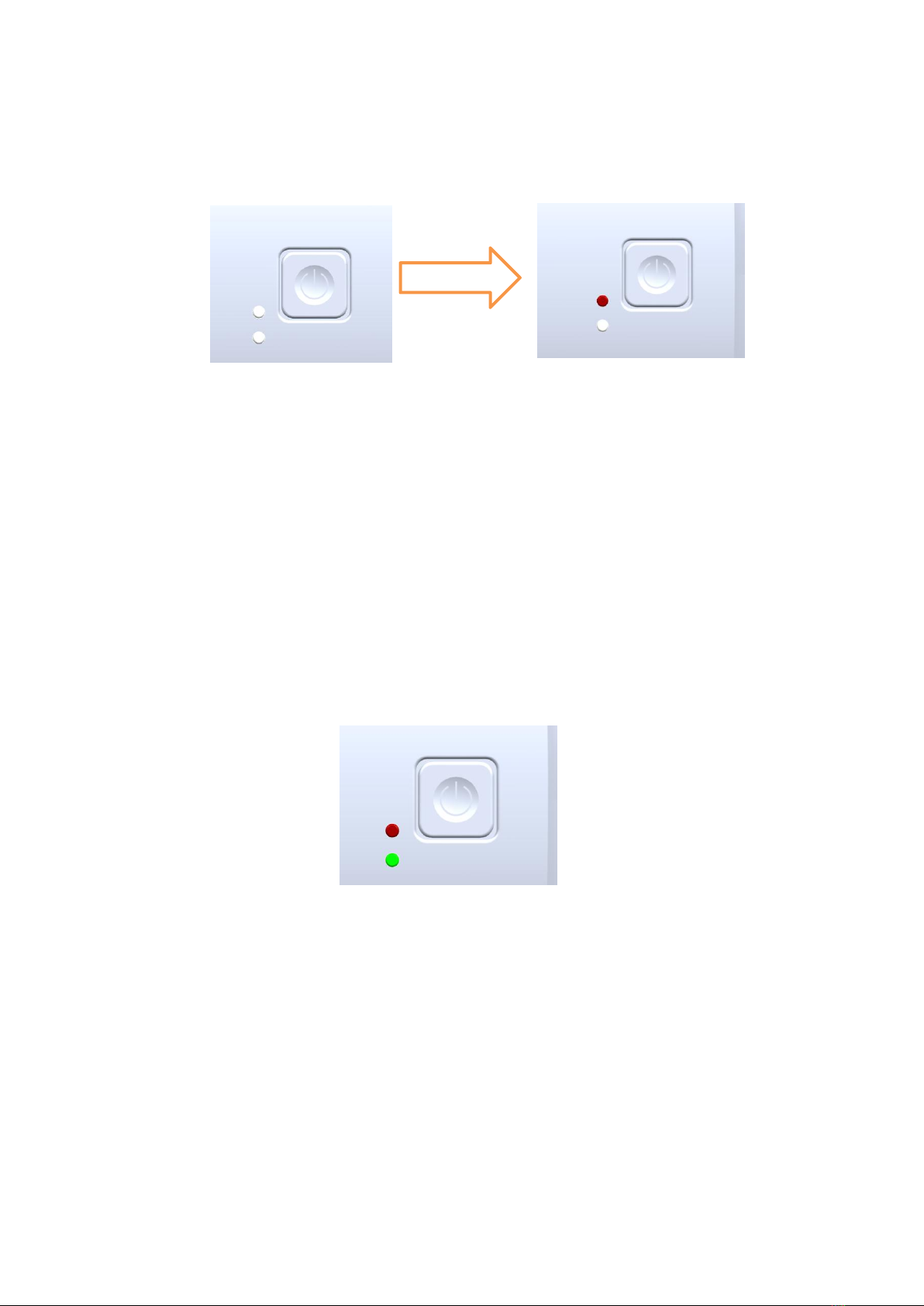

4. The light as shown in the figure will be displayed on the switch indicator. The red
light indicates that the oxygen generator is powered on
5. Short press the button to start, the indicator light is green and red steady on,
oxygen generator will run continuously for 20 minutes; Long press the button, the
indicator light will show the red light on, the green light flashing, oxygen generator
will carry out two 20-minute timed operation, during the interval of 5 minutes.
Section I: Functions
1. The housing of the appliance is smooth and glossy and should be prevented from
scratches by sharp edges.
2. For cleaning of the appliance, soft cloth damped with water can be used. Never
use corrosive or organic solvent.Otherwise the cleaned surface will lose luster.
3. When the generating unit finishes the operating, disconnect the power supply
promptly.
4.Do not modify the appliance to avoid influencing the outlet and inlet of the air and
resulting in negative effect to the appliance performance.
5.Only authorized technician can handle the interior piping system.
6. If the appliance does not work properly, check the appliance under the guide of

9
Trouble Shooting. If the trouble shooting does not work contact the local retailer for
technical resistance. If the appliance is beyond warranty coverage, cost fee will be
charged for replacement parts and materials.
7. Water build up in the capsule should be immediately.
8.The filter of the generating unit should be cleaned regularly ,usually once every
3months. Remove the filter, then clean the filter with detergent and rinse the filter
with clean water finally dry it and reinstall it.
Section J: Trouble shooting
1.Only in initial period, the generating unit and oxygen hose might produce slight
ardor.
2. If the appliance is not placed on solid place, excessive noise might be generated.
3. Tilt, upend the appliance,excessive noise and wobble might be generated.
4. The generating unit might be stopped power supply by adapter to protect the
system in along time operation.The appliance will continue to operate in several
minutes
5.When it does not work, pay attention to the blinking status of part of the button
indicator.
(1) The red light flashing twice indicates undervoltage.
(2)The red light flashing three indicates overvoltage
(3)Red light flashing four times: blocked (startup failure)
(4)Red light flashing 6 times: short circuit protection (normally will not occur,
generally motor short circuit or circuit board burning).
Section K: Technical Information
1.Oxygen Concentration: 30%±2%
2. Airflow outlet: About 3L/min
3.Oxygen Supply: Directly supply
4.Voltage: AC100V-240V/DC10.8V-19V
5. Power Consumption: 19W
6.Product Size: 160x130x70(mm)
7.Noise: ≤42dB(A)
8. Net Weight : 0.84kg
9. Carton Size: 39 cm x 27.5 cm x 12cm

10
Section L: Oxygen and health
Oxygen accounts for the largest porting in the globe and about21% in the air.
However, due to increasingly serious air pollution, especially in some industrial cities,
fresh air with sufficient content of oxygen is unlikely available. This situation has
resulted I hypoxia which is one of major causes of many diseases.
1. Arterial P02 fall, a symbol of aging and sub-health
Age
Arterial PO2(X±S.mhm)
21-30
91.3±1.3
31-40
88.1±1.2
41-50
83.2±1.1
51-60
81.7±1.4
Arterial PO2 fall is a symbol of aging and sub-health
Arterial PO2 fall may cause dysfunctional symptom of brain, heart, liver and kidney,
as well as sub-health and pathological changes.
2. Physica1 effect of Oxygen concentration Rich Oxygen vital to health Rich oxygen
vital to health
Environment
%
Effect and Result
Over 90
Oxygen intoxication(long time),medical
65-85
oxygen intoxication(long time) recovered after active
physical exercise(short time)
50-60
Maximized concentration for physical exercise
36-50
Fatigue relief after light physical exercise (short time)
oxygen generator
approx.30
Increase of physical ability and life energy
Grandness
22
Proper relaxation
Forest
21
Proper relaxation
Outdoor urban on average
20.9
Standard atmosphere centralization
indoor urban
20.5
Basic value of air supply
indoor urban(night)
20.2
19-20
Discomfort besuited by CO increase cue to imperfect
combustion
Patient ward
18.5
Headache long time
Sauna
18.0
Worst labor safety and health,danger to alder
15-16
Increased breathing count due to hypoxia
13-15
Potential inducement fade away
12.0
Short time danger
Less than 7.0
Death

11
Section M: Rich Oxygen and health
● Rich oxygen for skin care
Tiresome work pressure makes women wan and sallow,and easy to get tired. Regular
breathing of rich Oxygen may accelerate blood circulation of skin and metabolism of
skin tissue and, the more importantly, discharge of toxic substances and waste and
supplement of water, resulting in healthier and elastic skin.
● Rich oxygen and ageing
During the period of senility, the pathological functions will deteriorate.
The oxygen delivery ability will become weak, resulting less absorption and
inefficient utilization of oxygen. In such case the whole body will enter chronic
hypoxia state with the following symptoms:
The cardiovascular system cell, oxygen therapy is only2 liters per minute much lower
than standard volume of4 liters per minute; respiratory system. Decreased breathing
function, alveolus residual volume of the people aged60 doubles that of those
aged30; the center system function turbulence, resulting metastasis changes and
blood and oxygen supply disturbance to brain and cardiac muscle sand high blood
pressure and atherosclerosis.
Rich oxygen breathing in long period can slow the ageing process and release
weakness, tiresome status, chest oppression, head throb, consultation and
faintness .Especially when someone becomes raging and exciting, oxygen breathing
may immediately release symptoms of angina, myocardial infarction, cerebral
thrombosis and apoplexy.
•Rich oxygen and health of pregnant women and fetuses and newly Bon babies
Pregnant women need to absorb more nutrition and oxygen to satisfy the
requirements of metabolisms and as a result, burden of heart and lungs is increased.
This may result in shortage of blood and oxygen supply .Medical research
achievements indicate that intrauterine oxygen status plays a significant role in fetus
IQ development. From this point of view, oxygen breathing during pregnancy period
is beneficial to both adult and baby.

12
•Rich oxygen for health of brain workers
Brain consumes20~30% of oxygen the whole body requires. Excessive brain work and
tense nerves will increase oxygen consumption.
The essence and symptom of sub-health status is hypoxia. Longtime brain work wil1
result in fatigue, faintness, dizziness and headache due to hypoxia.
Oxygen breathing has been widely experienced by office workers in developed
countries as rich oxygen may increase the energy, accelerate metastasis, slow ageing
process and improve physical condition.
•Rich oxygen and student IQ
in an experiment,some students in the same class were divided into two groups. One
group of students were required for oxygen breathing and another were not.After a
certain period, an examination was conducted for the two groups of student the
group of students of oxygen breathing scored486 points on average and the other
group of students scored 452.
•Rich oxygen and workers
Overdrive physical work will cause hypoxia of organs and buildup of lactic acid in
muscles. In such case,soreness and dynamic (due to excessive fatigue after active
physical exercise or labor) maybe felt.In medical theory,this symptoms called “Muscle
Hungry".
Oxygen breathing may help decrease lactic acid buildup,improve hypoxia status,
eliminate fatigue, accelerate physical recovery and improve work efficiency.

13
