HADEF 320/01 User guide

5.52.732.00.01.05 Rev.05
HADEF Wall-mounted Jib Crane
Type 320/01
Installation, Operating and
Maintenance Instructions

2
5.52.732.00.01.05
NOTICE!
The installation or mounting instructions for incomplete machines you’ll find in chapter “Installation”
o



by Heinrich de Fries GmbH
Heinrich de Fries GmbH, Gauss Str. 20, D-40235 Düsseldorf
Heinrich De Fries GmbH will be named HADEF in the following text.
Original operating- and maintenance instructions in German language.
Translation in other languages is made of the German original.
A copy may be requested in writing or is available for download on www.hadef.com
Subject to changes.
Table of Contents
1 Information......................................................................................... 3
2 Safety ................................................................................................. 3
2.1 Warning notice and symbols ..........................................................................................3
2.2 Duty of care of the owner................................................................................................4
2.3 Requirements for the operating personnel....................................................................4
2.4 Appropriate use ...............................................................................................................5
2.5 Basic safety measures ....................................................................................................5
3 Transport and Storage ...................................................................... 6
3.1 Transport..........................................................................................................................6
3.2 Safety device for transport..............................................................................................6
3.3 Storage .............................................................................................................................6
4 Description......................................................................................... 6
4.1 Areas of application.........................................................................................................6

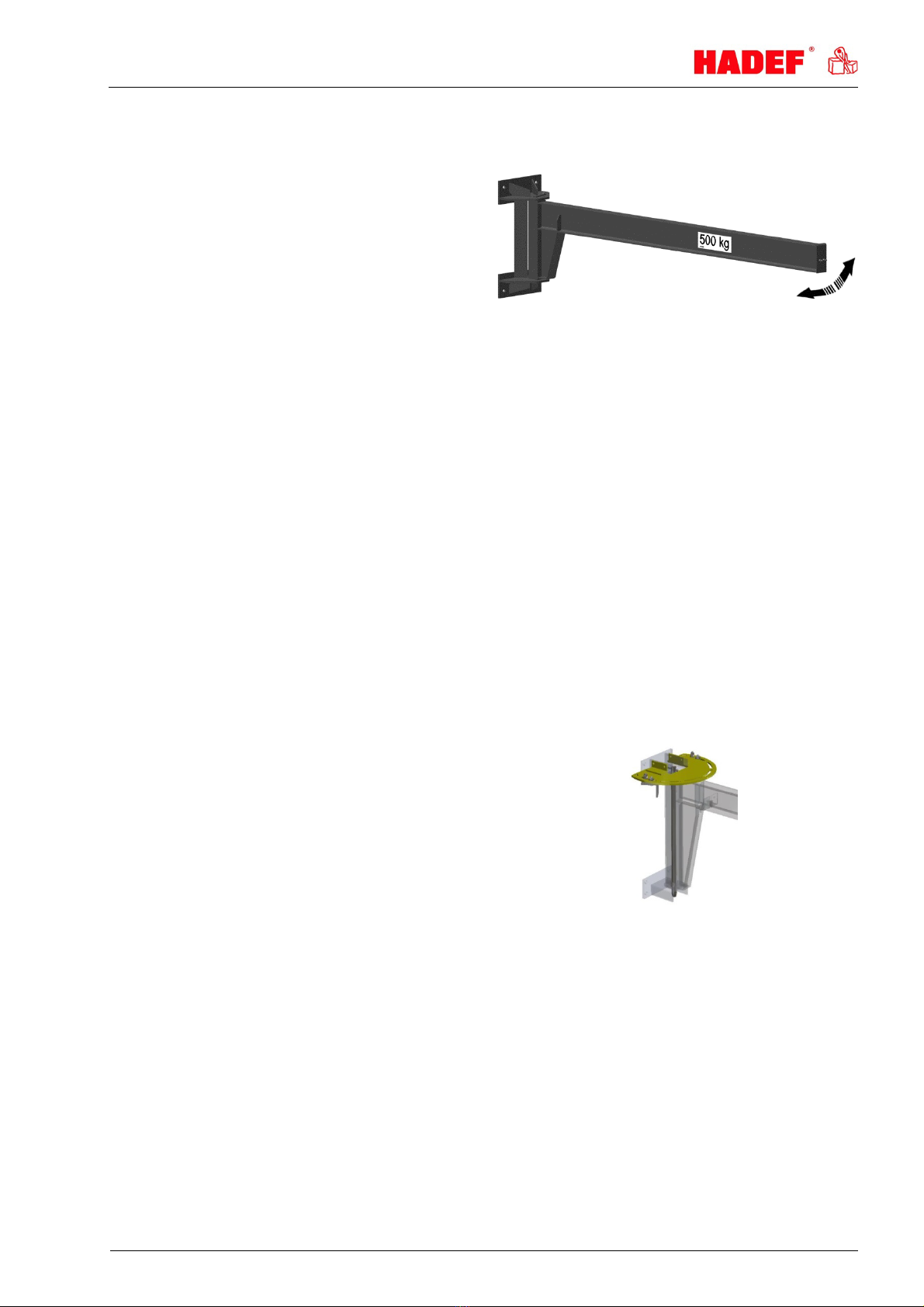

4.2 Design ..............................................................................................................................7
4.3 Function description .......................................................................................................7
4.4 Important components ....................................................................................................7
5 Technical data ................................................................................... 7
6 Installation ......................................................................................... 7

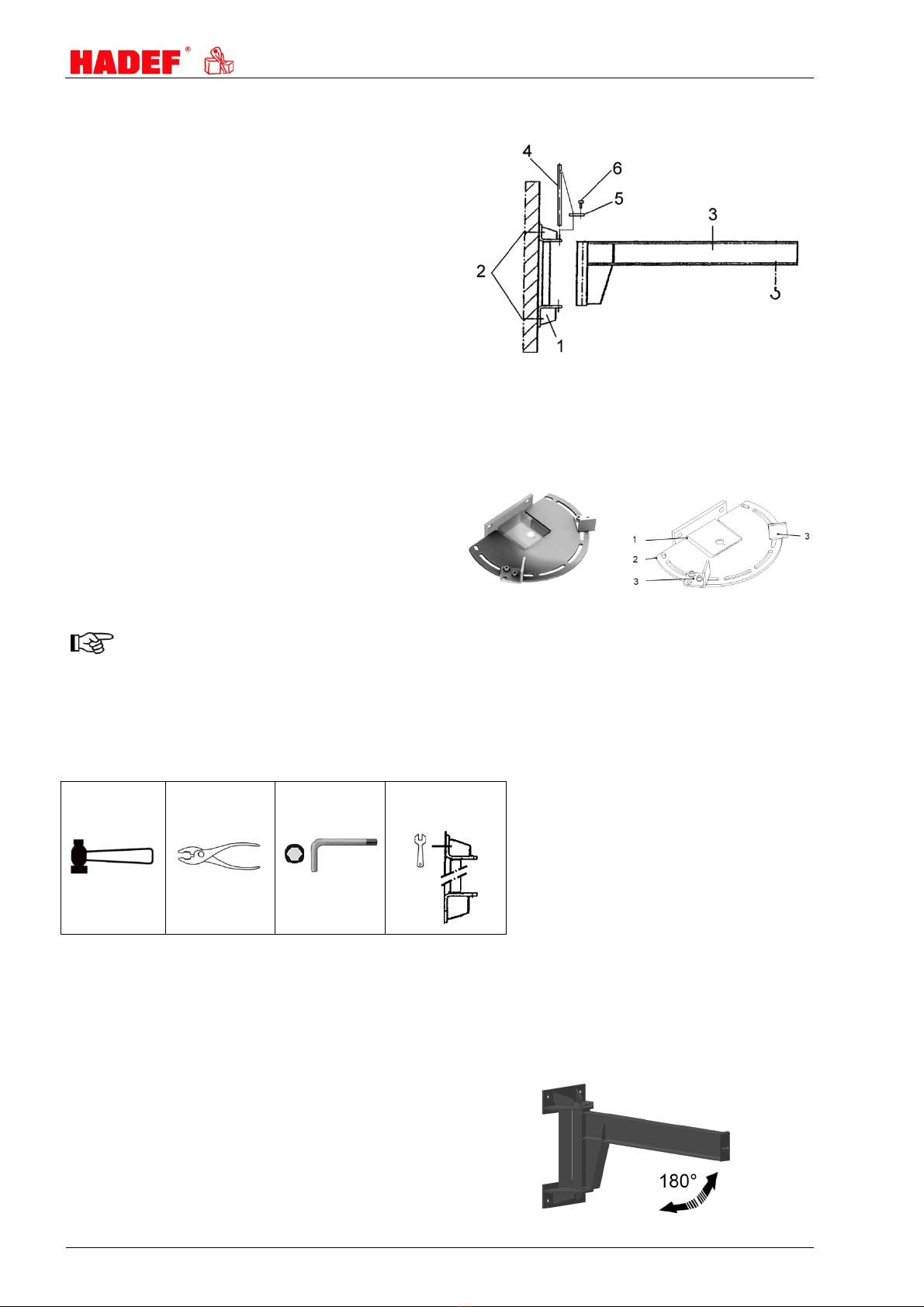

6.1 Wall fastening ..................................................................................................................8
6.2 Installation – Adjustable locking disc ............................................................................8
6.3 Tools.................................................................................................................................8
7 Operation ........................................................................................... 8
8 Commissioning ................................................................................. 9
8.1 General .............................................................................................................................9
9 Safety check ...................................................................................... 9
10 Functional test................................................................................... 9
10.1 Checks before initial start-up..........................................................................................9
10.2 Functional test .................................................................................................................9
11 Maintenance..................................................................................... 10
11.1 General ...........................................................................................................................10
11.2 Monitoring ......................................................................................................................10

5.52.732.00.01.05
3
12 Inspection ........................................................................................ 10
12.1 Periodic checks .............................................................................................................10
12.2 Inspection intervals .......................................................................................................10
13 Service ............................................................................................. 10

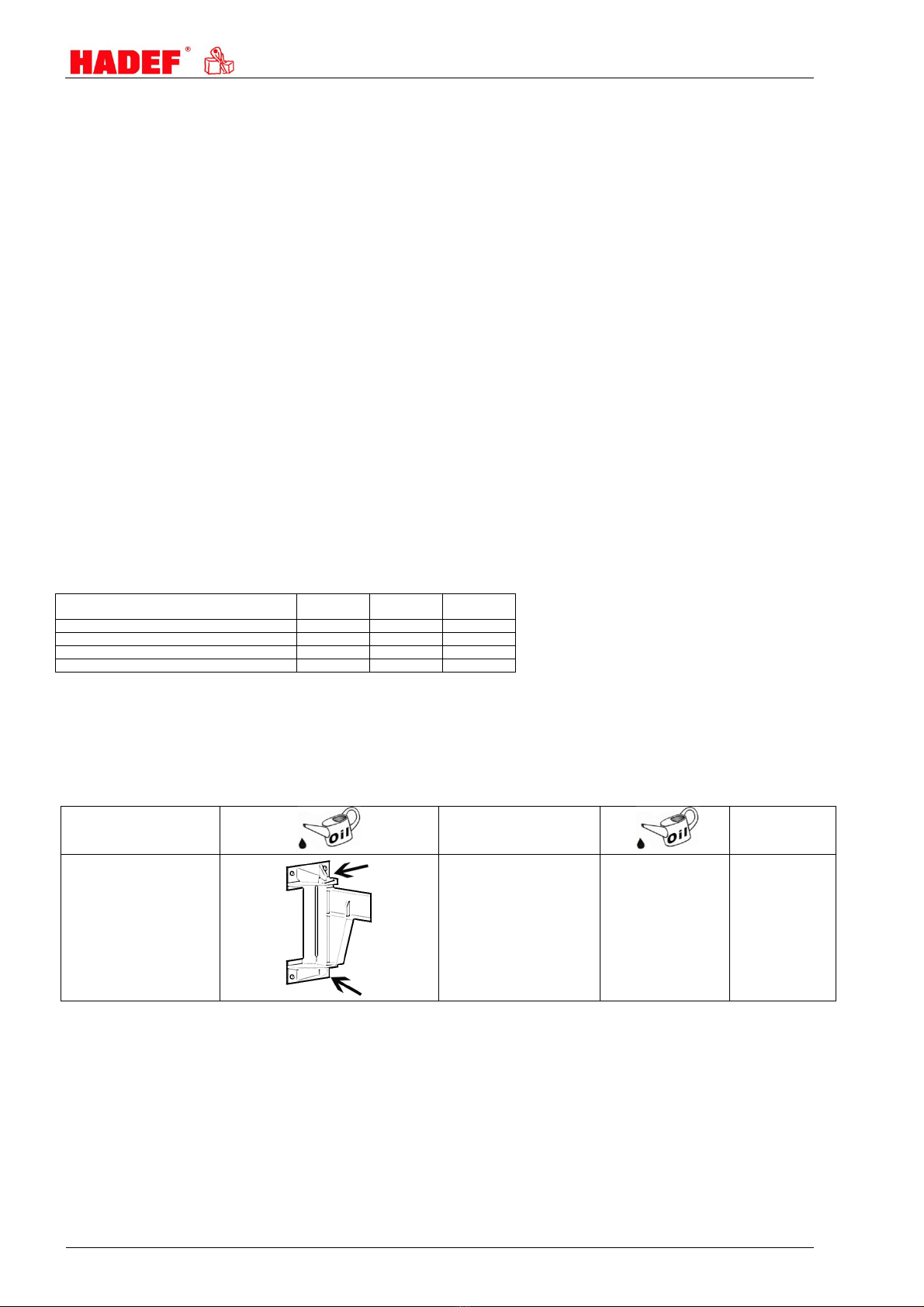

13.1 Slewing bracket .............................................................................................................10
13.2 Lubricant - Selection .....................................................................................................11
13.3 Lubricant for food industry – Selection (as option*)...................................................11
14 Trouble............................................................................................. 11
15 Remedy ............................................................................................ 11
16 Decommissioning ........................................................................... 11
16.1 Temporary decommissioning.......................................................................................12
16.2 Final decommissioning/disposal..................................................................................12
17 Additional documents..................................................................... 12
17.1 Operating instructions for cranes ................................................................................12
1 Information
The products meet European Union requirements, in particular the valided EU Machine Directive.
The entire company works acc. to a certified quality assurance system as per ISO 9001.
The production of components at our work is subject to strict, intermediate checks.
After assembly, each product is subject to a final test with overload.
For the operation of hoists, the national accident prevention regulations apply in Germany, amongst others.
The stated performance of the devices and meeting any warranty claims require adherence to all instructions
in this manual.
Before delivery, all products are packed properly. Check the goods after receipt for any damage caused
during transport. Report any damage immediately to the forwarding agent.
This manual allows a safe and efficiently use of equipment. Images of this manual are for a principle
understanding and can be different from the real design.
NOTICE!
We refer to the prescribed equipment tests before initial start-up, before putting back into operation and the
regular periodic inspections.
In other countries any additional national regulations must be observed.
2 Safety
2.1 Warning notice and symbols
Warnings and notice are shown as follows in these instructions:
DANGER!
This means that there is a high risk that leads, if it is not avoided, to death or severe injury.
WARNING!
This means that there is a
risk that could lead, if it is not avoided, to death or severe injury.
CAUTION!
This means that there is little risk that could lead, if it is not avoided, to slight injury or damage to the device or its
surrounding.
NOTICE! Gives advice for use and other useful information.
Danger from electricity.
Danger from explosive area.

4
5.52.732.00.01.05
2.2 Duty of care of the owner
DANGER!
Failure to follow the instructions of this manual can lead to unpredictable hazards.
For any resulting damage or personal injury, HADEF assumes no liability.
The unit was designed and built following a risk analysis and careful selection of the harmonized standards
that are to be complied with, as well as other technical specifications. It therefore represents state-of-the-art
technology and provides the highest degree of safety.
Our delivery includes the hoist supplied beginning at its suspension and ending at the load hook and if
supplied with control, the control line/hose that leads to the hoist. Further operating material, tools, load
attaching devices as well as main energy supply lines must be assembled according to the valid rules and
regulations. For explosion-proof equipment, all these parts must be approved for use in area prone to
explosion, or they must be suitable for use in area prone to explosion. The owner is responsible for this.
However, in everyday operation this degree of safety can only be achieved if all measures required are
taken. It falls within the duty of care of the owner/user of the devices to plan these measures and to check
that they are being complied with.
Complete the operating and installation instructions by any instructions (regarding supervision or
notifications)that are important for the special kind of use of the equipment, i.e. regarding organization of
work, work flow and human resources.
In particular, the owner/user must ensure that:
The unit is only used appropriately.
The device is only operated in a fault-free, fully functional condition, and the safety components, in
particular, are checked regularly to ensure that it is functioning properly.
The required personal protective equipment for the operators, service and repair personnel is available
and is used.
The operating instructions are always available at the location where the equipment is used and that they
are legible and complete.
The unit is only operated, serviced and repaired by qualified and authorized personnel.
This personnel is regularly trained in all applicable matters regarding safety at work and environmental
protection, and that they are familiar with the operating manual and, in particular, the safety instructions it
contains.
Any safety and warning signs on the devices are not removed and remain legible.
Devices for use in area prone to explosion must (from customer's side) be earthed with a shunting
resistor of < 10
6
Ωagainst earth.
WARNING!
It is not allowed to make constructive changes of the equipment!
2.3 Requirements for the operating personnel
The units may only be operated by qualified persons that are appropriately trained and that are familiar with
it. They must have their employer’s authorization for operation of the units.
Before starting work, the operating personnel must have read the operating and installation instructions,
especially the chapter "Safety Instructions".
This is especially important for operating personnel that rarely uses the equipment, i.e. for installation or
maintenance work.
DANGER!
In order to avoid severe injury, please pay attention to the following when using the equipment:
Use protective clothes/equipment.
Do not wear long hair hanging down open.
Do not wear rings or other jewelry.
Do not wear clothes that are too big/wide.
Do not reach into ropes, chains, drive parts or other moving parts with your hands

5.52.732.00.01.05
5
2.4 Appropriate use
The permitted safe working load of the devices must not be exceeded! An exception can be made during the
load test before initial operation, carried out by a licensed qualified person.
The permissible ambient temperature during operation of manual driven devices is -20 °C / + 50 °C and
at all power driven devices -20 °C / + 40 °C!
Defective devices and load suspension devices must not be used until they have been repaired! Only
original spare parts must be used. Non-compliance will result in any warranty claims becoming void.
Liability and warranty will become void if unauthorized modifications of the units are made by the user!
A manually slewing of jib.
Jib range of wall mounted cranes 180°when mounted at the wall.
Jib range of jib cranes 270°.
The cranes are adequate for using with manually and electrical hoisting units.
NOTICE!
If the units are not used appropriately, it is not possible to ensure safe operation.
The owner and operator have sole liability for all personal injury and damage to property arising from
inappropriate use.
DANGER!
It is not allowed:
pulling loose of stuck loads, dragging of loads and inclined pulling is not allowed.
in explosive atmosphere, except the unit is especially modified for it and marked by an indication label
In reactor containment vessels.
to transport people
The device is not suitable for use on stages and in studios
persons must not stand under a suspended load
2.5 Basic safety measures
Observe installation-, operation and maintenance instruction.
Take notice of caution notes at units and in the manual
Observe safety distances.
Take care for a free view on the load.
Only use the hoists appropriately.
The equipment is to be used exclusively for movement of goods. Under no circumstances my persons be
moved.
Never load the devices beyond their working load limit.
Pay attention to the accident prevention regulations (UVV).
Should the hoist be used outside of Germany, please pay attention to the national regulations that apply.
Supporting structures and load-attached devices used in conjunction with this equipment must provide an
adequate safety factor to handle the rated load plus the weight of the equipment. In case of doubt, consult
a structural engineer.
If the equipment has not been used for a period of time, carry out visual checks of all main components
such as chains, load hooks etc. and replace any damaged parts with new, original spare parts before
putting the equipment back into operation!
Do not use a hoist that is defective, pay attention to any abnormal noise it makes during operation.
Stop working immediately in case of disturbances and remedy failures.
Any damage and faults must be reported to a responsible supervisor immediately.
If the unit is put into motion, any persons in the immediate vicinity must be informed by calling to them!
Please pay attention to the regulations for load carrying devices UVV for both positive and non-positive
methods of attaching loads.

6
5.52.732.00.01.05
The lifting tackle or the load must be securely attached to the hook and be seated at the bottom of the
hook.
The safety catch of hooks must be closed.
When charged, the housing may not be in contact somewhere.
Observe separate installation-, operation and maintenance instruction of hoists.
Please consider oscillation of the load and stopping distance.
Make sure that the device stands stable.
3 Transport and Storage
CAUTION!
Transport may only be done by qualified personnel. No liability for any damage resulting from improper
transport or improper storage.
3.1 Transport
The devices are checked and if so adequately packed before delivery.
Do not throw or drop the equipment.
Use adequate means of transport.
Transport and means of transport must be suitable for the local conditions.
3.2 Safety device for transport
NOTICE!
Should a safety device for transport exist, please remove it before commissioning.
3.3 Storage
Store the equipment at a clean and dry place.
Protect the equipment against dirt, humidity and damage by an appropriate cover.
Protect hooks, wire ropes, chains and brakes against corrosion.
4 Description
4.1 Areas of application
The devices must be as far as possible installed in a covered room.
If they are used in the open, protect the units against the effects of weather such as rain, hail, snow, direct
sunshine, dust, etc. - we recommend to use a cover in parking position. If the device is set up in a
continuously humid environment with strong temperature fluctuations, the correct functionings are
endangered by the forming of condensation.
Ambient temperature -20°C up to +50°C. Power-operated units -20 up to +40°C. Humidity 100 % or less but
not under water
DANGER!
It is not permitted to use the unit in an area at risk from explosion!

5.52.732.00.01.05
7
4.2 Design
HADEF Wall-mounted jib cranes are designed to EN 13001 HC2/S1.
Type 320/01
Illustration 1
4.3 Function description
Direction of movement: manually slewing
4.4 Important components
Jib
Profile steel beam, with ball bearings
Bracket
Profile steel
Embracing bracket – as option
For installation on to columns and beams
Fixing device – as option
For locking the jib
Slewing end stops – as option
Adjustable slewing end stops
Adjustable locking disc (optional)
For locking the jib in various positions.
Depending on the design of the wall-mounted jib
crane, the locking disc can be mounted on the
upper or lower mounting bracket.
Illustration 2
5 Technical data
Technical data depend on the order. They are shown in the order confirmation, in the approval drawing or in
the test book.
6 Installation
Assembly depends on the local environment. The crane must be assembles stress-free. The runway must
be perfect.
Operating regulations for cranes in accordance with the validated accident prevention regulations
An end stop is provided at the end of jib.
Generally, additional lifting gear (e.g. fork lift, lifting platforms) will be required for the assembly.These must
take the weight of the devices safely.

8
5.52.732.00.01.05
6.1 Wall fastening
prepare fixing holes in the wall
put the wall bracket (1) onto the wall
Fix it with screws, discs and nuts (2) (on site)
Put through axle (4)
Adjust with water-level
Tighten screws (2)
Remove axle (4) again
Push the jib with ball bearings (3) into the wall
bracket
Put through the axle (4) from the bottom or
from the top again.
Protect with pin lock (5) and screw (6)
Check eventually existing end stops.
Illustration 3
For mounting of hoist unit and power supply see separate instruction.
6.2 Installation – Adjustable locking disc
Mount the stop brackets (3) on the locking disc
(2) at desired position.
Mount screws, nuts and castle nuts M12
Swivel jib to check position.
Tighten screws firmly.
Check screw connection!
Bild 4
NOTICE!
If the locking disc is to be mounted on an existing wall-mounted jib crane, the corresponding holes must be
drilled for the mounting on the opposite side.
6.3 Tools
No special tools necessary.
7 Operation
Only people that are familiar with the operation of the lifting devices and cranes may be entrusted with their
operation. They must be authorized by the employer for the operation of the equipment. The employer must
ensure that the operating instructions are available near the equipment and that they are accessible for the
operating personnel.
slewing by hand
depended of mounting height, at load or jib
Illustration5
SW41
SW46

5.52.732.00.01.05
9
8 Commissioning
8.1 General
Should the unit be used in Germany:
Please observe the validated, national accident prevention regulations.
For other countries:
Inspections as above. Please observe the national rules and regulations and the instructions in this manual!
NOTICE!
Hoists up to 1000 kg capacity and without motor-driven trolleys of hoisting unit must be tested by a “qualified
person” before putting into operation for the first time.
Hoists of 1000 kg capacity and up or with more than one motor-driven hoist movement; i.e. lifting and trolley
movement, must be tested by a “licensed qualified person” before putting in operation.
An exception is “hoists ready for operation” acc. validated national regulations with EU-declaration of
conformity.
Definition “qualified person” (former expert)
A “qualified person” has learned, due to occupational training and experience and the job that the person has
done, the skills needed to tests the material for one’s work.
Definition “licensed qualified person” (former approved expert)
A “licensed qualified person” has, due through special occupational training, knowledge about testing of the
material for one’s work and knows the national accident prevention regulations and other prescriptions and
technical regulations. This person must test the material for one’s work regularly with regard to design and
kind of use. The license will be given to qualified person be the approved supervision authorities (ZÜS).
9 Safety check
Before putting into service initially or when putting back into service, it must be checked whether:
All fastening screws (if existent), socket pins, flap socket and safety devices are tightened and secured.
10 Functional test
10.1 Checks before initial start-up
Design
Check all screws and safety connections.
10.2 Functional test
Function – crane slewing unit
Correct slewing of crane jib
Correct position of end stops

10
5.52.732.00.01.05
11 Maintenance
11.1 General
All monitoring, servicing and maintenance operations are to ensure correct functioning of the equipment;
they must be effected with utmost care.
Only “qualified persons” may do this work.
Servicing and maintenance work must only be done when the hoist is not loaded.
Records must be kept of all test results and measures taken.
11.2 Monitoring
The monitoring and servicing intervals stated are valid for operation under normal conditions and single-shift
operation. In case of severe operating conditions (e.g. frequent operation with full load) or special
environmental conditions (e.g., heat, dust, etc.), the intervals must be shortened correspondingly.
12 Inspection
12.1 Periodic checks
Independently from the regulations of the individual countries, lifting devices must be checked at least yearly
by a qualified person or licensed qualified person regarding its functional safety.
12.2 Inspection intervals
at
commissioning
Inspection
all 3 month
Inspection
all 1 month
Screw connections
X
X
Check socket pins and plugs
X
End stops
X
X
Inspection by an
expert (periodic inspection)
X
13 Service
13.1 Slewing bracket
Use Recommendation Intervals
Bearings
FUCHS
RENOLIT FEP2 0,5 kg
12 month
if bigger
pollution
grease all 3
month

5.52.732.00.01.05
11
13.2 Lubricant - Selection
FUCHS SHELL ESSO MOBIL TOTAL CASTROL KLÜBER
Renolit FEP Alvania EP Unirex EP Mobilux EP MULTIS EP -- --
Stabylan 5006 -- -- -- -- Optimol Viscoleb 1500 Klüberoil 4UH 1-1500
-- -- -- -- -- -- Wolfracoat 99113
Chain lubricant OKS 451
13.3 Lubricant for food industry – Selection (as option*)
SHELL MOBIL CASTROL
KLÜBER
Gearing
FM Grease HD Mobilgrease FM
--
Klüberoil 4UH 1-1500 N
Load chain
-- Lubricant FM 100
Optimol Viscoleb 1500
--
Load hook
;
Pulleys
Gear rim;
Drive pinion
FM Grease HD Mobilgrease FM
-- --
* must be mentioned by order
14 Trouble
Please pay attention to the following in case of problems:
Troubles with the equipment must only be repaired by qualified personnel.
Secure the unit against unintended operation start.
Put up a warning note indicating that the unit is not to be used.
Secure the working area of moving parts of the unit.
Please read the chapter "Safety instructions".
Notes on the repair of faults are found in the following table.
For the repair of failures please contact our service department.
CAUTION!
Trouble caused by wear or damage to parts such as wire ropes, chains, chain wheels, axes, bearings,
brake parts, etc., must be remedied by replacing the parts with original spare parts.
15 Remedy
Problem
Cause
Remedy
Jib is hardly to slew Bearings inhibited by overload Maintain – change bearings
Jib - deformed Overloaded Check jib and bracket – if so, change it
16 Decommissioning
WARNING!
It is essential that the following points are observed in order to prevent damage to the equipment or critical
injury when the device is being decommissioned:
It is mandatory that all steps for decommissioning the machine are carried out in the indicated sequence:
First secure the working area for decommissioning, leaving plenty of space.
Read the chapter "Safety instructions".
Disassembly is carried out in reverse order to the assembly.
Please make sure that all operating material is disposed of in accordance with environmental regulations.

12
5.52.732.00.01.05
16.1 Temporary decommissioning
Measures are as above.
Also read the chapter “Transport and storage”.
16.2 Final decommissioning/disposal
Measures are as above.
After disassembly, ensure that the disposal of the equipment and any materials it contains is carried out
in accordance with environmental regulations.
17 Additional documents
17.1 Operating instructions for cranes
acc. to the accident prevention regulations for "cranes", are attached to the consignment or to the
documents.
