Hagerman Audio FRYDADDY User manual

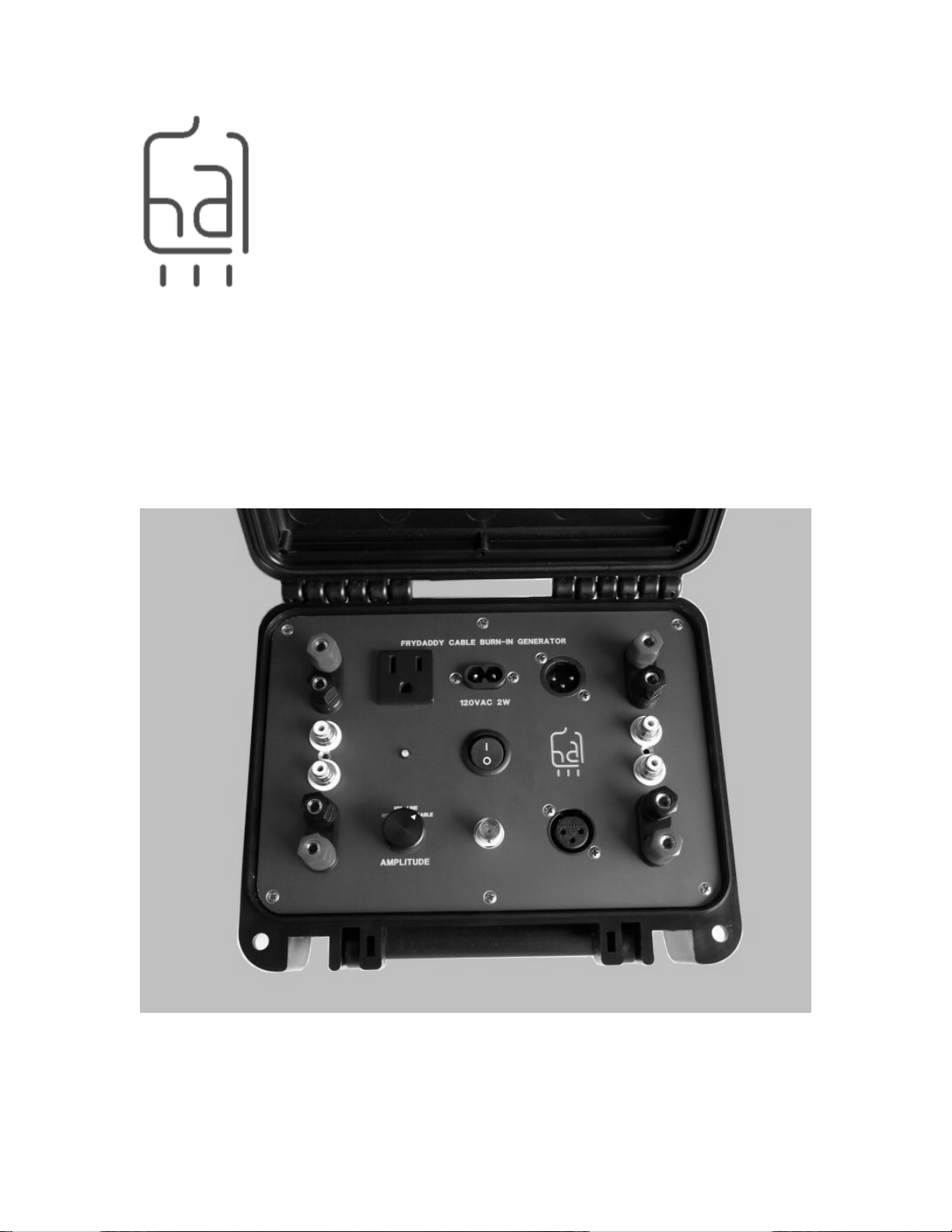

FRYDADDY
Cable Burn-in Generator
Made in USA

FRYDADDY Cable Burn-in Generator
2
Copyrights & Trademarks
©Copyright Hagerman Audio Labs 2008. All rights reserved. No part of this
document may be photocopied, reproduced, or translated to another language
without the prior written consent. FryKleanerTM is a trademark of Hagerman
Technology LLC.
Disclaimer
The information contained in this document is subject to change without notice.
Hagerman Audio Labs shall not be liable for errors contained herein or for
consequential damages in connection with the furnishing, performance, or use of this
material.
Warranty
Hagerman Audio Labs warrants this product free of defects in materials and
workmanship for a period of 10 years. If you discover a defect, Hagerman Audio
Labs will, at its option, repair or replace the product at no charge to you provided
you return it during the warranty period, transportation charges prepaid to
Hagerman Audio Labs. This warranty does not apply if the product has been
damaged by negligence, accident, abuse or misuse or misapplication, has been
damaged because it has been improperly connected to other equipment or has been
modified without the express written permission of Hagerman Audio Labs. This
warranty is limited to the replacement or repair of this product and not to damage to
equipment of other manufacturers. Any applicable implied warranties, including
warranty of merchantability, are limited in duration to a period of the express
warranty as provided herein beginning with the original date of purchase and no
warranties, whether express or implied shall apply to the product thereafter. Under
no circumstances shall Hagerman Audio Labs be liable for any loss, direct, indirect,
incidental, special, or consequential damage arising out of or in connection with the
use of this product.
Hagerman Audio Labs
PO Box 61911
Honolulu, HI 96839
808-383-2704
www.haglabs.com

FRYDADDY Cable Burn-in Generator
3
Description
The FryDaddy is a high-powered cable burn-in generator and conditioner that can
also be used for phono and line stages. The sophisticated electronic waveform – a
combination of wideband noise and variable frequency amplitude modulation – was
developed to provide a maximum combination of both low and high frequency
content without being repetitious in any way. Burn-in operates on magnetic and
electrical properties of conductors and insulators. FryDaddy is part of the
FryKleanerTM series of professional cable burn-in generators.
Package Contents
• FryDaddy
• Power cord
Specifications
Item Specification
Output Voltage 20Vpp (CABLE)
1Vrms (LINE)
10mVrms (MM)
1mVrms (MC)
Output Impedance 150 ohm
Signal Bandwidth 10Hz to 100kHz
AC Voltage 120Vac 60Hz

FRYDADDY Cable Burn-in Generator
4
Operation
The FryDaddy’s AMPLITUDE knob sets the manner of operation. MC selects an output
level suitable for driving moving coil phonostage inputs (-60dB), MM for moving
magnet phonostages (-40dB), LINE for sensitive cables and amplifiers (0dB), and
CABLE for directly burning-in wire products.
There are two modes of cable burn-in, voltage and current. Both are required for
maximum effectiveness. Experience has determined that good results are obtained
with 24 hours of voltage mode followed by 48 hours of current mode.
Voltage Mode
In voltage mode the cable dielectric is excited by electric fields. Connect cables to
the upper sets of connectors and binding posts (red). Leave the far end of the cable
open-circuited.
Current Mode
In current mode, the cable must be short-circuited. This is done by connecting the
open end of the cable to the set of connectors and binding posts on the bottom
(black). Current mode is not applicable when using the FryBaby to burn in
amplification.
Power Cords
You can burn-in power cords by plugging into the outlet. For current mode, you can
short circuit the far end of the cord or plug it into equipment.
Monitor
The output signal can be monitored or used for other inputs. The MONITOR output is
a BNC connector and is not current limited.

A A
B B
C C
D D
E E
F F
G G
5 5 4 4 3 3 2 2 1 1
This document contains proprietary information and except with written permission of Hagerman Technology LLC such information shall not be published, or disclosed to others, or used for any purpose, and the document shall not be copied in whole or in part. Copyright Hagerman Technology LLC 2008. All rights reserved.
n/a A
FryDaddy: Power Hagerman Technology P.O. Box 26437 Honolulu, HI 96825
02Thursday, May 01, 2008
Title Size Document Number Rev Date: Sheet of
VPOS VCC
VNEG VEE
T1 POWER
J1 AC
1 2 3
D1 Diode D3 Diode D4 Diode D2 Diode
C1 4700uF 25V C2 4700uF 25V
R1 150 R2 150
C2 100uF 25V C4 100uF 25V
F1 0.5A
S1 POWER

A A
B B
C C
D D
E E
F F
G G
5 5 4 4 3 3 2 2 1 1
LINE MM MC
This document contains proprietary information and except with written permission of Hagerman Technology LLC such information shall not be published, or disclosed to others, or used for any purpose, and the document shall not be copied in whole or in part. Copyright Hagerman Technology LLC 2008. All rights reserved.
CABLE
1 2 3 4
5 6 7 8
n/a A
FryDaddy: Generator Hagerman Technology P.O. Box 26437 Honolulu, HI 96825
02Thursday, May 01, 2008
Title Size Document Number Rev Date: Sheet of
VCC
VCC
VCC VCC
VCC
VCC
VCC
VCC
VCC
VEE
VEE
VPOS
VNEG
VNEG
VPOS
C5 100uF 25V LM2904
U1B
5 67
4 8
R5 100k
R4 100k R3 100k R6
47k
LM2904 U1A
3 21
4 8LM2904
U2A
3 21
4 8
R7 100k R8 47k
R9 47k R10
47k
Q3 2N3904 R14
47k C6 220nF
LM2904 U2B
5 67
4 8
R12 100k R11 100k R13
47k
Q1 2N3904
C10 100uF 25V
C9 220nF
R19 100k
R21 10k U3A
LM13700
11 1
8
75
4 2 3
6
R22 10k
R24 4k7
U3B LM13700
11 16
9
1012
13 15 14
6
C11 100uF 25V
R23 10k
R16 47k
S2 AMPLITUDE
C14 1nF C15 3.3nF
R27 100k R28 1M R29 1k R30 100 R26 47k
C12 220pF
D5 LED R15 1k
C8 100uF 25V
R17 10k
R20 10k
C7 100uF 25V
R18 100k
C13 220nF
Q2 2N3904
R25 10k
R31 4k7
T2 TY146P
R34 10k
R33 1k
R35 1R C16 220nF
R36 1R
J2 MONITOR
R32 1k
LM1875 U4
2 14
3 5
C17 100uF 25V C18 100uF 25V
