Haicom 3 IN 1 CAR HOLDER User manual

1
Copyright
Copyright c 2004
All rights reserved
This publication, including all photographs, illustrations and
software, is protected under international copyright laws, with all
rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without the express
written consent of the manufacturer.
Version 1.0, March 2004
Trademarks
Product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered
trademarks of their respective companies.
Limitation of Liability
While reasonable efforts have been made to ensure the
accuracy of this manual, the manufacturer and distributor
assume no liability resulting from errors or omissions in this
manual, or from the use of the information contained herein.
Safety
Most GPS software has built-in voice navigation to allow you to
keep your eyes on the road while driving. If you need to study
the map on your PDA, stop the car and pull into the side of the
road first.

2
Table of Contents
Copyright
Table of Contents
Introduction
Components
Choosing a mounting option
Suction-support installation overview
Attaching the cradle and support
Detaching the cradle
Installing the base connector
Installing the suction-arm support
Installing the socket-arm support
Inserting your PDA
Removing your PDA
Connecting to the PDA
GPS Connector Pin Assignment
1
2
3
3
4
4
4
5
6
6
8
10
11
12
13
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••••••••••••••••••
••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••
••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••••••••••••••••••••
••••••••••••••••••••••••••••••••••••••••••••••••••
••••••••••••••••••••••••••••••••••••••••••••••
•••••••••••••••••••••••••••••••••

3
Introduction
Congratulations on your new purchase.The HAICOM 3 in 1 car
holder was designed to provide you with years of trouble-free
use bearing your convenience in mind.

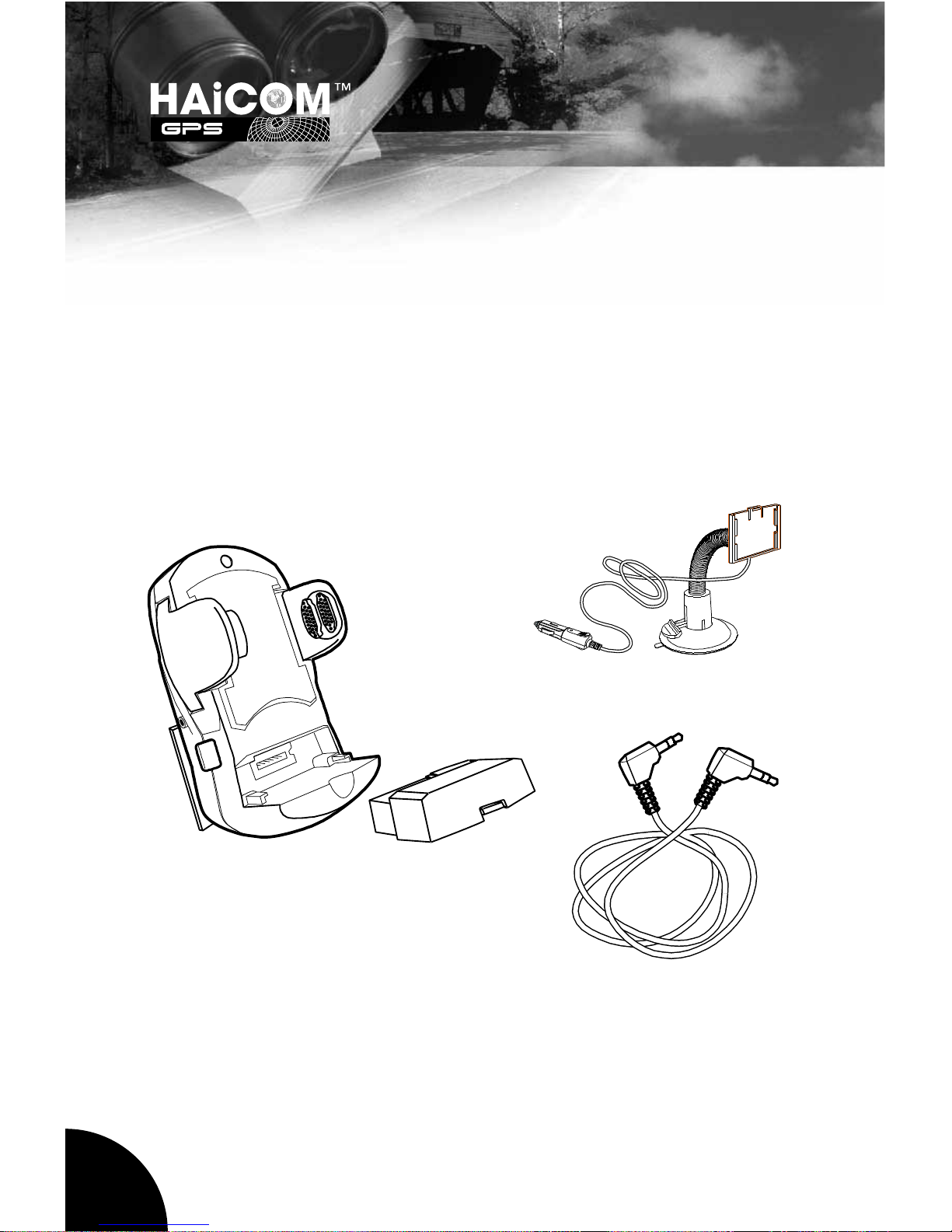

Cotains
Unpack the HAICOM 3 in 1 car holder and check that besides
this Installation Manual the following components are included:
Suction-arm support
Cradle/dummy connector
Audio Cable
If anything is missing or appears damaged contact the reseller.

4

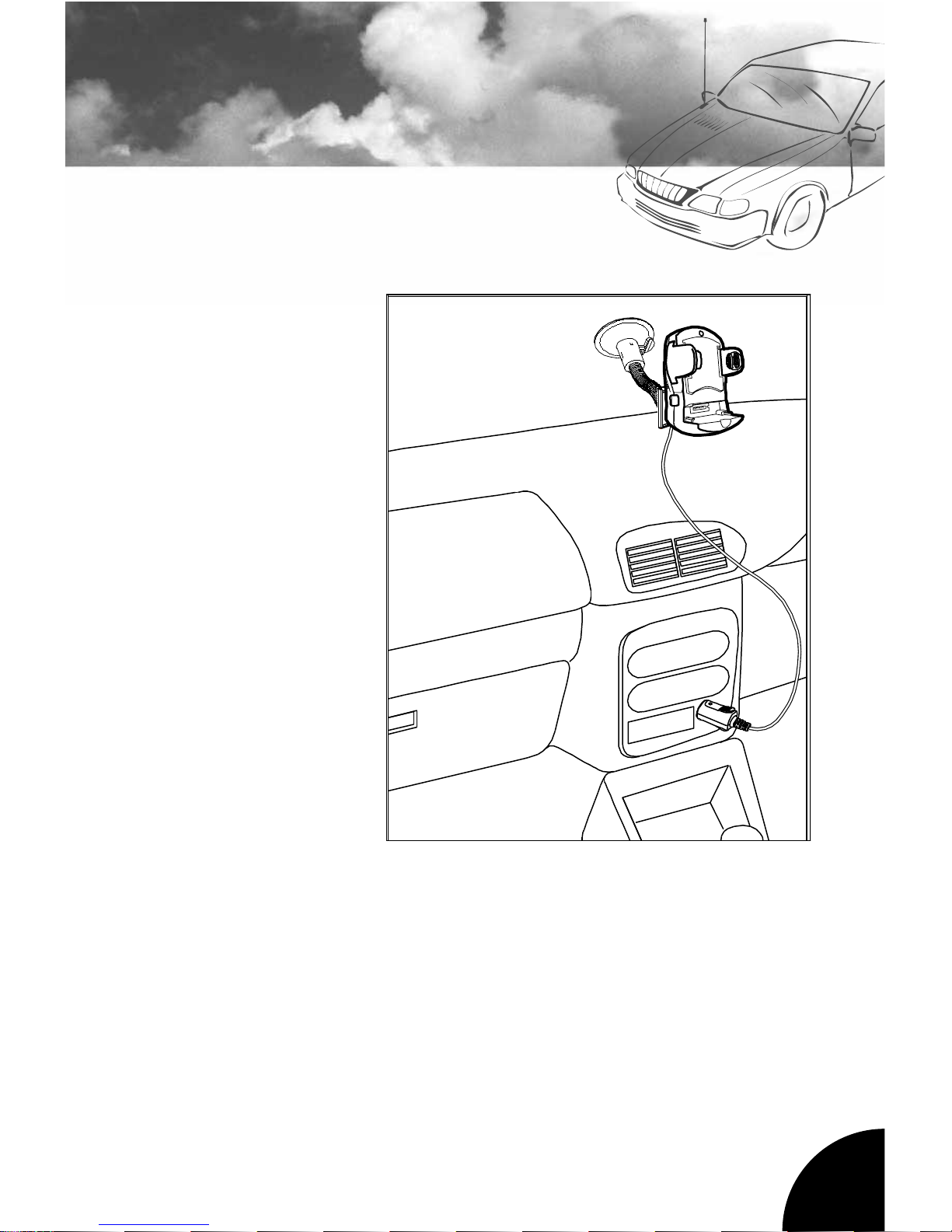

Suction-support installation overview
The HAICOM 3 in 1
car holder comes with
two mounting
supports that allow
the HAICOM 3 in 1
car holder to be
installed in most car
makes.
Use this installation
option if the cigarette
lighter can not be
easily accessed or if
you prefer to install
the HAICOM 3 in 1
car holder on the
dash.

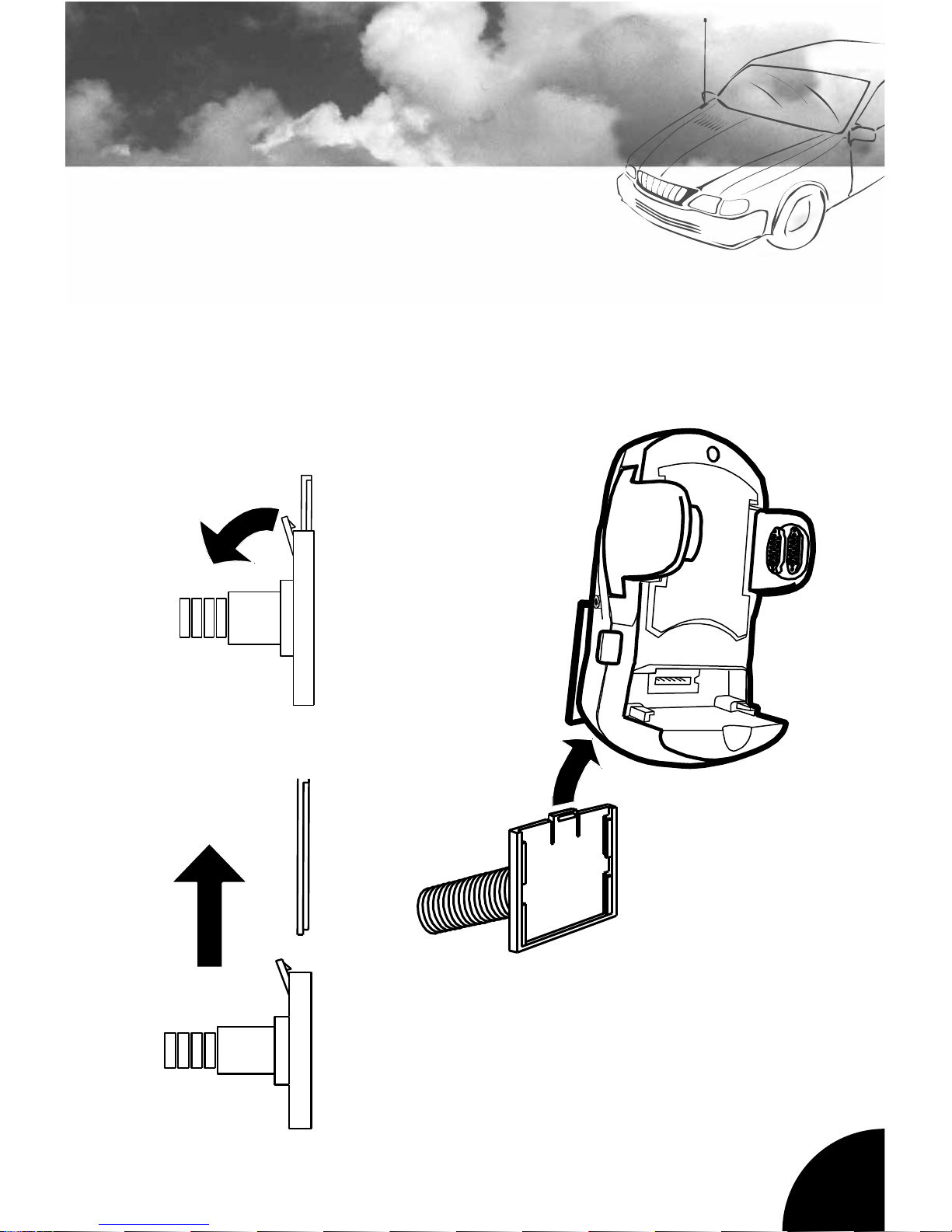

Attaching the cradle and support
The cradle attaches in the same way to both the suction-arm
and the socket-arm support. Follow these steps to attach the
cradle to the support.

5
B
A
1. Align the cradle with
the support plate as
shown below.
2. Insert the cradle plate
into the groove on the
support plate at an
angle (A), and push
down (B).
3. Push the cradle down until
it "clicks" into place.

6
Detaching the cradle
Follow these steps to detach the cradle from the arm fixture.
1. Pull back the tab on the
cradle plate to release
the support plate.
2. Slide cradle up and
remove it.

7

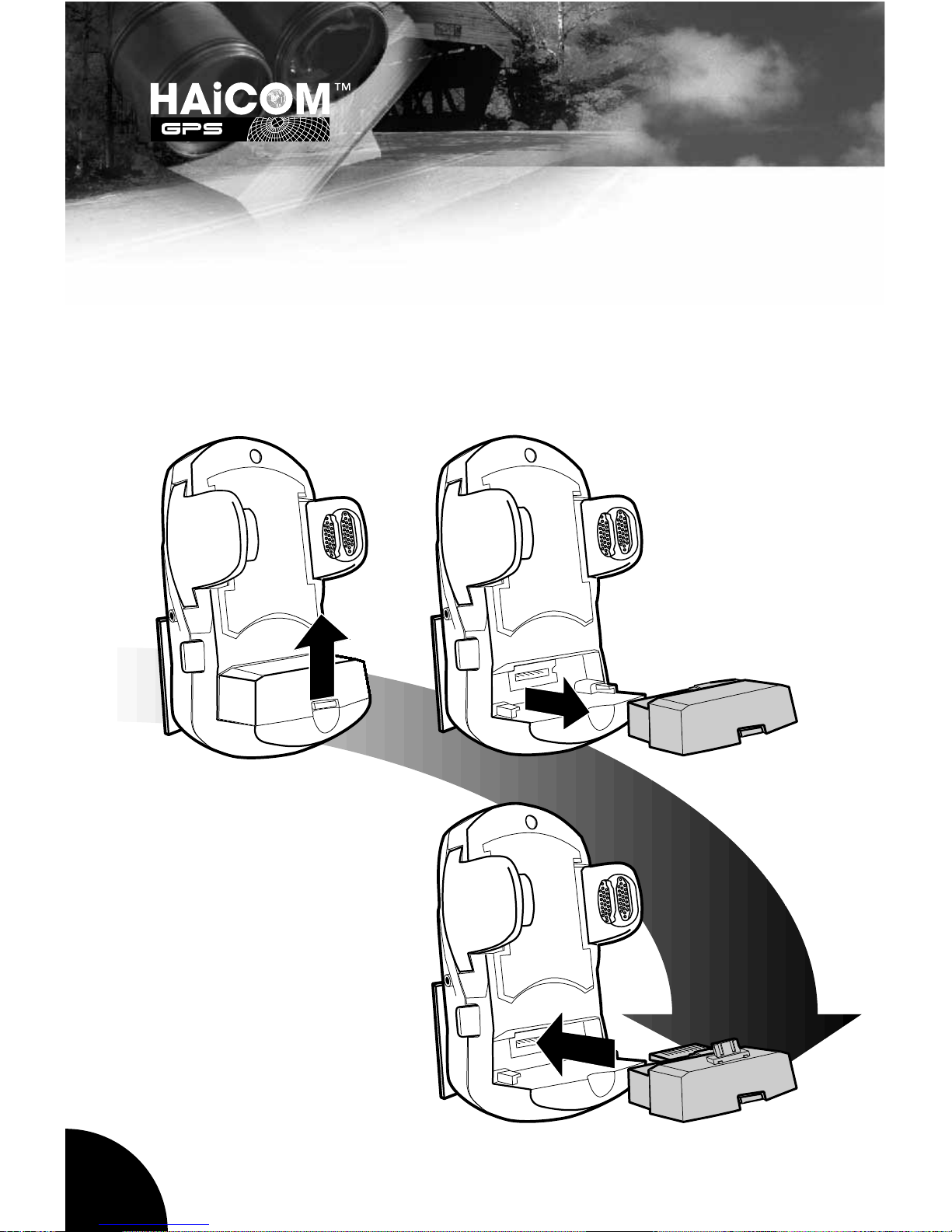

Installing the base connector
Each brand of PDA requires a different base connector. Consult
your local dealer for details on purchasing the correct base
connector for your model if needed.Refer to the following to
install the base connector:
1. Release the dummy
base from the cradle
by lifting at tab.
2. Remove the dummy
base.
3. Ensure that the
connector of the new
base is aligned with
the socket in the cradle.
4. Insert the base
connector until you
hear the tab "click" shut.

8
Installing the suction-arm support
Caution:Turn off the car's ignition before proceeding.
The suction cup must be mounted on a clean, smooth surface,
such as the windscreen, or the dashboard. Refer to the
following:
1. Remove dirt or grease from the surface if necessary.
2.With the locking lever in the up position, place the suction
cup on the surface.

9

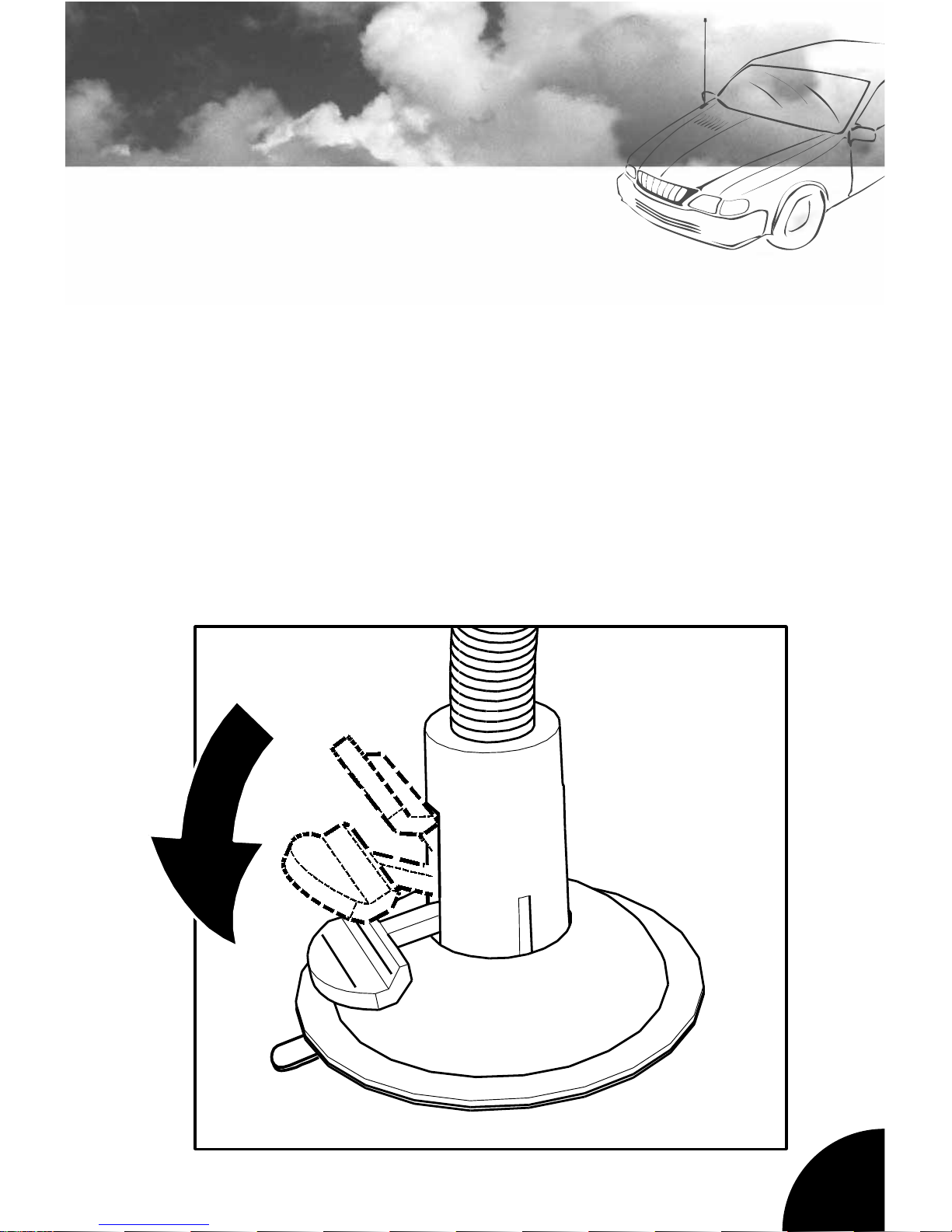

3. Push the locking lever towards the base to lock the support
in place.

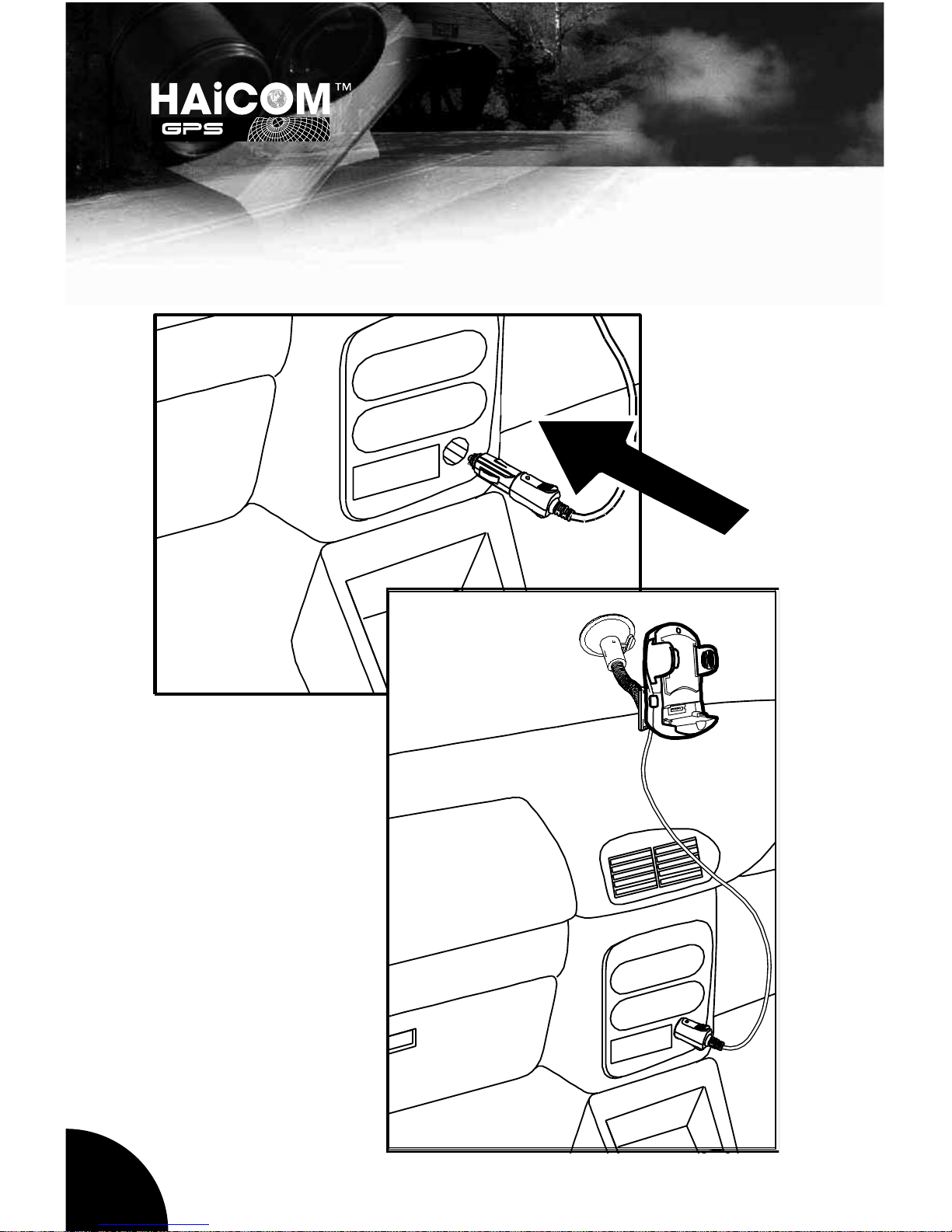

4. Insert the power
adapter into the
socket.

10

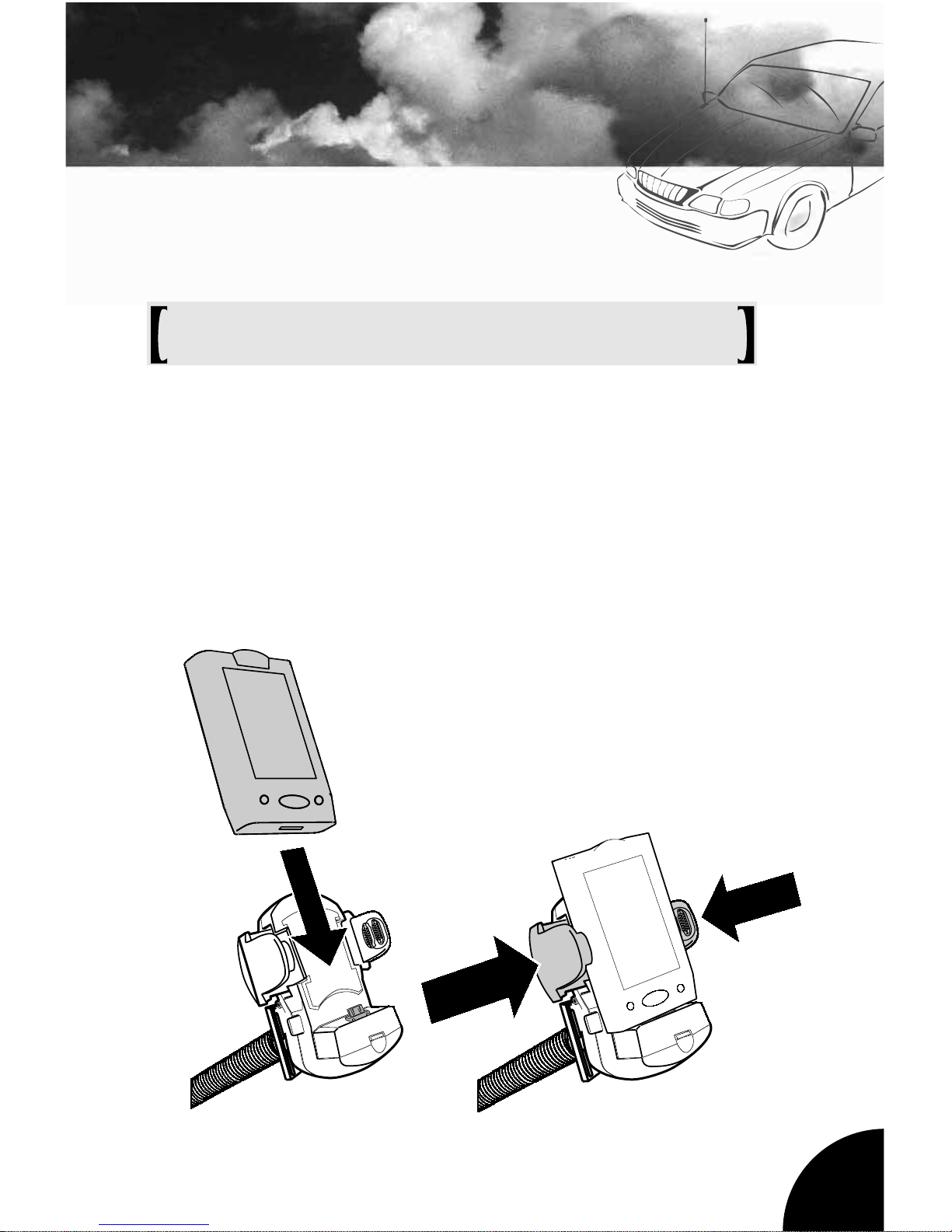

Inserting your PDA
Editor's Note:
Do you need to turn off car ignition to insert PDA?
Caution:Turn off the car's ignition before proceeding.
When installed in HAICOM 3 in 1 car holder, the battery in your
PDA is recharged. Refer to the following to insert your PDA into
the cradle:
1. Align the PDA's connector with the connector
on the cradle and push down.
2. Press the padded arms firmly
against the sides of the PDA
to secure it in place.

11

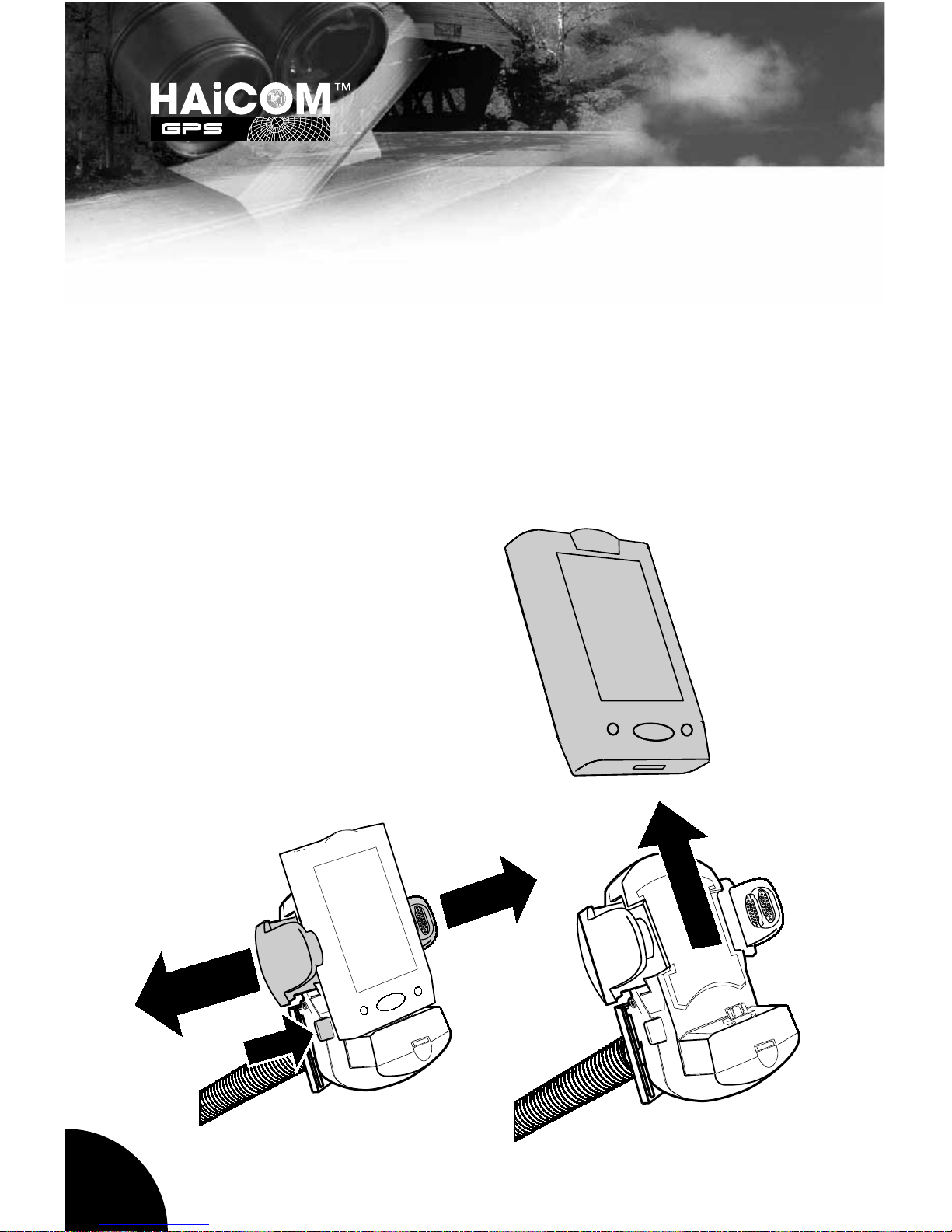

Removing your PDA
Refer to the following to remove your PDA from the cradle:
1. Push the release button (A) on the side of the cradle to
release the padded arms.
2. Lift the PDA straight up to remove it.
Caution: Do not twist the PDA
as this can cause permanent
damage to the connector
and/or your PDA.

12

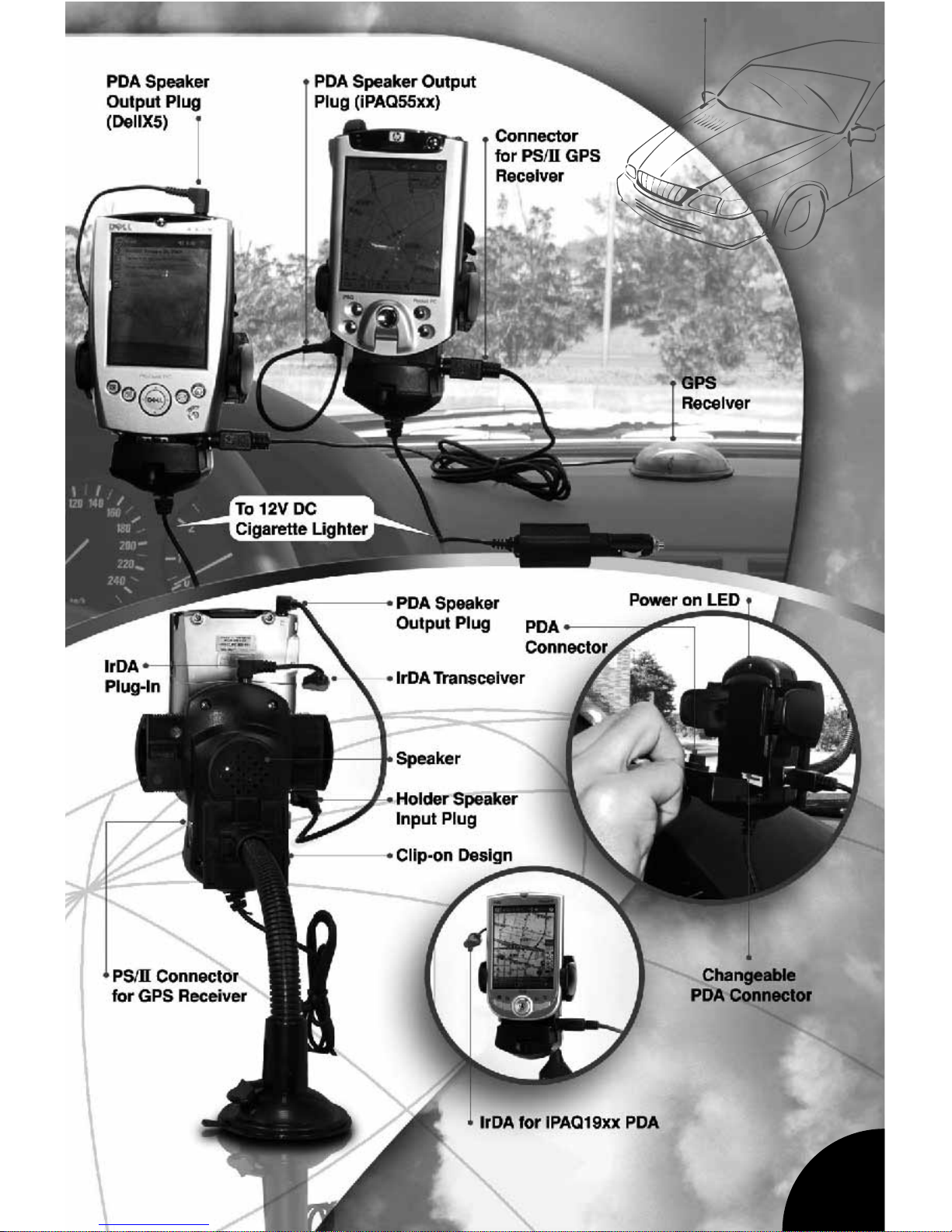

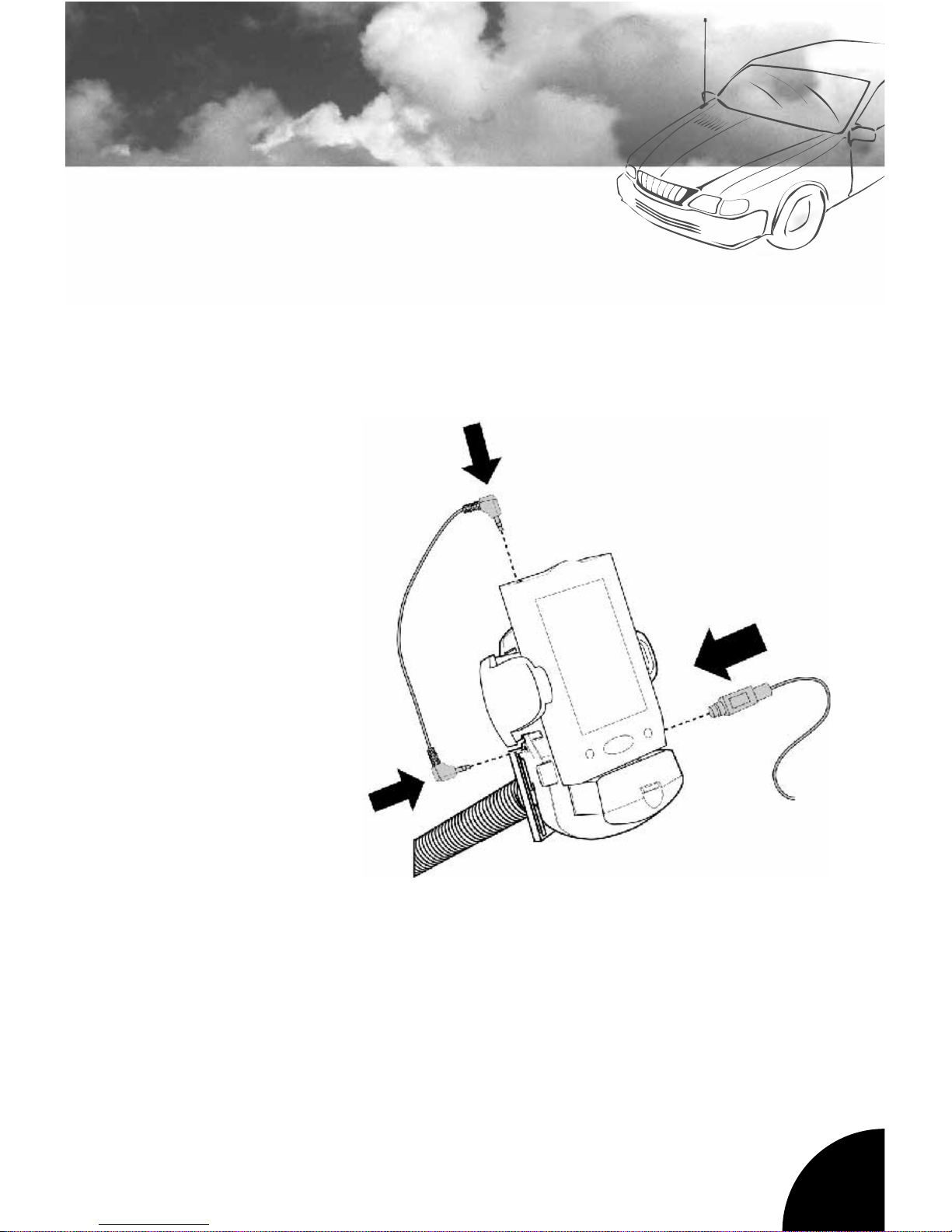

Connecting to the PDA
You can connect the supplied audio cable from your PDA to the
FreeCruiser to avail of the HAICOM 3 in 1 car holder's built-in
speaker.You can connect a GPS antenna to the HAICOM 3 in 1
car holder if you have a GPS-enabled PDA.
1. Connect the supplied
audio cable to the
HAICOM 3 in 1 car
holder (A) and the
PDA (B).
2. Connect the PS2
jack from the GPS
receiver to the
HAICOM 3 in 1 car
holder (C).
3. Position the GPS receiver on the dash or outside the car.
Important: If you cannot receive signals from at least
three satellites, try relocating the GPS antenna.
Important Safety Notice:
Most GPS software has built-in voice navigation to allow you to
keep your eyes on the road while driving. If you need to study
the map on your PDA, stop the car and pull into the side of the
road first.
C
B
A

13

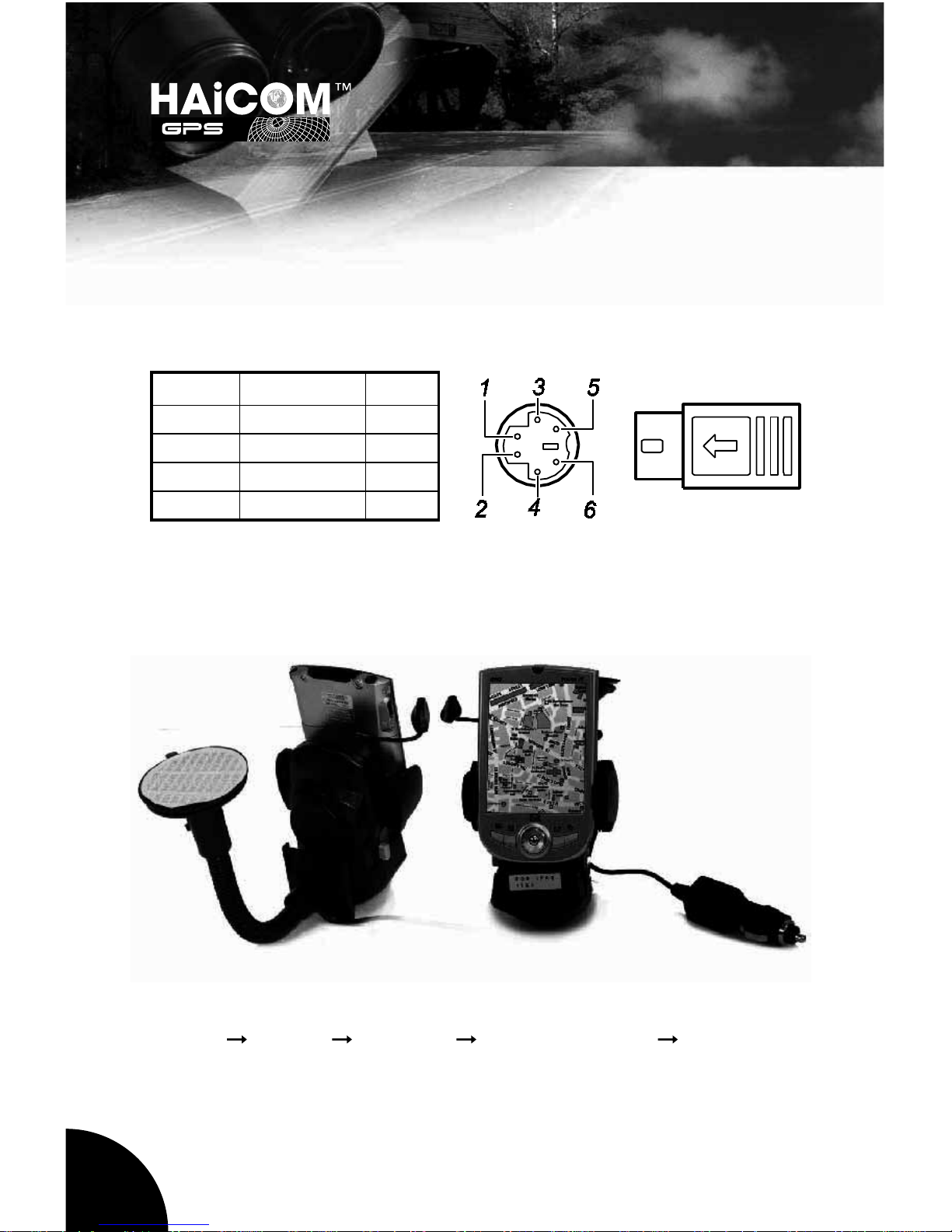

GPS Connector Pin Assignment
Ensure the PS2 connector for your GPS receiver conforms to
the pin assignments shown below.
The connector is a 6-pin Mini-DIN (male) with 3.6 ± 0.1 mm wire.
IrDA Connection Installation:
Setting System Connect Infred (turn OFF) OK
On test program or map, select com2 and start GPS.
Color
Green
White
Red
Black
Function
TX
RX
VCC
GND
CN1
5
4
2
1
fi fi fi fi
