R410A MULTI SPLIT SERIES ROOM AIR CONDITIONER
OPERATION & INSTALLATION MANUAL
AB092XCERA
AB122XCERA
AB142XCERA
AB182XCERA
Please read this manual carefully before usingthis air conditioner.
Please keep this manual safely for future use.
CASSETTE TYPE INDOOR UNITS

Contents
Cautions ...........................................................................................
Main Points of Operation................................................................
Parts and Functions ...........................................................................
Safety Cautions................................................................................
Maintenance ...................................................................................
When Trouble Happens ......................................................................
Customer Need-to-know ...................................................................
Installation Procedures .................................................................
Instructions to installation ...........................................................
Trouble Shooting..........................................................................
1-2
3-4
5
6-7
8-9
10
11
12-17
18-19
20-22

Cautions
1
For the purpose of safety, the air
conditioner must be properly grounded in
accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill. Never
unplug your air conditioner by pulling on the
power cord. Always grip plug firmly and
pull straight out from the outlet.
The air breaker should be all-pole switch.
and the distance between it's two connecters
should be no less than 3mm.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in a air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get
damaged prior to being picked up by the
relevant waste disposal center, and
contribute to environmental awareness by
insisting on an appropriate, anti-pollution
method of disposal.
Disposal of the packaging of your new
air conditioner
All the packaging materials employed in
the package of your new air conditioner
may be disposed without any danger to the
environment.
The cardboard box may be broken or cut
into smaller pieces and given to a waste
paper disposal service. The wrapping bag
made of polyethylene and the polyethylene
foam pads contain no fluorochloric
hydrocarbon.
Consult your local authorities for the name and
address of the waste materials collecting
centers and waste paper disposal services
nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of the
air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the following
instruction.
All these valuable materials may be taken to a
waste collecting center and used again after
adequate recycling.

2
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air conditioner's
tubes with sharp or pointed items, crushing
or twisting any tubes, or scraping the
coatings off the surfaces. If the refrigerant
spurts out and gets into eyes, it may result
in serious eye injuries.
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
The machine is adaptive in following
situation
2. If the supply cord is damaged, it must be
replaced by the service agent or a similar
qualified person.
3. If the fuse on PC board is broken please
change it with the type of T3.15A/250VAC.
Cautions
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
20 27 15
14.5 -- --
7 24 -15
6 18 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C
Model
H05RN-F 2X(0.75-1.5)mm2
AB092XCERA H05RN-F 3G (1-2.5)mm2
AB122XCERA
Communication cable
(sheilded wire)
power cable
H05RN-F 3G (1-2.5)mm2H05RN-F 2X(0.75-1.5)mm2
AB142XCERA H05RN-F 3G (1-2.5)mm2H05RN-F 2X(0.75-1.5)mm2
AB182XCERA H05RN-F 3G (1-2.5)mm2H05RN-F 2X(0.75-1.5)mm2
4. The wiring method should be in line with
the local standard.
6. The waste battery shall be disposed properly.
7. The indoor unit installation height is at least
2.5m.
5. The power cable and connecting cable are
self-provided.
The requirement of the communication
cable:

3
Main Points of Operation
Operation of Air Conditioner

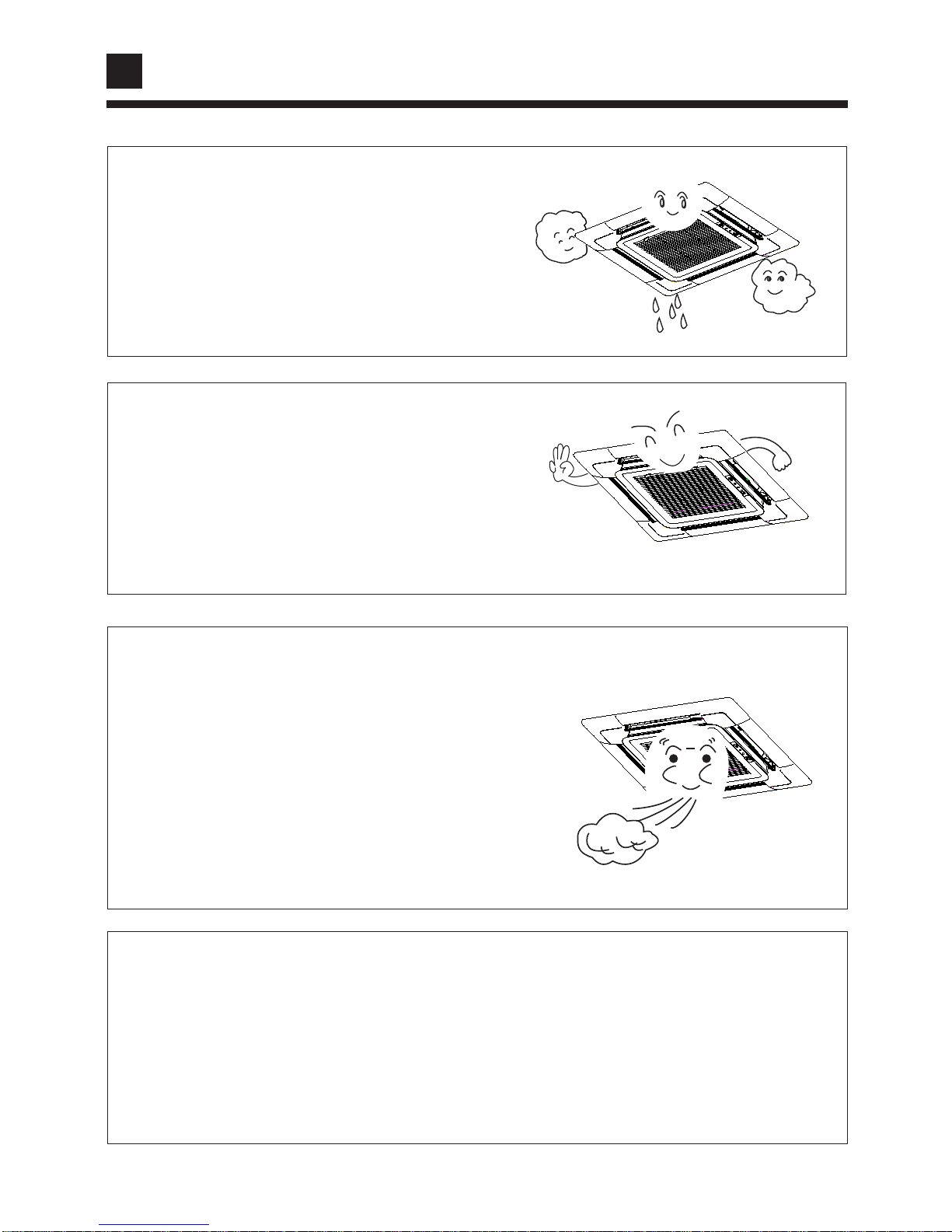

When the environmental humidity is great,
water maybe dripped from the air outlet in
cooling or drying mode.
3-minute Protection Function
If restart the unit immediately after stopping,
the compressor will start only 3 minutes later
to protect the machine.
Variation of Fan Speed
If fan speed in auto mode, it will automatically
lower when the room temperature close to the
setting temperature in cooling mode.
In heating mode,the compressor stops when the
room temperature at setting temperature and fan
turns into low speed or stops.
In Dry mode,fan speed will be automatically varied.
Remote Control:
There is a telecommunication interface for remote control on the control
panel of the indoor unit. After the peripheral equipment have been installed
in accordance with the instruction manual of the selected remote control
detector, the air conditioner will be computerized and controlled from a far-
away place.

4
Main Points of Operation
Prevent Cool Air Blowing Off

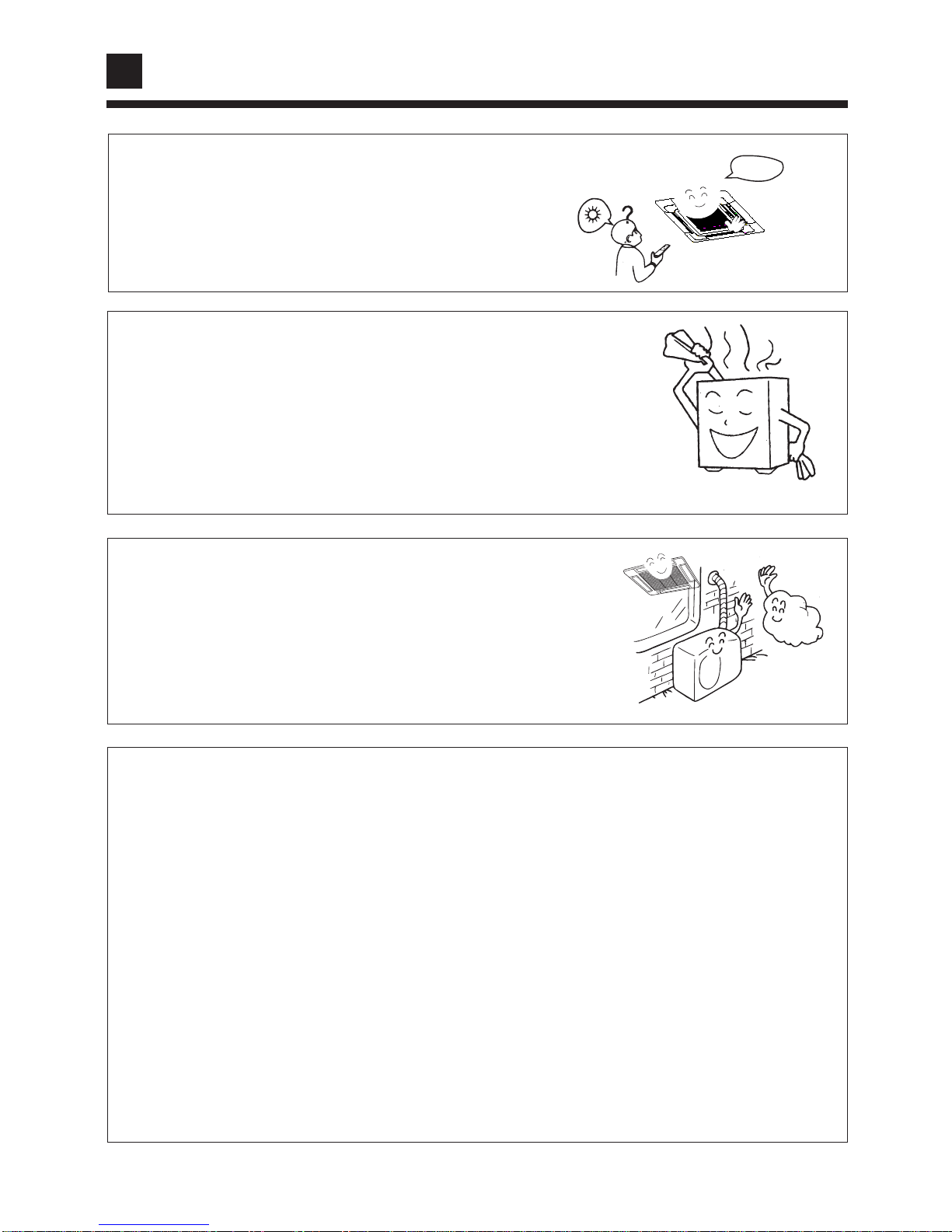

In heating mode,the indoor fan will not run
immediately after the unit starts to prevent
the cool air blowing off.
Defrosting Function
In heating mode, when frost formed on the outdoor heat
exchanger, the air conditioner will automatically defrost a
few minutes. During defrosting, both indoor and outdoor
fan will stop running. When defrosting finished, air condi-
tioner will automatically back to running.
Hints
The air conditioner absorbs heat form outside and
releases inside when in heating mode, therefore the
outside environmental temperature will affect heating
effects.
Power Failure Compensation(to be applied for a necessary situation):
After the power failure compensation is set, if power failure suddenly occurs while the air
conditioner is working,it will resume the previous working state when the power is supplied
again.
Setting Method: When the remote controller is on (excluding timer mode and fan mode),press
the ìsleepingî button on the remote controller 10 times within 5 seconds,and
after the buzzer rings 4 times, the air conditioner will enter the state of power
failure compenstation.
Cancel Method:Press the ìsleepingî button on the remote controller 10 times within 5 seconds,
and after the buzzer rings 2 times, the power failure compensation mode will be
cancelled.
Note: When a power failure suddenly occurs during the air conditioner is working after the
power failure compensation is set,if the air conditioner will not be used for a long
time, please cut off the power supply to prevent its operation from being resumed
after the power is supplied again, or press the ì Switch On/Off î button after the power
comes again.
Defrosting Running
Wait a
minute

5
Parts and Functions

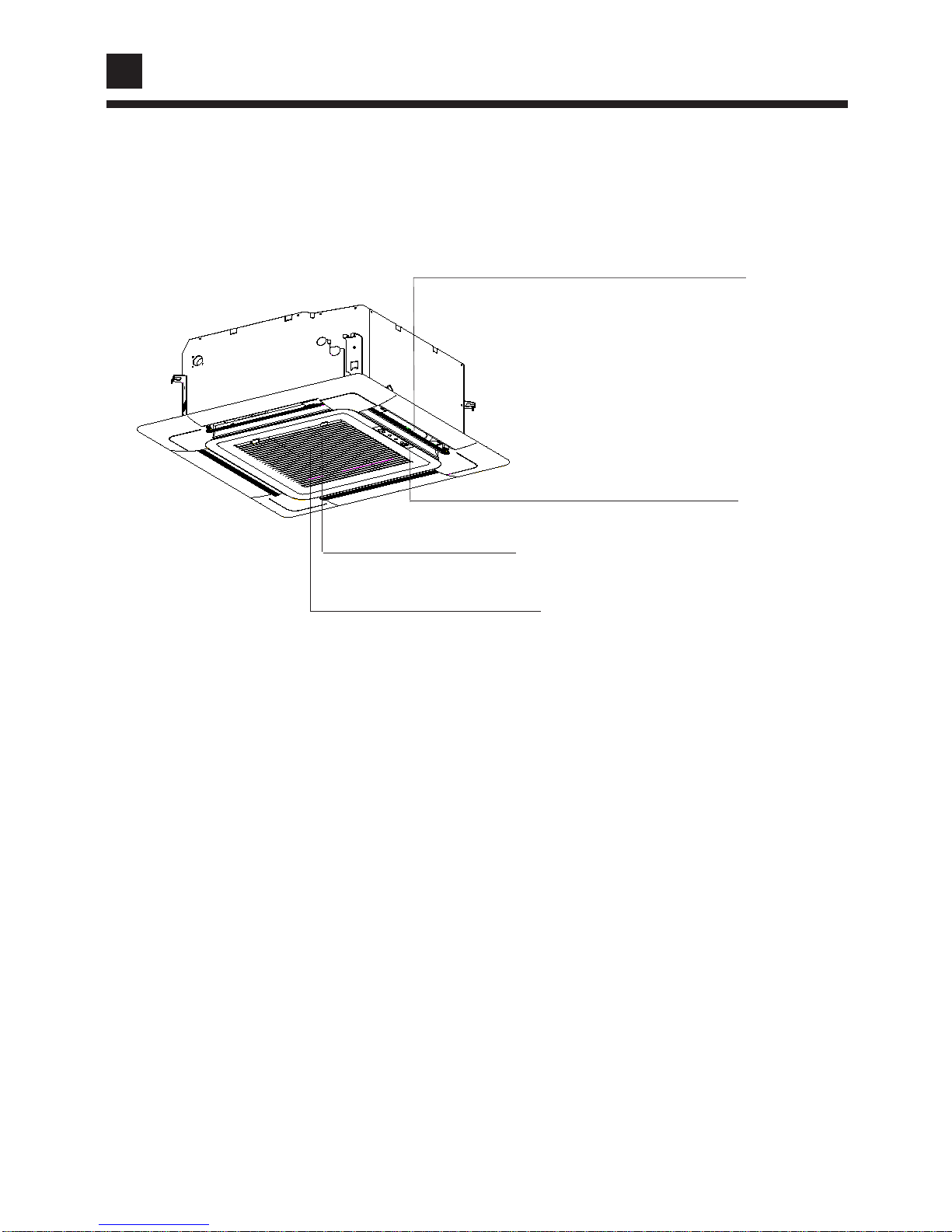

Swing louver
(Air flow direction can be adjusted by using
the SWING button on the remote controller)
Air Inlet Grille
Air Filter
(Inside of the Inlet Grille)
Operating Control Panel

6

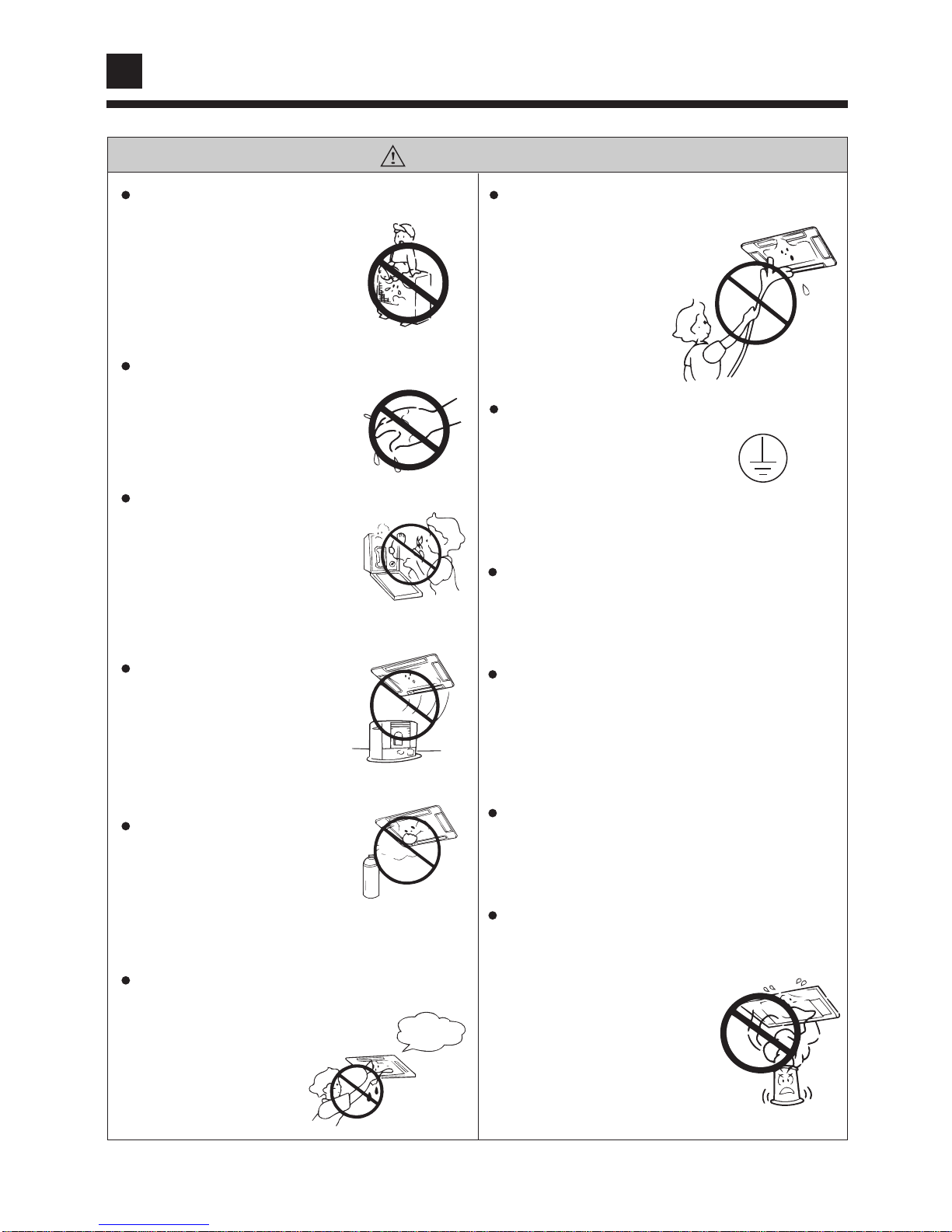

Below are listed four kinds of Safety Cautions and Suggestions:
Be sure to conform with the following important Safety Cautions.
The Safety Cautions should be at hand so that they can be checked at any time when needed.
If the air conditoner is transferred to the new user, this manual should be as well transferred to the new
user.
Safety Cautions
Incorrect operations may result in severe consequences of death or serious injures.
WARNING:
Incorrect operations may result in injures or machine damages; in some cases may
cause serious consequences.
CAUTION :
: It must be strictly prohibited where marked with ì Prohibited î, otherwise may result in
machine damages or endanger the userípersonal safety.
This information can ensure the correct operation of the machine.
INSTRUCTION:
Carefully read the following information in order to operate the air conditioner correctly.
WARNING
If any abnormal phenomena are found (e.g.
smell of firing),please cut off the power supply
immediately, and contact the dealer to find outí
the handling method.
When need maintenance and
repair,call dealer to handle it.
Donít put figures or any other
things into the inlet/outlet and
swing louver while the conditi-
oner is in operation
Call the dealer to take measures to prevent the
refrigerant from leaking.
Switch
off
In such case,to continue using
the air conditioner will damage
the conditioner,and may cause
electrical shock or fire hazard.
Incorrect maintenance and repair
may cause water leak,
electrical shock and fire hazard.
Because the high-speed fan
is very dangerous and may cause
injures.
The leaked refrigerant over certain density may
cause oxygen deficient.If the air conditioner is
installed in a small room be sure to take measure
in order to prevent suffocation accident even in
case of refrigerant leakage
When air conditioner is removed and reinstalled
dealer should be responsible for them.
Incorrect installation may cause water leaking,
electrical shock and fire hazard.
Donít dismantle the outlet of the outdoor unit.
The exposure of fan is very
dangerous witch may harm
human beings.
After a long time use of air conditioner the base
should be checked for any damages.
If the damaged base is not
repaired, the unit may fall
down and cause accidents.

7
WARNING
No goods or nobody is permitted
to be placed on or stand on
outdoor unit.
Donít clean air conditioner
with water.
Safety Cautions
The falling of goods and
people may cause accidents.
Don't operate the air conditioner with
damp hands.
Otherwise will be shocked.
Only use correct type fuse.
May not use wire or any other
materials replacing fuse,othe-
rwise may cause faults or fire
accidents.
Donít place any burning
unit in the airflow of air
conditioner,which may
cause incomplete
combustion
No inflammable spray fluid
should be permitted to be
placed or used near to air
conditioner,otherwise may
cause fire accident.
Air conditioner should be
cleaned only after power
supply is cut off to keep
from shock or hurt.
Otherwise may cause shock.
Connect earthing wire.
Earthing wire should not be
connected to the gas pipe,
water pipe,lightning rod or
phone line,incorrect earthing
may cause shock.
Use discharge pipe correctly to
ensure efficient discharge.
In correct pipe usage may cause water
leaking.
Air conditioner canít be be installed in
the environment with inflammable gases.
The inflammable gases near to air conditioner
may cause fire hazard.
Installed electrical-leaking circuit breaker.
When use the fumigating insecticide
donít operate air conditioner.
Otherwise the poisonous chemicals
may settle in air conditioner,
which harm the health of
chemical-allergic people.
It easily causes electrical shock without
circuit breaker.
Not permitted
when running

8
Maintenance
Clean the unit
Turn off the power supply switch Do not touch with wet hand. Do not use hot water or volatile liquid
The 4 fixed bolts must be loosed as shown in
the figure by arrow if they are bolts, the method
is that: push the blots inward till to another edge.
Clean the air filter
Clean the air filter with water or vacuum cleaner.
Use the detergent or neutral soapy water if the
air filter is too dirty. Then rinse the air filter with
water,and reinstall after drying.
Caution:
Do not clean the air filter with hot water over 40 C,
otherwise may damage the filter.
Sweep the filter carefully.
Clean indoor (outdoor )unit
Clean with hot wet cloth and neutral detergent, then wipe with
dry cloth.Do not use too hot water (over 40 C) which may result
in fading and deforming. Do not use insecticide and chemical
washing agent.
Fixing nolt
Fixing nolt Fixing nolt
Rotary fixing clamp
Outward drawable filter
ON
OFF

9
Seasonal Reserve
Operate the unit with FAN mode on a fair day for about half
a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch .Electric
power is consumed even the air conditioner is in stop.
Clean the air filter, indoor unit and outdoor unit,and cover
the unit with dustcoat.
Pre-season Care
See that there is no obstacle blocking the air
inlet and air outlet of both indoor and outdoor
unit to avoid reduce the working efficiency.
Be sure to install the air filter, ensure that the air filter is not dirty. Otherwise may result in
machine damages or cause malfunciton due th dust inside the unit
To protect compressor when start in HEAT mode,
please cut in the power supply switch 12 hours
before starting run,furthermore, always keep the
power supply switch on during the using senson.
Post-season Care
Maintenance

10
When Trouble Happens
Insufficient cooling or heating
The operation controller
adjusted as required Air filter too dirty ? Horizontal swing louver
upward ? (in HEAT mode)
Any obstacle exists at the air
inlet or outlet? Door or window left opened ?
Insufficient cooling
Any other heat sources in the
room? Sunlight direct into the
room ? Too crowed in the room ?
Cooled air blown out ( when heating)
When the air conditioner does not operate properly after
you have checked the above-mentioned items or when
following phenomenon is observed,stop the operation of
the air conditioner and contact your sales dealer.
The fuse or breaker often shuts down.
Water drops off during cooling or drying operation.
There is an irregularity in operation or abnormal sound that
is audible.

11
Customer Need-to-know
Customer Need-to-know
Please install the air conditioner according to the requirements specified in this manual to ensure
the air conditioner work well.
Be careful not to scratch the surface of the case during moving the air conditioner.
Please keep the installation manual for future reference when maintenance and changing installation
place.
After installation ,please use the air conditioner according to the specification in the operation
manual.
Using Directions

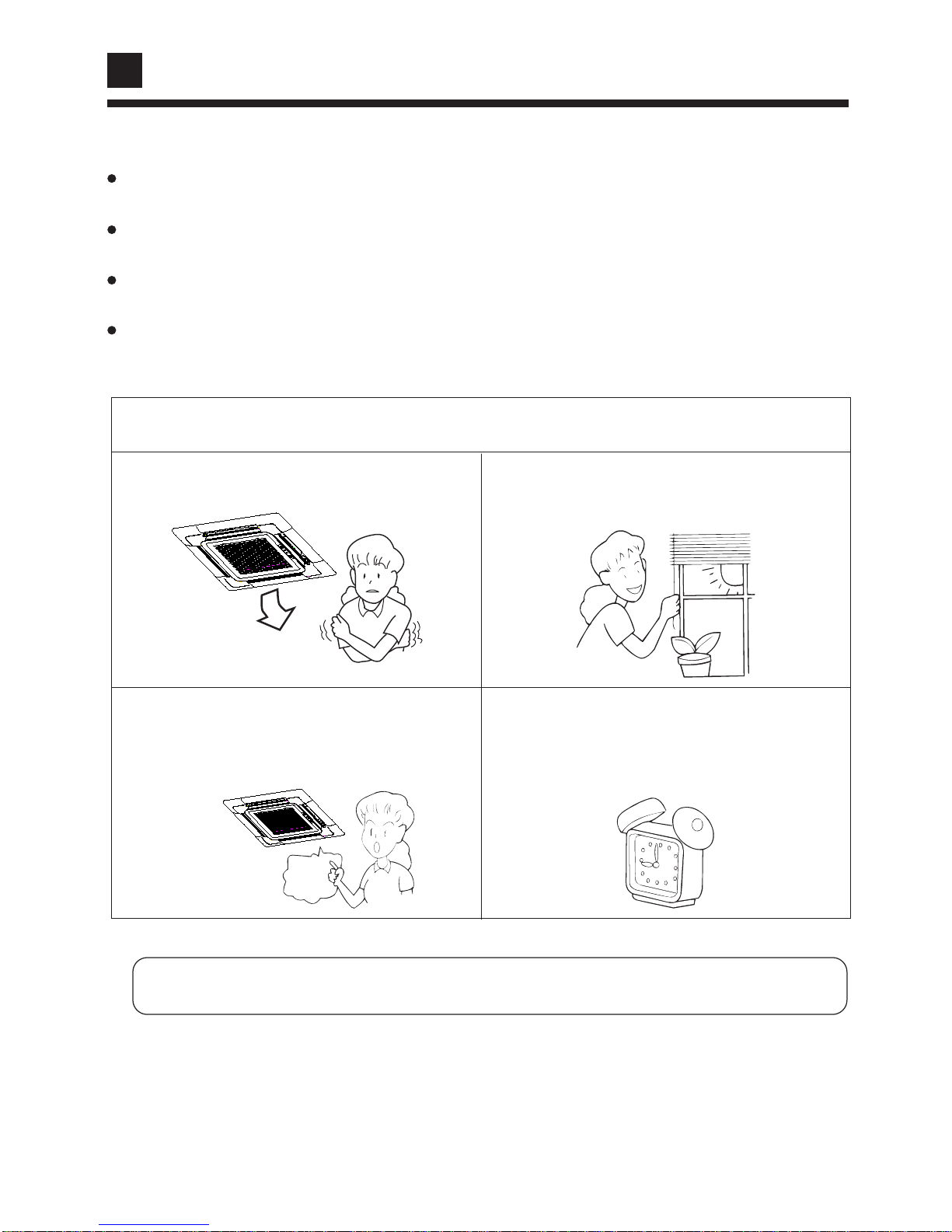

Adjust suitable airflow direction Avoid direct sunlight and airflow
Keep the proper indoor temperature.
Too cool or hot is not good for your health.
Furthermore,it will result in excessive
consumption of electric power.
Optimal
temper-
ature
Effectively use timer.
Using TIMER mode, you can make the room
temperature reach a suitable temperature when
you wake up or back home.
ATTENTION: after finishing installation, please confirm no refrigerant leakage.

12
1.Selection of Installation Place
(1) Place above the ceiling where have enough space to arrange the unit.
(2) Place where the drainage pipe can be arranged well.
(3) Place where inlet and outlet air of indoor and outdoor unit will not be blocked.
(4) Do not expose the unit to the place with heavy oil or moisture (e.g.kitchen and workshop).
(5) Do not set the unit in the place where destructive gas (such as sulfuric acid gas) or pungent
gas (thinner and gasoline) concentrates and retains.
(6) Place strong enough to support the unit weight.
(7) No expensive articles such as television and piano below indoor unit.
(8) Enough space for maintenance.
(9) Place more than 1m away from television and radio to avoid disturbing television and radio.
(10) Easy for maintenance.
2.Installation Preparation
(1) Position of ceiling opening between unit and suspending bolt (front view of unit).
(2) Prepare all piping (refrigerant,water drainage )and wires (connection wire of remote controller,
indoor unit connection wires) to the indoor unit before installation in order to connect indoor unit
immediately after installation.
Overlap between ceiling and
ornament panel shall be 25mm Suspending bolts
Ceiling Ornament panel
150mm
320mm
60mm
Air outlet Air outlet
Air inlet
2.5~3.0 m
1.5m 1.5m
0.31m
H
Distance between
suspending bolts 535mm
Indoor unit 570mm
Ceiling opening 650mm
Ornament panel 700mm
Indoor unit 570mm
Ceiling opening 650mm
Ornament panel 700mm
Installation Procedures

13
(3) Install a suspending bolt
To support the unit weight ,anchor bolt should be used in the case of
already exists ceiling. Fow new ceiling, use flush-in type bolt, built-in
type bolt or parts pretared in the field.
Before going on installing, adjust space to ceiling.
3. Installation of indoor unit
In case of no ceiling
Install unit temporally
Put suspending bracket on the suspending bolt to hang the unit up. Be sure to use nut and
washer at both end of the breaket to secure firmly.
After installation on the ceiling
(1) Adjust unit to its right position (Refer to preparation for installation-(1))
(2)Check that unit is horzontal.
Put suspending bracket on the suspending bolt to hang the
unit up.Be sure to use nut and washer at both end of the
bracket to secure it firmly.
Water pump and floating switch is installed inside indoor unit,check four corners of the unit for
its lever using horizontal comparator or PVC tube with water.(If unit is tilting against the direction
of water drainage,problem may occur on floating water leakage.)
In the case of ceiling already exists
(1)Install unit temporally
(2)Adjust the height and position of the unit.
(3)Proceed with procedure (4) of " In the case of no ceiling "
Nut (Prepare in feild)
Washer (Prepared in feild)
Suspending bolts
Fasten (double nuts)
Insert
Washer fixing pad
(prepared in feild)
[ secure the washer firmly]
leveler Polythene pipe
Note: All the above mentioned parts shall be prepared in feild,
the diameter of suspending bolt is M10
<Installation Example>
Ceiling
Roof
Anchor bolt
Long nut or thread
Suspending bilt M10
50 ~150mm
Installation Procedures

14

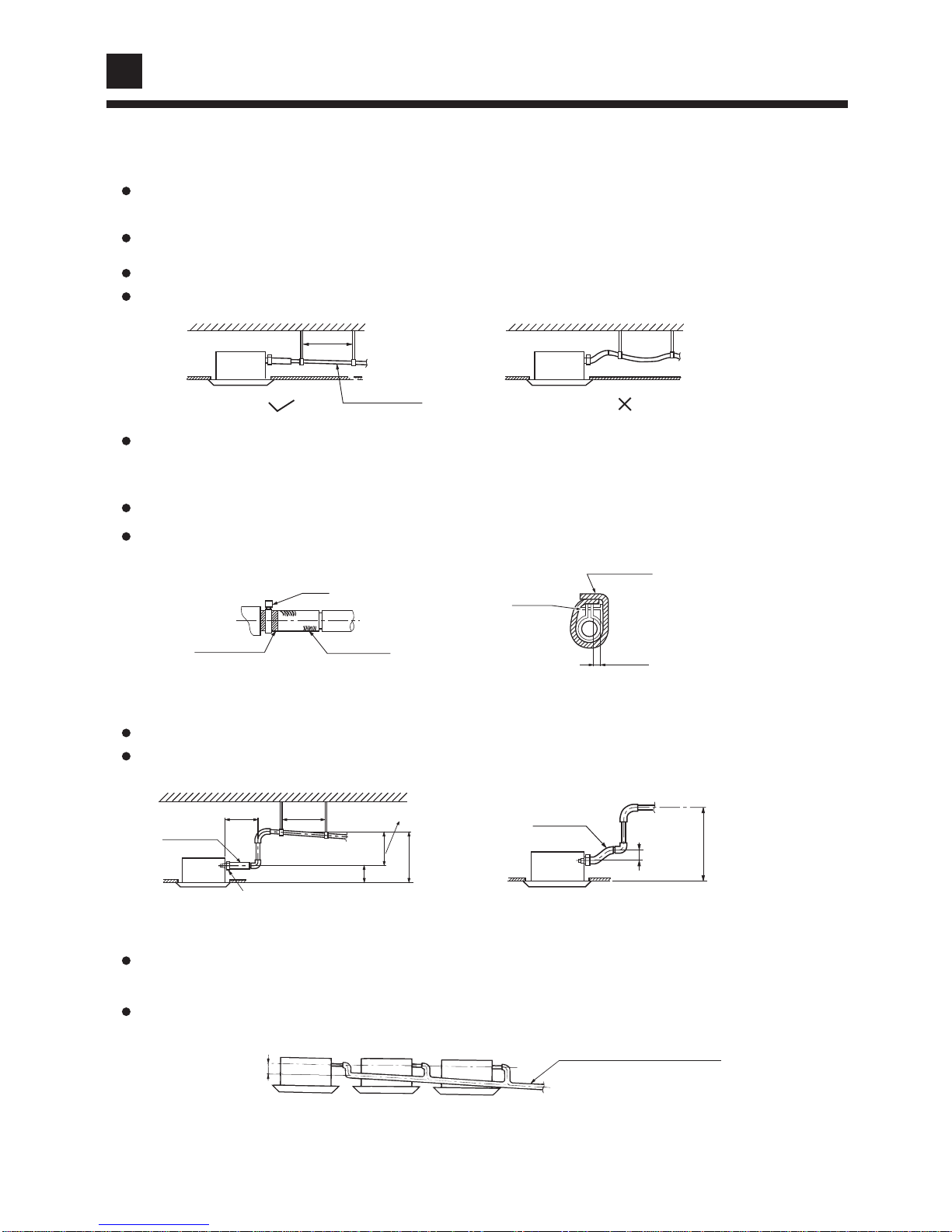

4. Installation of water drainage pipe
(1) Install water drainage pipe
Pipe diameter shall be equal or larger than that of connecting pipe (Pipe of polythene; size:
25mm; O.D.: 32mm )
Drainpipe should be short, with a downward slope at least 1/100 to prevent air bag from forming.
If downward slope of drainpipe cannot be made,lifting pipe shall be installed.
Keep a distance of 1-1.5m between suspending bolts, to make water hose straight.
Use the drainage hose and clip provided with unit.
Insert water pipe into water plug until it reaches the white tape.
Tighten the clip until head of the screw is less than 4mm from hose.
Wind the ddrainage hose to the clip using seal pad for heat insulation.
Insulate drainage hose in the room.
5. Cautions for the water drainage lifting pipe
Installation height of water drainage lifting pipe shall be less than 280mm
There should be a right angle with unit ,300mm from unit.
< Note >
The slope of water drainage hose shall be within 75mm , make the drainage plug not to bear
excessive force.
If several water hoses join together, of as per following procedures.
Specifications of the selected drainage hoses shall meet the requirements for the unit running
Slope less than 1/100 Connection drainage hose with a T-joint
100mm ¸over
slope over 1/100
1-1.5m
Clip
Tape(white) Draingage hose
Large size seal pad
Less than 4mm
(accessory)
Clip
Clip
Water drainage
lifting pipe
Suspending bracket
Drainage hose Less than 280mm
Less than 500mm
220mm
Less than 300mm 1-1.5m
220
Drainage hose
Less than 75mm
Less than 500mm
Installation Procedures

15
6. Installation of Ornament Panel
Install ornament panel on indoor unit
(1) Check whether indoor unit is horizontal with leveler or polythene pipe filled with water , and
check that the dimension of the ceiling opening is correct. Take off the lever gauge before install
the ornament panel.
(2) Fasten the screws to make the height difference between the two sides of indoor unit less than
5mm.
(3) First fix it with screws temporally.
(4) Fasten the two temporally fixing screws and other two, and tighten the four screws.
(5) Connect the wires of swing-motor.
(6) Connect the wire of signal.
(7) If no response of remote controller,check whether the wiring is correct,restart remote controller
10 seconds after shut off power supply.
Limits of panel board installation
(1)Install the panel board in the direction shown in
the figure.
(2)The incorrect direction will result in water leakage,
meanwhile swing and signal receiving are displayed
that cannot be connected.
Control box
Installation Procedures

16

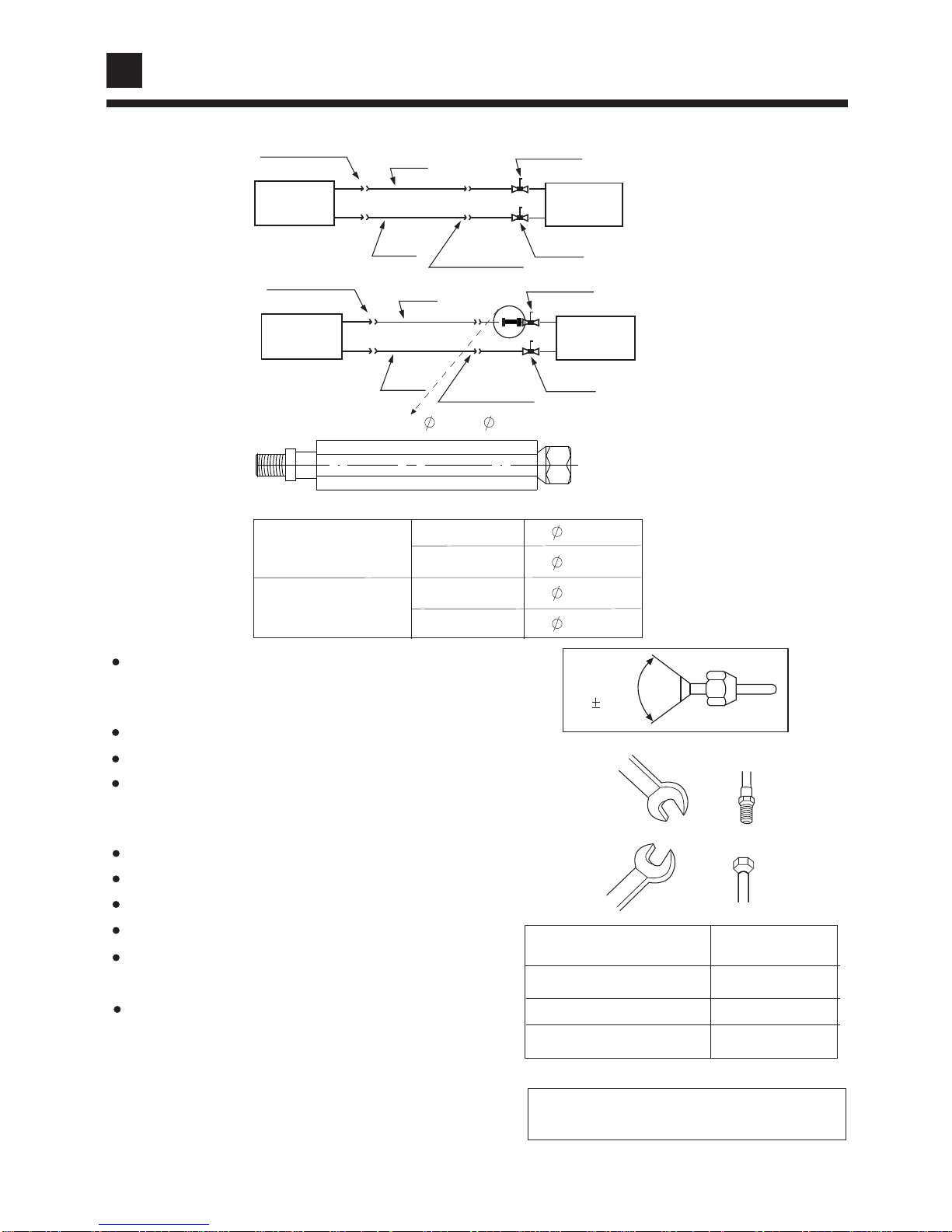

7. Piping Connection
(1) Dimension of connecting pipe
(2) The maximum length and drop height of connecting pipe
Cautions for piping connection
Smear refrigerant oil on the joints of piping and flare.
The bending radius shall be as large as possible.
Align the pipe center when fastening, and tighten the
nut, as shown in the figure.
Pay attention to not mix foreign matters such as sands
in.
Flare connection Gas pipe 3-way valve
Indoor
Unit Outdoor
unit
Liquid
pipe 2-way valve
Flare connection
Do not twist or deform the connecting pipe.
Do not mix dusts.
The bending radius shall be as large as possible.
Both gas pipe and liquid pipe shall be heat insulation.
No leakage in the flare.
(3) Piping connection
Connecting method
Spanner
Spanner
Joint
Nut
If not aligned ,tighten the nut by force will
damage the nut that result in gas leakage
The maximum length is 20m
The maximum drop height is 10m.
To ensure the efficiency , Pipes shall be as short as possible.
Fit the nut on and fasten
AB092XCERA
AB122XCERA
AB142XCERA
AB182XCERA
Flare connection Gas pipe 3-way valve
Indoor
Unit Outdoor
unit
Liquid
pipe 2-way valve
Flare connection
A
Diameter of Pipe
Liquid Pipe 6.35mm
Gas Pipe 12.7mm
Tighten Torque
(N.m)
11.8
49.0
Gas Pipe 9.52mm 40
A(adaptor, from 9.52 to 12.7)
To outdoor unit
To gas pipe
90 0.5O
Gas pipe
Liquid pipe
Gas pipe
AB092XCERA
AB122XCERA
Liquid pipe
9.52mm
6.35mm
12.7mm
6.35mm
AB142XCERA
AB182XCERA
Installation Procedures

8.Electrical Wiring
Wiring methods:
1 Wiring method of ring terminal
For connecting line which end is a ring,its wiring method
as shown in the right figure: remove wiring screw and pass
it through the end ring of connecting line,then connect it to
the terminal block and tighten screw.
Wiring method of ring terminal
17
2 Wiring of indoor unit
The distance between the signal wires and the power cabes should be at least 50mm.
C
BA
Q
P
1(L) 2(N) 2(N)1(L) PQA B C
L N C1 C2
(In case of using wired
controller)
To other
indoor unit
To wired controller
To outdoor unit
L N
Ring Terminal
Installation Procedures
1.Incorrect address setting will cause abnormal to the system.
2.Communication cable must be use sheilded type.
3.Communication cable and power cable must be use ring terminal type.
Communication cable (Shield wire):
H05RN-F 2X (0.75-1.5)mm2
Power cable : H05RN-F 3G (1-2.5)mm2
WARNING
T
B
Brazed seam
B=8.0-9.0(mm)
d=4.3-5.3(mm)
T=1.0-2.0(mm)
(For your referrence)
d

18
1.There are two methods to set the communication address
A. Use the remote controller(default status in first installation).
B. Use dip switches on the indoor unit PCB.
2. Address setting procedure when using the remote controller.
A. Set the addresses only after the successful installation of the refrigerant pipes and connecting cables,
and open all the stop valves;
B. Please confirm that the indoor units and the outdoor unit in the same system use the same power source;
C. Power on the units, but put all the indoor units in the status of STANDBY;
D. Please note that the address must be set as following:
Indoor unit that connect to valve A, the address must be 1;
Indoor unit that connect to valve B, the address must be 2;
Indoor unit that connect to valve C, the address must be 3;
Indoor unit that connect to valve D, the address must be 4;
the LED board is blank.
9. Indoor unit communication addresses setting
CAUTION! FAIL TO DO THIS, THE UNIT WILLNOT WORK.
E. Example: set unit A to address 1.
Continuously press the emergency switch for about 15 seconds, the buzzer will sound 4 times(PI PI PI PI) and
then leave go of the switch. At this time, the indoor unit has entered the address setting procedure. But F. Use the
controller to turn on the indoor unit. At this time, the controller should be changed from OFF to ON, and then
theTIMER LED flshes once. That is to say, the address setting is enabled.
G. Press the button"SLEEP " on the controller, the times you press it stands for the address you want to set, detailed
as following:
Press button " SLEEP " once, the address is "1 ", and the TIMER LED flashes once;
Press button " SLEEP " twice, the address is " 2 ", and theTIMER LED flashes twice;
Press button " SLEEP " three times, the address is " 3 ", and the TIMER LED flashes three times;
Press button " SLEEP " four times, the address is " 4 ", and the TIMER LED flashes four times;
H. Use the remote controller to turn off the unit, At this time, the controller should be changed from ON to OFF,
and the unit will exit the address setting procedure, the address will be memorized. The LED board will always
display the address of this indoor unit until the system be powered off.
I. If you want to change the address, please repeat the above steps from E to G.
J. After setting all the addresses, please power off the system and then power on again. Otherwise the system will
not start to work.
K. Once the addresses are successfully set, please do not change it any more to avoid confusion.
3. Address setting procedure when using the DIP switches SW01 and SW03.
A. The DIP switches SW01 and SW03 are on the indoor unit PCB.
B. Before carrying out the address setting work, the system must be powered off.
C. Take off the front panal and the filters, then take off the flaps and also the front cover,disconnect the
swing motor connectors from the PCB and then take out the lower part of the PCB.
D. Change the position of DIP 7 of SW01 from OFF to ON, if fail to do this, the addresses set by SW03
will not work.
E. Use SW03 to set the addresses as following (DO NOT CHANGE OTHER DIP SWITCHES):
Instructions to installation
