SERVICE MANUAL
X MULTI SERIES
4-WAY CASSETTE INDOOR UNIT
CONVERTIBLE INDOOR UNIT
CONSOLE INDOOR UNIT
DUCT INDOOR UNIT
WALL MOUNTED INDOOR UNIT
OUTDOOR UNIT
Haier Commercial Air Conditioner
Version: 200708

>_]]VbTZR\ <Zb >_^UZdZ_^Vb
-2-
CONTENT
1.General information --------------------------------------------------------------------------------------------- 3
1.1 X Multi series line up -----------------------------------------------------------------------------------------
-
3
1.2 Operation temperature range -----------------------------------------------------------------------------
-
3
1.3 Product features ----------------------------------------------------------------------------------------------
-
4
2.Specifications ---------------------------------------------------------------------------------------------------- 6
3.Dimension --------------------------------------------------------------------------------------------------------
-
17
4.Pipe and wiring installation ----------------------------------------------------------------------------------- 21
4.1 Conbination of indoor and outdoor units ---------------------------------------------------------------
-
21
4.2 Wiring connection --------------------------------------------------------------------------------------------
-
31
4.3 Limitation on the installation ------------------------------------------------------------------------------- 34
4.4 Outdoor unit installation ------------------------------------------------------------------------------------
-
37
4.5 Cassette type installation ----------------------------------------------------------------------------------
-
44
4.6 Convertible type installation -------------------------------------------------------------------------------
-
51
4.7 Duct type installation ----------------------------------------------------------------------------------------
-
64
4.8 Console type installation -----------------------------------------------------------------------------------
-
74
4.9 Wall mounted type installation ----------------------------------------------------------------------------
-
81
5.PCB photo,wiring diagram and function description ---------------------------------------------------
-
85
5.1 Outdoor unit ----------------------------------------------------------------------------------------------------
-
85
5.1.1 Outdoor PCB photo ---------------------------------------------------------------------------------------
-
85
5.1.2 Outdoor wiring diagram ----------------------------------------------------------------------------------
-
86
5.1.3 PCB function description --------------------------------------------------------------------------------
-
90
5.2 Indoor unit ------------------------------------------------------------------------------------------------------
-
90
5.2.1 Cassette and duct type PCB photo -------------------------------------------------------------------
-
90
5.2.2 Cassette and duct type wiring diagram --------------------------------------------------------------
-
98
5.2.3 Convertible type PCB photo ----------------------------------------------------------------------------
-
100
5.2.4 Convertible type wiring diagram -----------------------------------------------------------------------
-
101
5.2.5 Converible type PCB function description ----------------------------------------------------------- 102
5.2.6 Console type PCB ----------------------------------------------------------------------------------------- 108
5.2.7 Console type wiring diagram ---------------------------------------------------------------------------
-
109
5.2.8 Console type PCB function description --------------------------------------------------------------
-
110
5.2.9 Wall mounted type PCB photo -------------------------------------------------------------------------
-
111
5.2.10 Wall mounted type wiring diagram ------------------------------------------------------------------
-
112
5.2.11 Wall mounted type PCB function description -----------------------------------------------------
-
114
6.Diagnostic code -------------------------------------------------------------------------------------------------
-
117
6.1.1 Outdoor unit diagnostic code ---------------------------------------------------------------------------
-
117
6.1.2 Cassette type and convertible type diagnostic code ---------------------------------------------
-
118
6.1.3 Duct type diagnostic code -------------------------------------------------------------------------------
-
119
6.1.4 Console type diagnostic code --------------------------------------------------------------------------
-
121
6.1.5 Wall mounted type diagnostic code ------------------------------------------------------------------- 122
6.2 Trouble shooting ---------------------------------------------------------------------------------------------
-
123
7.Assistant software ----------------------------------------------------------------------------------------------
-
126
8.Performance curves -------------------------------------------------------------------------------------------
-
127
9. Indoor air velocity and temperature distribution---------------------------------------------------------
-
133
9.1 AB092-182XCERA -------------------------------------------------------------------------------------------
-
133
9.2 AC142-182XCERA -------------------------------------------------------------------------------------------
-
135
9.3 AF092-122XCERA -------------------------------------------------------------------------------------------
-
139
9.4 Wall mounted type -------------------------------------------------------------------------------------------- 141
10. Air flow and static pressure chart -------------------------------------------------------------------------
-
142

-3-
.9773:1506 -5: .9825;5983:
JK@IB[LNVJ
JKABB[LNVJ
JKADB[LNVJ
JKAHB[LNVJ
JLADB[LNVJ
JLAHB[LNVJ
JM@IB[SNVJ
JMABB[SNVJ
JMADB[SNVJ
JMAHB[SNVJ
JO@IB[LNVJ
JOABB[LNVJ
JW@GB[ NVJ
JW@IB[ NVJ
JWABB[ NVJ
JWAHB[ NVJ
A?C Ug`h\jbfe j`dg`h\jkh` h\ea`
JXAHB[ONVJ
JXBBB[ONVJ
Lffcbea
Q`\jbea
Re_ffh
fkj_ffh
V\j`_ T\nbdkd Tbebdkd
BG CB AE
AI BC AD
CE DC >E
BD BF F
B@ BG A@
AD?E >> >>
G BC >A@
FAH >>
MK L
ZK L
MK L
ZK L
Re_ffh
fkj_ffh MK L
ZK L
MK L
ZK L
bel`hj`h ibeac` kebj= ikg`h cfm \d]b`ej j`dg? ^ffcbea
JXBEB[PNVJ
JXBHB[QNVJ
JXCDB[QNVJ
JXCFB[QNVJ
,+ /383:06 5849:70;598
A?A rpqvtus i`hb`i cbe` kg

Commercial Air Conditioner

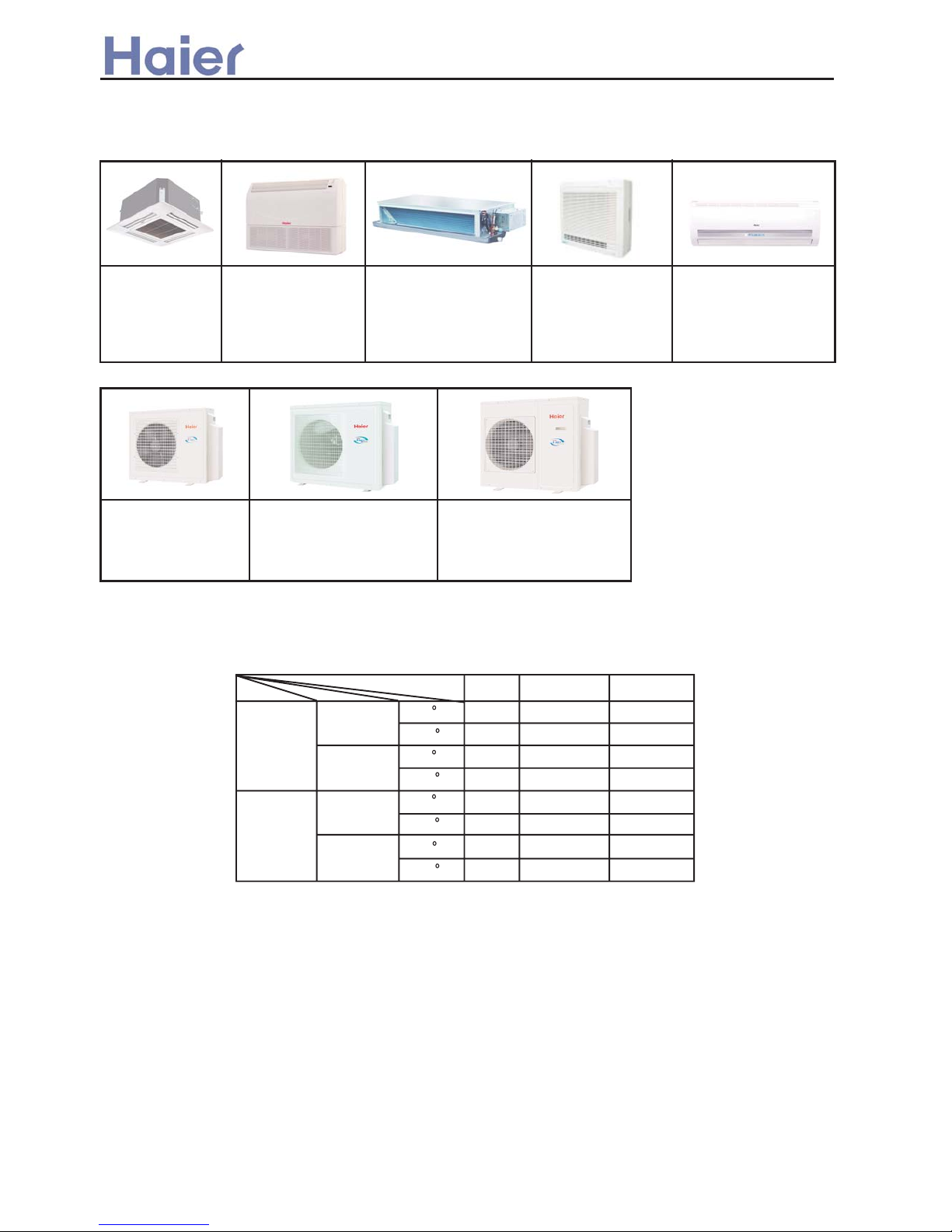

1.3Product features
High efficienct, universal outdoor unit
The outdoor unit can match with cassette type ,duct type, convertible type, console type and wall mounted
type indoor unit. Outdoor unit can match with multiple indoor units. Even when you have already installed
the air conditioner, if you want to add or reduce one unit, go ahead freely as long as your operation
complies with our design. Greatly convenient for designer and installer.
Total indoor load can be up to 135% than the standard match
The total capacity of all indoor units can be 135% more than the nominal cooling capacity, but the total
indoor cooling capacity will not be increased.
Newly designed V- appearance indoor unit
The wall mounted type indoor unit adopts the newly designed V appearance, more fashion, more beautiful.
The unit is designed with the health airflow and sterilize function, which will make the air more healthy.
Also the air blow direction can be set as step or stepless control, much convenient to control.
Newly designed guarding plate of valve
In order to protect the valve against the dust, the rain or the snow, etc. we add a guarding plate to the
valve.
Adopt the much friendlier refrigerant R410a
The air conditioner system adopts the greatly friendly refrigerant R410a, which is protective for the ozone
layer and is good to avoid the earth getting warmer. Benefit for the environment.
Adopt the advanced DC inverter technology
The system adopts the advanced DC inverter technology, which can consume less power energy to realize
the equal efficiency, saving money for you.
With air inlet filter, enhance the air quality
The high efficiency filter can collect the dirt and remove the bacterium, which can be installed on the
easy-to-unload place, convenient to be cleaned.
Convenient infrared remote controller
This remote controller YR-H65 can realize the healthy air flow and sterilize function, it is mobile type
appearance, so smart and compact.And the infrared controller can be equipped with the controller holder,
convenient to fix the remote controller.
Auto restart function (optional)
All indoor units have auto-restart function. When the power supply cut off suddenly, the unit will
automatically recover the previous running mode once the power supply is on.
-4-

Commercial Air Conditioner
Self-diagnostic function
In the course of operation, if the failure occurs, the failure code will display on the wired controller
or on the operation panel. Then according to the failure code chart, you can eliminate the failure soon.
Central control function, if connected with a detector and a central controller
That is convenient for building management.
Adjustable heating temperature compensation
In heating mode, the temperature compensation can be adjusted by the remote controller. If you do not
want the compensation, you can set the compensation as 0 degree.
Software for diagnostic installation
After installation, you can use file "X-MULTI Setup Assistant " to know the installation is OK or
not, if system has error, software will give you trouble shooting.
-5-

2. Specifications
-6-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating
W 5300 7000
W 1650 1800
A 7.3 8.0
W/W 3.21 3.89
W 1500 1800
W 500 500
W5800 7300
W2300 2300
——
A / A 10.2 10.2
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Max.Drop between IU & OU m
Max.Drop between IU & OU m
Max.Drop between indoor units m
Max.Piping length between IU & OU m
Max.Total liquid piping length m
2. Large drop and long piping installation will obviously reduce the totao capacity.
1. The above performance data are from the combination of AU182XFERA+2*AS092XVERA+AS122XVERA.
51/-/-
54 / 60
Piping
Refrigerant R410A / 2.0
Connecting method Flared
30
20
10(indoor unit lower than outdoor unit)
25
15 (indoor unit higher than outdoor unit)
5
Pipe 3* Φ6.35
3* Φ9.52
45
35
Refrigerant control method PMVs
Defrosting method Automatic by reversible cycle
Axial × 1
870CC, MEL 56
928/288/680
1015/405/760
850 / 700 / 500
35/85
about 3000
TP2M / 7.0
about 0.52
Compressor
Dimension
(WxDxH)
Heat exchanger
Crankcase heater power
TNB175FLBM / MELCO
Twin Rotary (DC inverter)
1
25
Item Model AU182XFERA
Function
Power source 1PH, 220-230V~, 50Hz
Rating capacity
Maximum capacity
Power input (indoor + outdoor)
EER / COP
Between I.U &O.U
Power input (indoor + outdoor)
Minimum capacity
Power input
Power facor(under rating power input)
Max.Running current (indoor + outdoor)
Current input (indoor + outdoor)
Fan
Fuse size (recommended size)
Outdoor unit

-7-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating
W 6400 7300
W 2100 2000
A 9.3 8.9
W/W 3.04 3.65
W 1500 1800
W 500 500
W6800 7500
W2900 2900
——
A / A 12.9 12.9
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Max.Drop between IU & OU m
Max.Drop between IU & OU m
Max.Drop between indoor units m
Max.Piping length between IU & OU m
Max.Total liquid piping length m
2. Large drop and long piping installation will obviously reduce the totao capacity.
Between I.D &O.D
5
25
45
1. The above performance data are from the combination of AU222XFERA+AS092XVERA+2*AS122XVERA.
Connecting method Flared
10(indoor unit lower than outdoor unit)
15 (indoor unit higher than outdoor unit)
55/-/-
54 / 60
Piping
Refrigerant R410A / 2.0
30
20
Pipe 3* Φ6.35
3* Φ9.52
Defrosting method Automatic by reversible cycle
Crankcase heater power 35
Dimension
(WxDxH)
928/288/680
1015/405/760
Refrigerant control method PMVs
about 3200
Heat exchanger TP2M / 7.0
about 0.52
Outdoor unit
Compressor TNB175FLBM / MELCO
870CC, MEL 56
Twin Rotary (DC inverter)
1
Fan Axial × 1
960 / 700 / 500
35/100
Max.Running current (indoor + outdoor)
Power facor(under rating power input)
Fuse size (recommended size) 25
Maximum capacity
Power input (indoor + outdoor)
Power source 1PH, 220-230V~, 50Hz
Power input (indoor + outdoor)
EER / COP
Minimum capacity
Power input
Current input (indoor + outdoor)
Item Model AU222XFERA
Function
Rating capacity

—— Cooling Heating
W 7250 8000
W 2250 2200
A 10.4 10.4
W/W 3.22 3.64
W 1500 1800
W 500 500
W8200 9000
W3200 3000
——
A / A 14.3 13.5
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Max.Drop between IU &OU m
Max.Drop between IU & IU m
Max.Drop between IU & OU m
Max.Piping length between IU & OU m
Max.Total length m
Item Model AU252XGERA
Function
Rating capacity
Power input (indoor + outdoor)
Current input (indoor + outdoor)
EER / COP
Minimum capacity
Power input
Maximum capacity
Power input (indoor + outdoor)
Power source 1PH, 220-230V~, 50Hz
Max.Running current (indoor + outdoor)
Power facor(under rating power input)
Fuse size (recommended size) 30
Outdoor unit
Compressor TNB175FLBM / MELCO
870CC
DC TWIN ROTARY
1
Fan Axial × 1
930 / 700 / 500
98/200
about 3400
Heat exchanger TP2M / 7.0
about 0.67
Dimension
(WxDxH)
976/335/732
1065/420/815
Refrigerant control method PMVs
Defrosting method Automatic by reversible cycle
Crankcase heater power 35
1. The above performance data are from the combination of AU252XGERA+3*AD092XLERA
2. Large drop and long piping installation will obviously reduce the total capacity.
Connecting method Flared
5
Piping
Refrigerant
60
Pipe 4* Φ6.35
Between I.D &O.D
15 (indoor unit higher than outdoor unit)
57/-/-
58 / 64
R410A / 2.5
30
20
4* Φ9.52
25
10(indoor unit lower than outdoor unit)
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
-8-

-9-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating
W 8000 10000
W 2480 2700
A 11.0 11.9
W/W 3.22 3.70
W 1500 1800
W 550 550
W9500 11000
W3800 3800
——
A / A 16.8 16.8
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Max.Drop between IU &OU m
Max.Drop between IU & IU m
Max.Drop between IU & OU m
Max.Piping length between IU & OU m
Max.Total length m
1. The above performance data are from the combination of AU282XHERA+2*AS092XVERA+2*AS122XVERA.
2. Large drop and long piping installation will obviously reduce the total capacity.
Item Model AU282XHERA
Function
Rating capacity
Power input (indoor + outdoor)
EER / COP
Minimum capacity
Power input
Maximum capacity
Power input (indoor + outdoor)
Power source 1PH, 220-230V~, 50Hz
Max.Running current (indoor + outdoor)
Power facor(under rating power input)
Fuse size (recommended size) 30
Compressor TNB220FLBM / MELCO
870CC
Twin Rotary (DC inverter)
1
about 4000
Heat exchanger TP2M / 7.0
about 0.75
Fan Axial × 1
850 / 700 / 500
60/150
Dimension
(WxDxH)
1068x340x830
1100x440x979
Refrigerant control method PMVs
Defrosting method Automatic by reversible cycle
Crankcase heater power 35
74 / 89
Piping
Refrigerant R410A / 2.6
40
20
Pipe 4* Φ6.35
4* Φ9.52
Outdoor unit
Between I.D &O.D
Current input (indoor + outdoor)
Connecting method Flared
5
10(indoor unit lower than outdoor unit)
15 (indoor unit higher than outdoor unit)
25
60
58/-/-

>_]]VbTZR\ <Zb >_^UZdZ_^Vb
-10-
—— Cooling Heating
W 10000 11000
W 3200 3200
A 14.3 14.3
W/W 3.13 3.44
W 1500 1800
W 550 550
W11000 11500
W4000 4000
——
A / A 18.1 18.1
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Drop between IU & OU m
Piping length between IU & OU m
Total liquid piping length m
Max.Drop between IU &OU m
Max.Drop between IU & IU m
Max.Piping length between IU & OU m
Max.Total length m
Item Model AU342XHERA
Function
Rating capacity
Power input (indoor + outdoor)
Current input (indoor + outdoor)
EER / COP
Minimum capacity
Power input
Maximum capacity
Power input (indoor + outdoor)
Power source 1PH, 220-230V~, 50Hz
Max.Running current (indoor + outdoor)
Power facor(under rating power input)
Fuse size (recommended size) 30
Outdoor unit
Compressor TNB220FLBM / MELCO
870CC
Twin Rotary (DC inverter)
1
Fan Axial × 1
990/ 840/ 590
130/300
about 4300
Heat exchanger TP2M / 7.0
about 0.75
Dimension
(WxDxH)
1068x340x830
1100x440x979
Refrigerant control method PMVs
60
Defrosting method Automatic by reversible cycle
Crankcase heater power 35
Pipe 4* Φ6.35
4* Φ9.52
25
10(indoor unit lower than outdoor unit)
1. The above performance data are from the combination of AU342XHERA+2*AD092XLERA+2*AD122XLERA.
2. Large drop and long piping installation will obviously reduce the total capacity.
Connecting method Flared
Between I.D &O.D ≤5
≤10
≤40
Piping
Refrigerant
15 (indoor unit higher than outdoor unit)
59/-/-
74 / 89
R410A / 3.0
40
20
-7-

—— Cooling Heating
W 10000 11000
W 3200 3200
A 14.3 14.3
W/W 3.13 3.44
W 1500 1800
W 550 550
W11000 11500
W4000 4000
——
A / A 18.1 18.1
—— 99% 99%
A
Model / Manufacture ——
Oil charge and type ——
Type ——
Number ——
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
——
——
W
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Type / Charge kg
No need to recharge m
Recharge g/m
Liquid mm
Gas mm
——
Drop between IU & OU m
Piping length between IU & OU m
Total liquid piping length m
Max.Drop between IU &OU m
Max.Drop between IU & IU m
Max.Piping length between IU & OU m
Max.Total length m
Item Model AU362XHERA
Function
Rating capacity
Power input (indoor + outdoor)
Current input (indoor + outdoor)
EER / COP
Minimum capacity
Power input
Maximum capacity
Power input (indoor + outdoor)
Power source 1PH, 220-230V~, 50Hz
Max.Running current (indoor + outdoor)
Power facor(under rating power input)
Fuse size (recommended size) 30
Outdoor unit
Compressor TNB220FLBM / MELCO
870CC
Twin Rotary (DC inverter)
1
Fan Axial × 1
990/ 840/ 590
130/300
about 4300
Heat exchanger TP2M / 7.0
about 0.75
Dimension
(WxDxH)
1068x340x830
1100x440x979
Refrigerant control method PMVs
60
Defrosting method Automatic by reversible cycle
Crankcase heater power 35
Pipe 5* Φ6.35
5* Φ9.52
25
10(indoor unit lower than outdoor unit)
1. The above performance data are from the combination of AU362XHERA+2*AD092XLERA+2*AD122XLERA.
2. Large drop and long piping installation will obviously reduce the total capacity.
Connecting method Flared
Between I.D &O.D ≤5
≤10
≤40
Piping
Refrigerant
15 (indoor unit higher than outdoor unit)
59/-/-
74 / 89
R410A / 3.0
40
20
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
-11-

-12-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating Cooling Heating
W2000 2300 2500 2900
——
——
10‐³×m³/h 1.0 / 1.0 /
N, V, Hz
A / A 0.15 0.15 0.15 0.15
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
Drainage pipe material, diameter mm
——
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
—— Cooling Heating Cooling Heating
W3200 3800 5000 5500
10‐³×m³/h 1.6 / 2.0 /
——
——
N, V, Hz
A / A 0.15 0.15 0.25 0.25
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H-M-L) m³/h
Type / Diameter mm
Face area m²
External mm
Package mm
Drainage pipe material, diameter mm
——
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
Piping
Pipe
Connecting method
7.6/10.6
R410A
Flared
Refrigerant control PMV on outdoor unit
12/15
Fan
Heat exchanger
Dimension
(L×W×H)
Controller type
962*365*312
Controller type
TP2M / 7×0.35
16/40 25/40
39/36/33 42/40/37
PVC, 11.4/16.4
795×197×265 870*225*305
880×315×330
Infrared (YR-H65)
1250/1150/1050 1200/1050/950
550/480/430 600/550/500
1, 220~230, 50
CROSS×1 CROSS×1
Running current
Fan
Heat exchanger
Dimension
(L×W×H)
about 0.20 about 0.20
Function
Capacity
Dehumidifying capacity
Power source
Power cable
6.35
9.52
Item AS122XVERA AS182XVERA
Piping
Pipe
Connecting method
6.35
9.52
PMV on outdoor unit
7.6/10.6 7.6/10.6
36/33/30 38/34/31
Item Model
16/40
480/430/380 520/450/390
Power source 1,220-230~, 50
Running current
CROSS×1 CROSS×1
1150/1050/950
R410A R410A
Capacity
Dehumidifying capacity
about 0.15 about 0.15
TP2M / 7×0.35
880×315×330
PVC, 11.4/16.4
Refrigerant control
795*197*265 795×197×265
880×315×330
Function
AS072XVERA AS092XVERA
1200/1100/1000
16/40
Flared
R410A
6.35 6.35
9.52 12.7
3 × (1.0~1.5mm2)
Communication cable 2x(0.75~1.25mm2), must be shieled
Power cable 3 × (1.0~1.5mm2)
Communication cable 2x(0.75~1.25mm2), must be shieled
Flared Flared
Infrared (YR-H65)

-13-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating Cooling Heating
W2500 2900 3500 3800
10‐³×m³/h 1.0 / 1.2 /
——
——
N, V, Hz
A 0.45 0.45 0.45 0.45
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
External mm
Package mm
Weight Net / Shipping kg / kg
—— Cooling Heating Cooling Heating
W4100 4600 5000 5500
10‐³×m³/h 1.6 / 2 /
——
——
N, V, Hz
A 0.45 0.45 0.45 0.45
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
External mm
Package mm
Weight Net / Shipping kg / kg
* o.d.=outer diameter; i.d.=inner diameter
Connecting method Flared Flared
Panel
Dimension 700/700/60 700/700/60
740/750/115 740/750/115
2.8/4.8 2.8/4.8
19/23.5 19/23.5
Piping
R410A R410A
Pipe 6.35 6.35
12.7 12.7
Electricity Heater / /
44/40/37 44/40/37
PMV on outdoor unit
Fresh air hole dimension 100 100
570/570/260
718/680/380 718/680/380
PVC, 32/26(o.d./I.d.*) PVC, 32/26(o.d./I.d.*)
670/600/550
Heat exchanger 7 7
about 0.273 about 0.273
cooling: 6~7 / heating: 43~60
CENTRIFUGAL × 1
750/650/540 750/650/540
38/95 38/95
Running current
Fan CENTRIFUGAL × 1
670/600/550
Dimension
(L×W×H)
570/570/260
Controller type Infrared YR-H71 or wired YR-E12
Refrigerant control
3 × 0.75mm2
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Function
Capacity
Dehumidifying capacity
Power cable
2.8/4.8
Item Model AB142XCERA AB182XCERA
Connecting method Flared Flared
Panel
Dimension
(L×W×H)
700/700/60 700/700/60
740/750/115 740/750/115
2.8/4.8
17/20 17/20
Piping
R410A R410A
Pipe 6.35 6.35
9.52 9.52
Electricity Heater / /
41/39/38 44/40/37
PMV on outdoor unit
Fresh air hole dimension 100 100
570/570/260
718/680/380 718/680/380
PVC, 32/26(o.d./I.d.*) PVC, 32/26(o.d./I.d.*)
670/600/550
Heat exchanger 7 7
about 0.273 about 0.273
cooling: 6~7 / heating: 43~60
CENTRIFUGAL × 1
650/570/520 750/650/540
38/95 38/95
Running current
Fan CENTRIFUGAL × 1
620/560/530
Dimension
(L×W×H)
570/570/260
Controller type Infrared YR-H71 or wired YR-E12
Refrigerant control
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Capacity
Dehumidifying capacity
Power cable 3 × (1.0~1.5mm2)
Item Model AB092XCERA AB122XCERA
Function

-14-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating Cooling Heating
W2500 2900 3500 3800
10‐³×m³/h 1.0 / 1.2 /
——
——
N, V, Hz
A 0.35 0.35 0.35 0.35
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
—— Cooling Heating Cooling Heating
W 4100 4600 5000 5500
10‐³×m³/h 1.6 / 2.0 /
——
——
N, V, Hz
A 0.85 0.85 0.85 0.85
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
* o.d.=outer diameter; i.d.=inner diameter
Item Model AD092XLERA AD122XLERA
Function
Capacity
Dehumidifying capacity
Power cable 3 × (1.0~1.5mm2)
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Running current
Fan CROSS × 1
550/500/450/400
Dimension
(L×W×H)
610×500×220
Controller type Wired controller YR-E12
Refrigerant control
CROSS × 1
1050/950/850/750 1050/950/850/750
30/75 30/75
550/500/450/400
Heat exchanger 7 7
about 0.12 about 0.12
cooling: 6~7 / heating: 43~60
610×500×220
695/536/265 695/536/265
(o.d./I.d.*) (o.d./I.d.*)
PMV on outdoor unit
Fresh air hole dimension //
Electricity Heater //
43/40/38/35 43/40/38/35
14/16 14/16
Piping
R410A R410A
Pipe 6.35 6.35
9.52 9.52
Item Model AD142XLERA AD182XLERA
Connecting method Flared Flared
Function
Capacity
Dehumidifying capacity
Power cable 3 × 0.75mm2
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Running current
Fan CROSS × 2
780/700/650/600
Dimension
(L×W×H)
1090×500×220
Controller type Wired YR-E12
Refrigerant control
CROSS × 2
1270/1160/1020/900 1270/1160/1020/900
80/200 80/200
780/700/650/600
Heat exchanger 7 7
about 0.23 about 0.23
cooling: 6~7 / heating: 43~60
Fresh air hole dimension //
1090×500×220
1161/536/269 1161/536/269
(o.d./I.d.*) (o.d./I.d.*)
Flared
25/29 25/29
PMV on outdoor unit
Electricity Heater //
46/44/40/38 46/44/40/38
Piping
R410A R410A
Pipe 6.35 6.35
12.7 12.7
Connecting method Flared

shieled
16.4/11.4(o.d./I.d.
16.4/11.4(o.d./I.d.
-15-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating Cooling Heating
W4100 4600 5000 5500
10‐³×m³/h 1.6 / 2 /
——
——
N, V, Hz
A 0.45 0.45 0.45 0.45
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
* o.d.=outer diameter; i.d.=inner diameter
Piping
R410A R410A
Pipe 6.35 6.35
12.7 12.7
Connecting method Flared
Electricity Heater //
48/45/41 48/45/41
Flared
28.3/34.3 28.3/34.3
PMV on outdoor unit
Fresh air hole dimension //
990/655/199
1150/750/300 1150/750/300
PVC, 20/18(o.d./I.d.*) PVC, 20/18(o.d./I.d.*)
700/640/580
Heat exchanger TP2M / 7×0.35
about 0.49 about 0.49
cooling: 6~7 / heating: 43~60
CENTRIFUGAL × 2
1150/1050/850 1150/1050/850
28/80 28/80
Running current
Fan CENTRIFUGAL × 2
700/640/580
Dimension
(L×W×H)
990/655/199
Controller type Infrared YR-H71 or wired YR-E12
Refrigerant control
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Capacity
Dehumidifying capacity
Power cable 3 × 0.75mm2
Item Model AC142XCERA AC182XCERA
Function

-16-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
—— Cooling Heating Cooling Heating
W2500 2900 3500 3800
10‐³×m³/h 1.0 / 1.2 /
——
——
N, V, Hz
A 0.45 0.45 0.45 0.45
Type × Number ——
Speed r/min
Motor output/input power W
Air-flows (H/M/L) m³/h
Type / Diameter mm
Face area m²
Temp. scope ℃
External mm
Package mm
Drainage pipe material, diameter mm
——
——
mm
——
Noise level H/M/L dB(A)
Weight Net / Shipping kg / kg
Refrigerant Type ——
Liquid mm
Gas mm
——
* o.d.=outer diameter; i.d.=inner diameter
Item Model AF092XCERA AF122XCERA
Function
Capacity
Dehumidifying capacity
Power cable 3 × (1.0~1.5mm2)
Communication cable 2x(0.75~1.25mm2), must be shieled
Power source 1, 220~230, 50
Running current
Fan CROSS × 2
480/420/370
Dimension
(WxDxH)
720/205/630
Controller type Infrared YR-H71
Refrigerant control
CROSS × 2
1000/900/800 1050/950/850
50/100 50/100
510/450/400
Heat exchanger TP2M / 7×0.35
about 0.25 about 0.25
cooling: 6~7 / heating: 43~60
Fresh air hole dimension //
720/205/630
780/280/690 780/280/690
PVC, 16.4/11.4(o.d./I.d.*) PVC, 16.4/11.4(o.d./I.d.*)
Flared
17/20.7 17/20.7
PMV on outdoor unit
Electricity Heater //
40/38/36 41/39/37
Piping
R410A R410A
Pipe 6.35 6.35
9.52 9.52
Connecting method Flared

-17-
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
AU182XFERA,AU222XFERA

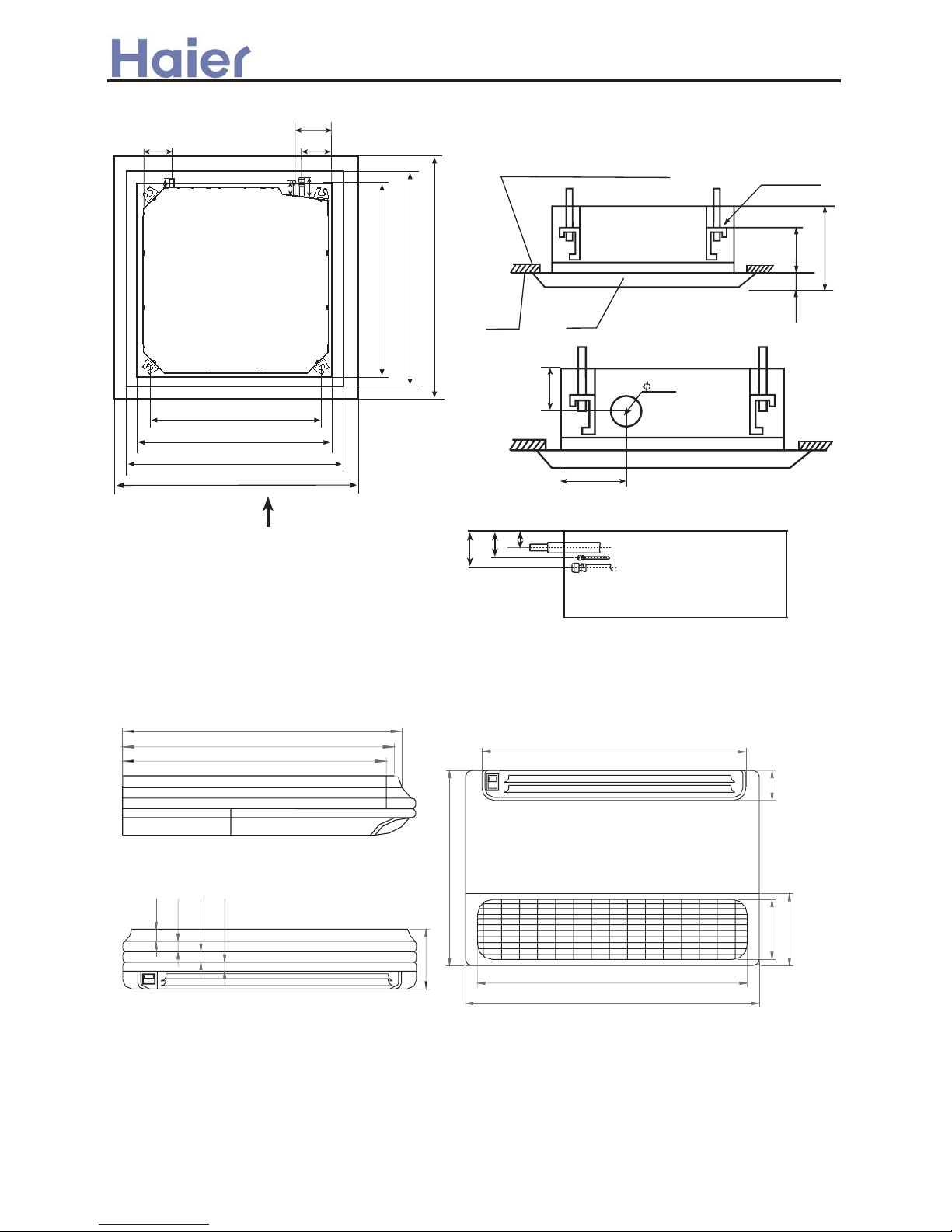

3. Dimension
AU282XHERA:
583
288
113.5
680
319.5
113.5
50
928
810
18
18
950
70
185
380 830
185
340
580
1068
48,.,965743
++.
-.. -*1
/-*
,.
0-*
1/*
20/

>_]]VbTZR\ <Zb >_^UZdZ_^Vb
B9 A9
:;9
HGFI D
><>TT 7KN[^NNU Z\ZWNUZRVU WVSNZ8
MYJRUJPN WRWN
PJZ WRWN
SR \RM WRWN
>@9TT 7RUMVVY \UR[ MRTNUZRVU8
?>9TT 7LNRSRUP VWNURUP MRTNUZRVU8
@99TT 7WJUNS MRTNUZRVU8
>@9TT 7RUMVVY \UR[ MRTNUZRVU8
?>9TT 7LNRSRUP VWNURUP MRTNUZRVU8
@99TT 7WJUNS MRTNUZRVU8
HGFI D
B>
:=9
:A9
OYNZQ JRY QVSN
Z\ZWNUZRVU QVSMNY
<;9TT
:>9TT
?9TT
V]NYSJWNM MRZ[JULN KN[^NNU [QN LNRSRUP
JUM [QN WJUNSC ;>TT
LNRSRUP WJUNS
>@
@>
?>
A9
:99
:=>
EJZZN[[N \UR[C
5;:?7<=8697 >:8=4
-/+
,++
3++
33+
100
-++
22+
1-+
1+0
1++
/+ .0 .0 .+
,33
-18-

=MPQBKKBQJNM EJLFMPJNM8+LL,
@MJQ LNEFK
9;/20A><?9
9;/60A><?9
9;/00A><?9
9;.70A><?9
B
/..0
316
C
261 3
261 3
D
/1/
/1/
E
//.3
4/.
F
033
033
G
/.3
/.3
H
66.
2/6
I
75.
3.6
J
00.
00.
T
U
V
W
X
Y
Z
[
\
72.
00.
9;/20A><?9
9;/60A><?9
256
00.
9;.70A><?9
9;/00A><?9
:FJKJMH DNMDFBKFE QSOF RMJQ8
>_]]VbTZR\ <Zb >_^UZdZ_^Vb
- -19

>_]]VbTZR\ <Zb >_^UZdZ_^Vb
Console type unit:
/+*
.,*
+*-
C
B
A
C
model AB
AS07/09/122XVERA
AS182XVERA
197 265 795
225 305 870
Wall Mounted Type
- -20
