Haier AB142ACNBC User manual

No.0010577033 A
CASSETTE AIR CONDITIONER
Operation Manual
AB142ACNBC
AU142AANBC
(HBU-14CM03/R1)
Please read this operation manual before using the air conditioner.
Please keep this manual carefully and safely.
051101*********

Contents
Cautions ...........................................................................................
Main Points of Operation..................................................................
Part Name .......................................................................................
Remote Controller Functions........................................................
Safety Precautions.......................................................................
Maintenance .....................................................................................
Troubleshooting ...........................................................................
When Trouble Happens ...................................................................
Customer Need-to-know .................................................................
Installation Tools ..............................................................................
Installation Procedures ................................................................
Installation Procedures,Check and Test Run ....................................
1-2
3-4
5
6-13
14-15
16
17-19
20
21
22
23-30
31

Cautions
1
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact
your local waste disposal center for
proper disposal of an old air conditioner
and contact your local authority or your
dealer if you have any question. Please
ensure that the pipework of your air
conditioner does not get damaged prior
to being picked up by the relevant
waste disposal center, and contribute
to environmental awareness by
insisting on an appropriate, anti-
pollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials in the
package of your new air conditioner
may be disposed without any danger
to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains
very important observations relating to
the assembly, operation and
maintenance of the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.

All electrical repairs must be carried
out by qualified electricians. Inadequate
repairs may result in a major source of
danger for the user of the air
conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with the
air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
The machine is adaptive in following
situation
Cooling Indoor Maximum:
Minimum: D.B / W.B
D.B /
D.B
Outdoor Maximum:
Minimum: D.B 43 C/ 26 C
15 C
18 C/ 14 C
32 C/ 23 C
Cautions
Other Instructions
*
2. If the supply cord is damaged, it must be
replaced by the manufacturer or its service
agent or a similar qualified person.
3. If the fuse on PC board is broken please
change it with the type of T 3.15A/250VAC.
4.Usecopperwireonly.Theconnecting cable
shouldbe H05RN-F4G(3X2.5+1X0.75)mm2
2
********
The power cable should be H05RN-F 3G 2.5mm.
5. The wiring method should be in line with
the local standard.All the cables shall have
got the European authentication certificate.
6. The air breaker should be all-pole switch.
and the distance between it's two
connecters should no less than 3mm.
7. Air conditioner must use special power supply
system (above 20A), and qualified electrician
makes wiring and fixing according to wiring
regulations specified in national standard.
8. In socket, exactly distinguish earth wire with
neutral wire and it is wrong to connect them
together.
9.Aleakage breaker must be installed.
10. Connection method is Y-connection .If the
power cord is damaged, it must be replaced
by professional people of manufacturer or its
maintenance department or similar to avoid
dangers.
11. The air breaker and the power switch should
installed the conveniently reachable place for
user.
Attention:
As a result of poor conditions of the electrical
MAINS, shortly voltage drops can appear
when starting the EQUIPMENT. This can
influence other equipment (et.Blinking of a
lamp). If the MAIN-IMPEDANCE Zmax< 0.
4624277HM, such disturbance are not
expected. In case of need , you may contact
your local supply authority for further
information.
Attention:
1. The waste battery shall be disposed properly.When
throw away the waste batteries, please perform in
accordance with the local regulation.
2. The indoor unit installation height is at least 2.5m.
certificate.

3
Main Points of Operation
Operation of Air Conditioner
When the environmental humidity is great,
water maybe dripped from the air outlet in
cooling or drying mode.
3-minute Protection Function
If you restart the unit immediately after stopping,
the compressor will start only 3 minutes later
to protect the machine.
Variation of Fan Speed
If fan speed in auto mode, it will automatically
lower when the room temperature close to the
setting temperature in cooling mode.
In heating mode,the compressor stops when the
room temperature at setting temperature and fan
turns into low speed or stops.
In Dry mode,fan speed will be automatically varied.
Remote Control:
There is a telecommunication interface for remote control on the control
panel of the indoor unit. After the peripheral equipment have been installed
in accordance with the instruction manual of the selected remote control
detector, the air conditioner will be computerized and controlled from a far-
away place.

4
Main Points of Operation
Power Failure Compensation(to be applied for a necessary situation):
After the power failure compensation is set, if power failure suddenly occurs while the air
conditioner is working,it will resume the previous working state when the power is supplied
again.
Setting Method: When the remote controller is on (excluding timer mode and fan mode),press
the ìsleepingî button on the remote controller 10 times within 5 seconds,and
after the buzzer rings 4 times,the air conditioner will enter the state of power
failure compenstation.
Cancel Method:Press the ìsleepingî button on the remote controller 10 times within 5 seconds,
and after the buzzer rings 2 timer,the power failure compensation mode will be
cancelled.
Note: When a power failure suddenly occurs during the air conditioner si working after the
power after the power failure compensationis set,if the air conditioner will not be used
for a long time, please cut off the power supply to prevent its operation from being res-
umed after the power is supplied again, or press the ì Switch On/Off î button after the
power comes again.

5

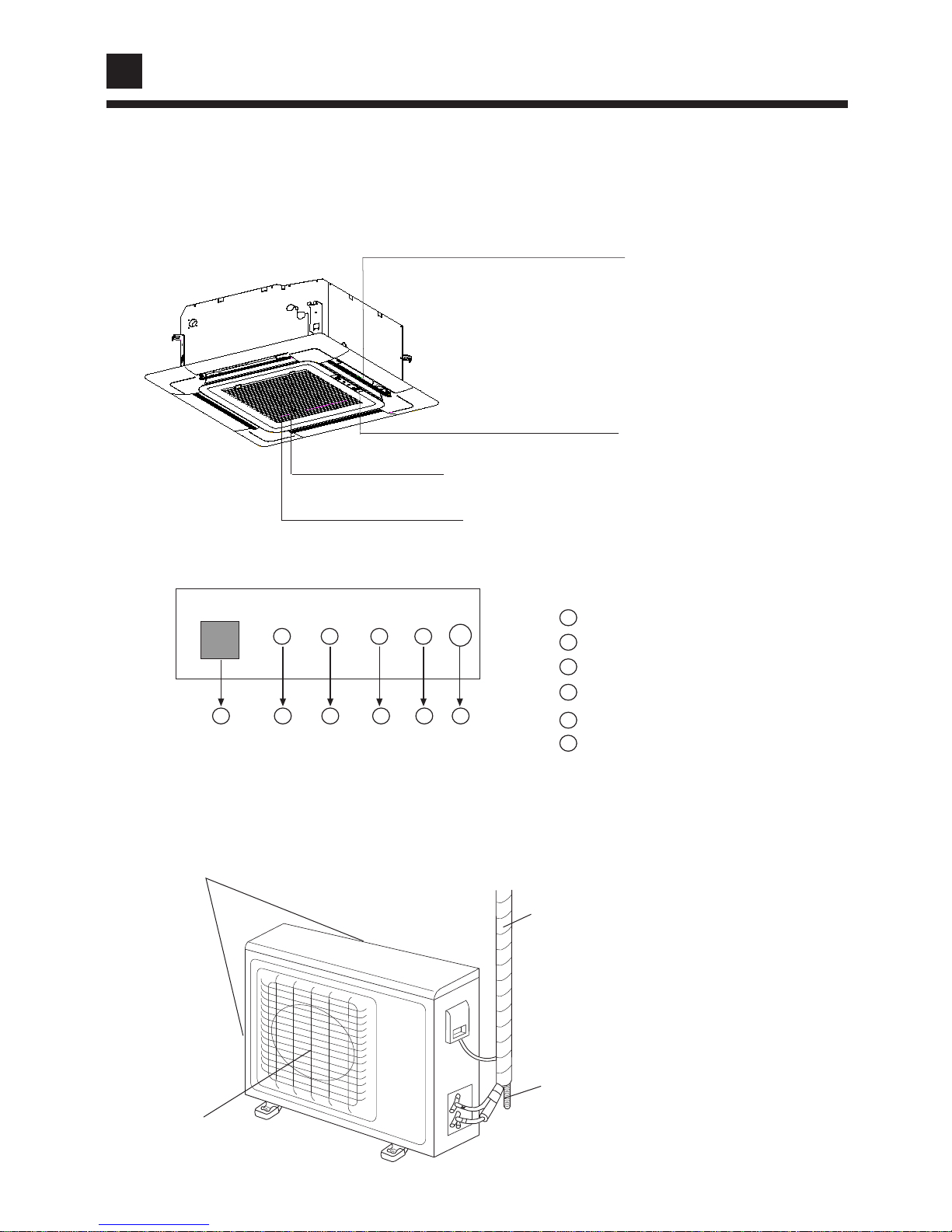

Part Name
Indoor unit
Outdoor unit
Swing louver
(Air flow direction can be adjusted by using
the SWING button on the remote controller)
Air Inlet Grille
Air Filter
(Inside of the Inlet Grille)
Operation Panel
Air inlet
Air outlet
Drain hose
Connecting piping
and electrical wiring
Remote receiver
Compressor Lamp
TIMER Lamp
OPERATION Lamp
Power Lamp
Emergency switch
1
2
3
4
5
COMP TIMER OPERPOWER
1 2 3 4 5
Operating Control Panel
6
6

6

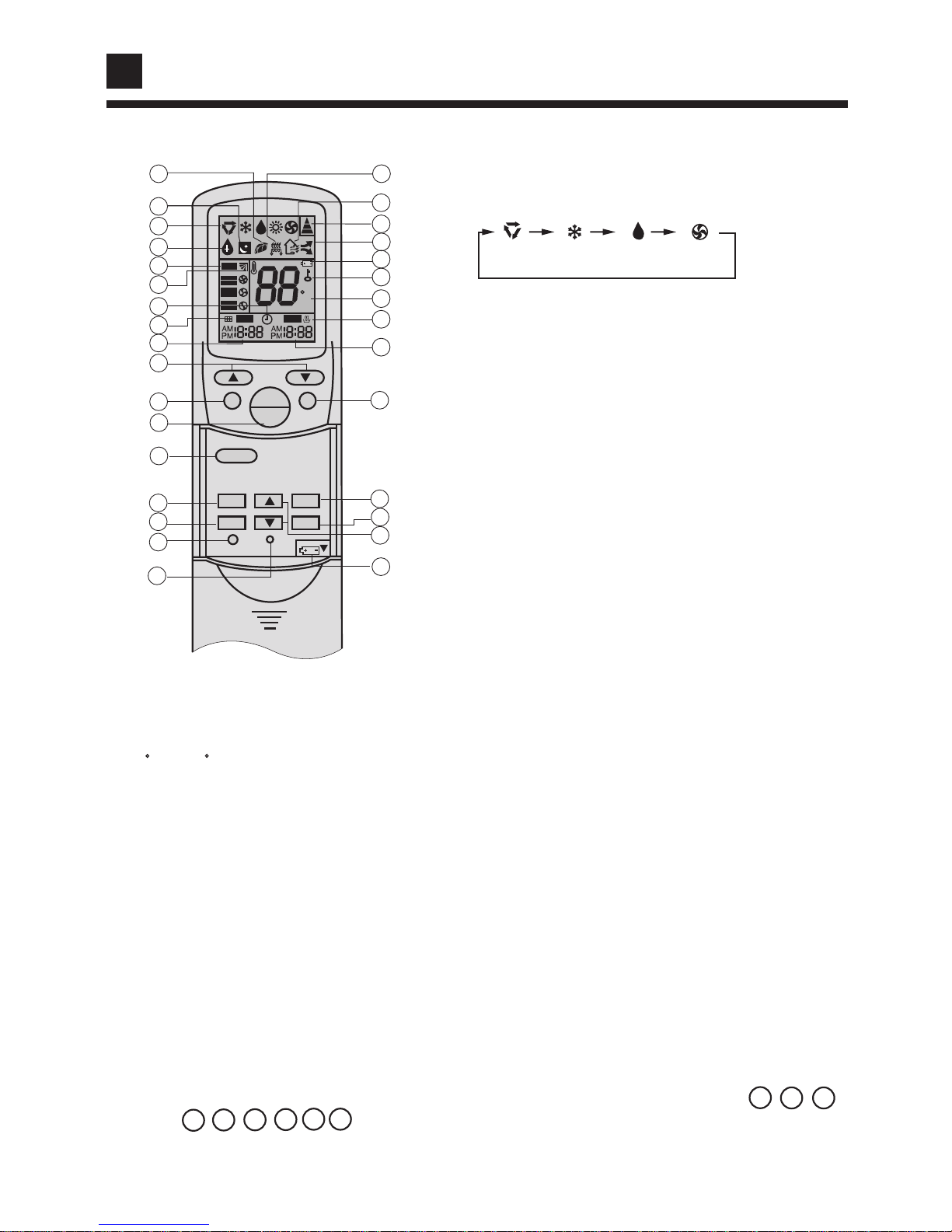

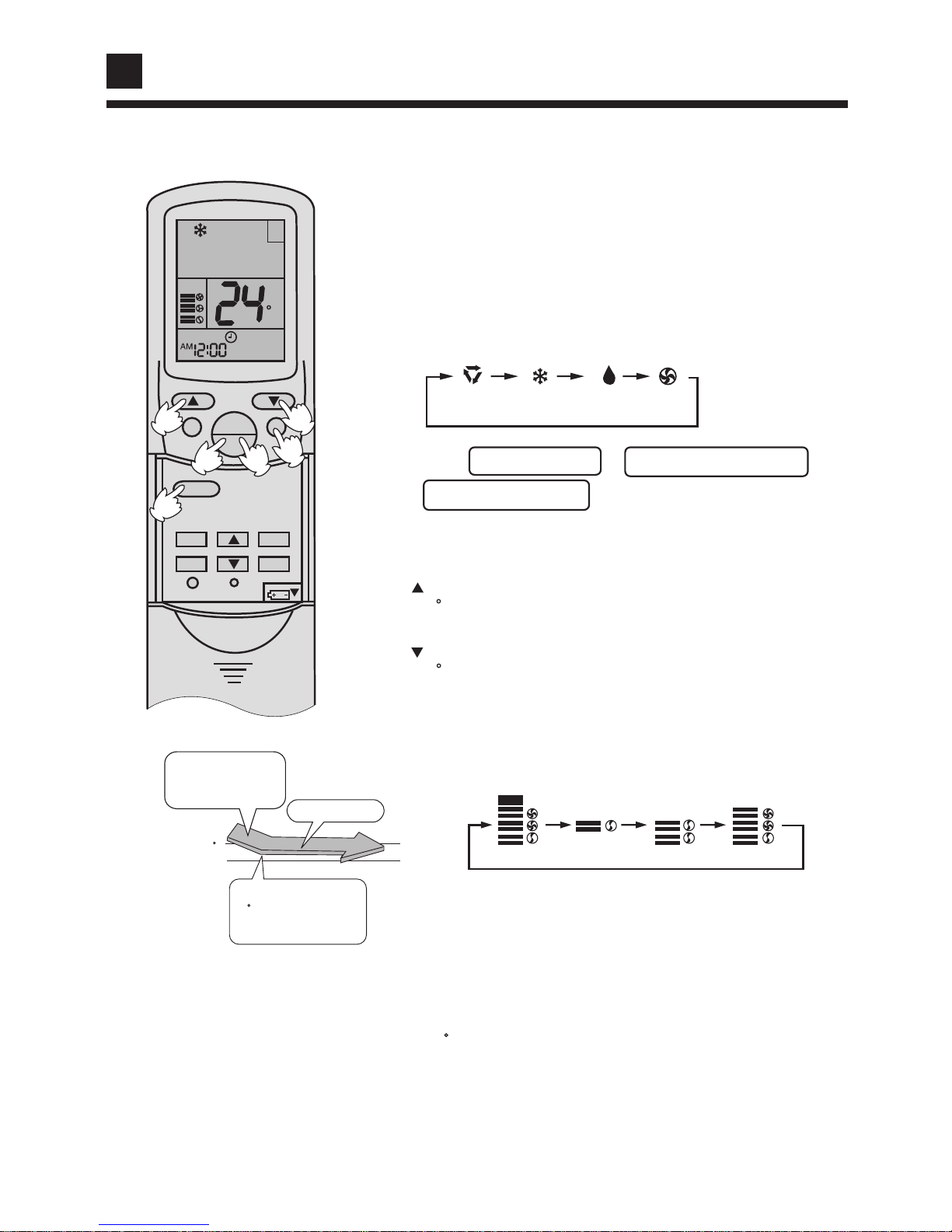

Remote Controller Functions
Remote controller
1.TEMP Setting Button
(Used to set temperature, setting ranges:
16 C to 30 C)
2.SWING Button
Press once auto swing, press again the
swing louver fixed on the present swing
position.
3.Power ON/OFF Button (used for unit
start and stop)
After power on, the LCD of remote contr-
oller will display the previous operation
state (except for TIMER,SLEEP and SW-
ING state).

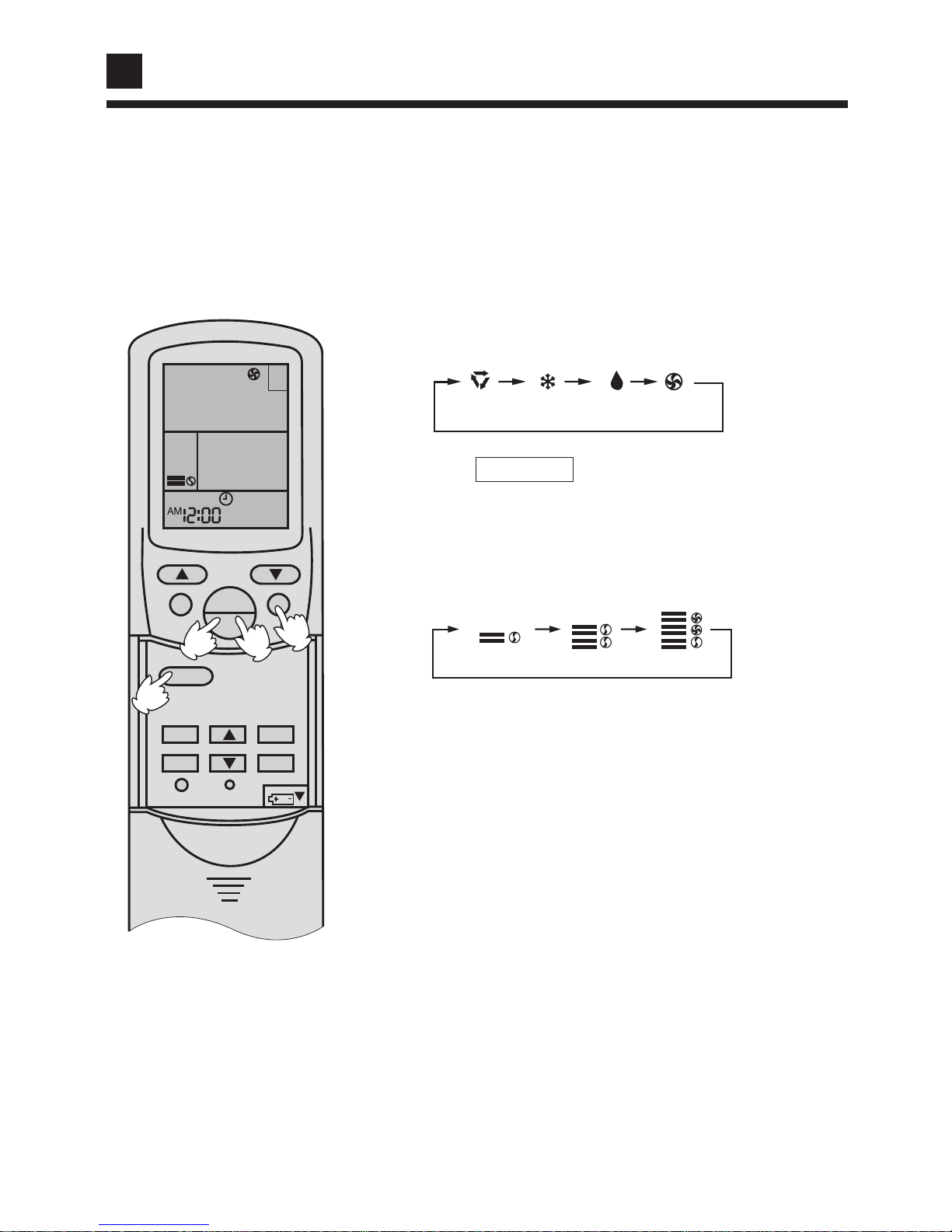

4.Operation MODE
Used to select operation mode.
Every time press MODE button,operation mode
changes according ot hte following order:
5.CLOCK Button
Used to set correct time.
AUTO FAN
COOL DRY
6.TIMER Button
Used to select TIMER mode:TIMER ON,TIMER
OFF, TIMER ON/OFF.
(Note: if time of TIMER ON is the same as TIMER
OFF,TIMER ON/OFF cannot be set)
7.LOCK Button
8.RESET Button
Used to sharp article press this button can reset
the remote controller back to normal condition when
it in malfunction state.
9.Battery Loaded Indication
10.HOUR Adjustment
Used to set clock and timer setting
11.SLEEP Button
(The clock must be corrected before set sleep
function)
Used to set sleep mode.
12.SET Button
Used to confirm TIMER and CLOCK settings.
13.FAN Button
Used to select fan speed:LOW,MID,HIGH,AUTO.
NOTE: 1.Single cooling air conditioner does not have the displays and functions related to heating.
2.This kind of unit does not have the following related functions and displays: 15 18 19
21 22 23 24 26
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
AUTO
OFFON
C
22
20
21
19
18
17
16
15
10
11
12
13
9
8
7
6
5
4
1
30
29
28
27
25
24
23
2
3
14
26
31
Used to lock operation button and LCD display
contents: after press this button, other button are
out of function, lock state display appears; press
again,cancel lock state and lock state display
disappeared.
30

7
Clock Set
Display when healthy run function is set.
14.TIMER OFF Display
15.HUMIDIFICATION Display
16.TEMPERATURE Display
17.LOCK State Display
18.BATTERY Energy Display
Display when in low battery to remind
customer to change the battery.
19.STRONG/QUITE Run Display
20.SIGNAL SENDING Display
21.NEW AIR Display
22.ELECTRICAL HEATING Display
23.HEALTH Display
24.SLEEP State Display
25.Operation MODE Display
AUTO RUN COOL RUN DRY RUN FAN RUN
26.COMFORTABLE RUN Display
27.FAN SPEED Display
28.AUTO SWING Display
29.TIMER Display
30.FILTER Display
31.TIMER ON Display
Remote Controllerí Operation
The distance between the signal transm-
ission head and the receiver hole should
be within 7m without any obstacle as well.
When unit is started for the first time and after replacing batteries in remote
controller, clock should be adjusted as follows:
1.Press CLOCK button,clock indication of ì AM ì or ìPMî flashes.
2.Press or to set correct time,each press will increase or decrease
1 min. If the button is kept pressed, time will increase or decrease quickly.
3.After time setting is confirmed,press ìSETî , AM or PM stop flashing,
while clock starts working.
Note:AM means morning and PM means afternoon.
Donít throw the controller,prevent it from
being damaged.
When in use, put the signal transmission
head directly to the receiver hole on the
indoor unit
When electronic-strated type fluorescent lamp or
change-over type fluorescent lamp or wireless
telephone is installed in the room, the receiver is
apt to be disturbed in receiving the signals so the
distance to the indoor unit should be shorter.
Loading of the battery (load the batteries
as illustrated)
Remove the battery cover
Load the battery
Put on the cover again
Installing the cover is opposite to removing it
Confirmation indicator
If no indication after press ON/OFF button,reload
the batteries.
Note:
AUTO
LO
MID
HI
AUTO
Use two new same-typed batteries when loading.
If the remote controller canít run normally during
operation ,please remove the batteries and reload
them few minutes later that will be ok
If the display of remote controller is faded(someti-
mes run abnormally),which indicates no battery,so
please change the batteries
Hint:
Remove the batteries in case unit will not be in
usage for a long period.if there is any display after
taking-out just need to press reset button with a
sharp article.
When throw away the waste batteries, please
perform in accordance with the local regulation.
When throw away the waste batteries, please
perform in accordance with the local regulation.
First slightly press the position marked with
and push down the cover,then as shown in the
figure:holding the upper part of the remote con-
troller with the left hand and the right hand
slightly grasps the battery box cover and forces
on the arrow direction to remove the cover.
SLEEP
SET
TIMER
LOCK
RESET
MODE
CLOCK
1
Be sure that the loading is in line with the ì + î ì - î
pole request as illustrated on the botton of the box.
Remote Controller Functions
23

8
Fan Operation 1.Unit start
Press ON/OFF button, unit starts.
Previous operation status appears on LCD (except for
TIMER ,SLEEP, and SWING setting).
2.Select operation mode
Press MODE button. For each press,operation mode
changes as follows:
3. Adjust fan speed
Press FAN button.For each press,fan speed changes
as follows:
Air conditioner will run at the selected fan speed.
When in AUTO mode,unit will adjust fan speed
according to room temperature automatically.
4. Unit stop
Press ON/OFF button,unit stops.
AUTO FAN
COOL DRY
Then select FAN
About FAN Operation
FAN operation refers that the air conditioner only run
FAN,no COOL operation,and in this status the unit canít
operate AUTO FAN as well no temperature settings.
LOW MID HIGH
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
413
2
Remote Controller Functions

9

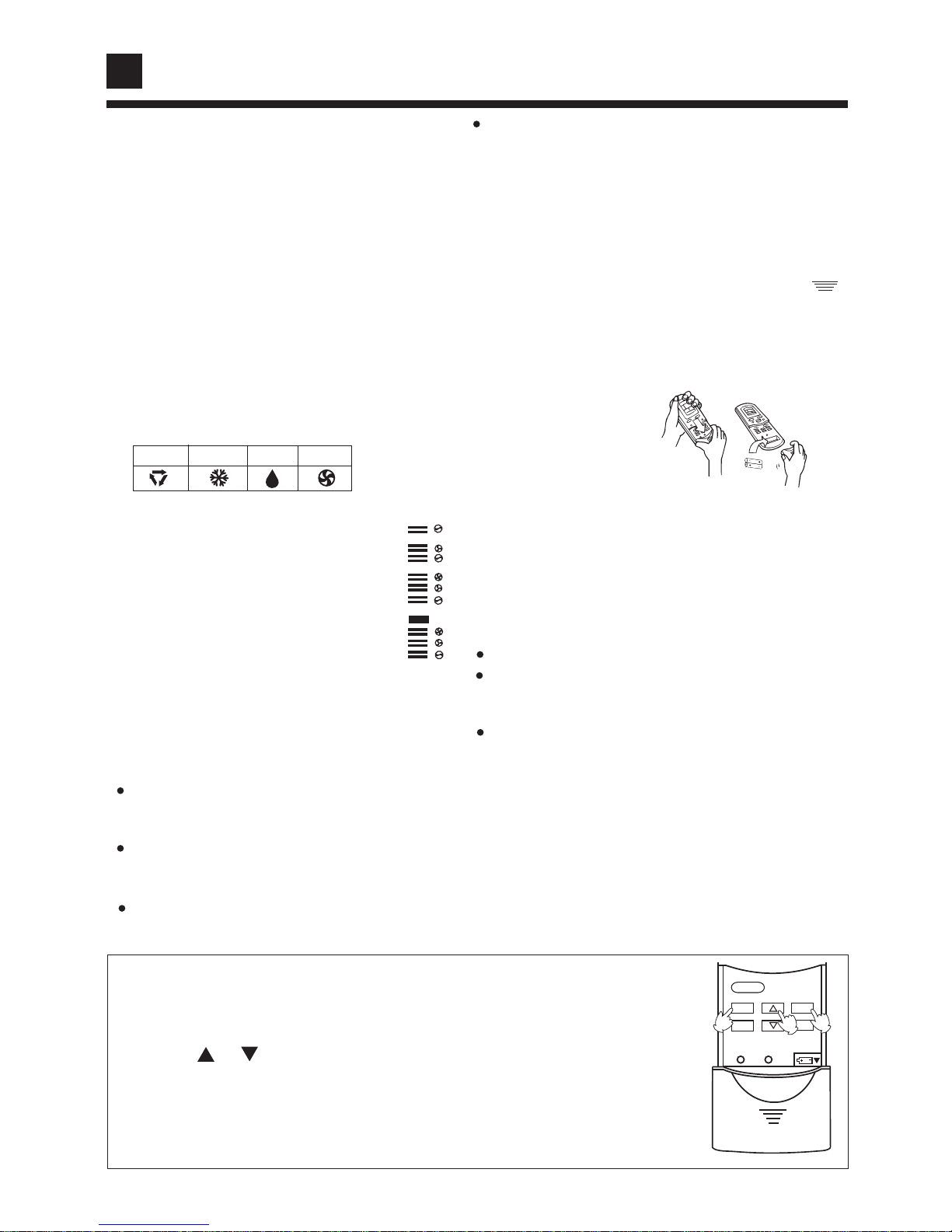

AUTO run, COOL , DRY Operation
1. Unit start
Press ON/OFF button,unit starts.
Previous operation status appears on LCD (except for
TIMER,SLEEP and SWING setting)
3.Temperature setting
Then select AUTO run or select COOL operation or
select DRY operation
3
3
2.Select operation mode
Press MODE button. For each press,operation mode
changes as follows:
Press TEMP button.
Every time the button is pressed, temp. setting increases
1 C, if the button is kept pressed, temp. setting will increase
quickly.
Every time the button is pressed, temp. setting decreases
1 C, if the button is kept pressed, temp. setting will decrease
quickly.
Set proper temperature
4.Adjust FAN button
Press FAN button .For each press, fan speed changes as
follows:
Air conditioner will run at the selected fan speed.
5. Unit stop
Press ON/OFF button,unit stops.
InATUO mode,the temperature setting is not displayed on LCD.In this mode,during running air conditioner
will select COOL ,HEAT or FAN mode automatically according to the room temperature.
In DRY mode,when room temperature becomes 2 C higher than temperature setting, unit will run intermittently
at LOW speed regardless of FAN setting,When room temperature is lower than temperature setting,unit will
only run in FAN mode.
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
514
AUTO FANCOOL DRY
C
AUTO
AUTO LOW MID HIGH
Temp. setting +2 C
Temp.setting
On reaching temp.setting
+2 C, unit will run in mild
DRY mode.
Ultra-low air flow
COOL operation starts
when room temp.is
higher than temp.
setting.
2
Remote Controller Functions

10
Press SWING button.
Up and down airflow vary upwards
and downwards.Left and right airflow
vary left and right sides.
Always use SWING button on the remote
controller to adjust louver or flaps because
adjusting by hand result in air conditioner
running abnormally.
Displays on the LCD disappear.
All indicators on the indoor unit go out.
Swing louver automatically closes .
After unit stops:
AUTO SWING
Air flow direction adjust
AUTO SWING
When the automatic swing louver moves to the proper
angle,press SWING button can fix the airflow direction.
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
Please carefully set temperature when infants,
children,old people or patients use the air
conditioner.
In case of great humidity ,if the vertical flaps
all are towards left or right,the louver will drop
water.
Donít pull louver directly by hand which will
make it work abnormally.If the louver work
abnormally,stop unit,restart and adjust it by
remote controller.
Hints:
As cold airflows downward in COOL mode,adjusting airflow horizontally will be much more helpful
for a better air circulation
Be careful not to catch a cold when cold air blows downward directly.
C
In COOL or DRY mode, the louver is not
permitted to be in downwards position
for a long time because the water vapor
close to the grille may be condensed and
the water may drop from the air conditioner.
AUTO
Remote Controller Functions

11

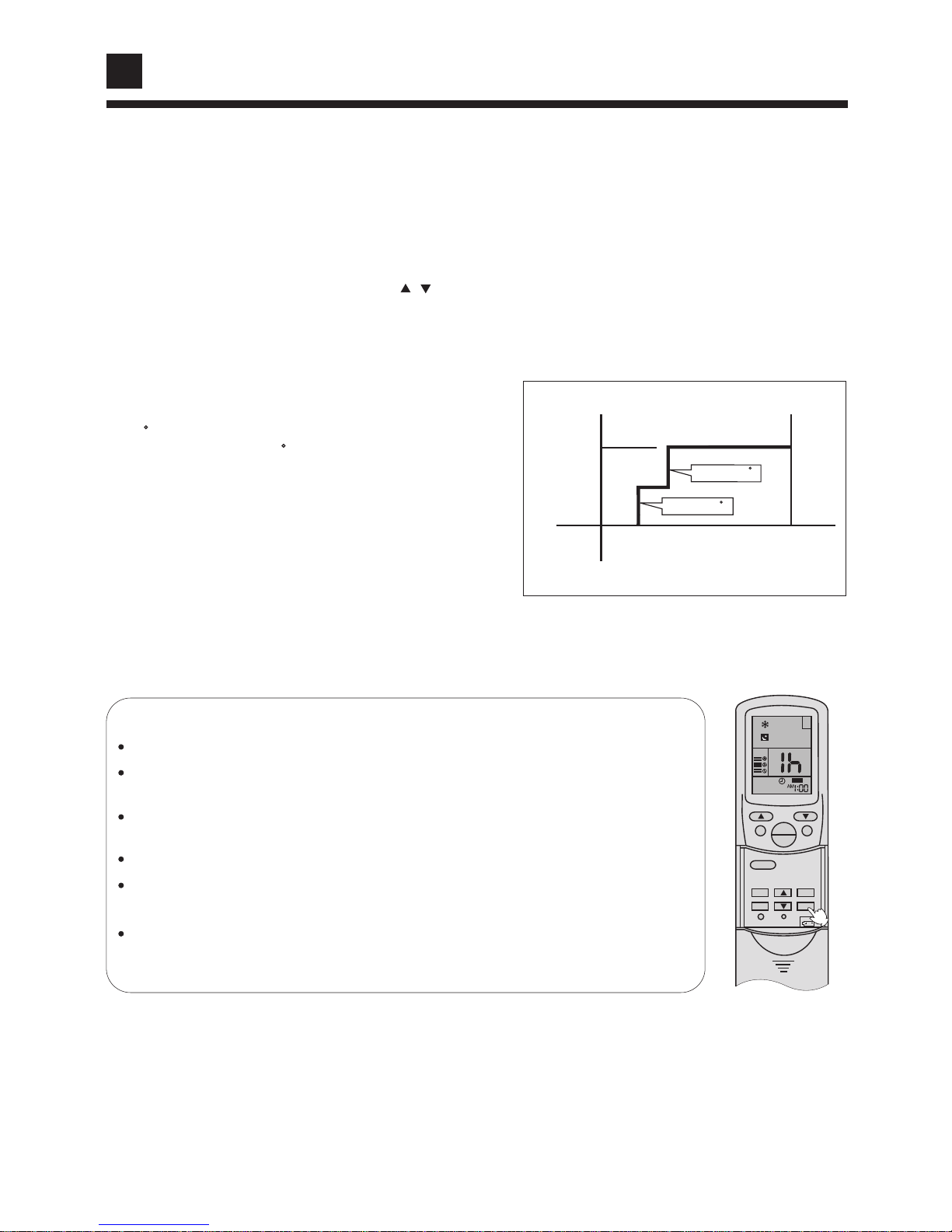

Sleep Function
Before going to bed you can press down the SLEEP button and the air conditioner will run by
the comfortable sleeping mode to make you sleep more comfortable.
Before use this function, the clock must be corrected.
Usage of SLEEP function
After unit start,first by running mode and then press SLEEP button once.Mark the air conditioner
have the previous-set sleep time(first power-on or after carrying out sleep function is 1h),the sleep
symbol will appear. Press time button / , you can choose the time in 1~8 hours.Each time the
button is pressed the time increases/decreases 1 hour and ì xh î appears in the humidity
setting part ,ì OFF î appears in ì TIMER OFF î display part and the sleep symbol disappears.
Operation Mode
1.In COOL, DRY mode
One hour after sleeping operation start, the temp.
is 1 C higher than the setting one. After another
hour the temp. rises 1 C and then run continuously
for another 6 hrs and then close. The actual temp.
is higher than the setting one which is to prevent
from being too cool to your sleep.
2.In AUTO mode.
The air conditioner will run in corresponding sleep
operation according to the automatically selected
operation mode.
3.In FAN run
Canít use SLEEP function.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
about 6 hrs
1 hrs
In COOL,DRY mode
increase 1 C
increase 1 C
OFF
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
Note:
After setting SLEEP function ,it is forbidden to calibrate clock.
If the set sleep-time does not reach 8 hours, unit will stop operation
automatically after set time is complete.
Set ì TIMER OFF îIn COOL,DRY mode function first, then set SLEEP, unit
will perform sleep function.
After set SLEEP function, the TIMER function cannot be set.
Set ì TIMER ON îIn COOL,DRY mode function first,then set SLEEP, the
sleep function can only be set before TIMER ON time.
After setting SLEEP function,press CLOCK button to show the time; press
TEMP button to show the temperature setting; press again to change the
temperature.
Remote Controller Functions

12
Every time the button is pressed , time increases 10 minutes.
If the button is kept pressed ,time will change quickly.
Timer ON/OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit starts ,select your desired operation mode(operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode.Every time the button is pressed,display of TIMER mode
changes as follows:
ON OFF ON OFF
AM12:00 AM12:00
PM12:00 PM12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank
Then select TIMER mode as needed (TIMER ON or TIMER OFF).
And now or will flash.
3.TIMER setting (press time adjust button)
Every time the button is pressed , time decreases 10 minutes.
If the button is kept pressed ,time will change quickly.
It can be adjusted within 24 hours at will.
4.Confirm setting
After set correct time,press SET button to confirm time. And now
Time displayed: unit starts or stops at X hour X min (TIMER ON
or TIMER OFF)
5.Cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears
Hints:
After replacing batteries or a power failure happens,TIMER setting
should be reset.
Remote controller possesses memory function,when use TIMER
mode next time,just press SET button after mode selection if timer
setting is the same as previous one.
Note:
After setting TIMER function,the remote controller displays TIMER time.If you want to see clock time,
just press CLOCK button once it will display clock time (continuously press twice,you can adjust clock,
see page 6 for details), and 5 seconds later it will back to TIMER time.
1
ON
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
2
34
C
ON OFF
ON OFF
or stops flash.
Remote Controller Functions

13
LOCK
OFFON
Timer ON-OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start ,select your desired operation mode(operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode.Every time the button is pressed,display of TIMER mode
changes as follows:
OFF
3.Time setting for TIMER ON
4.Timer confirming for TIMER ON
After set correct time,press TIMER button to confirm time. And now
5.Timer setting for TIMER OFF
Press time button, and follow the same procedures in ì Time setting
for TIMER ONî
Press time button
ON
stops flash,while starts flash
Time displayed : unit starts at X hour X min.
6.Time confirming for TIMER OFF
After time setting, press SET button to confirm time. stops flash.
Time displayed : unit starts at X hour X min.
7.Canel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the time setting sequence of TIMER ON or TIMER OFF,
either start-stops or stops-start can be realized.
If the time setting of TIMER ON is the same as TIMER OFF, the TIMER
ON-OFF function cannot be set.
TEMP
SWING FAN
MODE
ON
OFF
SLEEP
SET
CLOCK
TIMER
LOCK
RESET
1
36
5
4
2
C
ON OFF ON OFF
AM12:00 AM12:00
PM12:00 PM12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank
ON
Then select TIMER ON-OFF mode. will flash.
Every time the button is pressed , time increases 10 minutes.
If the button is kept pressed ,time will change quickly.
Every time the button is pressed , time decreases 10 minutes.
If the button is kept pressed ,time will change quickly.
It can be adjusted within 24 hours at will.AM stands for morning
and PM stands for afternoon.
OFF
Remote Controller Functions

14

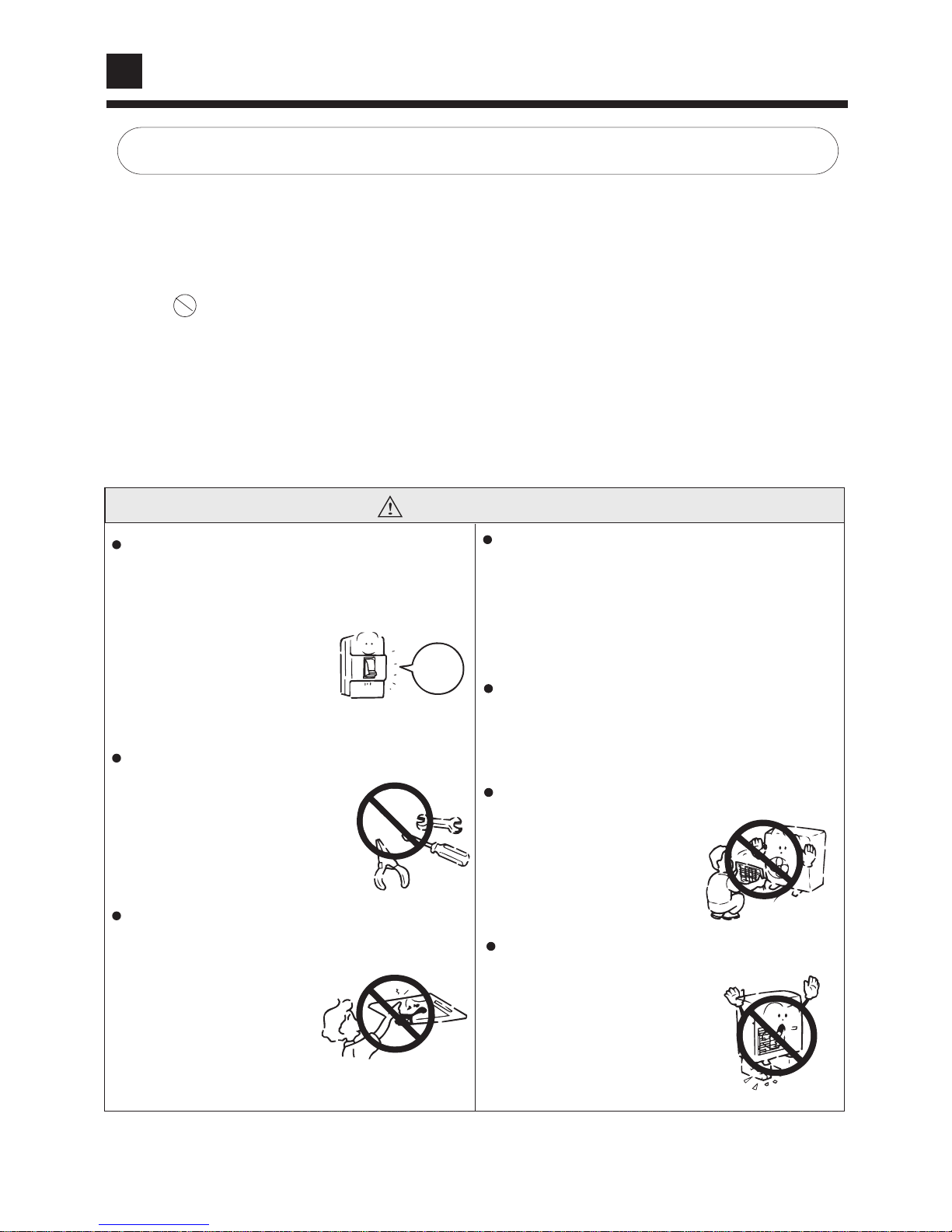

Safety Precautions
Below are listed four kinds of Safety Cautions and Suggestions:
Be sure to conform with the following important Safety Cautions.
The Safety Cautions should be at hand so that they can be checked at any time when needed.
If the air conditoner is transferred to the new user, this manual should be as well transferred to
the new user.
Incorrect operations may result in severe consequences of death or serious injures.
WARNING: Incorrect operations may result in injures or machine damages; in some cases may
cause serious consequences.
CAUTION :
: It must be strictly prohibited where marked with ì Prohibited î, otherwise may result in
machine damages or endanger the userípersonal safety.
This information can ensure the correct operation of the machine.
INSTRUCTION:
Carefully read the following information in order to operate the air conditioner correctly.
WARNING
If any abnormal phenomena are found (e.g.
smell of firing),please cut off the power supply
immediately, and contact the dealer to find outí
the handling method.
When need maintenance and
repair,call dealer to handle it.
Donít put figures or any other
things into the inlet/outlet and
swing louver while the conditi-
oner is in operation
Call the dealer to take measures to prevent the
refrigerant from leaking.
Switch
off
In such case,to continue using
the air conditioner will damage
the conditioner,and may cause
electrical shock or fire hazard.
Incorrect maintenance and
repair may cause water leak,
electrical shock and fire hazard.
Because the high-speed fan
is very dangerous and may
cause injures.
The leaked refrigerant over certain density may
cause oxygen deficient.If the air conditioner is
installed in a small room be sure to take measure
in order to prevent suffocation accident even in
case of refrigerant leakage
When air conditioner is removed and reinstalled
dealer should be responsible for them.
Incorrect installation may cause water leaking,
electrical shock and fire hazard.
Donít dismantle the outlet of the outdoor unit.
The exposure of fan is very
dangerous witch may harm
human beings.
After a long time use of air conditioner the base
should be checked for any damages.
If the damaged base is not
repaired, the unit may fall
down and cause accidents.

15

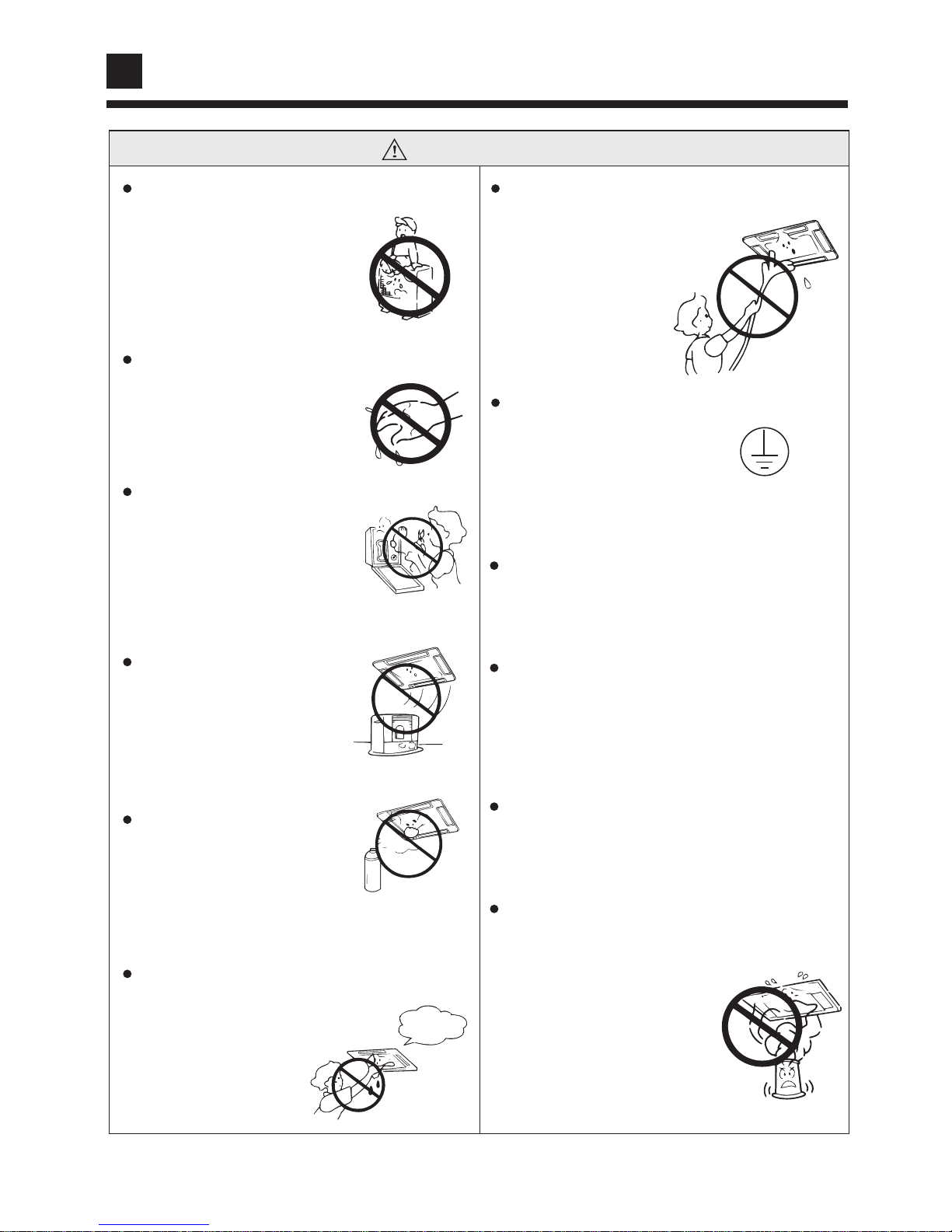

WARNING
No goods or nobody is permitted
to be placed on or stand on
outdoor unit.
Donít clean air conditioner
with water.
The falling of goods and
people may cause accidents.
Don't operate the air conditioner with
damp hands.
Otherwise will be shocked.
Only use correct type fuse.
May not use wire or any other
materials replacing fuse,othe-
rwise may cause faults or fire
accidents.
Donít place any burning
unit in the airflow of air
conditioner,which may
cause incomplete
combustion
No inflammable spray fluid
should be permitted to be
placed or used near to air
conditioner,otherwise may
cause fire accident.
Air conditioner should be
cleaned only after power
supply is cut off to keep
from shock or hurt.
Otherwise may cause shock.
Connect earthing wire.
Earthing wire should not be
connected to the gas pipe,
water pipe,lightning rod or
phone line,incorrect earthing
may cause shock.
Use discharge pipe correctly to
ensure efficient discharge.
In correct pipe usage may cause water
leaking.
Air conditioner canít be be installed in
the environment with inflammable gases.
The inflammable gases near to air conditioner
may cause fire hazard.
Installed electrical-leaking circuit breaker.
When use the fumigating insecticide
donít operate air conditioner.
Otherwise the poisonous chemicals
may settle in air conditioner,
which harm the health of
chemical-allergic people.
It easily causes electrical shock without
circuit breaker.
Not permitted
when running
Safety Precautions

16
Maintenance
Clean the unit
Turn off the power supply switch Do not touch with wet hand. Do not use hot water or volatile liquid
Clean the air filter
Clean the air filter with water or vacuum cleaner.
Use the detergent or neutral soapy water if the
air filter is too dirty. Then rinse the air filter with
water,and reinstall after drying.
Caution:
Do not clean the air filter with hot water over 40 C,
otherwise may damage the filter.
Sweep the filter carefully.
Clean indoor (outdoor ) unit
Clean with hot wet cloth and neutral detergent, then wipe with
dry cloth.Do not use too hot water (over 40 C) which may result
in fading and deforming. Do not use insecticide and chemical
washing agent.
Take down air inlet grille
lock
filter corner
grille edge
As the figure, press the two locks on air inlet
grille vertically, and make it move to grille,
then rise it up 45 degree gently to take out
the grille.
Take down the filter
Press the outside two edges of inlet grille
with the thumbs, and pull out the filter corner
with the forefingers, to rise the filter up after
it moves away from the locks, then take out
the filter.
ON
OFF
take out the grille
press the locks

17
Troubleshooting
Seasonal Reserve
Operate the unit with FAN mode on a fair day for about half
a day to dry the inside of the unit well.
Stop operation and turn off the power supply switch .Electric
power is consumed even the air conditioner is in stop.
Clean the air filter, indoor unit and outdoor unit,and cover
the unit with dustcoat.
Pre-season Care
See that there is no obstacles blocking the air
inlet and air outlet of both indoor and outdoor
unit to avoid reducing the working efficiency.
Be sure to install the air filter, ensure that the air filter is not dirty. Otherwise may result in
machine damages or cause malfunciton due th dust inside the unit
Post-season Care

18
Troubleshooting
The followings are not malfuncition
Hua
Hua
Water flowing sound is heard When the air conditoner is started, when the
compressor starts or stops during operation
or when the air conditioner is stopped,it som-
etimes sounds ì Bi- Bi-î or ìGodo-Godoî. It is
the flowing sound of the refrigerant , not a
malfunction.
Cracking sound is heard
It smells.
This is caused by heat expansion or contra-
ction of plastics
Air blown out from the indoor unit sometimes
smells. The smell results from smells of
furniture, paint , tobacco absorbed by indoor
unit.
During operation, white fog comes out of
indoor unit. When in COOL or DRY mode, a thin water fog can be seen blown out of unit ,this is the
condensed fog because the suddenly cooled
indoor air is blown out.
Automatically switch into FAN mode during
cooling. To prevent frost from being accumulated on the
indoor unit heat exchanger, it sometimes auto-
matically switched into the FAN mode,but it will
soon back to the cooling mode.
The air conditioner cannot be restarted soon
after it stops.
Air conditioner does not start?
This is because of the self-protection function
of the system, therefore,it cannot be restarted
for about three minutes after it stops.
Please wait for
three minutes
