Haier AF072XCEAA Specification sheet

AF072XCEAA
AF092XCEAA
AF122XCEAA
AF142XCEAA
Console Type
No.0010577698
R oom Air-conditioner indoor units
OPERATION AND INSTALLATION MANUAL
Please read this operation manual before using the air conditioner.
Please keep this manual carefully and safely.

Maintenance
Installation Manual of Room Air Conditioner
Trouble shooting
Table of Contents
7
8
9-14
5
6
Cautions 1-4
Parts and Functions
Operation hints

1
Disposal of the old air conditioner
Before disposing an old air conditioner that
goes out of use, please make sure it's
inoperative and safe. Unplug the air
conditioner in order to avoid the risk of child
entrapment.
It must be noticed that air conditioner
system contains refrigerants, which require
specialized waste disposal. The valuable
materials contained in an air conditioner can
be recycled. Contact your local waste
disposal center for proper disposal of an
old air conditioner and contact your local
authority or your dealer if you have any
question. Please ensure that the pipework
of your air conditioner does not get damaged
prior to being picked up by the relevant
waste disposal center, and contribute to
environmental awareness by insisting on
an appropriate, anti-pollution method of
disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed in the
package of your new air conditioner may be
disposed without any danger to the
environment.
The cardboard box may be broken or cut into
smaller pieces and given to a waste paper
disposal service. The wrapping bag made of
polyethylene and the polyethylene foam pads
All these valuable materials may be taken
to a waste collecting center and used again
after adequate recycling.
Consult your local authorities for the name
and address of the waste materials
collecting centers and waste paper disposal
services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read the
information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly , operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the following
instruction.
Damaged air conditioners are not to be
put into operation. In case of doubt, consult
your supplier.
Use of the air conditioner is to be carried
out in strict compliance with the relative
instructions set forth in the User's Guide.
Installation shall be done by professional
people, don't install unit by yourself.
For the purpose of the safety,the air conditioner
must be properly grounded in accordance
with specifications.
Always remember to unplug the air
conditioner before openning inlet grill. Never
unplug your air conditioner by pulling on
the power cord. Always grip plug firmly and
pull straight out from the outlet.
All electrical repairs must be carried out
by qualified electricians. Inadequate repairs
may result in a major source of danger for
the user of the air conditioner.
Do not damage any parts of the air
conditioner that carry refrigerant by piercing
or performating the air conditioner's tubes
with sharp or pointed items , crushing or
twisting any tubes , or scraping the coatings
off the surfaces. If the refrigerant spurts
out and gets into eyes , it may result in
serious eye injuries.
Cautions

2
Do not obstruct or cover the ventilation
grille of the air conditioner. Do not put
fingers or any other things into the
inlet/outlet and swing louver.
Do not allow children to play with the air
conditioner. In no case should children be
allowed to sit on the outdoor unit.
Specifications
The refrigerating circuit is leak-proof.
1. Applicable ambient temperature range:
2. If the power supply cord is damaged, it
must be replaced by the manufacturer
or its service agent or a similar qualified
person.
3. If the fuse of indoor unit on PC board is
broken,please change it with the type of
T3.15A/250VAC.
4. The wiring method should be in line with
the local wiring standard.
5. The waste battery should be disposed
properly.
6. The appliance is not intended for use by
young children or infirm persons without
supervision.
7. Young children should be supervised to
ensure that they do not play with the
applience.
8. A breaker should be used in the circuits,
which should be all-pole cutoff and the
distance between its two contacts should
be not at least 3mm .
9.The power plug and connecting cable
must have acquired the local attestation.
The machine is adaptive in following
situation
Cautions
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
20 27 15
14.5 -- --
7 24 -7
6 18 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C

3
Cautions
Please read the following Safety Instructions carefully prior to use.
The instructions are classified into two levels, WARNING and CAUTION according to the
seriousness of possible risks and damages as follows. Compliance to the instructions are
strictly required for safety use.
Safety Instruction
Installation WARNING
Please call Sales/Service Shop for the Installation.
Do not attempt to install the air conditioner by yourself because improper works may
cause electric shock, fire, water leakage.
CAUTION
Installation in an inadequate place may cause accidents. Do not install in the following place.
Connect the earth
cable.
PROHIBITION PROHIBITION
STRICT
ENFORCEMENT
Do not install in the
place where there
is any possibility
of inflammable
gas leakage around
the unit.
Do not get the unit
exposed to vapor
or oil steam.
Check proper
installation of the
drainage securely
Use fuse with specified capacity.
Replacement with steel or copper wires are
absolutely prohibited.
Grounding wire should not be connected to
that of gas pipeline, water pipeline,lighting
arrester or telephone.
FUSE
STEEL WIRE
COPPERWIRE
STRICT
ENFORCEMENT

Use of Air Conditioner
Cautions
STRICT
ENFORCEMENT
4
When abnormality such as burnt-small found, immediately
stop the operation button and contact sales shop.
Connect power supply cord to the
outlet completely. After installed, the unit shall be
tested for electric leakage.
Take care not to damage the
power supply cord.
Do not use power supply cord in
a bundle.
Do not use power supply cord
extended or connected in halfway.
Do not insert objects into the air
inlet or outlet.
Do not try to repair or reconstruct
by yourself.
PROHIBITION
PROHIBITION
PROHIBITION PROHIBITION
PROHIBITION
OFF STRICT
ENFORCEMENT
STRICT
ENFORCEMENT
Use an exclusive power source with a circuit breaker.
CAUTION
Do not use for the purpose of
storage of food, art work, precise
equipment, breeding , or cultivation.
Take fresh air occasionally
especially when gas appliance is
running at the same time.
Do not operate the switch with wet
hand.
Do not pour water onto the unit
for cleaning.
Check good condition of the
installation stand.
Do not install the unit near a fireplace
or other heating apparatus.
Do not place animals or plants in
the direct path of the air flow. Do not place any objects on or climb on the unit. Do not place flower vase or water
containers on the top of the unit.
PROHIBITIONPROHIBITION
PROHIBITIONPROHIBITION
PROHIBITION
PROHIBITION PROHIBITION
PROHIBITION
STRICT
ENFORCEMENT
WARNING
Do not channel the air flow directly
at people, especially at infants or
the aged.
Do not start or stop the operation
by disconnecting the power supply
cord and so on.
PROHIBITION

5

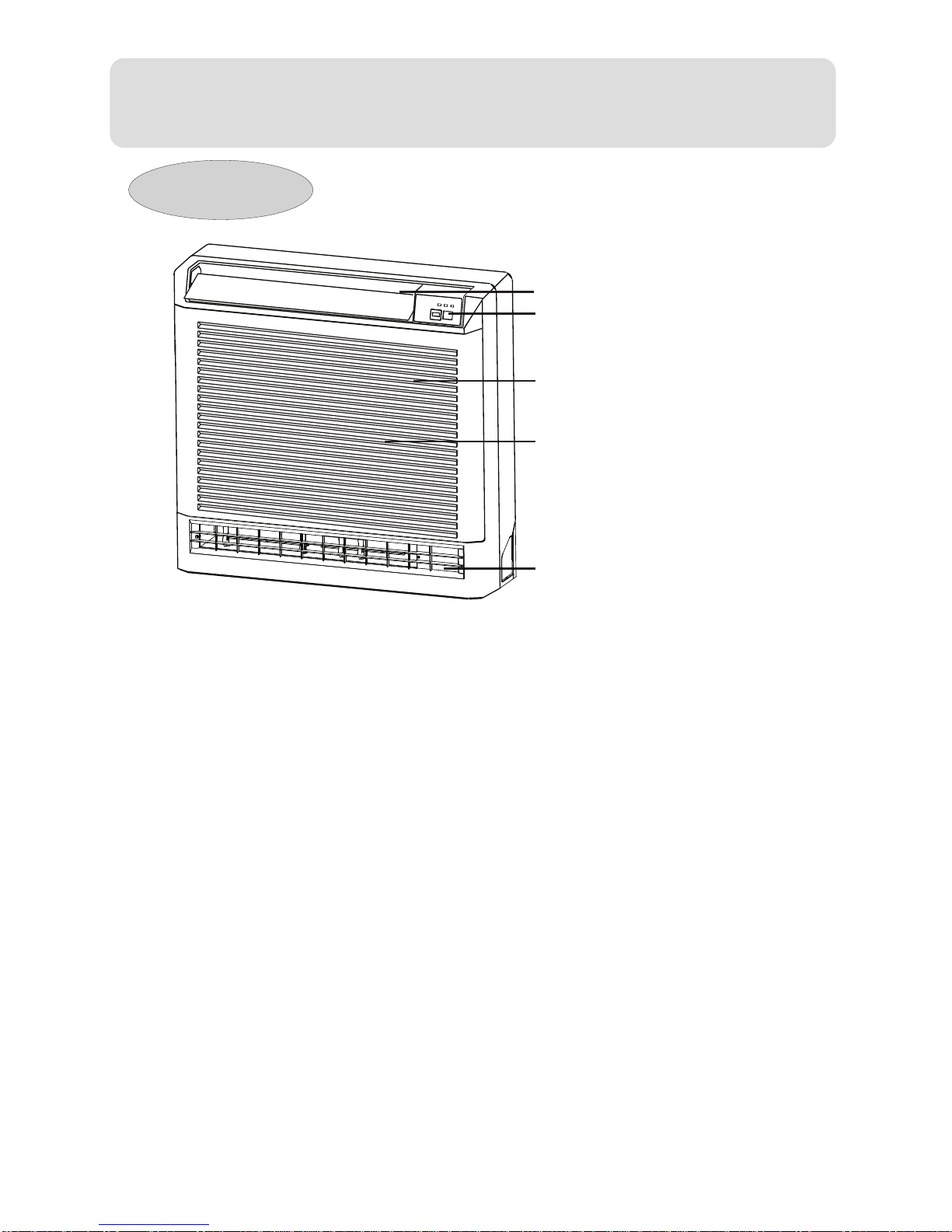

Parts and Functions
1
3
4
5
2
1.OUTLET
2.CONTROL PANEL
3.INLET
4.FILTER ( inside )
5.OUTLET
Indoor unit

6
Operation hints
Power failure resume (please set and apply as necessary)
With setting of power failure resume, if sudden power failure occurs, the unit will resume original operation when
power is supplied again.
used
than
Setting method:
with ON of remote controller (except TIMER and FAN),repeatedly press SLEEP button 10 times in 5 seconds,after
4 Beep from the buzzer,the unit comes into power failure resume mode.
To cancel:
press SLEEP button continuously 10times in 5 seconds,the buzzer sounds Beep twice and power failure resume
function is canceled.
Note:
When sudden power failure happens during unit operation in power failure resume mode, if the air conditioner
is not desired for use in a long period, please shut off the power supply in case that the unit automatically resume
operation when power is re-supplied, or press ON/OFFto turn off the unit when power resumes.

Maintenance
Maintenance at the end of application season
On a fine day, unit shall be started and operate in
FAN mode for about half a day until the inside of
the unit becomes thoroughly dry.
Turn off the unit operation switch and power on/off.
Otherwise,there will be some electricity consumption
even the unit is in stop status.
Clean the filter and indoor,cover the units well.
Maintenance before beginning of application season
Check there are no obstacles in the air
inlet and
outlet to avoid impairing of working
efficiency.
Please do attach the air filter to ensure the
electrostatic filters not soiled.Otherwise,dirt
will come into and damage the unit or bring
failures.
7

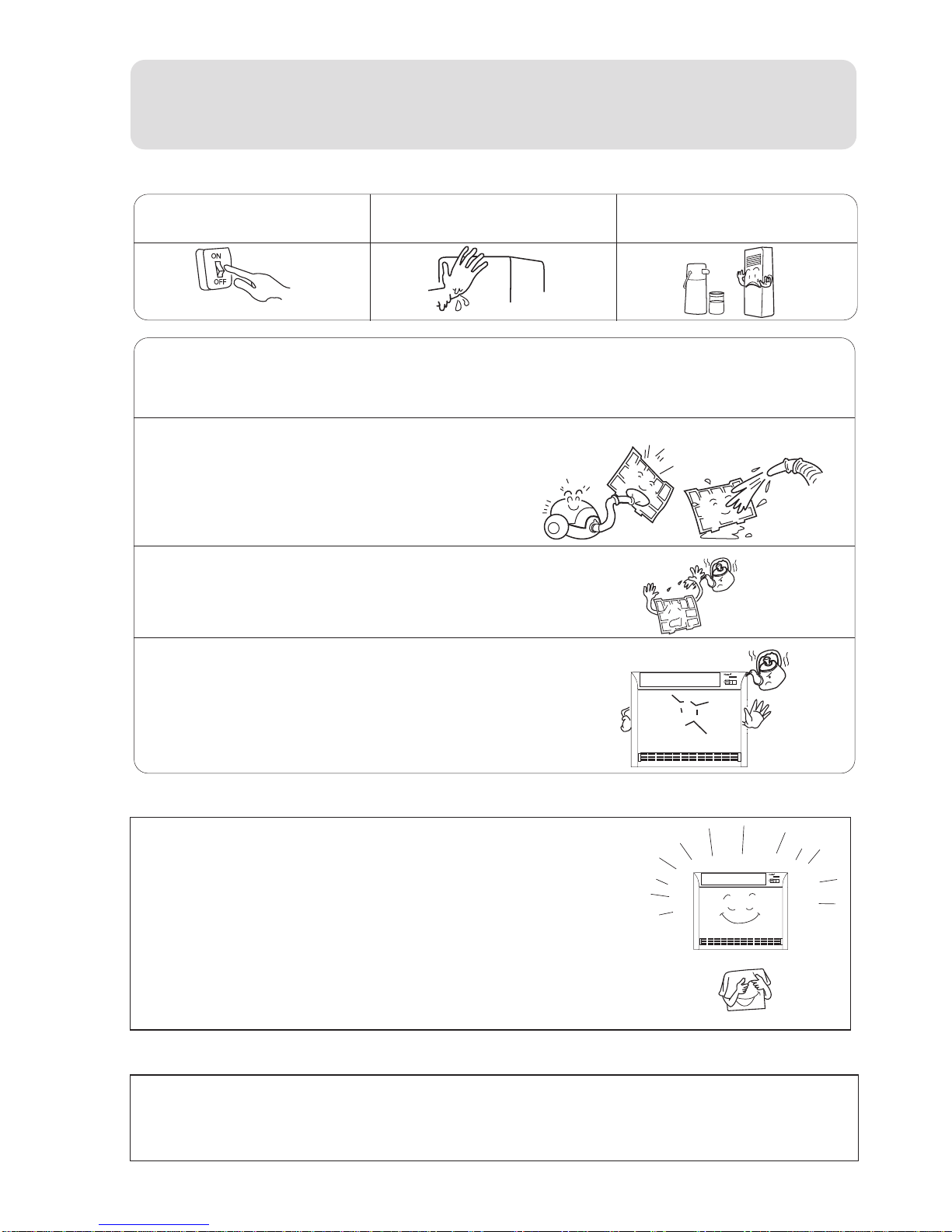

Cleaning of the unit
Take off the air inlet grill
First switch off the power supply,take off the
screw cap,loosen the screw with cross screwdriver .
Clean the filter
Use water or vacuum cleaner to remove
dust. If it is too dirt, clean with detergent or
neutral soap water.
Rinsing with fresh water, dry the filter and
re-assemble.
Caution:
Do not wash filter in hot water above 40∞C,
which will damage the filter.
Do carefully wipe the filter.
Clean the indoor(outdoor) unit
Clean with warm cloth or neutral detergent,
then wipe away moisture with dry cloth. Do
not use too hot water(above 40∞C),which will
cause discoloration or deformation. Do not
use pesticide or other chemical detergents.
Turn off the power switch Do not touch with wet hand Do not clean with hot
water or solvent

Is the air filter dirty? Normally it should be
cleaned every 15 days.
Are there any obstacles before inlet and outlet?
Is temperature set correctly?
Are there some doors or windows left open?
Is there any direct sunlight through the
window during the cooling operation?(Use
curtain)
Are there too much heat sources or too many
people in the room during cooling operation?
8
Trouble shooting
Before asking for service, check the following first.
Cause or check pointsPhenomenon
The system does not restart
immediately.
When unit is stopped, it won't restart
immediately until 3 minutes have elasped
to protect the system.
When the electric plug is pulled out and
reinserted, the protection circuit will work
for 3 minutes to protect the air conditioner.
Normal
Performance
inspection
Noise is heard: During unit operation or at stop, a swishing
or gurgling noise may be heard. At first 2-3
minutes after unit start, this noise is more
noticeable. (This noise is generated by
refrigerant flowing in the system.)
During unit operation, a cracking noise may
be heard. This noise is generated by the
casing expanding or shrinking because of
temperature changes.
Should there be a big noise from air flow in
unit operation, air filter may be too dirty.
Smells are generated. This is because the system circulates smells
from the interior air such as the smell of
furniture, cigarettes.
Mist or steam are blown out. During COOL or DRY operation, indoor unit
may blow out mist. This is due to the sudden
cooling of indoor air.
Multiple
check Does not work at all. Is power plug inserted?
Is there a power failure?
Is fuse blown out?
Poor cooling

9
Installation Manual of Room Air Conditioner
Place where it is easy to route drainage pipe
and outdoor piping.
Place ,away from heat source and with less
direct sunlight.
Place where cool and warm air could be
delivered evently to every corner of the room.
Place near power supply socket.Leave enough
space around the unit.
Place ,robust not causing vibration,where the
body can be supported sufficiently.
To prevent interference, place it at least 1m
away from other electric machines, such as
TV set, radio.
Installing
According to the dimension of the figure 2 shown,
nail two cement steel nails on the wall,Keep 2~3
mm out.then hang the back of the unit on them.
There must be no gap between the indoor unit
and wall.
Remove the front panel,then use two expansible
screws to fix the unit on the floor.As figure 3
shown.
Once refrigerant piping and drain piping connections
are complete,fill the gap of the throght hole with putty.
Attach the front panel and front grille in their orginal
positions once all connections are complete.
Tool necessary
1. Screw driver
2. Hacksaw
3. 70mm dia.hole core drill
4. Spanner(dia. 17,27mm)
5. Spanner(14,17,27mm)
6. Pipe cutter
7. Flaring tool
8. Knife
9. Nipper
10. Gas leakage detector or soap water
11. Measuring tape
12. Reamer
13. Refrigerant oil
Installation of indoor unit
selection of installation place
Fig1
330
617
Fig2
Fig3
more than
more than
more than
more than

Installation Manual of Room Air Conditioner
10
Double-spanner
operation
Fixing of the unit
1. Position of the wall hole
Wall hole should be decided according to installation
place and piping direction.(refer to installation drawings).
2. Making a wall hole
Drill a hole of 120X70mm dia. with a little slope towards
outside.
3. Piping connection
Indoor side Outdoor side
Thickness
of wall
Wall hole
70mm
(Cross section of wall hole)
Threads on the pipes may be damaged
when tightening if the pipes are not
well aligned.
(1) Schematic diagram for unit connection
(4) Pipe connection process
Torque
18 N.m
Pipe Value
6.35mm
Liquid
50 N.m
(2) Connection pipe dimensions:
9.52mm
Gas
Outdoor uint
3-way Valve
2-way Valve
Indoor unit
Indoor unit
Apply and tighten the nut.
(3)Cautions for pipe connection
Pipes free from twists, deformation, water, dust.
Dedicated tools for each R407C and R410A
should be used and stored separately.
Optimized radii of bends
Insulation to be applied on all gaseous pipes
Flared section free from cracks
Joint
Spanner
Spanner Nut
Apply refrigeration oil on the end of the pipe to be connected and on the flared section.
Align the pipes to be connected and tighten the nut. (See the figure)
Ensure that no foreign articles enter into the pipes.
Flared pipe connection

Installation Manual of Room Air Conditioner
11
Piping connection of the indoor unit
1. Arrangement of piping and drainage pipe
After opening inlet grill,you will see a control box.
Remove the cover before working.
Cut away, with a hammer or a saw, the lid for piping according to piping direction.
According to the piping method, connect the piping on indoor unit with union of connection pipe.
Arrange the piping as per the wall hole and bind drain hose connecting electric cable and piping
together with polyethylene tape.
Insert the bound piping connecting electric cable and drain hoes through wall hole to connect
with outdoor unit.
2. Arrangement drain hose
Drain hose shall be placed in under place.
There should be a slope when arrange drain hose. Avoid up and down waves in drain hose.
If humidity is high, drain pipe(especially in room and indoor unit) must be covered with
installation material.
Insulation material
Copper tube
Drain hose
Connecting electric cable
for indoor and outdoor unit

12
Installation Manual of Room Air Conditioner
Electric wiring :
When connecting indoor and outdoor wire, check the number on indoor and outdoor terminal
blocks. Terminals of same number and same color shall be connected by the same wire.
Incorrect wiring may damage air conditioner's control or cause operation failure.
Note:
Process of wire connections
1. Loop terminal
After removing the screw, fix the wire ring on the screw, reinsert the screw into the
block terminal and then tighten the screw.
2. Straight terminal
After loosening the screw, inset the wire end into the block terminal and then tighten
the screw. Slightly pull the wire to see if it is tightly fixed.
3. Wire capping
After completion of connection, capping clips must be
applied on the external sleeve of the wires.
Wiring connection:
Wiring of indoor unit
Remove air intake screen and take out the front wires.
Connect the wires as specified in the above
methods and diagrams for indoor unit and wire con-
nections.
Properly apply capping clips on the wires.
Replace the air intake screen.
Do not link the connecting and signal wire with the
same cable, a snug space must be maintained
between connecting and signal wires.
Shield of the signal wire should be spot grounded.
Block terminal
Capping clip
Wiring diagram of loop terminals
1(L)
N
LQ
P
TO POWER SUPPLY
(1PH,220-230V~,50Hz) CONNECT TO
OUTDOOR UNIT

13
2.Piping cutting and flaring
Be sure to carry out deburring after cutting with a pipe cutter.
Insert flaring tool to make a flare.
Installation inspection and test run:
Please operate unit according to this Manual.
Items to be checked during test run. Please made a '' '' in '' ''
Are there any gas leakage?
How is insulation at piping connection carried out?
Are electric wires of indoor and outdoor unit firmly inserted into terminal block?
Is electric wiring of indoor and outdoor securely fixed?
Is drainage securely carried out?
Is earth line(grounding) securely connected?
Is power supply voltage abided by the code?
Is there any noise?
Is control display normal?
Is cooling operation normal?
Is room temp. regulator normal?
Liquid pipe Pipe diameter Size A (mm)
0.8 ~1.5
1.0 ~1.5
6.35mm(1/4")
9.52mm(3/8")
Gas pipe
A
Correct Incorrect
Lean Damage of flare Crack Partial Too outside
Flare tooling die
Others
The power plug should be connected as follows: L for live line, N for neutral line and
for grounding.
Voltage: single-phase1PH,220-230V*,50Hz
The power source must be grounded.
Connection parameters: H05RN-F 3G(1.0-1.5)mm
Signal parameters:
1.Power supply requirements:
Cables for power supply, connection and signals are prepared by the owner.
Electrical cables should be connected by ìYî method. Damaged or wornelectrical cable
must be replaced by authorized after sales agents.
A circuit breaker must be installed
Dedicated electrical cable should be installed by a qualified technician in
accordance with the state regulation for electrical engineering.
H05RN-F 2x(0.75-1.5)mm (Shieded wire)
Installation Manual of Room Air Conditioner
The signal wire must be shielded wire.

14
Resumable failures are marked with " ", the others are not resumable failures.
Resumable failure will disappear when the failure is eliminated and its failure code
will disappear automatically within 30 seconds. But the other failure code will
disappear only after the unit starts up once again.
When failure occurs, the unit only can receive "OFF" signal from the controller.
And when the unit is shut off, the failure code will disappear.
Failure description
Room temp. sensor abnormal
Indoor coil temp. sensor abnormal (liquid pipe)
Refrigerant system abnormal
High pressure abnormal (outdoor)
Drainage abnormal
Communication between indoor and wired controller
Indoor fan motor abnormalup
Indoor fan motor abnormaldown
3 phase abnormal
Low pressure abnormal (outdoor)
Communication between indoor and outdoor abnormal
Compressor overheat
CT current abnormal
Outdoor ambient temp. sensor abnormal
Outdoor coil pipe temp. Sensor A abnormal
Outdoor coil pipe temp. sensor B abnormal
Abnormal modes running
Outdoor discharging temp. sensor A abnormal
Indoor EEPROM abnormal
Flash times of indoor
receiver board
Power LED flashes 1 time
Power LED flashes 2 times
Power LED flashes 3 times
Power LED flashes 5 times
Power LED flashes 6 times
Power LED flashes 7 times
Power LED flashes 8 times
Power LED flashes 9 times
Running LED flashes once
Running LED flashes twice
Running LED flashes 3 times
Running LED flashes 4 times
Running LED flashes 5 times
Running LED flashes 6 times
Running LED flashes 7 times
Running LED flashes 10 times
Running LED flashes 11 times
Running LED flashes 12 times
Running LE
D flashes 14 times
Outdoor discharging temp. sensor B abnormal Running LED flashes 8 times

HAIER GROUP
Qingdao Haier Air Conditioner Electric Co., Ltd.
Address: Haier Garden ,Qianwangang Road , Economic Development Zone,
Qingdao ,Shandong 266500, P.R.C
Web Site: http://www.haier.com
