Please read this operation manual before using the air conditioner.
No.0010578212
Operation & Installation Manual
CABINET TYPE AIR CONDITIONER
Please keep this manual carefully and safely.
AP482AKEAA
AP602AKEAA
SLEEP
ON/OFF MODE
FAN
SET
TEMP
HUMI
HEALTH
TIMER
TEMP+ TEMP- HEALTH

Content
Operation
Cautions
Parts
Operation
Operation hints
Energy saving
Maintenance
Trouble shooting
When problems occur
Indoor & outdoor unit connection
Tools necessary
Installation procedures
5-12
13
14
17
20
1-2
3-4
15-16
18-19
21
22-26
Others 27

Cautions
1
Disposal of the old air conditioner
Before disposing an old air conditioner
that goes out of use, please make sure
it's inoperative and safe. Unplug the air
conditioner in order to avoid the risk of
child entrapment.
It must be noticed that air conditioner
system contains refrigerants, which
require specialized waste disposal. The
valuable materials contained in a air
conditioner can be recycled. Contact
your local waste disposal center for
proper disposal of an old air conditioner
and contact your local authority or your
dealer if you have any question. Please
ensure that the pipework of your air
conditioner does not get damaged prior
to being picked up by the relevant
waste disposal center, and contribute
to environmental awareness by
insisting on an appropriate, anti-
pollution method of disposal.
Disposal of the packaging of your
new air conditioner
All the packaging materials employed
in the package of your new air
conditioner may be disposed without
any danger to the environment.
The cardboard box may be broken or
cut into smaller pieces and given to a
waste paper disposal service. The
wrapping bag made of polyethylene
and the polyethylene foam pads
contain no fluorochloric hydrocarbon.
All these valuable materials may be
taken to a waste collecting center and
used again after adequate recycling.
Consult your local authorities for the
name and address of the waste materials
collecting centers and waste paper
disposal services nearest to your house.
Safety Instructions and Warnings
Before starting the air conditioner, read
the information given in the User's Guide
carefully. The User's Guide contains very
important observations relating to the
assembly, operation and maintenance of
the air conditioner.
The manufacturer does not accept
responsibility for any damages that may
arise due to non-observation of the
following instruction.
Damaged air conditioners are not to
be put into operation. In case of doubt,
consult your supplier.
Use of the air conditioner is to be
carried out in strict compliance with the
relative instructions set forth in the User's
Guide.
Installation shall be done by
professional people, don't install unit by
yourself.
For the purpose of safety, the air
conditioner must be properly grounded
in accordance with specifications.
Always remember to unplug the air
conditioner before opening inlet grill.
Never unplug your air conditioner by
pulling on the power cord. Always grip
plug firmly and pull straight out from the
outlet.

2
The machine is adaptive in following
situation
1. pplicable ambient temperature range:
Cautions
Cooling
Heating
Indoor
outdoor
Rated Maximum Minimum
27 32 18
19 23 14
35 43 10
24 26 6
20 27 15
14.5 -- --
7 24 -7
6 18 --
DB C
WB C
DB C
WB C
Indoor
outdoor DB C
WB C
DB C
WB C
4. The wiring method should be in line
with the local wiring standard.
5. The power cable and connecting
cable are self-provided. All the cables
shall have got the local authentication
certificate.
6. The breaker of the air conditioner
should be all-pole switch; and the
distance between its two contacts
should be no less 3mm. Such means
for disconnection must be incorporation
in the fixed wiring.
7. The waste battery shall be disposed
properly.
2. If the supply cord is damaged, it must
be replaced by the manufacturer or its
service agent or a similar qualified
person.
3. If the fuse on PC board is broken
please change it with the type of T 3.15A
/250VAC.
Please check the circuit diagram about
the fuse replaced.
All electrical repairs must be carried
out by qualified electricians.
Inadequate repairs may result in a
major source of danger for the user of
the air conditoiner.
Do not damage any parts of the air
conditioner that carry refrigerant by
piercing or perforating the air
conditioner's tubes with sharp or
pointed items, crushing or twisting any
tubes, or scraping the coatings off the
surfaces. If the refrigerant spurts out
and gets into eyes, it may result in
serious eye injuries.
Do not obstruct or cover the
ventilation grille of the air conditioner.
Do not put fingers or any other things
into the inlet/outlet and swing louver.
Do not allow children to play with
the air conditioner. In no case should
children be allowed to sit on the
outdoor unit.
Specifications
The refrigerating circuit is leak-proof.

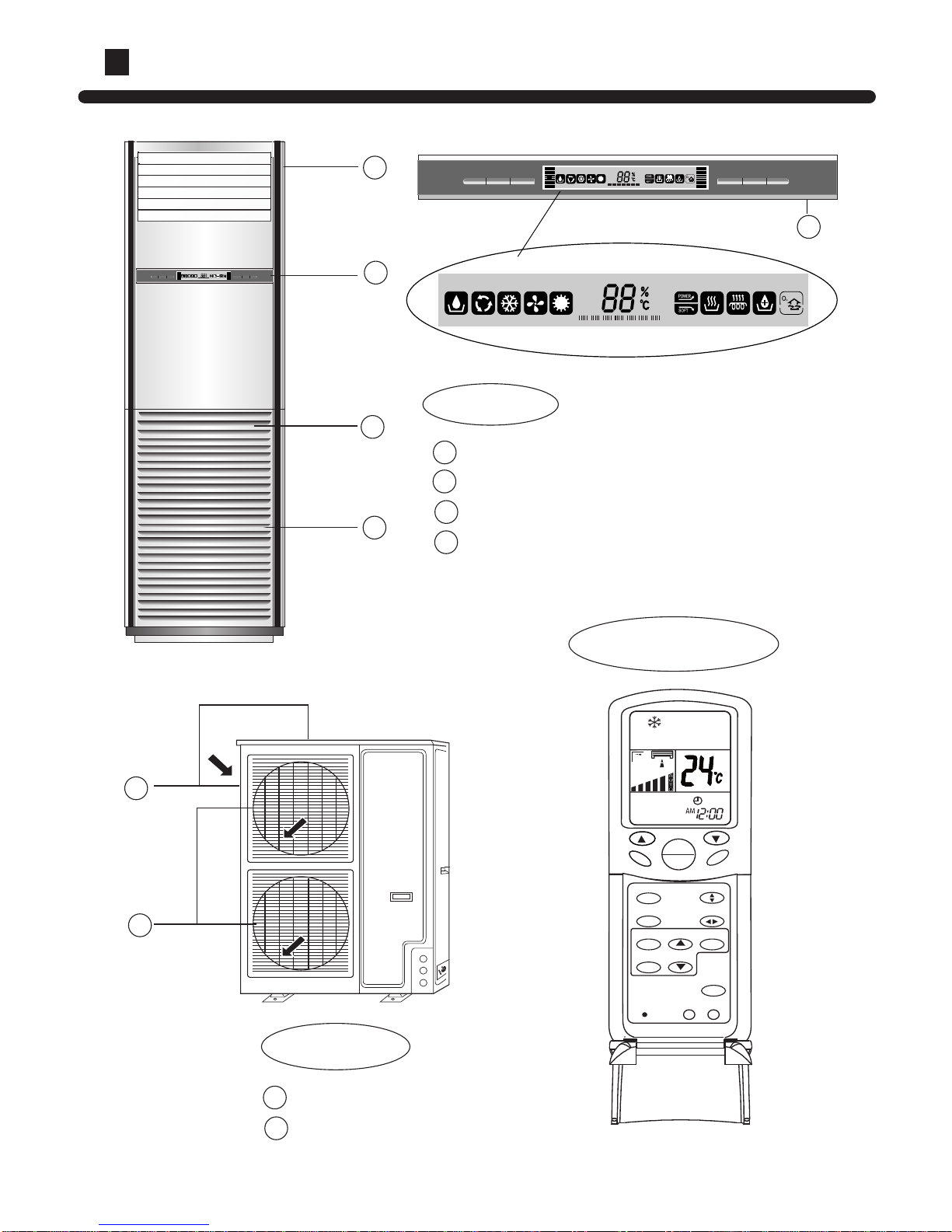

Parts
3
1
2
3
4
Indoor unit
Outlet grill
Operation panel
Inlet grill
Air filter [inside the unit]
1
2
Outdoor unit
Inlet grill
Outlet grill
Remote controller
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
2
1
2
3
4
1
2
SLEEP
ON/OFF MODE
FAN
SET
TEMP
HUMI
HEALTH
TIMER
TEMP+ TEMP- HEALTH
SLEEP
ON/OFF MODE
FAN
SET
TEMP
HUMI
HEALTH
TIMER
TEMP+ TEMP- HEALTH
HEALTH
TIMER
SLEEP
SET
HUMI
TEMP

Manual Operation
MODE
CLOCK
Used to set correct time.
TIMER
LIGHT
Used to set temp.,temp.
range:16 C~30 C
SLEEP
Used to select sleep
mode
HOUR
Used to set clock
and timer setting.
RESET
Used to reset the
controller back to
normal condition.
LOCK
Used to select
TIMER ON, TIMER
OFF, TIMER
ON/OFF.
Used to lock buttons
and LCD display.
Note: These models don't have the following related display and function
For some air conditioners , the function is not availed.
Power ON/OFF
Used for unit start and stop.
Used to select AUTO run,
COOL, DRY, FAN and HEAT
operation.
2
SET
Used to confirm
Timer and Clock
setting.
TEMP
HEALTH
Control the light up and go out
of the control panel's
background light source and
control the switch of the buzzer.
Used to set Health
operation function
FAN
Used to select fan speed:
AUTO, LOW FAN, MED FAN,
HIGH FAN.
Used to set UP/DOWN air
sending and RIGHT/LEFT air
sending direction.
Health display
Display when set Health
operation function.
Battery Capacity display
Timer ON/OFF display
Fan speed and air
sending direction display
Swing direction display
Room temperature display
Power/Soft operation display
Humidifying display
Clock display
Temperature display
Used to display the set
temperature and room
temperature.
Lock state display
Sleep state display
Electric Heating display
SWING HEAT
Fresh Air state display
Select Auxiliary
electric heater
LOW MID HIGH AUTO
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
23
24
25
26
27
29
28
22 28
27
19
11 29
4
For cooling only unit, there is no functions related to heat.
Parts
LOW MID HIGH AUTO
Remote
controller
Control
panel Part 1 to 4
bright periodically
12 2 12 23 3 12 23 34 4 12 23 34 4
Display when the electric
power of the battery is
insufficient.
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
2
HEAT
29
1
3
4
5
6
7
8
9
10
11 12
13
14
15
16
17
18
19
21
23
24 25
26
28
20
BA
27
22
12 14 11
12
SLEEP
ON/OFF MODE
FAN
SET
TEMP
HUMI
HEALTH
TIMER
TEMP+ TEMP- HEALTH

5
1
2
3
Operation
Clock set
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase
or decrease 1 min . If the button is kept pressed, time will
change quickly.
After time setting is confirmed, press SET, "AM" and "PM"
stop flashing, while clock starts working.
Remote controller's operation
When in use, put the signal transmission
head directly to the receiver hole on the
indoor unit
The distance between the signal transmission
head and the receiver hole should be within
7m without any obsacles as well.
Don't throw the controller, prevent it from
being damaged.
When electronic-started type fluorescent
lamp or change-over type fluorescent lamp
or wireless telephone is installed in the room,
the receiver is apt to be disturbed in receiving
the signal so the distance to the indoor unit
should be shorter.
2R-03 dry batteries
MINUTES
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
123
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries
after 5 mins.
Note:The waster batteries should be disposed properly,use two
new same-type batteries when loading.
If the remote controller can’t function normally or doesn’t work at
all,use a sharp-pointed item to press the reset key.
Hint:Remove the batteries in case unit won’t be in usage for a long period.
If there are any displays after taking-out just need to press reset key.
When throw away the waste batteries, please perform in accordance with the local regulation.
Loading of the battery
Slightly press " " and push down the cover.
Load the batteries as illustrated.
2 R-03 dry batteries, (cylinder)
Be sure that the loading is in line with the "+"/"-" pole
request as illustrated.
Put on the cover again.
When unit is started for the first time
and after replacing batteries in remote
controller, clock should be adjusted as follows:

LOW MID HIGH AUTO
Remote
controller
Remote
controller AUTO COOL DRY FAN HEAT
Operation
2Press MODE button. For each press,
operation mode changes as follows:
4Press FAN,For each press, operation mode
changes as follows:
Unit runs at the speed displayed on LCD.
When fan speed is AUTO,it is changed
automatically according to the indoor temperature.
Note:
During Auto run operation, temp. setting will be shown in LCD display, unit will select heating,
cooling or fan operation according to the room temp.
5
6
Select temp. button
Press TEMP button
Every time the button is pressed, temp.
setting increases 1 C
Every time the button is pressed, temp.
setting decreases 1 C
If the button is kept pressed, setting will
increase or decrease quickly.
3
In DRY mode, when room temp.becomes 2 oC
higher than temp. setting,unit will run intermittently
at LOW speed regardless of FAN setting.
Ultra-low air flow
Temp.setting+2 C
Temp.setting
COOL operation starts when room
temp. is higher than temp. setting.
On reaching 2 C higher than temp.
setting,unitwill run in mild DRY mode.
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
Then select AUTO run or select COOL
operation or select DRY operation or select
HEAT operation*
TEMP+
TEMP-
Press ON/OFF button Unit stops running.
Remote-control unit
Control panel
1Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP mode)
Control panel
Part 1 to 4
bright periodically
Control
panel
AUTO COOL DRY FAN HEAT
LOW MID HIGH AUTO
12 2 12 23 3 12 23 34 4 12 23 34 4
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH

7
Operation
Fan Operation
3. Adjust fan speed
Press FAN button.At each press, fan speed changes
as follows:
Air conditioner will run at the selected fan speed.
4. Unit stop
Press ON/OFF button to stop unit.
Then select FAN
About FAN mode
When the air conditioner runs in FAN
mode,it is not possible to select AUTO
FAN or to set temperature.
Manual Operation
Remote controller
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
Control panel
Control panel
Remote
controller
Remote
controller
1.Unit start
Press ON/OFF button to start your air conditioner.
Previous operation status appears on LCD (except for
TIMER, SLEEP, setting).
2.Select operating mode
Press MODE button. At each press, operation mode
changes as follows:
Control
panel
AUTO FAN HEATCOOL DRY
LOW MED HIGH
LOW MID HIGH
12 2 12 23 3 12 23 34 4
AUTO COOL DRY FAN HEAT
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH

8
(Not availble in these units)
(Not availble in these units)
2.Up & down air direction
Press the up & down button once ,the LCD aiflow direction will display as follows:
Cooling/Dehumification/airflow :
The up& down flade will move according to the above conditions.
Note:Pay more attention to not cut down the power supply because the flade can’t back to
the colse position at this circumstance;
3.Left & right air direction
Press the Left & right button once ,the LCD aiflow direction will display as follows:
The left & right flade will move according to the above conditions.
Note:
1.During AUTO mode,pls. don’t touch the flade to avoid damaging the inner part of the unit;
2.If the difference between real position & the chart position ,press ON/OFF(control panel)
button or ON/OFF (remote controller ) button to close the flade and re-open the unit,then it
will be normal condition.
Up and down Side from side
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
[COOL/DRY/FAN
/AUTO(COOL)
have not]
(AUTO SWING)
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
Operation
Air flow adjustment
Swing louvers (Vertical louvers) (Horizontal louvers)
(AUTO SWING)
Remote controller:
Heating :
Auto :
Position 1 Position 2 Position 3 Position 4 Position 6
Position 5 Position 4 Position 3 Position 2 Position 1 Position 6
Position 1 Position 2 Position 3 Position 4 Position 5 Position 6
Remote controller: Position 1 Position 2 Position 3 Position 4 Position 5 Position 6 Position 7 Position 8

Sleep Function
Before using this function, the clock must be set.
Use of SLEEP function
After the unit's start, set running mode and then press SLEEP button once to make the air conditioner
have the previous-set sleep time (first power-on is "1h"). The sleep symbol will appear. Press time
button / : you can choose the time in 1~8 hours. Each time the button is pressed, the time
increases/decreases 1 hour: "xh" and "OFF" indications appear on the display.
Operation Mode
1.In COOL, DRY mode
One hour after sleeping operation start, the
temperature
is 1 C higher than the setting one. After another
hour, temperature rises 1 C: sleep run continuously
for another 6 hours and then stops. The actual
temperature is higher than the setting one which
is to prevent from being too cold to your sleep.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
about 6 hrs
1 hrs
In COOL,DRY mode
increase 1 C
increase 1 C
Notes:
After setting SLEEP function, it is not possible to set clock.
If set-sleep time does not reach 8 hours, unit will automatically stop
operation after set time is reached.
Set " TIMER ON " or " TIMER OFF "In COOL,DRY mode function first,
then set SLEEP. After set SLEEP function, the TIMER function cannot
be set.
9
Operation
2.In HEAT mode
One hour after sleeping operation start, the
temperature
is 2 C lower than the setting one. After another
hour, temperature decreases by 2 C more.
Temperature will automatically rise by 1 C after
another 3 hours' continuous operation. The actual
temperature is lower than the setting one which
is to prevent from being too hot to your sleep.
3.In AUTO mode.
The air conditioner will run in corresponding sleep
operation according to the automatically selected
operation mode.
SLEEP RUN BEGINS SLEEP RUN STOPS
SETTING T SHUT DOWN
1 hrs 1 hrs
3 hrs about 6 hrs
increase 1 C
decrease 2 C
decrease 2 C
In HEAT mode
The control panel will display "SLEEP" ON LCD when
SLEEP function set.
Control panel
Remote controller
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
SLEEP
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH

Timer ON/OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
ON OFF ON OFF
AM12:00 AM12:00
PM12:00 PM12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank
Then select TIMER mode as needed (TIMER ON or TIMER OFF).
Now or will flash.
4.Confirm setting
5.Cancel TIMER mode
Just press TIMER button several times until TIMER mode
disappears.
Hints:
After replacing batteries or if a power failure occurs, TIMER setting must be reset.
Remote controller has memory function. When you use TIMER mode next time, just press SET
button after mode selection if timer setting is the same as the previous one.
Note:
After setting TIMER function, the remote controller displays TIMER time.
ON OFF
ON OFF
After setting correct time, press SET button to confirm time. Now
or stop flashing.
Every time the button is pressed, time increases 1 minuts.
If the button is kept pressed, time changes quickly.
3.TIMER setting (press time adjust buttons )
Every time the button is pressed, time decreases 1 minuts.
If the button is kept pressed, time changes quickly.
It can be adjusted within 24 hours at will.
Manual Operation
10
Operation
Remote controller
The control panel will display TIMER.
Control panel
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
1
ON
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH
TIMER

Manual Operation
Remote controller
11
Operation
Timer ON-OFF Function
Set clock correctly before starting TIMER operation
1.Unit start
After unit start, select your desired operation mode (operation
mode will be displayed on LCD)
2.TIMER mode selection
Press TIMER button on the remote controller to change TIMER
mode. Every time the button is pressed, display of TIMER mode
changes as follows:
OFF
3.Time setting for TIMER ON
4.Timer confirming for TIMER ON
After setting correct time, press TIMER button to confirm time.
Now
5.Timer setting for TIMER OFF
Press time buttons and follow the same procedures in " Time setting for TIMER ON"
Press time button
ON
stops to flash, while starts flashing.
6.Time confirming for TIMER OFF
After time setting, press SET button to confirm time. stops to flash.
7.Canel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
According to the time setting sequence of TIMER ON and TIMER OFF, either start-stops or
stops-start can be realized.
If the time setting of TIMER ON is the same as TIMER OFF, TIMER ON-OFF function cannot
be set.
ON
Then select TIMER ON-OFF mode. will flash.
Every time the button is pressed, time increases 10 minuts.
If the button is kept pressed, time will changes quickly.
Every time the button is pressed, time decreases 10 minuts.
If the button is kept pressed ,time will changes quickly.
It can be adjusted within 24 hours at will.
AM refers to morning and PM refers to afternoon.
OFF
The control panel will display TIMER.
Control panel
ON OFF ON OFF
AM12:00 AM 12:00
PM12:00 PM 12:00
TIMER ON TIMER OFF TIMER ON-OFF
blank
ON
OFF
TEMP
HEALTH FAN
MODE
SLEEP SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
HEAT
ON
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH
TIMER

12
Operation
Display function
1.Control panel display control:
Press the LIGHT button ,the LCD will display according to the following
sequence when press once :
LCD bright
Buzzer not act LCD bright Buzzer act LCD not bright Buzzer act
2.LCD color control:
When the LCD bright ,the color will display according to the above standard color ,when
two or more than two kinds of functions operate,the color will display according the
priority class (Sequence from High to low 3 2 1 ).
When cut off the power and restart the power ,the room temp. will be displayed after
full screen display lasting 5 seconds .Press the panel button or remote control ,the
air conditioner will send out music sound .
Control panel
Control panel display
ON/OFF MODE
FAN
TEMP
TEMP+ TEMP- HEALTH
Function
Auto
Cooling
Heating & Auxillary
Dehuimidy
Color
White & Pink
Blue
Red
Light blue
Priority
1
1
1
1
Function
Blowing
Negativeion&
Anti-bacterial
Double fresh air
Color
Yellow & Green
Green
Pink
Priority
1
2
3

Unit operation
Protection devices inside the unit will activate to stop unit operation, when ambient
temp. is extremely low or high.
When unit is running under high humidity in cooling or dehumidifying mode, condensate
might appear at outlet grill.
3-min delay protection
Fan speed changes
Unit will not restart until 3 min have elapsed for the protection of the unit.
When Fan speed is set at Auto in cooling mode, it will be automatically reduced as
room temp. is approaching temp. setting.
In dry mode, fan speed will change automatically.
13
Operation hints
Cold draft prevention
Use objectively
Defrosting
In heating mode, indoor fan will not run for the first 2-5 min. due to cold draft prevention.
When frost accumulates on heat exchanger in heating mode, unit will start defrosting
automatically.
During defrosting, both indoor and outdoor fan stop.
After defrosting, unit resumes running.
Heat pump works by means of absorbing outside heat to warm room air, so outdoor
temp. degree will affect unit's heating efficiency.

14
Energy saving
Keep proper room temp.
Too cold or too warm is no good
to your health, and power
consumption will be increased as
well.
Air filter should be periodically cleaned
If air filter is clogged:
It will cause poor cooling and
heating efficiency, higher power
consumption and even problem
may occur. In cooling operation,
water will flow out.
Use Timer effectively
You may use Timer mode to keep
a comfortable room temp.when
you wake up or come home from
outside.
Avoid direct sunlight
and air flow Adjust air flow properly
Proper temp.
8:00 5:00
AM PM
ON OFF

15
Don't spray any paint or insecticide
on the unit.
Don't splash water directly on indoor
unit.
This will cause damage or even fire accident.
This could be
very dangerous
Maintenance
Disconnect power supply Don't touch it with wet
hand Don't wash with hot water or solvent to clean the unit
Pull it out from top as shown in Fig.
Use water or vacuum cleaner to clean it.
If it is extremely dirty, wash it with neutral
detergent or soap water.
Wash it with clean water and install it after
complete dry.
Air filter cleaning
Don't use hot water over 40 C, as this may cause damage to air filter.
Wipe air filter carefully.
Caution:

16
Maintenance
After season maintenance
Before season maintenance
Let the unit run in Fan mode for half a day in a
fine weather to dry completely the unit inside.
Turn off the unit and pull out power plug.
There might be certain power consumption even
if unit is stopped.
Clean air filter and indoor unit, cover outdoor
unit after cleaning.
Check if there are obstacles at inlet and outlet of indoor and outdoor unit,
whick will reduce unit efficiency.
Don't fail to attach air filter after making sure it
is cleaned.
Dust will enter into unit causing damages or
faults if it is running without air filter.
To protect compressor at start, please connect external power supply to
the unit 12 hrs prior to starting. Also please keep the power supply switch
ON during the whole season.
Clean it with warm and wet cloth or with neutral detergent, then wipe it dry with
clean and soft cloth.
If air conditioner is very dirty, clean it with cloth soaked in neutral detergent,then
wipe off the detergent with clean water.
Don't use water higher than 40 C , which will cause discoloring and deformation.
Don't use insecticide or other chemical detergents.
Indoor and outdoor cleaning

17
Trouble shooting
Followings are not problems
Sound of water flowings are not
problems.
Sound of cracking is heard.
Smells are generated.
During operation, white fog or steam
comes out of indoor unit.
In cooling operation, unit switches to fan
operation.
Unit will not restart after stop.
Won't start?
No outlet air or fan speed can't be changed in
dry mode.
In heating operation, water or
steam are blown out of indoor
unit.
In heating operation, indoor fan won't stop even
if unit is stopped.
During unit start and operation or at stop, a swishing or
gurgling noise may be heard. This noise is generated by
refrigerant flowing in the system.
During unit operation, a cracking noise may be heard.
This noise is generated by the casing expanding or
shrinking because of temperatuer changes.
This is because the system circulates smells from the
interior air such as the smell of cigarettes or the painting
on the unit.
When unit is running at places like restaurant where dense
edible oil fumeis always exist, this will happen.
To prevent frost from accumulating on indoor heat
exchanger, unit will switch to fan operation for a while
then resume cooling operation.
Though ON/OFF button is set to
ON, unit won't resume cooling,dry
or heating operation in 3 min after
it is stopped, this is because of 3-
min-delay protection circuit.
Unit will reduce fan speed repeatedly and automatically
if room temp. is too low in dry operation.
This occurs when frost
accumulated on the outdoor unit
is removed.
(during defrosting operation)
After unit stops, indoor fan will go on running until indoor
unit cools down.
Please wait 3 minutes

18
When problems occur
Before asking services, please firstly check your unit according to following.
If your unit still can't work properly after above mentioned checks, or following problems occur,
please stop it immediately and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
If the fuse on PC board is broken please change it with the type of T3.15A/250VAC.
Air conditioner won't start.
Is power supply switch
turned on?
Power supply
switch is not set
at ON.
Are operation controlls
adjusted correctly
as specified?
Are horizontal louvers
at up position (in
heating mode)?
Is there any direct sunlight
in the room?
Poor cooling or heating
Poor cooling
Is city power supply normal?
Is air filter too dirty?
Any doors or windows left
open?
If there are unexpected heat
sources in the room?
Are there any obstacles at inlet
or outlet grill?
Too many people in the room?
Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
Proper
temp
Power
failure?
