Haier HSU-088M06 User manual

No.0010559242
Pleasereadthisoperationmanualbeforeusingtheairconditioner.
SPLITTYPEROOMAIRCONDITIONER OPERATIONMANUAL
HSU-088M06
HSU-098M06
HSU-108M06
HSU-128M06
HSU-188M06

1
2-4
5-13

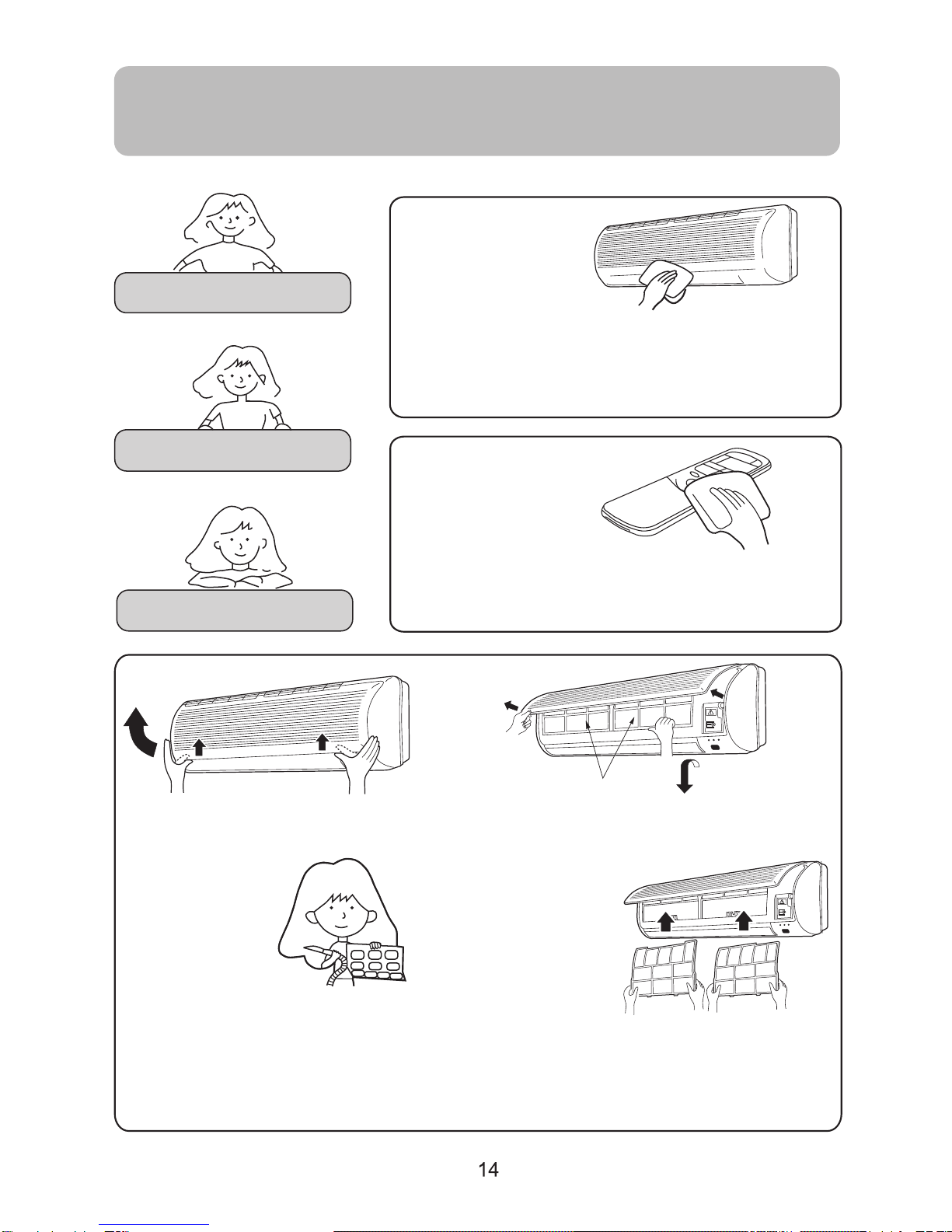

14-15

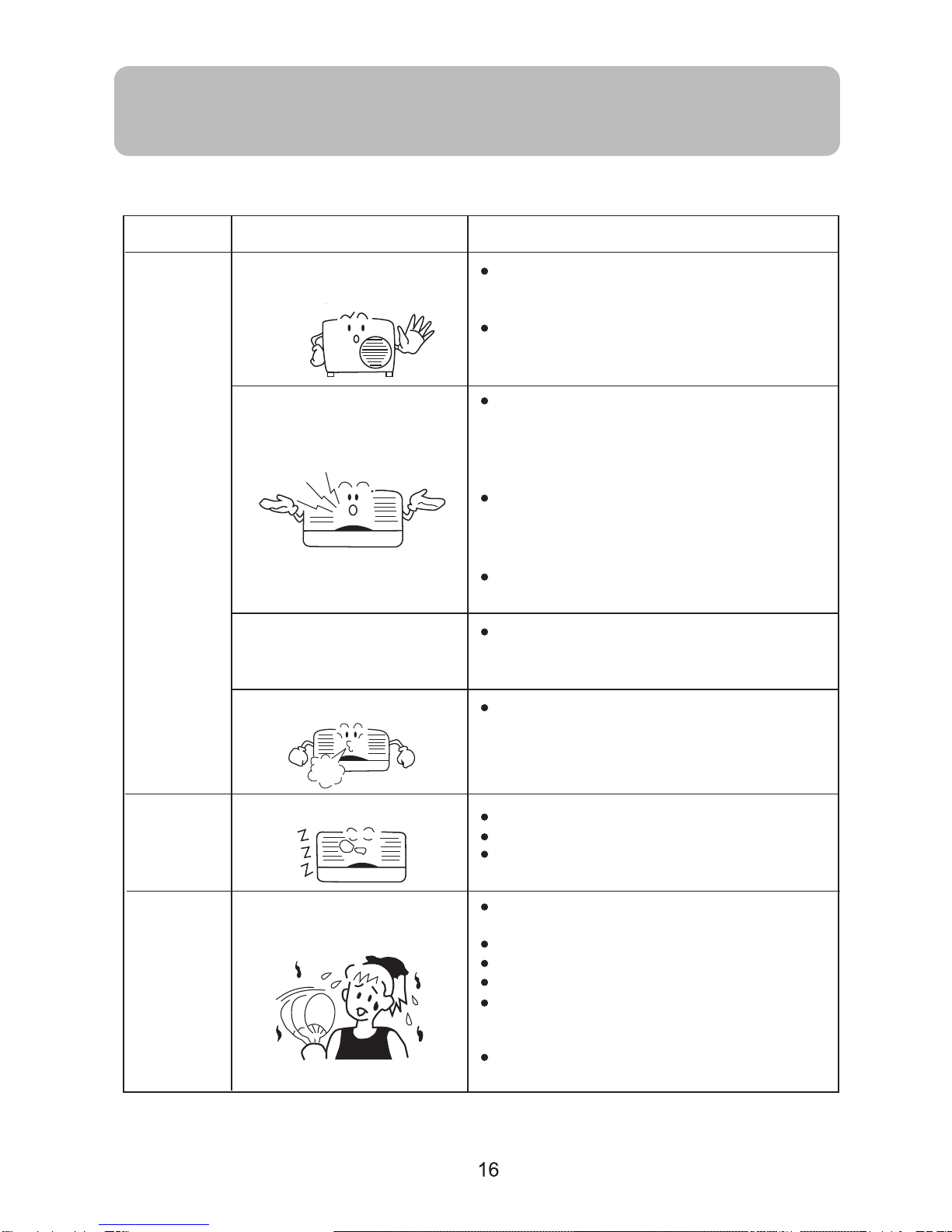

16
Contents
Cautions Partsandfunctions Operation Maintenance Troubleshooting

Maximum: D.B
10.The appliance must be installed on strong enough supporter.
9.Young children should be supervised ensure that they do not play with the appliance.
8. The appliance is not intended to use by young children or infirm persons without supervision.
7. The waste battery should be disposed properly.
6. After installation, the power plug should be easily reached.
5. The wiring method should be in line with the local wiring standard.
4. The distance between the indoor unit and the floor should be more than 2m.
3. If the fuse on PC board is broken please change it with the type of T. 3.15A/250V.
11.The wiring diagram is attached inside the machine.
or a similar qualified person. The type of connecting wire is H05RN-F or H07RN-F
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
Cautions
The machine is adaptive in following situation
I. Applicable ambient temperature range:
Cooling
Heating
Indoor
Outdoor
Outdoor
Indoor
Maximum: D.B / W.B 32oC/23oC
18oC/14oC
43oC/26oC
18oC
27oC
15oC
24oC/18oC
-7oC/-8oC
Minimum: D.B / W.B
Minimum: D.B
Maximum: D.B
Minimum: D.B
Maximum: D.B / W.B
Minimum: D.B / W.B

Parts and Functions
Indoor Unit
Outdoor Unit
Inletgrille
Airfilter
Vertical flap Power indicator Timer mode indicator Operation mode indicator
Remote signal receiver
Emergency switch(manual)
Test running switch(manual)
Useremotecontrollerto
adjustupanddownairflow.
(Don'tadjustitmanually.) Lightsupwhenunitstarts. LightsupwhenTimeroperation
is selected. Lightsupduringcompressor
running.
Abeepingsoundisgeneratedwhen
asignalfromremotecontrolleris
received.
Usedwhenremotecontrollerislostor
defective.Unitwillruntemporarily.
Usedonlyfortestrunningincooling
whenroomtemp.isbelow16oC.
Don'tuseitinnormaloperation.
HSU-088M06
HSU-098M06
HSU-108M06
HSU-128M06
HSU-188M06

FAN
DRY
COOL
AUTO
Parts and Functions
Operation
1. Mode display
2. SWING display
3. FAN SPEED display
4. SLEEP display
5. LOCK display
6. SIGNAL SENDING
7. TIMER OFF display
8. TIMER ON display
9. CLOCK display
10. TEMP display
11. POWER ON/OFF
Usedforunitstartandstop.
12. MODE
UsedtoselectAUTOrun,COOL,
DRY,HEAT andFAN operation
13. FAN
UsedtoselectfanspeedLO,MED,HI, AUTO
14. HOUR
Usedtosetclockandtimersetting.
15. SWING
Usedtosetautofandirection.
16. SLEEP
Usedtoselectsleepmode.
17. LOCK
UsedtolockbuttonsandLCD
display.
18. TEMP.
Usedtoselectyourdesiredtemp.
19. SET
Usedtoconfirmtimerandclocksettings.
20. TIMER
UsedtoselectTIMERON,TIMER OFF,
TIMER ON-OFF
21. CLOCK
Usedtosetcorrecttime
22. RESET
normalcondition.
Usedtoresetthecontrollerbackto
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.

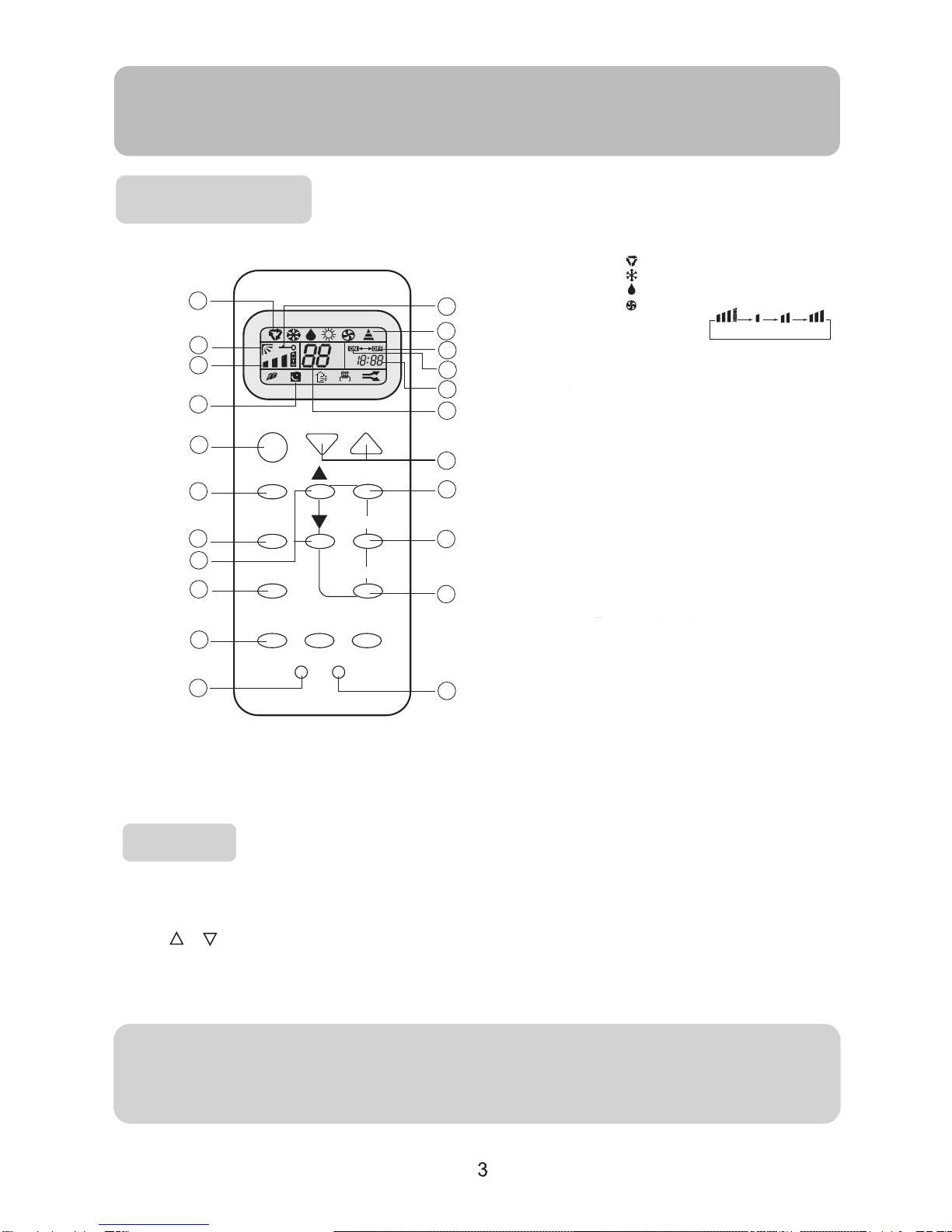

Buttons and display of the remote controller.
LO MED HIAUTO
ON/OFF TEMP
MODE SET
FAN TIMER
SWING CLOCK
SLEEP
LOCK RESET
5
6
7
8
9
10
18
19
20
21
22
4
1
2
3
11
12
13
14
15
16
17

AUTO LO MED HI
Parts and Functions
Operation Buttons and display of the remote controller.
like the following figure:
BRIEF INTRODUCTION TO HEALTH OPERATION
The anion generator in the air conditioner can generate a lot of anion to
effectively balance the quantity of position and anion in the air and also to kill
bacteria and speed up the dust sediment in the room and finally clean the air
in the room.
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
6. SIGNAL SENDING
7. TIMER OFF display
8. TIMER ON display
9. CLOCK display
10. TEMP display
11. POWER ON/OFF
Usedforunit startandstop.
12. MODE
Used to select AUTO run, COOL,
DRY, HEAT and FAN operation
13. FAN
Used to select fan speed LO, MED, HI, AUTO
14. HOUR
Used to set clock and timer setting.
15. SWING
Usedtosetauto fan direction.
16. SLEEP
Used to select sleep mode.
17. LOCK
Used to lock buttons and LCD
display.
18. TEMP.
Used to select your desired temp.
19. SET
Used to confirm timer and clock settings.
20. TIMER
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF
21. CLOCK
Used to set correct time
22. RESET
Used to reset the controller back to
normalcondition.
1. Mode display
AUTO
COOL
DRY
FAN
2. SWING display
3. FAN SPEED display
4. SLEEP display
5. LOCK display
HEALTH
ON/OFF TEMP
MODE SET
FAN TIMER
SWING CLOCK
SLEEP
LOCK RESET
4
1
2
3
11
12
13
14
15
16
17
5
6
7
8
9
10
19
21
22
18
20

«Î—°”√Õ¨“ª∆∑≈∆¡ΩΩ⁄ 7#
µÁ≥ÿ,≥§ ±º‰≤ª”√ ±,Œ™ ∑¿÷𬩓π«ÎΩ´µÁ≥ÿ»° ≥ˆ°£ ‘⁄ π”√÷–»Á”ˆ“Ï≥£,«Î Ω´µÁ≥ÿ»°≥ˆ,6∑÷÷”∫Û‘Ÿ ◊∞»Î–¬µÁ≥ÿ°£
∫£∂˚ºØÕ≈«‡µ∫∫£∂˚ ø’µ˜∆˜”–œfi◊‹π´Àæ
«Î—°”√Õ¨“ª∆∑≈∆¡ΩΩ⁄ 7#
µÁ≥ÿ,≥§ ±º‰≤ª”√ ±,Œ™ ∑¿÷𬩓π«ÎΩ´µÁ≥ÿ»° ≥ˆ°£ ‘⁄ π”√÷–»Á”ˆ“Ï≥£,«Î Ω´µÁ≥ÿ»°≥ˆ,6∑÷÷”∫Û‘Ÿ ◊∞»Î–¬µÁ≥ÿ°£
∫£∂˚ºØÕ≈«‡µ∫∫£∂˚ ø’µ˜∆˜”–œfi◊‹π´Àæ
«Î—°”√Õ¨“ª∆∑≈∆¡ΩΩ⁄ 7#
µÁ≥ÿ,≥§ ±º‰≤ª”√ ±,Œ™ ∑¿÷𬩓π«ÎΩ´µÁ≥ÿ»° ≥ˆ°£ ‘⁄ π”√÷–»Á”ˆ“Ï≥£,«Î Ω´µÁ≥ÿ»°≥ˆ,6∑÷÷”∫Û‘Ÿ ◊∞»Î–¬µÁ≥ÿ°£
∫£∂˚ºØÕ≈«‡µ∫∫£∂˚ ø’µ˜∆˜”–œfi◊‹π´Àæ
Operation

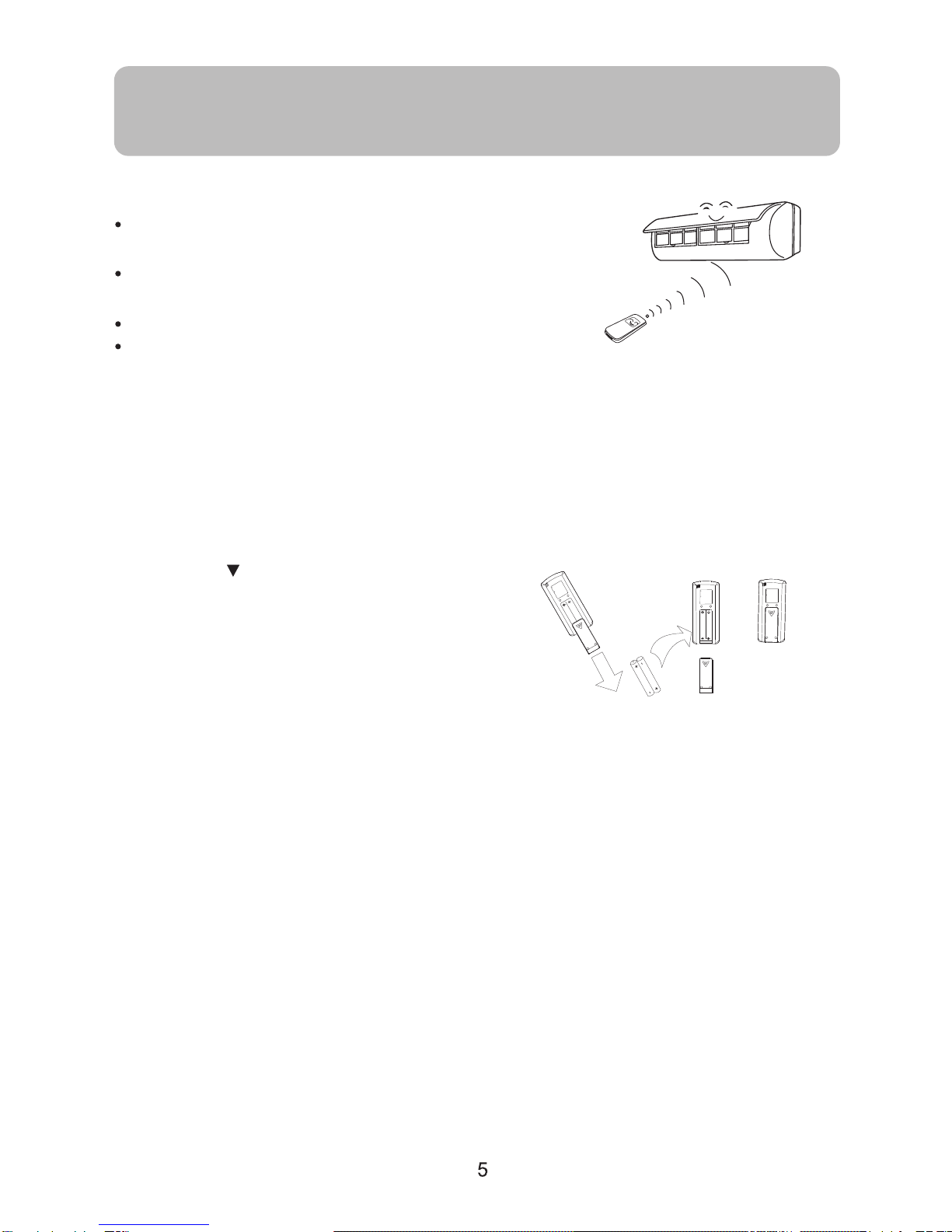

Remote controller's operation
When in use, put the signal transmission head directly to the
receiver hole on the indoor unit.
The distance between the signal transmission head and the
receiver hole should be within 7m without any obstacle as well.
Don't throw the controller, prevent it from being damaged.
When electronic-started type fluorescent lamp or change-over
type fluorescent lamp or wireless telephone is installed in the
room, the receiver is apt to be disturbed in receivering the signals
so the distance to the indoor unit should be shorter.
Loading of the battery
Load the batteries as illustrated. 2 R-03 batteries, resetting key (cylinder)
Remove the battery cover:
Slightly press " " and push down the cover.
Load the battery:
Be sure that the loading is in line with the" + "/"-"
pole request as illustrated.
Put on the cover again
Confirmation indicator:
In disorderation, reload the batteries or load the new batteries after 6mins.
Note:
Use two new same-typed batteries when loading.
If the remote controller can't run normally or doesn't work at all,
use a sharp pointed item to press the reset key.
Hint:
Remove the batteries in case unit won't be in usage for a long period.
If there are any display after taking-out just need to press reset key.
Power failure resume(please set and apply as necessary)
If sudden power failure occurs, the unit will resume original operation when power is
supplied again.
Note: When sudden power failure happens during unit operation in power failure resume mode, if
the air conditioner is not desired for use in a long period, please shut off the power supply
in case that the unit automatically resume operation when power is re-supplied, or press
ON/OFF to turn off the unit when power resumes.

(4) Unit stop
(1) Unit start
Auto run, Fan operation Enjoy yourself by just a gentle press.
Operation
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
Press MODE button. For each press, operation
AUTO COOL DRY FAN
Unit will run in selected mode.
Stop display at " " AUTO or " "FAN.
(3) FAN
Press FAN button. For each press, fan speed changes
as follows:
AUTO LO MED HI
Unit will run at selected fan speed.
Note:AUTO is not available in FAN mode. Press ON/OFF button.
Only time remains on LCD.
Vertical flap closed automatically.
Hints
Remote controller can memorize settings in each operation mode. To run it next time just
select the operation mode and it will start with the previous setting.
No reelecting is needed.(TIMER ON/OFF needs reelecting)
Cautions: Note:
On cooling only unit, heating mode is not available, The above information is the
After replacing batteries, press ON/OFF, and display explanation of the displayed
becomes as follows: information therefore varies
Operation mode: AUTO, Temp. No with those displayed in actual
Timer mode: No, Fan speed :AUTO operation.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
HEALTH

Press MODE button. For each press, operation
Recommendations:
Operation
COOL,HEAT and DRY operation
Use COOL in summer. Use HEAT in winter
Use DRY in spring, autumn and in damp climate.
(1) Unit start
mode changes as follows:
Press ON/OFF button, unit starts.
Previous operation status appears on display.(Not Timer setting)
Power indicator on indoor unit lights up.
(2) Select operation mode
AUTO COOL DRY FAN
Unit will run in operation mode displayed on LCD.
Stop display at your desired mode.
(3) Select temp. setting
Press TEMR button.
Every time the button is pressed, temp. setting increases 1oC
Every time the button is pressed, temp. setting decreases 1oC
Unit will start running to reach the temp. setting on LCD.
Press FAN button. For each press, fan speed changes
(4) Fan speed selection
as follows:
AUTO LO MED HI
just press ON/OFF button and unit will run in previous status.
Unit runs at the speed displayed on LCD.
Hints
On cooling only unit, heating mode is not available.
Remote controller can memorize each operation status. When starting it next time,

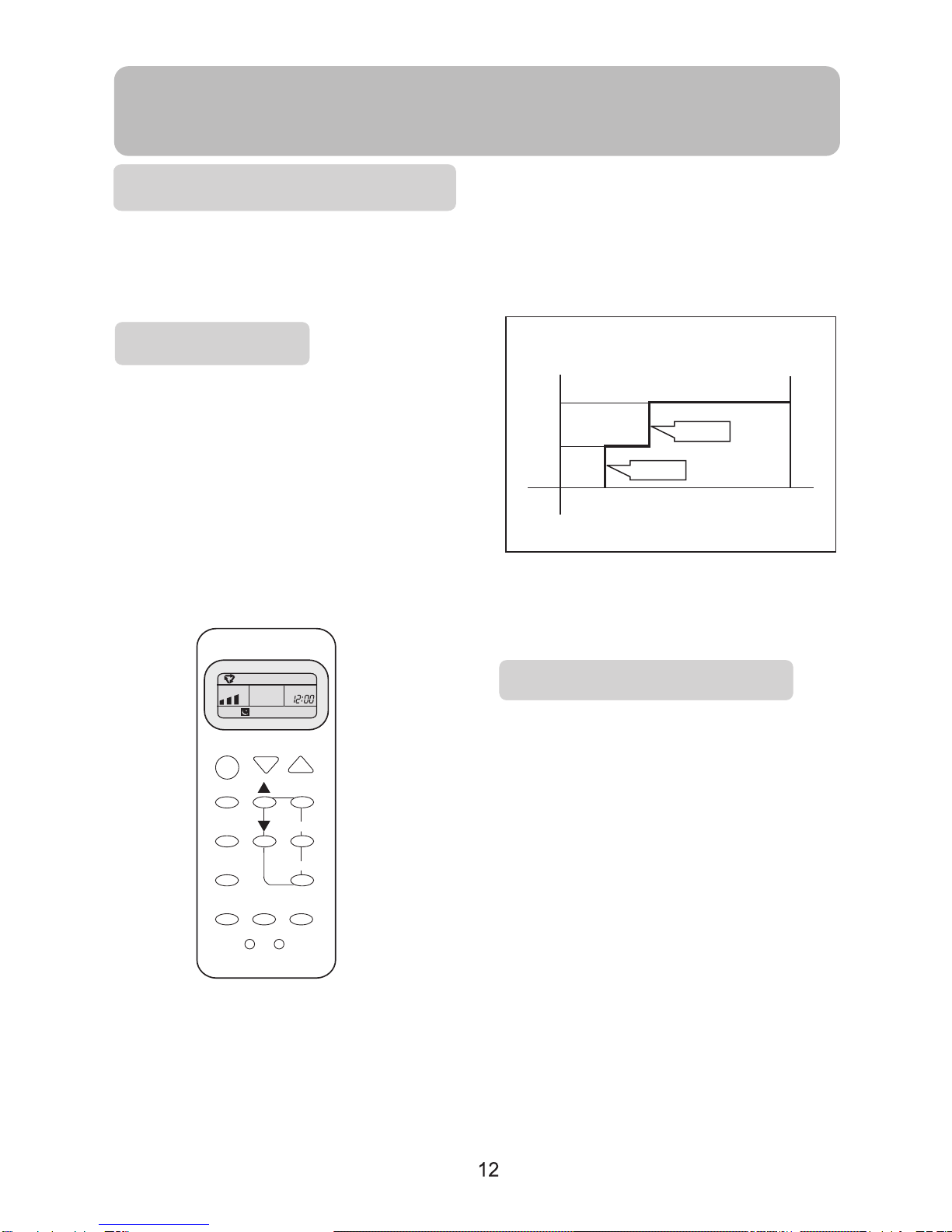

COOLoperationstartswhenroom
temp.ishigherthantemp.setting. Ultra-lowairflow
Temp.setting+2oC
Temp.setting
Onreachingtemp.setting,unit
willruninmildDRYmode.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
In DRY mode, when room temperature becomes
lower than temp.setting+2oC,unit will run intermittently
at LOW speed regardless of FAN setting.
HEALTH

Operation
(5) Air flow direction adjustment
After operation mode is selected, vertical flap will open automatically according to the mode.
Referring to the Fig.
COOL
COOL
About 10o
About 10o
better set a temp. difference of 3-5oC between indoor and outdoor temp. in COOL mode.
Hints
As cold air flows downward in COOL mode, adjusting air flow horizontally will be much more
helpful for a better air circulation.
As warm air flows upward in HEAT mode, adjusting air flow downward will be much more
helpful for a better air circulation.
Be careful not to catch a cold when cold air blows downward.
It is harmful to your health in summer to go frequently in and out of places where temp.
difference is above 7oC. Temp. difference of 3-5oC will remove your fatigue.
More than this, unit's load can be reduced and power consumption cut down as well. So, you'd
(6) Unit stop
Press ON/OFF button.
Only time remains on LCD.
Vertical flap closes automatically.
Cautions:
Unit won't restart until 3 minutes have
elapsed, due to system protection.
HEAT mode is not available on
cooling only unit.
It is advisable not to keep vertical flap at
downward position for a long time in COOL
or DRY mode, otherwise, condensate
water might occur.
Cautions: Cautions:
When humidity is high, condensate water
might occur at air outlet if all horizontal
louvers are adjusted to left or right.
Move the horizontal blade by a knob on air
conditioner to adjust left and right direction
referring to Fig.
Left and right air flow adjustment
(manual)
Press SWING button, vertical flap will move within
the range shown in the Fig. Press SWING button
stop it at a fixed position.
Up and down (Use remote controller)
About 45o

Operation
TIMER Operation
You can let unit start or stop automatically at following times: Before you wake up in the
morning, or get back from outside or after you fall asleep at night.
Set Clock correctly before starting Timer operation
TIMER ON/OFF
Power indicator on indoor unit lights up.
(1)After unit start, select your desired operation mode.
Operation mode will be displayed on LCD.
(2)TIMER mode selection
Press TIMER button to change TIMER mode.
Every time the button is pressed, display changes as follows:
ON OFF ON OFF
TIMER ON TIMER OFF TIMER ON-OFF
blank
Select your desired TIMER mode (TIMER ON or TIMER
OFF) ON or OFF will flash.
(3)Timer setting
Every time the button is pressed, time increases 10 min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly. Time
will be shown on LCD. It can be adjusted within 24 hours.
Timer mode indicator on indoor unit lights up.
After setting correct time, press SET button to confirm, "ON"
or "OFF" stops flashing
Time displayed: Unit starts or stops at x hour x min. (TIMER
ON or TIMER OFF).
To cancel TIMER mode
Just press TIMER button several times until TIMER mode disappears.
After replacing batteries or a power failure happens, Time setting should be reset.
Remote controller possesses memory function, when use TIMER mode next time, just
press SET button after mode selecting if timer setting is the same as previous one.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
HEALTH

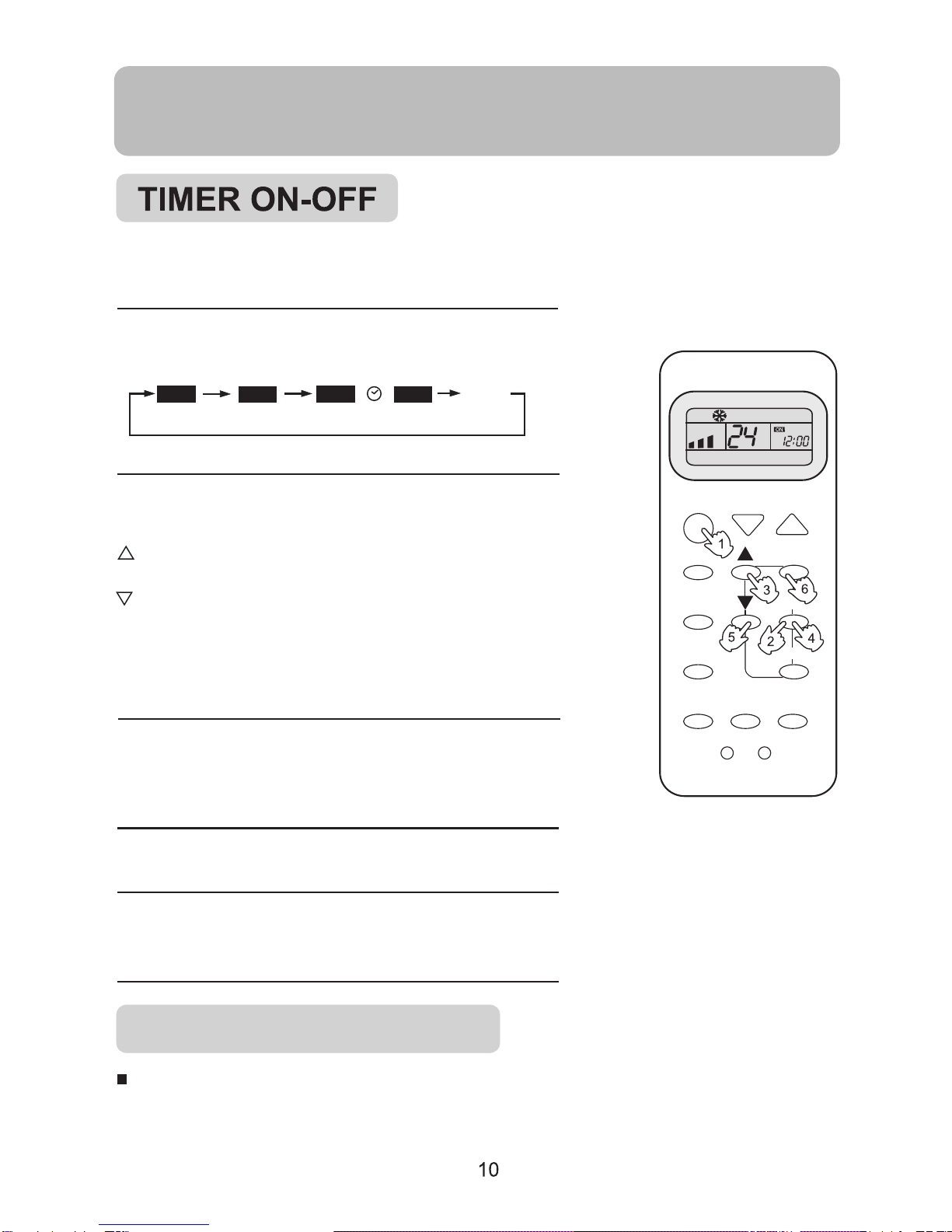

TIMER ON-OFF
Operation
To cancel TIMER mode
Power indicator on indoor unit lights up.
(1)After unit start, select your desired operation mode
Operation mode will be displayed on LCD.
ON OFF ON OFF
TIMER ON TIMER OFF TIMER ON-OFF blank
Every time the button is pressed, display changes as follows:
(2) Press TIMER button to change TIMER mode.
Select TIMER ON-OFF. "ON" will flash.
(3)Time setting for TIMER ON
If button is kept depressed, time will change quickly.
Every time the button is pressed, time decreases 10 min.
If button is kept depressed, time will change quickly.
Every time the button is pressed, time increases 10 min.
It can be adjusted within 24 hours.
Time will be shown on LCD.
AM refers to morning and PM to afternoon
Press HOUR button.
(4) Time confirming for TIMER ON
After time setting, press TIMER button to confirm.
"ON" stops blinking, While "OFF" starts blinking.
Time displayed: Unit starts at x hour x min.
(5)Time setting for TIMER OFF
Follow the same procedures in "Time setting for TIMER ON".
(6) Time confirming for TIMER OFF
After time setting, press SET button to confirm, "OFF" stops flashing
Time displayed: Unit stops at X hour X min.
Just press TIMER button several times until TIMER mode disappears.
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
HEALTH

Emergency Operation:
PiPi
Emergency operation and test operation
Operation
Carry out this operation only when the remote controller is defective or lost.
When the emergency operation switch is pressed, a" Pi "sound starts once, which
means the start of this operation.
In this operation, it is not possible to change the
settings of temperature and air flow speed, it is
also impossible to do an operation by the timer.
Follow the requirements below.
Room
temperature Designated
temperature Timer
mode Air flow
speed Operation mode
More than 23oC
Less than 23oC23oC
26oCCONTINUOUS
CONTINUOUS
AUTO
AUTO
COOL
HEAT
Heating when the room temperature at the start of operation is below 23oC
If an air conditioner is a model for both cooling and heating.
Cooling when the room temperature at the start of operation is above 23oC.
temperature is less 16oC, do not use it in the normal
Test operation:
Use this switch in the test operation when the room
operation.
operation starts with the air flow speed setting "Hi".
Continue to press the test operation switch for more
than 5 seconds. After you hear the "Pi" sound twice,
release your finger from the switch, the cooling
Removal of the restriction of emergency or test operation:
Press once more the emergency operation switch, or manipulate through the remote
controller, a "Pi" sound causes the restriction of emergency or test operation to be
removed.
When the remote controller is manipulated for the removal, then the selected operation
by the remote controller.

Comfortable SLEEP
In COOL mode
sleep in selected mode.
Before going to bed at night, you can simply press
the SLEEP button and unit will bring you a sound
One hour after SLEEP mode starts, temp. will
become 1oC higher than temp. setting. After
running for another 1 hour, temp. rises by 1oC
further. Unit will run for 6 hours then stops
automatically. Temp. is higher than temp.
setting so that room temp. won't be too low
for your sleep.(As shown in Fig.l)
Power Failure Resume Function
with the indicator lighting up.
If the unit is started for the first time, the
compressor will not start running unless 3
minutes have elapsed. When the power
resumes after power failure, the unit will run
automatically, the power indicator lights up, and
3 minutes later the compressor starts running
Note:
In AUTO mode, unit will run in SLEEP
function according to operation mode.
In FAN mode, comfortable sleep is not
available.
Fig.1
SLEEPoperationstarts SLEEPoperationstops
Approx.6hrs
1hr
1hr
Rises1oC
Rises1oC
Temp.setting Unitstop
ON/OFF TEMP
SET
TIMER
CLOCKSWING
SLEEP
LOCK RESET
FAN
MODE
HEALTH
Operation

Operation
2.Health anion function
Air conditioner starts health anion function operation.
For twice press, disappears,the operation stops.
BRIEF INTRODUCTION TO HEALTH ANION FUCTION
The anion generator in the air conditioner can generate a lot of
anion effectively balance the quantity of position and anion in the
air and also to kill bacteria and speed up the dust sediment in
the room and finally clean the air in the room.
When the fan in the indoor unit does not work, the health lamp
lights up, but the anion generator does not release anion.
When indoor fan motor is running, it has healthy
process function. (It's available under any mode)
Press ON/OFF on the remote controller, unit starts.
Press HEALTH button. For each press, is displayed.
1.Unit start
HEALTH operation
HEALTH
ON/OFF TEMP
MODE SET
FAN TIMER
SWING CLOCK
SLEEP
LOCK RESET

Maintenance
Different models have different appearance
Cleaning of unit casing
Cleaning of remote controller
Cleaning of air filter
Cut off power supply
before cleaning unit casing with soft cloth.
In case of heavy stain, clean it with neutral detergent.
squeeze water in the cloth, wipe off the detergent on unit
casing completely.
Don't use water to wash unit casing, please use dry cloth.
Don't use glass cleaner or cloth soaked with chemicals.
1.Open inlet grille by pulling it upward. AirFilter 2.Remove air filter
Push up the filter's center tab
slightly until it is caesura of
the stopper. Remove it by
pulling down.
3.Clean the filter
Use a vacuum
cleaner to remove
dust,or wash the
filter with water.
After washing,
dry the filter
completely in the shade.
5.Close the inlet grille.
4.Attach the filter
Attach filter behind the stopper so that
the "Front" indication is facing to the front. Make sure
that it is completely behind the stopper, otherwise
problems might occur.

Maintenance

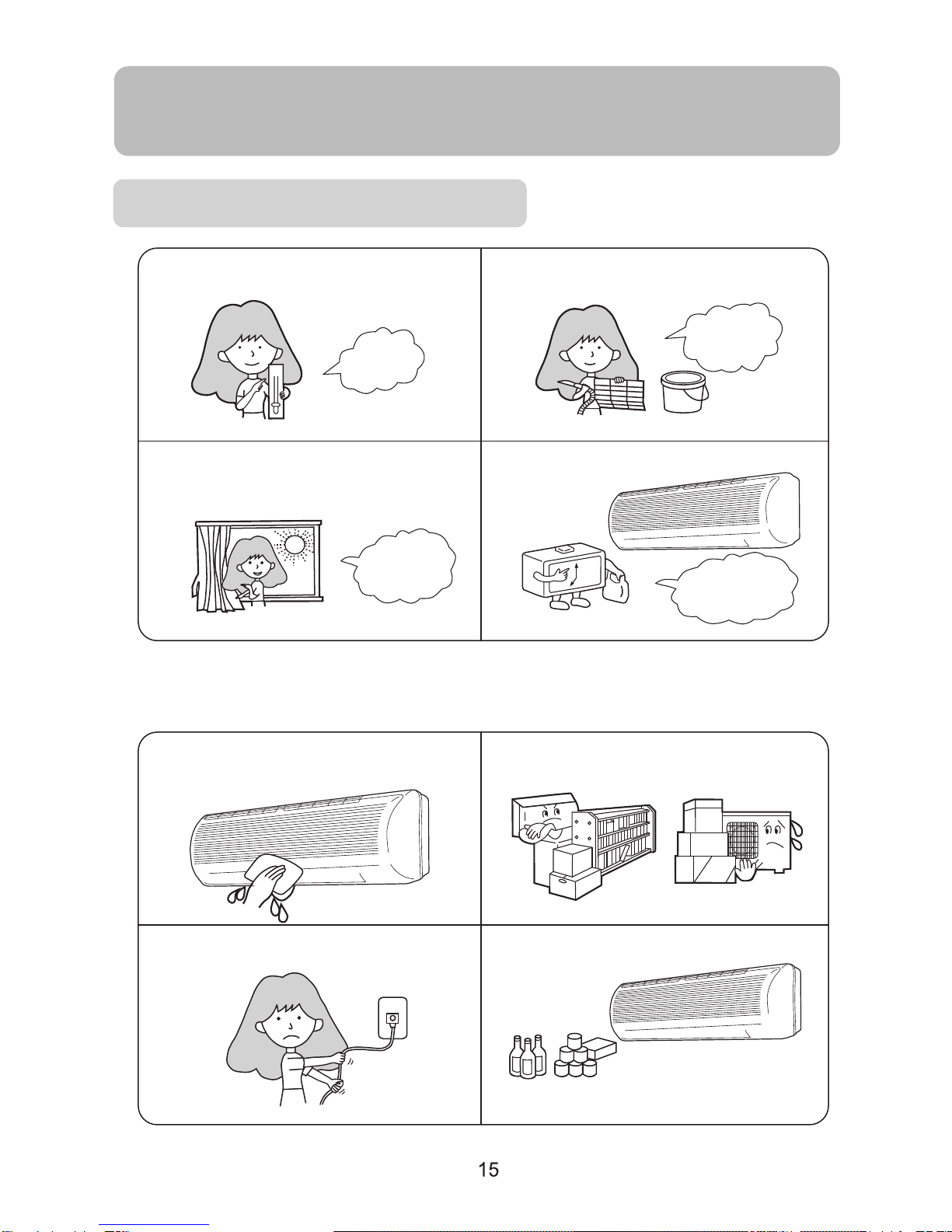

Better use of air conditioner
Proper room temperature. Cleaning of the air filter.
Effective use of the timer.
Closing of doors and windows
during operation
Never fail to observe the followings
Do not sprinkle water over
the unit. Do not block the inlet or outlet.
Do not pull power plug. Do not use for other purposes.
Such as food preservation
plant cultivation or animal
breeding.
Avoidtime-wasteful
operation
Curtainsorblinds
forwindows
Proper
temperature
Once every
two weeks

Trouble shooting
Before asking for service, check the following first.
Normal
Performance
inspection
Noise is heard
Phenomenon Cause or check points
The system does not restart
immediately.
Smells are generated.
Mist or steam are blown out.
Multiple
check
Does not work at all.
Poor cooling
Application temp. range of air conditioner -7oC~43oC.
When unit is stopped, it won't restart
immediately until 3 minutes have elapsed
to protect the system.
When the electric plug is pulled out and
reinserted, the protection circuit will work
for 3 minutes to protect the air conditioner.
During unit operation or at stop, a swishing
or gurgling noise may be heard. At first 2-3
minutes after unit start, this noise is more
noticeable. (This noise is generated by
refrigerant flowing in the system.)
During unit operation, a cracking noise may
be heard. This noise is generated by the
casing expanding or shrinking because of
temperature changes
Should there be a big noise from air flow in
unit operation, air filter may be too dirty.
This is because the system circulates smells
from the interior air such as the smell of
furniture, cigarettes.
During COOL or DRY operation, indoor unit
may blow out mist. This is due to the sudden
cooling of indoor air.
Is power plug inserted?
Is there a power failure?
Is fuse blown out?
Is the air filter dirty? Normally it should be
cleaned every 15 days.
Are there any obstacles before inlet and outlet?
Is temperature set correctly?
Are there some doors or windows left open?
Is there any direct sunlight through the
curtain)
window during the cooling operation?(Use
Are there too much heat sources or too many
people in the room during cooling operation?
