Domestic Dishwasher
SERVICE MANUAL
Models
DW12-PFE2-U
DW12-PFE2ME-U
zFeatures
zA grade for energy consumption of European standard
zA grade for washing efficiency of European standard
zA grade for drying efficiency of European standard
zElectronic control, delay washing
zWater softener for descaling
zSuper-capacity for 12 settings

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 2 / 38
Contents
1. Product Code Illurmination and Series Introduction...................................................3
2. Features ....................................................................................................................4
3. Safty precaution.........................................................................................................5
4. Installation .................................................................................................................6
5. Parts and Functions...................................................................................................9
6. how to fill the salt.....................................................................................................10
7. How to fill rinse aid and detergent dispensor...........................................................12
8. Loading the dishwasher...........................................................................................13
9. Turning on the Appliance.........................................................................................16
10. Wash Cycle Table..................................................................................................19
11. Function Schedule.................................................................................................20
12. How to keep your dishwasher in shape.................................................................21
13. Clean and mentenance .........................................................................................22
14. Fault finding...........................................................................................................24
15. Maintenances Services and Trouble Shooting.......................................................28
16. Analysis of the common breakdowns ....................................................................29
17. Net dimension........................................................................................................36
18. Technical data........................................................................................................36
19. Circuit Diagram......................................................................................................37

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 3 / 38
1. Product Code Illurmination and Series Introduction
Model Identification
D W □□ ─□□□□□□
A B C D E F G
A: Abbreviation of dishwasher
B: Code name of Nominal capacity
C: Series of factory design
D: Freestanding/built –in/semi-built-in
E: Mechanical/Electronic
F: The second series of factory design code name described/outer side material

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 4 / 38
2. Features
2.1 A grade for energy consumption of European standard
2.2 A grade for washing efficiency of European standard
2.3 A grade for drying efficiency of European standard
2.4 Delay washing
2.5 Water softening function is provided which can prevent incrustation
forming
2.6 Conceal heater and avoid heater turf burning.
2.7 You can select dishwasher with big handle or without big handle
according to requirement.
The symbol on the product or on its packaging indicates that this product may not
be treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product.
For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the
product.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 5 / 38
3. Safety precaution
At time of delivery
--Check packaging and dishwasher immediately for signs of transport damage. If the
appliance is damaged, do not put it into use but contact your supplier or customer service
without delay.
--Please dispose of packaging materials properly.
During installation
--Site the dishwasher and connect it up in accordance with the installation instructions.
--The dishwasher must not be connected to the electricity supply while installation is being
carried out.
--Ensure that the domestic wiring is properly earthed.
--The mains electricity supply must conform to the details shown on the dishwasher
nameplate.
--Do not connect the dishwasher to the electricity supply via an extension cable.
--Built-under and built-in appliances should always be installed under a continuous work
surface which
is attached to the adjacent cupboards, in order to ensure that the appliance is entirely
stable.
--After the appliance has been installed, the mains plug should still be easily accessible.
--Not on all models:
The plastic housing on the water inlet contains an electrically operated valve. The
connecting wires are inside the inlet hose. Do not cut through this hose and do not immerse
the plastic housing in water.
--During installation, the power supply cord must not be excessively or dangerously bent or
flattened.
During normal use
--The dishwasher must only be used by adults for the washing of household dishes and
cooking utensils.
--This appliance cannot be installed outdoor, not even if the area in which it is installed is
covered by a roof; it is also very dangerous to leave it exposed to the rain and elements.
--Do not place any heavy objects or stand on the door when it is open. The appliance could
tip forward.
--The water inside the dishwasher is not suitable for drinking.
--Do not use solvents of any kind inside your dishwasher. They could cause an explosion
danger.
--Open the door very carefully if the dishwasher is operating. There is a risk of water
squirting out.
--Do not touch the heating element during or after a wash cycle.
--Fundamental rules to follow when using the appliance:

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 6 / 38
--- Never touch the dishwasher when barefoot or with wet hands or feet;
--- We discourage the use of extension cords and multiple sockets;
--- If the appliance is not operating properly or maintenance must be performed, disconnect
the appliance from the power supply.
4. Installation
If your family includes children
--The appliance is not intended for use by young children or infirm persons without
supervision.
--Young children should be supervised to ensure that they do not play with the appliance.
--Keep detergents out of the reach of children, who must also be kept away from the
dishwasher when
it is open.
If a fault occurs
--If the appliance malfunctions, turn off water supply to the appliance and disconnect the
plug from the wall socket. Then, consult the section entitled, "Fault finding" .If you cannot
solve the problem, contact a service center.
--Only specialized personnel are authorized to make repairs.
If the supply cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer or its service agent.
--To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
--- call only the Service Centers authorized by the manufacturer.
--- always use original Spare Parts.
When disposing of old appliances
--Appliances which are no longer being used must be made inoperable by cutting the power
supply cord and removing the door lock.
--Take the appliance to a designated waste disposal center.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 7 / 38
Positioning the appliance
Positioning the appliance in the desired location. The back should rest against the wall
behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped
with water supply and drain hoses that can be positioned to the right or the left to facilitate
proper installation.
Leveling the appliance
Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the
dishwasher, making it level. In any case, the appliance should not be inclined more than 2°.
If the appliance is level, it will help ensure proper performance.
Cold water connection
Connect the water supply hose to a threaded 3/4 (gas)
connector, making sure that it is fastened tightly in
place (see .fig A).If the water pipes are new or have
not been used for an extended period of time, let the
water run to make sure that the water is clear and
free of impurities. If this precaution is not taken,
there is a risk that the water inlet can get blocked and
damage the appliance.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 8 / 38
Drain hose connection
Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the
sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend)
with a connecting piece for the drain hose (fig.C). The free end of the hose must be at a
height between 40 and 100 cm and must not be immersed in water.
Electrical Connection
After making sure that the voltage and frequency values for the current in the home
correspond to those on the rating plate (located on the stainless steel inner door of the
appliance) and that the electrical system is correct for the maximum voltage on the rating
plate, insert the plug into an electrical socket which is earthed properly (the earthing of the
appliance is a safety requirement mandated by law).
If the electrical socket to which the appliance must be connected is not appropriate for the
plug, replace the whole cable, rather than using adaptors or the like as they could cause
overheating and burns.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 9 / 38

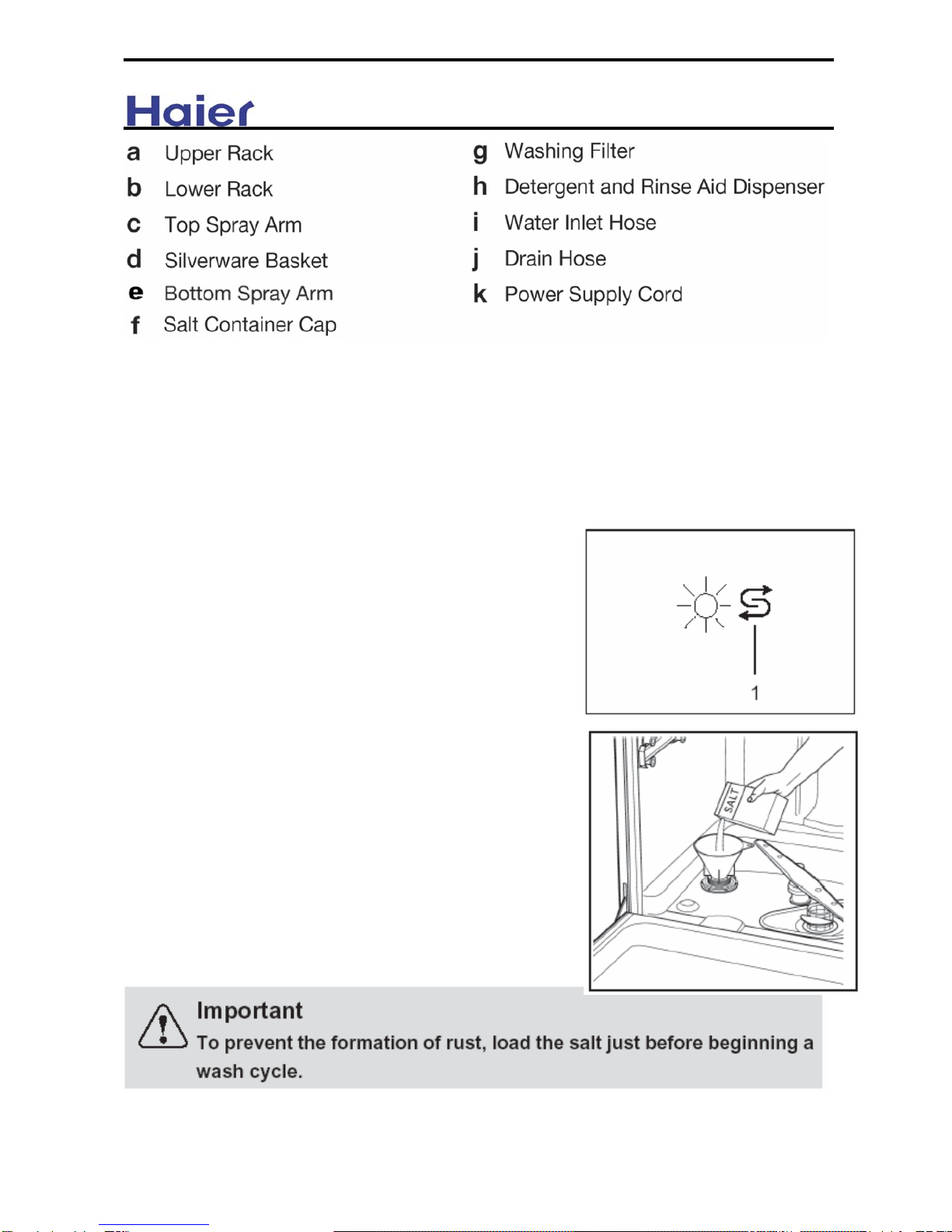

5. Parts and Functions
Close-up view (control panel)
Dishwasher interior

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 10 / 38
6. How to fill the salt
Salt
The hardness of the water varies from place to place. If hard water is used in the
dishwasher, deposits will form on the dishes and utensils.
The appliance is equipped with a special softener that uses a salt specifically designed to
eliminate lime and minerals from the water.
Loading the salt into the container
Always use salt intended for use with dishwashers.
The salt container is located beneath the lower rack
and should be filled as follows:
--When the low salt indicator “1” lights, you must fill
the salt.
--Remove the lower rack and then unscrew and remove
the cap from the salt container;
--If you are filling the container for the first time, fill it with
water;
--Place the end of the funnel (supplied) into the hole and
introduce about 2 kg of salt. It is normal for a small
amount of water to come out of the salt container.
--Carefully screw the cap back on.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 11 / 38
Adjusting salt consumption
The dishwasher is designed to allow for adjusting the
Amount of salt consumed based on the hardness of
the water used.
This is intended to optimize and customize the level
of salt consumption so that it remains at a minimum.
To adjust salt consumption, proceed as follows:
--Unscrew the cap from the salt container;
--There is a ring on the container with an arrow on
it (see figure to the side),
--If necessary, rotate the ring in an anticlockwise direction
from the "-" setting towards the "+" sign, based on the
hardness of the water being used.
It is recommended that adjustments be made in accordance with the following table:

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 12 / 38

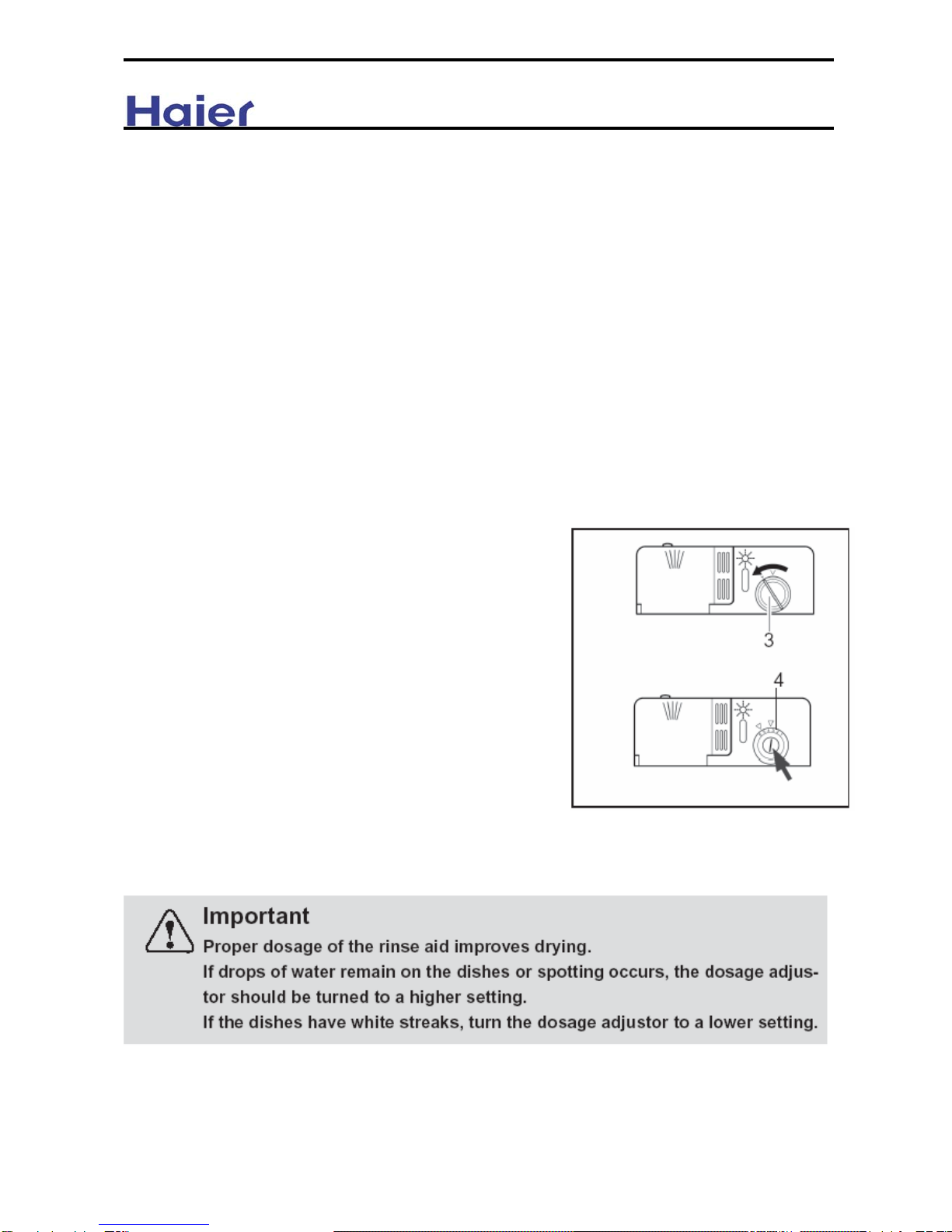

7. How to fill rinse aid and detergent dispenser
7.1 how to fill rinse aid
Rinse aid
This product makes dishes sparkle and helps them to dry without spotting. The dispenser is
located on the inside panel of the door .
When the low rinse aid indicator “ H ” lights ,
you must load rinse aid .
Loading the rinse aid
Regardless of the type of detergent dispenser installed
on your appliance, you must proceed as indicated below
when loading the rinse aid.
To open the dispenser, turn the "3" cap in an
anti-clockwise direction and then pour in the rinse aid,
making sure not to overfill. The amount of rinse aid
used for each cycle can be regulated by turning the " 4"
dose adjustor, located beneath the "3" cap, with a
screwdriver. There are 6 different settings;
the normal dosage setting is 3.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 13 / 38
7.2 How to fill detergent dispenser
Detergent
Detergent specifically intended for use with dishwashers
must be used. The dispenser must be refilled before the
start of each wash cycle following the instructions
provided in the "Programme overview". The detergent
dispenser is located on the inside panel of the door.
Loading the detergent
--To open the " 5 " cover on the dispenser, press the " 6 "
button.
--The detergent for the wash cycle should be poured into
the " 7 " compartment.
--The detergent for the pre-wash cycle should be poured
into the “ 8 ” compartment.
--After the detergent has been placed in the dispenser,
close the cover and press down until it clicks in place.
8. Loading the dishwasher
Before placing the dishes in the dishwasher, remove larger food particles to prevent the
filter from becoming clogged, which results in reduced performance.
If the pots and pans have baked-on food that is extremely hard to remove, we recommend
that they are soaked before washed. This will eliminate the need for extra wash cycles.
Pull out the rack to load the dishwasher.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 14 / 38
How to use the lower rack
We recommend that you place the most difficult
to clean items on the bottom rack: pots, pans, lids,
serving dishes and bowls, as shown in the figure
to the right.
It is preferable to place serving dishes and lids
on the sides of the racks in order to avoid
blocking the rotation of the top spray arm.
--Pots, serving bowls, etc. must always be placed
face down
--Deep pots should be slanted to allow the water
to flow out.
How to use the upper rack
The upper rack is designed to hold more
delicate and lighter dishware, such as glasses,
cups and saucers, plates, small bowls and
shallow pans (as long as they are not too dirty).
--Position the dishes and cookware so that
they do not get moved by the spray of water.
--The upper rack can be adjusted for height
by using the knobs located on both sides of
the rack itself (see fig.F).
Adjust the upper basket to the higher level
and you have more space to accommodate
those taller pans and trays in the bottom
basket.
Normal daily load

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 15 / 38
Shelf
Lean tall glasses and those with long stems
against the shelf not against other items to be
washed.
Place glasses, cups and small bowls on the
additional cup rack.
The additional cup rack can be swiveled in or
out as required (see fig.F).

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 16 / 38
9. Turning on the Appliance
Switching the dishwasher ON
--Turn on the tap.
--Set ON-OFF button “A” to ON. All
the programme
indicators “K1,K2,K3,K4,K5,K6 ” light .
--Press programme button “J1” , programme
indicator “ K1” blinks and the time-remaining
indicator “ F ” displays the time of the programme..
--If the door is closed, after 5 seconds, the
programme indicator “ K1” becomes to light and
the dishwasher beeps one time , then the
programme starts automatically.
End of programme
Six beeps will indicate that the wash cycle has finished and all the programme indicators
light.
Switching the dishwasher OFF
Several minutes after the programme has ended:
--Set main switch “A” to OFF.
--Open the door .
--Turn the water tap off. (Does not apply when Aquastop unit has been fitted)
--Remove dishes, etc. when they have cooled down.
Interrupping the programme
--Open the door. Caution! There is a risk of water squirting out from inside the appliance.
Do not open the door fully until spray arm has stopped rotating.
--When you open the door, the dishwasher will beep ten times every thirty seconds.
--If the appliance has already heated up or the hot water was switched ON and then the
appliance door opened, leave the door ajar for several minutes and then close. Otherwise,
the appliance door may open due to expansion.
Delayed start programming
You can delay the start of a programme in increments of one hour up to 12 hours.
--Switch dishwasher ON.
--Immediately press the Delayed Start button “ D ”, the delayed start indicator “ E ” blinks,

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 17 / 38
the delayed start time indicator “ F ” changes to “ 1h”.
--Press the Delayed Start button “ D ” as many times as necessary until the numerical
display showsthe required delay.
--To cancel the time delay setting, pressing the Delayed Start button until the delayed start
indicator “E” goes out.
Press programme button “ J ” to choose the desired programme.
If the the door is closed, after 5 seconds the delayed start indicator “ E ” lights , the
time-remaining indicator “ F ” will blink and decrease , the programme will start until the
delayed start indicator “ F ” goes out .
Cancelling or modifying a cycle
--A cycle that is underway can be modified if it has only been running for a short time.
Otherwise, the detergent may have already been used, and the appliance may have
already drained the wash water. If this is the case, the detergent dispenser must be refilled
( see the paragraph entitled, “ Loading the detergent ”).
--To modify a cycle that is already underway, press the button“ A ” , all of the settings will be
cancelled. To set a new cycle, follow the instructions contained in the paragraph entitled
“Switching the dishwasher
ON”.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 18 / 38
Speedup Wash
You could save your washing time when push button “C”after choosing the programme.
(Except for soak programme)
Suggestion
Use this function when there is less cutlery loading.

Serial Number: FA0510E0H00/FA05V0E0400 Version:00.00 Edition: 2007-3
Dishwasher Model: DW12-PFE2-U/DW12-PFE2ME-U
Page 19 / 38
10. Wash Cycle Table
Cycle Cycle Selection Information Description of Cycle Detergent Rinse Aid
Heavy Duty
Very dirty dishes, pots and
pans. (Not to be used with
delicate items)
Prewash with warm water.
Extended wash at 70℃.
Rinses with cold water.
Rinse with hot water.
Drying.
25g
Normal Wash
Normal dirty dishes, pots and
pans. Standard daily cycle.
Prewash with cold water.
Extended wash at 55℃.
Rinse with cold water.
Rinse with hot water.
Drying.
25g
Light Wash
(IEC-EN50242)
Normal dirty dishes,
pots and pans without
dried on residue.
Prewash with cold water.
Extended wash at 50℃.
Rinse with cold water.
Rinse with hot water
Drying.
5g+20g (5)
Glassware wash
Economic, fast cycle to
be used for items which
are sensitive to higher.
Run immediately after
dishes are used.
Wash at 45℃.
Rinse with warm water.
Hot rinse.
Drying.
15g
Rapid Wash
Economic, fast cycle to be used
to on not very dirty dishes right
after they are used. No drying
cycle.
Short wash at 40℃.
Cold rinse. 15g
Soak
Pre-wash of dishes, pots and
pans while waiting for the load
to be completed after the
subsequent meal.
Short cold wash to prevent food residue
from drying on the dishes.

SerialNumber: Version:00.00 Edition: 2005-10
Dishwasher Model: DW15-PFE2 / ME / SS
Page 20 of 38
11. Function Schedule
1、Intensive wash
2、Normal wash
3、Light wash
4、Glassware wash
5、Rapid wash
6、Pre-wash(soak)
Cold rinse
Pre-wash with cold water 50℃Main-wash Cold rinse Hot rinse
Dr
y
in
g
45℃Main-wash Warmly rinse Hot rinse Dr
y
in
g
40℃Main-wash Cold rinse
Pre-wash with cold water 55℃Main-wash
Dr
y
in
g
Hot rinse
Cold rinse
Pre-wash warmly 70℃Main-wash Cold rinse
Hot rinse Dr
y
in
g
