Haier ESD100 User manual

Haier
•••••
What The World Comes Home To TM
BuiJto_nDishwasher
User Manual° Mo_l#
Guide de FU_s_e_E _ Modele#
M_nu_ de_ U_u_ _Modelo#

IMPORTANTSAFETYINSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or injury
to persons when using your appliance, follow basic
precautions, including the following:
1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this use and
care guide.
3. Use only automatic dishwashing detergent and rinse agent recommended for
use in this appliance and keep them out of the reach of children because they
are corrosive and can be harmful.
4. This appliance must be properly installed in accordance with the installation
instructions before it is used.
5. Never unplug your appliance by pulling on the power cord. Always grasp the
plug firmly and pull straight out from the outlet.
6. Replace immediately worn power cords, loose plugs/power outlets.
7. Unplug your appliance before cleaning or before making any repairs.
8. Do not open the dishwasher door immediately after completion of wash process
or during the operation as hot air/steam may cause personal injury. Press the
door latch, wait few seconds by allowing cold air to go in and then open the
door.
9. Do not operate your appliance in the presence of explosive fumes.
10. Do not add or mix any flammable or explosive substances to the wash.
11. Appliance loading door must be closed during the operation of the machine.
12. Do not operate your appliance when parts are missing or broken.
13. Do not use this appliance for commercial dishwashing purpose.
14. Do not operate this appliance unless all enclosure panels are properly in place.
15. Do not tamper with controls.
16. To reduce risk of injury do not allow children to play in or on the appliance.
Close supervision of children is necessary when the appliance is used
near children.
17. This appliance must be connected to proper electrical outlet with the correct
electrical supply.
18. Proper grounding must be ensured to reduce the risk of shock and fire. DO
NOT CUT OR REMOVE THE GROUNDING PLUG. If you do not have a
three-prong electric receptacle outlet in the wall, have a certified electrician
install the proper receptacle. The wall receptacle MUST be properly grounded.

19.Hydrogengasmaybeproducedifthewaterheaterhasnotbeenusedinmore
then2weeks.Thiscouldbeexplosiveandcanexplodeundercertain
circumstances.Ifthisisthecase,turnonallthehotfaucetsandletthehotwater
runforafewminutesbeforeusingthisappliance.Thiswillletthetrapped
hydrogenescape.Toavoidanaccident,ashydrogengasisflammableandcan
explode,donotturnonanelectricappliance,smoke,lightamatch/lighteror
useaflame,
20.Donotrepairorreplaceanypartoftheapplianceorattemptanyservicing
unlessspecificallyrecommendedintheuser-repairinstructionsthatyou
understandandhaveskillstocarryout.
21.Toreducetheriskofelectricshockorfire,donotuseextensioncordsor
adapterstoconnecttheunittoelectricalpowersource.
22.Donotwashanyheatsensitiveoranyotheritemsthatarenotdesignedfor
automaticdishwasher.Itemsnotdishwashersafecouldbecomedeformedormelt
andcreateapotentialfirehazard.
23.Donotusethisdishwasheroutdoors.
24.Donotleavethedishwasherdooropentodrydishwarewhilechildrenare
aroundthecountertop.Closesupervisionandobservationneededwhen
childrenarearoundthedishwasher.
25.Donotabuse,sitonorstandonthedoorordishrackofthedishwasher.
26.Donottouchtheheatingelementduringorimmediatelyafteruse,asitmaybe
veryhot.
27.Loadsharpobjectssuchasknivesandforksupsidedowntoreducetheriskof
cuttypeinjuries.
28.Donotwashplasticitemsunlesstheyaremarkeddishwashersafe.Checkthe
manufacturer'srecommendationsforitemsnotmarked.
29.Donotloadsharpitemsnearthedoor;youcoulddamagethedoorseal.
30.Whenremovinganolddishwasherfromserviceordiscardingit,removethe
frontdoor.
31.Disconnectelectricalpowerandwaterinlethosetodishwasherbeforeservicing.
SAVETHESEINSTRUCTIONS

PAGE
SAFETY INSTRUCTIONS ................................................................ 1-2
Knowing Your Dishwasher ........................................................ 4-6
Using Your Dishwasher ............................................................ 7-16
Understanding The Filtration System ........................................ 17

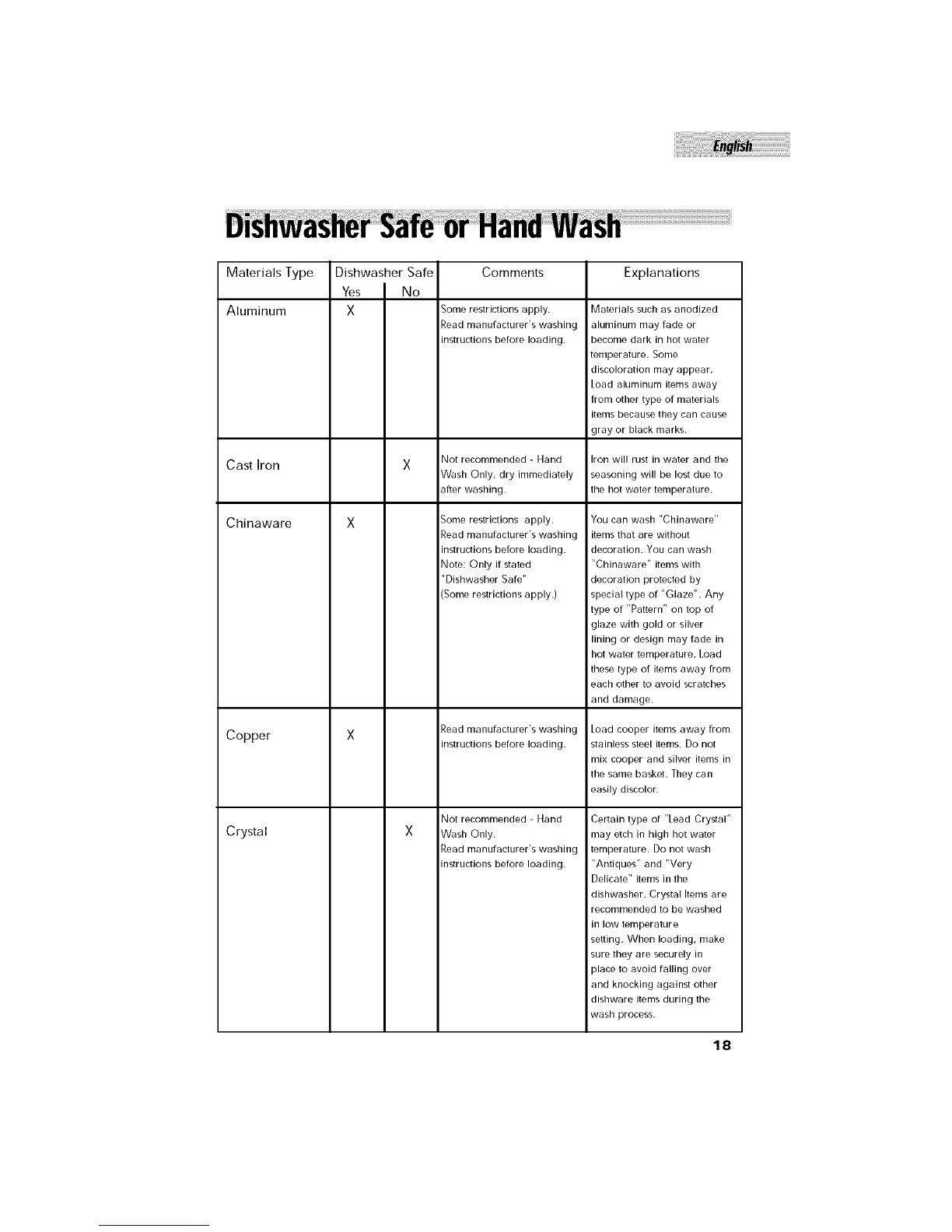

Dishwasher Safe or Hand Wash .......................................... 18-20
Care & Cleaning Of Your Dishwasher ...................................... 21
Troubleshooting ........................................................................ 22-26
Warranty ........................................................................................ 27
Thank you for purchasing our Haler
product. This easy-to-use manual will
guide you in getting the best use of
your dishwasher.
Remember to record the model and
serial number, They are on a label in
back of the dishwasher,
Model number
Serial number
Date of purchase
Staple your receipt to your manual, You will need it to obtain
warranty service.
All figures in this use & care manual are for illustration purposes only. The
illustrated parts shown in figures may be different on the actual unit,
Specifications and features are subject to change without prior notice.

Parts and Features
(Front View with Open Door)
®©
1. Upper Sprayer
2. Deluxe 2 Position Adjustable Upper
Rack with Stemware Holders
3. Middle Spray Arm
4. Pressure Relief Valves (One located at
the upper left corner (not shown)
5. Lower Rack
6. Removable Split Silverware Basket
7, Rinse Aid Compartment
8. Pre-Wash Detergent Compartment
9, Main Wash Detergent Compartment
10, Triple Filtration System (Located at
the bottom under Lower Rack)
11 .Heating Element (Located at rear and
under lower rack)
12. Lower Spray Arm
4

(Front View with Door Closed)
I'_ier
r_r-T_,XP"
©p_
o© RI_._E & HOLD POTI9 & P_&t,_
_a__ f_,_,,j_,o_
1. Hi-Temp Wash Button (On/Off)
2. Power On Indicator Light
3. Power Button (On/Off)
4. Rinse Check Indicator Light
5, Wash Selector Knob

(Rear View)
(Z)_
1. Drain Hose (Factory Attached)
2. Electrical Connection Junction Box
(120v/6OHz - Plug not Included)
3. Rear Leveling Legs
4. Water Inlet
5, Rear Insulation Panel

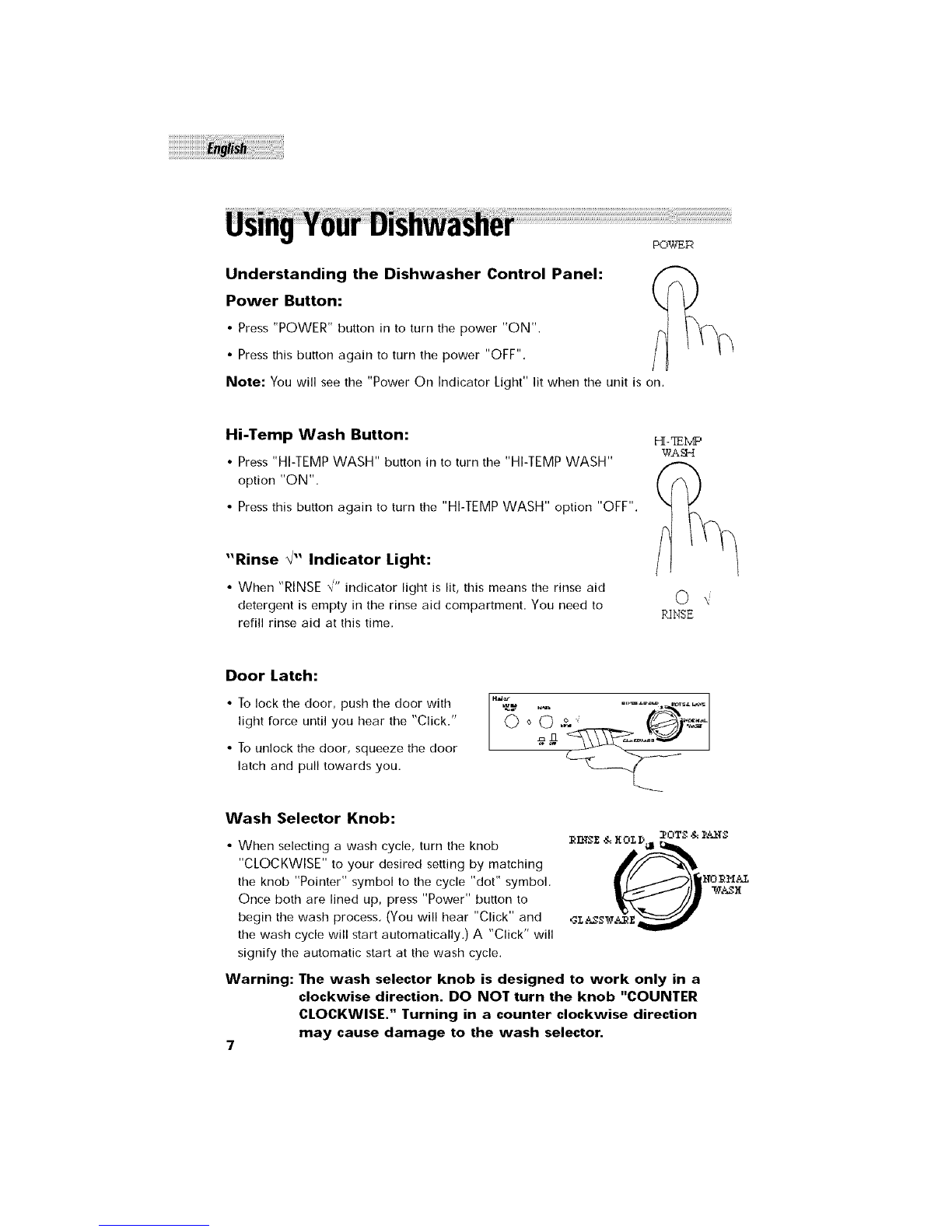

Understanding the Dishwasher Control Panel:
Power Button:
• Press "POWER" button in to turn the power "ON".
• Press this button again to turn the power "OFF",
Note: You will see the "Power On indicator Light" lit when the unit is on.
Hi-Temp Wash Button:
• Press "HI-TEMP WASH" button in to turn the "HI-TEMP WASH"
option "ON'.
• Press this button again to turn the "HI-TEMP WASH" option "OFF",
WAlk-[
"Rinse _/" Indicator Light:
• When "RINSE 4" indicator light is lit, this means the rinse aid
detergent is empty in the rinse aid compartment. You need to
refill rinse aid at this time,
O _,
RINSE
Door Latch:
• To lock the door, push the door with
light force until you hear the "Click."
• To unlock the door, squeeze the door
latch and pull towards you.
Wash Selector Knob:
• When selecting a wash cycle, turn the knob
"CLOCKWISE" to your desired setting by matching
the knob "Pointer" symbol to the cycle "dot" symbol,
Once both are lined up, press "Power" button to
begin the wash process, (You will hear "Click" and
the wash cycle will start automatically,) A "Click" will
signify the automatic start at the wash cycle.
_A_SWAR£ _
Warning: The wash selector knob is designed to work only in a
clockwise direction. DO NOT turn the knob "COUNTER
CLOCKWISE." Turning in a counter clockwise direction
may cause damage to the wash selector.
7

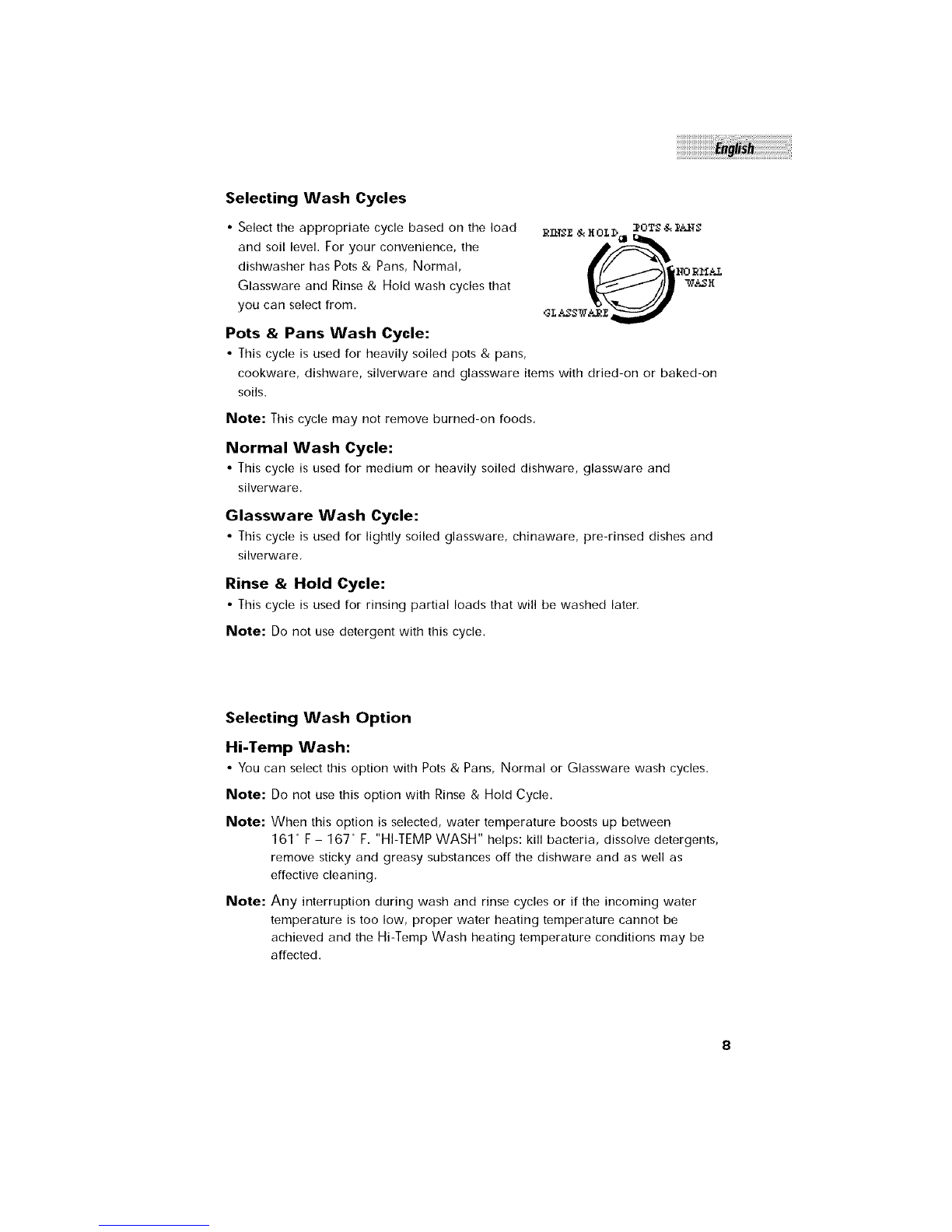

Selecting Wash Cycles
• Select the appropriate cycle based on the load
and soil level. For your convenience, the
dishwasher has Pots & Pans, Normal,
Glassware and Rinse & Hold wash cycles that
you can select from.
Pots & Pans Wash Cycle:
• This cycle is used for heavily soiled pots & pans,
I_O'I'S&I_&I_'S
'31,b.SSWb._£
cookware, dishware, silverware and glassware items with dried-on or baked-on
soils.
Note: This cycle may not remove burned-on foods,
Normal Wash Cycle:
• This cycle is used for medium or heavily soiled dishware, glassware and
silverware,
Glassware Wash Cycle:
• This cycle is used for lightly soiled glassware, chinaware, pre-rinsed dishes and
silverware.
Rinse &Hold Cycle:
• This cycle is used for rinsing partial loads that will be washed later.
Note: Do not use detergent with this cycle.
Selecting Wash Option
Hi-Temp Wash:
• You can select this option with Pots &Pans, Normal or Glassware wash cycles.
Note: Do not use this option with Rinse & Hold Cycle.
Note: When this option is selected, water temperature boosts up between
161 ° F- 167 ° F. "HI-TEMP WASH" helps: kill bacteria, dissolve detergents,
remove sticky and greasy substances off the dishware and as well as
effective cleaning.
Note: Any interruption during wash and rinse cycles or if the incoming water
temperature is too low, proper water heating temperature cannot be
achieved and the Hi-Temp Wash heating temperature conditions may be
affected.

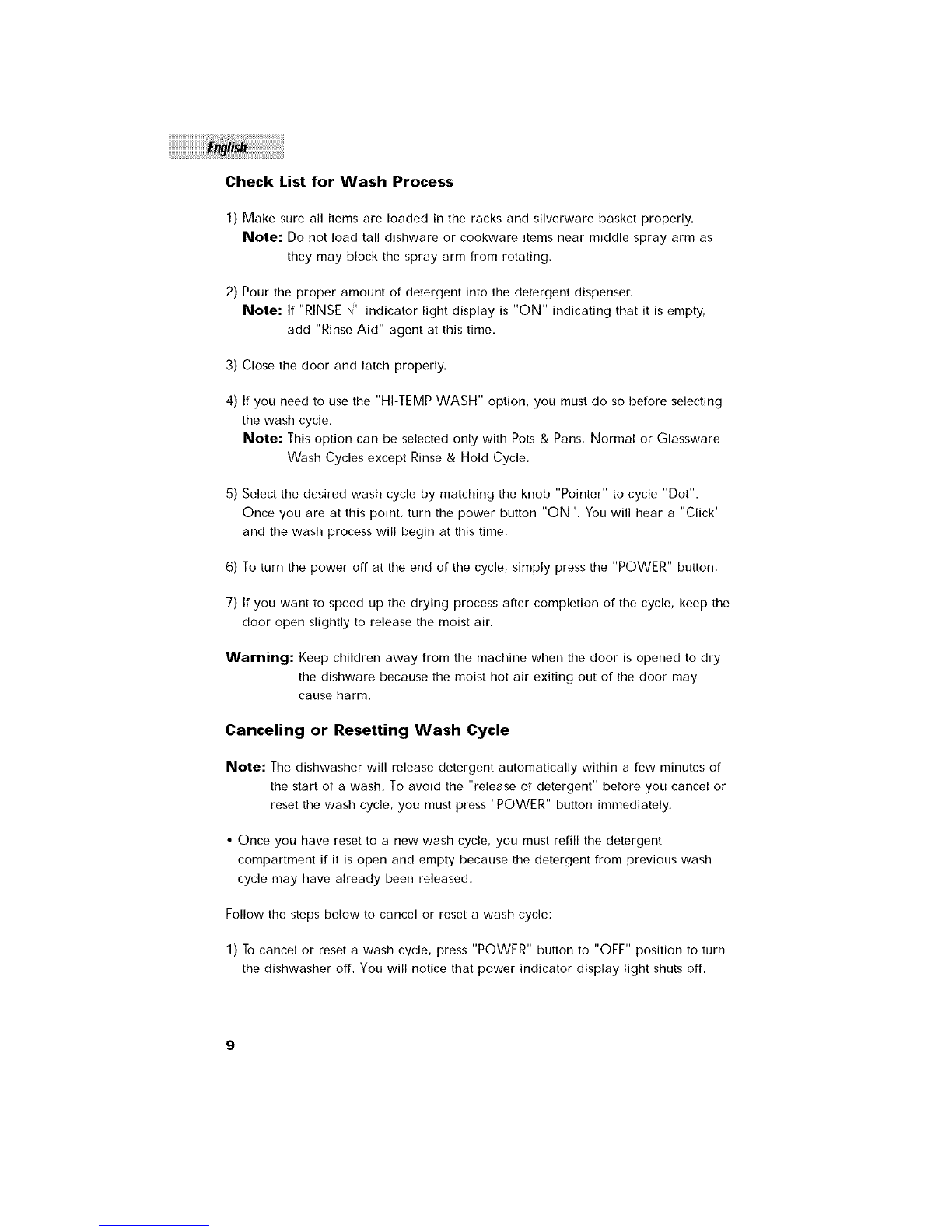

Check List for Wash Process
1) Make sure all items are loaded in the racks and silverware basket properly.
Note: Do not load tall dishware or cookware items near middle spray arm as
they may block the spray arm from rotating.
2) Pour the proper amount of detergent into the detergent dispenser.
Note: If "RINSE 4" indicator light display is "ON" indicating that it is empty,
add "Rinse Aid" agent at this time.
3) Close the door and latch properly.
4) If you need to use the "HI-TEMP WASH" option, you must do so before selecting
the wash cycle.
Note" This option can be selected only with Pots & Pans, Normal or Glassware
Wash Cycles except Rinse & Hold Cycle,
5) Select the desired wash cycle by matching the knob "Pointer" to cycle "Dot",
Once you are at this point, turn the power button "ON", You will hear a "Click"
and the wash process will begin at this time.
6) To turn the power off at the end of the cycle, simply press the "POWER" button,
7) If you want to speed up the drying process after completion of the cycle, keep the
door open slightly to release the moist air,
Warning: Keep children away from the machine when the door is opened to dry
the dishware because the moist hot air exiting out of the door may
cause harm.
Canceling or Resetting Wash Cycle
Note: The dishwasher will release detergent automatically within a few minutes of
the start of a wash. To avoid the "release of detergent" before you cancel or
reset the wash cycle, you must press "POWER" button immediately.
•Once you have reset to a new wash cycle, you must refill the detergent
compartment if it is open and empty because the detergent from previous wash
cycle may have already been released,
Follow the steps below to cancel or reset a wash cycle:
1) To cancel or reset a wash cycle, press "POWER" button to "OFF" position to turn
the dishwasher off. You will notice that power indicator display light shuts off,

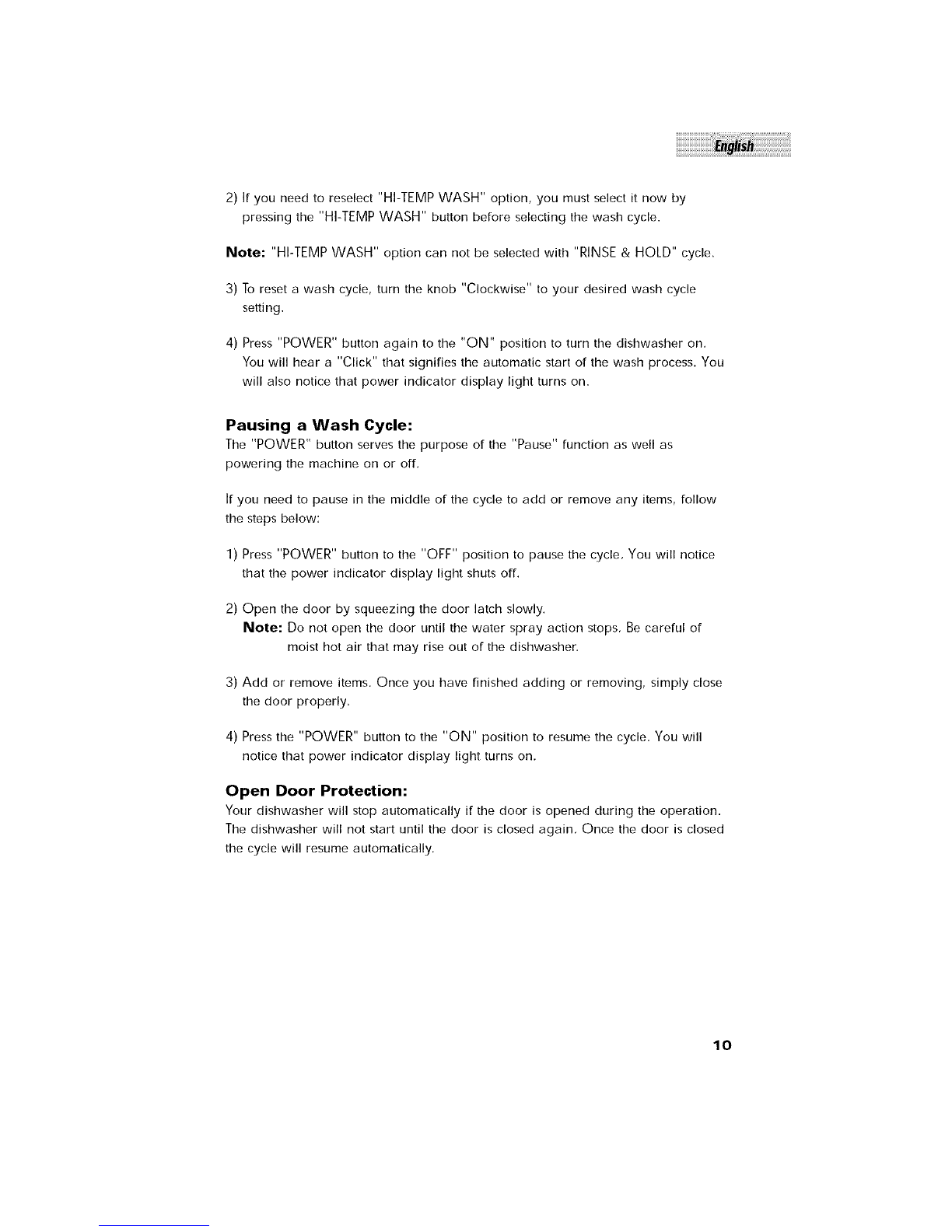

2)Ifyouneedtoreselect"HI-TEMPWASH"option,youmustselectitnowby
pressingthe"HI-TEMPWASH"buttonbeforeselectingthewashcycle.
Note: "HI-TEMP WASH" option can not be selected with "RINSE & HOLD" cycle.
3) To reset a wash cycle, turn the knob "Clockwise" to your desired wash cycle
setting.
4) Press "POWER" button again to the "ON" position to turn the dishwasher on.
You will hear a "Click" that signifies the automatic start of the wash process. You
will also notice that power indicator display light turns on.
Pausing a Wash Cycle:
The "POWER" button serves the purpose of the "Pause" function as well as
powering the machine on or off.
If you need to pause in the middle of the cycle to add or remove any items, follow
the steps below:
1) Press "POWER" button to the "OFF" position to pause the cycle, You will notice
that the power indicator display light shuts off,
2) Open the door by squeezing the door latch slowly.
Note: Do not open the door until the water spray action stops, Be careful of
moist hot air that may rise out of the dishwasher.
3) Add or remove items, Once you have finished adding or removing, simply close
the door properly.
4) Press the "POWER" button to the "ON" position to resume the cycle. You will
notice that power indicator display light turns on,
Open Door Protection:
Your dishwasher will stop automatically if the door is opened during the operation.
The dishwasher will not start until the door is closed again, Once the door is closed
the cycle will resume automatically,
lO

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!
Prepar,ng to Wash Dishes:
For get best results, practice the following
before you put dishware in the dishwasher:
• Discard big chunks of food from the plate
before loading.
• Remove sticky foods and loosen
burned-on foods before loading,
• Empty liquids such as juice, soup, soda,
coffee or tea from glasses and cups before loading.
• Rinse off acid based liquid, such as vinegar or lemon juice right a way, Failure to
do so may cause discoloration to plates, food containers or internal cabinet.
• Always check manufacturer's recommendations before you start washing items,
Tips to avoid stains and films:
The following suggestions are recommended to prevent stains and films
on dishware and utensils items:
• You must rinse all dishware, silverware, glassware and food containers
immediately after use, Some citric based food products, coffee, tea and iron
deposits in water can cause yellow or brown film to form on the inside surface it
left on for a long time or if rinsed immediately,
• You must check your water hardness to see whether you need to use more or less
detergent to wash. If water is extremely hard, then it may be causing stains on
items, You may need to use a water softener,
Do not overload the dishwasher,
Avoid improper loading,
Be sure to use the recommended water temperature to wash dishware,
Do not use too little detergent,
Do not use old or damp powder detergent,
Do not load aluminum utensils improperly. Aluminum utensils can cause gray or
black marks to appear on porcelain utensils if they are touching during wash
cycle.
11

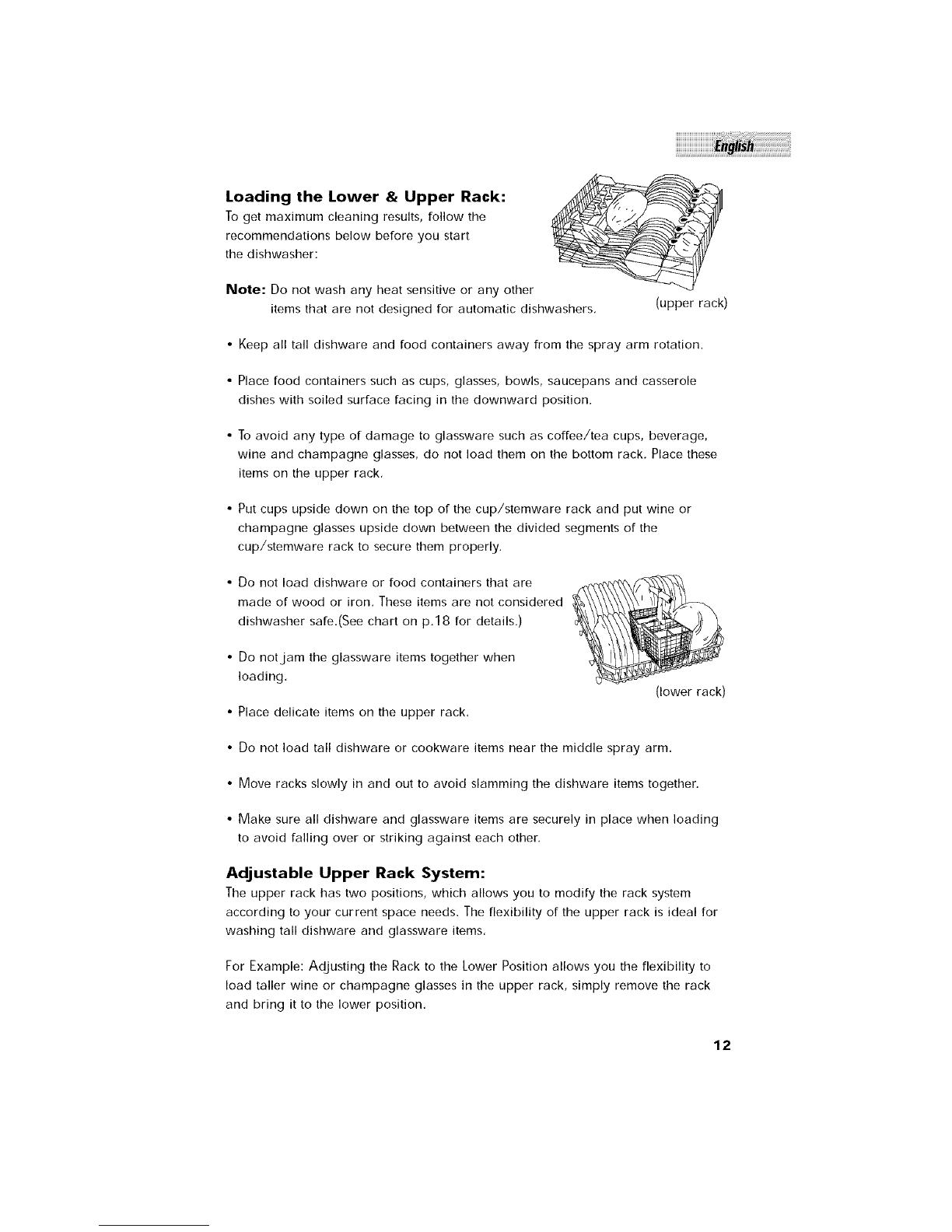

Loading the Lower & Upper Rack:
To get maximum cleaning results, follow the
recommendations below before you start
the dishwasher:
Note: Do not wash any heat sensitive or any other
items that are not designed for automatic dishwashers, (upper rack)
• Keep all tall dishware and food containers away from the spray arm rotation.
• Place food containers such as cups, glasses, bowls, saucepans and casserole
dishes with soiled surface facing in the downward position.
• To avoid any type of damage to glassware such as coffee/tea cups, beverage,
wine and champagne glasses, do not load them on the bottom rack, Place these
items on the upper rack,
• Put cups upside down on the top of the cup/stemware rack and put wine or
champagne glasses upside down between the divided segments of the
cup/stemware rack to secure them properly.
• Do not load dishware or food containers that are
made of wood or iron, These items are not considered
dishwasher safe,(See chart on p.18 for details.)
• Do not jam the glassware items together when
loading.
• Place delicate items on the upper rack.
(lower rack)
• Do not load tall dishware or cookware items near the middle spray arm,
• Move racks slowly in and out to avoid slamming the dishware items together.
• Make sure all dishware and glassware items are securely in place when loading
to avoid falling over or striking against each other,
Adjustable Upper Rack System:
The upper rack has two positions, which allows you to modify the rack system
according to your current space needs. The flexibility of the upper rack is ideal for
washing tall dishware and glassware items,
For Example: Adjusting the Rack to the Lower Position allows you the flexibility to
load taller wine or champagne glasses in the upper rack, simply remove the rack
and bring it to the lower position.
12

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiUi!i! !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i !i i i ! ! i
For Example: Adjusting the Rack to Upper Position allows you the flexibility to load
tall dishes on the lower rack,
Steps to Remove the Rack
1) Open both sides of the rail guards from the upper rack,
2) Slide the rack out.
3) Place the rack to your desired position.
4) Close both sides of the rail guards so rack will not slide out,
Loading Split Silverware Basket:
Your dishwasher has a removable split basket with two compartments that can be
separated to give you loading flexibility in order to accommodate flatware and lower
rack capacity needs. This option saves space when only half the unit is needed.
Simply remove the basket from the dishwasher to load silverware and place it back
once you finish loading,
Steps to Split the Silverware Basket
1) Put your right hand in right side of the basket and
your left hand in the left side of the basket,
2) Simply slide the basket with light force to
unlock/split by pushing it forward and pulling it
towards you until you see that both hooks come
out of the elongated holes in the middle.
Note: Do not use heavy force to split the
basket because this may cause damage to plastic hooks to break off.
To put both halves together again, use both hands to level the split baskets and
sliding each hook into each elongated hole on both sides, Now, slide with light
force to attach/lock by pushing it forward and pulling it towards you until both
baskets snaps in easily,
• To avoid any type of injury, load knives and forks face down.
• Try to mix spoons, knives and forks for better cleaning and drying and to prevent
nesting.
Do not mix stainless steel and silver items because you may
damage the silver finish on silver items.
Do not load tall items next to the upper spray arm because it
may block the rotation.
Do not load tin, pewter and non-dishware filters. These items
are not considered dishwasher safe,
13

Proper Use of Detergent:
•The amount of detergent to use depends on the type of water in your living area
whether it is hard or soft and whether items are lightly or heavily soiled.
• Water softness or hardness is measured in grains content per gallon (gpg). You
can find out the gpg level by calling your local Environmental Protection Agency
(EPA) in your county.
• If you find that the gpg level is higher in the water, then the water will be harder
in your living area. You will need more detergent to clean. If gpg level is lower,
then the water will be softer in your living area so you will need less
detergent to clean.
See the following table to understand the "water hardness type" and gpg level.
Water Hardness Type
Hard
Medium
Soft
flP,g
10+
4-9
0-3
Note: If gpg level is over 12, then water is very hard, You may need water
softener to improve the water quality and the performance of
your dishwashing,
Note: The quality of the detergent will make a big difference in the cleaning of
dishes. Detergent that is damp or too old will not be as effective to clean
because the active ingredients will be phased off. Detergent will not work
properly.
Note: Use only "Automatic Dishwasher Detergent" for your dishwasher,
Other types of detergents that are not for dishwasher use may cause
oversudsing and foaming, Do not use detergents that are dried, caked or
moist, These types of detergents will not dissolve properly and and will clean
effectively,
14

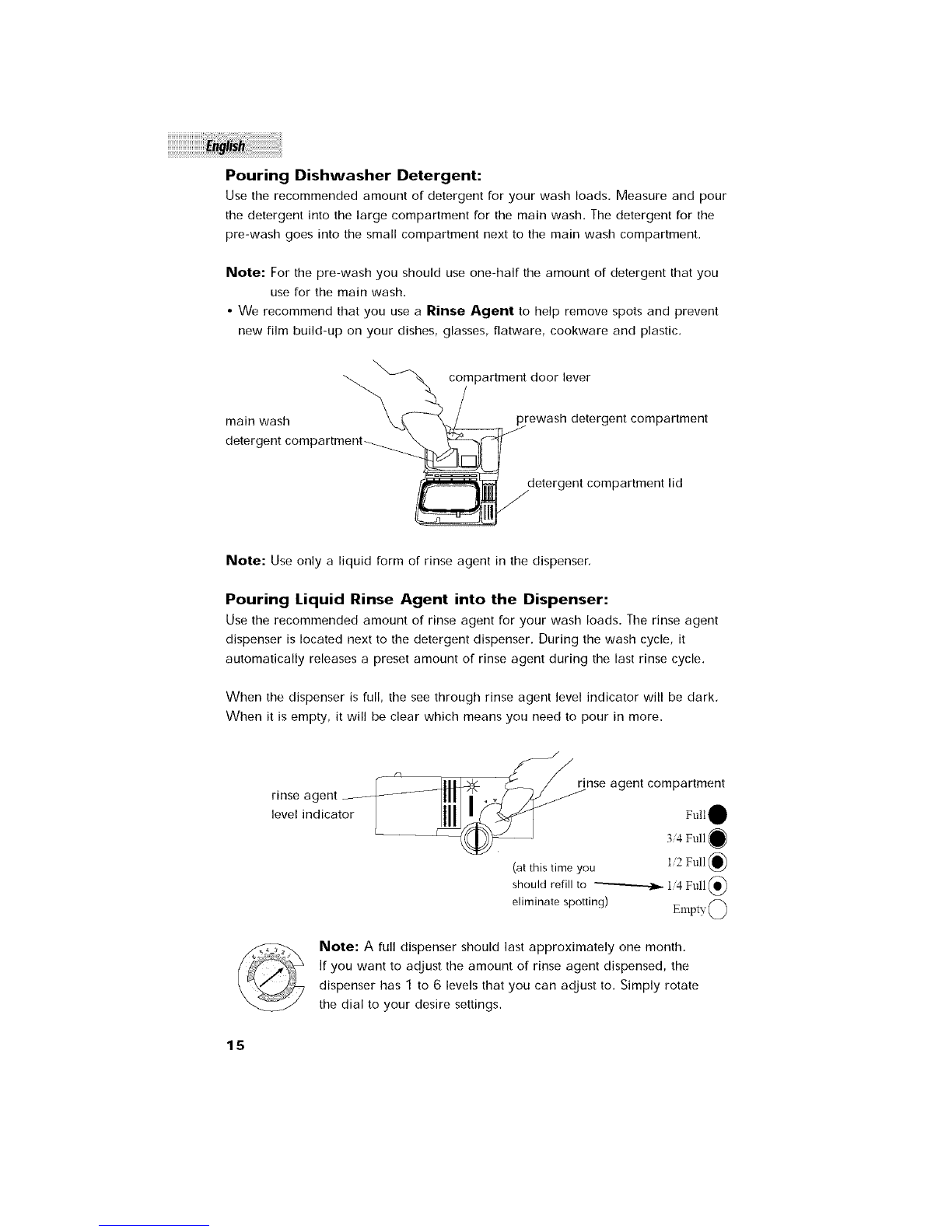

Pouring Dishwasher Detergent:
Use the recommended amount of detergent for your wash loads, Measure and pour
the detergent into the large compartment for the main wash. The detergent for the
pre-wash goes into the small compartment next to the main wash compartment.
Note: For the pre-wash you should use one-half the amount of detergent that you
use for the main wash.
• We recommend that you use a Rinse Agent to help remove spots and prevent
new film build-up on your dishes, glasses, flatware, cookware and plastic.
compartment door lever
rewash detergent compartment
detergent compartment lid
Note: Use only a liquid form of rinse agent in the dispenser,
Pouring Liquid Rinse Agent into the Dispenser:
Use the recommended amount of rinse agent for your wash loads. The rinse agent
dispenser is located next to the detergent dispenser, During the wash cycle, it
automatically releases a preset amount of rinse agent during the last rinse cycle,
When the dispenser is full, the see through rinse agent level indicator will be dark,
When it is empty, it will be clear which means you need to pour in more.
rinse agent
level indicator
rinse agent compartment
Full O
3/4 Full O
(at this time you 1/2 Full (_
should refill to _ 1/4 Full(_
eliminate spotting) Empty 0
Note: A full dispenser should last approximately one month.
If you want to adjust the amount of rinse agent dispensed, the
dispenser has 1 to 6 levels that you can adjust to, Simply rotate
the dial to your desire settings.
15

Checking Water Temperature:
• Your incoming water must be between at least 120°F /49°C and at most
150°F /66°C in order to clean effectively and prevent damage to your dishware.
Note: The minimum incoming temperature must be at 120°F/49°C in order for the
detergent to dissolve properly,
If you are unsure of the temperature of your hot water:
1. Simply open the hot water faucet and let it run for a minute and fill a glass.
2. Take a thermometer and check the temperature of the water.
3, If the temperature is below 120°F /49°C, then you need to adjust the water
temperature on your water heater in order to maintain that temperature level,
Overflowing Protection:
•In case the water level is rising above the highest acceptable point, the security
pressure switch will activate the drain pump automatically,
16

For your convenience, the three level filtration system is conveniently located inside
the dishwasher tub beneath the lower rack and consists of a Main Filter, Coarse
Filter and Fine Filter.
Coarse Filter
Fine Filter
Main Filter: The purpose of this filter is to trap food and soil particles.
Coarse Filter: The purpose of this filter is to trap large items such as pieces of
bone or glass that might clog the drain. (attached to main filter)
Fine Filter: The purpose of this filter is to trap and hold tiny soil and food residue
and prevent it from being re-deposited on the dishes during a cycle,
Warning: Never run your dishwasher without the filters in place.
Failure to do so may cause drain blockage and pump
damage.
17

Materials Type
Aluminum
Cast Iron
Chinaware
Copper
Crystal
Dishwasher Safe
Yes No
X
Comments
Some restrictions apply.
Read manufacturer's washing
instructions before loading.
Not recommended - Hand
Wash Only, dry immediately
after washing.
Some restrictions apply.
Read manufacturer's washing
instructions before loading.
Note: Only if stated
"Dishwasher Safe"
Some restrictions apply.)
Read manufacturer's washing
instructions before loading.
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Explanations
Materials such as anodized
aluminum may fade or
become dark in hot water
temperature. Some
discoloration may appear.
Load aluminum items away
from other type of materials
items because they can cause
gray or black marks.
Iron will rust in water and the
seasoning will be lost due to
the hot water temperature.
You can wash "Chinaware"
items that are without
decoration. You can wash
"Chinaware" items with
decoration protected by
special type of "Glaze". Any
type of "Pattern" on top of
glaze with gold or silver
lining or design may fade in
hot water temperature. Load
these type of items away from
each other to avoid scratches
and damage.
Load cooper items away from
stainless steel items. Do not
mix cooper and silver items in
the same basket. They can
easily discolor.
Certain type of "Lead Crystal"
may etch in high hot water
temperature. Do not wash
"Antiques" and "Very
Delicate" items in the
dishwasher. Crystal Items are
recommended to be washed
in low temperature
setting. When loading, make
sure they are securely in
place to avoid falling over
and knocking against other
dishware items during the
wash process.
18

Dishwasher Safe or Hand Wash (continued)
Materials Type
Dirilyte (Gold
Colored Flat
Ware)
Disposable
Plastic
Glassware
Knives
Lead Crystal
Non-Dishware
Non-Stick
Coatings
Pewter
Dishwasher Safe
Yes [ No
X
Comments
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Some exceptions and
restriction apply. Read
manufacturer's washing
instructions before loading.
Not recommended - Hand
Wash Only in cold water.
Note: Sharp knives can
become dull in hot water
temperature.
Read manufacturerrs washing
instructions before loading.
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Some exceptions and
restriction apply.
Read manufacturer's washing
instructions before loading.
Note: Only if stated
"Dishwasher Safe".
Not recommended - Hand
Wash Only.
Read manufacturer's washing
instructions before loading.
Explanations
These items may become
discolored.
These items are not made for
machine wash.
You may wash some
glassware items to avoid
stains. Empty liquids such as
juice,soup, soda, coffee or tea
from glasses and cups before
loading.
Sometimes the knife "Handle"
(wood or other type of
materials) may crack, loosen
or wear out in hot water
temperature.
These items may "Etch" if
machine washed.
Never machine wash items
such as electronic
"air cleaners/filters"
of any kind of small
electronics/appliances.
After wash, it is
recommended that you wipe
off the non-stick surface
area with vegetable oil to
maintain its non-stick quality.
This will stain or discolor if
machine washed.
19
