Haier HDW15F3S1 User manual

HDW15F3S1 HDW15F3B1
NZ AU
User Manual
Dishwasher

1
Please read these instructions carefully before using this appliance.The
instructions contain important information which will help you get the
best out of the appliance and ensure safe and proper installation, use
and maintenance.
Keep this manual in a convenient place so you can always refer to it for
the safe and proper use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner
can become familiar with the appliance and safety warnings.
Legend
General information and tips
Warning–Important Safety information
Environmental information
Disposal
Help protect the environment and human health. Put the
packaging in applicable containers to recycle it. Help to recycle
waste of elec- trical and electronic appliances. Do not dispose
appliances marked with this symbol with the household waste.
Return the product to your local recycling facility or contact
your municipal office.
WARNING!
Risk of injury or suffocation!
Disconnect the appliance from the mains supply. Cut off the
mains cableand dispose of it. Remove the door catch to prevent
children and pets to get closed in the appliance.
Thank you NZ AU

2
Safety .....................................................................................................................
Content
NZ AU
Installation ............................................................................................................
Product Description ..........................................................................................
Control Panel ......................................................................................................
Programme ..........................................................................................................
Before first use ...................................................................................................
Wi-Fi Connection ...............................................................................................
Daily Use ..............................................................................................................
Care and Cleaning ..............................................................................................
Troubleshooting .................................................................................................
Standards Test ....................................................................................................
Customer service ...............................................................................................
3
5
11
Technical Data .....................................................................................................10
12
15
16
28
21
29
31
35
34

Intended Use
The appliance is designed for domestic use inside the house，or in similar
applications such as staff kitchen areas in working environments, farm
houses, by clients in hotels, motels or other residential environments,
and bed and breakfast environments.It is not intended for commercial or
industrial use. Do not use it for purposes other than that for which it
was designed.
Changes or modifications to the device are not allowed. Unintended use
may cause hazards and loss of warranty claims.
Standards and Directives
This product meets the requirements of all applicable EC directives with
the corresponding harmonised standards, which provide for CE marking.
Before Switching on the Appliance for the First Time
Do…
make sure all packaging is removed and is kept out of children’s reach.
make sure that the electrical information on the rating plate agrees
with the power supply. If it does not, contact an electrician.
use a separate earthed socket for the power supply.The appliance
must be earthed.
make sure the plug is easy accessible.
make sure only the delivered electric cable and hose set are used.
hold the plug and not the electric cable when unplugging the power supply.
make sure not to damage the electric cable and the plug. If dam aged,
have it replaced by an electrician.
make sure the hose joints and connections are firm and there is no leakage.
Do not…
install or use the appliance where the temperature is below 5 °C. use
multi-plug adapters and extension cables.
let persons, children included, with reduced physical sensory, reduced
mental functions or lack of experience and knowledge use the appli-
ance if not supervised by a person responsible for their safety.
put flammable products or items that are wet with flammable products
in, near, or on theappliance.
3
Safety NZ AU

During Daily Use
Do…
supervise children to prevent them playing with the appliance.
put sharp pointed objects (e.g. knives) in a way that there is no danger
of injury.
Do not…
open the door while a programme operates.The appliance can release
hot steam.
keep the appliance door open without supervision to prevent tripping
and falling.
let children or pets come close to the appliance when the door is open.
sit or place heavy items on the open door.
remove the dishes from the appliance until the programme is completed.
There can still be detergent on the dishes.
drink the water in the appliance.The water may be contaminated with
detergent residues.
cover any ventilation openings in the base by a carpet or similar object.
use water spray or steam to clean the appliance.
let the children make the cleaning and user maintenance without
supervision.
WARNING:
Some dishwasher detergents are strongly alkaline.They can be extremely
dangerous if swallowed. Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door is open.Check that
the detergent receptacle is empty after completion of the wash cycle.
- The door is not left in the open position since this could present a
tripping hazard.
- Warning: Knives and other utensils with sharp points must be loaded in
the basket with their points down or placed in a horizontal position.
- Only use hose-set provided by manufacture, old hose-set cannot be reused.
4
Safety
NZ AU

WARNING!
Free Standing Installation
Install the appliance on solid
ground. Adjust accurately all feet
Only with a correct level the
appliance door closes and seals
correctly.
Installation under Worktop
5. The dimensions of the recess should
at least agree with the dimensions in
.
7. Put
6. After installation, the minmum gap
between the side planel and the
cupboard is 1mm, and the minmum
gap between the rear and the cupboard
is 10mm. The top gap is controlled
by adjusting the feet.
the appliance adjacent to the
slot. Make sure that all connections
(water,drain water,power) are neatly
positioned and connected.
1.
2.
4. Install the appliance carefully into
the recess.
3.
Stick the water-proof sticker on the
bottom of the kitchen board
WARNING!
If used as free standing appli-
ance again, the worktop must be
remounted.
598
min580
570
820
min820
min600
Any installation may be carried out only by a qualitied technician
refer to section SAFETY.
5
Installation NZ AU
Optional:Remove the work top of
the appliance.
Adjust accurately all feet to get a
firm level position.

Fresh Water Connection
fig.A
>10mm
The appliance should be connected to
the water main using the new water
inlet hose supplied. Old hoses should
not be used.
Do not shorten the inlet hose.
IMPORTANT!
25°C.
1. Take note of water connection requirements.
The dishwasher has a single valve water connection.
We recommend a cold water connection for best performance
and energy efficiency.
The incoming water temperature should not exceed
2. Take note of the permitted water pressure extremes.
Lowest: 0.3 bar = 3 N/cm = 30kPa
Where pressure is below 1 bar, contact a qualified plumber.
Highest: 10 bar = 100 N/cm = 1MPa
Where pressure is above 10 bar, a pressure reduction valve
must be installed. Contact a qualified plumber.
2
2
3. Connect the water inlet hose to an accessible water tap with
a 3/4” BSP connector (see fig.A). Ensure that there is no kink in
the inlet hose that could restrict the flow of water. A 90° bend
requires a minimum height of 200 mm for a kink-free curve.
Ensure incoming water is clear. If the water pipes have not
been used for a long period of time, let the water run to make
sure it is clear with no impurities. Not doing so may result in
the water inlet hose getting blocked and damaging the appliance.
If required, use a filter insert to filter out deposits from the
piping. The filter insert is available from your Authorised
Service Centre or Customer Care.
4. Tighten the hose coupling a further half turn after seal contact.
5. Check that the connection does not leak.
6
Installation
NZ AU

Anti-Flooding protection
The dishwasher is equipped with a system that stops the supply of water
in the event of a problem with the water supply hose, or leaks within the
unit, in order to prevent damage to your home. If for any reason the box
containing the electrical components happens to get damaged, turn off the
power supply and remove the plug for the appliance from the socket
immediately. In order to guarantee that the anti-flooding feature operates
properly, the “A” box with water supply hose must be attached to the water
supply tap as shown in fig.B. No other type of connection is acceptable.
The water supply hose must not, under any circumstances, be cut, as it
contains electrical parts which are live. If the length of the hose is not
adequate to make a proper connection, the hose must be replaced with
one which is long enough. This hose is available upon request from
specialised retailers and Authorised Service Center.
Drain Water Connection
Fix the water drain hose properly to
Following connections are possible:
Drain hose to sink
the piping.The hose has to reach at one
point a height between 400 and 850 mm
above the appliance bottom line!
An extension hose for the water drain
hose must not exceed a total length of 4
m and must have the same diameter as
the water drain hose.
Hang the drain hose with the
U-support over the edge of a sink
with adequate size.
Protect the U-support sufficiently
against slipping.
7
Installation NZ AU

Drain hose to waste water
connection
Drain hose to sink connection
CAUTION!
When connecting the drain hose to a
sink trap with a drain hose spigot, make
sure that the drain hose is supported
to the height of the bench.
Ensure the drain spigot has a minimum
hole diameter of 15 mm and it has been
drilled out.
Power connection
Ensure always that all connections (power supply, drain and fresh
water hose) are firm, dry and leak free!
Take care these parts are never to be crushed, kinked, or twisted
If the supply cord is damaged, it must be replaced by the service
agent (see warranty card) in order to avoid a hazard.
As shown in the figure, the power supply
is plugged into an externally accessible
place through the service hole for easy
plugging.
The internal diameter of the stand pipe
with vent-hole must be minimum 40 mm.
Put the drain hose for approx.80 mm
in the wastewater pipe.
Attach the U-support and secure it
sufficiently
8
Installation
NZ AU

9
Installation NZ AU

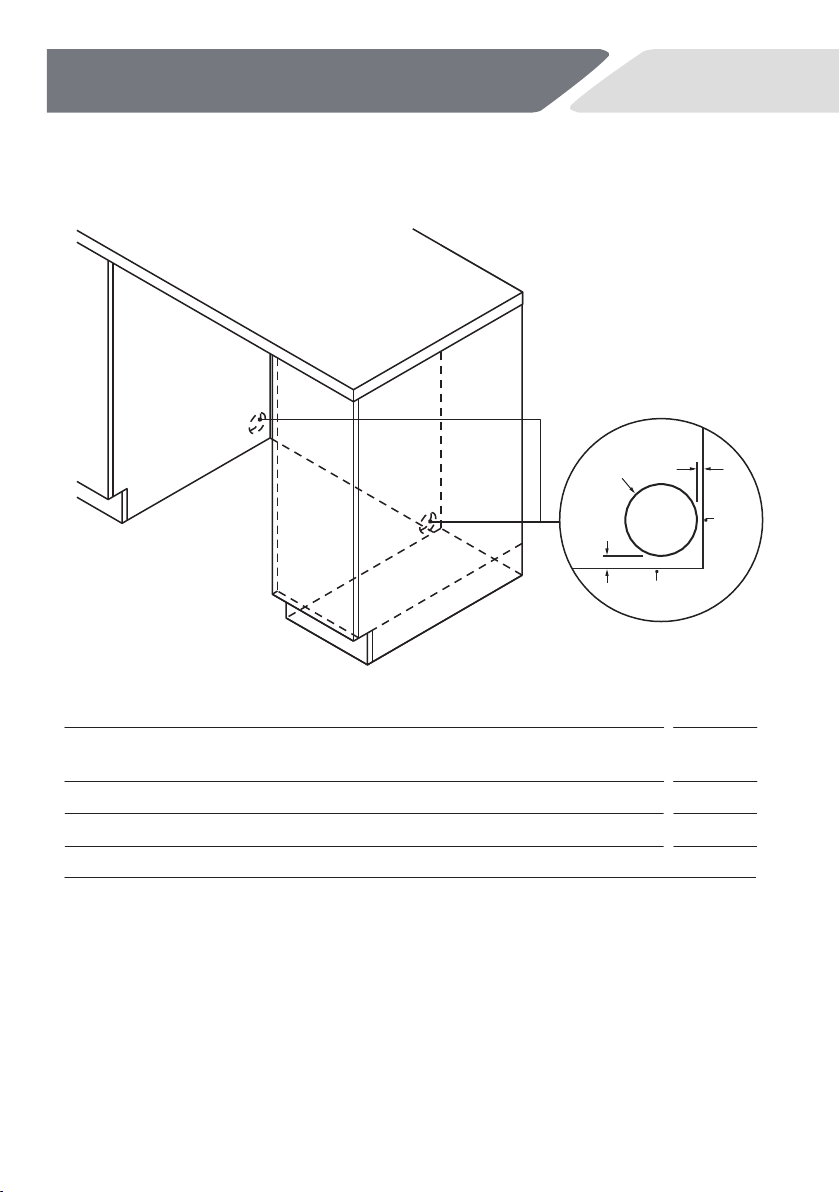

Service hole
CA
REAR
WALL
B
FLOOR
PROFILE
SERVICE HOLEDIMENSIONS MM
A
B
CMinimumdiameterofservicehole
15
0-50
70
Maximum distance between rear of cavity and service hole*
Maximum distance between floor and service hole**
*
based on a cabinetry depth of 580mm
** depending on adjustment of levelling feet

10
Technical Data
NZ AU
Suppliers name or trade
mark Haier
Supplier´s model identifier HDW15F3S1 HDW15F3B1
Rated capacity in standard
place settings 15
Mainswater pressure 0.03 -1Mpa（=0.3 -10bar ）
Power voltage 220-240 V (50Hz)
Maximum current int ensity 10 A
Total abso rbed p ow er 1720-2050 W
Check the electrical data on the rating label (located on the left-hand side
of the dishwasher’s stainless steel inner door). Should thedata on the
rating label be different to those specified below, consider those on the
rating label as correct.

1. Upper spray arm
2. Lower spray arm
3. Filte
4. Rinse aid dispenser
5. Detergent dispenser
Accessories
Check the accessories and literature in accordance with this list:
6. Rating label
7. Lower basket
8. Upper basket
9. Cutlery/Utensil tray
1
345
6
7
8
92
U-supportwater inlet hose User manualWarranty card
11
Product Description NZ AU
water-proof
sticker

1. ON/OFF icon
2. START/PAUSE icon
3.Time&Info Display/Indicator icon
4. PROGRAMME icon
5. Option icon
6. Status Indication
Time & Info display
During any selection the display shows by flashing related information like
Programme cycle time
Programme start delay time
Error codes and service information
After start of an operation it dispalys without flashing
Remaining time in hours of a delayed programme starts, e.g.
Remaining programme cycle time in hours + minutes, e.g.
While running it may vary due to local conditions and daily working load.
5 56
1 2
4
43
12
Control Panel
NZ AU

Status Indicators
Indicator Icon
Rinse aid
Water tap
If the indicator lights up: Rinse aid is empty!
After adding Rinse Aid,the indicator lights off.
If the indicator lights up,The appliance does not fill
with water.Check section:“TROUBLE SHOOTING”
Wi-Fi
Delay
If the indicator lights up, the dishwasher is successfully
connected to the Wi-Fi.
If the indicator lights up, a delay start has been
activated.
Wash
Rinse
If the indicator is flashing: the Dishwasher is washing.
If the indicator is flashing: the Dishwasher is
rinsing.
Dry If the indicator is flashing: the Dishwasher is drying.
Optional function
Child Lock
Half load
Remote *
To activate or cancel Child lock,Press and hold
until the Child lock indicator turn on or turn off.
Press the icon,and the app can start the dishwasher
program.
Use this option if you have only a few items to wash.
This will save water,energy and time.If you use powder
detergent use a little less detergent than for a full load.
13
Control Panel NZ AU

Intensive +
Steam +
Prolong washing time and enhance washing effect.
This function increases the temperatures and retains
*
The "Remote" icon is half lightbefore the dishwasher is connected to Wi-Fi.
The "Remote" icon is full light after the dishwasher is connected to Wi-Fi.
After pressing the "Remote" icon once, the mobile appcanstart the
dishwasher program.
them for an extra long time to obtain a defined
disinfection performance.
Dry +
Delay(+time)
In the last stage of rinsing, the washing temperature
is increased and the drying time is prolonged to
enhance the drying effect of tableware.
You can delay the start ofa programme in 1 hour
steps up to 24 hours.
Delay(- time)
WASH PROGRAM
Auto Dry+
Steam +, Dry+，Intensive +
Intensive +
，1/2load
Steam +, Dry+，Intensive +，1/2load
/
/
Dry+，1/2load
Dry+， ，1/2load
Intensive +
Dry+， ，1/2load
Heavy
Medium
60min
Eco
Glass
Hygine
Rinse
MODIFIER AVAIABLE
When the on，each press, the time is reduced
1h.
14
Control Panel
NZ AU

Programme Type of food residue Type of load
Light to heavy soil:
Casseroles,sauces, potatoes，
pasta, rice，roasted or fried food
Non-delicate:
Dinnerware, cutlery，
pots and pans
Heavy soil:
Casseroles, sauces, potatoes ,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware, cutlery，
pots and pans
Daily soil:
Soups, eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware，cutlery，
pots and pans
Mixed soil:
Coffee, cake, milk, cold drinks, salad,
sausages,pasta,roasted or fried food
Non-delicate:
Dinnerware，cutlery，
pots and pans
Normal soil:
Soups , eggs, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware，cutlery,
glassware
Light soil:
Coffee, cake, milk, cold drinks,
salad, sausages
Delicate:
Glassware, dinnerware,
cutlery
Hygiene soil:
Casseroles, sauces, potatoes,
pasta, rice, roasted or fried food
Non-delicate:
Dinnerware
cutlery, pots and pans
Dishes to be stored for a few
days before washing
All: Dinnerware,
cutlery, glassware,
pots and pans
1). The appliance senses the type of soil and the quantity of items in the baskets. It
automatically adjusts the temperature and quantity of water, energy consumption and
programme duration.
2). With this programme you can wash a load with fresh soil. It gives good washing results
in a short time.
3). Use this programme to quickly rinse the dishes. This prevents the remaining food to bond
on the dishes and bad odours to come out from the appliance. Do not use detergent with
this programme!
1)
2)
3)
15
Programme NZ AU

First Steps
Remove all packaging materials, keep them out of children’s reach and
dispose them in an environmentally friendly manner.There could be water
residue inside the appliance due to quality checks in the factory.
Perform in the following steps:
1. Install the appliance.
Refer to section INSTALLATION.
2. Only for use of Multitabs: Adjust the rinse aid setting.
Refer to section DIFFERENT SETTINGS FOR RINSE AID.
3. Fill the rinse aid dispenser.
Refer to section HOW TO FILL THE RINSE AID DISPENSER.
4. Open the water tap.
5. Start any wash programme (apart from Rinse programme）
with detergent but no load to remove possible manufacturing residues.
Activate / De-Activate the Buzzer
An accoustic signal informs about the end of a programme.This signal can
be switched off.
Refer to section HOW TO ADJUST SETTINGS and select the setting:
If the display shows the signal is switched off.
If the display shows the signal is switched on.
16
Before first use
NZ AU
Different Settings for Rinse Aid
Rinse aid is added during the last rinsing phase to dry the dishes without
streaks and stains.
Detergent (e.g. powder, tablets, ...)
requires separate rinse aid:
Factory default setting: .No settings are necessary.
The rinse aid is added from the rinse aid dispenser only.

Detergent with multifunction (e.g. Multitabs)
combine detergent and rinse aid:
The rinse aid setting should be adjust to . Please use the setting
instructions in section HOW TO ADJUST SETTINGS and select the
setting.
The rinse aid is added from the rinse aid dispenser in addition to the
multitabs rinse aid.
Setting cuts off the rinse aid dosage and the rinse aid indication.
The higher the value for the higher the dosage.
Usually the recommended setting performs well. In case of streaks, stains,
shimmer etc.，refer to section TROUBLESHOOTING.
How to fill the Rinse Aid Dispenser
CAUTION!
Only use rinse aid for dishwashers.
Other products can cause damage to the appliance!
17
Before first use NZ AU
Lift the cover open and pour rinse aid
into the opening.
Do not fillexceeding the MAX line.
Takecare not to spill any onto the door
or detergent bucket.
Close the cover, ensuring it clicks shut.

Powder detergent quantity recommendations
Use the table below to determine the optimal powder detergent
quantity for each wash programme.
If the water is hard in your area, more detergent may be required.
Refer to 'Water Hardness' for more details
* tablets are not recommended for the Hygiene cycle.
WASH
PROGRAM
Auto
Heavy
Medium
Hygiene
Eco
60Min
Rinse
Glass
PRE WASH
COMPARTMENT
None
Full
Full
None
Full
Full
n/a
Full
MAIN WASH
COMPARTMENT
1/2 - 2/3
2/3
2/3
1/2
2/3
1/2
n/a
2/3
18
Before first use
NZ AU

How to Adjust Settings
Adjust the Rinse Aid level
1. The appliance is switched on.
2. Press and hold and about 3 seconds until:
The display shows the current Rinse Aid setting (the default is ).
3. Press to change the Rinse Aid setting in steps between
(minimum dispense,no rinse aid is set) and (maximum dispense,
represents putting in 6ml rinse aid).
5. To exit the Rinse Aid menu, press and hold for 1 second.
Activate / De-Activate the Buzzer
1. The appliance is switched on.
2. Press and hold and for about 3 seconds until :
The display shows the current Rinse Aid setting.
3. Press to scroll to the buzzer menu.
4. The display will show (buzzer off) or (buzzer on).
5. Press to toggle between
(buzzer off) or (buzzer on),
7. To exit，press and hold 1 second.
Child lock
This feature disables all the icons on the dishwasher. If any other icons
are pressed while Child lock is activated, the Child lock indicator will flash
for a few seconds.
1. To activate Child lock, press and hold for 3 seconds.
2. The display will remain on (if no programme has been started it will
continue to flash while the control panel is locked).
3. To cancel Child lock, press and hold for 3 seconds.
4. Press to save the option.
6. Press to save the option.
19
Before first use NZ AU
