Haier HLP140E - 2.6 cu. Ft. Portable Vented Electric... User manual

Space Saving 120 Volt
Electric Vented Tumble Dryer
Wall-mountable
.
Dryer
User's Manual
HLP140E
Please read this manual
carefully before using.
Retain it for future reference.
Quality Innovation Style

Unpacking Your Dryer
1.Inspect and remove all packing materials. This includes the foam and any adhesive tape both
inside and outside of the unit.
2.Inspect and remove any remains of packing, tape or printed materials before powering on the dryer.
DANGER
Risk of child entrapment.
Before you throw away your old dryer, take off the door so
that children may not easily get trapped inside.
1
UNPACKING DRYER
PRODUCT REGISTRATION
Please register online at www.prodregister.com/Haier
Thank you for using our Haier
product. This easy-to-use manual will
guide you in getting the best useof
your dryer.
Remember to record the model and
serial number. They are on a label in
back of the dryer.
Staple your receipt to your manual. You will need it to obtain warranty service.
Model number
Serial number
Date of purchase
As dry cleaning solvents, gasoline, vegetable andcooking oil are highly
hazardous materials, items soaked in or spotted with such should not be usedin
the dryer. Items may still contain a substantial amount of the hazardous material
after being washed. When suchitems are exposed to heat they could ignite. As
clothes are stacked and piled up the dryer the heat cannot escape. Due tothis,
items become hot enough to possibly ignite. Washing in hot water with extra
deter gent would reduce but not eliminate the risk of fire.
WARNING !

SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, or injury to persons when using your
appliance, follow basic precautions, including the following:
1. Read all instructions before using the appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with
gasoline, dry-cleaning solvents, or other flammable or explosive substances, as they give off
vapors that could ignite or explode.
3. Do not allow children to play on or in the appliance. Close supervision of children is necessary
when the appliance is used near children.
4. Before the appliance is removed from service or discarded, remove the door to the drying
compartment.
5. Do not reach into the appliance if the drum is moving.
6. Do not install or store this appliance where it will be exposed to water and/or to the weather.
7. Do not tamper with controls.
8. Do not repair or replace any part of the appliance or attempt any servicing unless specifically
recommended in the user-maintenance instructions or in published user-repair instructions that
you understand and have skills to carry out.
9. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
10. Do not use heat to dry articles containing foam rubber or similarly textured rubber-like materials.
11. Clean lint screen before or after each load. DO NOT OPERATE THE DRYER WITHOUT
THE LINT FILTER IN PLACE.
12. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust and dirt.
13. The interior of the appliance and the exhaust duct should be cleaned periodically, preferably by
qualified service personnel.
14. Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a load to catch fire.
15. If material has been used with any flammable liquids or solids it should not be used in the dryer
until all traces of the flammable liquids and its fumes have been removed.
16. This dryer must be properly installed in accordance with the installation instructions before it is
used. See grounding instructions in the installation section.
17. Proper grounding must be ensured to reduce the risk of electric shock and fire. Check with a
qualified electrician or service personnel if you are in doubt as to whether the dryer is properly
grounded.
18. Use the dryer only for its intended purpose, drying clothes.
19. Always disconnect dryer from electrical supply before attempting any service. Disconnect
power cord by grasping the plug, not the cord.
20. Replace worn power cords and/or loose plugs.
.SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY
2
WARNING
!

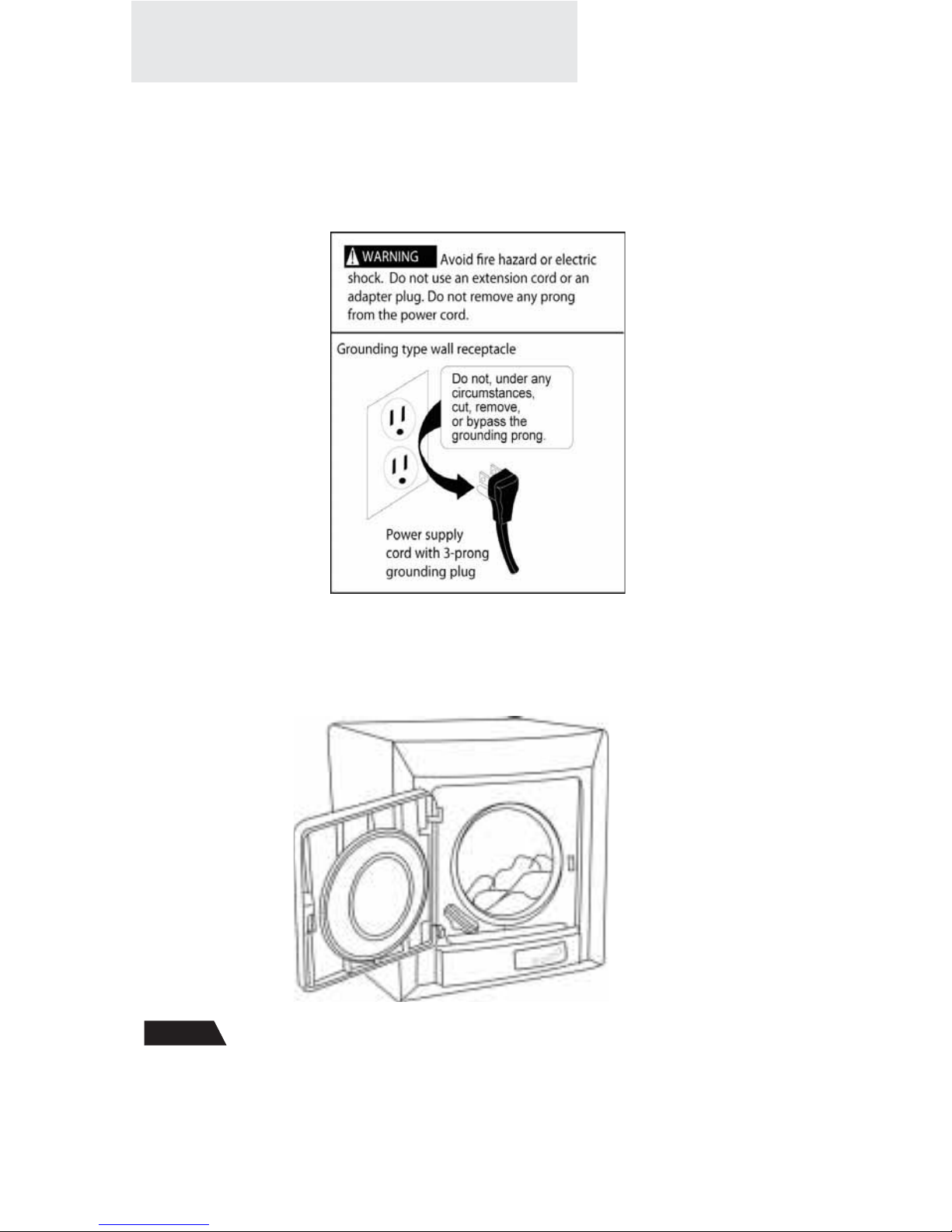

Grounding Instructions:
This appliance must be grounded. It is equipped with a 3-wire cord having a grounded plug.
The plug must be plugged into an outlet which is properly installed and grounded.
Warning! Improper use of the grounded wire can result in the risk of electric shock. Consult a
qualified electrician if necessary. Do not attempt to defeat this safety feature by modifying the plug.
Avoid the use of an extension cord because it may overheat and cause a risk of fire. However, if it is
necessary to use an extension cord:
A. Use only 3-wire extension cord with 3-blade grounding plug.
B. The marked rating of the extension cord must be equal to or greater than the rating
of this appliance.
Attempting any maintenance or cleaning:
To minimize the possibility of electric shock, unplug this appliance from the power supply or
disconnect the dryer at the household distribution panel by removing the fuse or switching off the
circuit breaker before attempting any maintenance or cleaning (except the removal and cleaning
of the lint filter).
Pressing the Power ON/OFF button to an off position or pressing Start /PAUSE button,
does NOT disconnect the appliance from the power supply.
3
Electrical Requirements
SAFETY INSTRUCTIONS
Note

Unpacking Your Dryer ………………………………………………… 1
Product Registration .………………………………………………...…1
Safety Instructions………………………………………………...…….2
Electrical Requirements …………………………………………….. 3
Parts and Features………………………………………………....……5
Set Up INSTRUCTIONS ………………………………………….……6-8
-Location of Your Dryer ……………………………………………6
-Assemble Dryer for Installation…………………………..……… 7
-Venting the Dryer……………………………………………………8
INSTALLATION INSTRUCTIONS……………………………............9-11
-Wall Mounting Instructions…………………………………………9 -10
-Completing Instillation …………………………………...............11
OPERATING INSTRUCTIONS…………………………………………12-17
-Control Panel ………………………………………………………12
- Quick Start…………………………………..............................13-14
- Timed Dry………………………...............………….................15
Drying Tips and Precautions …………………………………….……17
Care and Cleaning Guide …………………………………………..…18
Troubleshooting …………………………………………………….....19
Limited Warranty …………………………………………………....…20-21
Table of Contents
4

Drum
Exhaust and Lint Filters
Air Intake
Digital Control Panel
Power Cord Exhaust Vent
Back Cover
Casing
Door Gasket
Front View
Back View
Door
Windows
Dryer Parts and Features
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Lint
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
Exhaust Housing
Dryer Hanging Wall Hook
Spacer
Hose Clamp
5
HLP140E

Tools and Parts Required for Installation:
Philips Head Screw Driver
Flat Head Screw Driver
Electric Drill and 1/8 inch drill bit
Stud finder (optional)
(6) Wood screws for mounting plywood
Plywood board; size 30 (h) by 24(w) inches or wood slats
Venting materials:
4 inch diameter metal exhaust rigid ducting and fittings or UL flexible metal dryer vent hose,
that should not exceed 6 feet.
2 additional hose clamps for ducting outside exhaust vent hose
Metal Elbows or outdoor vents as needed.
6
SET UP INSTRUCTIONS
.
First find a suitable location where you can mount the dryer on the wall
and still have access to 120 Volt outlets and exterior venting.
16.73”
26.97”
24.8”
Vent to outside
Type: Electric dryer
Rating: Please refer to the rating label regarding detailed information
Size: 26.97x24.8x16.73(inch)
Capacity: IEC2.6cu.ft.( 7.7 lb)
Weight: 52.9lbs(24kg)
Location of Your Dryer
Nearest 120 Volt
AC outlet
Check dryer size and ensure a good location for the dryer installation on a wall where you can
mount the unit using wall studs or beams.
It is recommended to use a plywood board (30 by 24 inches) to mount the dryer using the walls
beams and studs as support, rather than just wood slats.
Make sure the dryer power cord can reach a 120 Volt outlet.
Make sure you can connect the exhaust vent to the outside or designated dryer vent (in a
laundry room).
The length of exhaust ducting should not exceed 6 feet.
Please read the additional ducting information and warnings in this manual.

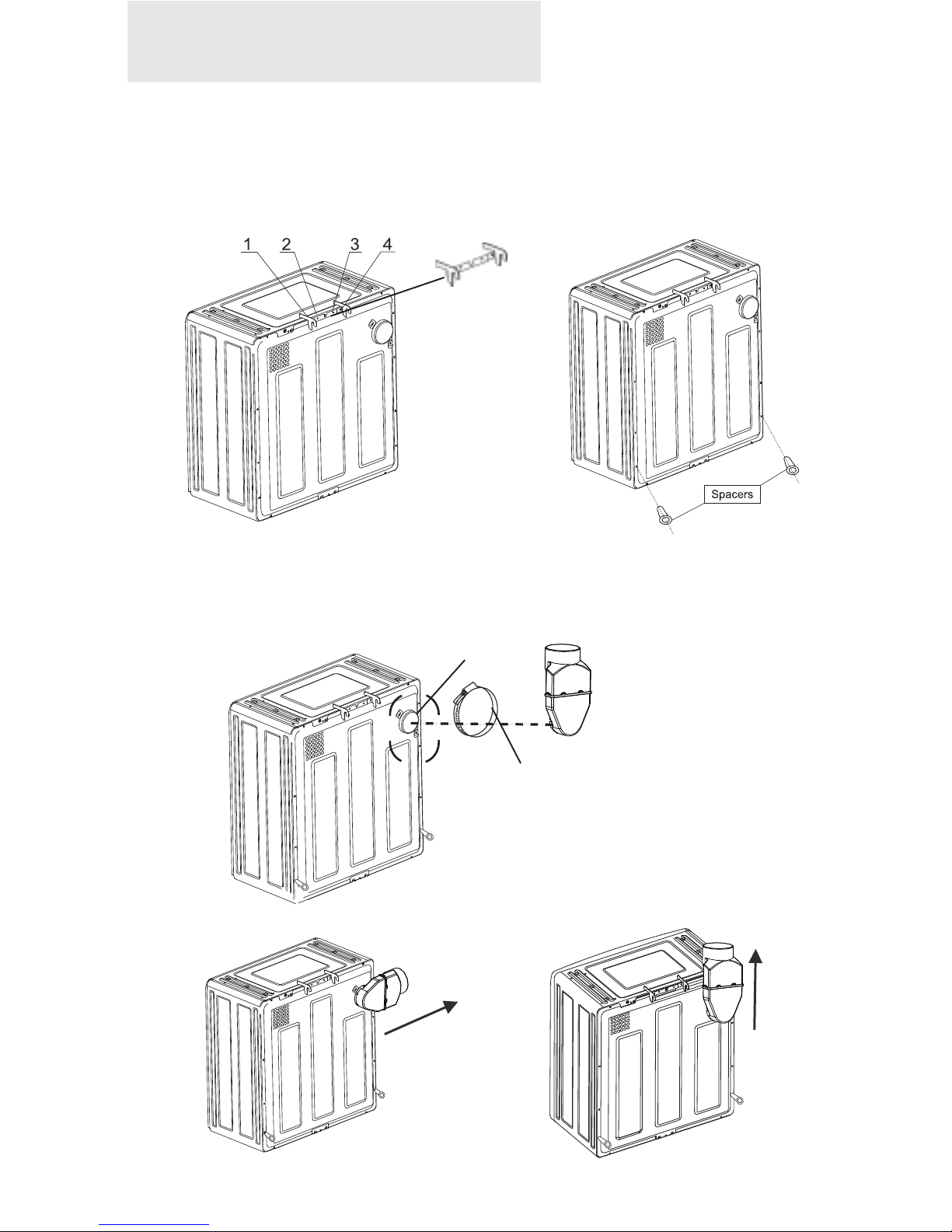

Screw mounting hook bracket and wall spacer to dryer with screws provided.
Connect vent housing to dryer using hose clamp provided to the exhaust pipe.
1.Attach Hanging hook bracket using
the 4 screws. 2.Attach the 2 wall spacers to the bottom
of the dryer, using the 2 screws.
3.Attach Exhaust Housing
7
SET UP INSTRUCTIONS
Exhaust Pipe
Hose Clam
Exhaust Vent Housing
4. You have two choices of the exhaust pipe housing direction
Assemble Dryer for Installation

8
SET UP INSTRUCTIONS

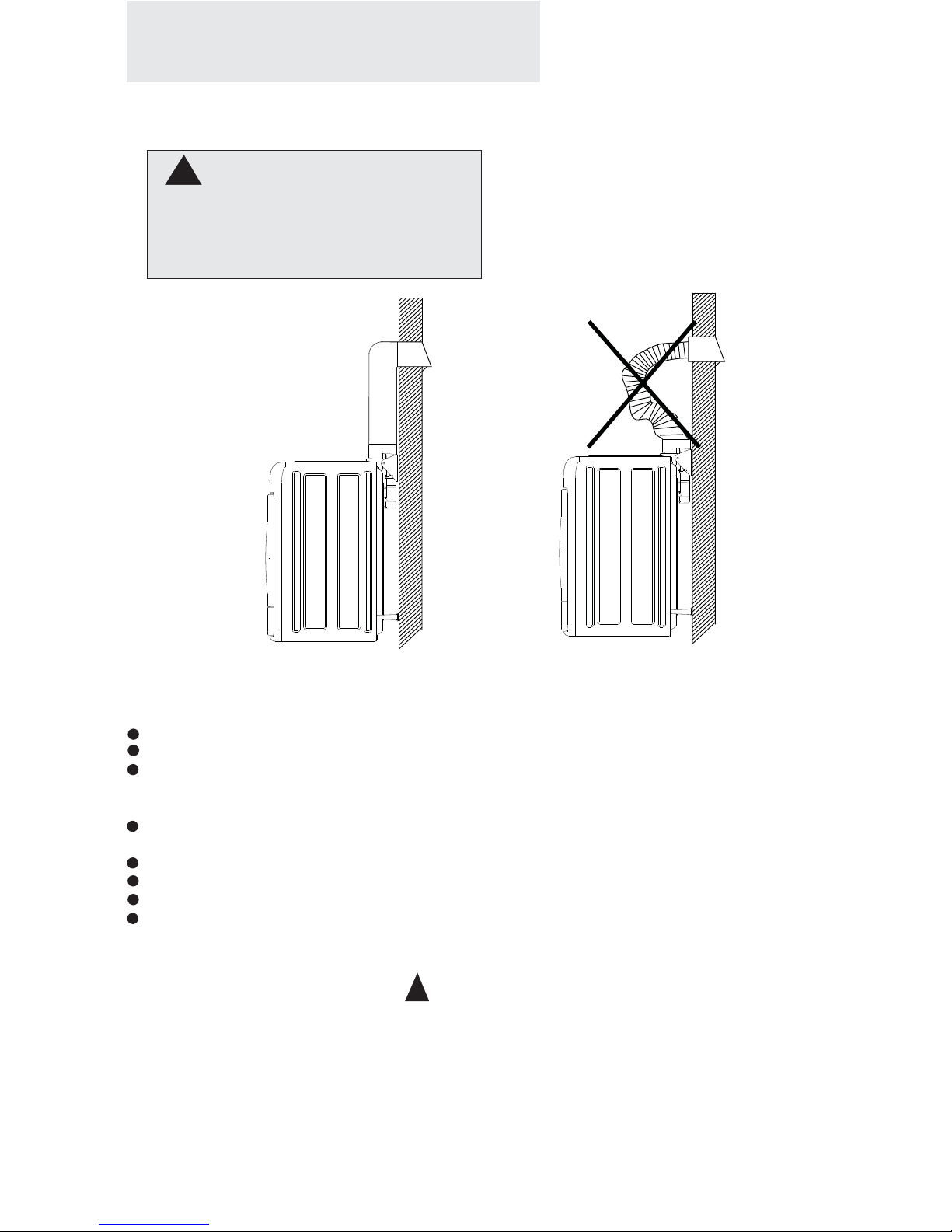

5. Venting The Dryer
Proper venting of the dryer is very important. Determine the best and safest ducting for the dryer.
Correct Incorrect
Outside
Vent
Use a metal or UL vent.
Do not use plastic ducting.
Do not crimp or use excessive ducting.
Clean old ducts before installing this dryer.
WARNING!
!
Venting must conform to local building codes.
Do not use thin plastic or foil ducting.
Use 4 inches (10.2cm) diameter rigid or flexible metal duct (note: venting materials are not
supplied with the dryer, and you should obtain the venting materials necessary for proper
installation).
Position the Dryer such that the exhaust duct run is as short as possible. Make sure
there is no more than 6 feet of exhaust ducting.
Clean old ducts before installing this dryer
Never bend or collapse ducting flex hose. Use few elbows joints as needed.
Use duct tape on all duct joints.
Insulate ductwork that runs through unheated areas in order to reduce condensation and lint
build-up on pipe walls.
Exhaust Requirements and Maintenance.
PLEASE BE AWARE THAT FAILURE TO EXHAUST THE DRYER
CORRECTLY WILL VOID THE DRYER’S WARRANTY.
WARNING
!
To reduce the risk of fire and combustion, the dryer must be vented outdoors.
Lint accumulation can cause fires.
Check and clean vents and ducting as often as possible.

Location for installation and options for various walls
1.There are 2 mounting options- either using wood slats or a whole plywood board. The dryer
installation to the wall should be able to accommodate the weight of the unit of 52 lbs. plus about
10 lbs. for clothing (or approximately 62 lbs). We suggest you use a plywood board for added
support and safety, this is the best way to mount.
2.Determine dryer position on the wall. A minimum of 6”(Inches) is needed between the top
of the dryer and the ceiling for installation.
3.If mounting the dryer above a washing machine, allow sufficient space to open the top lid of
the washer.
Wall Mounting Instructions
INSTALLATION
INSTRUCTIONS
4. The Best installation is to add a plywood board to the wall studs.
As a second option- you can use two (2) slats (2 by 4 “) and attach to studs.
9

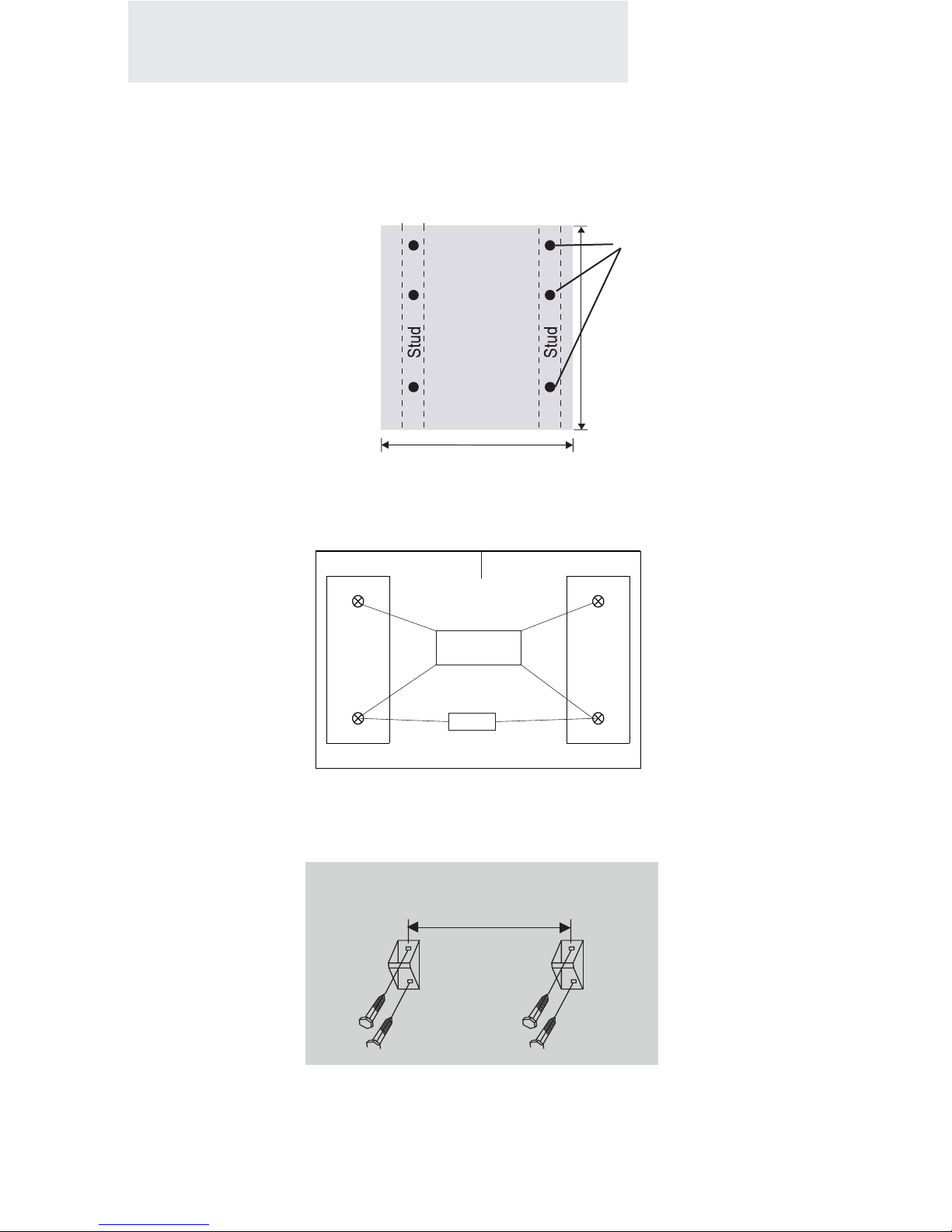

6.Mark the required dryer bracket position and holes using the template provided.
INSTALLATION INSTRUCTIONS
HLP140E Mounting template
Mounting bracket
Mounting bracket Drill holes for dryer
mounting bracket
Center and level template
6 inches
10
Mounting Plywood to wall
7. Using the 4 supplied screws attach the 2 wall hanging mounting brackets onto the plywood.
The distance between each bracket should be 6” apart.
5. For the best installation:
Locate the wall studs in order to securely mount the unit on the wall. Use 1 plywood board
size 30 (h) by 24(w) inches and mount into the wall studs using (6) wood screws (not provided)
6 inches
You are now ready to hang the dryer to the wall.
Use wood screws
30 inches
24 inches
Plywood board
for supporting
the dryer

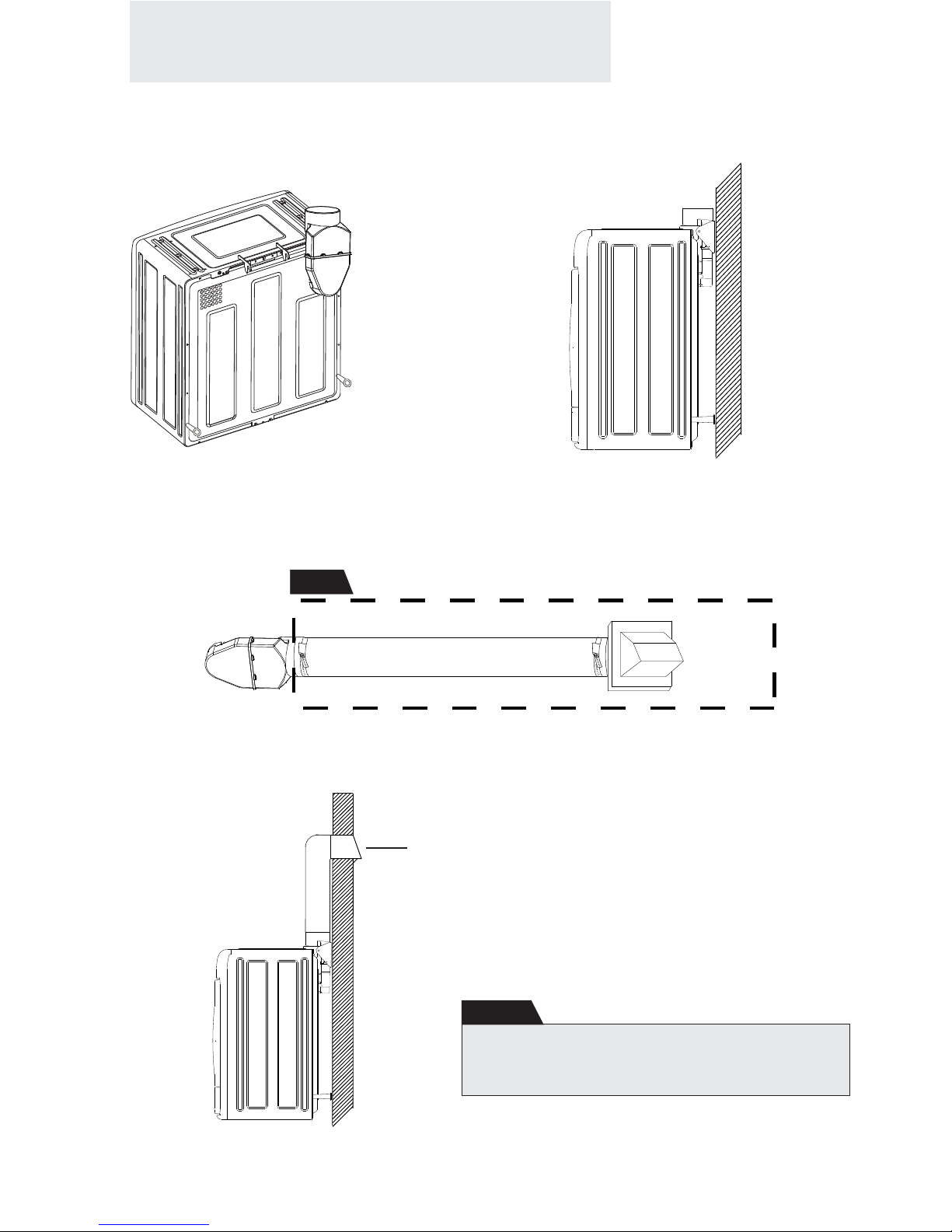

Connect the exhaust ducting (not provided) from the dryer venting housing to external
outside dryer vent using a hose clamp (not provided).
11
INSTALLATION INSTRUCTIONS
8. Putting Dryer on wall.
Lift the dryer (with the help of an assistant) and insert the hanging hook onto the 2 mounting
brackets on the wall. The wall spacer will distance the dryer from the bottom.
9. Connect ducting to the Dryer
Vent to the outside only. Improper taping to vent
or unstable installation to vent will cause
undesirable drying performance.
Note
Outside
Vent
10. Competed final installation, on wall with ducting
Exhaust
Housing
hose clamp hose clamp
Exhaust ducting Outside
Vent
Must purchase these parts from local hardware store.
Note
Hang dryer onto
mounting brackets on
the wall

Choose Drying Cycle
Normal Normal drying
Heavy Huge and heavy garments
Delicat Low level heat drying
Timed Dry You can manually set
the drying time and
temperature.
Flashing LED- indicates the program is functioning
LED On- indicates function selected or the program, that is going to begin.
OPERATING INSTRUCTIONS
Control Panel Function
Cycles
Dry
Time
Tem p
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
Status Indicator lights
Dry
The dryer is on.
Cooling
The final drying cycle will be completed soon,
and the dryer stoped heating and is cooling down.
End Cycle
The cycle is completed; take out laundry.
Clean Filter
LED reminds you to clean the lint filter each time
you finish drying your clothes.
'PowerOn/Off ' button
12
'Start/Pause'button
With Power ' ON '
Press the 'Start/Pause'button to
start Drying Cycle , pause
operation,or resume operation.
Press in the 'PowerOn/Off' button
to turn on the power of the dryer
'Dry Time' button
When in Timed Dry- Use
the Dry Time button to
manually select drying
time in a range of 30, 60,
90,120, or 150 minutes.
'Cycle' button
Use the Timed Dry Cycle for manual selecting Dry times and Temperatures
If ‘Temp’ function is set
to 'Air-Dry', the 'Dry Time'
is pre-set to select only
30 or 60 minutes.
'Temp' button
When in Timed Dry- Use the
Temp button to manually
select the temperature range
to High, Low and Air Dry
temperature settings.
(Air Dry is without any heat)
' Normal ' and ' Heavy ' Cycles
are pre-set to the 'High
'
temperature setting.
' Delicate ' is pre-set to ' Low '
temperature setting.
LED Indicator lights
HLP140E
Note
Note

1.Connect AC plug to 120 Volt outlet.
13
OPERATING INSTRUCTIONS
Quick Start
Normal , Heavy and Delicate Cycle Laundry Loads
2.Load your dryer with clothing;
Do not overload the Dryer
It is suggested that 2/3 the capacity of drum be filled to allow for
tumbling and proper drying.
Note

14
3. Set Cycle and Start
To start drying a laundry load using Auto Dry with presets for Temperature and Time,
there are 3 easy steps:
1. Turn ‘Power ON’ 2. Choose drying Cycle –
Normal, Heavy or Delicate
3. Press ‘Start’
Normal , Heavy and Delicate Cycles are auto-set for Temperature and Time to dry a regular load.
Timed Dry Cycle is for manual selecting Dry times and Temperatures. (See next page for instructions)
5. End Dry Cycle
A beeper alarm alerts you when the Drying Cycle ends, then the dryer will power down.
Take out the clothes as soon as possible.
OPERATING INSTRUCTIONS
4. Cooling Status.
When ‘Cooling’ Status LED is ON, the Cooling down time takes 10 minutes for dryer along with the
garments.
If you want to take out clothes in the middle of drying cycle, please use caution and carefully
take out the HOT clothes.
6. Clean Filter
‘Clean Filter’ Status LED reminder goes ON. After drying each load of clothing, always clean
the lint filters.
Note
Cycles
Dry
Time
Tem p
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y
1
23
Power
On/Off
Cycles
Start
Pause
Quick Start
Normal , Heavy and Delicate Cycle Laundry Loads
Exhaust vent
Casing

OPERATING INSTRUCTIONS
1
5
4
2
3
15
The Timed Dry Cycle is for manual selecting Dry times and Temperatures.
3. Press Dry Time button
to manually select drying time in a range
of 30, 60,90,120, or 150 minutes.
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
For Timed Dry operation.
1. Turn ‘Power ON’
2. Choose dry Cycle –
Set Cycle to ‘Timed Dry’ .
4. Press Temp button
to manually select the temperature
range to High, Low and Air Dry
temperature settings.
5. Press ‘Start’
Timed Dry Cycle Manual
7. End Dry Cycle
A beeper alarm alerts youw hen the Drying Cycle ends, then the dryer will power down.
Take out the clothes as soon as possible.
6. Cooling Status.
When ‘Cooling’ Status LED is ON, the Cooling down time takes 10 minutes for dryer along with the
garments.
If you want to take out clothes in the middle of drying cycle, please use caution and carefully
take out the HOT clothes.
8. Clean Filter
‘Clean Filter’ Status LED reminder goes ON. After drying each load of clothing, always clean
the lint filters.
Exhaust vent
Casing
Cycles
Dry
Time
Temp
Start
Pause
Power
On/Off
Dry
Cooling
End Cycle
Clean Filter
Normal
Timed Dry
Heavy
Delicate
30
60
90
120
High
Low
Air-Dry
150
Status
A
U
T
O
D
R
Y

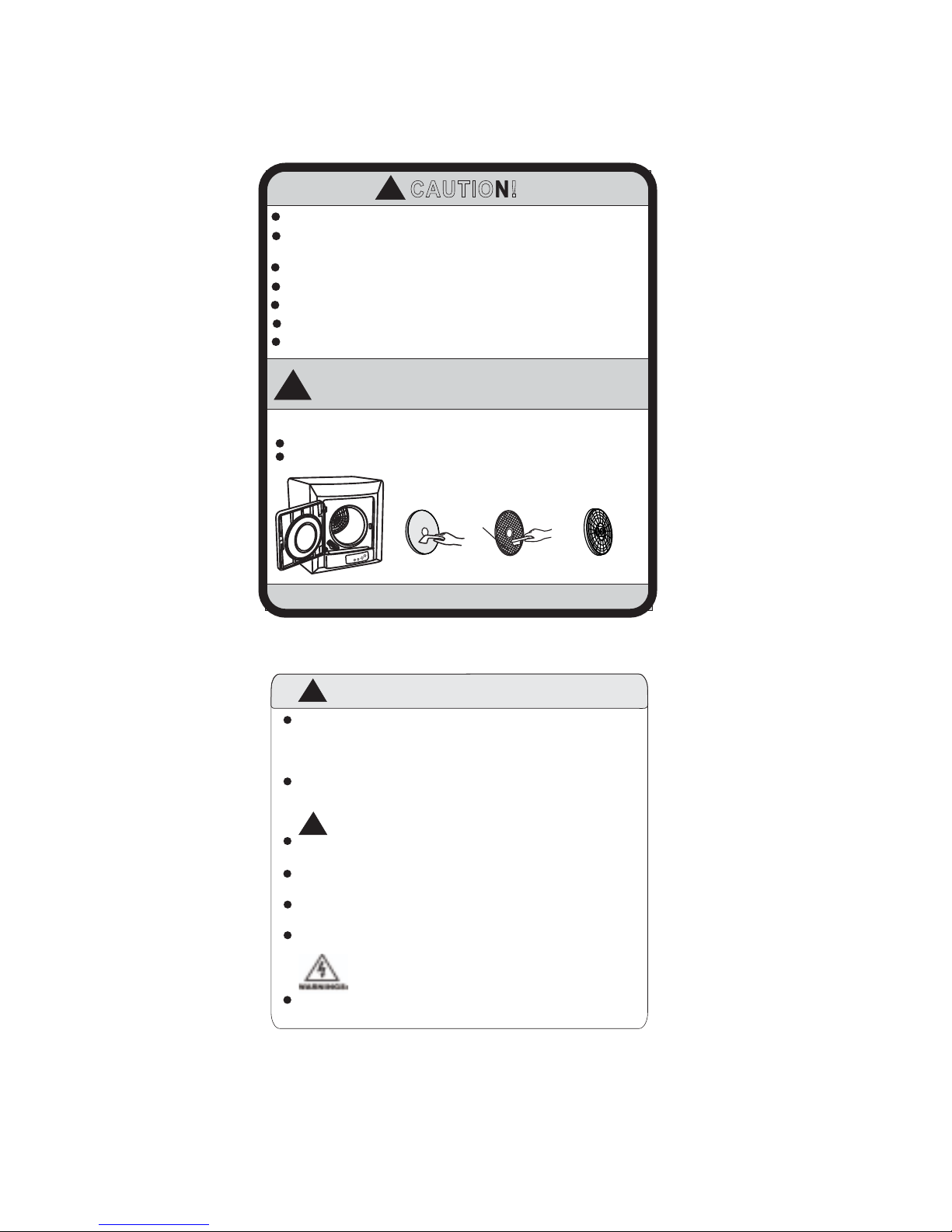

Caution, risk of fire
All clothing dryers produce combustible lint. The dryer must be connected to
an external exhaust vent outdoors. Regularly inspect the outdoor exhaust
vent opening and remove any of lint around the exhaust opening and the
surrounding area.
To reduce the risk of fire, do not use heat when drying articles containing
foam rubber or similarly textured rubber-like materials.
Do not locate your dryer in a place with heavy moisture, like the bathroom,
near water taps and places where it could easily be sprayed.
Only place damp clothing into your dryer. Sufficiently wring out wet
clothes with washer spin cycle to prevent longer drying time.
Do not place any wet laundry, liquid detergent or bleach on the control
panel of your dryer.
Do not leave washed wet clothes in your dryer for a long time. This may
result in water leakage or clothing od.
WARNING
!
!
To reduce the risk of electric shock or fire, do not use an extension
cord with this appliance.
Do not allow lint to collect around the dryer or exhaust vents.
Do not allow children to play on or in the dryer.
Disconnect this appliance from the power supply before attempting any
user maintenance other than cleaning the lint trap.
Cleaning the Exhaust Filters
Only place damp clothes in your dryer .
Clean lint screen after each drying load.
 NEVER use your dryer without the filter.
Assembly sequence
Exhaust Vent Casing
Lint Filter
Exhaust Filter
Lint
WARNING: CLEAN THE LINT TRAP REGULARLY
CAUTION!
Connect to individual AC power outlet .
This dryer is not to be used for clothing or fabrics cleaned by chemicals.
The tumble dryer is intended only for drying textile material washed in water.
Refer to User Manual for all instructions.
!
!
16

Drying Tips and Precautions
Delicate clothes especially those with ribbon or lace, should be placed in a nylon mesh bag
before drying to prevent tangling.
Clothes with zippers
Zippers, buckles, buttons and fasteners should be closed or clothing should be turn
inside out to reduce the impact of noise between metal and the drum.
Solvents
- Do not wash or dry articles that have been cleaned in, washed in, soaked in or spotted with
combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning
solvents, kerosene, etc.). These substances give off vapors that may ignite or explode. Do not add
these substances to the wash water. Do not use or place these substances around your washer or
dryer during operation.
- Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils
may contribute to a chemical reaction that could cause a clothes load to catch fire.
- Any article on which you have used a cleaning solvent or that contains flammable materials (such
as cleaning cloths, mops, towels used in beauty salons, restaurants or barber shops, etc.) must not
be placed in or near the dryer until solvents or flammable materials have been removed. There are
many highly flammable items used in homes such as acetone, denatured alcohol, gasoline,
kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and
products containing petroleum distillates.
Elastics
Do not dry articles containing rubber, plastic or similar materials such as padded bras, tennis shoes,
rubber galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc. that may melt or burn.
Some rubber materials, when heated, can under certain circumstances produce fire by spontaneous
combustion.
Fabrics
- Make sure to check if there are any special requirements or warning labels on garments before
drying. Carefully follow the garment manufacturer’s care instructions.
- Avoid clothes being caught by the door which will cause clothes to tangle and damage the door
gasket.
- Separate dark and light colored items, like you do for washing.
- Check for stains that may not have been removed in washing.
- Dryer heat may permanently set some stains. Properly dried clothes will need minimum care
when removed from dryer.
- For optimum results,use dryer load with cloths of similar fabric, weight and construction.
Always remove the clothing from the dryer as soon as possible.
17

Exhaust
vent casing
Lint
filter
Exhaust
Filter
The filter is in the rear
of the drum
Do not put water directly on dryer.
Do not use thinner, gasolene or alcohol.
Do not use any type of spray cleaner to clean the interior.
Remove everything from drum before drying the next load.
Clean cabinet with mild soap and water only. Do not use
harsh or abrasive cleaners, as this could damage the dryer.
Clean buildup such as lint on filters after each use, otherwise it will affect
the performance of your dryer.
1. Remove the Exhaust venting casing
containing the filters.
Use four finger grabbing holes in middle of the
exhaust vent casing center to pull from the drum.
Remove the filters by pulling straight out.
The exhaust vent casing contains the ‘Lint
filter’ and ‘Exhaust filter’, as shown in figure 1.
3. Install the filters
After cleaning the filters, assemble filters in the
order of
‘exhaust vent casing’,’lint filter’ and
‘exhaust filter’
(as shown in figure 3).
2. Cleaning the filters from lints
Separate ‘exhaust vent casing’,’lint filter’ and ‘exhaust
filter’ and clean the lint off the filter and exhaust filter
with a soft brush or a small vacuum cleaner. (as shown
in figure 2) or wash it with water if still dirty.
Dry completely before use and do not damage the filters.
The lint filter must be always used for drying.
It must be cleaned each time before or after each use.
Cleaning of Lint trap and Filters
Figure 3
Care And Cleaning Guide
brush Lint small vacuum
Cleaner
Figure 2
Figure 1
Clean the interior drum or dryer housing with a damp
soft cloth.
Lint Filter Exhaust Filter
2LO
7KLQQHU
%HQ]HQH
NEVER USE YOUR DRYER WITHOUT
THE LINT FILTERS INSTALLED.
18
Exhaust
vent casing
Please unplug the power cord when cleaning the Dryer.
4. Align the recesses center of the ‘exhaust vent
casing’
to the center of drum and make sure that
it is firmly inserted.
!
WARNING
!
.

Troubleshooting
Symptom
Is the front door closed?
Is Temperature Indicator
LED indicating 'Air Dry'?
Drum won't turn.
(The four indicator
lights of Cycle
button are on at the
same time)
Dryer won't heat.
Reset the 'Temp'button till the
indicator light indicates 'High'
or 'Low', and the LED is on.
The Exhaust Filter is blocked?
Dryer won't work.
No power to machine?
Power plug not in the
socket?
Reduce the amount of garments
loaded in dryer.
Garments were not wringed out
sufficiently by washer spin cycle.
Overloaded dryer with too many
garments ?
Garments won't dry
enough.
Front door not properly shut?
Clothes not sorted to proper cycle
selection?
Close front door and
Press the Start/Pause
button.
Reset circuit breaker or
replace fuses.
Put Power plug in socket.
Close the front door.
Press in the Power/ ON/OFF,
or Start/Pause button.
19
Check your problem by using the chart below (If problems occur, please pull out the plug before examining) and try
the solutions for your problem. If the dryer still does not work properly, contact Haier customer service
center or the nearest authorized service center.
Possible Remedy
Possible Cuase
Heating Temperature was not set
for Timed Dry?
Change Temp. settings to
High or Low: Air Dry works
without heat.
Remove and clean Exhaust
vent
Make sure outside vent is not
blocked
Check that Garments are
wringed out sufficiently by
washer spin cycle.
Select the right drying cycle for
normal, heavy or delicate laundry
loads.
Outside venting ducting is blocked?
Never Overload the dryer.
Never put wet clothing that was not wringed out during washer spin cycle.
If you can not find a solution- remove plug from outlet pending resolution.
WARNING
!
