Haier HDY60M User manual

Clothes Dryer
OWNER’S USER MANUAL
Model: HDY60M
Please read this manual carefully before operating your dryer.
Retain this for future reference.
Record the model and serial number of the tumble dryer.
Please have this information ready for any service related enquiries.
IMPORTANT SAFETY INSTRUCTIONS
Warning - To reduce the risk of fire, electric shock, or personal
injuries, the following basic precautions should be followed:
1 This appliance should onlybeusedfor its intended purpose as described in
this owner’s user manual.
2 This appliance must be properly installed in accordance with the installation
instructionsbeforeitisused.
3 Neverunplugyo ur appliance by pulling on the power cord. Always make
surethe outletis switched off then grasp the plug firmly and pull straight out
from the outlet.
4R
eplace wornpower cords, loose plugs and faulty power outlets immediately.
5 Unplug your appliance before cleaning or before proceeding with any repairs.
Repairs should only be carried out by an authorised technician.
6Don
otoperate your appliance when parts are missing, damaged or broken.
7 Do not operate your appliance in the presence of explosive fumes or toxic
flammable vapours.
8Do
not use this appliance to wash clothes which are stained, spotted or
washed in gasoline, dry cleaning solvents or any other explosive or
flammable substances that may ignite and explode.
9Do not try to remove clothes while the dryer is inmotion. Wait until it comes
to a complete stop.
10 The lid must be closed when the machine is in operation.
11 Do not use this appliance for commercial applications.
12 Do not operate this appliance unless all panels are properly intact.
13 The appliance is not to be used by children without adult supervision.
14 This appliance must be connected to an approved electrical outlet with 240V
power source.
15 Do not repair or replace any part of the appliance. This can only be carried
out by an authorised technician.
16 To reduce the risk of electric shock or fire, try not use extension cords or
adapters to connect the unit to electrical power source.
17 Items that have been previously cleaned, washed, soaked or spotted with
flammable or explosive substances should not be placed in the tumble dryer.
18 Items containing foam rubber (latex foam) or similar texture should not be
placed in the tumble dryer.
19 Fabric softeners or similar products should not be used in the tumble dryer
unless specified by the manufacturer.
20 Undergarments that contain metal reinforcementsshouldnotbeplacedinthe
tumble dryer. Damages caused by this, will not be covered under warranty.
21 Plastic and rubber article such as shower caps, baby waterproof napkin
covers, shoes, clothes with foam rubber pads or pillows should not be placed
in the tumble dryer.
22 Do not install this appliance where it is exposed to water or where it is damp.

HDY60M
HDY60M
Cool
Warm
150min
200min
100min
60min
20min
OFF
OFF
60min
30min

23 Clean lint filter before and after each load.
TABLE OF CONTENTS
PAGE
OPERATING INSTRUCTIONS
IDENTIFICATION OF PARTS . . . . .......................3
OPERATING INSTRUCTIONS . ......................4-5
CONTROL PANEL . ..................................6
CLEANING AND CARE GUIDE
CLEANINGANDMAINTAINANCE.......................7
INSTALLATION
UNPACKINGYOURDRYER...........................8
WALL MOUNTING INSTRUCTIONS .................9-11
TROUBLE SHOOTING AND SPECIFICATIONS
TROUBLE SHOOTING . . . . . . ........................12

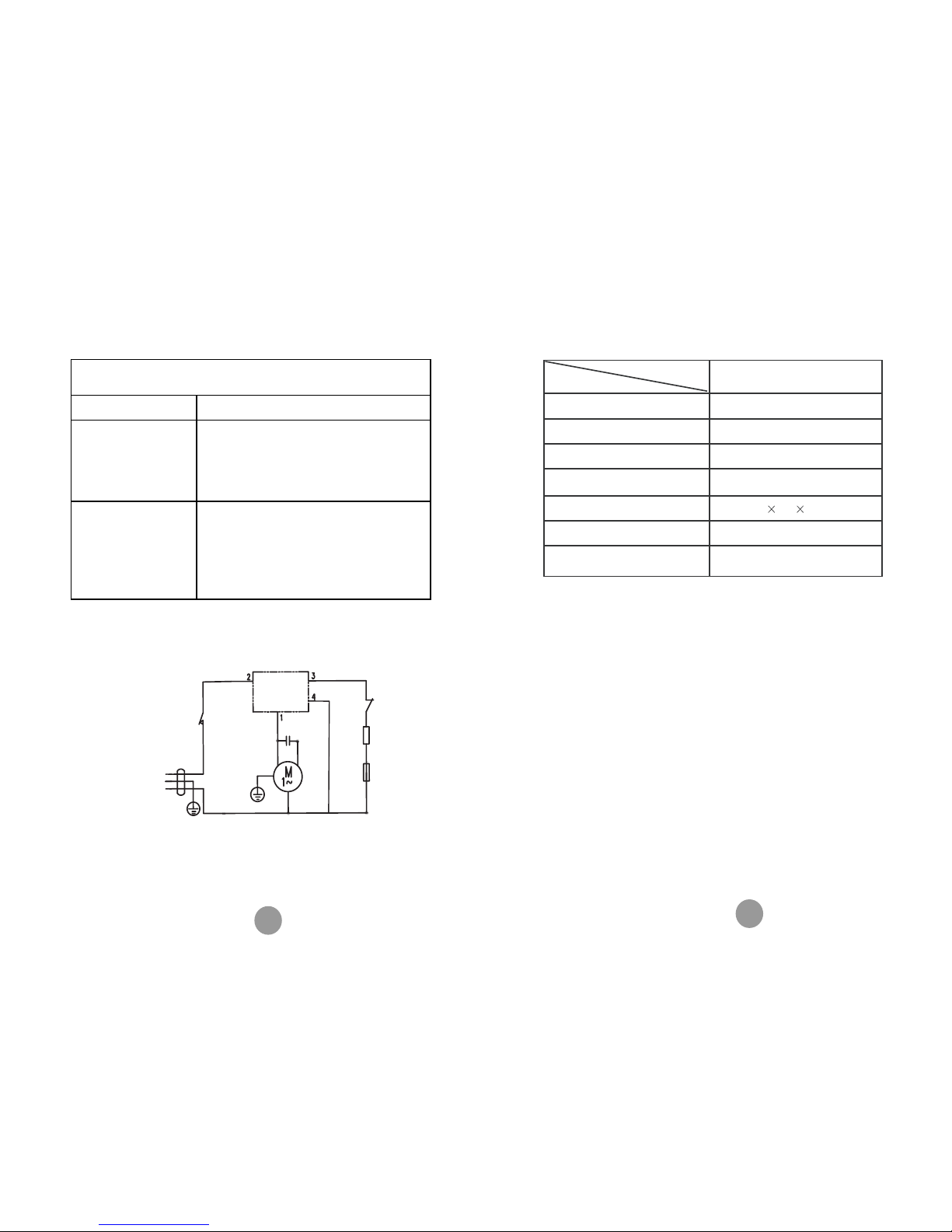

WIRING CIRCUIT . ................................ 12
SPECIFICATIONS..................................13
IDENTIFICATION OF PARTS
This diagram may slightly differ from the layout of the dryer you have
just purchased as this is due to technical improvements and should
only be used for reference.
Adjustable Outlet
Grille and Lint Filter
Control Panel
Back plate
Timer knob
Door
Power Supply Cable
Air Intake Grille
23

OPERATING INSTRUCTIONS
Attention:
1. Before operation, clean off any dust and dirt inside the drum of the dryer
with a damp towel;
2. Clean off any debris on the lint filter and in the duct, to increase the drying
efficiency.
Turning on power
Before turning on the power of the dryer, check:
- Whether the supply voltage is in accordance with the value indicated
on the nameplate;
- The dryer must be securely grounded.
Preparation of the laundry load
- The dryer can only dry laundries whichhaveb
een spun dry. Do not
put in laundry which is still dripping wetorstill have excess water.
- Make sure all pockets are empty before placing them in the dryer
- Pull up zippers, sew and mend up loosened fasteners and tie up
dispersed ribbons toprevent thela
undry from being entangled. If
necessary,putsmall items in ala
undrybag.
- To achieve a better drying result, loosen up heavy loads before
loading it into the dryer.
Load to dry
Laundry type Cotton fabric Synthetic fabric
Maximum load 6kg 3kg
Warning:
1. Avoid drying wool, silk
and other delicate fabrics,
as it may damage it.
2. Do not exceed the
laundry load as
suggested. This could
damage the dryer as well
as the laundry load.
Reference weight of fabrics fordrying
Overalls
(cotton appr 950g)
Blended fabric
clothes
(appr 800g)
T-shirt
(appr 300g)
Jackets (cotton
appr 800g) Woolen blankets
(appr 3000g)
Single bed sheets
(cotton appr 800g)
Socks
(blended fabrics
appr 50g)
Underwear
(appr70g)
Jeans
Pajamas
(appr 200g)
Shirts
(appr 300g)
45
1. Power up
Insert the power plug into an appropriate power outlet that is properly installed
and grounded. Operating power supply: 220-240V~/50Hz
2. Laundry loading
Open the door and load the laundry intothe drum of the dryer.For a more
energy efficient and better drying result, makesure the load has been spun
dry. Try to loosen the load when placing in thedryer.
Note: Check labels on clothing before placing themin the dryer.Somearticles
are not suitable for machine dry. High temperature may damage the fabric.
3. Setting drying time
Turn the timer knob to set an optimal drying time according to the laundry.You
can choose cool wind cycle or warm cycle according to your needs.
Note:Before you set the drying time,ensure your hands are dry.
4. Program completion
Before the drying time comes to end, the dryer will interject cold air
to cool off the clothes.
After the timer stops,the arrowhead of the timer knob will point to OFF.
Open the door to remove the laundry.
2.Clothes should go through a cooling down/airing phase of the cycle.
If for any reason the dryer is stopped before the cycle has finished,dry clothes
should be removed immediately and not left in the dryer.Clothes should be
spread out to cool and not left bunched eg.in a clothes basket.
Before you open the door, please switch off the power supply.
Warm wind cycle:
Cool wind cycle:
Throughout the cycle,the heater does not activate.The laundary is dried by cool wind.
Note:1.To avoid timer interruption,please do not turn the timer knob to the
gray area of the program cycle.
5. Cleaning the dryer
Please clean the filter after use every time.
OPERATING INSTRUCTIONS

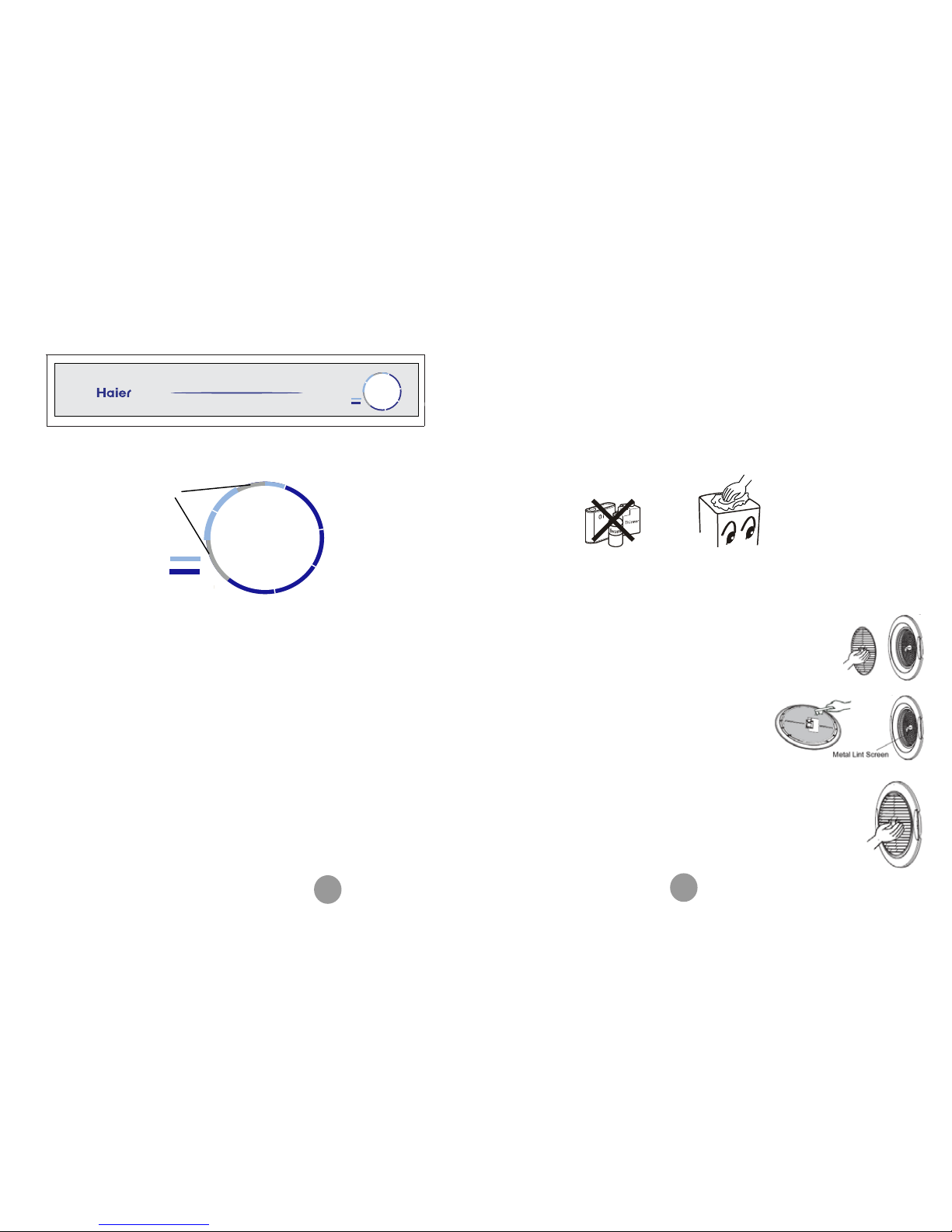

CONTROL PANEL CLEANING AND MAINTAINANCE
WARNING! Unplug the power cord prior to any cleaning
Cleaning the surface
Wipe off any dust or dirt on the body of the dryer and surface off the main control
panel.
Note: Do not use excessive water. Just a damp cloth is fine.
Do not use solvent.
Do not use spray cleaners when cleaning the interior.
Do not use harsh or abrasive cleaners.
Cleaning the filter screen
To ensure a good ventilation effect during drying, the filter screen must be cleaned
before or after each use.
1. Removing the filter.
Gently push together the clip on the filter screen and
then pull out towards yourself.
2. Cleaning the filter
Remove the lint with a soft brush or
vacuum cleaner. Pay attention and do not
damage the filters.
At the same time, remove any remaining
lint from the perforated metal lint screen on
the door.
3. Re-installing the filter
After cleaning filters, put the screen back in place.
Never operate your dryer without the lint filter.

Dryer timer:the timer will let you set the time for up to 200 minutes to
dry your clothes depending on the load of the clothes.
This dryer has two program types.The light Blue colour area is cool wind
program and the dark Blue colour area is warm wind program. In cool
program ,the heater does not work and the clothes are dried by
wind. In warm wind program ,the heater works and the clothes are
dried by warm wind. At the last 20 minutes of the warm program,
There is an arrow on the timer knob.Turning the timer knob,the
arrowhead points to the time you choose and the dryer begins to
work.Then the timer will count down and the program knob will
counter-clockwise until the arrowhead points to OFF.
heater stops work and the clothes cool down.
wind
cool
the
Warm
Cool
150 min
100 min
60 min
20 min
30 min
60 min
OFF
OFF
200 min
Note:
Please do not turn the timer
knob to this two gray area
of the program cycle
HDY60M
HDY60M
Cool
Warm
150min
200min
100min
60min
20min
OFF
OFF
60min
30min

Dimensions
a = 825 mm
b = 560 mm
c = 595 mm
Weight = 30 kg
a
b
c
Packing accessories
Check list of the accessories and materials provided with the machine:
Quantity
To ensure the dryer operating normally, attention must be paid to
the following in placement:
The rear of the dryer must not have any restriction to the intake
of fresh air;
Check whether there is any damage to the dryer during
transportation. Any damaged dryer must not be electrified. In case
of any damage, contact your dryer supplier;
The dryer must be kept away from flammable substances;
The surrounding environment must be dry and ventilated;
To allow the dryer to perform better, the ambient temperature shall
neither be lower than 10 nor higher than 35
Name
Owner's
manual
Wall
mounting kit Panel film
Remove the transport packaging and the tape before starting dryer.
1.Determine the location of the dryer on the wall and mark
the bracket position.
A minimum 50mm is needed between the top of the dryer
and the ceiling for ease of installation;
If mounting above a washing machine,allow sufficient room
to open the lid of the washer.
Tools required
For plaster/
Wooden wall
Drill&3mm Bit
Philips head screw
driver
Wood screws,12g 50mm
imber screws
1
4
1
Description
Wall hanging brackets
Plastic Spacers
Hanging hook
Wall mounting kit includes
2
2
2
2.Fix the wall hanging brackets to the wall securely (eg. into
the stud). If the studs are too far apart, fit a timber slat to the
studs then mount the brackets onto the slat. The distance
between each bracket is 553mm as per diagram.
553mm
wood screw
Screw
6
89
UNPACKING YOUR DRYER WALL MOUNTING INSTRUCTIONS

3. To install the hook to the dryer, remove the 2 screws and 2
corks as indicated in Fig. 1.
4. Align hooks as shown in Fig. 2 and each hook should be fixed
up well with three screws. Install the spacers provided as Fig. 2
.
2 screws
2 corks
Fig. 1
Fig. 2
Hooks
Spacers
5. With assistance, mount dryer on wall brackets. See Fig. 3
Fig. 3
6. A new control panel film with inverted symbols supplied.
Peel the
release paper from the back of inverted film then place
the film on
the surface so that writing is the correct way up.
3 screws
HDY60M
HDY60M
Cool
Warm
150min
200min
100min
60min
20min
OFF
OFF
60min
30min
150min
200min
100min
60min
20min
OFF
60min
30min
OFF
10 11
WALL MOUNTING INSTRUCTIONS WALL MOUNTING INSTRUCTIONS

TROUBLE SHOOTING
WIRING CIRCUIT
SPECIFICATIONS
１２ １３
Those listed below are not failures. Thefollowing mustbe confirmed before
calling for service:
Problem
The dryer does not start
PossibleCause
● Is thedryer pluggedin ?
● Is the local circuit out of power ?
● Is thedoor closedproperly ?
●Has a drying programbeen set ?
The drying result is not
good
● Wasthecorrect dryingprogram set?
●
Isthe filterscreenclean?
●Didthe amountof the loaded laundry
exceedthe ratedload ?
●Was the loaded laundry spun dry ?
● Did thelaundry become twistedwhilst drying?
ro
t
oM-
M
ecnatic
ap
aC
-
C
kco
L
r
oo
D-K
R
EW
OP-
D
retaeH-ResuF-fTtatsomrehT-hT
Timer
M
C
Tf
R
Th
D
K
HDY60M
z
H0
5/
~)0
4
2-02
2
(
0
1
daoldet
a
R6
0
0
0
2
l
evelf
oor
pr
eta
W
4X
P
I
epyT
me
t
I
y
l
ppus
rewo
P
)
A
(tner
r
ucgnita
r
epom
umixa
M
)g
k(
thgieW
H(sn
o
isnemi
D×D×mm)W
)
W
(r
ewopmumix
aM
03
5
2
8 0
65 5
95
(kg)
