Haier L22M3 User manual

LCD TV
OWNER' S MANUAL
MODEL: L22M3
Please READ this manual carefully
before operating your TV, and retain
it for future reference

Contents
1 Safety and warnings..........................................................................................................2-3
2 Introduction.....................................................................................................................4
3 Installation.......................................................................................................................5-8
TV Operation..................................................................................................................11-14
TV Trouble shooting........................................................................................................15
4 Remote Controller .........................................................................................................9-10
5
6
-1-

-2-
SAFETY ANDWARNINGS
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literaturaccompanying this
unit.
To reducethe risk offire or electricshock, do
not expose thisapparatus to rain or moisture.
WARNING:
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this apparatus near water.
6) Clean onlywith dry cloth.
7) Do notblock any ventilation openings, install
in accordance withthe instructions.
8) Do notinstall near any heat sources suchas
radiations, heat registers,stoves, or other
apparatus (including amplifiers)that produce
heat.
9) Do notdefeat the safety purpose of the
polarized plug. Ifthe provided plug does not fit
into your outlet,consult an electricianfor
replacement of theobsolete outlet.
10) Protected thepower cord from being walked
on or pinchedparticularly at plugs, convenience
receptacles, and thepoint where they exit from
the apparatus.
11) Onlyuse attachments/accessories specified
by the manufacturer.
12) Unplug thisapparatus during lighting
storms or whenunused for long periods of time.
13) Refer allservicing to qualified service
personnel. Servicing isrequired when the
apparatus has beendamaged in any way, suchas
power-supply cord orplug is damaged,liquid
has been spilledor objects have fallen into the
apparatus, the apparatushas been exposed to
rain or moisture,does not operate normally, or
has been dropped.
14) Mains plugis used as the disconnect device,
the disconnect deviceshall remain readily
operable.
15) The ventilationshould not beimpeded by
covering the ventilationopenings with items,
such as newspapers,table-cloth, curtains, etc.
16) No nakedflame sources, such as lighted
candles, should beplaced on the apparatus.
17) Attentionshould be drawnto the
environmental aspects ofbattery disposal.
18) The useof apparatus inmoderate climate.
19) The apparatusshall not beexposed to
dripping or splashingand that no objects filled
with liquids, suchas vases, shall be placed on
the apparatus.
This symbol indicates thatthis product
incorporates double insulation between
hazardous mains voltage anduser accessible
parts. When servicing useonly
identical replacement parts.
This marking indicatesthat this product should
not be disposedwith other household wastes
throughout the EU.To prevent possible harm to
the environment orhuman health from
uncontrolled waste disposal,recycle it
responsibly to promotethe sustainable reuse of
material resources. To return your used device,
please use thereturn and collection systems or
contact the retailerwhere the product was
purchased. They cantake this productfor
environmental safe recycling.
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or the
like.
WARNING:

-3-
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
SAFETY ANDWARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Do not trap the power supply cord under the television
receiver.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the televisionreceiver is notused for an
extended period of time, it isadvisable to disconnect
the ACpower cord fromthe ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.

INTRODUCTION
-4-
Main features
Used as Television, display terminal,PC display
High luminance,wide viewing angle
Can store 99 TV programs
HDMI interface
NICAM
AC Power Cord..............................1
Infrared Remote Controller.............1
User s Manual................................1
Battery(AAA)................................2
Accessories
Main parameter
ViewingPictureSize(diagonal)
Resolution1366x768
Aspect Ratio 16 : 9
TV SystemPAL-B/G ID/K
Video Signal SystemPAL/NTSC
Receiving Channel 1-99
Inpu t Power Voltage AC100 V- 240 V~ 50/60Hz
Po wer consumption
Audio Output Powe r THD 7%2x 3W
Signal Input Analog RGB(VGA) x 1
High-Definition Multimedia Interface(HDMI) x 1
Rear Composite Video Input x 1
Audio Input x 2
YCb (Pb )Cr (PR) x 1
Horizontal definitionTVlineComposite Video input>=350
YCb(Pb )Cr(Pr)>=400
Side USB x 1
22
60W
Response Time 5ms
Viewing Angle
Brightness 2
400cd/m
170 H/ 160 V
Dynamic Contrast
800:1

-5-
INSTALLATION
Front panel KEYBOARD
REAR AV PASTER
All the terminalsare(from left toright):
AC POWER SOCKET,
Note: 1.AV share one audiochannel.
2.When HDMI portget DVI signal, the PC Audio channel is changedto
receive the audiofor HDMI port.
HDMI, VGA, YPbPr, AV, AUDIOINPUT, PCAUDIO INPUT, ANTENNA.
and YPbPr
1: Remote controlsensor.
2: Indicator LED: GREEN POWER ON.
RED STANDBY.
3: Key board
123
456
7890
+
CH
_
+
_
VOL
30 30
3
1
2
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
USB
1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 CH+/CH-
In TV mode press CH+ or CH- to change
the channel up and down.
In MENU mode, press CH+ or CH- to select
items .
In standby mode, press CH+ or CH- to turn
on the TV.
4 VOL+/VOL-
Adjust sound level.
In MENU mode, press VOL+ or VOL- to
adjust the item that you selected.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
6. USB
The USB memory stick should be plug in the
unit directly. USB extension cable should not be
used to avoid failing of data transferring and
interference caused.
100-240V~ 50/60Hz
AC-INPUT HDMI VGA INPUT AUDIO
VGA INPUT
ANT
Pb
Pr L
R
Y Pb Pr
INPUT
YAV

ANTENNA
INSTALLATION
-6-

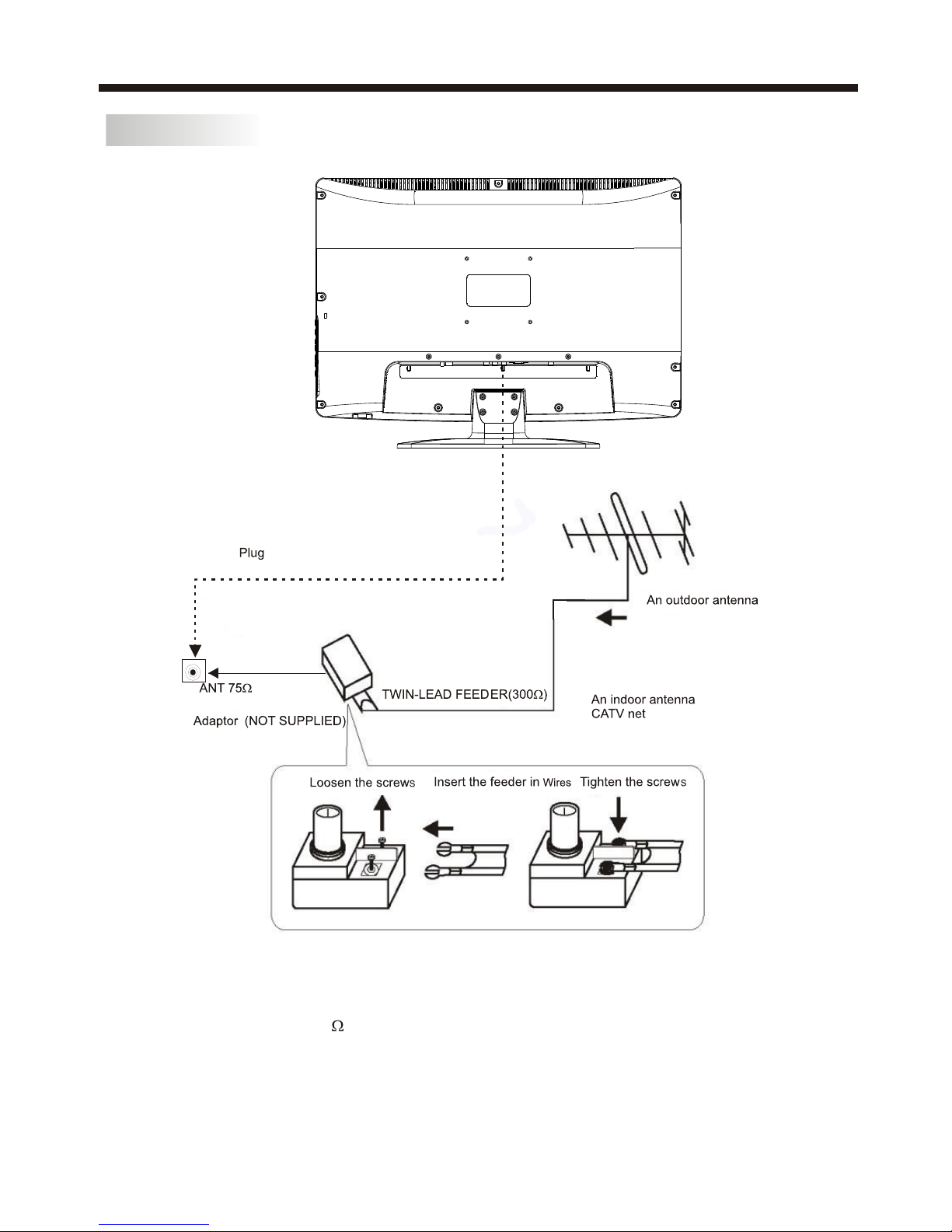

Note:
Aerial connections:IEC(female).
Input impendance:75 unbalanced.

INSTALLATION
-7-
STEPS:
PC
Be sure both the TV and computer are Power off.
1.Connect VGA and audio cable
2.Connect power cord
3.Power on the TV, switch to PC mode
4.Power on the PC
This sequence is very important.
PC
PRESET MODE
1
2
3
800*600
1024*768
1280*768
60
60
60
37.88
48.36
47.3
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
NOTE:
PC V.Freq.(Hz) not more than 60Hz.
8
100-240V~ 50/60Hz
AC-INPUT HDMI VGA INPUT AUDIO
VGA INPUT
ANT
Pb
Pr L
R
Y Pb Pr
INPUT
YAV

INSTALLATION
-8-
AV EQUIPMENT
This TV provides two groups of AV, one group of YPbPr for convenient connection to VCR, DVD or other
video equipment. Please refer to the owner s manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game
or stereo system, etc.....
YPbPr can support these video fomats:480i,576i,480p,576p,720p,1080i.
Note: 1.AVshare the audioinput channel
2.When HDMI portget DVI signal, the PC Audio channel is changedto
receive the audiofor HDMI port.
To au dio
outputs
with
terminal
VIDEO EQUIPMENT
VIDEO EQUIPMENT with YPbPr
Yellow (video)
White(audol L)
Red(audio R)
Y
W
R
RW
Y
output
To video
R
GBR
GB
Pr
Y
Pb
R
G
B
YW
HDMI
R
W
R
W
100-240V~ 50/60Hz
AC-INPUT HDMI VGA INPUT AUDIO
VGA INPUT
ANT
Pb
Pr L
R
Y Pb Pr
INPUT
YAV

REMOTE CONTROLLER
-9-
1
EXIT
TV
ENTER
HDMI
SLEEP
MIX
DISPLAY
PC
REVEAL HOLD LIST INDEX
SOUND
PIC
ASPECT
YPbPr
SUBPAGE
AV
AUTO
TEXT SIZE
NICAM
RECALL
SOURCEMENU
23
456
7890
+
CH
_
+
_
VOL
POWER MUTE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Insert Batteries Into the Remote Control
1 2 3
Remark:
1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the
polarity (+ or -) of the batteries matches the polarity
marks inside the unit.
3. Mount the battery cover.
Replace with new batteries when the TV set begins
to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV
set does not function with Remote Control Unit.
1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the
remote control is not to be used for long time.
1:POWER
To set the TV to standby or power on.
2:NUMBER KEY:
For direct access to programmes. For a 2 digit
programme number, the second digit must be
entered before the dash disappears. The number
(in analog TV mode) is displayed for a few seconds.
3:MENU
To display the menu or return to the previous menu
4: CURSOR
To move within the menu.
5: EXIT
Used to exit menu.
6: VOL+/-
To adjust the sound level.
7: PIC
To switch the picture mode.
8: SLEEP
Set the time to turn off the TV.
9: SOURCE HOT KEYS
Switch to the source that you want
directly.
10:TELETEXT KEYS(see next page )
11:MUTE
To disable or enable the sound.
12: NICAM
To switch to nicam mode.only available in TV
programmes with nicam mode transmission.
13: RECALL
To access the previously viewed programme.
14: SOURCE
To display source menu .
15: ENTER
Confirms selection.
16: DISPLAY
Displays/removes the programme information.
17: SOUND
To switch sound mode.
18: CH+/CH-
To access the next or previous TV
Programmes.
19: ASPECT
To change the picture aspect ratio.
20: TEXT
To enter or exit TELETEXT.
21: AUTO
Auto adjust in PC mode.

-10-
REMOTE CONTROLLER
E
TEXT
SELECTING A PAGE
DIRECT ACCESS
TO THE ITEMS
INDEX
SUB PAGE
HOLD
REVEAL
Press :
LIST
TELETEXT
Enter the numberof the pagerequired using the0 to 9up/down.
Example: page 120,enter 120. Thenumber is displayed top left, the
counter turns andthen the pageis displayed. Repeatthis operation to
view another page.If the countercontinues to search,this means that
the page is not transmitted. Select another number.
Coloured are asare displayed atthe bottom ofthe screen. The4
coloured keys areused to accessthe items orcorresponding pages.
The coloured areasflash when theitem or thepage is notyet available.
This returns tothe contents page(usually page 100).
Certain pages containsub-pages which areautomatically displayed
successively. Thiskey is usedto stop orresume sub-page acquisition.
The indication appearstop left.
To freeze the page.
To display or hide the concealed in formation (games solutions).
The user canset four favoritepages to bedirectly linked tothe four
color keys. Whilelist mode isactivated, it is not possibility to use TOPor
FLOF navigation withthe colorkeys. Thefavorite page numbers should
be stored andrestored to/from nonvolatilememory for eachchannel by
the system software.
This is usedto call orexit teletext modes.The summary appearswith a
list of itemsthat can beaccessed. Each itemhas a corresponding 3
digit page number. If thechannel selected doesnot broadcast teletext,
the indication 100will be displayedand the screenwill remain blank(in
this case, exitteletext and selectanother channel).
Teletext is an informationsystem broadcast by certain channels whichcan be consulted
like a newspaper. It also offers access tosubtitles for viewers with hearing problemsor
who are notfamiliar with the transmission language(cable networks,satellite channels,etc.)
Size To zoom the page.
You will obtain :

FUNCTION
TEXT LANGUAGE
SLEEP TIMER
RESETTING
OFF
WEST
OSD
OSD H-POSITION
OSD V-POSITION
OSD DURATION
OSD HALFTONE
OSD LANGUAGE ENGLISH
50
50
30
50
TV OPERATION
-11-
CONTRAST
BRIGHTNESS
HUE
COLOUR
SHARPNESS
ASPECT
COLOUR TEMP
3D NR
16:9
PICTURE MODE STANDARD
NORMAL
MID
50
50
50
50
50
4.FUNCTION MENU
3.OSD MENU
The third itemof the MENUis OSD MENU.
5.CHANNEL MENU
The fifth item of the MENU is channel menu(only
use in TV source).You can complete channel search
and setting here.
The first item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as contrast,
brightness, etc.
Press to move, press to adjust.
1. PICTURE MENU
SOUND
50
50
50
BASS
TREBLE
BALANCE
SOUND MODE STANDARD
2.SOUND MENU
The second item of the MENU is SOUND MENU.
You can adjust sound here.
Press to move, press to adjust.
Note:
1). If Bass, Treble are adjusted, the sound mode will
return to personal .
Note:
1). HUE only available when receiving NTSC
signal.
2). If contrast, brightness, hue, colour, sharpness
be adjusted, the picture mode will return to
personal.
The fourth itemof the MENUis FUNCTION MENU.
Youcan adjust settingsbelow
1).SLEEP TIME:adjustthis item,you can set the sleep
timer.
2).LANGUAGE:adjust teletext language.
3).RESETTING:Reset all thesettings to defaultvalue.
CHANNEL
COLOUR SYSTEM
MONO
OFF
SOUND SYSTEM
NICAM
SKIP
AUTO SCAN
MANUAL SEARCH
FINE TUNING
CHANNEL EDIT
PROGRAM AREA
AUTO
DK
OTHERS

-12-
TV OPERATION
6. PIP
The Sixth itemof the MENUis PIP Menu,you can
select PIP or POP operation.
650.25MHz
55.25MHZ
CHANNEL 1
OK
SEARCH
STORE
7)Finetuning:finetuning the currentprogram.
8).Channel edit:Press to entre the channeledit
menu
.Rename the channel:
Youcan press to select onechannel and press
1 button to rename it.
Use select character,press 1 to store the
name or press 2 to cancel.
Use select character positon.
1).Colour system: adjustthe colour system,
Auto is remmended.
2).Sound system:adjust thesound system.
Please select theright sound systemfor
your contry.
3).NICAM:Select Mono,Stereo,Dual
language,etc.
4).Skip:If select on,youcan select thechannel
only by dightbutton.
5).Auto scan:Serach allthe channels automaticly.
6).Manual Search
Search the channelsmanually.
Channel: Select thechannel of themanual search.
Search: Press begintosearch.
Store:Press to storethe channel
MULTI WINDOW
SUB SOURCE
SIZE
BORDER COLOUR
SOUND SOURCE
SWAP
PIP POSITION
MAIN
BLUE
LARGE
YPBPR
OFF
TOP L
PIP
1)Multi window
Open the PIP/POPwindow
2).Sub source
Select the subsource
3).Size
Adjust the PIPwindow size
4).PIP Position
Adjust the positionof the PIPwindow
5).Border colour
Adjust the bordercolour of thesub window
6).Sound source
Select the soundsource.
7).Swap
Swap the mainsource and thesub source.
Change the sequence.
Press 3 to select onechannel position ,then
press to selectanother channel,
when the 2channels are hlighted,youcan swap
them, press 1 to confirm orpress 2
to cancel.
Delete the channel
Press 2 to select onechannel.
Press 1 to delete orpress 2 to
cancel.
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14
020
021
022
023
024
025
026
027
028
029
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14 A
020
021
022
023
024
025
026
027
028
029
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14 B
020
021
022
023
024
0
026
027
028
029
25A
001
002
003
004
005
006
007
008
009
010
011
012
013
0
0
016
017
018
019
14B
15A
020
021
022
023
024
025
026
027
028
029
9).Program area
Before Autoscan,or Manual search,pleaseselect
the correct programarea.
001
002
003
004
005
006
007
008
009
010
011
012
013
0
015
016
017
018
019
14
020
021
022
023
024
025
026
027
028
029

50
50
50
PC
COLOR TEMP. USER
USER-R
USER-G
USER-B
TV OPERATION
-13-
1. PC MENU
Youcan adjust picturehere, such as contrast,
brightness.
Press to move,press to adjust.
50
50
CONTRAST
BR IGHTNESS
COLOUR TEMP
ASPECT FULL
PC
1).Colour temp: press to entre the colour temp
MENU.To select the colour temp,thatyou like.
2.GEOMETRY
1).H-Position: adjust thehorizontal position ofthe
screen.
2).V-Position :adjust the vertical positonof the
screen.
3).Clock: finetune thescreen width.
4).Phase: finetune thephase of thesreen,usually don
not adjust thisitem.
AUTO ADJUST
Source TV
AV 1
AV 2 YPBPR HDMI1 HDMI2 PC
TV
AV 1
AV 2
YPBPR
HDMI1
HDMI2
PC
:The two sourcescannot do PIP/POP
:The two sourcescan do PIP/POP.
The sources inthe table areoptional. If anyof these sourcesare not availablein your unit,
please ignore thesesources.
Note:
In PC mode,thereare two itemsthat are different
with other sources.
50
50
50
50
GEOMETRY
H-POSITION
V-POSITION
CLOCK
PHASE

TV OPERATION
-14-
USB Function:(optional)
1.Entre the “USB”menu.
1)Press the “source”button to entre the source menu.
2)press to selectthe “USB”.
3)Press to entrethe “USB”menu.
4)press to selectthe JPEG menuor MP3 menu.
1.JPEG menu
)Select the JPEGitem of theUSB menu, andpress
to entre theJPEG menu.
)Press to entrefolder or exitfolders until JPEG
files are found.
)Press to displaythe JPEG files,press “MENU”
button to exit.
Note:
1.Press to selectprevious picture ornext
Picture, press to rotate the picture.
JPEG
110.JPG1
FOLDERS
2009/03/10 08:53:00
JPG
VOLUME
EQ MUTE
Mp3
MP3 110.MP3
1.MP3 menu
) Select the mp3 item of the USB menu,and press
to entre the MP3 menu.
)Press to entre folders or exit folder until Mp3
files are found.
)Press to play the MP3 file,press “MENU”button
to exit.
Note :
When playing themp3 music, press to move ,and
press to play, stop, pause,etc.

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection
Interfere Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume(inspect wether the
mute function onthe remote
control are started, or audio
system are corrector not)
No picture Mute
Power cord isnot inserted
Power switch isnot opened
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No color Normal audio color control
Scramble Normal audio
or weak
retune channel
No color Noise Audio system
Special Explanation The accessories such as remote controlis not belongs
to the guarantee
Normal audio
antenna position, direction
or connection
Trouble shooting
Trouble phenomenon
Ghost
-15-
