Haier LE19B13200 User manual

LE19B13200
LE22B13800
LE24B13800
TFT-LED LCD TV
All manuals and user guides at all-guides.com
all-guides.com

-1-

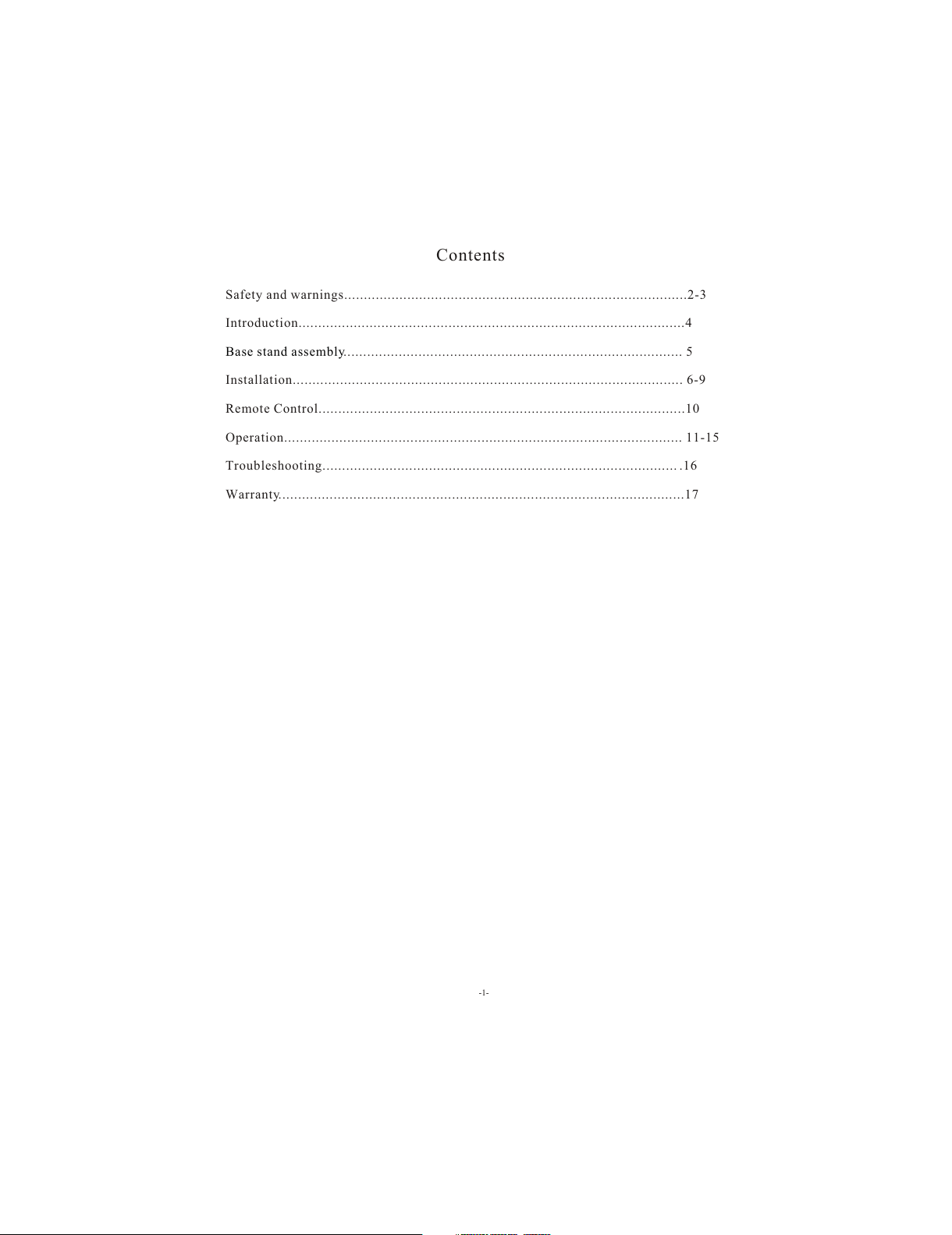

Contents
Safety and warnings.......................................................................................2-3
Introduction..................................................................................................4
...................................................................................... 5
Installation................................................................................................... 6-9
Remote Control.............................................................................................10
Operation..................................................................................................... 11-15
Troubleshooting.......................................................................................... .16
Warranty.......................................................................................................17
Base stand assembly
All manuals and user guides at all-guides.com

-2-
SAFETY ANDWARNINGS
Important Safety Instructions
1) Read theseinstructions.
2) Keep theseinstructions.
3) Heed allwarnings.
4) Follow allinstructions.
5) Do notuse this Television near water.
6) Clean onlywith dry cloth.
7) Do notblock any ventilation openings, install
in accordance withthe instructions.
8) Do notinstall near any heat sources suchas
radiations, heat registers,stoves, or other
Television (including amplifiers) thatproduce
heat.
9) Do notdefeat the safety purpose of the
polarized plug. Ifthe provided plug does not fit
into your outlet,consult an electrician for
replacement of theobsolete outlet.
10) Protected thepower cord from being walked
on or pinchedparticularly at plugs, convenience
receptacles, and thepoint where they exit from
the Television.
11) Onlyuse attachments/accessories specified
by the manufacturer.
12) Unplug thisTelevision during lighting
storms or whenunused for long periods of time.
13) Refer allservicing to qualified service
personnel. Servicing isrequired when the
Television has been damagedin any way, such as;
power-supply cord orplug is damaged,liquid
has been spilledor objects havefallen into the
Television, the Television has been exposedto
rain or moisture,does not operate normally, or
has been dropped.
14) Only useattachments/accessories specified
provided by themanufacturer, the product is
supplied byAC adapter, the ACadapter is used
as disconnect device,the disconnect device
shall remain readilyoperable.
15) The ventilationshould not beimpeded by
covering the ventilationopenings with items,
such as newspapers,table-cloth, curtains, etc.
16) No nakedflame sources, such as lighted
candles, should beplaced on the Television.
17) Attentionshould be drawnto the
environmental aspects ofbattery disposal.
18) The useof Television in moderate climate.
This marking indicatesthat this product should
not be disposedwith other household wastes
throughout the EU.To prevent possible harmto
the environment orhuman health from
uncontrolled waste disposal,recycle it
responsibly to promotethe sustainable reuse of
material resources. To return yourused device,
please use thereturn and collection systems or
contact the retailerwhere the product was
purchased. They cantake this productfor
environmental safe recycling.
To reducethe risk offire or electric shock, do
not expose thisTelevision to rain or moisture.
WARNING:
The batteries shallnot be exposed to
excessive heat suchas sunshine, fire or the
like.
WARNING:
Never place heavyor sharp objects on the
LCD panel orframe.
WARNING:
Haier is committedto safely recycling
electronic products andproduct materials.
Please check fora local recycling location in
the United Statesat: 1800RECYCLING.COM
or call 1.800.RECYCLING.
All manuals and user guides at all-guides.com

-3-
High voltages are used in the operation of this television
receiver. Do not the cabinet.
Refer servicing to qualified service personnel.
open
SAFETY ANDWARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes on the back cover .
Adequate ventilation is essential to prevent failure of
electrical components.
of the TV
Do not trap the power supply cord under the television
receiver s .' stand
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual and damage
to the television may result if it falls.
/or
When the televisionreceiver is not used for an
extended period of time, it isadvisable to disconnect
the ACpower cord fromthe ACoutlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.or near
Dim:515*320mm(
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the life of your television, and can also
be dangerous.
All manuals and user guides at all-guides.com

-4-
INTRODUCTION
Main features Accessories
Infrared Remote Control.................... 1
User s Manual ................................. 1
Battery(AAA)................................... 2
Accessories
Main parameter
Power adapter................................... 1
Integrated ATSC TV tuner for HDTV broadcast reception
High brightness providesa vivid and brilliant picture
Wide Screen aspect ratio (16:9) for a complete home
theater experience
HDMI input for true digital connection
VGA port for connection to PC
stereo speaker system
Full-function remote control
High dynamic contrastratio for deeperblacks and brighter
whites
Integrated
x2
Resolution:
TV System:
Video Signal System:
Receiving Channel:
Horizontal definition (TV line)
1366x768
16:9
NTSC
Cable :1-135/ Air: 2-69 (ATV&DTV)
x1
High-Definition Multimedia Interface (HDMI) Input
Audio Input x 2
Composite Video Input >=350
x1
YCb(Pb)Cr(Pr) >=400
Video Input >=400
19 inches
x1
DC 12V, 3A(Power adaptor supplied)
2x3W
ATSC Digital system and NTSC Analog system
Headphone Output x1
x1
Coaxial Output
x1
USB Input
Aspect Ratio:
Viewing Picture Size (diagonal)
Power supply
Audio Output Power (THD 7%):
YCb(Pb)Cr(Pr) Input
Composite Video Input
Analog RGB (VGA) Input
1920x1080
22 inches
1920x1080
24 inches
All manuals and user guides at all-guides.com

-5-
Base Stand Assembly Instructions
1. Place theTV with the display side down on a flat surface. Use a cloth to protect .the display
Position the basestand onto the bottom of theneck of the stand.
2. Attach the basestand to the neck of thestand by firmly tightening the suppliedscrew.
All manuals and user guides at all-guides.com
all-guides.com

-6-
INSTALLATION
Front panel
1: Remote controlsensor.
2: Indicator LED: BLUE POWER ON.
RED STANDBY.
3: Side panel keys
1. SOURCE: Display the input source menu.
2. MENU: Display main MENU.
3. CH+/CH-: In TV mode, press "CH+" or "CH-" to
change the channel up and down. In MENU mode, press
"CH+" or "CH-" to select items in standby mode, press
"CH+" or "CH-" to turn on the TV.
4. VOL+/VOL-: Adjust sound level. In MENU mode,
press "VOL+ " or "VOL- " to adjust the item that you
selected.
5. STANDBY: Press this button to turn the unit ON
from STANDBY mode. Press it again to turn the set
back to STANDBY.
Side panel
REAR Connections
All the terminals are (from left to right):
POWER SOCKET, VIDEO, AUDIO INPUT, YPbPr INPUT
Note: AV and YPbPr share audio .
(COMPONENT)
the same input
SIDE Connections
All the terminals are (from left to right):
HDMI1, HDMI2, USB, VGA, HEADPHONE, PC AUDIO, COAXIAL, RF.
Note: 1. When HDMI1 has an input signal coming from a DVI source then the audio input signal must be
connected to the PC audio input.
2. When HDMI2 has an input signal coming from a DVI source then the audio input signal must be
connected to the YPbPr/AV audio input.
30 30
1
3
2
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB
SOURCE
MENU
CH+
CH-
VOL+
VOL-
STANDBY
1
2
3
4
5
POWER VIDEO R
LYPbPr
COMPOSITE COMPONENT
All manuals and user guides at all-guides.com

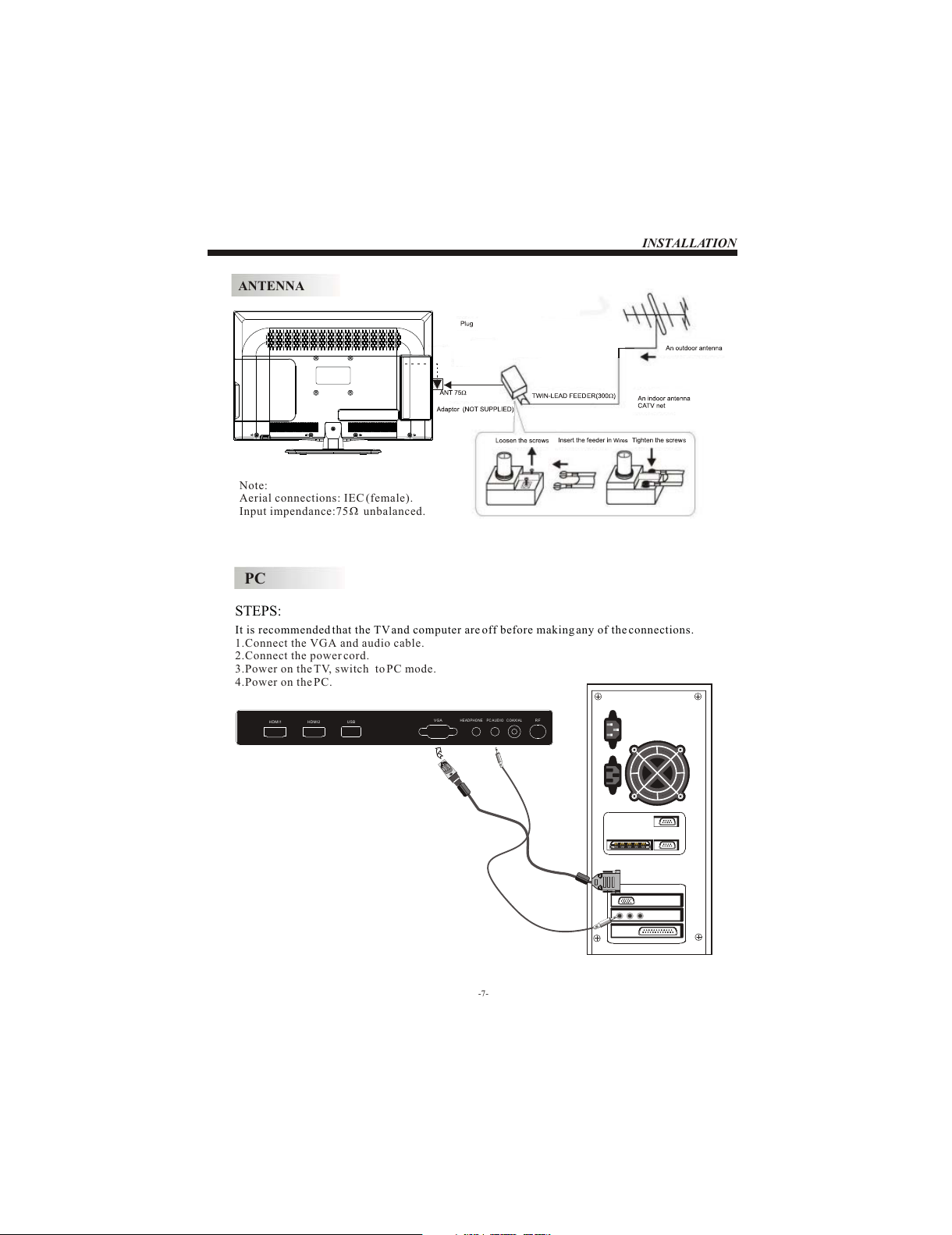

ANTENNA
INSTALLATION
Note:
Aerial connections: IEC(female).
Input impendance:75 unbalanced.
-7-
STEPS:
PC
It is recommendedthat the TVand computer areoff before makingany of theconnections.
1.Connect the VGA and audio cable.
2.Connect the powercord.
3.Power on theTV, switch toPC mode.
4.Power on thePC.
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB
All manuals and user guides at all-guides.com

PC
-8-
INSTALLATION
PRESET MODE
1
2
3
4
5
6
7
8
9
10
720*400
640*480
640*480
800*600
800*600
1024*768
1024*768
1024*768
1280*1024
1280*1024
70
60
75
60
75
60
70
75
60
75
31.47
31.47
37.50
37.88
46.88
48.36
56.48
60.02
63.98
80.00
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
Apply power tothe TV by connecting the included AC adaptor to thepower input on the back ofthe set.
Make sure whenplugging the adaptor into anAC receptacle thatthe polarized plug is properly inserted.
Do not attemptto file or cut the blade.
POWER VIDEO R
L Y Pb Pr
COMPOSITE COMPONENT
All manuals and user guides at all-guides.com

INSTALLATION
-9-

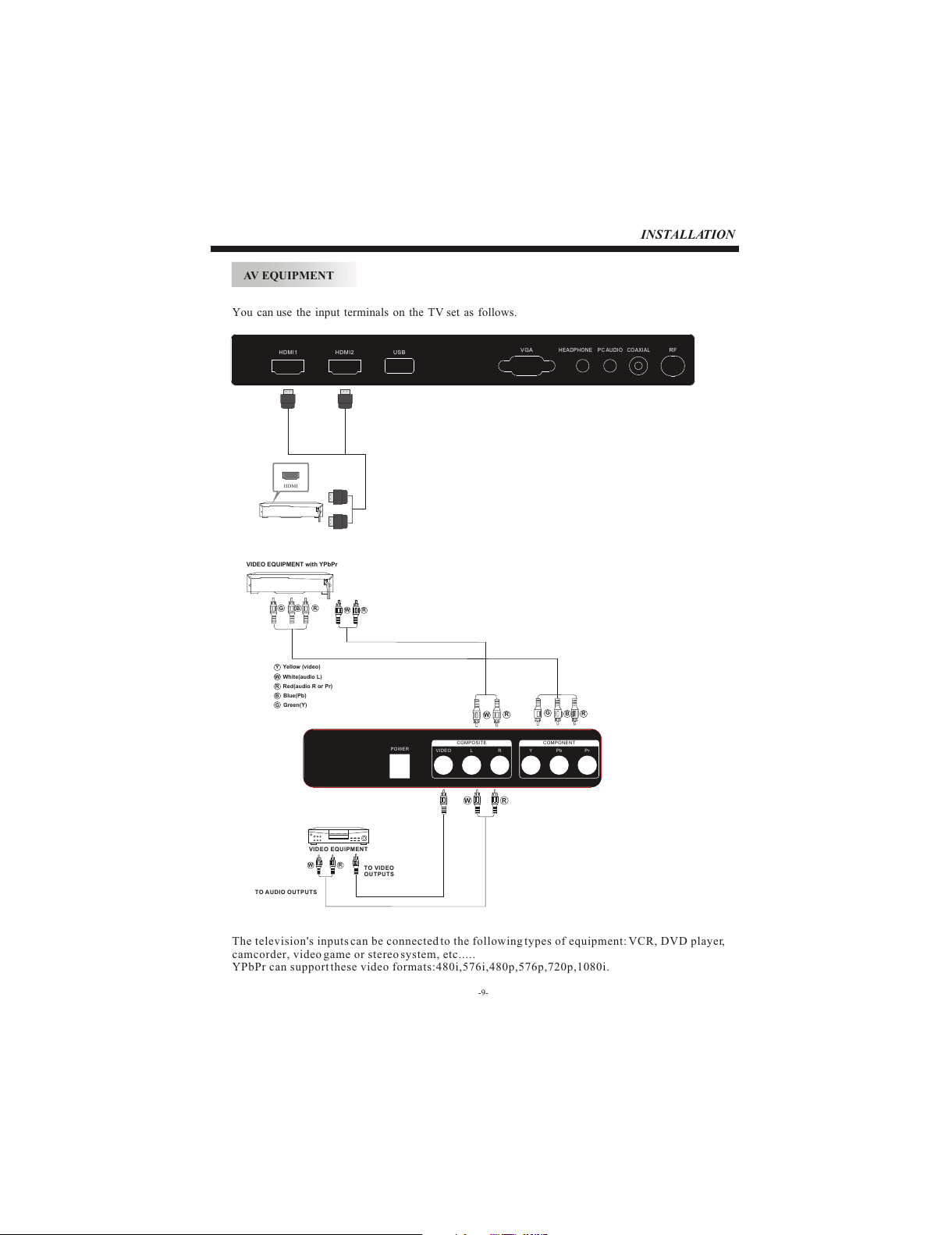

AV EQUIPMENT
You can use the input terminals on the TV set as follows.
HDMI
Yellow (video)
White(audio L)
Red(audio R or Pr)
Y
W
R
W R
GBR
Blue(Pb)
Green(Y)
B
G
VIDEO EQUIPMENT with YPbPr
WR
GBR
WR
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
VGA
HEADPHONE
RF
PC AUDIO COAXIAL
HDMI1 HDMI2 USB
POWER VIDEO R
LYPbPr
COMPOSITE COMPONENT
The television's inputscan be connected to the followingtypes of equipment: VCR, DVD player,
camcorder, videogame or stereo system, etc.....
YPbPr can supportthese video formats:480i,576i,480p,576p,720p,1080i.
All manuals and user guides at all-guides.com

-10-
REMOTE CONTROL
1: POWER
2: NUMBER KEY
3:
4: CURSOR
5: EXIT
6: VOL+/-
7:
8:
Press to displayand select theavailable video sources.
9: MUTE
10: RECALL
11: ENTER
12: TV DISPLAY
13:
14: CH+/CH-
15: ASPECT
16: CH LIST
17: EPG
18: FAV
19: HDMI
20: AV
21: DTV STRENGTH
22: TV
23: YPbPr
24: CC
25: VGA
26: MTS
27: COLOR KEYS
Reserved keys
Press to turnthe TV onor to turnoff (standby).
Press to inputthe channel number.
Press to displaythe on-screen menu.
Use the up,down, left, andright keys tomove within the
menu.
Press to exitthe on-screen menu.
Press to adjustthe sound level.
Press to disableor enable thesound.
Press to changeto the previouslyviewed channel.
Press to confirmthe selection.
Press to display/hidethe program information.
Press to changethe channel.
Press to changethe picture aspectratio: Normal, Wide,
Zoom, Cinema.
Press to displaythe channel list.
Press to displaythe channel guide.
Press to accessthe favorite channelslist.
Press to directlyswitch to HDMImode.
Press to directlyswitch toAVmode.
Press to displaythe digital TVsignal strength.
Press to directlyswitch to TVmode.
Press to directlyswitch to Component(YPbPr) mode.
Press to enable/disablethe closed captions.
Press to directlyswitch to VGA(PC input) mode.
Press to changethe audio language,if available.
P.M
Press repeatedly toselect a picturemode: Vivid,Standard,
Sports, Movie, orCustom.
S.M
Press repeatedly toswitch audio modes:Standard, News,
Music,Theater, Sportsor Custom.
9
14
13
10
12
11
15
18
20
19
25
26
1
2
4
5
6
7
YPbPr CC MTS VGA
DTV
STRENGTH
TV AV HDMI
EPGCH LIST FAV
TV
DISPLAY
S.M
P.M
24
23
21
22
16
17
27
3 8
All manuals and user guides at all-guides.com
all-guides.com

OPERATION
-11-
The first item of the MENU is PICTURE MENU.
Press to select, press to adjust, press MENU
to exit.
1).
the
This menu provides several video adjustment options
for fine tuning the video display.
Picture Mode: Select the user picture mode (Standard,
Sports, Movie, Custom, Vivid).
2). Brightness: This will adjust the light output of the
complete picture, which will mainly affect the dark
areas of the picture.
3). Contrast: This will adjust the intensity of bright parts
in the picture but keep the dark parts unchanged.
4). Color: This will adjust the saturation level of the
colors to suit your personal preference.
5). Tint: Allows you to select color mix (tint) of the
picture.
6). Sharpness: This will adjust sharpness of fine details
in the picture.
1. PICTURE MENU
Note:
The Audio language is available for ATSC (DTV)
programs.
option only
3. SETUP MENU
The third item of the MENU is the SETUP MENU.
You can here.
Press to select, press to adjust, press MENU to exit.
set system settings
Note:
Restore Default: Resetall settings tothe factory
default value.
Channel names thathave been changedthrough the option
in the ChannelMenu are notreset when arestore default is
initiated.
Select
Adjust Menu Exit
Parental Controls
Timer
Closed Caption
Menu Settings
VGA Settings
Restore Default
>
>
>
>
>
>
3.1. Parental Controls:
Press to select , press ,and the
screen
Parental Controls
shown below willbe displayed.
Picture Mode Standard
Contrast 50
Brightness 50
Color 50
Tint 0
Sharpness
Advanced Video
50
Select
Adjust Menu Exit
< >
>
2. AUDIO menu
The second item of the MENU is the AUDIO MENU.
You can adjust sound options here.
Press to select, press to adjust, press MENU
to exit.
1). Sound Mode: Select the user sound mode (Standard, News,
Music, Theater, Sports, Custom).
2). Bass: Adjust to increase or decrease lower-pitched sounds.
3). Treble: Adjust to increase or decrease higher-pitched sounds.
4). Balance: Adjust to emphasize left or right speaker balance.
5). Surround: Turn on or off the simulated surround sound
feature.
6). AVL: Auto Volume Level, this will reduce the differences
in volume level between TV programming.
7). Digital Output: Select the digital sound signal that will
output from the coaxial audio output.
8). Audio Language: Select the audio language (English,
French, Spanish).
Color Temp. Normal
Select
Adjust Menu Exit
< >
Aspect Wide
Noise Reduction Middle
< >
< >
Press to select Advanced Video, press ,and
the screen shownbelow will bedisplayed.
1). Color Temp: This willadjust color temperature (Cool,
Normal, Warm) to suityour preference.
2). Aspect: Thiswill vary thesize of theimage on theTV
screen. There arefour modes which can be selected
(Wide, Zoom, Cinemaand Normal).
3). Noise Reduction:Adjust to reduce the appearance of
noise in thepicture (dots). Thereare five modes to
choose from (Strong,Auto, Off,Weak and Middle).
Advanced Video:
Note:
If you want to adjust contrast, brightness, color,
and sharpness, the picture mode must to
"Custom".
be set
Select
Adjust Menu Exit
Sound Mode Standard
Bass 50
Treble 50
Balance 0
Surround
AVL
Digital Output PCM
Off
Off
< >
< >
< >
< >
Audio Language English
< >
All manuals and user guides at all-guides.com

OPERATION

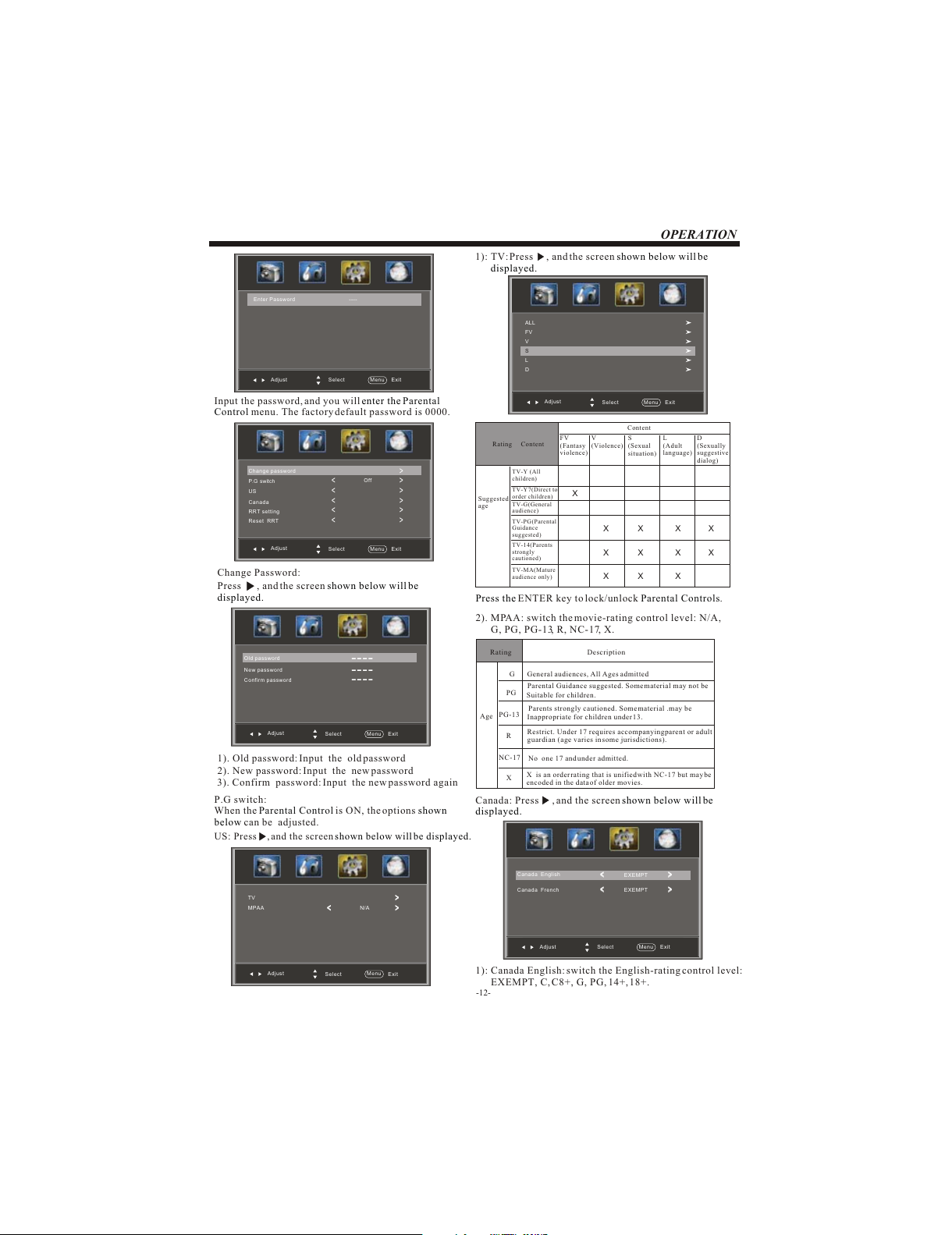

-12-
Change Password:
Press , andthe screen shown below will be
displayed.
2). New password:Input the newpassword
Select
Adjust Menu Exit
New password
Confirm password
----
----
Old password ----
1). Old password:Input the oldpassword
P.G switch:
When the is ON, theoptions
can be adjusted.
Parental Control shown
below
US: Press ,and the screen shown below will be displayed.
Select
Adjust Menu Exit
TV
MPAA N/A
>
>
< >
< >
Select
Adjust Menu Exit
Enter Password ----
Input the password,and you will
menu. The factorydefault password is 0000.
enter the Parental
Control
Select
Adjust Menu Exit
Change password
P.G switch Off
US
Canada
RRT setting
Reset RRT
< >
< >
< >
< >
< >
>
3). Confirm password:Input the newpassword again
1): TV:Press , and the screen shown below will be
displayed.
Select
Adjust Menu Exit
ALL
FV
V
S
L
D
Press the ENTER key to lock/unlock .Parental Controls
Rating Content
FV
(Fantasy
violence)
V
(Violence)
S
(Sexual
situation)
L
(Adult
language)
D
(Sexually
suggestive
dialog)
Suggested
age
TV-Y (All
children)
TV-Y7(Direct to
order children)
TV-G(General
audience)
TV-PG(Parental
Guidance
suggested)
TV-14(Parents
strongly
cautioned)
TV-MA(Mature
audience only)
X
X
X
X
X
X
X
X
X
X
X
X
Content
2). MPAA: switch themovie-rating control level: N/A,
G, PG, PG-13, R, NC-17, X.
Rating Description
Age
G General audiences, All Ages admitted
PG
Parental Guidance suggested. Somematerial may not be
Suitable for children.
PG-13 Parents strongly cautioned. Somematerial .may be
Inappropriate for children under13.
R
NC-17
X
Restrict. Under 17 requires accompanyingparent or adult
guardian (age varies insome jurisdictions).
No one 17 andunder admitted.
X is an orderrating that is unifiedwith NC-17 but maybe
encoded in the dataof older movies.
Canada: Press , and the screen shown below will be
displayed.
1): Canada English:switch the English-ratingcontrol level:
EXEMPT, C,C8+, G, PG, 14+,18+.
Select
Adjust Menu Exit
Canada English
Canada French
EXEMPT
< >
< >
EXEMPT
< >
< >
All manuals and user guides at all-guides.com

OPERATION

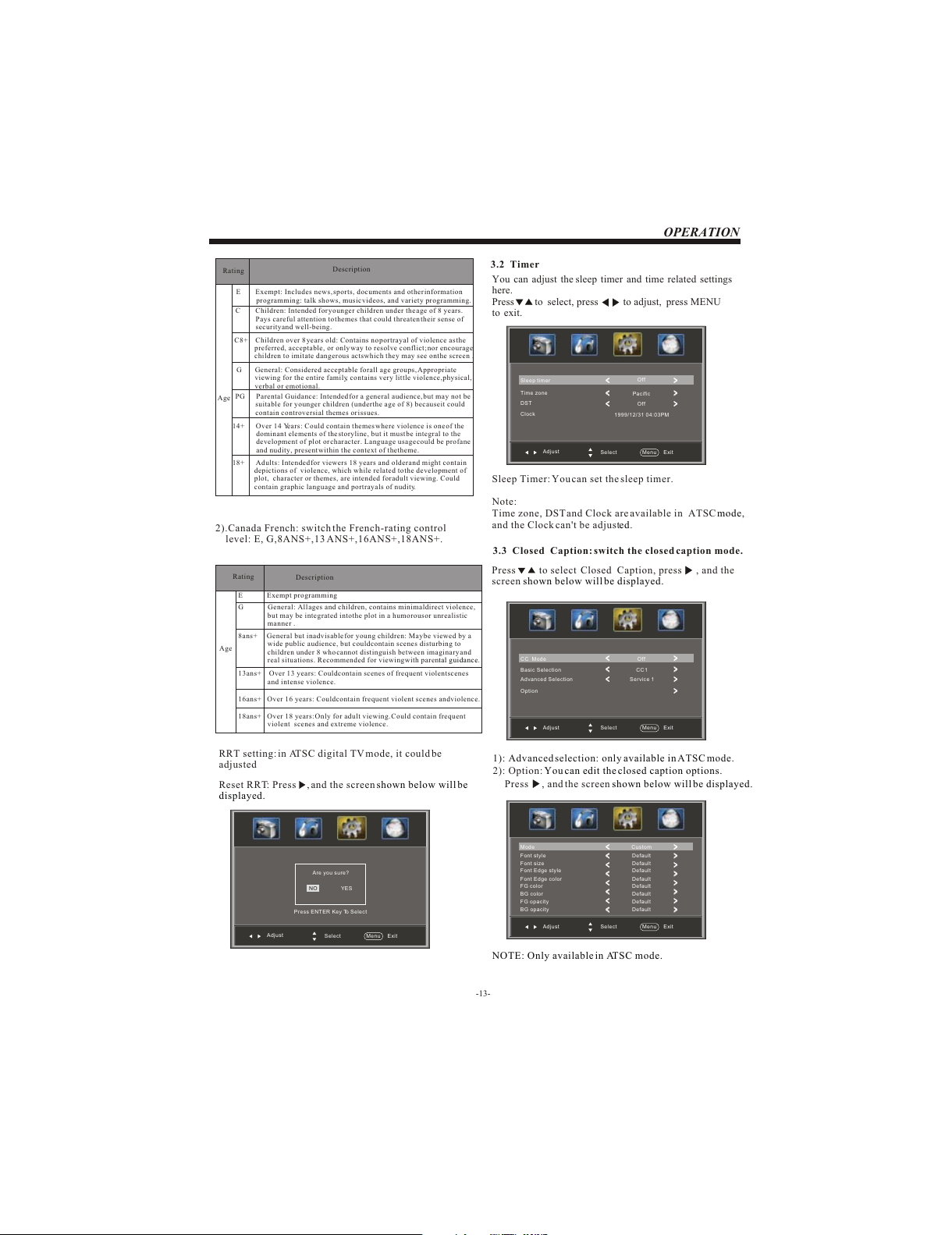

-13-
Rating Description
Age
E Exempt: Includes news,sports, documents and otherinformation
programming: talk shows, musicvideos, and variety programming.
C Children: Intended foryounger children under theage of 8 years.
Pays careful attention tothemes that could threatentheir sense of
securityand well-being.
C8+ Children over 8years old: Contains noportrayal of violence asthe
preferred, acceptable, or onlyway to resolve conflict;nor encourage
children to imitate dangerous actswhich they may see onthe screen .
G General: Considered acceptable forall age groups,Appropriate
viewing for the entire family, contains very little violence,physical,
verbal or emotional.
PG Parental Guidance: Intendedfor a general audience,but may not be
suitable for younger children (underthe age of 8) becauseit could
contain controversial themes orissues.
14+ Over 14 Years: Could contain themeswhere violence is oneof the
dominant elements of thestoryline, but it mustbe integral to the
development of plot orcharacter. Language usagecould be profane
and nudity, presentwithin the context of thetheme.
18+ Adults: Intendedfor viewers 18 years and olderand might contain
depictions of violence, which while related tothe development of
plot, character or themes, are intended foradult viewing. Could
contain graphic language and portrayals of nudity.
2).Canada French: switchthe French-rating control
level: E, G,8ANS+,13ANS+,16ANS+,18ANS+.
Rating Description
Age
E Exempt programming
G General: Allages and children, contains minimaldirect violence,
but may be integrated intothe plot in a humorousor unrealistic
manner .
8ans+ General but inadvisablefor young children: Maybe viewed by a
wide public audience, but couldcontain scenes disturbing to
children under 8 whocannot distinguish between imaginaryand
real situations. Recommended for viewingwith paren .tal guidance
13ans+ Over 13 years: Couldcontain scenes of frequent violentscenes
and intense violence.
16ans+ Over 16 years: Couldcontain frequent violent scenes andviolence.
18ans+ Over 18 years:Only for adult viewing.Could contain frequent
violent scenes and extreme violence.
Reset RRT: Press , and the screenshown below willbe
displayed.
RRT setting:in ATSC digital TVmode, it couldbe
adjusted
Select
Adjust Menu Exit
Are you sure?
NO YES
Press ENTER Key To Select
3.2 Timer
You can adjust the sleep timer and time related settings
here.
Press to select, press to adjust, press MENU
to exit.
Sleep Timer:Youcan set thesleep timer.
Note:
Time zone, DSTand Clock areavailable in ATSC ,
and the Clockcan't be adjust .
mode
ed
Select
Adjust Menu Exit
Sleep timer
Time zone
DST
Clock 1999/12/31 04:03PM
Pacific
Off
Off
< >
< >
< >
< >
< >
< >
2): Option:You can edit the closed caption options.
Press , andthe screen shown below will be displayed.
NOTE: Only availablein ATSC mode.
1): Advancedselection: only ATSCmode.available in
3.3 Closed Caption:switch the closedcaption mode.
Press to select Closed Caption, press , and the
screen shown below willbe displayed.
Select
Adjust Menu Exit
CC Mode
Basic Selection
Advanced Selection
Option
Off
CC1
Service 1
< >
< >
< >
< >
< >
< >
>
>
Select
Adjust Menu Exit
Mode
Font style
Custom
Default
Font size Default
Font Edge style Default
Font Edge color Default
FG color Default
BG color Default
FG opacity Default
BG opacity Default
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
< >
All manuals and user guides at all-guides.com

OPERATION
-14-
1). Air/Cable: Select Air TV signal or Cable TV signal.
2). Auto Scan:
, and the screen
If it's the first time using the TV, you
should perform a full channel scan in order to capture
and store all available channels.
Press the to confirm shown below
will be displayed.
Select "YES" and
and the screen
press the ENTER to confirm,
shown below will be displayed,
which indicates that the auto search is progressing.
3). Favorite: Press ENTER to add/delete favorite channels.
4). Show/Hide: Press the ENTER button to display or
hide channels.
5). Channel NO. : Display the current channel number.
Press to change the channel.
6). Channel label: Press and to edit the current
channel name.
7). DTV signal: Display DTV signal strength.
Signal strength indicator is for reference only, it
cannot be selected or adjusted.
Menu Language English
Select
Adjust Menu Exit
< >
3.5 VGASettings: Only available in VGA (PCinput)
mode.
1). H-Pos:Adjust the horizontalposition of thescreen.
2). V-Pos: Adjust the vertical position of the screen.
3). Clock: Finetune the screenwidth.
4). Phase: Finetune the phaseof the screen. Usually
don't adjust this item .
5). Auto:Auto adjustto fit the screen.
you need to option
Press to selectVGA Settings,press , and the screen
shown below willbe displayed.
Select
Adjust Menu Exit
H-pos
V-pos
Clock
Phase
50
Auto
50
50
50
>
4. Channel MENU
Here you add/skipTV channels andcustomize displayed
channel info.
Press to select,press to adjust.
Select
Adjust Menu Exit
Air/cable
Auto Scan
Air
Favorite
Show/Hide
Channel NO.
Channel Lable.
DTV signal: Good
2-1
< >
< >
>
>
>
>
Select
Adjust Menu Exit
Are you sure?
NO YES
Press ENTER Key To Select
Select
Adjust Menu Exit
R F CH: 4
Found: 4
Analog: 1
Digital: 3
3.4 Menu Settings
You can adjust Menu Settings here.
Press to select, press to adjust, press MENU
to exit.
All manuals and user guides at all-guides.com

OPERATION
5. Multimedia MENU
With an externalstorage device attachedto the USBinput,
you can usethe Multimedia Menuto display JPEGpictures
and play MP3music.
Before starting operation,verify USB storagedevice is of
FAT32 file systemformat. This televisiondoes not support
NTFS or otherformats. Please usea high-speed USB 2.0
device with amaximum capacity of50GB.
1. Select aPhoto
The screen shownbelow will be displayed.
: pause
: stop
: fast backward
: previous
: next
: fast forward
: repeat all
: random play
Random
2. Select Music
The screen shown below will be displayed.
USB
C:
Photo Music
..
Everything I do.mp3
C:\laoge\
:17 001/018
Total size:3.7 GB
Unused size: 3.7 GB
Sealed With AKiss.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
.mp3
Everything I do.mp3
Title:
Artist:
Album:
Year:
Bit Rate: 128kbps
Play
05:49 06:33
Random
Use or folders,
to play, EXIT to stop playing or go to the
menu.
select the .JPG files press ENTER
press previous
Use select the. MP3 files or folders, to
play, EXIT to go to menu.
press ENTER
press the previous
USB
C:
Photo Music
..
C:\photo\
:17 001/018
Total size:3.7GB 1024 x 768 372.72KB
Unused size: 3.7 GB 2006:07:14 15:37:42
: play
-15-
All manuals and user guides at all-guides.com
all-guides.com

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection Check
Interference Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume (check ifmute is
activated or ifthe audio system
connections are notcorrect)
No picture Mute
Power cord isnot inserted
Power switch isnot opened
Contrast and brightness/volume
setup
Press standby keyon the remote
control for inspecting
No color Normal audio Color control
breaking up
Normal audio
or weak
Retune channel
No color Noise TVsystem
Normal audio
antenna position, direction
or connection
TROUBLE SHOOTING
Trouble phenomenonSymptom
Ghost
-16-
The LCD TV panel is built with very high precision technology giving you fine picture details
in vibrant color. Occasionally, a fewnon-active pixels may appear on the screen as a fixed
point of red, green, blue, black or white. Please note this does not affect the performance of
the product.
All manuals and user guides at all-guides.com

WARRANTY
-17-
90 days labor,1 year parts.
All manuals and user guides at all-guides.com

All manuals and user guides at all-guides.com
