Haier LE55B8000 User manual

LED LCD TV
OWNER' S MANUAL
MODEL: L E 5 5 B 8 0 0 0
Please READ this manual carefully
before operating your TV, and retain
it for future reference

Contents
-1-
1、 Safety and warnings..........................................................................................................2-3
2、 Introduction.....................................................................................................................4
3、 W all Mount Installation.................................................................................................... 5
4、 Installation...................................................................................................................... 6-9
5、 Remote Controller...........................................................................................................10
6、 TV Operation..................................................................................................................11-14
7、 Trouble shooting.............................................................................................................15

-2-
SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK).NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
The symbol indicates that dangerous
voltages constituting a risk of electric shock
are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literaturaccompanying this
unit.
To reduce the risk of fire or electric shock, do
not expose this apparatus to rain or moisture.
WARNING:
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install
in accordance with the instructions.
8) Do not install near any heat sources such as
radiations, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9) Do not defeat the safety purpose of the
polarized plug. If the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.
10) Protected the power cord from being walked
on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11) Only use attachments/accessories specified
by the manufacturer.
12) Unplug this apparatus during lighting
storms or when unused for long periods of time.
13) Refer all servicing to qualified service
personnel. Servicing is required when the
apparatus has been damaged in any way, such as
power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or
has been dropped.
14) Mains plug is used as the disconnect device,
the disconnect device shall remain readily
operable.
15) The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloth, curtains, etc.
16) No naked flame sources, such as lighted
candles, should be placed on the apparatus.
17) Attention should be drawn to the
environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to
dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on
the apparatus.
This symbol indicates that this product
incorporates double insulation between
hazardous mains voltage and user accessible
parts. When servicing use only
identical replacement parts.
This marking indicates that this product should
not be disposed with other household wastes
throughout the EU. To prevent possible harm to
the environment or human health from
uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of
material resources. To return your used device,
please use the return and collection systems or
contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
The batteries shall not be exposed to
excessive heat such as sunshine, fire or the
like.
WARNING:
RISK OF ELECTRIC SHOCK
DO NOT OPEN!
CAUTION

-3-
High voltages are used in the operation of this television
receiver. Do not remove the cabinet back from your set.
Refer servicing to qualified service personnel.
SAFETY AND WARNINGS
To prevent fire or electrical shock hazard, do not expose
the television receiver to rain or moisture.
Do not drop or push objects into the television cabinet
slots or openings. Never spill any kind of liquid on the
television receiver.
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure of
electrical components.
Do not trap the power supply cord under the television
receiver.
Never stand on, lean on, or suddenly push the television or
its stand. You should pay special attention to children.
Serious injury may result if it falls.
Do not place your television on an unstable cart, stand,
shelf or table. Serious injury to an individual , and damage
to the television, may result if it falls.
When the television receiver is not used for an
extended period of time, it is advisable to disconnect
the AC power cord from the AC outlet.
Avoid exposing the television receiver to direct sunlight
and other sources of heat. Do not stand the television
receiver directly on other products which give off heat,
e.g. video cassette players and audio amplifiers. Do not
place naked flame sources, such as lighted candles on
the television.
Dim:51 5*320mm(不包括底座）
If the television is to be built into a compartment or similar
enclosure, the minimum distances must be maintained. Heat
build-up can reduce the service life of your television, and
can also be dangerous.

INTRODUCTION
Main features
① Used as Television, display terminal, PC display；
② High luminance, wide viewing angle；
③ Can store 200 TV programs；
④ HDMI interface；
⑤ Multi-Media player (USB);
Infrared Remote Controller............ 1
Accessories
Main parameter
Viewing Picture Size (Diagonal)
Resolution
Aspect Ratio
TV System
Receiving Channel
Power consumption
Signal Input/Output
Horizon
Video Signal System
Input Power Voltage
Audio Output Power
（THD 7%）
tal definition（TV line ）Composite Video input >=350
Y Cb(Pb ) Cr(Pr) >=400
1920x1080
16 : 9
PAL/BG
PAL/NTSC/SECAM
1-200
2 x 10W
128W
AC 100-240V 50/60Hz
140cm
-4-
Analog RGB(VGA) x 1
High-Definition Multimedia Interface (HDMI) x 2
Composite Video Input x 1
Audio Input x 1
YCb (Pb )Cr (Pr) x 1
USB x 1
RF x 1
Composite Video output x 1
Model LE55B8000
Audio Output x 1
Infrared Remote Controller............ 1
User’s M anual...............................1

wall
wall

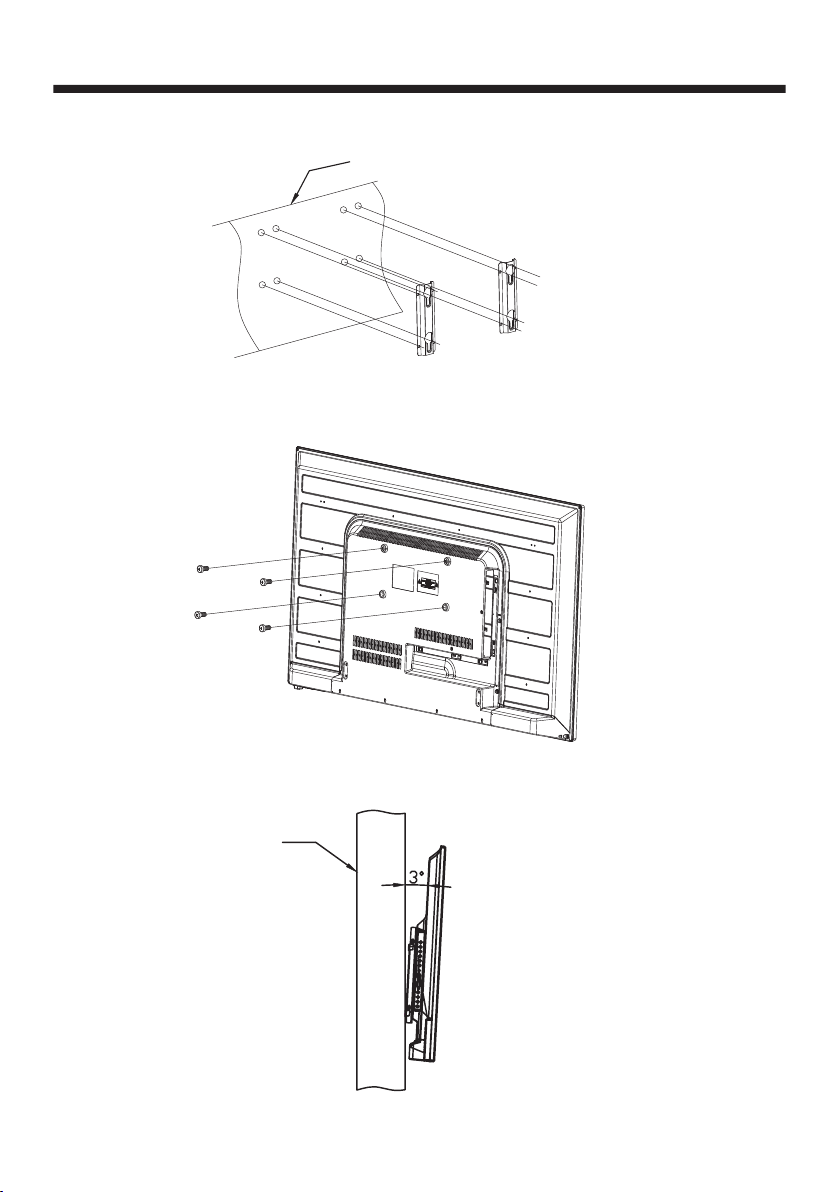

WALL MOUNT INSTALLATION
-5-
Step One: Use the expansion bolts (4*36PWA) to fix the wall mount brackets into the wall.
Step Two: Fix the wall mount screws (M6x8mm/4pcs) into the rear side of the LCD TV, using the
tongue of 8kgf.cm.
* The TV appearance subject to material object.
Step Three: Put the LCD TV with wall mount screws onto the wall mount brackets.
Warning: the angle between the TV and wall must not be bigger than 3º.

-6-

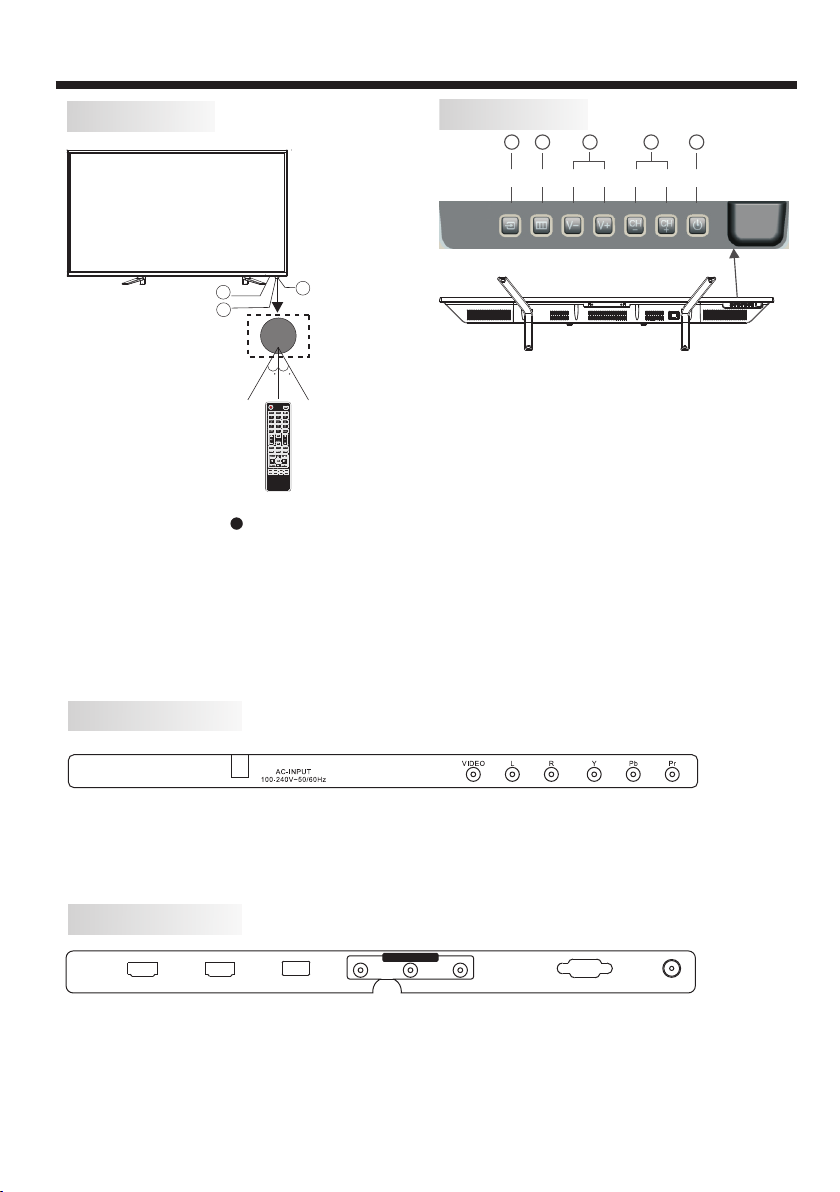

INSTALLATION
Front panel KEYBOARD
1: Remote control sensor.
2: Indicator LED: RED STANDBY.
3: Key board
1．SOURCE：
Display the input source menu.
2．MENU：
Display main MENU.
3．V-/V+
Adjust sound level.
In MENU mode, press“V+”or“V-”to
adjust the item that you selected.
4．CH-/CH+
In TV mode，press“CH+”or“CH-”to change
the channel up and down.
In MENU mode, press “CH+”or“CH-”to select
items.
5. STANDBY
Press this button to turn the unit ON from
STANDBY mode.
Press it again to turn the set back to STANDBY.
SOURCE MENU V- V+ CH- CH+ Standby
1 2 3 4 5
3
2
30 30
1
All the terminals are (from left to right):
AC POWER SOCKET, AV INPUT, YPbPr INPUT.
Note: VIDEO and YPbPr share one audio channel.
All the terminals are (from left to right):
HDMI2, HDMI1, USB, AV OUTPUT, VGA, RF.
Note: When HDMI port get DVI signal, the audio signal receives from the AV Audio channel.
HDMI2 HDMI1 USB R FVGAVIDEO L R
AV OUTPUT
REAR AV Connections
REAR AV Connections (SIDE)

INSTALLATION
-7-
ANTENNA
STEPS:
Be sure both the TV and computer are Power off.
1.Connect VGA and audio cable
2.Connect power cord
3.Power on the TV, switch to PC mode
4.Power on the PC
This sequence is very important.
PC
Note:
Aerial connections: IEC(female).
Input impendance: 75 unbalanced.
HDMI2 HDMI1 USB R FVGAVIDEO L R
AV OUTPUT 8

INSTALLATION
-8-

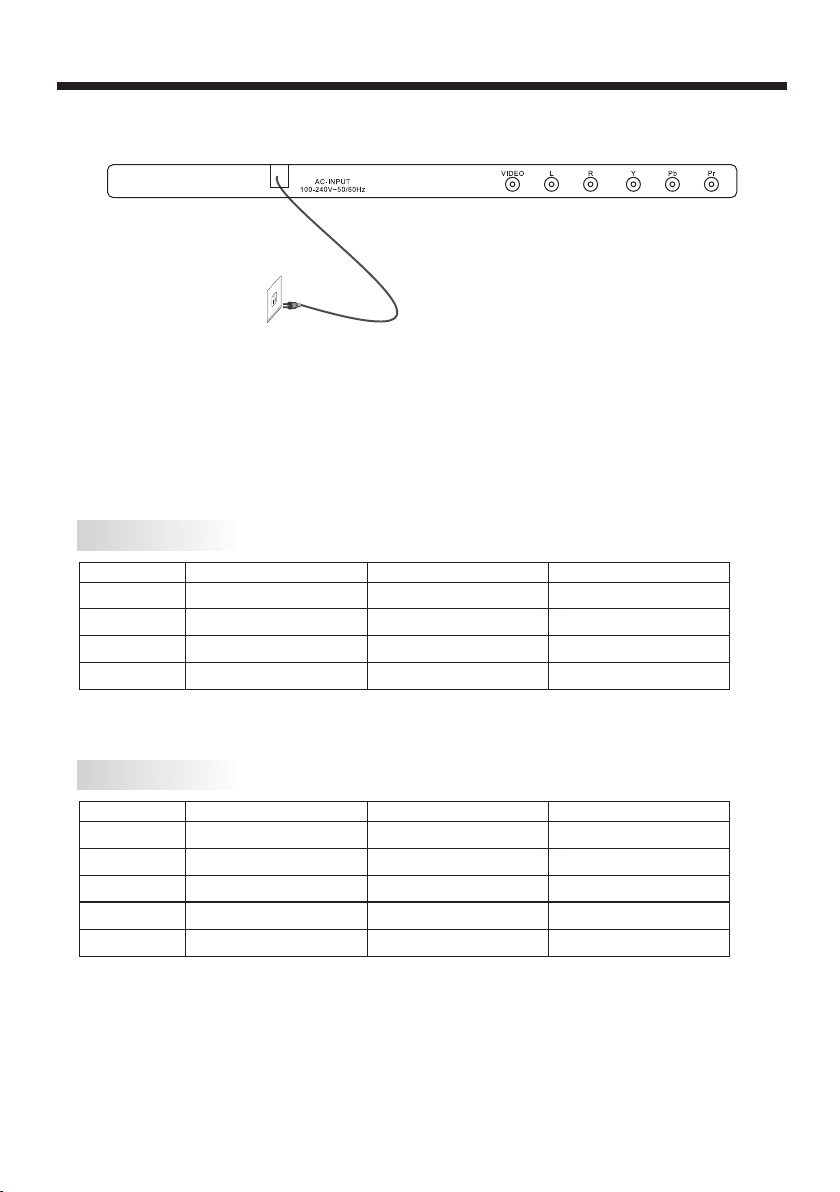

PRESET MODE (PC)
NOTE: PC V.Freq.(Hz) not more than 60Hz.
1
2
3
800*600
1024*768
60
60
37.88
48.36
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
4
1280*768 60 47.3
PRESET MODE (HDMI)
1
2
3
800*600
1024*768
60
60
37.88
48.36
RESOLUTION V.Freq.(Hz) H.Freq.(KHz)
1360*768 60 47.7
41280*768 60 47.3
1920*1080 60 67.5
51920*1080 60 67.5

INSTALLATION
-9-

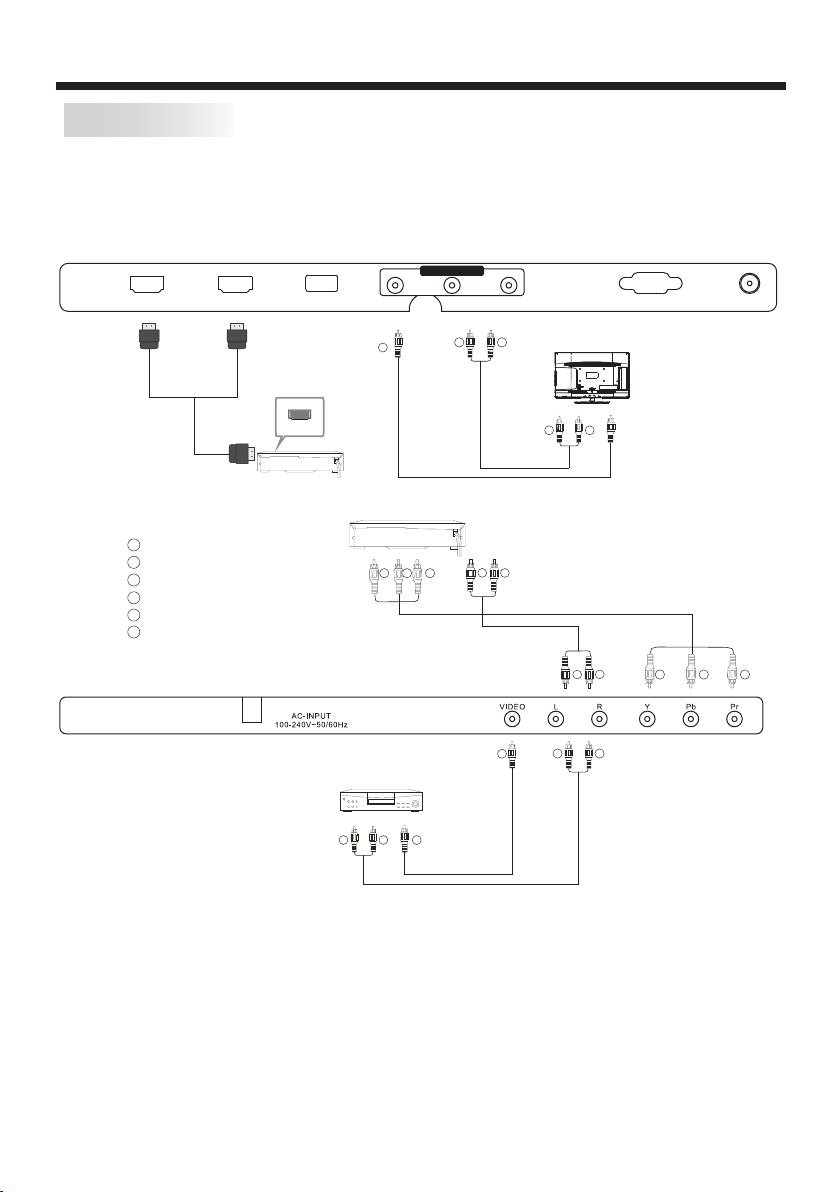

AV EQUIPMENT
This TV provides one group of AV, one group of YPbPr for convenient connection to VCR, DVDor other
video equipment. Please refer to the owner's manual of the equipment to be connected as well.
You can use the input terminals on TV set rear as follows.
HDMI
W R
W R
TO AUDIO INPUTS
VIDEO EQUIPMENT
TO VIDEO
INPUTS
Y
It can be connected to the following appliances: VCR, multi disc player, DVD, camcorder, video game or stereo system, etc...
YPbPr can support these video fomats: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p.
Note: 1.Video and YPbPr share one audio channel.
2.When HDMI port get DVI signal, the " " channel is changed to receive the audio for HDMI port.AV Audio
3.Sometimes it will not support in different device because the device supplys nonstandard signal.
4.When current source is TV, AV OUT signal is TV; when current source is AV, AV OUT signal is AV; other
sources have no AV OUT signal.
HDMI2 HDMI1 USB R FVGAVIDEO L R
AV OUTPUT
W R
GBR
VIDEO EQUIPMENT with YPbPr
WR
W R
TO AUDIO OUTPUTS
VIDEO EQUIPMENT
TO VIDEO
OUTPUTS
Y
Y
Red (audio R)
White(audio L)
Red(Pr or Cr)
R
W
R
Blue(Pb or Cb)
Green(Y)
B
G
Yellow (video)
Y
GBR
WR

-10-
REMOTE CONTROLLER
Note: The relevant button doesn't work if TV without teletext, NICAM, MHL function.

-11-

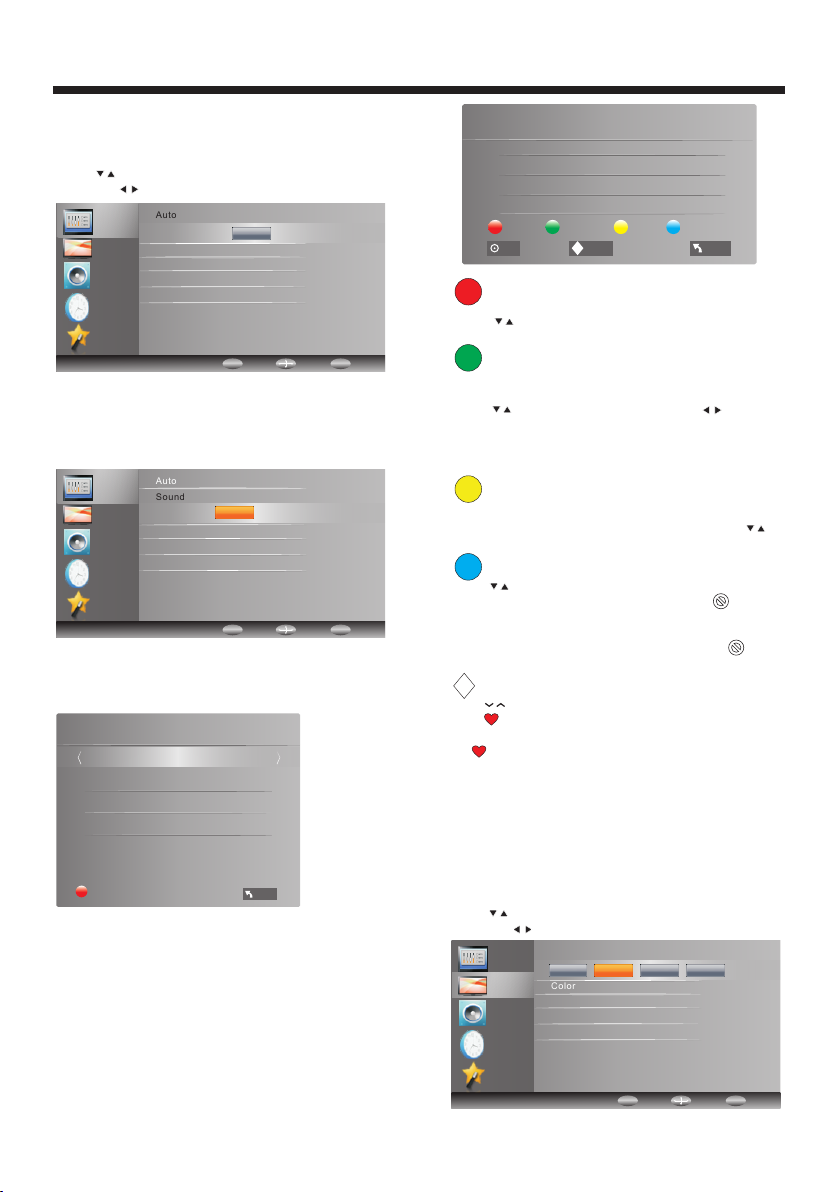

1. CHANNEL MENU
The first item of the MENU is CHANNEL MENU ( for
TV source only).
You can search channels and edit programs here.
Press to move, press OK button to confirm,
and press to adjust.
1).Auto Tuning:
Search all the TV channels automatically.
2). Sound System：
You can change the sound system (only PAL BG).
3). Manual Tuning:
You can search the TV channels and fine tune the
channels, then storage the channels you selected.
NOTE:
Press red button to storage to channels
after manual tuning .
4). Program Edit:
You can Delete, Rename, Move, or Skip any programs.
Auto Tuning
OK
Sound System
Manual Tuning
Programme Edit
Software Update(USB)
CHANNEL
SOUND
TIME
OPTION
MENU Back Move OK OK
Manual Tuning
Storage TO 1
Current CH 1
Search
Fine-Tune
Frequency 868.75MHz
SAVE MENU
Picture Mode
Dynamic
Color Temperature
Aspect Ratio
Noise Reduction
Screen
CHANNEL
SOUND
TIME
OPTION
MENU Back Move OK OK
Mild User
Standard
TV OPERATION
Auto Tuning
Sound System
Manual Tuning
Programme Edit
Software Update(USB)
CHANNEL
SOUND
TIME
OPTION
MENU Back Move OK OK
BG
Delete
Press to choose the program.
Press red button, the program will delete.
Rename
Move the cursor to the program, press
green button to rename the program.
Press to choose the character. Press to
move the cursor.
Press MENU button to exit edit, Press EXIT to exit
the menu.
Note: The TV programs name only can be 5 characters.
Move
Move the cursor to the program, press
yellow button, it will show yellow cursor, Press
to move the program.
Skip
Press to choose the program, press
Delete
Rename
Move
Skip
blue button to skip this program, The icon will
show on the right side of the program.
Choose the skipped program, press the blue button
again, you can cancel the skip, Then the icon will
disappear.
5). Software Update(USB):
Update the TV set' s software by USB.
2. PICTURE MENU
The second item of the MENU is PICTURE MENU.
You can adjust picture effect here, such as contrast,
brightness, etc.
Press to move, press OK button to confirm,
and press to adjust.
Programme Edit
Delete
MENU
Rename Move Skip
OK
FAV
Press to choose the program, press FAV button, it will
program. Choose the FAV
FAV button again, you can cancel the FAV,
the will disappear .
Once your favorite group is created, you can press the FAV
show on the right side of the
program, press
key to quickly access your favorite channel.
FAV

NOTE:
1).Tint is available in NTSC system only.
2).There are four color temperature modes
can be selected, such as normal, warm, cool, and user.
3).Screen is available in PC mode only, which
can adjust horizontal position, vertical position,
size and phase.
-12-
TV OPERATION
3. SOUND MENU
The third item of the MENU is the SOUND
MENU.
You can adjust the sound effect here such as
treble, bass, balance etc.
Press ▼▲ to move, press OK button to confirm,
and press◀▶ to adjust.
Note:
Auto volume: only available when the input
signal volume is too large or distortion.
4. TIME MENU
The fourth item of the menu is the TIME MENU
You can adjust the clock, power on/off time,
sleep time etc.
Press▼▲to move, press OK button to confirm,
and press◀▶to adjust.
NOTE:
Within 15 minutes there is no signal, the TV
will auto sleep.
Once you power off the TV set by AC, the clock time
will be reset.
5. OPTION MENU
The fifth item of the MENU is the OPTION MENU.
You can adjust the OSD Language, Restore Factory
Default, Blue Screen or HDMI CEC.
Sound Mode
Balance
Auto Volume
Surround Sound
MENU Back Move OK OK
Movie Sports
MusicStandard
CHANNEL
SOUND
TIME
OPTION
User
Clock
OK
Off Time
On Time
Sleep Timer
Auto Sleep
CHANNEL
SOUND
TIME
OPTION
MENU Back Move OK OK
OSD Language
Restore Factory Default
Blue Screen
HDMI CEC
MENU Back Move OK OK
CHANNEL
SOUND
TIME
OPTION
NOTE:
Restore factory default will clear all the programs
and reset all the settings to default value.
6. USB FUNCTION
You must enter the Source menu first,then choice the
USB and press OK button,the USB menu will appear.
Please make sure that the USB device have plugged in
the slot. There are four type media item can be selected,
such as photo, music, movie and text. Select the type
media item by pressing◀▶, press OK button to enter
the disk selection menu.
In the movie mode, when you use FB, FF function, The
audio may be pause in several seconds to synchronize
the audio signal and video signal.
In text mode, press to make page up and page down.
NOTE:
When the USB device isn't supported, it may be that the
power of the USB device isn't enough.
PHOTO MUSIC TEXT MOVIE
Haier Innovation Life
USB2.0 Back
EX IT Move Select
OK
OK
Input Source
TV
YPBPR
PC
HDMI1
VIDEO
USB
HDMI2

TV OPERATION
-13-
jafeimao.VOB
Close
Resolution: 720 x 480
Audio Track: 1 / 6
Subtitle: 1 / 11
Program: – / 0
Size: 1048404 KByt..
Press ◀▶ to select the function icon, press OK button to
confirm the function.
Press ▼ or EXIT button to exit the control bar.
NOTE:
You can adjust the audio track, subtitle, or program in
the Info menu while playing the video file.
Choose the Info icon and press OK can display the Info
MENU.
Press the◀▶ to select the right disk and press OK to
display media files and folder list or choose Return to
back to the media type selection menu.
Select the media file by pressing◀▶ or ▼▲ , then
the preview frame will pop up. Press the button
to play the media file in full screen. When the
media file (photo, music, movie or text type) is
playing, press the OK or DISPLAY button can display the
control bar.
Haier Innovation Life
Return C
Back
EXIT Move Select
OK
retu rn
Pause
Repeat ALL
NOTE:
Music function need to put music and picture in the same folder.
Pause FF Prev. NextFB Stop
Repeat ALL
00:04:22
play
00:04:22
Set A
AB
Back
EXI T Move Select
OK
Return 720 480 1080 0021.JPG
100
retur n

-14-
TV OPERATION
Hotel Mode:
Hotel Mode Operation : Set Hotel mode on/off.
Panel Key Lock : Keypad will be locked, when Key Lock
mode is on.
Max Volume: Set max volume limitted.This option allows
you to set the Max Volume Level.
Start Source：Choose source, the options as follow:
TV/YPBPR/PC/HDMI1/HDMI2/VIDEO/USB, press the or
►button to select the desired source.
◄
Start Channel : In TV mode, you can select a channel
number to be set as the TV present channel. Press the ◄ or
► button to select the desired channel number .
Setup Menu Display :Main menu lock , main menu will not
display when set to “No”
Source Key Lock : Source lock, you can't change the source, when set to “Yes”
Volume Default : Power on default volume, press the ◄ or
► button to select the desired volume.
Hotel Mode Operation
OFF
OFF
100
TV
1
Yes
No
30
Save To USB: Backup all TV setting data to USB disk.
(backup file named DATABASE.bin)
Load: Restore this data to TV from USB disk. When
restore is executed，the TV will reboot.
Capture Off
Capture: Under this menu, you can capture picture and save it as the start-up logo.
Hotel Mode Operation
Panel Key Lock
Max Volume
Start Source
Start Channel
Setup Menu Display
Source Key Lock
Save To USB
Load
Volume Default
Please press , and then press number key
“1001” to enter into Hotel Mode or press H.LOCK key to
enter into Hotel Mode.
source key first

Picture Audio
Snow Noise antenna position, direction
or connection
Inspection
Interfere Noise electronic equipment,car/
motorcycle,fluorescent light
Normal Picture Mute
Volume(inspect wether the
mute function on the remote
control are started , or audio
system are correct or not)
No picture Mute
Power cord is not inserted
Power switch is not opened
Contrast and brightness/volume
setup
Press standby key on the remote
control for inspecting
No color Normal audio color control
Scramble Normal audio
or weak
retune channel
No color Noise Audio system
Special Explanation：The accessories such as remote control is not belongs to the guarantee。
Normal audio
antenna position, direction
or connection
Trouble phenomenon
Ghost
-15-
TROUBLE SHOOTING
