Haier L26F6 User manual

Order No.
LCD TV
Model No.
Chassis
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair
the product or products dealt with in this service information by anyone else could result in serious injury or death.
Haier Group
©
All rights reserved. Unauthorized copying and distribution is a violation of law.
SERVICE MANUAL
Haier
WARNING
4LQJGDR+DLHU(OHFWURQLFV&R/WG
TV1012S001V0
RTD2674S
L32F6
L42F6
L26F6

Service Manual
Model No.:
1
CONTENTS
Chapter 1.General Information
1-1. Document Information........................................................................... 3
1-2. General Guidelines ................................................................................ 3
1-3. Important Notice ..................................................................................... 3
1-3-1. Followthe regulations and warnings ..................................................... 3
1-3-2. Be careful to the electrical shock........................................................... 3
1-3-3. Electro static discharge (ESD)............................................................... 3
1-3-4. About lead free solder (PbF).................................................................. 4
1-3-5. Use the genewingparts (specified parts) .............................................. 4
1-3-6. Safety check after repairment................................................................ 4
1-3-7. OrderingSpare Parts............................................................................. 6
1-3-8. Photo used in this manual ..................................................................... 6
1-4. Howto Read this Service Manual......................................................7
1-4-1. Usingicons: ...........................................................................................7
Chapter 2. Specification
2-1. Specification list ......................................................................................8
2-2. External pictures (four faces) ..............................................................9
Chapter 3. Disassemble and Assemble
3-1. L26F6...................................................................................................15
3-2. L32F6............................ .....................................................................17
Chapter 4. Location ofControls and Components
4-1. Board Location......................................................................................21
4-2. Main Board & AV Board ......................................................................23
4-2-1. Function Description: ...........................................................................23
4-2-2. Connector defi nition ............................................................................23
4-3. Power Supply Board.............................................................................26
4-3-1. Function description:.............................................................................26
4-3-2. Connector defi nition: ...........................................................................26
4-4. LCD Panel..............................................................................................29
4-4-1. Function Description: Display the signal. .............................................29
4-4-2. Connector defi nition: ...........................................................................29
4
-
/)
3-3. L42F6............................ .....................................................................19

Service Manual
Model No.:
2
Chapter 5. Installation Instructions
5-1. Accessories.........................................................................................35
5-2. External Equipment Connections
........................................................35
Chapter 6. Operation Instructions
6-1. Get To KnowYour TV
............................................................................39
6-2. Get To KnowYour Remote Control
.................................................40
Chapter 7. Electrical Parts
7-1. Block Diagram.........................................................................................41
7-2. Circuit Diagram .......................................................................................42
7-3. WiringConnection Diagram.................................................................53
8-1. Service Mode .........................................................................................55
8-1-1.Howto enter into Service Mode..............................................................55
8-1-2.Howto exit .............................................................................................55
8-2. Measurements and Adjustments ........................................................55
8-2-1. The Main Menu .....................................................................................55
8-2-2. Video......................................................................................................56
8-2-3. Audio .....................................................................................................57
Chapter 9. Trouble shooting
9-1. Simple check ..........................................................................................58
9-2. Power Supply Board Failure Check..................................................59
9-3. Mainboard Failure Check ...................................................................60
9-4. Pannel Failure ........................................................................................61
C
5
-
5
-
C
6
-
6
-
C
7
-
7
-
7
-
8
-
8
-
C
9
-
9
-
9
-
9
-
Chapter 8. Measurements and Adjustments
/)

3
Chapter 1.General Information
1-1. Document Information
Document format: Adobe PDF
Author:
Compiler:
1-2. General Guidelines
When servicing, observe the original lead dress. Ifashort circuit is found, replace all parts which
have been overheated or damaged by the short circuit.
After servicing, see to it that all the protective devices such as insulation barriers, insulation papers
shields are properly installed.
After servicing, make the followingleakage current checks to prevent the customer frombeing
exposed to shock hazards.
1) Leakage Current Cold Check
2) Leakage Current Hot Check
3) Prevention ofElectro Static Discharge (ESD) to Electrostatically Sensitive
1-3. Important Notice
1-3-1. Followthe regulations and warnings
Most important thingis to list up the potential hazard or risk for the service personnel to open
the units and disassemble the units. For example, we need to describe properly howto avoid the
possibility to get electrical shock fromthe live power supply or charged electrical parts (even the
power is off).
This symbol indicates that high voltage is present inside.It is dangerous to make any
kind ofcontact with any inside part ofthis product.
This symbol indicates that there are important operatingand maintenance instructions
in the literture accompanyingthe appliance.
1-3-2. Be careful to the electrical shock
To prevent damage which might result in electric shock or fire, do not expose this TVset to
rain or excessive moisture. This TVmust not be exposed to drippingor splashingwater, and
objects filled with liquid, such as vases, must not be placed on top ofor above the TV.
1-3-3. Electro static discharge (ESD)
Service Manual
Model No.: /)

4
Some semiconductor (solid state) devices can be damaged easily by static electricity.
Such components commonly are called Electrostatically Sensitive (ES) Devices. The following
techniques should be used to help reduce the incidence ofcomponent damage caused by
electros static discharge (ESD).
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily by static electricity. Such
components commonly are called Electrostatically Sensitive (ES) Devices. Examples oftypical
ESdevices are integrated circuits and some field-effect transistors and semiconductor "chip"
components. The followingtechniques should be used to help reduce the ncidence ofcomponent
damage caused by static by static electricity.
1. Immediately before handlingany semiconductor component or semiconductor-equipped
assembly, drain off any electrostatic charge on your body by touchingaknown earth ground.
Alternatively, obtain and wear acommercially available dischargingwrist strap device, which
should be removed to prevent potential shock reasons prior to applyingpower to the unit under
test.
2. After removingan electrical assembly equipped with ESdevices, place the assembly on a
conductive surface such as aluminumfoil, to prevent electrostatic charge buildup or exposure of
the assembly.
1-3-4. About lead free solder (PbF)
This product is manufactured usinglead-free solder as apart ofamovement within the
consumer products industry at large to be environmentally responsible. Lead-free solder must be
used in the servicingand repairingofthis product.
1-3-5. Use the genewingparts (specified parts)
Special parts which have purposes offire retardant (resistors), high-quality sound (capacitors),
lownoise (resistors), etc. are used.
When replacingany ofcomponents, be sure to use only manufacture's specified parts shown in
the parts list.
Safety Component
ƔComponents identified by mark have special characteristics important for safety.
1-3-6. Safety check after repairment
Confirmthat the screws, parts and wiringwhich were removed in order to service are put in the
original positions, or whether there are the positions which are deteriorated around the serviced
places serviced or not. Check the insulation between the antennaterminal or external metal and
the AC cord plugblades. And be sure the safety ofthat.
General Servicing Precautions
Service Manual
Model No.: /)

5
1. Always unplugthe receiver AC power cord fromthe AC power source before:
a. Removingor reinstallingany component, circuit board module or any other receiver
assembly.
b. Disconnectingor reconnectingany receiver electrical plugor other electrical connection.
c. Connectingatest substitute in parallel with an electrolytic capacitor in the receiver.
CAUTION: Awrongpart substitution or incorrect polarity installation ofelectrolytic capacitors
may result in an explosion hazard.
2. Test high voltage only by measuringit with an appropriate high voltage meter or other voltage
measuringdevice (DVM, FETVOM, etc) equipped with asuitable high voltage probe.
Do not test high voltage by "drawingan arc".
3. Do not spray chemicals on or near this receiver or any ofits assemblies.
4. Unless specified otherwise in this service manual, clean electrical contacts only by applying
the followingmixture to the contacts with apipe cleaner, cotton-tipped stick or comparable non-
abrasive applicator; 10% (by volume) Acetone and 90% (by volume) isopropyl alcohol (90%-99%
strength).
CAUTION: This is afl ammable mixture.
Unless specified otherwise in this service manual, lubrication ofcontacts is not required.
Capacitors may result in an explosion hazard.
5. Do not defeat any plug/socket B+ voltage interlocks with which receivers covered by this
service manual might be equipped.
6. Do not apply AC power to this instrument and/or any ofits electrical assemblies unless all
solid-state device heat sinks are correctly installed.
7. Always connect the test receiver ground lead to the receiver chassis ground before connecting
the test receiver positive lead.
Always remove the test receiver ground lead last. Capacitors may result in an explosion
hazard.
8. Use with this receiver only the test fixtures specified in this service manual.
CAUTION: Do not connect the test fixture ground strap to any heat sink in this receiver.
9. Remove the antennaterminal on TVand turn on the TV.
10. Insulation resistance between the cord plugterminals and the eternal exposure metal should
be more than Mohmby usingthe 500Vinsulation resistance meter.
11. Ifthe insulation resistance is less than M ohm, the inspection repair should be required.
Ifyou have not the 500Vinsulation resistance meter, use aTester. External exposure metal:
Antennaterminal Headphone jack.
Service Manual
Model No.: /)

6
12. Use only agrounded-tip solderingiron to solder or unsolder ESdevices.
13. Use only an anti-static type solder removal device. Some solder removal devices not
classified as "anti-static" can generate electrical charges sufficient to damage ESdevices.
14. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to
damage ESdevices.
15. Do not remove areplacement ESdevice fromits protective package until immediately
before you are ready to install it.
(Most replacement ESdevices are packaged with leads electrically shorted together by
conductive foam, aluminumfoil or comparable conductive material).
16. Immediately before removingthe protective material fromthe leads ofareplacement ES
device, touch the protective material to the chassis or circuit assembly into which the device will
be installed.
CAUTION: Be sure no power is applied to the chassis or circuit, and observe all other safety
precautions.
17. Minimize bodily motions when handlingunpackaged replacement ESdevices. (Otherwise
harmless motion such as the brushingtogether ofyour clothes fabric or the liftingofyour foot
fromacarpeted floor can generate static electricity sufficient to damage an ESdevice.)
1-3-7. OrderingSpare Parts
Please include the followinginformations when you order parts. (Particularly the Version letter)
1. Model number, serial number and software version
The model number and serial number can be found on the back cover ofeach product. Software
version can be found in the Spare Parts List.
2. Spare part No. and description
Spare part No. and description can be found in the Spare Parts List.
1-3-8. Photo used in this manual
The illustration and photos used in this Service Manual may not base on the final design of
products, which may differ fromyour products in some way.
Service Manual
Model No.: /)

7
1-4. How to Read this Service Manual
1-4-1. Usingicons:
Icons are used to attract the attention ofthe reader to specific information. The
meaningofeach icon is described in the table below:
Note:
A“note” provides information that is not indispensable, but may nevertheless be
valuable to the reader, such as tips and tricks.
Caution:
A“caution” is used when there is danger that the reader, through incorrect
manipulation, may damage equipment, loose data, get an unexpected result or has to
restart(part of) aprocedure.
Warning:
A“warning” is used when there is danger ofpersonal injury.
Reference:
A“reference” guides the reader to other places in this binder or in this manual,
where he/she will find additional information on aspecific topic.
Service Manual
Model No.: /)

8
Chapter 2. Specification
2-1. Specification list
0RGHO /) /) /)
6FUHHQVL]H LQFK LQFK LQFK
$VSHFWUDWLR
5HVROXWLRQ
5HVSRQVHWLPH PV PV PV
$QJHORIYLHZ +9 +9 +9
&RQWUDVW
%ULJKWQHVV FGP FGP FGP
26'ODQJXDJH (QJOLVK6SDQLVK (QJOLVK6SDQLVK (QJOLVK6SDQLVK
&RORUV\VWHP 176&3$/ 176&3$/ 176&3$/
$XGLRV\VWHP 01 01 01
$XGLRRXWSXWSRZHU
%XLOWLQ: : : :
7RWDOSRZHULQSXW: İ: İ: İ:
9ROWDJHUDQJH9 9 9 9
3RZHUIUHTXHQF\+] += += +=
1HWZHLJKW.* .*ZLWKVWDQG .*ZLWKVWDQG ZLWKVWDQG
*URVVZHLJKW.* .*ZLWKVWDQG .*ZLWKVWDQG .*ZLWKVWDQG
1HWGLPHQVLRQ00 ZLWKVWDQG ZLWKVWDQG ZLWKVWDQG
3DFNDJHGGLPHQVLRQ00 ZLWKVWDQG ZLWKVWDQG ZLWKVWDQG
Service Manual
Model No.: /)

2-2. External pictures (four faces)

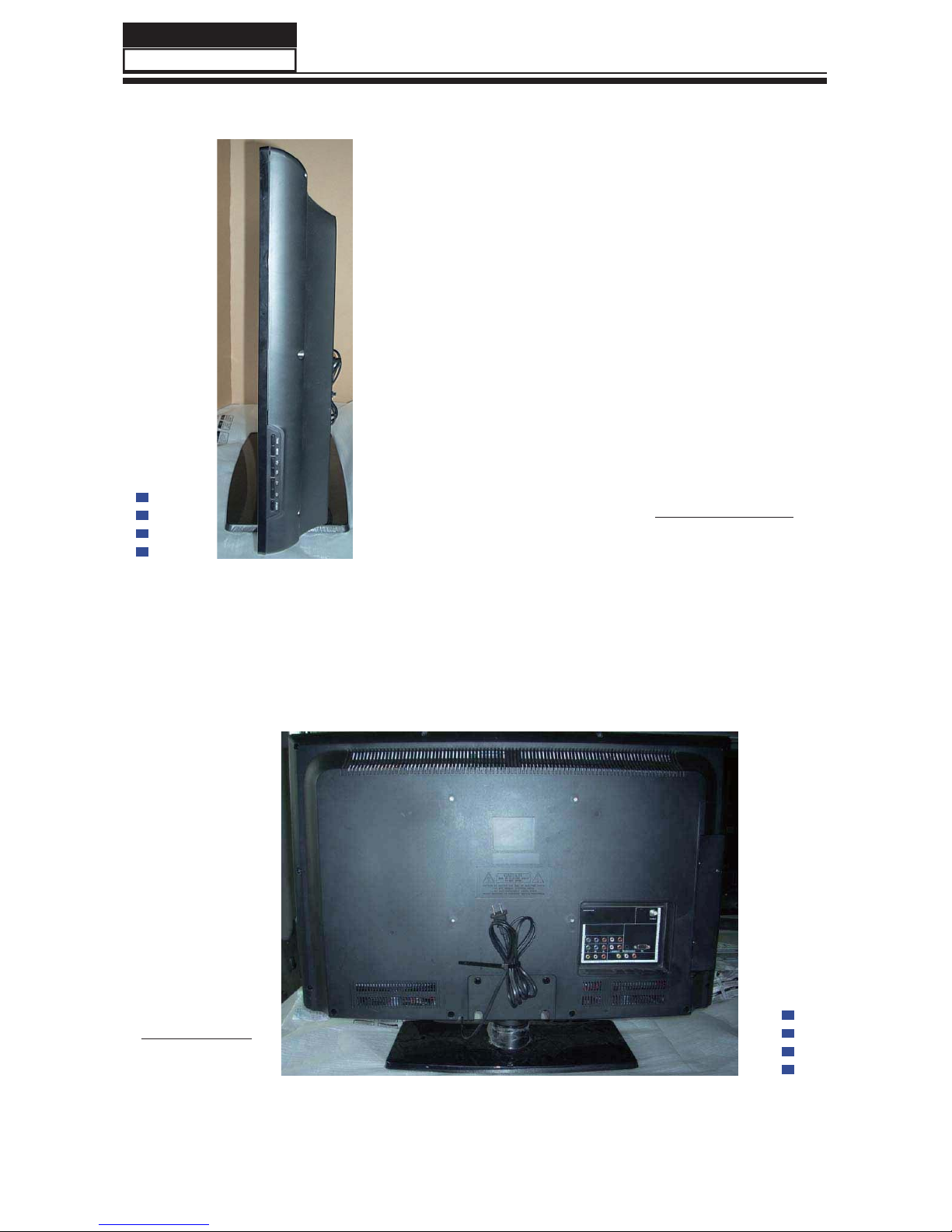

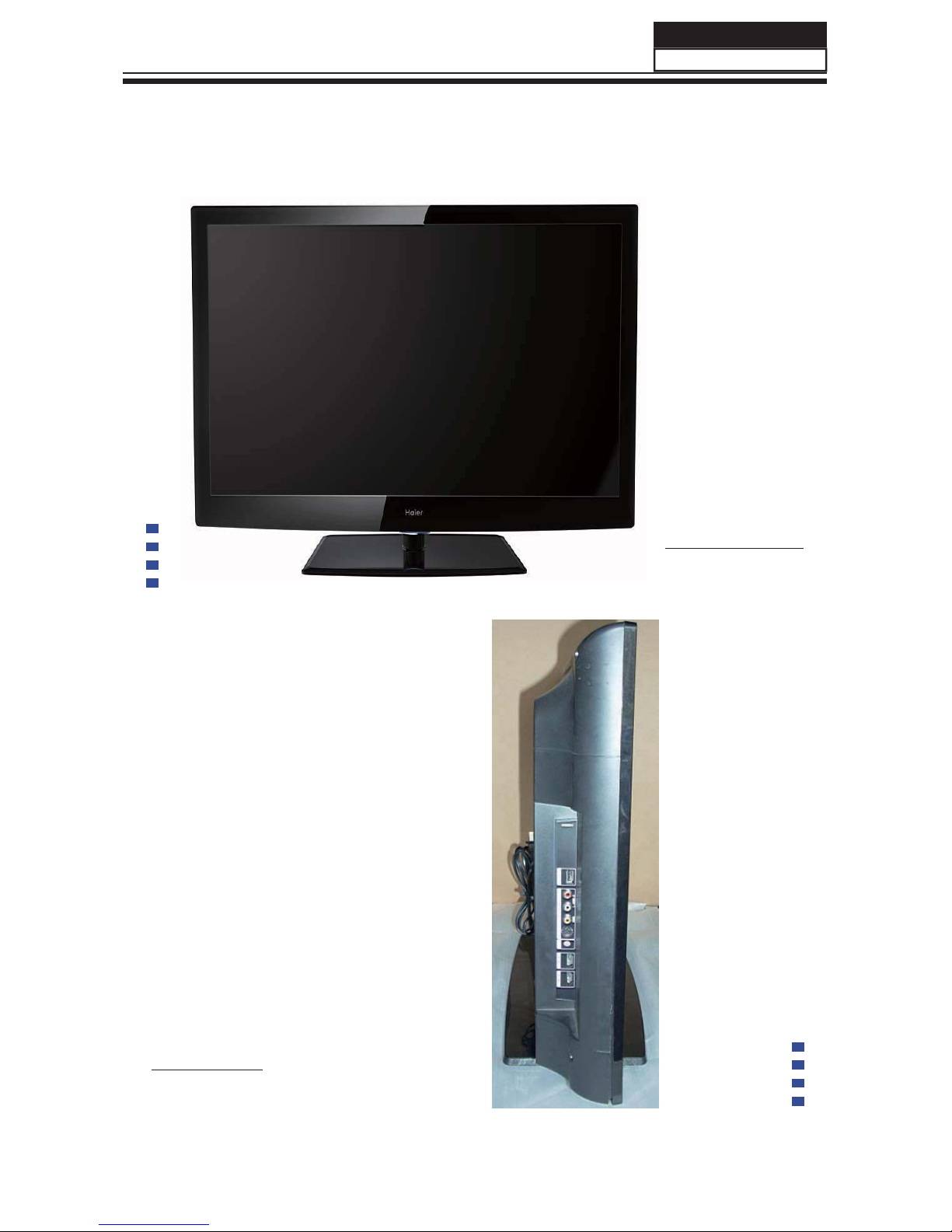

Front Side
Left Side
2-2-1
9
L26F6
Service Manual
Model No.: /)

10
Right Side
Back Side
Service Manual
Model No.: /)

Front Side
Left Side
2-2-2
11
L32F6
Service Manual
Model No.: /)

12
Right Side
Back Side
Service Manual
Model No.: /)

Front Side
Left Side
2-2-3L42F6
Service Manual
Model No.: /)
13

Right Side
Back Side
Service Manual
Model No.: /)
14

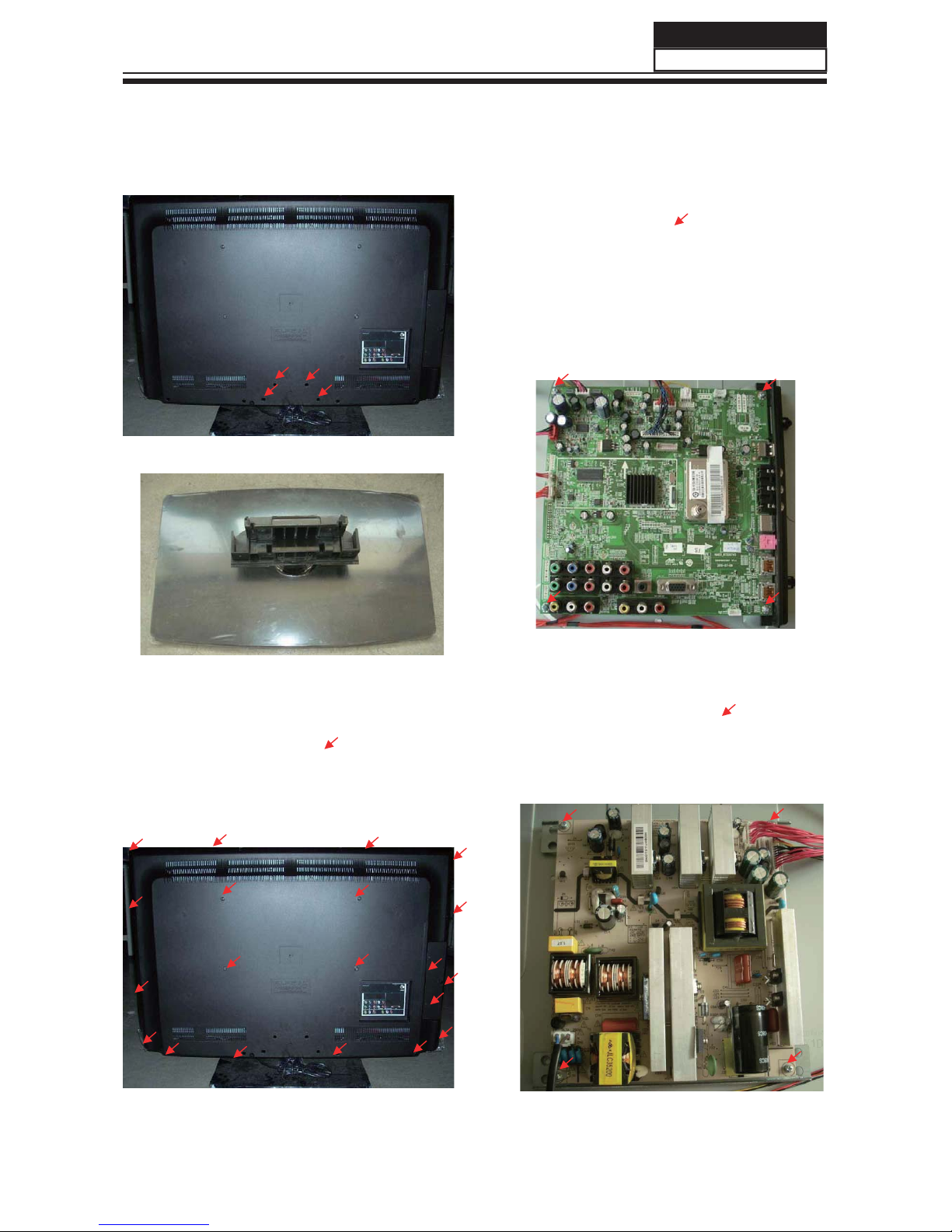

Chapter 3. Disassemble and Assemble
3-1.
3-1-2. Remove the Back Cover
3-1-3. Remove the mainboard
power supply
3-1-1. Remove the Stand
ķ/D\GRZQWKHXQLWVRWKDWUHDU
FRYHUIDFHVXSZDUG
ĸ5HPRYHWKHIRXUVFUHZVIURPWKHUHDU
Ĺ7KHQUHPRYHWKHVWDQG
FRYHULQGLFDWHGZLWK
ķ5HPRYHWKHIRXUWHHQVFUHZV
LQGLFDWHGRQILJXUHDERYHE\
ĸ7KHQUHPRYHWKHEDFNFRYHUIURP
WKHXQLW
RQWKHILJXUHDERYHE\
Ĺ5HPRYHWKH0DLQERDUG
3-1-4. Remove the
LQGLFDWHGRQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKHSRZHUVXSSO\
L26F6
5HPRYHWKHIRXUVFUHZV
ķ
ķ'LVFRQQHFWWKHFRXSOHU&1&1&1
&1&1&1&1&1
ĸ5HPRYHWKHIRXUVFUHZVLQGLFDWHG
Service Manual
Model No.: /)
15

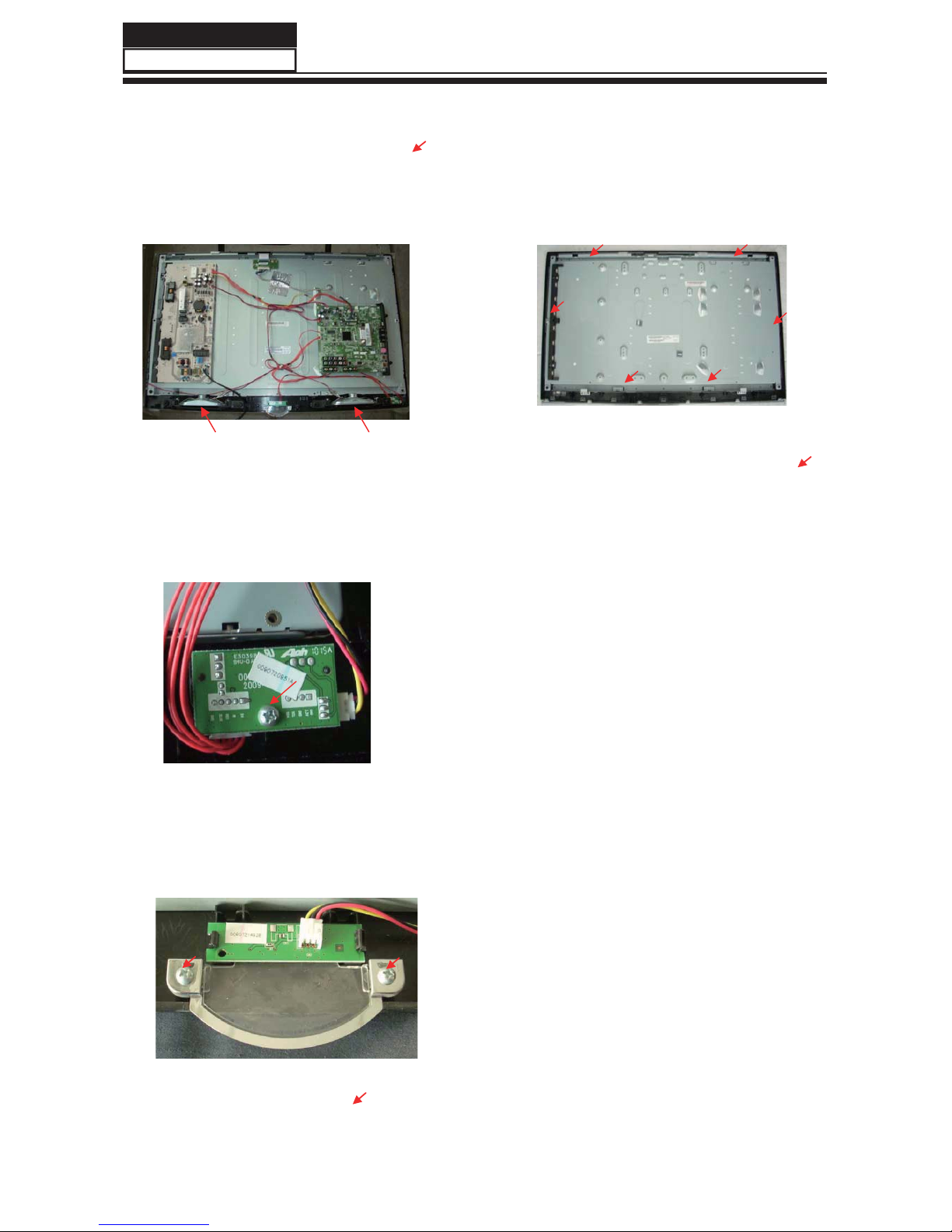

3-1-6. Remove the remote control
3-1-8.
3-1-5. Remove the Speaker
Takeoutthespeakerdirectly.
5HPRYHWKHVFUHZ
WDNHRXWWKHUHPRWHFRQWUROERDUG
RQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKH3DQHO
Remove screws fastened
the Panel
5HPRYHWKHWZRVFUHZVLQGLFDWHG
ķ
3-1-7.
Remove the O
ķ5HPRYHWKHWZRVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\
Assembly
ĸ7KHQUHPRYHWKH2UQDPHQWDO/LJKW
$VVHPEO\
rnamental
Service Manual
Model No.: /)
16

3-2.
3-2-2. Remove the Back Cover 3-2-4. Remove the power supply
3-2-1. Remove the Stand
3-2-3. Remove the mainboard and
bracket of Side AV
FRYHUIDFHVXSZDUG
ĸ5HPRYHWKHIRXUVFUHZVIURPWKHUHDU
FRYHULQGLFDWHGZLWK
Ĺ7KHQUHPRYHWKHVWDQG
ķ/D\GRZQWKHXQLWVRWKDWUHDU
LQGLFDWHGRQILJXUHDERYHE\
ĸ7KHQUHPRYHWKHEDFNFRYHUIURP
WKHXQLW
L32F6
5HPRYHWKHIRXUWHHQVFUHZV
ķ
RQWKHILJXUHDERYHE\
Ĺ5HPRYHWKH0DLQERDUG
ķ'LVFRQQHFWWKHFRXSOHU&1&1&1
&1&1&1&1&1
ĸ5HPRYHWKHIRXUVFUHZVLQGLFDWHG
Service Manual
Model No.: /)
17

3-2-5. Remove the Speaker
3-2-6. Remove the remote control
LQGLFDWHGRQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKHSRZHUVXSSO\
5HPRYHWKHVFUHZ
WDNHRXWWKHUHPRWHFRQWUROERDUG
Takeoutthespeakerdirectly.
5HPRYHWKHILYHVFUHZV
ķ
3-2-7.
Remove the O
ķ5HPRYHWKHWZRVFUHZVLQGLFDWHGRQ
WKHILJXUHDERYHE\
Assembly
ĸ7KHQUHPRYHWKH2UQDPHQWDO/LJKW
$VVHPEO\
rnamental
3-2-8. Remove the Panel
ķ5HPRYHWKHVL[VFUHZV
LQGLFDWHGRQWKHILJXUHDERYHE\
ĸ7KHQUHPRYHWKHSDQHO
Service Manual
Model No.: /)
18

3-3.
3-3-2. Remove the Back Cover
3-3-4. Remove the power supply
3-3-1. Remove the Stand
3-3-3. Remove the mainboard and
bracket of Side AV
FRYHUIDFHVXSZDUG
ĸ5HPRYHWKHIRXUVFUHZVIURPWKHUHDU
FRYHULQGLFDWHGZLWK
Ĺ7KHQUHPRYHWKHVWDQG
ķ/D\GRZQWKHXQLWVRWKDWUHDU
ķ5HPRYHWKHWZHQW\VFUHZVLQGLFDWHG
RQILJXUHDERYHE\
ĸ7KHQUHPRYHWKHEDFNFRYHUIURPWKH
XQLW
/)
RQWKHILJXUHDERYHE\
Ĺ5HPRYHWKH0DLQERDUG
ķ'LVFRQQHFWWKHFRXSOHU&1&1&1
&1&1&1&1&1
ĸ5HPRYHWKHIRXUVFUHZVLQGLFDWHG
Service Manual
Model No.: /)
19
Other manuals for L26F6
3
This manual suits for next models
2
Table of contents
Other Haier LCD TV manuals

Haier
Haier LY19R1CWW User manual

Haier
Haier L42C300 User manual

Haier
Haier L1949 User manual

Haier
Haier L42T1 User manual

Haier
Haier LE40K6600G User manual

Haier
Haier LE32B8500T User manual

Haier
Haier LE24B600 User manual

Haier
Haier LEC32B33200 User manual

Haier
Haier LT32C360 User manual

Haier
Haier L32A18-AK User manual

Haier
Haier LT42M1CF User manual

Haier
Haier LEB42A300 User manual

Haier
Haier HLT71 User manual

Haier
Haier HLT10 User manual

Haier
Haier HLH26ATBB - 26" LCD TV User manual

Haier
Haier LE19C1320 User manual

Haier
Haier L20AV6-A0 User manual

Haier
Haier HL26P2a User manual

Haier
Haier LE32K6000 User manual

Haier
Haier L32A9A-A1 User manual
