Haier LEB42A300 User manual

Please READ this manual carefully before
operating your TV, and retain it for future
reference.
OWNER’S MANUAL
LED-LCD TELEVISION
LEB32T3/LEB42A300/LEB46T3

Contents
2 LED -LCD television Owner’s Manual
Contents
Warning 3
Important Safety Instructions 4
Introduction 6
Panel Control ....................................................... 6
Connection Option .............................................. 7
Remote Control 8
Battery loading.................................................... 8
Precautions ..........................................................8
Remote Control Function 9
Function introduction.........................................9
External Equipment Connections 10
Antenna Connection .........................................10
Choose Your Connection...................................11

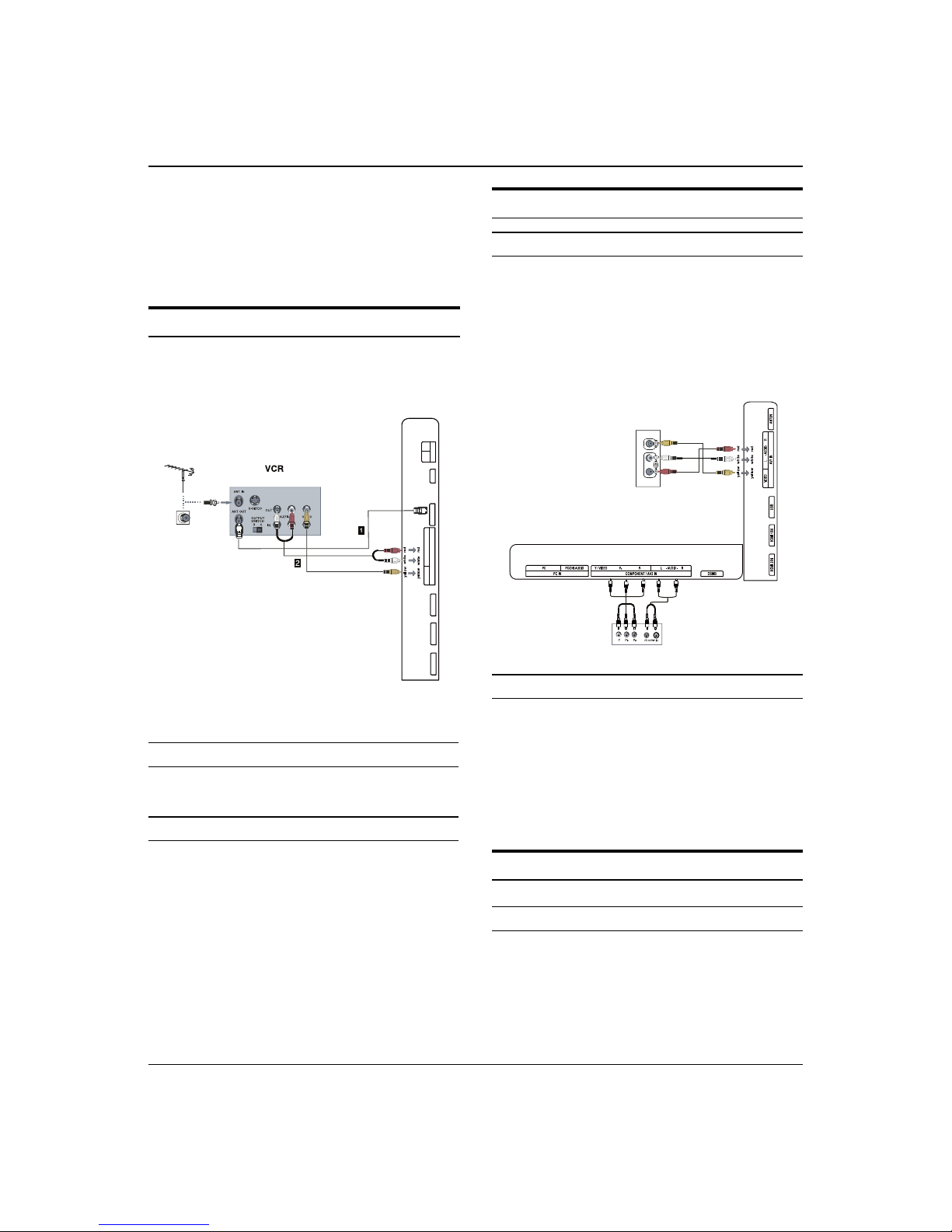

VCR Connection.................................................................. 11
External AV Source............................................................. 11
Connecting a DVD player................................................ 11

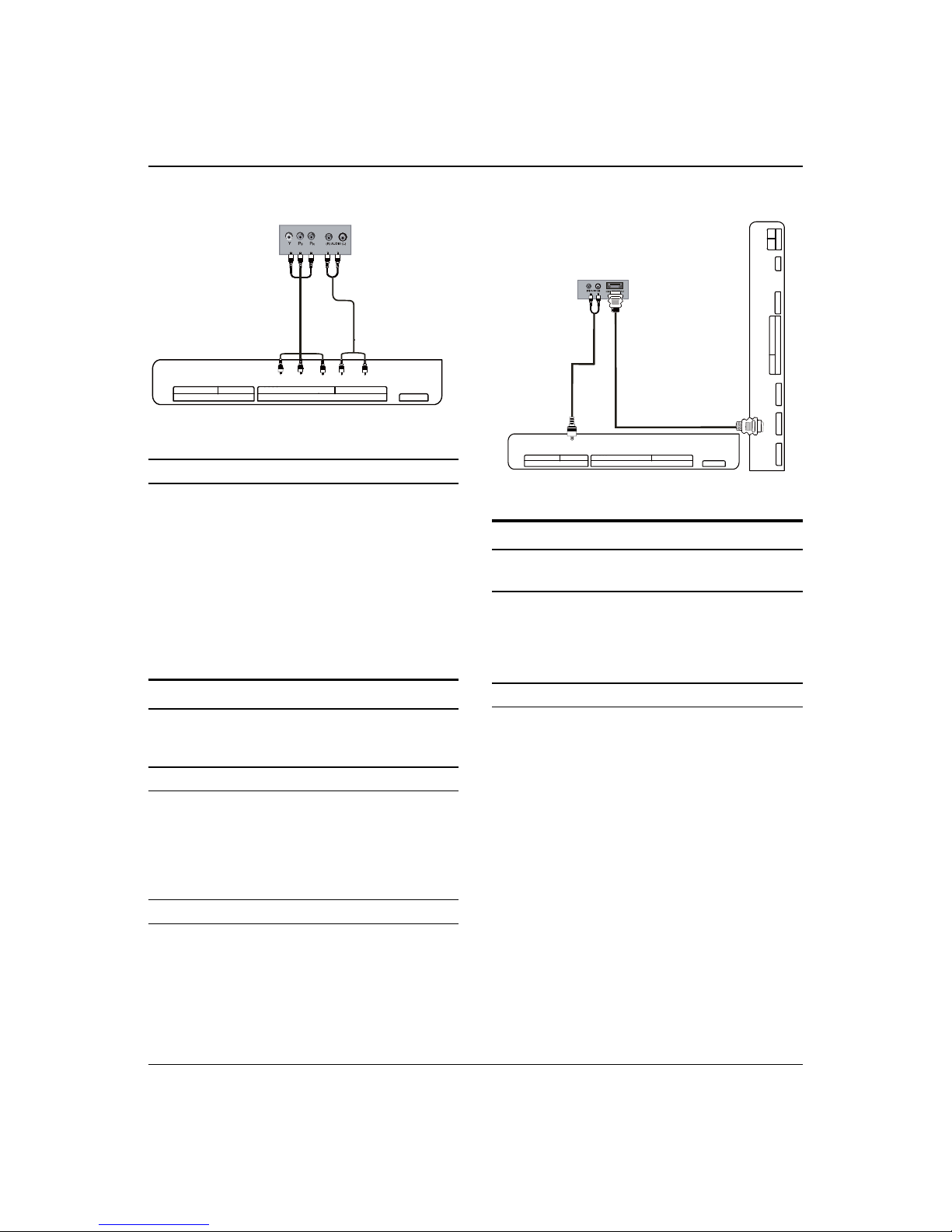

HDMI or DVI Setup............................................................. 12

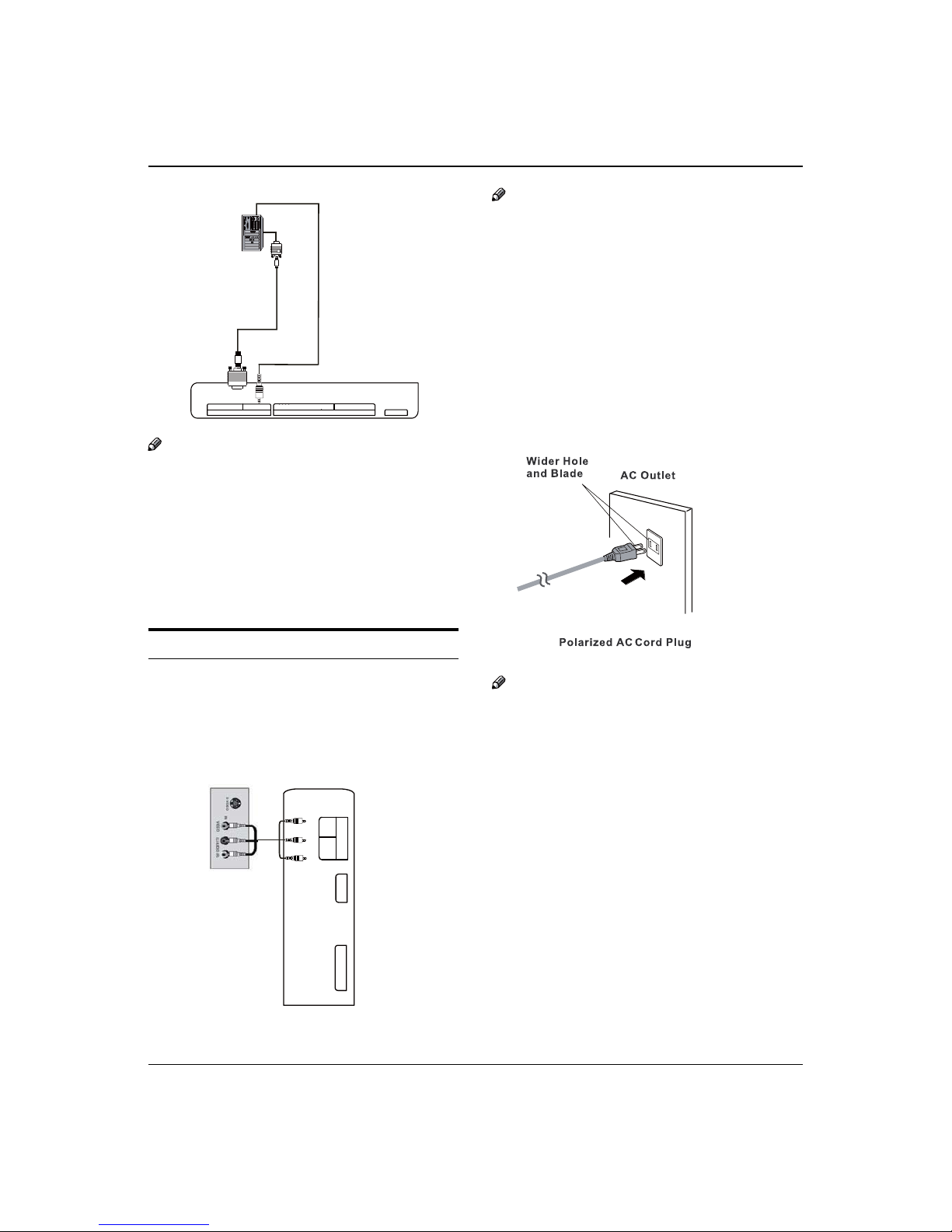

PC Setup ................................................................................ 12
Monitor Out Setup............................................................. 13
Connecting Headphones ..................................12
Power source......................................................12
Basic Receiving and Playing
Operations 14
Switching ON/OFF the TV set ...........................14
Switching ON/OFF the TV set ........................................ 14

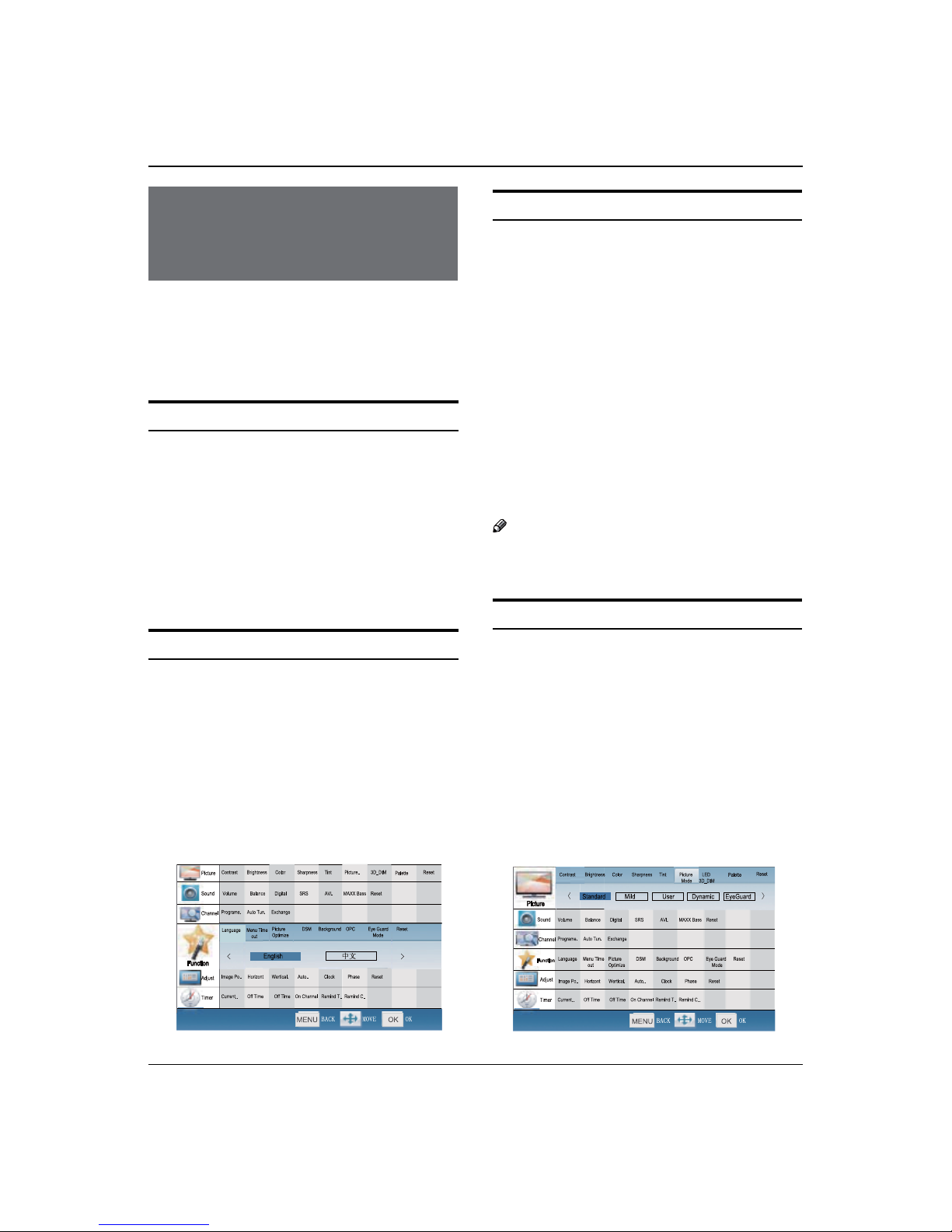

Choose the Menu Language.......................................... 14
Choose the Input source ................................................. 14
Picture Menu .....................................................14
How to select the picture mode ................................... 14

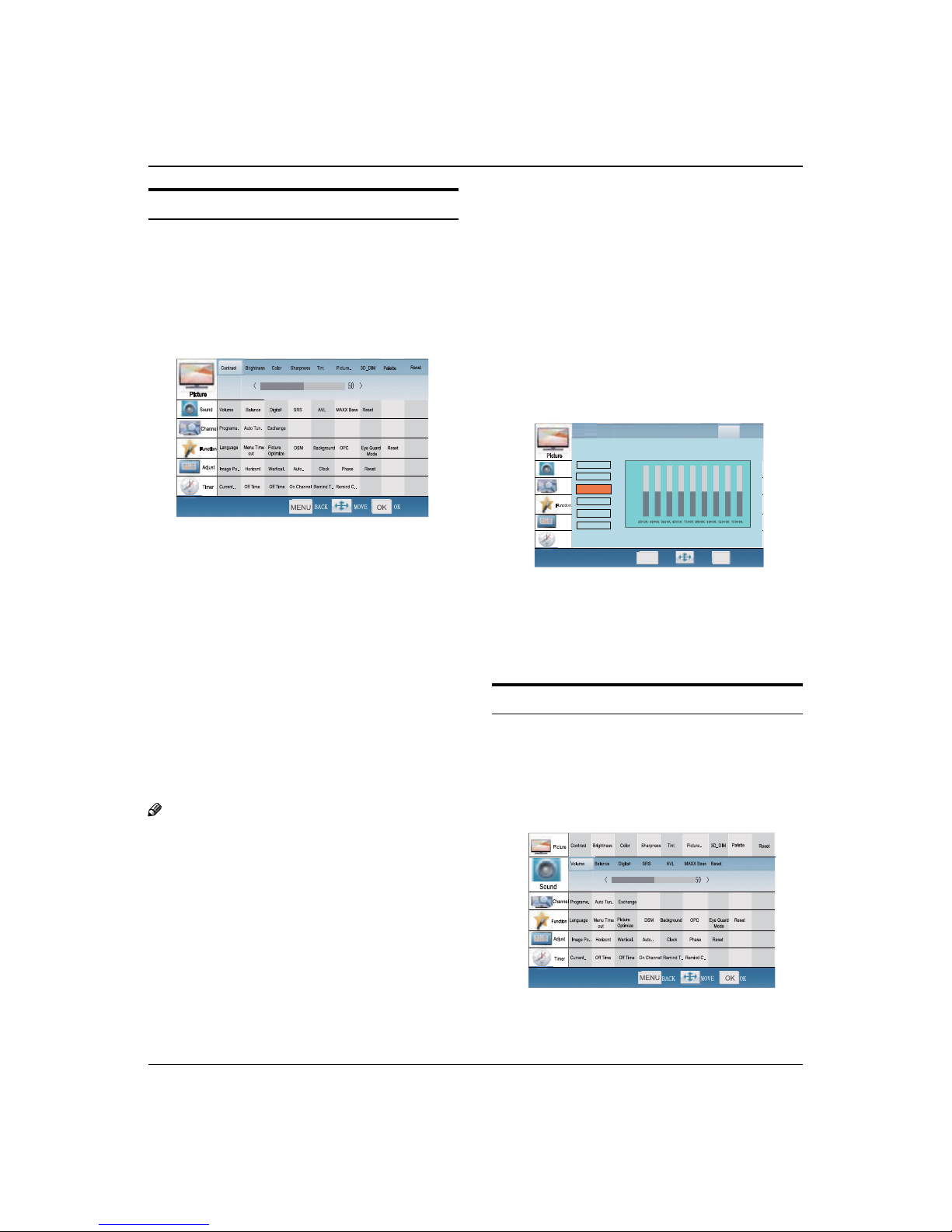

How to customize your own picture status.............. 15
Sound Menu.......................................................15
How to select the sound mode..................................... 15

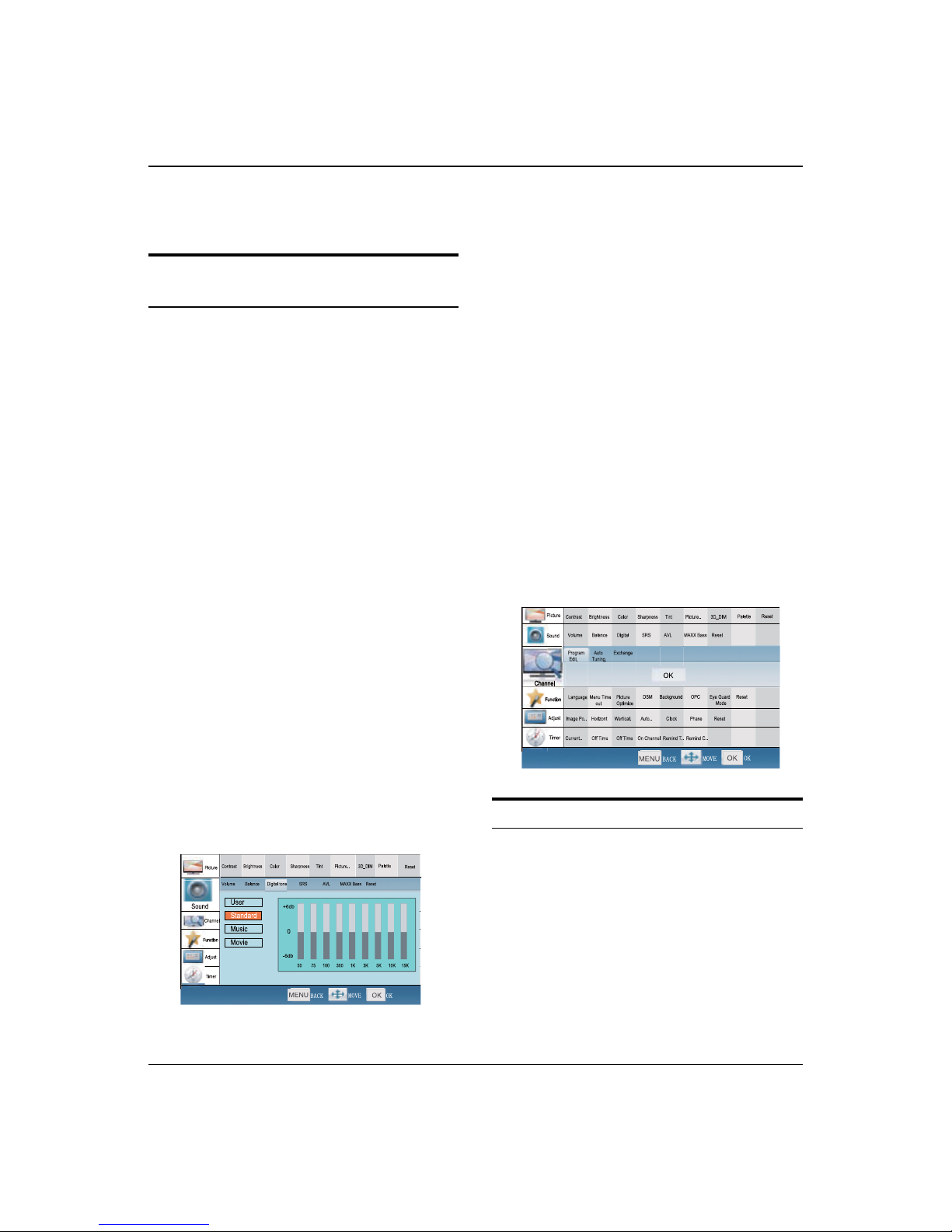

How to customize your own sound status................ 16

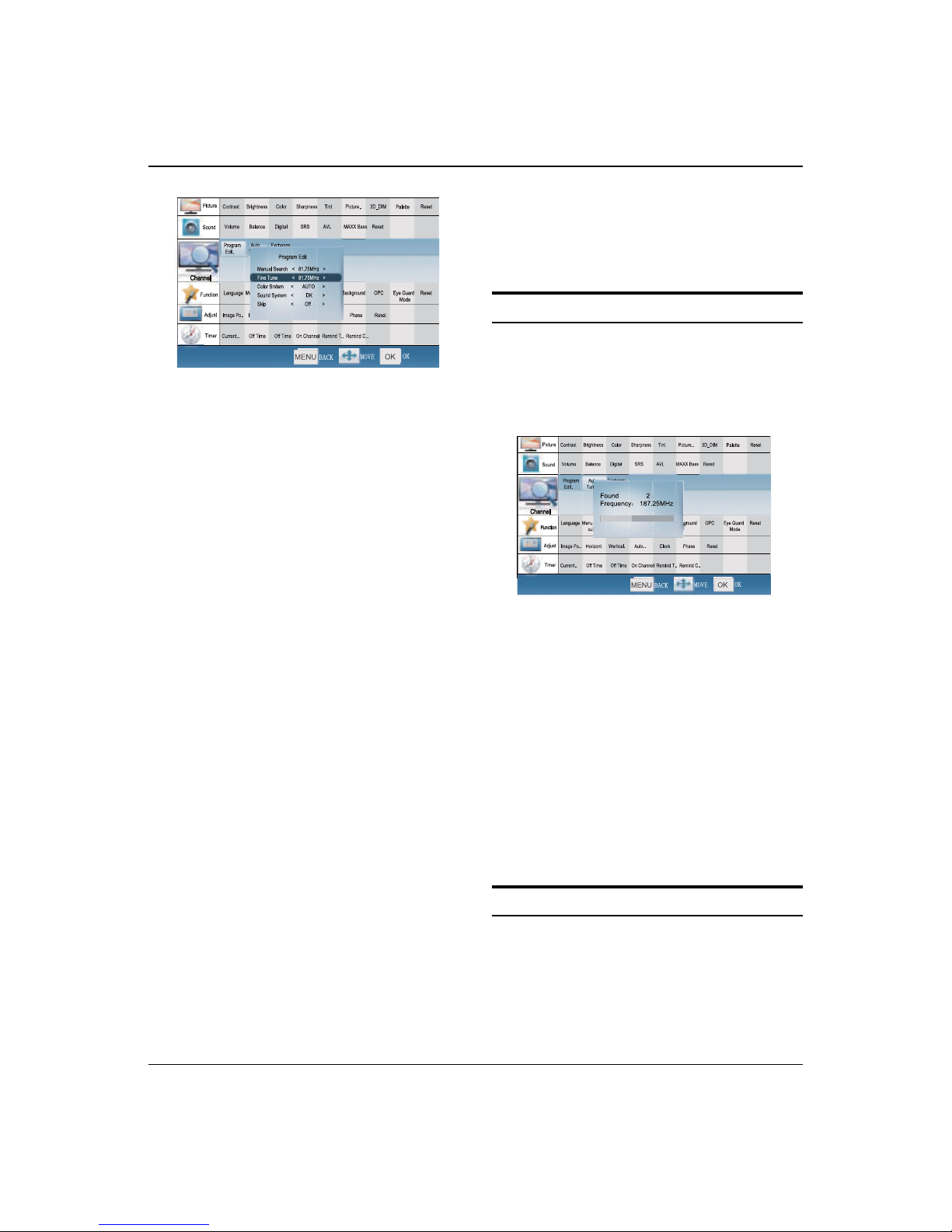

Channel Menu....................................................16
Programme Edit.................................................................. 16
Auto Tuning.......................................................................... 17
Exchange............................................................................... 17

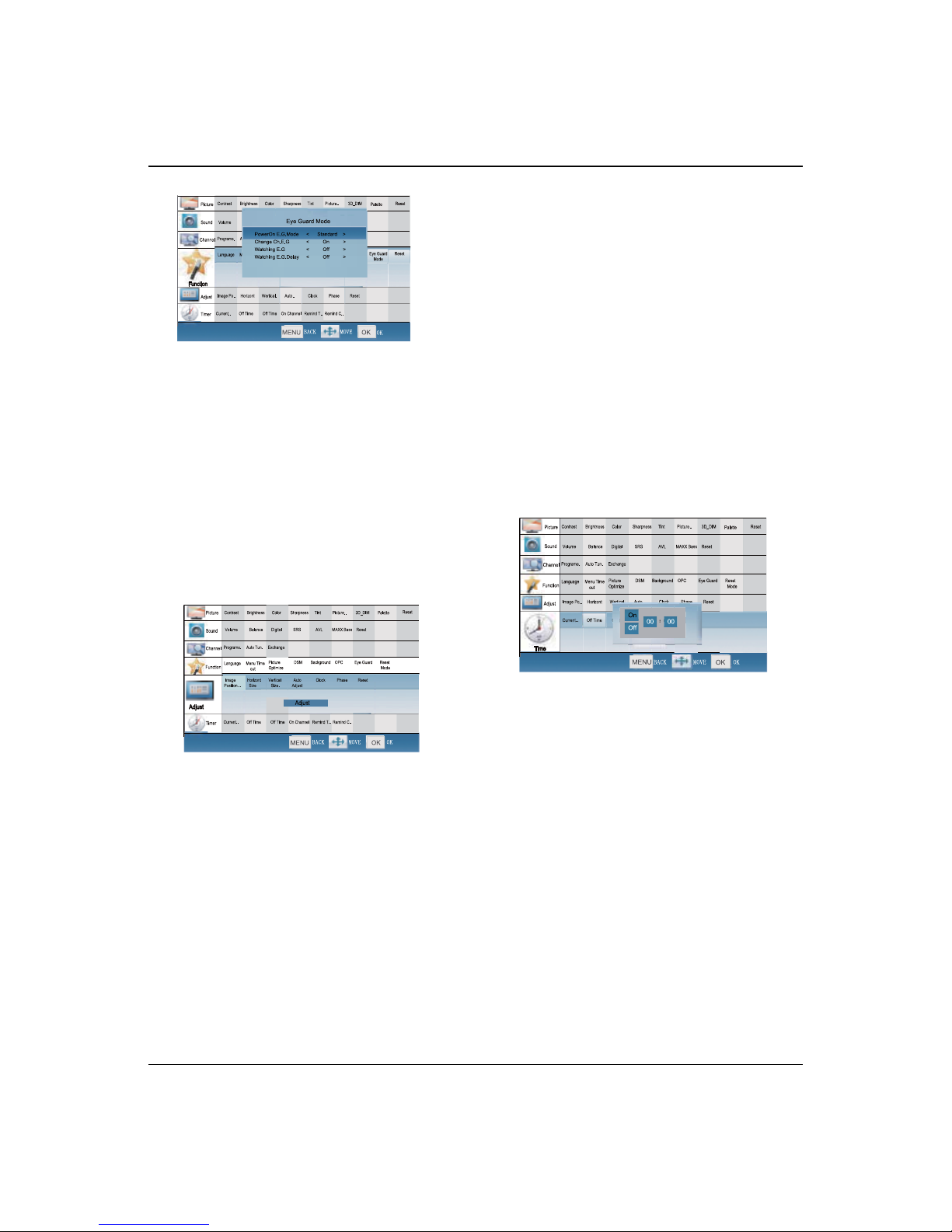

Function Menu...................................................18
Function Menu Set ............................................................ 18
Adjust Menu.......................................................19
Time Menu..........................................................19
Lock Setup..........................................................20
How to use the password function.............................. 20
Streaming Media Playing System ....................21
Start/Exit Streaming Media Playing system.............. 22
Operating Method of Streaming Media Menu........ 22
Playing a Picture................................................................. 22
Playing a Movie................................................................... 23
Playing Music ......................................................................... 23
Text .......................................................................................... 23
Settings ................................................................................... 23
Maintenance 24
Troubleshooting 24
Specification 25
Format 25

Warning
LED -LCD television Owner’s Manual 3
WARNING
!
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
*
To avoid electric hazards, it is strongly suggested that the back cover not be opened, as there is no any
accessory inside the casing.
*
lf necessary, please contact authorized after-sales services.
*
A lighting ash mark in a triangle: A potentially hazardous situation, which, if not avoided, could result in
serious injury by high voltage.
*
An exclamation mark in a triangle: Major part or accessory of which technical specications must be followed if
it is to be replaced.
RISK ELECTRIC SHOCK
DO NOT OPEN
WARNING: To avoid fire or electric hazards, never place your television receiver in an area with heavy
moisture. Attention should be paid to avoid accidental scratches or impacts onto the screen.
CAUTION: Please read this manual carefully before using your television and keep this manual in a
good place for future reference.
 To achieve the best performance of your television, read this User’s Manual carefully and
properly store it for future reference.
 Information of screen displays and figures in the User’s Manual may vary due to technical
innovations.
CAUTION:  Unauthorized disassembly of this product is prohibited.
Warning

Important Safety Instructions
4 LED -LCD television Owner’s Manual
Important Safety Instructions

Important Safety Instructions
LED -LCD television Owner’s Manual 5

Panel Control and Rear Terminals Control
6 LED -LCD television Owner’s Manual
- This is a simplified representation of front panel.
- Here shown may be somewhat dierent from your TV.
Panel Control
LOV
HC
UNEM
TV/AV





1TV/AV Press this key to open/close signal source
options menu.
2MENU Menu display. Press to access the on-screen
menu display.
3VOL +/-
Press to adjust the volume. In the MENU screen,
these buttons serve as right/left buttons.
4CH +/-
Press to scan through channels.To scan quickly
through channels, press and hold down either
+/- . In the MENU screen, these buttons serve
as up/down buttons.
5POWER Press to turn on and o the TV.
Introduction

Remote Control
LED -LCD television Owner’s Manual 7

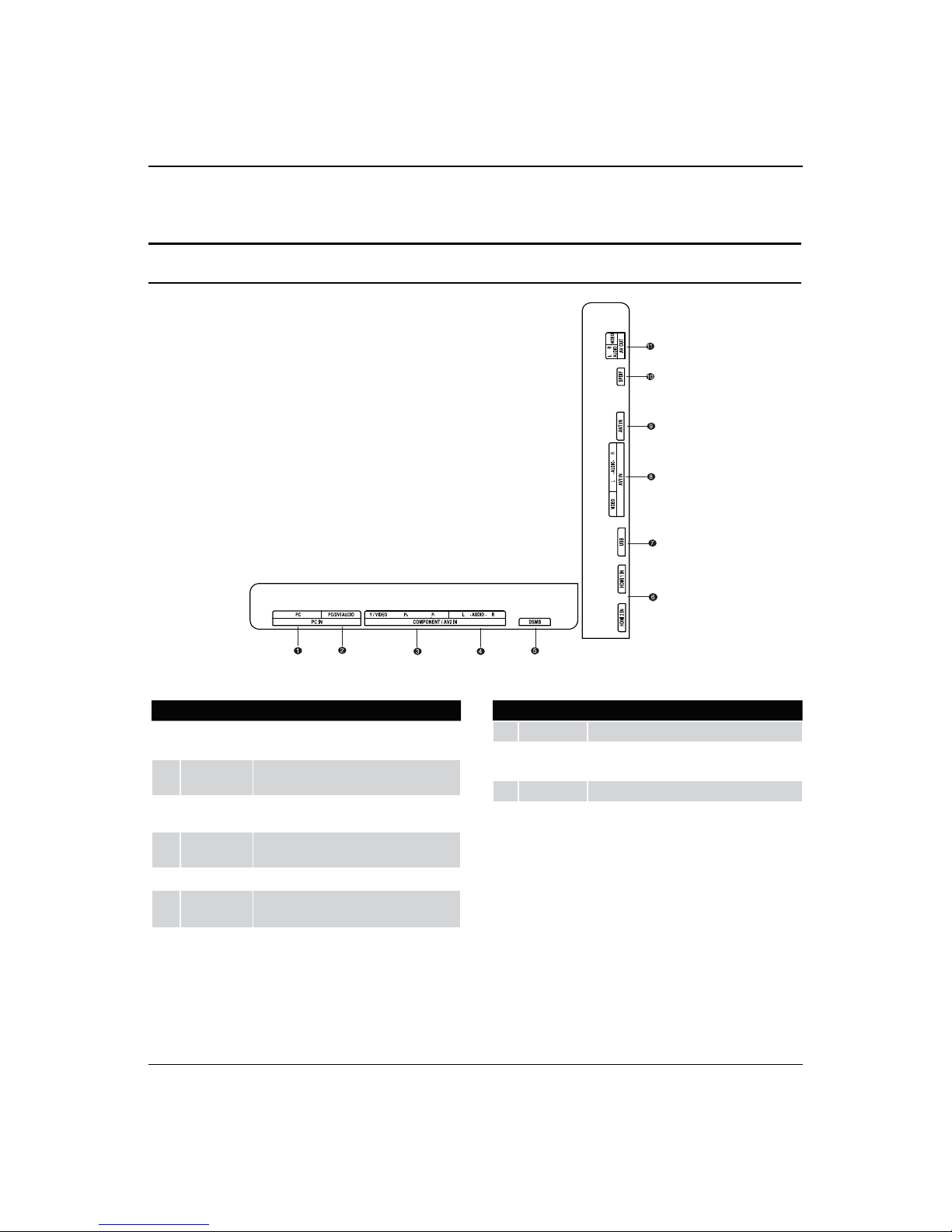

Connection Options
Back panel connections
1PC Video IN Connect a video cable from a computer to this
jack.
.
2PC/DVI Audio
IN
Connect the audio L/R cables from a computer
to this jack.
3Component
Video IN
Connect a component video device to these
jacks.
4Component
Audio IN
Connect the audio L/R cables from the
component video signal source to these jacks.
5DSMB Mo-Box jack .
6HDMI1-2 IN Connect a HDMI device to receive digital audio
and uncompressed digital video.
7USB jack Connect a USB ash drive to view videos,images
or listen music
.
8AV1 IN Connect the video signal from a video device.
9ANT IN Connect cable pr antenna signal to the TV, either
directly or through your cable box.
0SPDIF Digital Audio Optical output.
AAV OUT Connect the audio L/R and video cables to your
other video equipment.

Panel Control and Rear Terminals Control
8 LED -LCD television Owner’s Manual
Remote Control
Battery loading
1. Slide open the cover of the battery compartment on
the back of the remote controller.
2. Load two 7# (AAA) alkaline batteries in the
compartment, (plus and minus poles to respective mark)
3. Replace the cover of the battery compartment.
Precautions
As strong light may interfere the signals, change your
position to operate the remote controller if the television
cannot be turned on or o as you expect.
Keep the remote controller away from heat source or
humid area to ensure eective performance of the
remote controller.
Make sure that two AAA alkaline batteries are loaded.
The batteries must be of the same type. The batteries
must be located properly. The batteries are not
rechargeable.
Make sure that there is no obstacle between the remote
controller and television set.




External Equipment Connections
LED -LCD television Owner’s Manual 9
- The remote control cannot be operated unless the batteries are properly loaded.
- When using the remote control, aim it at the remote control sensor on the TV.
Function introduction
1POWER Press this key to start TV from standby mode, press it again to return to standby
mode.
2USB Press this key for quick switching of streaming media.
3H. LOCK Refer to the Functional Description on Page 20.
4SOURCE Press this key to open/close signal source options menu.
5DSMB Press this key for quick switching of MO-Car.
6STILL
Press this key to freeze the image. Press it again to return to normal screen. (Note:
Do not display a still picture for a long time to prevent the screen from burns.).
7ARC
Press this key to select the screen display proportion.
8MUTE Press this key to mute the sound, press it again to activate the sound. The sound
may be activated by turning theTV on again or increasing the volume.
90-9 These keys are used to select a channel.
0Q. VIEW Press this key to return to the previousTV program(only work in theTV mode).
AVOL+ /- Used to adjust the volume when the screen menu is closed.
BCH+/- Used to select a TV channel when the screen options menu is closed, specically,
press Pto decrease the channel and press Pto increase the channel..
CSound Mode Press this key continuously to select the sound mode.
DPicture Mode Press this key continuously to select the picture mode.
ETV.MENU Press this key to display or exit the main menu.
FD.MENU Press this key to display the Special Function Menu (it functions when special
modules are inserted).
GTHUMBSTICK (Up/
Down/Left/Right)
Allows you to navigate the on-screen menus and adjust the system settings to
your preference.
HOK Press this key to conrm the selection.
IEXIT
Clears all on-screen displays and returns to TV viewing from any menu.
JUSB
Control the USB System.
 Backward  Forward Play/Pause BACK: Back REC: no available
ZOOM: Press to magnify/minify an image D.CALL: Press to display program
information.
KTV.CALL Display on/o.
L
TIMESHIFT
No available.
MVOD No available.
NAUDIO No available.
OPAGE+ No available.
P
GUIDE No available.
QTV/FM No available.
RINFO No available.
SPAGE- No available.
TCH.LIST No available.
UFAV
Press this key to display the favorite program list menu.
VSTOCK No available.
WSLEEP Displaying the sleep time.
XINTERACTION No available.
YFn No available.
ZDDS No available.
[BUSINESS No available.
\GAME No available.
Remote Control Function

Remote Control Function
10 LED -LCD television Owner’s Manual

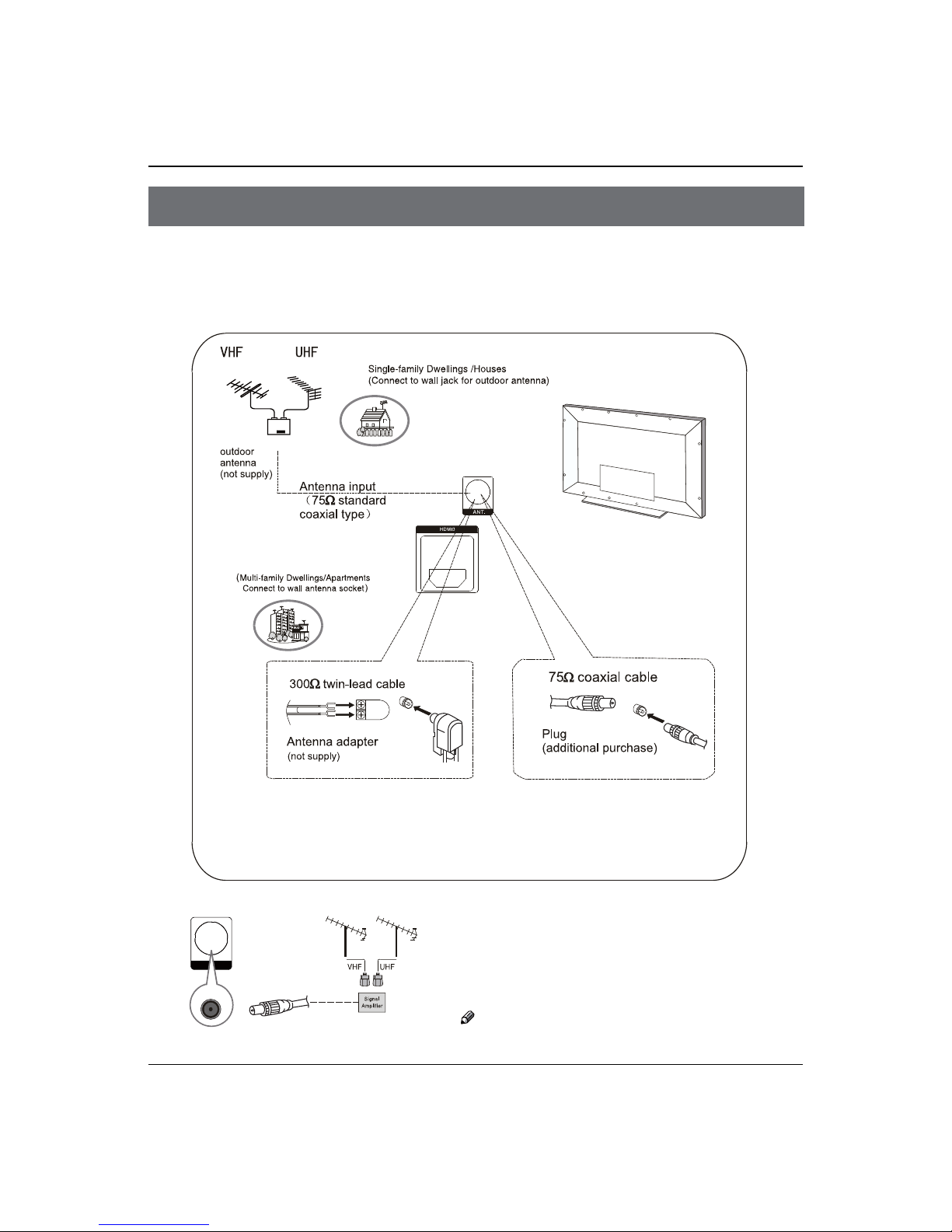

Antenna Connection
- Antenna or Cable Service without a Cable Box Connections.
- For optimum picture quality, adjust antenna direction if needed.
Note:
* It is recommended that you'd better use 757coaxial cable to remove
the disturbance caused by airwave.
* Don't bind antenna cable and electric wire together.
To improve picture quality in a poor signal area,
purchase and install a signal amplifier.
If the antenna needs to be split for two Tv’s, install a
"2-WaySignal Splitter" in the connections.
If the antenna is not installed properly, contact your
dealer for assistance.
Note
All cables shown are not included with the TV.❏
ANT.
External Equipment Connections
