Haier LT26K3A User manual

Please read this manual carefully before
operating the unit, and keep it for future reference.
DIGITAL LCD TELEVISION
INSTRUCTION MANUAL
MODEL: LT26R3A , LT26K3A
LY26R3A, LY26K3A
LTF32R3A, LTF32K3A
LY32R3A, LY32K3A
LTF42R3A, LTF42K3A
LTF42R3B , LTF42K3B

Contents
P.25
P.38
P. 4 0
P.44
P.45
P.02
P.03
P.06
01 Safety Warnings
02 About your LCD TV
03 Getting Started
04 Using the features
05 Reference Sections
P.08
P.09
P.11
P.12
P.13
P.18
P.16
P.19
P.20
P.21
P.23
P.27
P.29
Welcome
Important information
Get to know your TV
Get to know your remote control
Connecting your TV
Preparation of your remote control
Setting up
Tuning your TV
Common interface
Using your TV
Adjusting picture settings
Adjusting sound settings
Function settings
Time settings
Lock menu settings
Shortcut menu display
Teletext function
USB mode
Using External USB Disk For Recording
Using your DVD player(certain models only)
Troubleshooting
Specification
P.31

WELCOME
01 Safety Warnings
Thanks for buyingthis 26"/32"/42" HDReady Digital LCD TV.
This guide willhelp you set up and beginusing your TV.
First, check the contents of your box with the parts checklist below:
26"/32"/42"HD Ready DigitalLCD TV
Remote control
AAAbattery x2
Instruction Manual
Now you can get started!

IMPORTANT INFORMATION
WARNING
*To avoid electric hazards, it is strongly suggested that the back cover not be opened, as
there is no any accessory inside the casing.
*If necessary, please contact authorized after-sales services.
*A lighting flash mark in a triangle: Apotentially hazardous situation, which, if not avoided,
could result in serious injury by high voltage.
*An exclamation mark in a triangle: Major part or accessory of which technical specifications
must be followed if it is to be replaced.
Warning:
To avoid fire or electric hazards, never place your television receiver in an area
with heavy moisture. Attention should be paid to avoid accidental scratches or
impacts onto the screen.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Caution:
Please read this manual carefully before using your television and keep this
manual in a good place for future reference.
To achieve the best performance of your television, read this User's Manual
carefully and properly store it for future reference.
Information of screen displays and figures in the User's Manual may vary due
to technical innovations.
Caution:
Unauthorized disassembly of this product is prohibited.
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The product should be tightly fixed to avoid
drop damages and even fire.
To avoid fire hazards, do not use this
product under direct sunlight or closely
to heat sources.
Do not locate the product close to water
or oil, which may cause fire hazards.
Unplug the power supply and antenna of
the product when there is a rainstorm,
especially
Thunderstorm.
Do not use damaged or worn electric plugs
and keep electric cord away from heat sources
to avoid electric shocks or fire hazards.
Do not connect excessive sockets in parallel
or share the same socket by multiple plugs
to avoid fire hazards.
The product must be placed on a solid and
stable surface to avoid collapse.
Unauthorized disassembly of the television
is prohibited to avoid electric shocks or fire
hazards. Contact
authorized after-sales
service if technical
service is needed.
Keep the product away from a transformer
or heat source to avoid fire hazards.
Disconnect the product from power supply
and contact authorized after-sales service
if abnormal sound is heard in the product.

Don't use or store inflammable materials
near the product to avoid explosion or fire
hazards.
Don't place the product in a humid area to
avoid fire hazards.
The antenna of the product should be away
from electric cable to avoid
electric shocks.
Never touch the plug when your hand is wet
as this might cause electric shocks.
Always make sure that the televisionis well
plugged as poor electric
connection might cause fire.
When antenna is used, measures should be
taken to prevent water
from flowing down
along the cable into
the television.
Unplug the television, use soft fabric, never
chemicals, if you are going to make
cleaning of the product.
Make sure that no
water drops in the
product.
The plug and electric cable must be kept
clean to avoid electric
shocks or fire
hazards.
Disconnect the television from power supply
and antenna when there is a
rainstorm or thunderstorm
to avoid electric shocks
or fire hazards.
Disconnect the television from power supply
to avoid electric shocks or fire
hazards in a long
vocation.

About your LCD TV

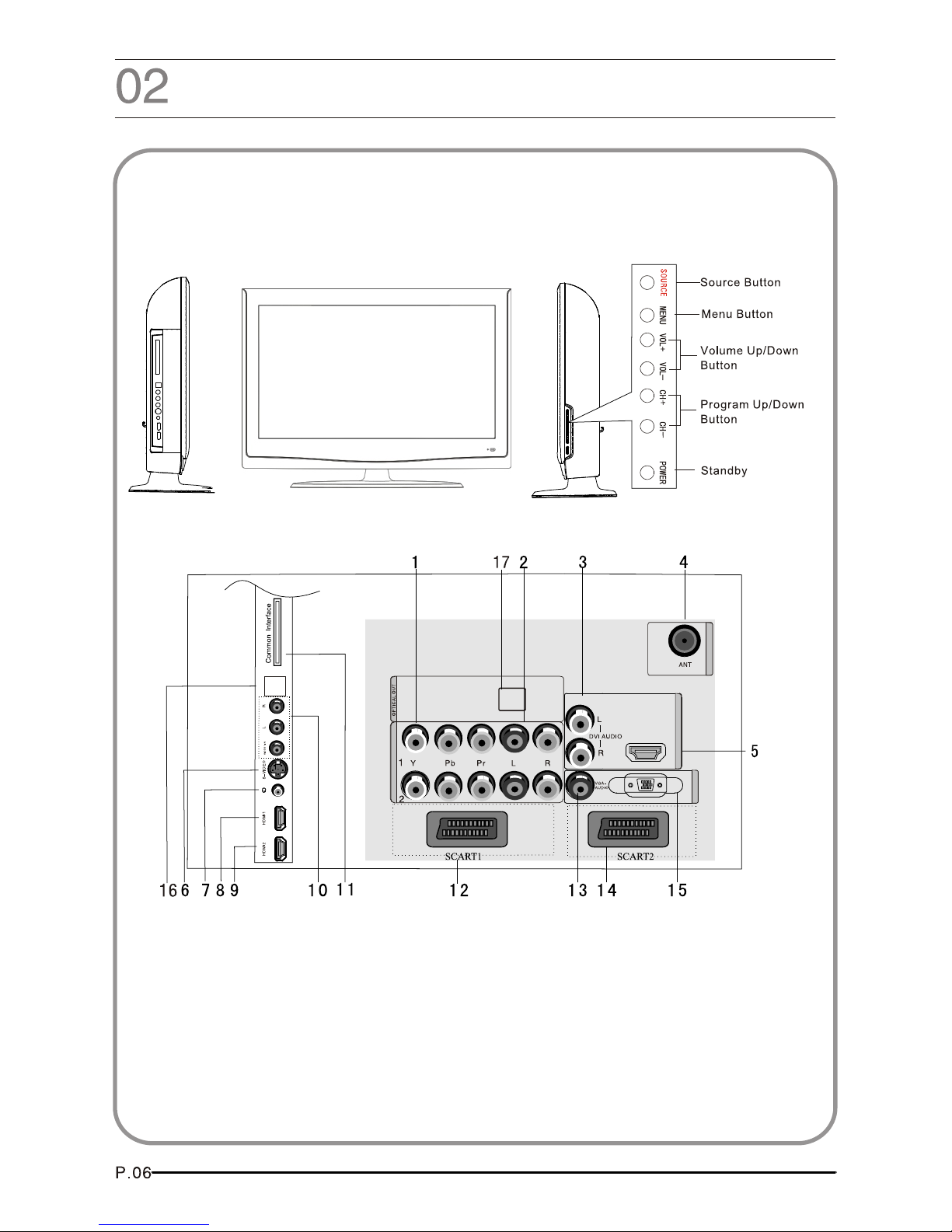

GET TO KNOW YOUR TV
USB
2 1REC
17.OPTICAL
Front control panel
1. YPbPr input
2. YPbPr AUDIO input
3. DVI AUDIO input
4. ANTENNA input
5. HDMI3 input
6. S-VIDEO input
7. EARPHONE output
8. HDMI1 input
9. HDMI2 input
10. input
11. Common Interface
12. SCART1 input
13. VGA AUDIO input
14. SCART2 input
15. VGA input
16. USB
AV
COMPONENT IN
HDMI3
VGA IN
ANT IN
Rear Terminals Control

GET TO KNOW YOUR TV WITH DVD
17.OPTICAL
Front control panel
1. YPbPr input
2. YPbPr AUDIO input
3. DVI AUDIO input
4. ANTENNA input
5. HDMI3 input
6. S-VIDEO input
7. EARPHONE output
8. HDMI1 input
9. HDMI2 input
10. input
11. Common Interface
12.SCART1 input
13.VGA AUDIO input
14.SCART2 input
15.VGA input
16.USB
AV
USB
2 1REC
COMPONENT IN
HDMI3
VGA IN
ANT IN
Rear Terminals Control

When using theremote control, aimit
towards the remotesensor on theTV Stand By
DVD Menu / REC
DVD open / close
Picture Mode
Sound Mode
Call Screen Display
Sleep button
DTV Audio / NICAM / DVD Audio
Aspect Ratio Control button
Channel list button
Subtitle button
Program Number Channel selection
Source Exchange
Q.VIEW / Swap Channel
V+/V- : Volume selection
P+/P-: Channel selection
Mute
Menu button
GUIDE button (only for DTV)
Favourite list button
OK button
Cursor Mover button
Back button (only for USB)
Exit Screen Display
REPEAT (only for DVD , USB , REC & Timeshift) /
CANCEL button
Zoom (only for DVD &USB)/Teletext index(only for
TV) / REC index
Play / Pause button (only for DVD &USB) / Timeshift
Stop (only for DVD, USB, REC & Timeshift)
Fast Reverse (only for DVD, USB, REC & Timeshift)
Fast Forward (only for DVD, USB, REC & Timeshift)
Previous (only for DVD, USB, REC & Timeshift)
Next (only for DVD, USB, REC & Timeshift)
DVD Set up / Text
DVD Title / Teletext Mix
DVD Search / Teletext Subcode
DVD 10+ / Teletext Hold
DVD Program / Teletext Reveal
DVD A-B Repeat / Teletext Size
DVD Call / Teletext Mode
DVD Angle /Teletext Time
NOTE:RED button ,GREENbutton
BLUE button and YELLOW button arefast
text button inanalog signal .Function
button in DVBT(just reference theOSD)
SCREENSCREEN
STOPSTOP
..
GET TO KNOW YOUR REMOTE CONTROL

L R Y Pb Pr
DVD
CONNECTING YOUR TV
ANTENNA CONNECTION
Connect your aerialto the of the TV into the ANTENNAIN socket.
IMPROVE YOUR SIGNAL
Toimprove picture qualityin a poor signal area, use a signal amplifier
(not supplied).
CONNECT YOUR PC TO THE TV
You can use your TV as a monitor for your personal computerby connecting it
with a VGAcable (not supplied).
1.Read yourcomputer user guideand check it has a VGAconnector.
2.Turn the power off on your TV and PC.
3.Connect aD type 15-pinVGA interface cable to the VGA video interface
connector on thePC. Connect the other end of the cable to the PC interface
connector on theTV. Tighten the screws on the VGA connectors and connect
the audio cable(not supplied) tothe audio input socket on the back of theTV.
4.Turn on the power of the TV firstly and then the PC.
5.Press the button on theTV or TV remote control to set the video input mode
to VGA.
6. Oncethe image shows,if there is noise present, change the VGAmode to
another resolution, changethe refresh rateto another rateor adjust the
brightness and contraston the menuuntil the pictureis clear.
back
CONNECT ADVD PLAYER TO YOUR TV
Connect the DVD video outputs (Y, Pb, Pr) to the
COMPONENT (Y, Pb, Pr)
IN socket onyour TV.
1 . Turn on the DVD player and insert a DVD.
2 . Press the buttonto select .
3 . Refer to the DVD player user guide for operating
instructions.

CONNECT ADVD PLAYER OR VCR TO YOUR TV
There are twoways in which you can connecta DVD player or VCR to your TV.
Make sure that both the TV and DVD player or VCR are switched off before you
connect them.
Connection Option 1
1.Connect theaudio and S-VIDEO cables from theVCR output jacks to the TV
input jacks.
2.Insert a video tape into the VCR and press PLAY on the VCR.
3.Turn on the powerof the TV first, then the VCR.
4.Press theSOURCE button on the TV to set the video input mode to S-VIDEO.
Connection Option 2
1.Connect theAV DVD/VCR outputsto theAV IN socket onyour TV.
2.Press theSOURCE button on the TV to set the video input mode to AV.
SCART INPUT
1.Connect the scart lead from the external device (DVD player, Set-top box
or games console)to the TV scart socket.
2.Press the SOURCE button to select SCART mode.
3.Press the PLAY button on the external device.
HDMI INPUT
1.Connect thecable from the HDMI device tothe TV HDMI socket.
2.Press the SOURCE button to select HDMI mode.
3.Refer to the HDMI device user guide for how to operate.
MOUNT YOUR TV ONTO THE WALL
You can mount yourTV onto the wall byusing a wall bracket (not supplied).
Use M4/M6 machine screws (4 pcs) to screw the TV onto the bracket (not
supplied).

BATTERY INSTALLATION
1.Place the remote control face down, then open
the cover ofthe battery compartment.
2.Install two AAA batteries. (The + and- symbol
of the battery must match with the marks on the
remote).
3.Close thecover of thebattery compartment.
BATTERY CAUTION
Confirm there isno object between the remote
control and theremote sensor of the TV set.
Sunshine or otherstrong light will interfere with
the signal sent by the remote control. In this
situation turn the TV set to avoid the direct light
source.
Do not put the remote control in direct heat or in
a damp place as you may damage the remote.
Please use two AAA 1.5V batteries. Do not mix
battery types. Install the batteries at the correct
polarities. Do notuse rechargeable batteries.
If your TV is to be stored for a period of time,
remove the batteries from the remote control.
PREPARATION OF YOUR REMOTE CONTROL

03 Getting Started
LOCATION
You will need to place your TV near your plug socket (so the power cablecan comfortably
reach) and withinreach of youraerial socket orextension lead.
CONNECTION
1. Insert yourTV aerial lead into the Antenna input at the sideof the TV.
2. Insert thebatteries into theremote control. Makesure they are inserted the right
way around, matchingthe polarity asindicated inside the battery compartment.
SWITCHING YOUR TV ON
1.Press the STANDBY button on theright side of the TV once. Ared flashing lightwill
appear in thecorner of thescreen.
2.Press STANDBY on the remotecontrol. The TV will turn on and the red light will turn
blue. This may take afew moments.
3.Select your chosenlanguage when prompted from the list that will appear on
screen. Use the button to scrollto the language you want and press to confirm.
Setting up

1. Press MENU button.
2. Press button to select Tuning menu, press button to enter.
3. Press button to select Country item.
Press button to select you needed.
4. Press button to select Auto Search item, press OK button to
enter.
Press button to select the OK option, and press OK button
to start searching.
Press the MENU button ,you can choose to skip the TV /DTV
Search or not.
5. Press EXIT button to stop auto search during searching.
Note: It may take a few moments to complete the Auto
Search.
1. Press MENU button.
2. Press button to select Tuning menu, press button to enter.
3. Press button to select Digital Manual Search item,
press button to enter.
4. Press button to select the Channel.
Press OK button to start searching.
5. Once a channel is located, you can press OK button to save it.
Press EXIT button to exit.
DIGITAL MANUAL SEARCH
If you have attached a DVD player or similar external device
to the TV, you will need to tell the TV to display the content
from it. Simply press SOURCE which will bring up the source
menu in the left corner of the screen, Use the and button
to highlight the required source and press OK select.
For details of how to plug in other equipment see GET TO KNOW
YOUR TV on page 6.
AUTO SEARCH
TUNING YOUR TV
SWITCHING TO AN EXTERNALSOURCE OTHER THAT TV
Input SourceInput Source
TV
AV
SCART1
SCART2
S-Video
Component1
Component2
PC
HDMI1
HDMI2
HDMI3
USB
TV
AV
SCART1
SCART2
S-Video
Component1
Component2
PC
HDMI1
HDMI2
HDMI3
USB
Input SourceInput Source
TV
AV
SCART1
SCART2
S-Video
DVD
Component
PC
HDMI1
HDMI2
HDMI3
USB
TV
AV
SCART1
SCART2
S-Video
DVD
Component
PC
HDMI1
HDMI2
HDMI3
USB
OK
OK
OK
OK
OK
OK
Menu
OK
EXITEXIT OKOK MENUMENU
OK
OK
OK
OK
OK
OK CANCEL
OK
OK
OK
OK
OK
OK
Menu
OK
UHF CH 26
OK
OK
OK
OK
OK
OK
Menu
OK

EXITEXIT SAVESAVE
Sound System
Current CH
Press button toselect the channel number to edit.
Storage To
Press button toselect the program number you
want to storageto.
Fine tune
Press button toselect "Sound System", then press
button to selectthe correct sound system.
1 Repeat abovesteps 1-3, thenpress button to select
the Fine Tuneitem.
2 Press buttonrepeatedly to carry out fine tune,till the
best picture andsound are obtained, then loosen thebutton.
If the pictureand/or sound are poor, tryusing the FINE
TUNE feature. Donot use thisfeature unless reception
is poor.
Analog Manual Search
Follow the belowsteps when you need to have a manual search.
1. Press MENUbutton.
2. Press buttonto select Tuning menu, press button to enter.
3. Press buttonto select Analog Manual Searchitem,
Press button toenter.
4. Press buttonto select Search item, press buttonis used
to select thehigher frequency channel.
Press button isused to select the lower frequencychannel.
5. Andthen select Storage To,press button toselect the position
number you wantthe channel on. Once a channelis located,
you can pressred button to save it. PressEXIT button toexit.
TUNING YOUR TV
OK
OK
OK
OK
OK
OK
Menu
OK

NAME MOVE SKIP FAV
Channel Edit
Using this function,you can rename,move, set favorite
channel and skipthe channel inthe analogue mode.
1.Press MENU button.
2.Press button toselect TUNING menu, press button
to enter.
3.Press button toselect CHANNEL EDIT item,
Press button toenter the sub-menu.You can press red,
green , yellow or blue button to enter the menu you need.
RENAME
1.Press button toselect the channel , and press green
button to rename.
2.Press button toselect the number position of channel
name, Press buttonto select number.
3.You can press the EXIT button to cancel the changes
at anytime.
NOTES:The RENAME functionis only available in ATV program.
MOVE
1.Press button toselect the channel any press yellow button to select the position.
2.Press button toselect the number position you want to remove to, press
yellow button to confirm.
3.You can press the EXIT button to cancel the changes at anytime.
Setting favourite channel
1.Press button toselect the channel ,press Red button to set your favourite channel.
2.You can press the Red button to cancel the changesat anytime.
3.Press FAV button on the remote control and Favourite Listwill be displayed.
4.Press button toselect the channel , and pressOK button toenter.
SKIP
1.Press button toselect the channel and press blue button to skipthe current channel.
2.You can press the blue button to cancel the changesat anytime.
GUIDE (Electronic ProgramGuide)
Using this function,you can accessthe DTV program
information
1.Press MENU button.
2.Press button toselect TUNING menu. press
button to enter.
3.Press button toselect the guide item.
Press OK button to enter the submenu, the electronic
program guide is displayed.
You can quickly call up Guide menu by GUIDE
button on the remote control.
Notes: Only DTV mode.
TUNING YOUR TV
BBC ONE Wales
INFO Record Schedule DATE REMIND OK
OK
OK
OK
OK
OK
OK
Menu
OK
OK
OK
OK
OK
OK
OK
Menu
OK

COMMON INTERFACE
The common interface(CI) slot is designed to
accept the Conditional Access (CA) Module and
Smart card inorder to view the pay TV programmes
and additional services.Contact your Common
Interface service provider to get more information
about the modulesand subscription. Please noted
that CAmodules and smart cards are neither
supplied nor optionalaccessories from us.
Warning: switch off your TV before any module is inserted in the
Common Interface slot.
1 Insert the CAM correctly, then Smart Card to the
CI slot thatis located atthe side of the TV.
2 Turnon the TV and it will display thebelow
message if the CA module is detected. Wait
for few moments until thecard is activated.
3 Press the MENUbutton to display the Main
Menu and usethe and button to highlight
the " " line andpress the "OK" button.
4 Detailed information on theCI card inuse is displayed.
5 Press OKbutton to access the cardmenu. Refer to the module
instruction manual for setting details
6 When moduleis removed, the following messagewill appear on
the screen.
CI information
OK
OK
OK
OK
OK
OK
Menu
OK
CI module removed
Main Menu
Module information
Smart card information
Language
Software Download
Press OK to select,or Exit toquit
CI Module Insert

OK
OK
OK
OK
OK
OK
Menu
OK
OK
OK
OK
OK
OK
OK
Menu
OK
Software Update function
When you get the updating news from the TV shop's web,
you can update the operating software using the Download
menu. The data for various units are transferred consecutively
on a special receiving channel.
You need to search the channel with updating code stream.
Note: You can get information from the TV shop or internet.
1 Press MENU button.
2 Press button to select TUNING menu,
press button to enter.
3 Press button to select Software Upgrade item.
4 Press button to set it as On. The default is Off
5 If the updating code stream of the channel is suitable for
your set, Do System Update option can be selected. Otherwise
the Do System Update option is grey and cannot be selected.
6 Press button to select the System Update option and
use OK button to enter. Then the TV will restart and search
the upgrade information.
NOTES: If the upgrade information is received, the TV will begin
to upgrade. Or else, the TV will be back the DTV source.
7
you can press EXIT button to cancel the download
and your TV set will be standby.
8 After the download has finished, your TV set will enter burning
state and the indicator light is shining. The menu 4 of right appears.
The set will be standby when the update is completed.
Load the receiver identification. This process may also take
several minutes.
Operation
Are you sure?

USING YOUR TV
How to select the TV program
1.Using Program numberbutton Enter the channel number with the number keypad on
the remote control.
2.Using P+/P- button
Press the P+/P-button to select a channel number.
HOW to adjust volume
Press V+/V-button on the remote control or the side of the TV to adjust the volume level.
CH.LIST function
Press CH.LIST button on theremote control willdisplay Channel List menu, and then
press button to enter.
Press button toselect the channel, and then press OK button to enter.
